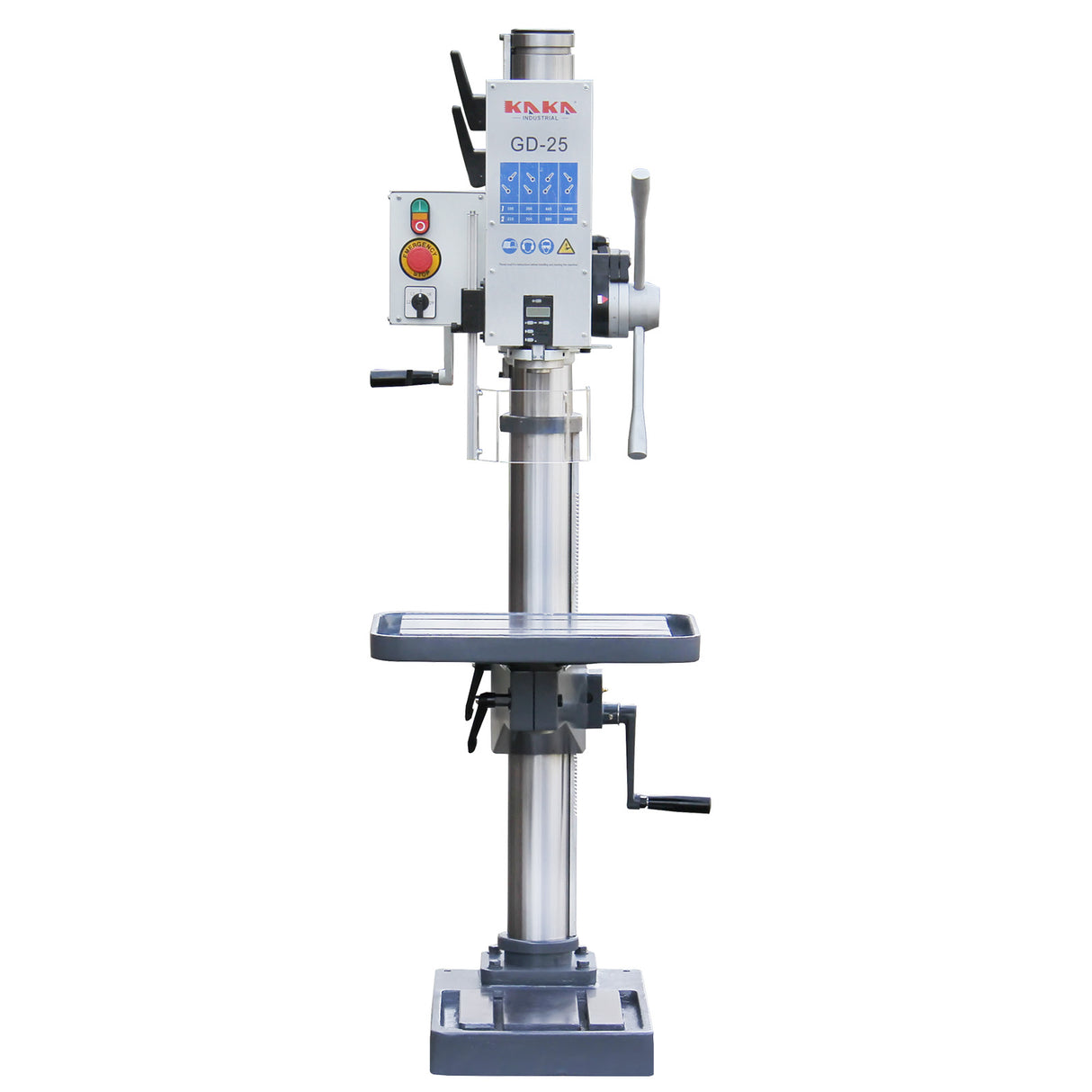

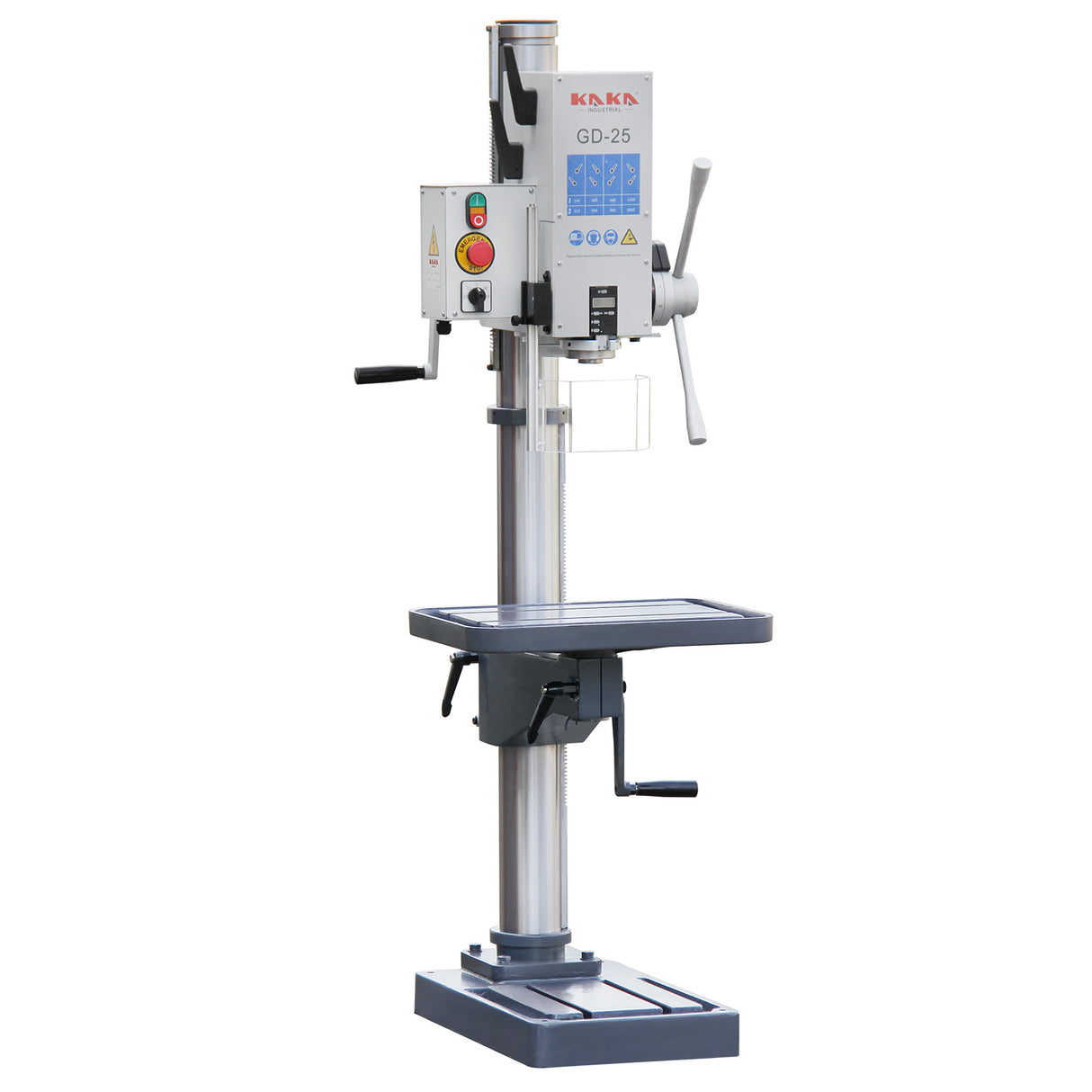

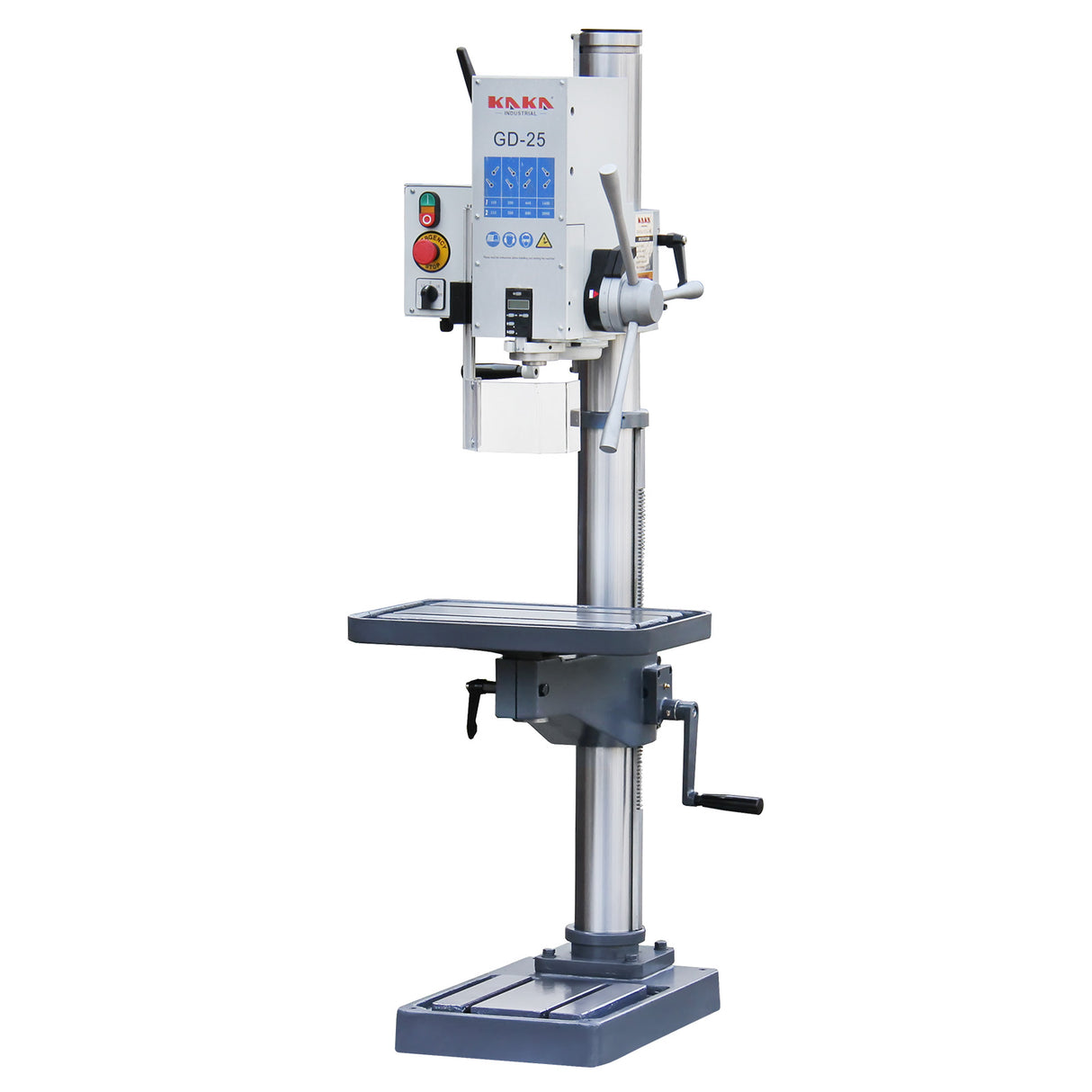

Floor Drill Pres,Swing 20 in, Max Drilling 0.98-Inch in Steel, 0.9kW 220V 3-Phase Gear Head, 8-Speed (130-3200 RPM), Cast Iron Construction, MT3 Taper Spindle, DRO Depth Control GD-25
Floor Drill Pres,Swing 20 in, Max Drilling 0.98-Inch in Steel, 0.9kW 220V 3-Phase Gear Head, 8-Speed (130-3200 RPM), Cast Iron Construction, MT3 Taper Spindle, DRO Depth Control GD-25 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
High Speed Drilling Machine
This gear-driven vertical drill press offers up to a 1" drilling capacity. It features an 8-speed spindle and a two-speed motor equipped with forward and reverse switches.

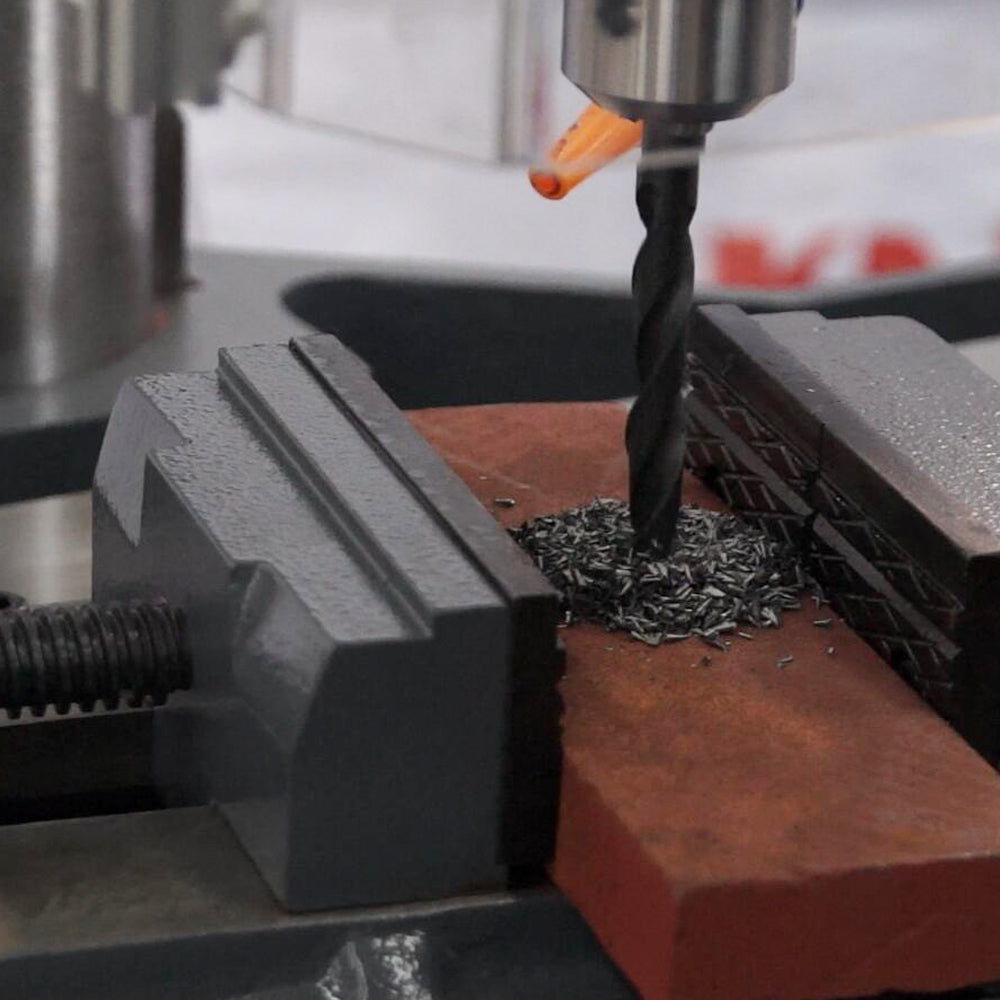

Gearhead vertical drill presses are commonly used for drilling into various metals, including steel, aluminum, brass, and cast iron.
Flexibility and Versatility

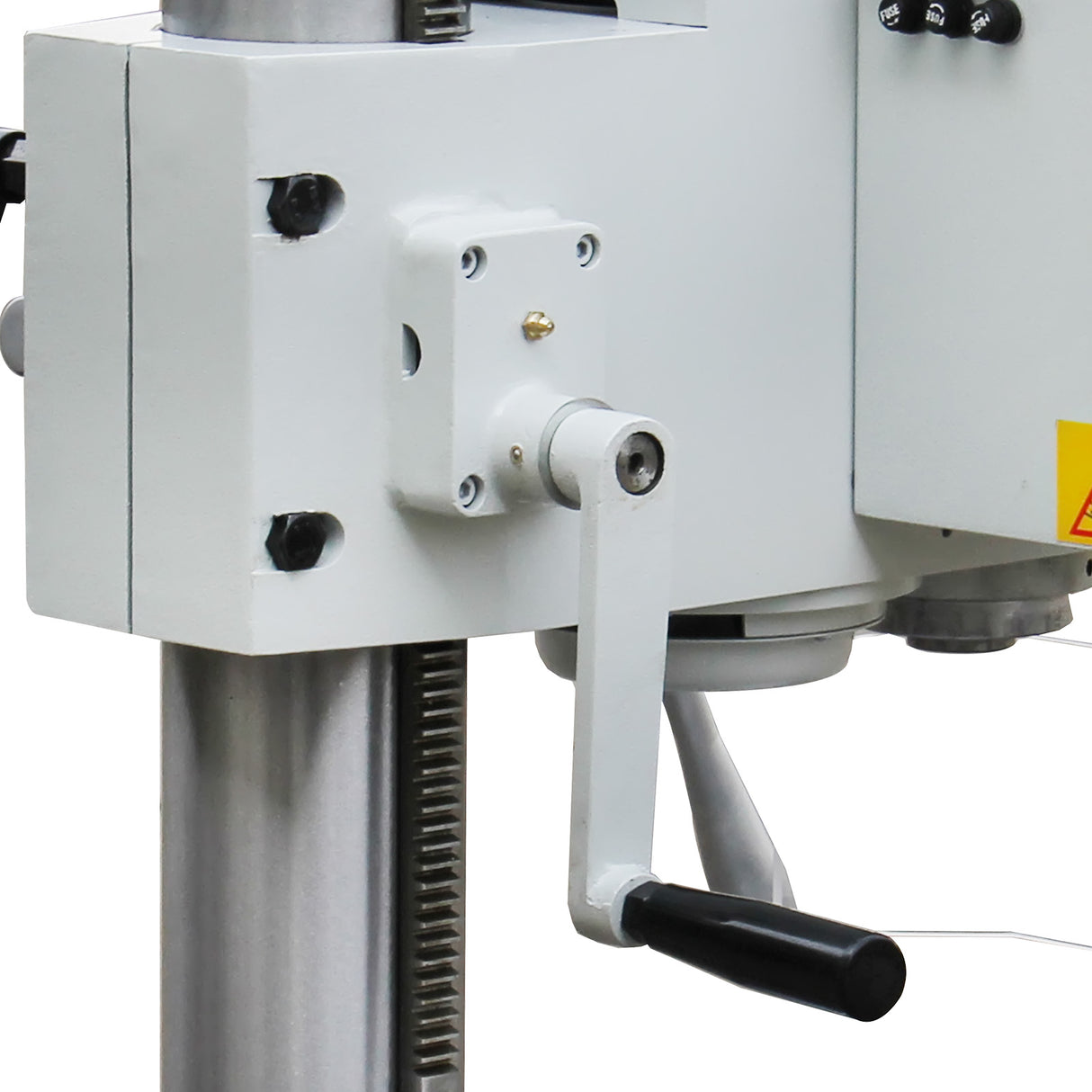

The drill head moves along a rack and pinion and includes a digital readout for precise drilling depth. The T-slotted worktable can rotate a full 360 degrees. An ejector lever allows for easy removal of tools from the spindle.
Our vertical drilling machines come with a height-adjustable, rotary drill head, providing adequate drilling travel for workpieces of different sizes.
The quill can be locked at any depth, and high-capacity tapered roller bearings ensure the spindle runs smoothly, even at high speeds.

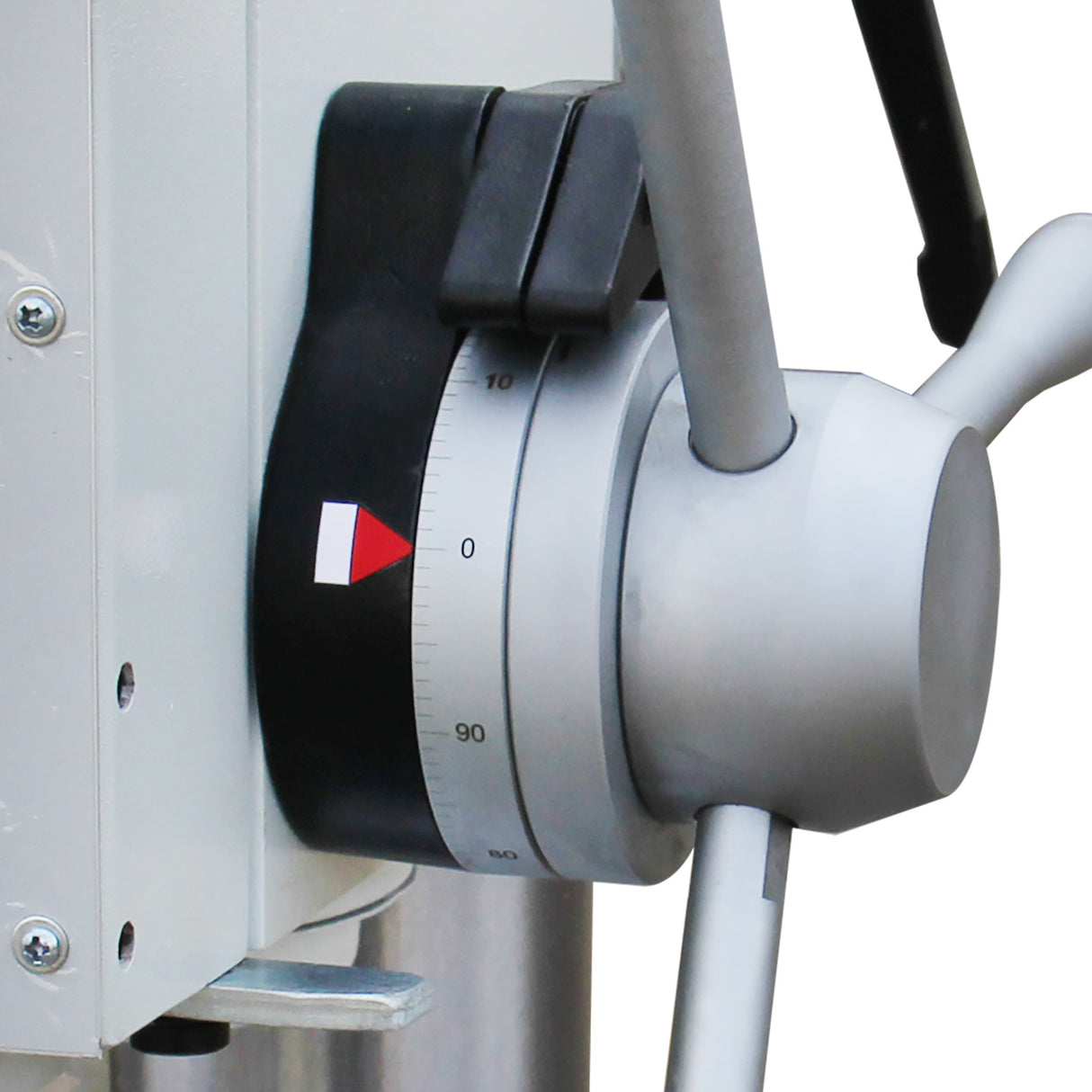

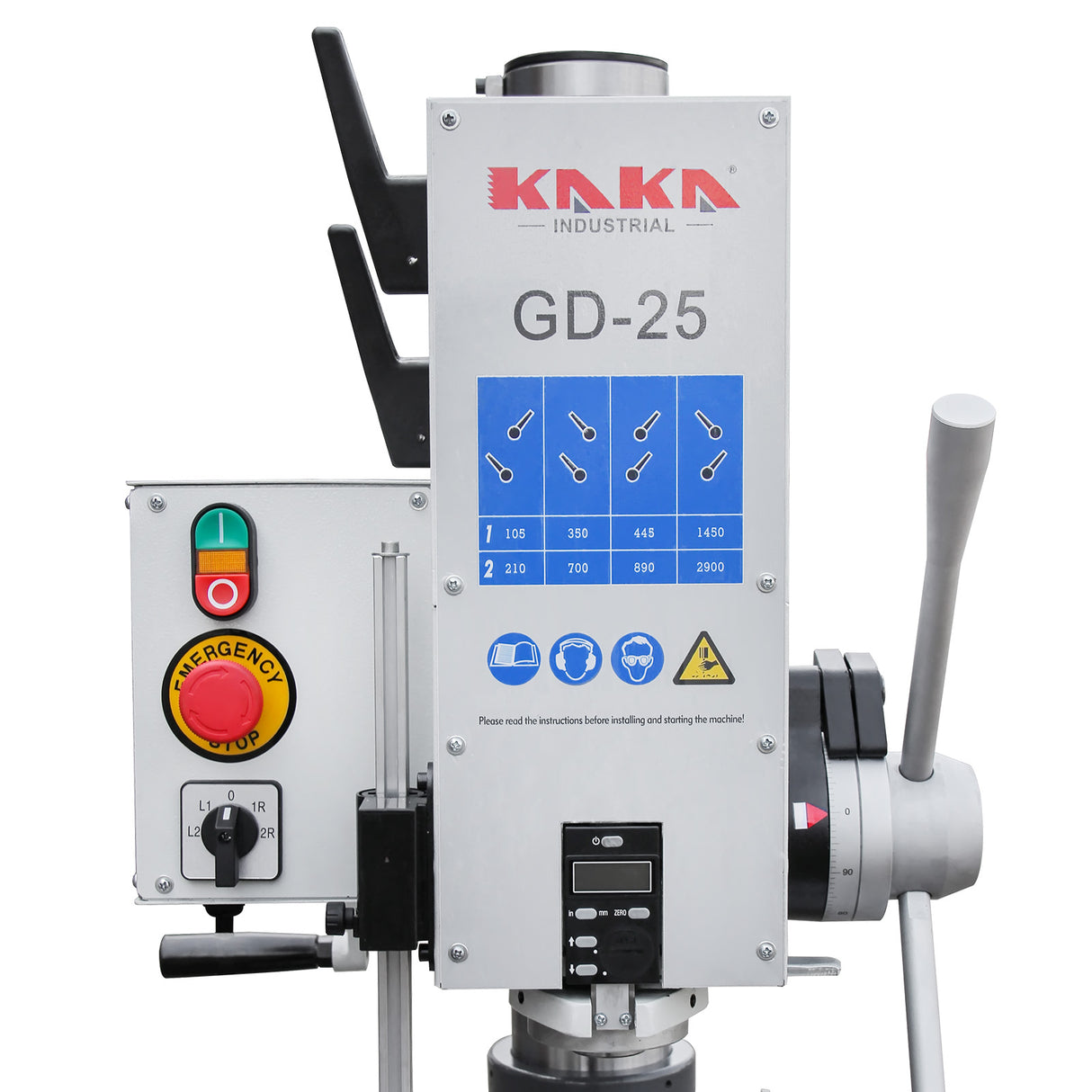

Quick, reliable retraction and a clearly marked depth scale, along with a fine depth stop, help improve drilling efficiency. An emergency stop safety shield enhances both safety and productivity on the job.
Wide Applications

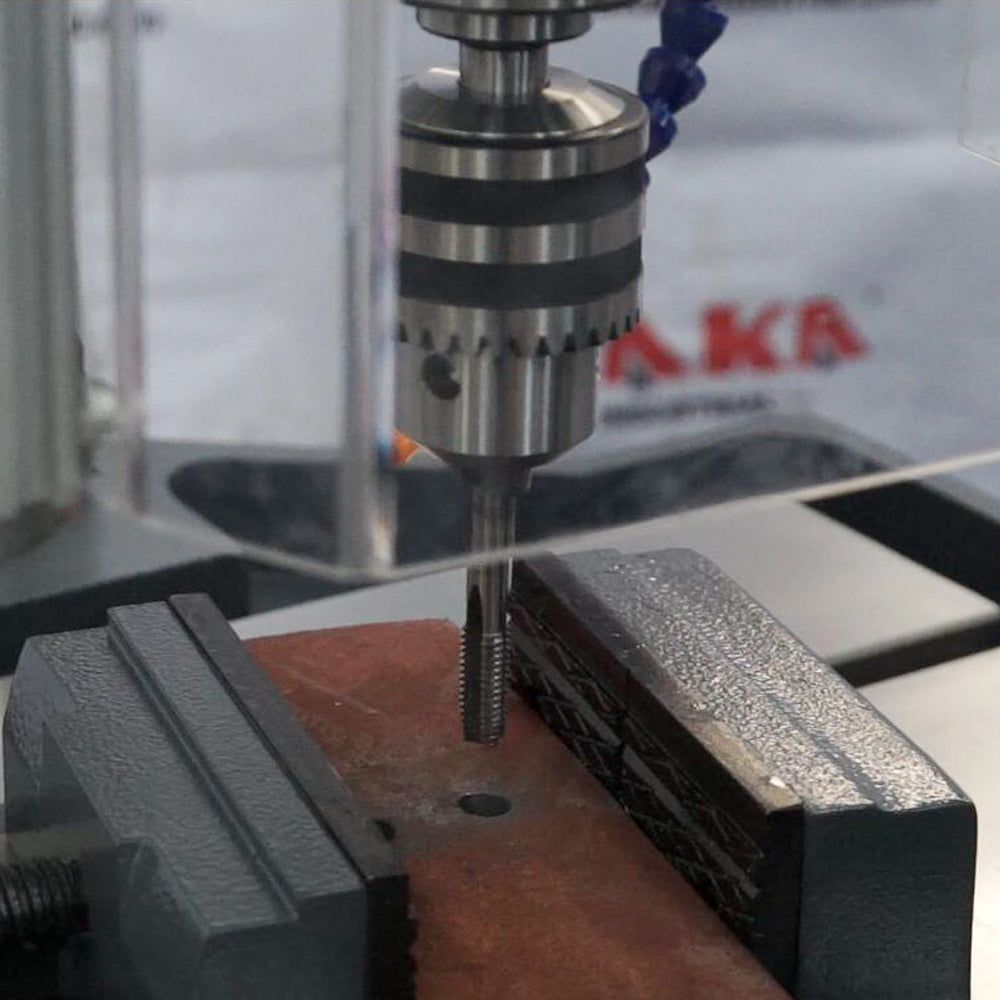

The gearhead vertical drill press is a versatile tool used across many industries and tasks. These include drilling holes in metal components, tapping threads, joinery and furniture making, automotive repair shops, home workshops, and construction sites.

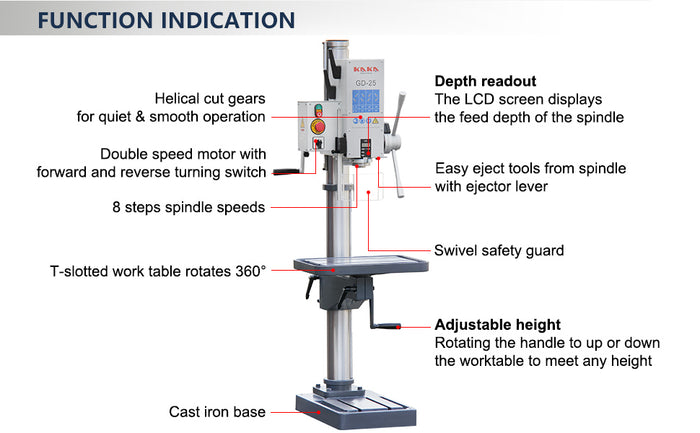

1. Gear head drilling machine with Max. 25mm Capacity
2. 8 steps spindle speeds
3. Double speed motor with forward and reverse turning switch
4. Drill head travel by teeth rank driven

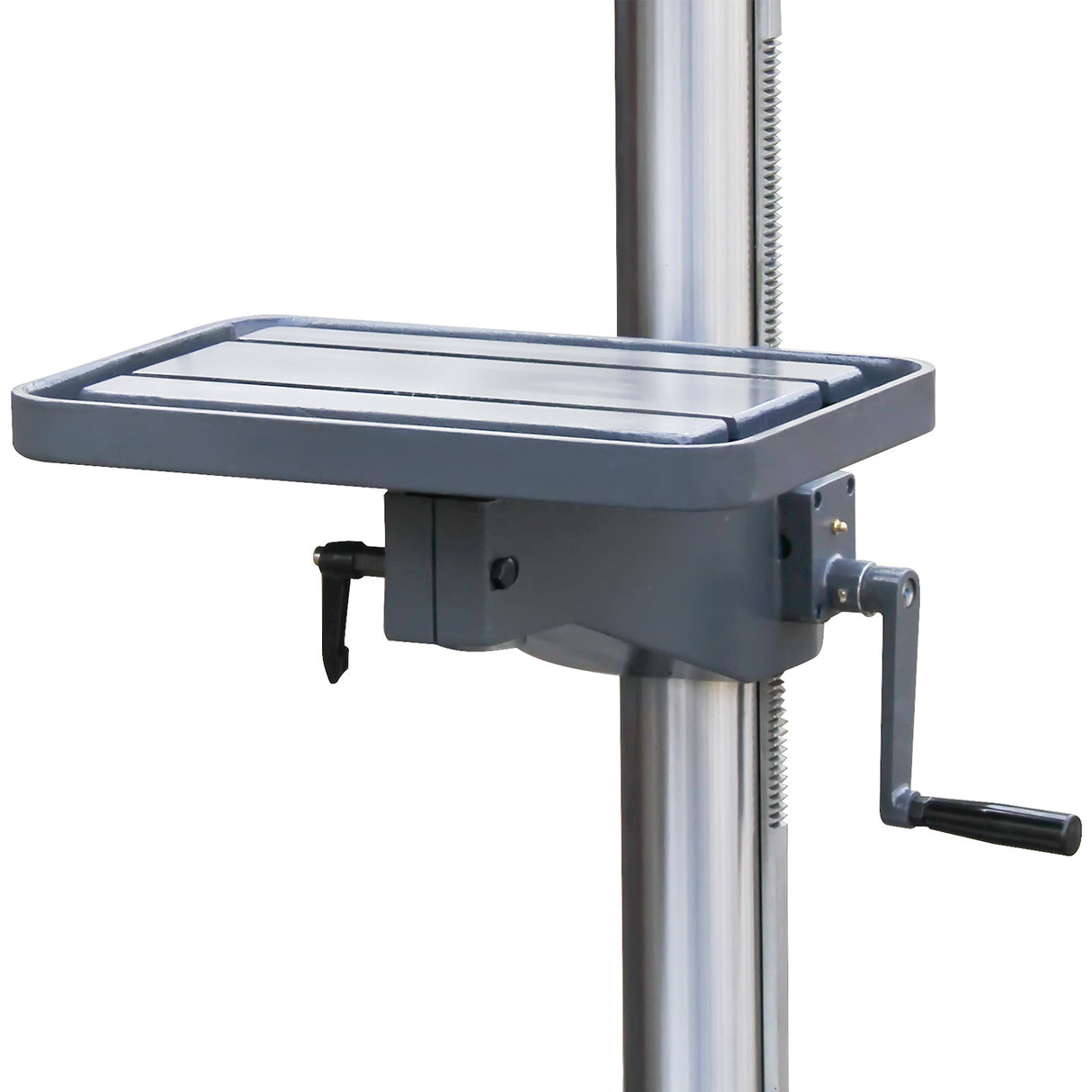

5. T-slotted work table rotates 360°

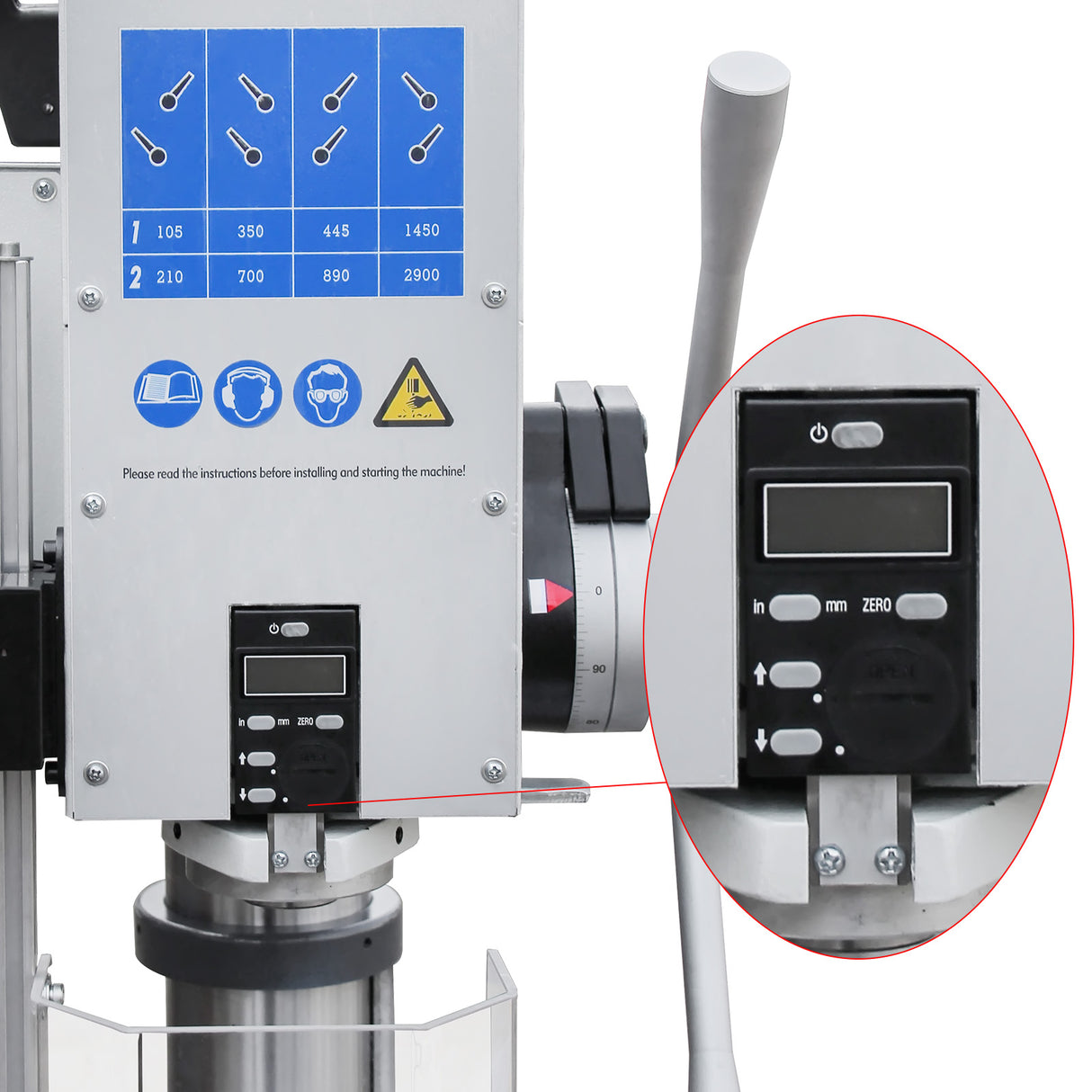

6. Digital read out drill depth
7. Easy eject tools from spindle with ejector lever
8. Our vertical drilling machines GD-25 have height adjustable and rotary function on head unit and working table, they can provide proper drilling travel for various workpieces in different sizes
9. The sleeve can be locked at any depth and the high-load tapered roller bearing allow the high-speed and smooth running of the main spindle
10. The rapid and reliable retracting, clear scale identification and the small feeding depth positioning device can improve the drilling efficiency
11. The power-off shield protection of our vertical drilling machine makes the work safer and efficient

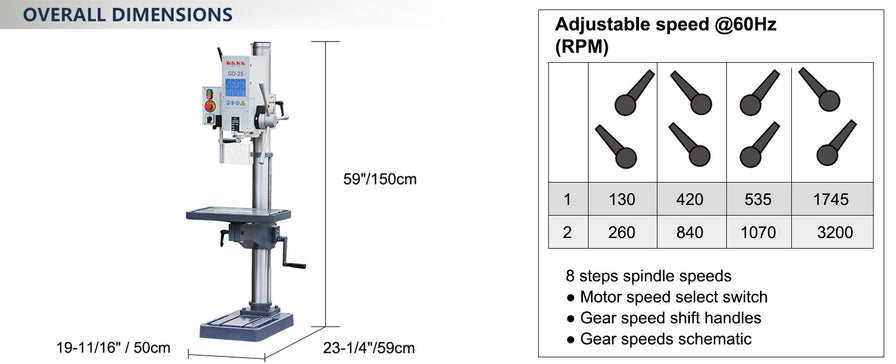

Model GD-25 Max. Drilling Diameter 1 in Swing Capacity 16 in Tapping Capacity Steel/Cast Iron: M10 / M16 Morse Taper MT3 Motor Power 0.65 KW / 0.9 KW (3PH) Spindle Speeds @60Hz 130 - 3200 RPM (8 steps) Quill Stroke 4.72 in Table Size 20 × 13.75 in T-Slot Width 0.55 in Column Diameter 4 in Drill Head Lift 20.86 in Drill Table Lift 22.83 in Packing Size 65 × 22 × 30 in Net / Gross Weight 444 / 587 lbs
