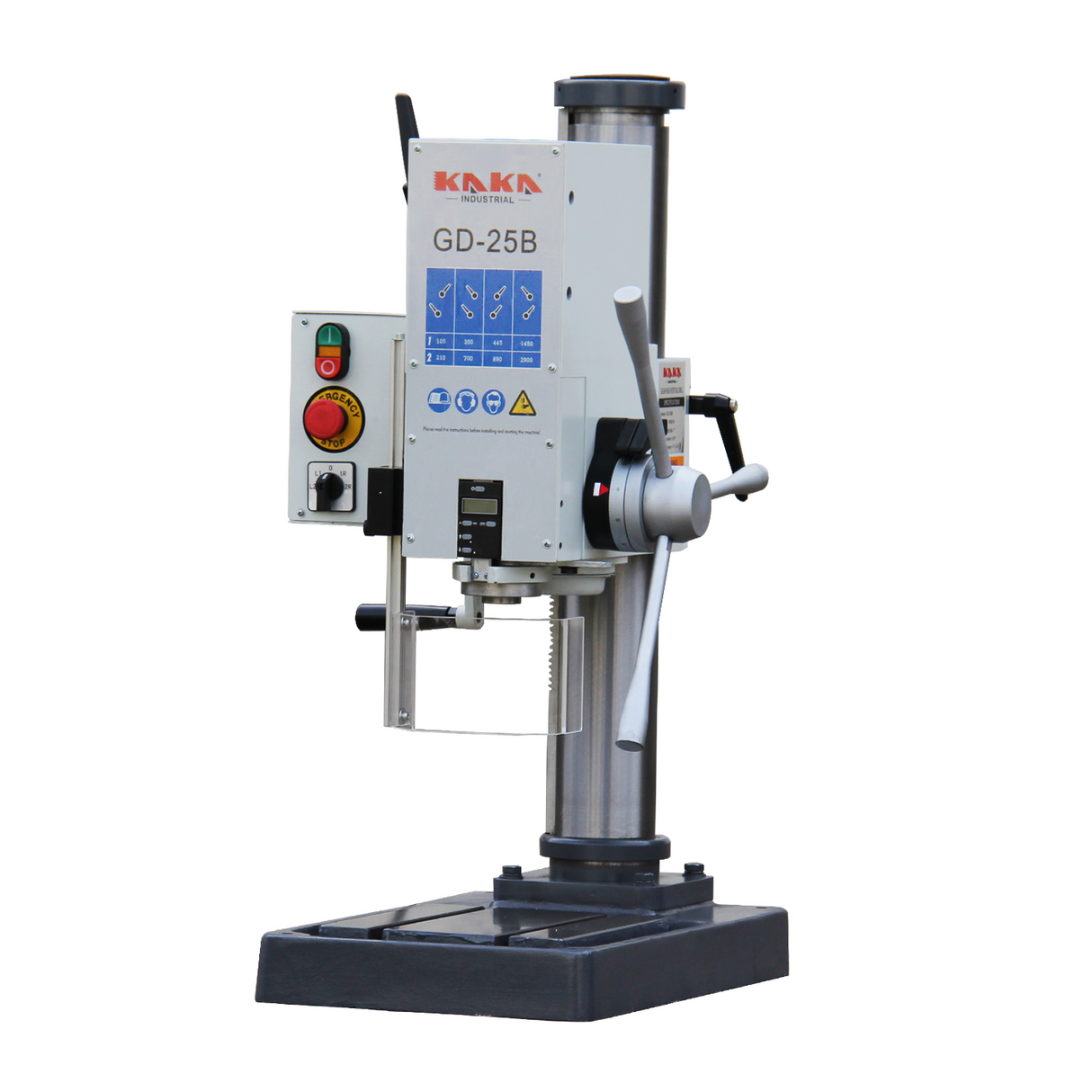

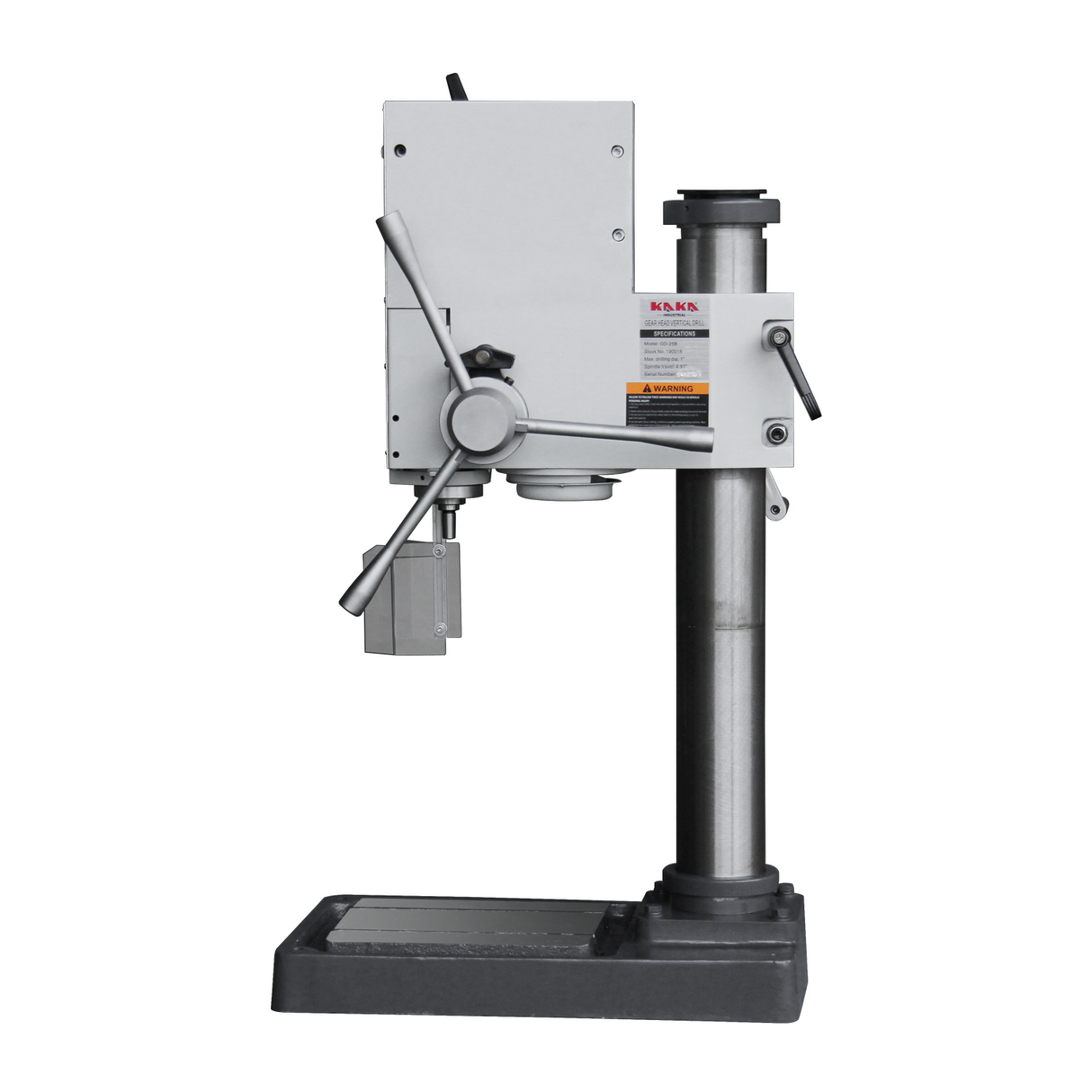

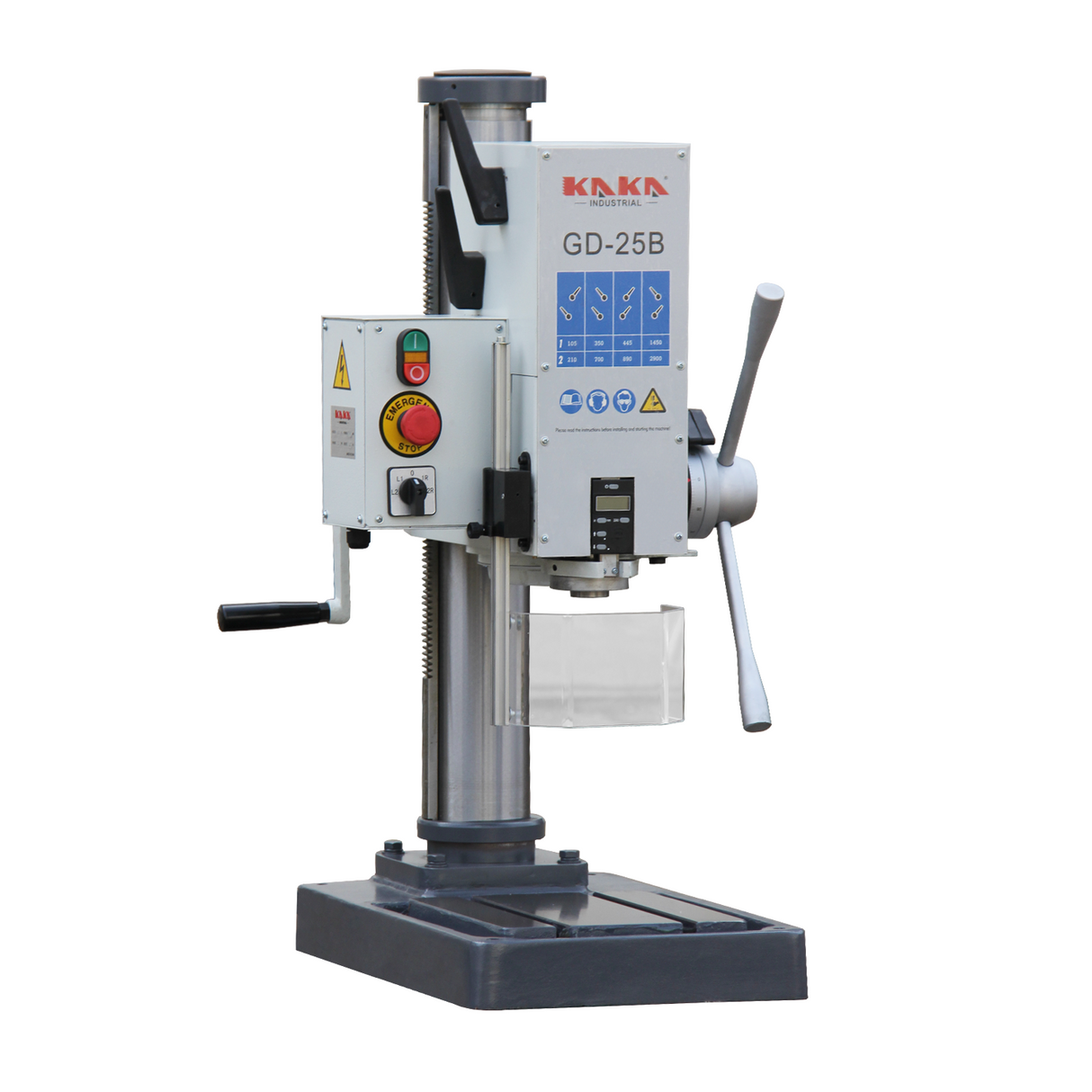

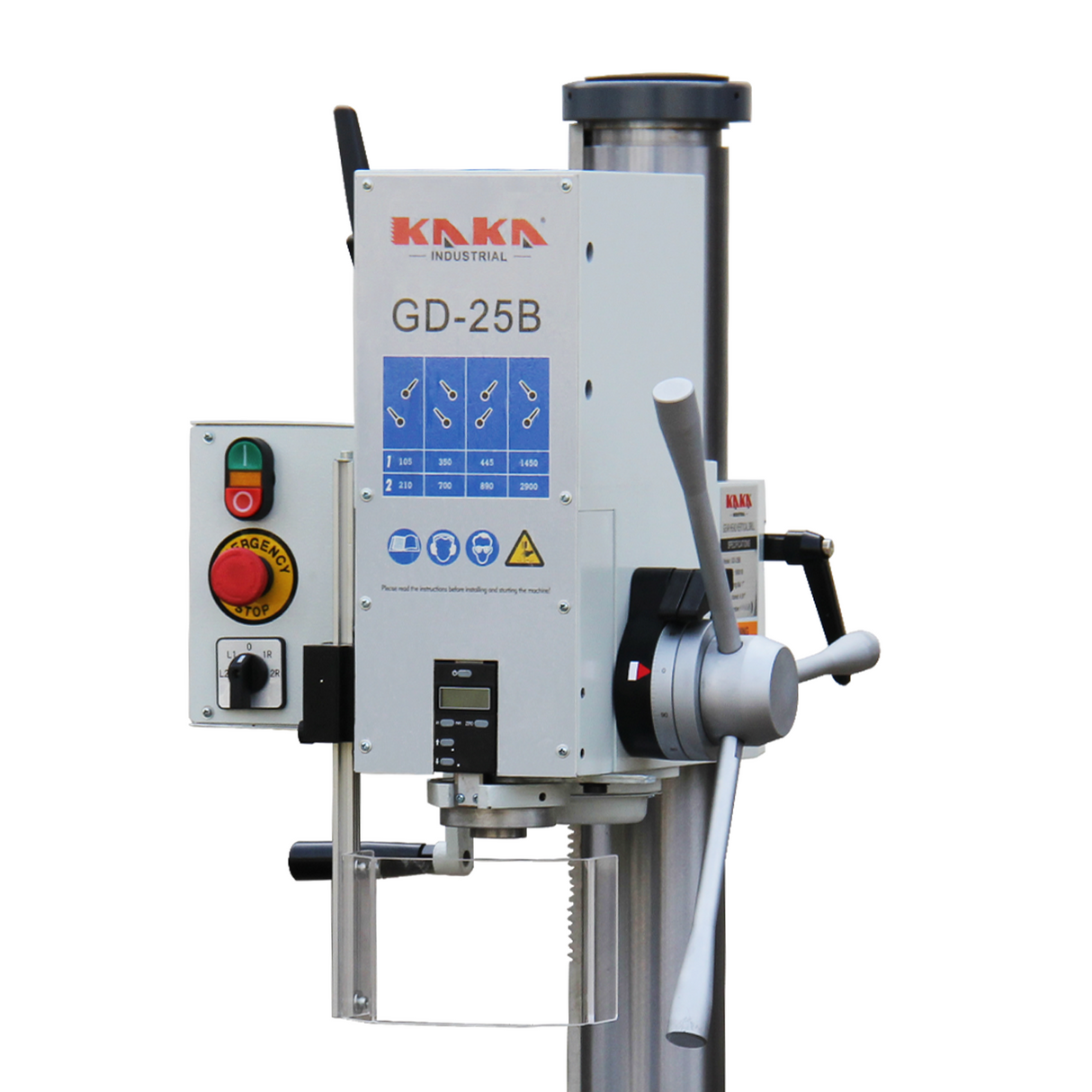

Vertical Drilling Machine
- Our vertical drilling machines GD-25B have height adjustable and rotary function on head unit and working table, they can provide proper drilling travel for various workpieces in different sizes.
- The sleeve can be locked at any depth and the high-load tapered roller bearing guarantees the high-speed and smooth running of the main spindle.
- The rapid and reliable retracting, clear scale identification and the small feeding depth positioning device can improve the drilling efficiency.
- The power-off shield protection of our vertical drilling machine makes the work safer and efficient.
- Main technical parameter
|
Item No. |
190018 |
|
Model |
GD-25B |
|
Max.drilling dia.(mm) |
25 |
|
Spindle travel(mm) |
125 |
|
Tapping capacity in steel /cast iron |
M10/M16 |
|
Morse taper |
MT3 |
|
Motor power(50Hz) |
0.65kW/0.9kW |
|
Motor power(60Hz) |
0.8kW/1.1kW |
|
Spindle speeds at (50Hz) |
105-210-350-445- 700-890-1450-2900 |
|
Spindle speeds at 60(Hz) |
130-260-420-840-535- 1070-1745-3200 |
|
Packing size(cm) |
94X46X73 |
|
N.W./G.W. |
330/397lbs |
