KAKA INDUSTRIAL LLC  |  SKU: 190004V220

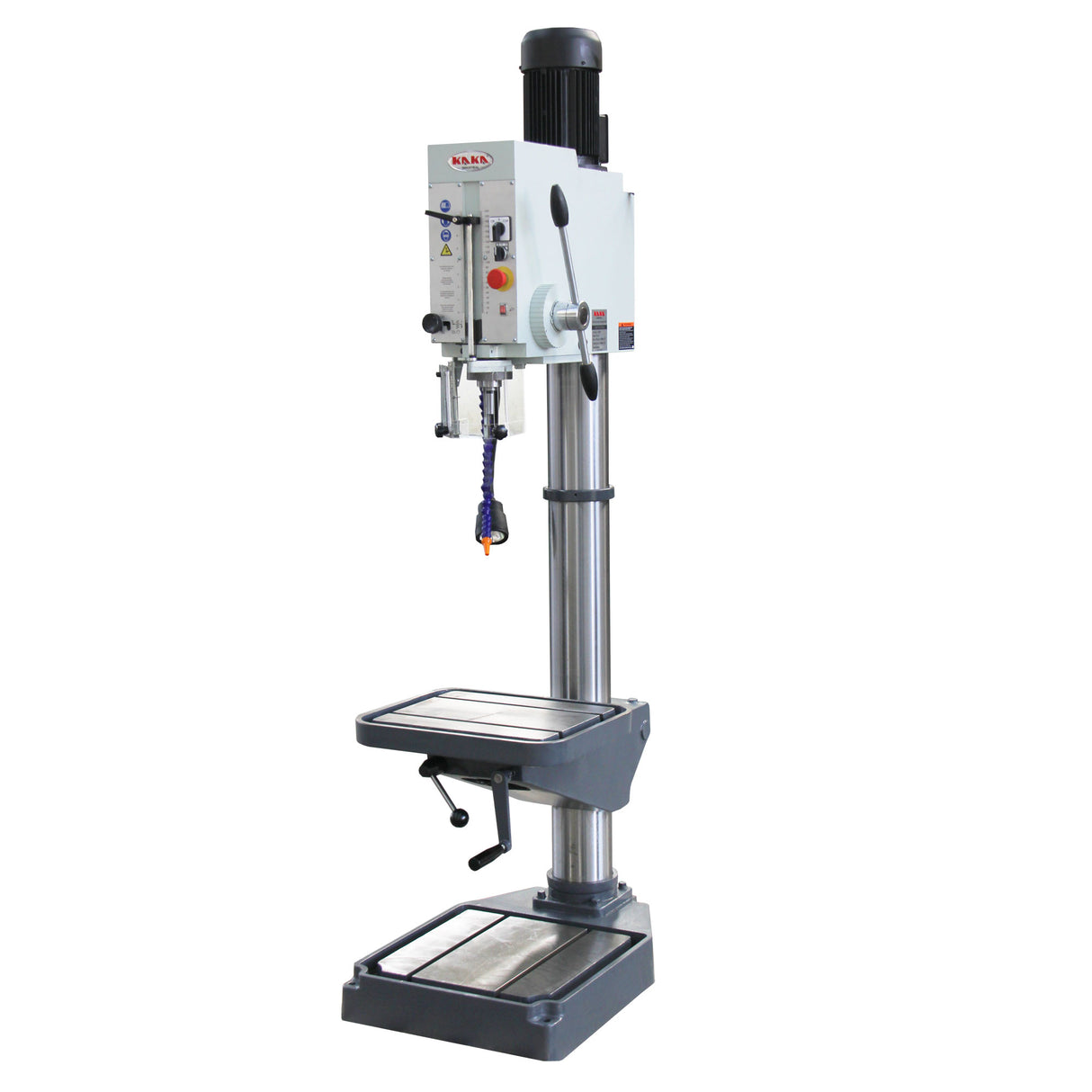

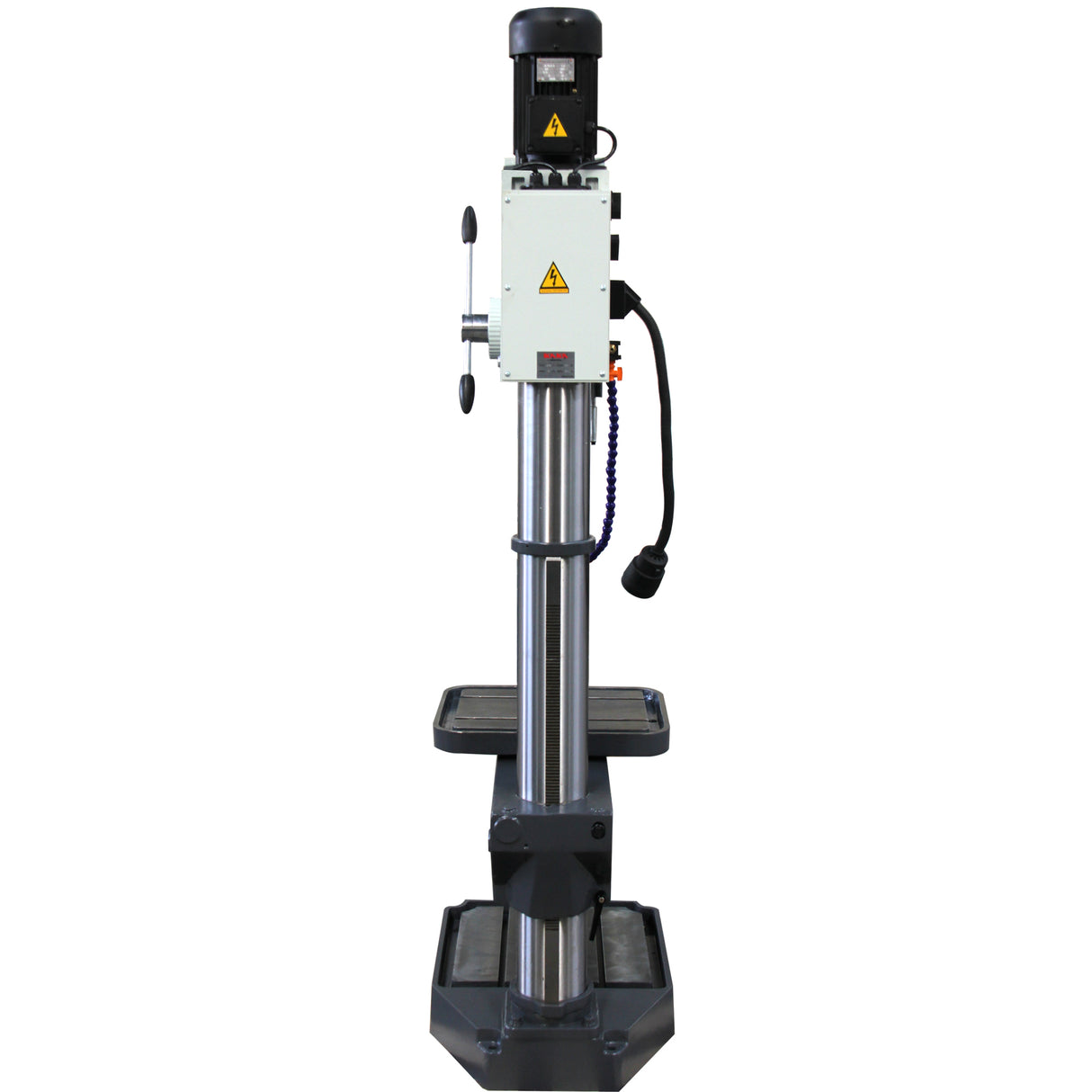

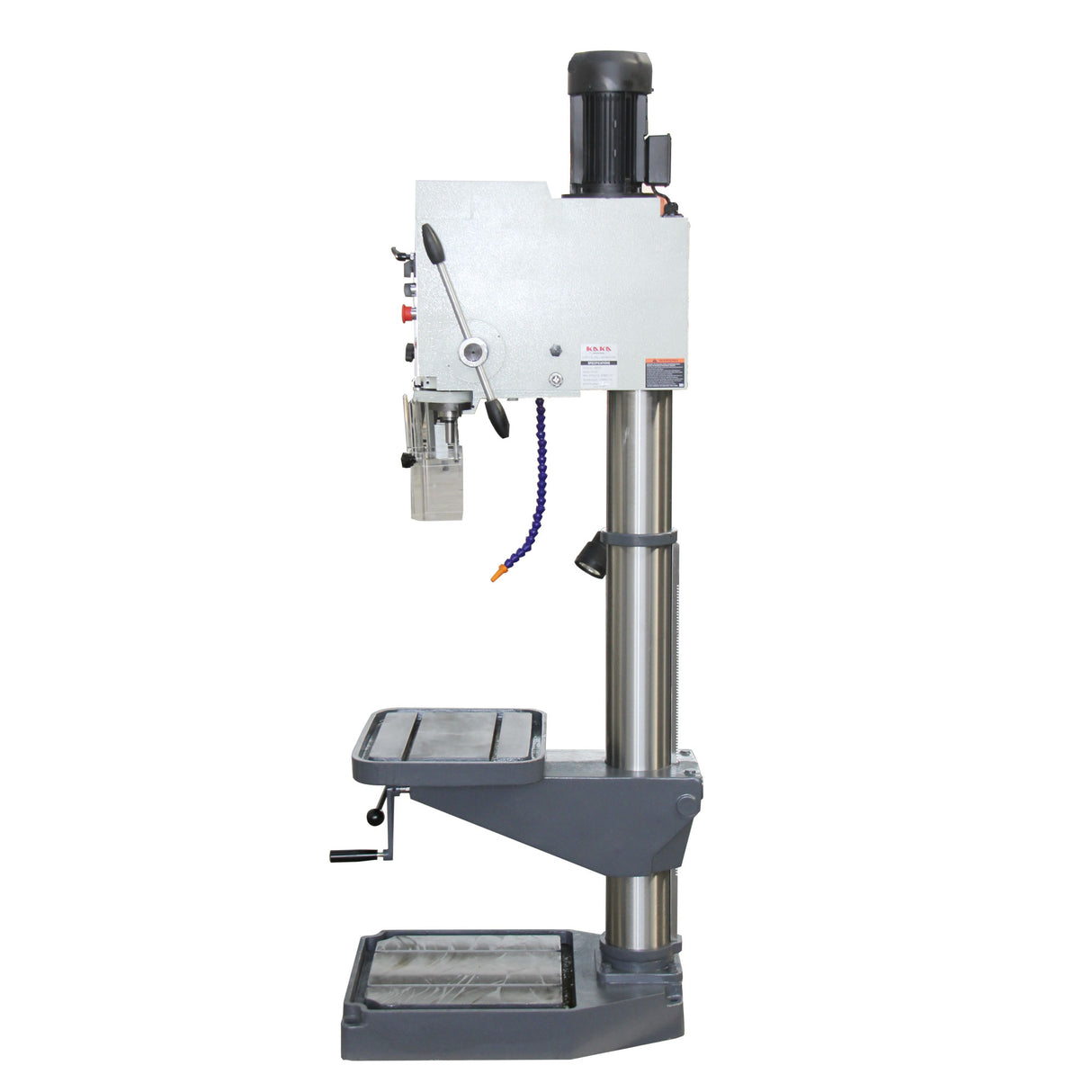

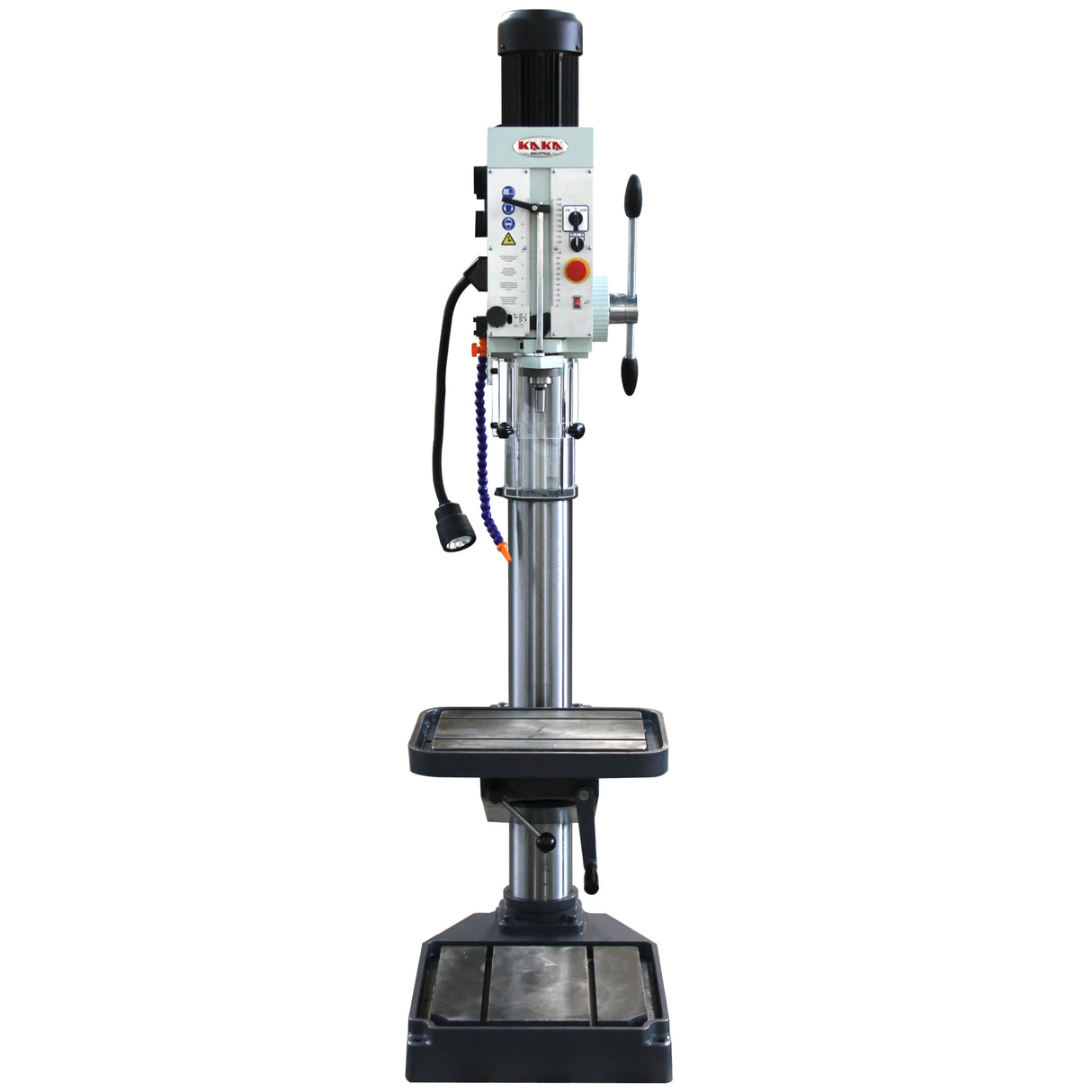

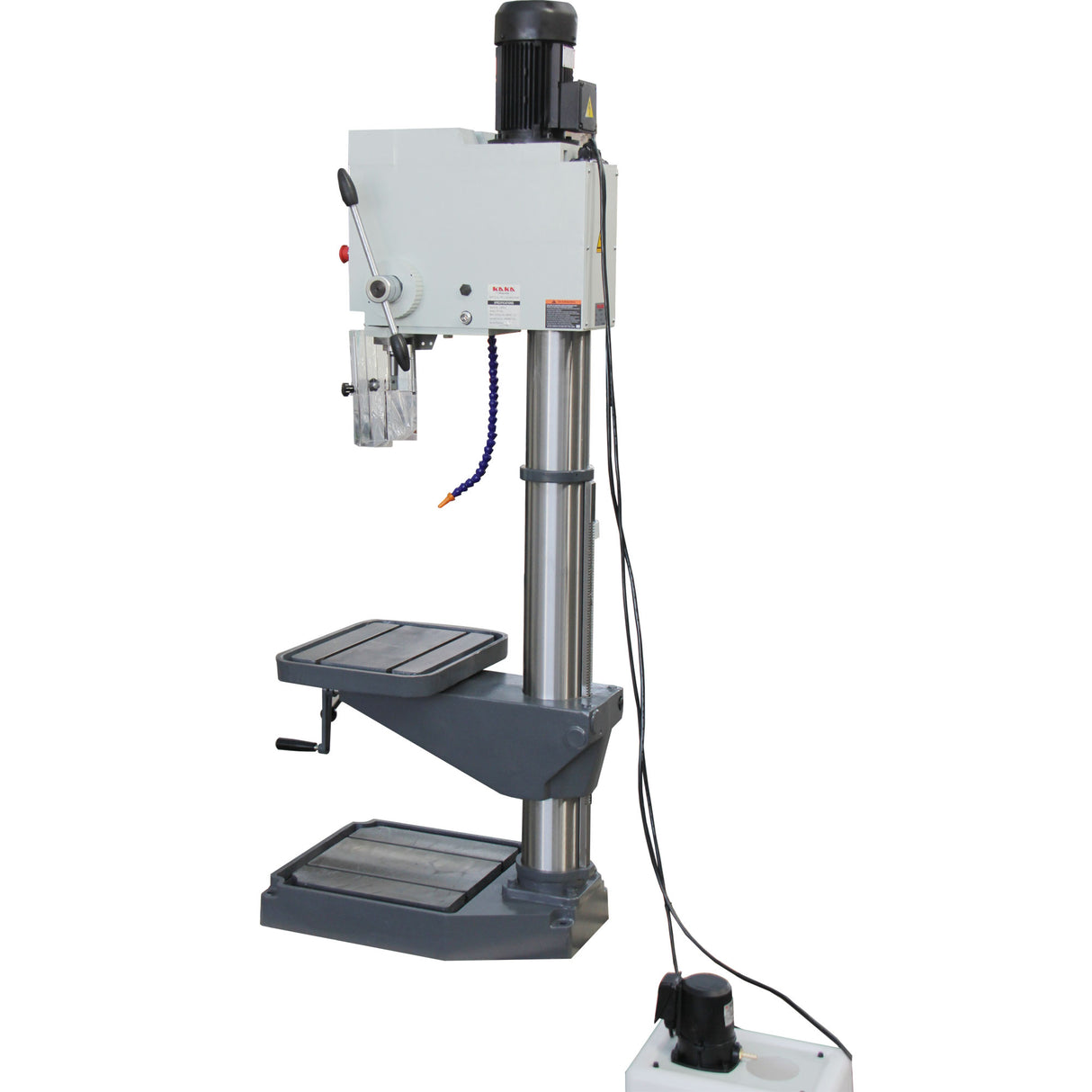

KAKA Industrial GD-40 Gear Head Vertical Drill Press, 8 Steps Speed Adjustable Head Hight Depth DRO Industrial Grade Drilling Tapping Machine with 220V 3 Phase Motor

$5,045.00 $5,310.79
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  1. Danish top quality products
  2. Easy operation
  3. 8 speeds.
  4. Mechanical feed.

Specification:

Item No.

190004V220

Model

GD-40

Max. drilling dia.

40mm

Spindle travel

150mm

Tapping capacity in steel/case iron

M14/M18

Morse taper

MT4

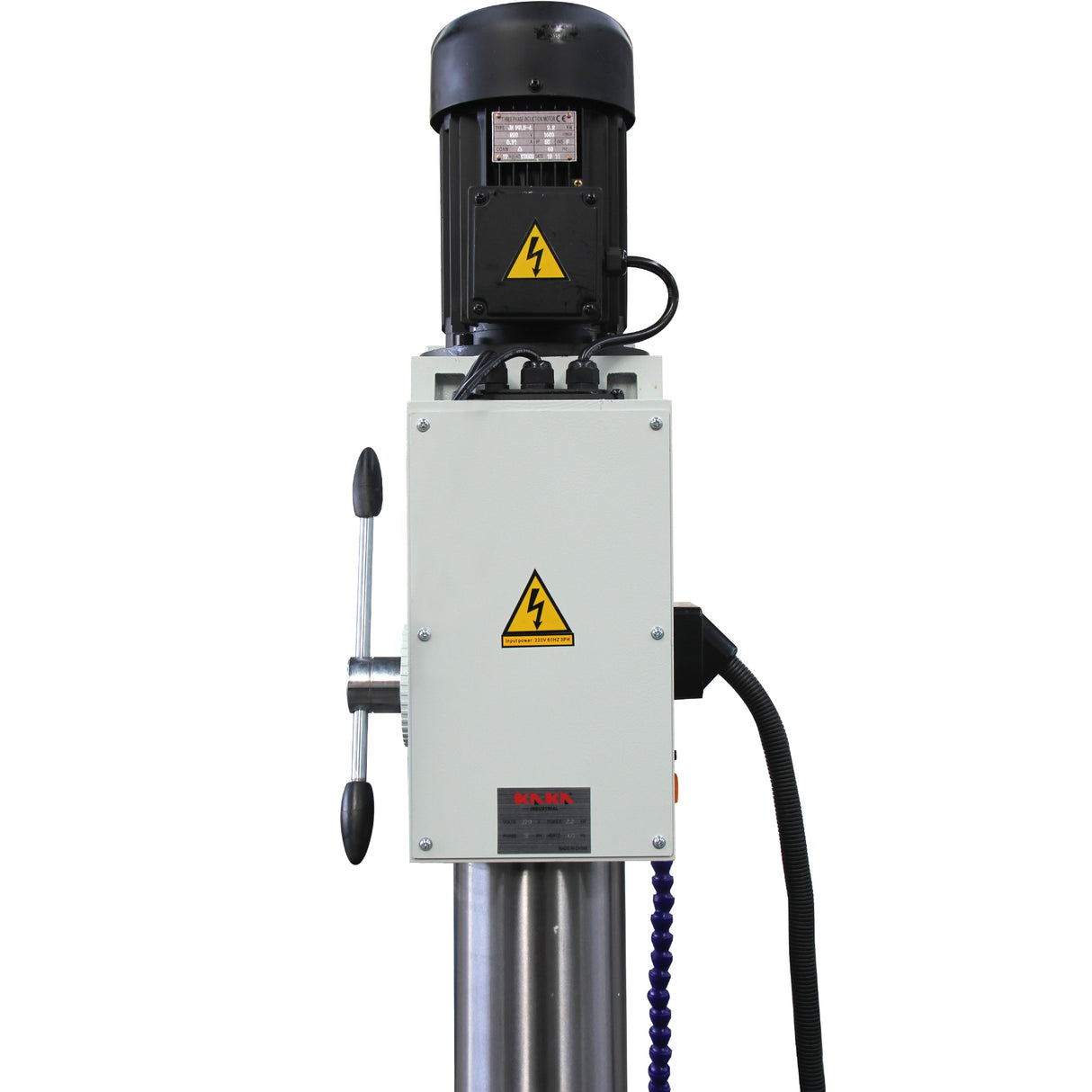

Motor power

2.2kW

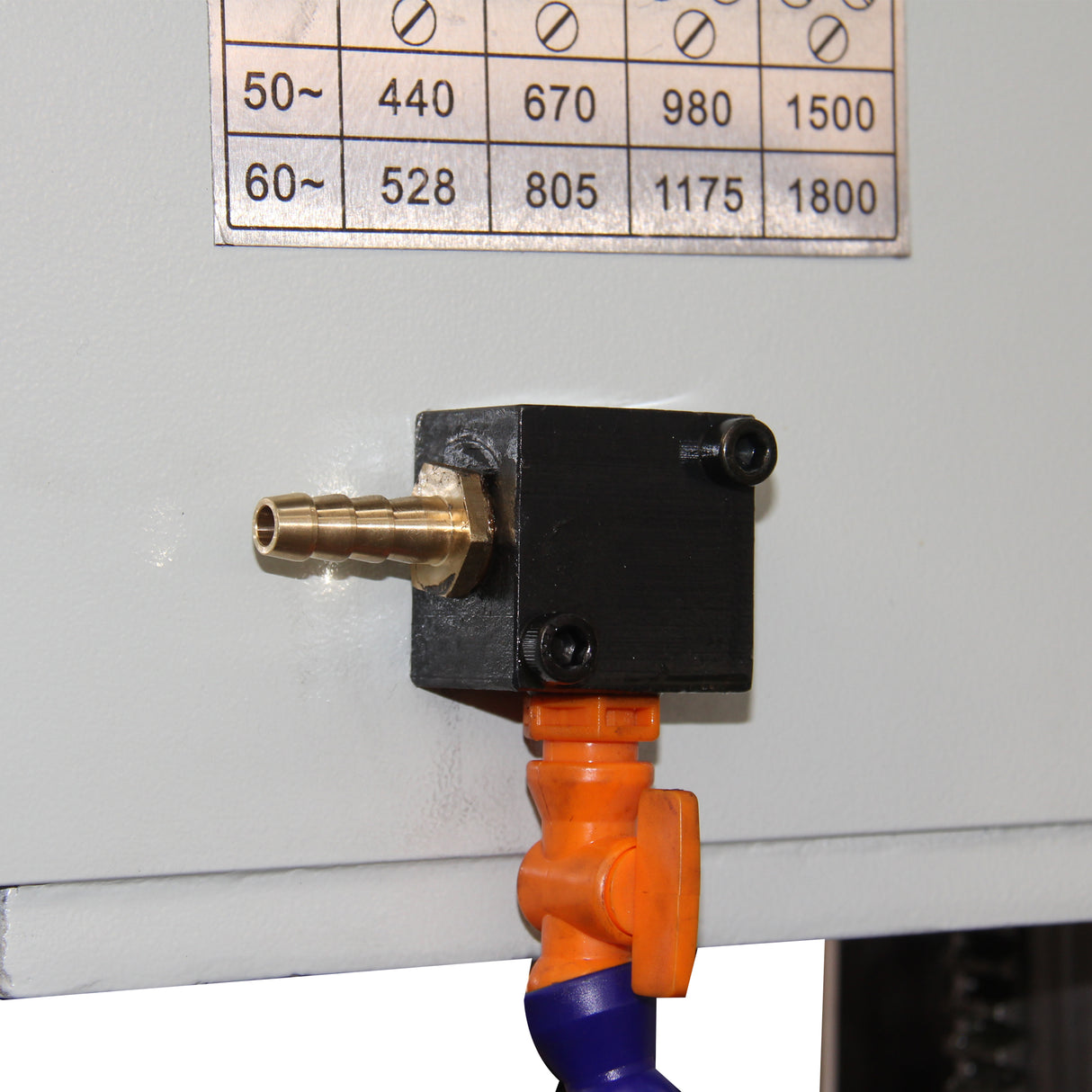

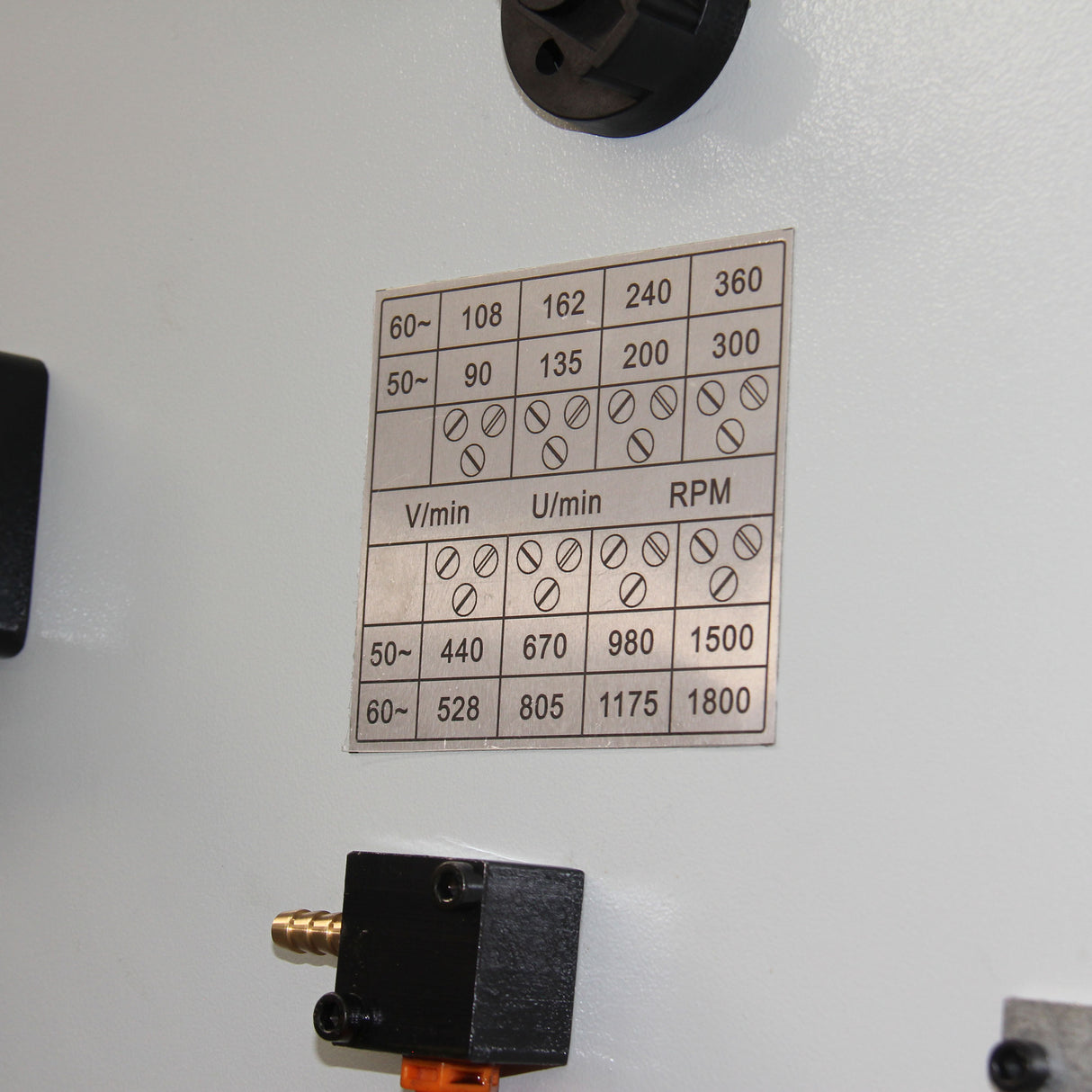

Spindle speed at 50Hz

90-135-200-300-440-
670-980-1500

Spindle speed at 60Hz

108-162-240-360-
528-805-1175-1800

Feed Speed

0.1-0.15-0.22-0.33 mm/rev

Packing size

77x27x34 inch

N.W./G.W.

606/640 lb



Standard accessories:

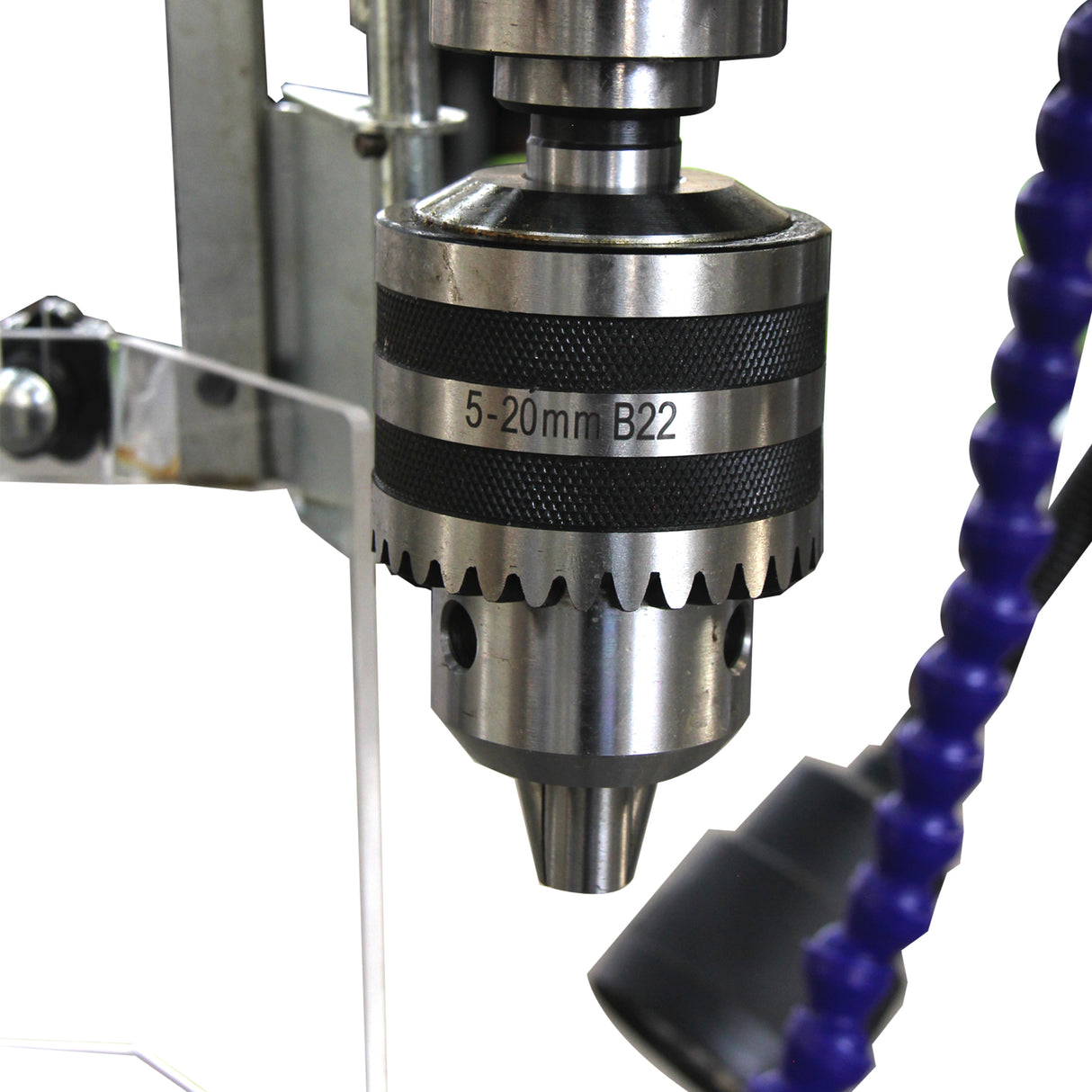

  1. Drill chuck
  2. Safe guard

Optional accessories:

  1. Drill bits

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
