KAKA INDUSTRIAL LLC  |  SKU: 190030

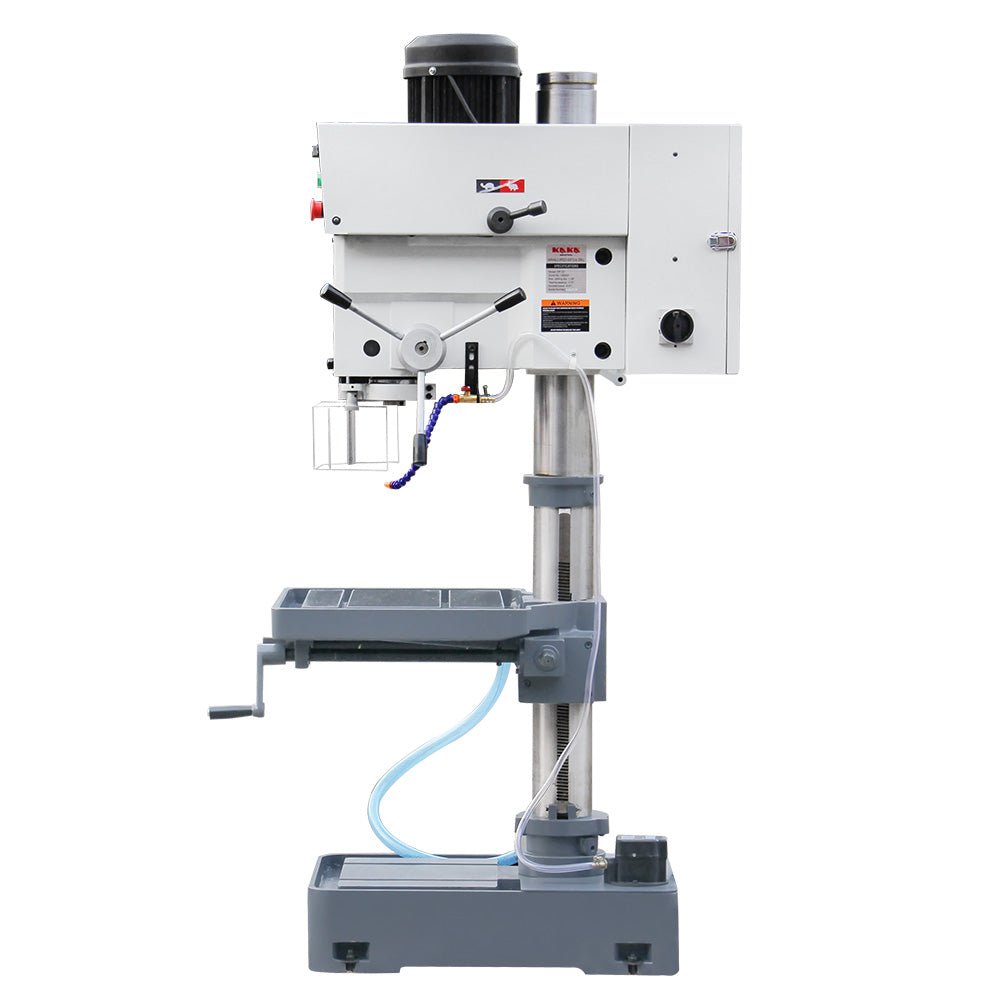

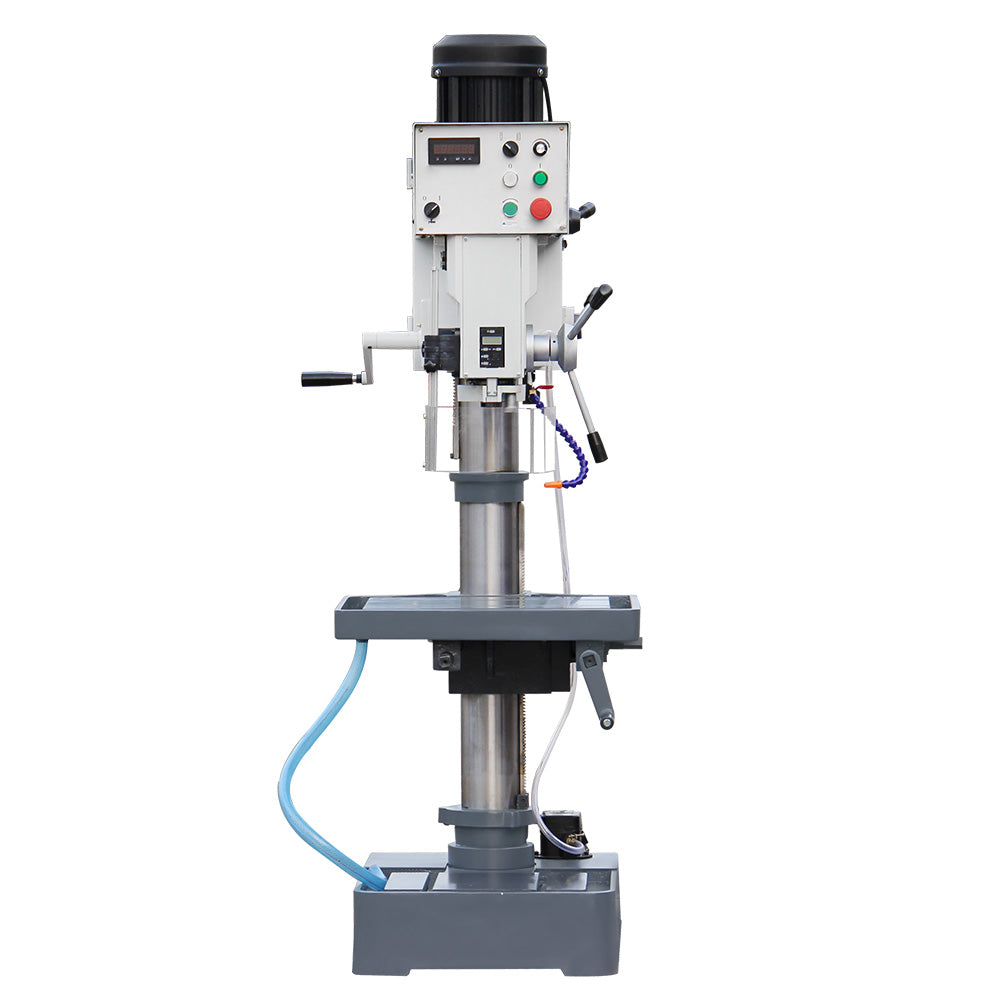

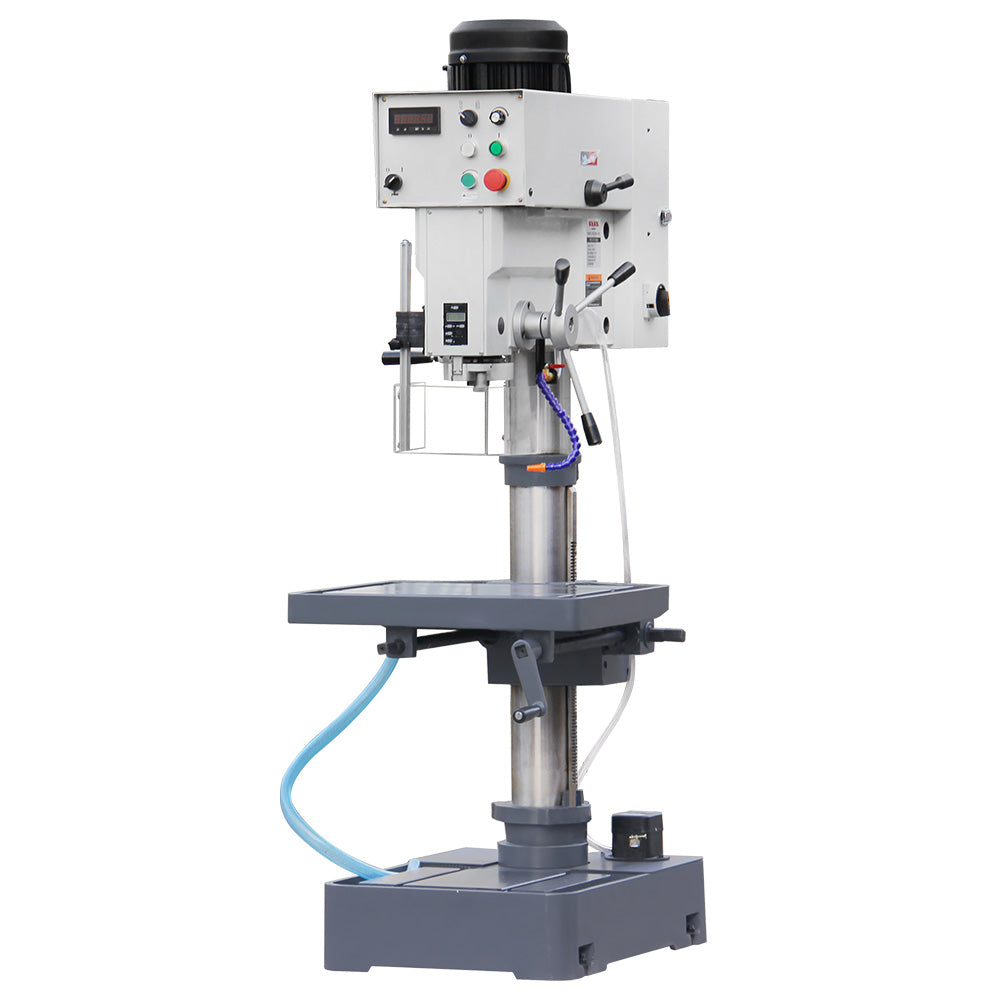

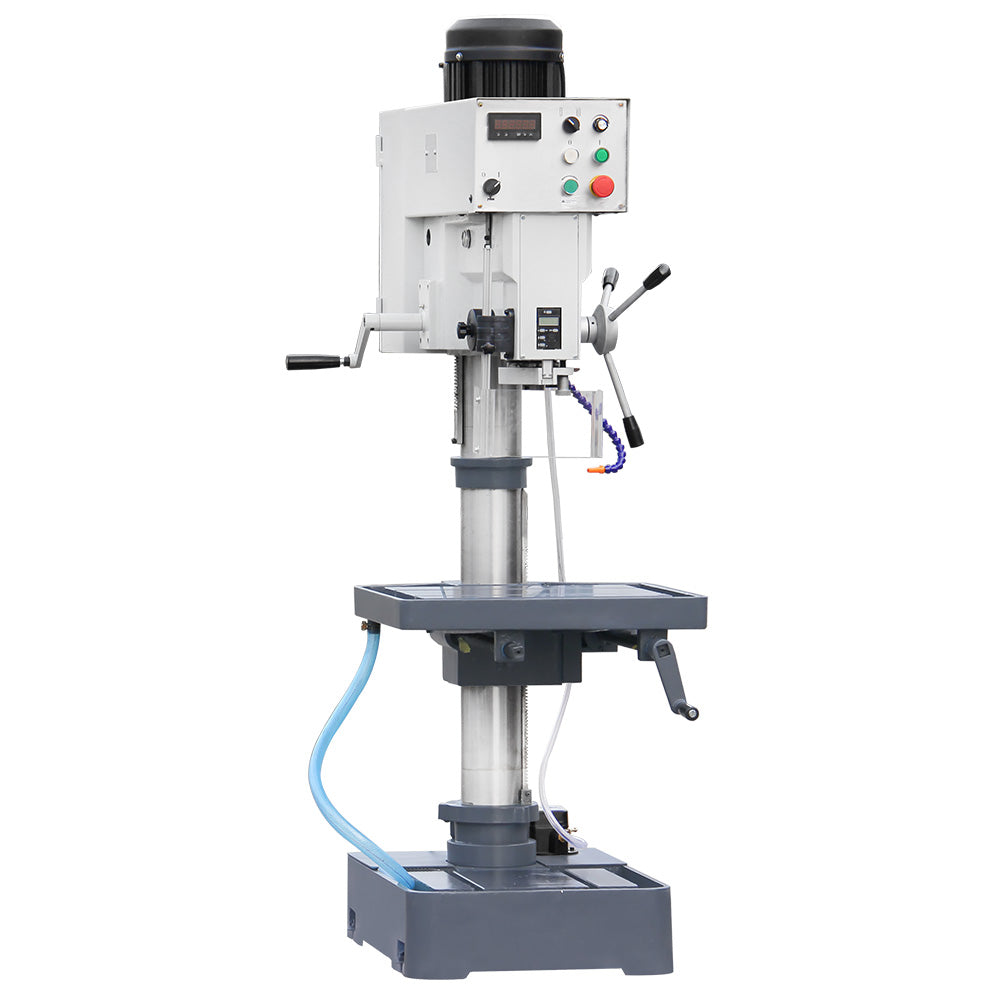

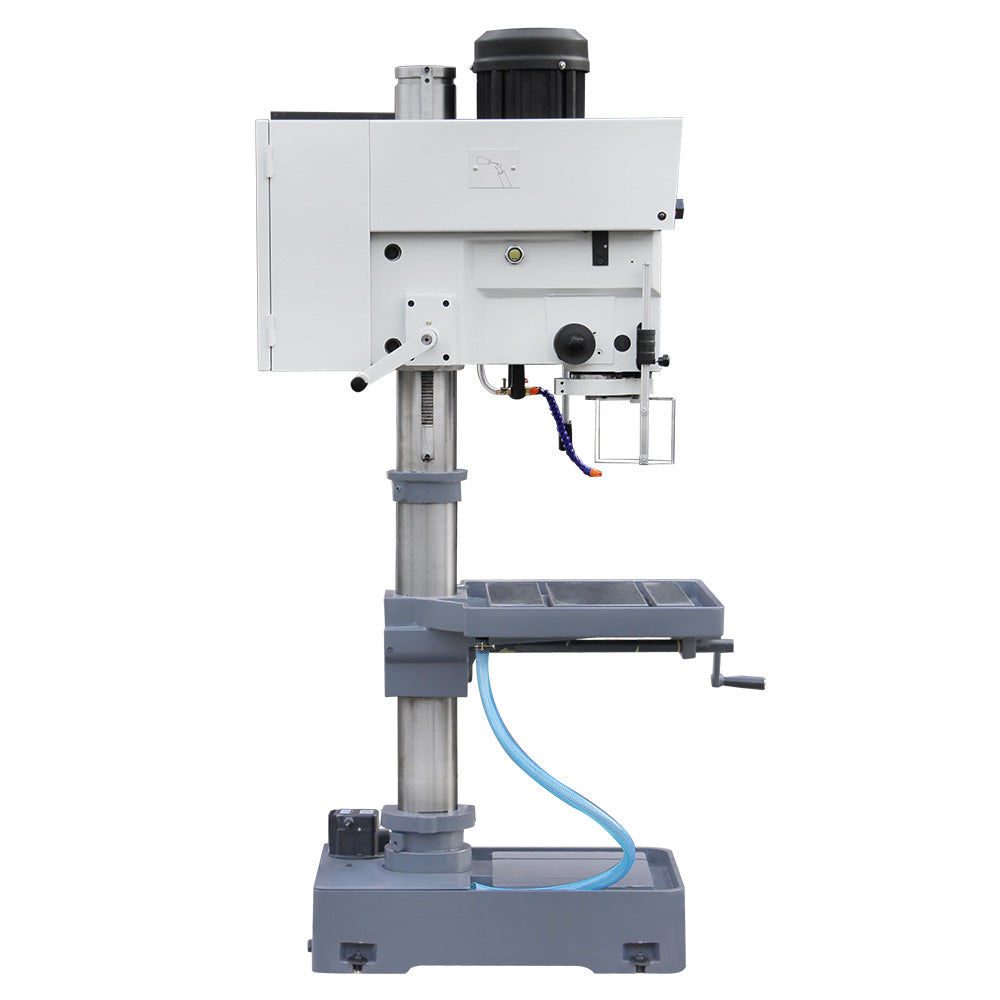

Floor Drill Press, Swing 20.8 inch, Max.drilling dia.1.25 inch,2.2kW 220V, Powerfeed & Auto Downfeed, 1.26-Inch Steel Drilling, MT3 Taper, Digital RPM/DRO, Cast Iron Benchtop DP-32

$5,699.00 $6,336.00
Shipping calculated at checkout.

High Drilling Capacity

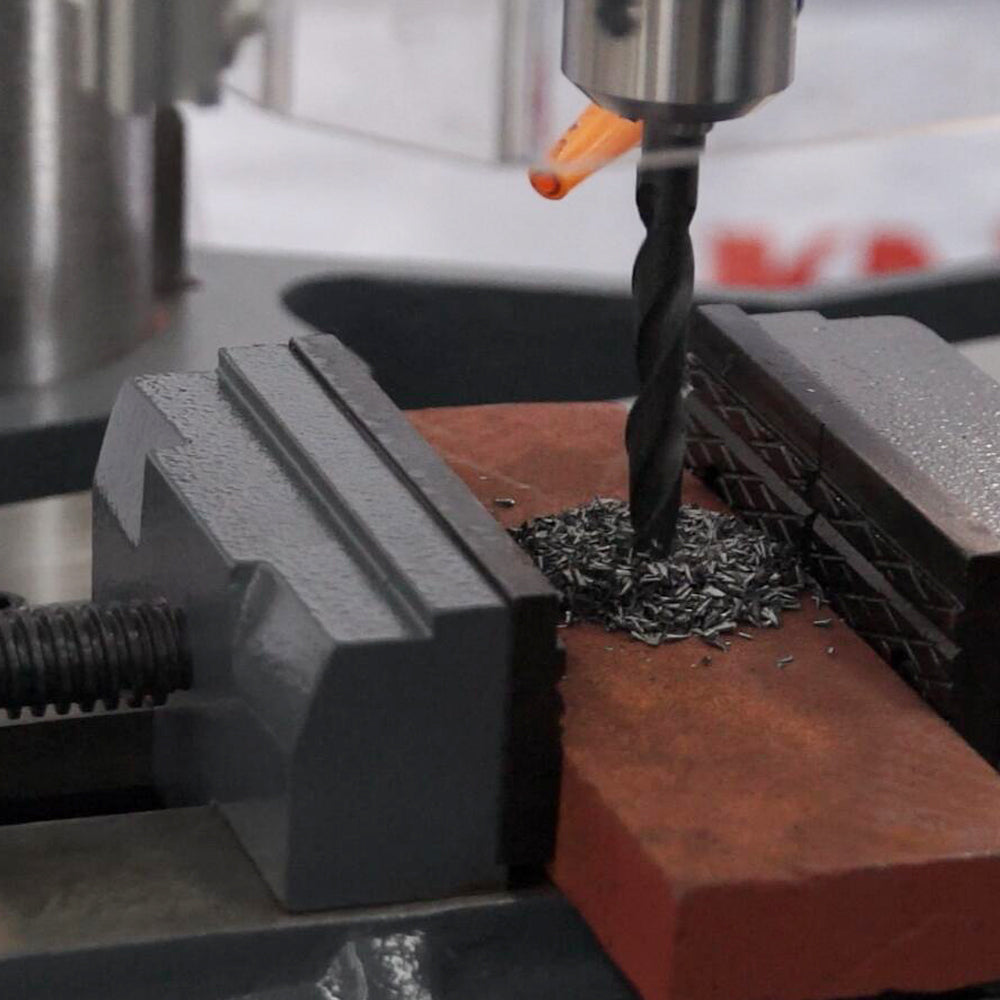

This geared head drilling and tapping press has a capacity of up to 32 mm. It has single-phase power, a powerful 2.2 KW motor, and variable speed. Gearhead vertical drill presses are often used for drilling holes in metal materials such as steel, aluminum, brass, and cast iron. They are also suitable for drilling holes in wood, plastics, composites, ceramics and tiles, and masonry.

Flexibility and Versatility

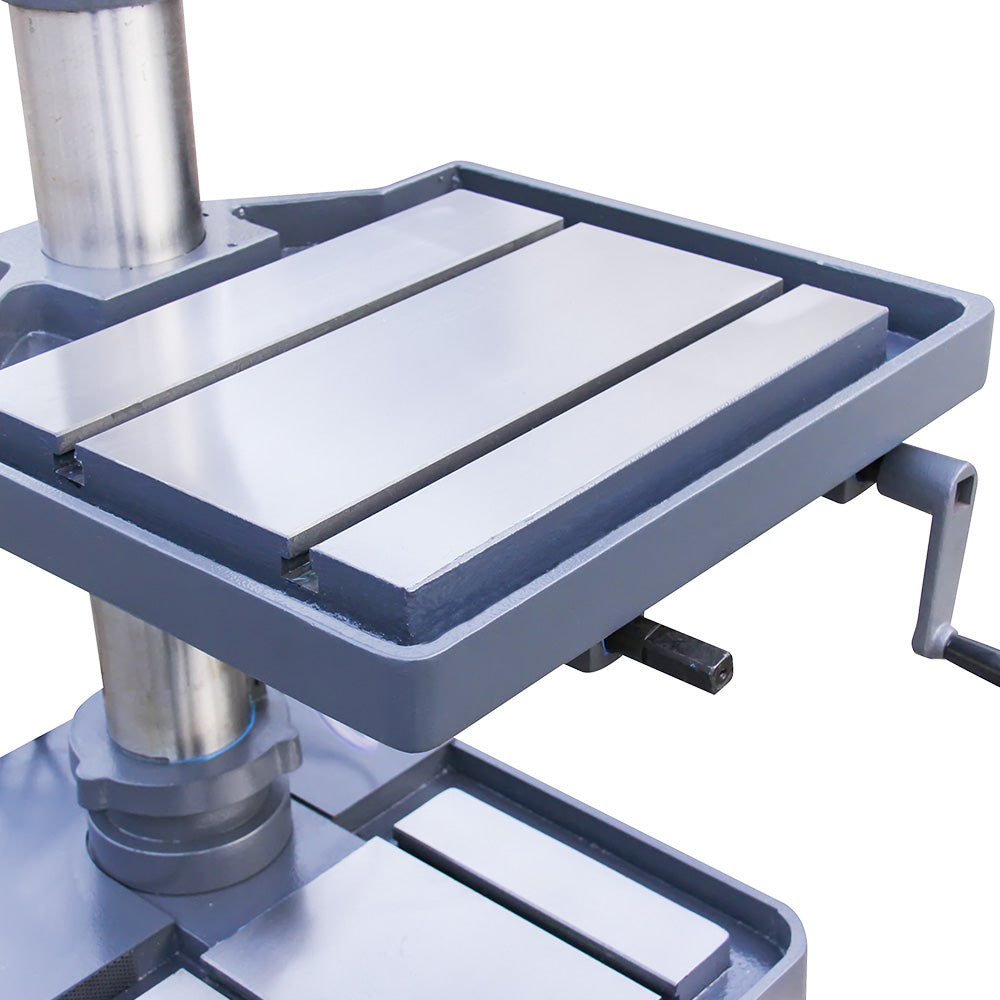

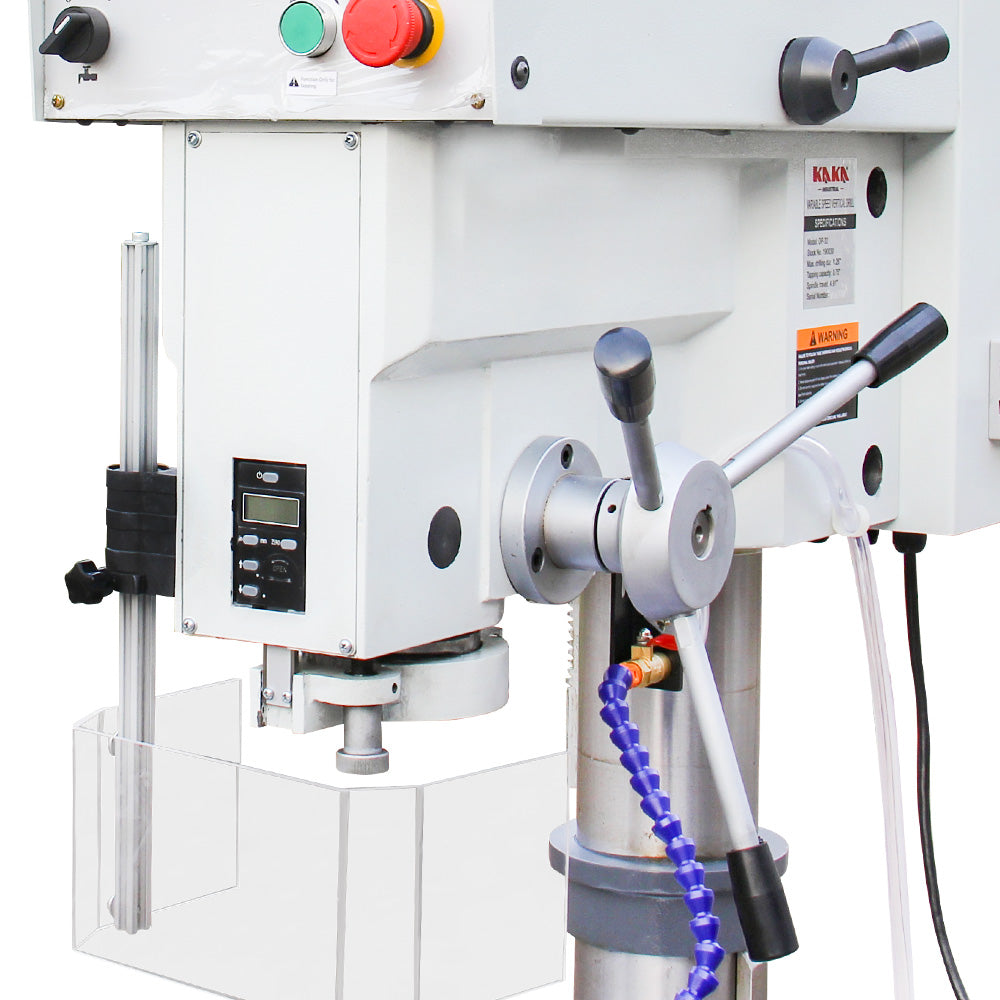

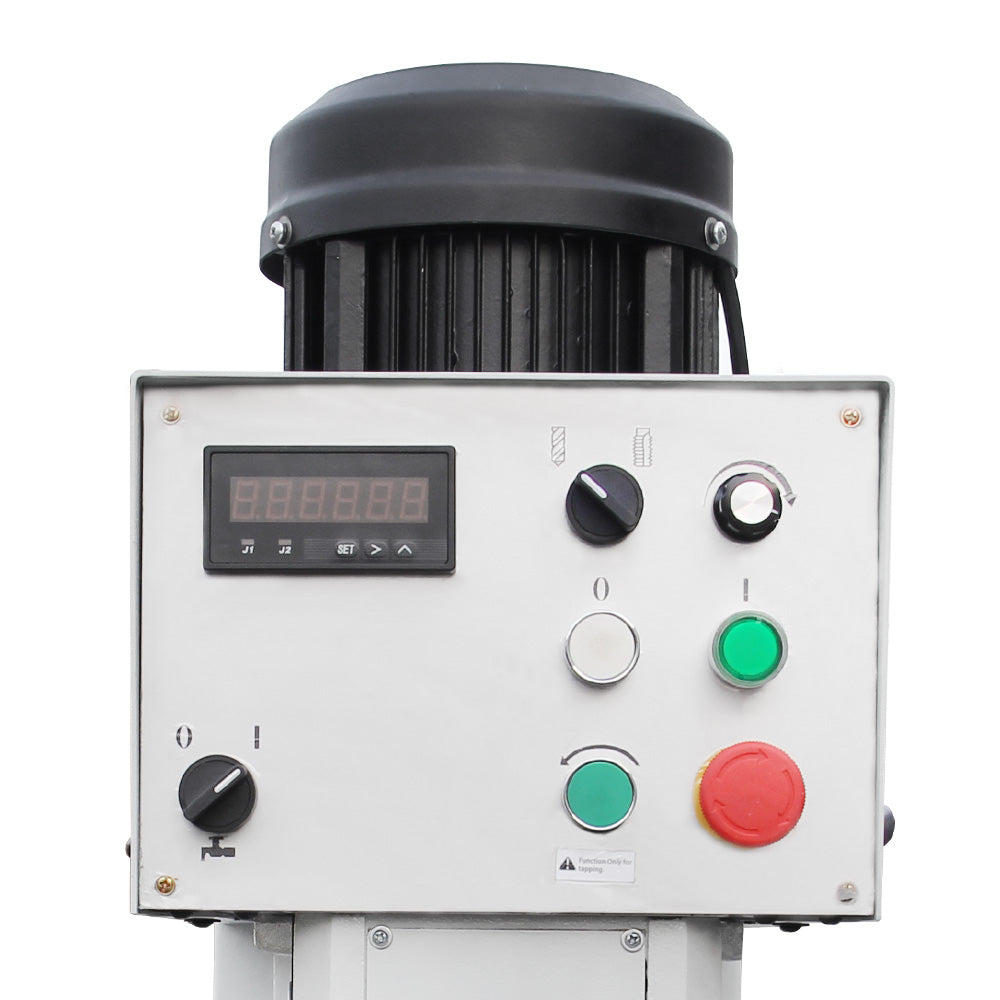

Our drilling and milling machine has a height-adjustable and rotary function on the head unit and working table. It can provide proper drilling travel for various workpieces in different sizes. The machine also has an RPM digital display and a digital depth reader.
Driven by gear with high torque. Casting iron structure for long durability and with standard coolant system.
Our drilling and milling machine's safety guard and micro switch make work safer and more efficient.

Wide Applications

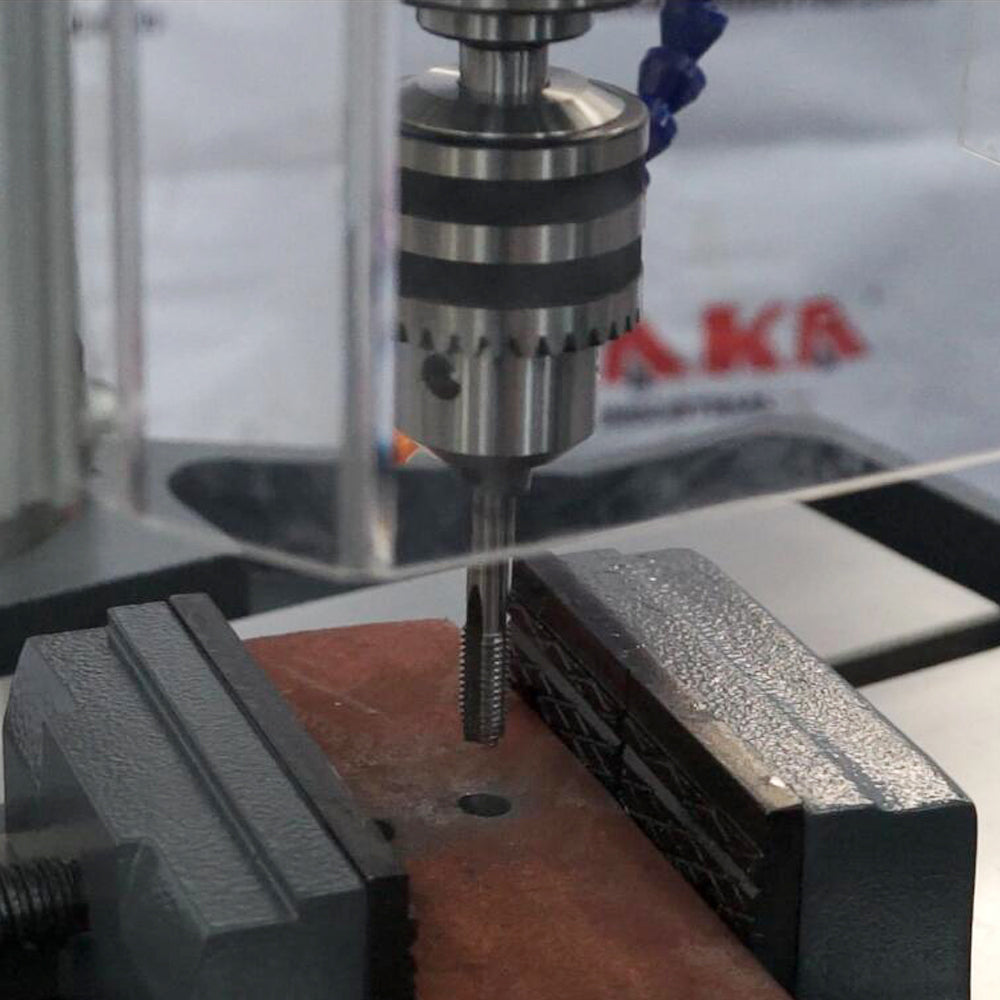

The gearhead vertical drill press is a versatile tool used in various industries and tasks, including drilling holes in metal components, tapping threads, joinery, furniture making, automotive repair shops, home workshops, and construction sites.

Kaka Industrial DP-32 Drilling and Tapping Machine

  • Max. drilling capacity: 1.25 inch /32mm
  • Max. taping capacity: 0.98 inch /19mm
  • Spindle taper: MT3

Kaka Industrial DP-40 Drilling and Tapping Machine

  • Max. drilling capacity: 1.57 inch /40mm
  • Max. taping capacity: 0.98 inch /25mm
  • Spindle taper: MT4
  • With mechanical automatic feed

1. Single phase motor
2. With variable speed.
3. Driven by gear with high torque
4. Large capacity for drilling and tapping
5. Casting iron structure for long durability
6. Coolant as standard
7. Safety guard with Micro switch

Item No.
190030
Model
DP-32
Max. drilling capacity
1.25"
Max. taping capacity
0.75"
Swing
20.8"
Spindle taper
MT3
Spindle travel
5.9"
Spindle speed
High speed 245-2000rpm
Low speed 65-540rpm
Spindle nose to table
20.8"
Spindle nose to base
46.5"
Quill diameter
2.95"
Column diameter
4.52"
Motor power
2.2kW
Table size
22"x18.7"
Table slot
0.625"
Base size
26.9"x19"
Packing size
37"x25"x78"
N.W./G.W.
750/877 lbs

  • Solid Construction

    Cast iron frame for extended durability.

  • Motor Power

    It has single-phase power, a 2.2 KW powerful motor
    Inverter with variable drilling speed.

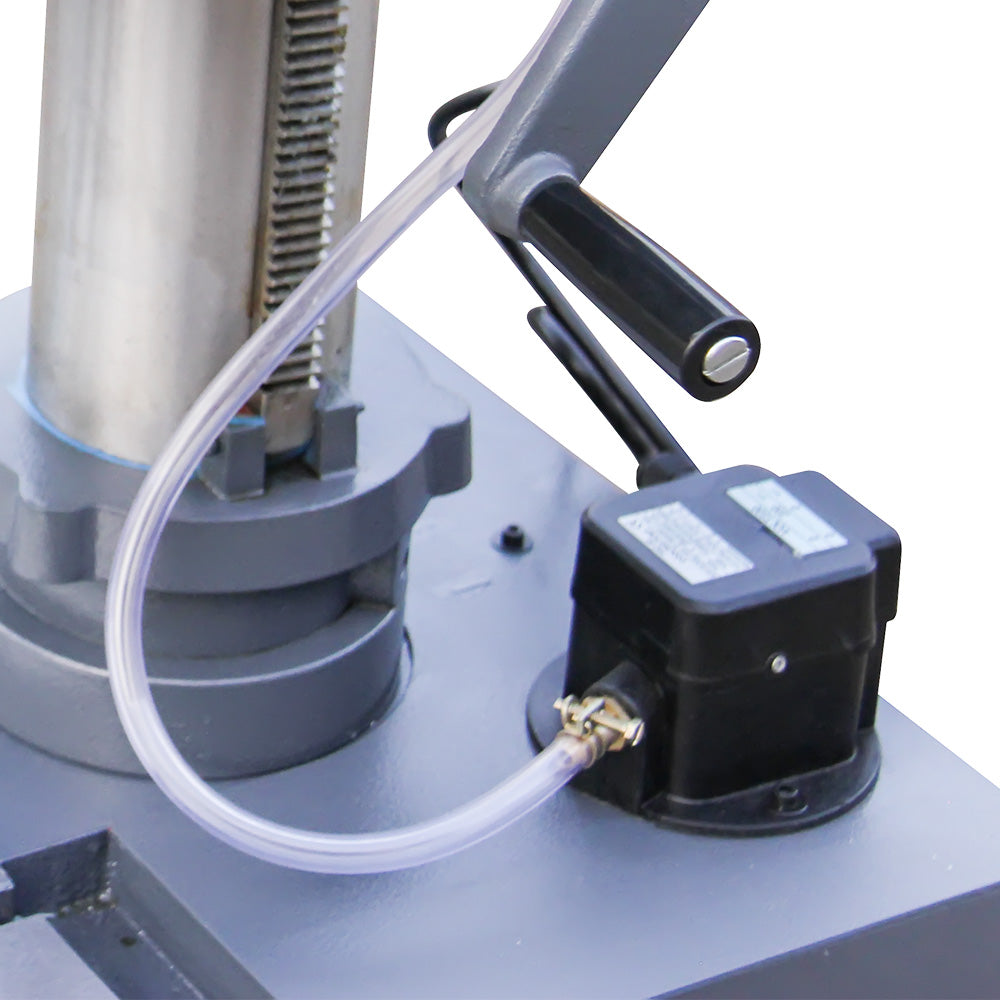

  • Cooling System

    Standard cooling systems help extend mechanical life and reduce wear and tear caused by overheating.

Similar Products

A table comparing the facets of 4 products
Facet
Title

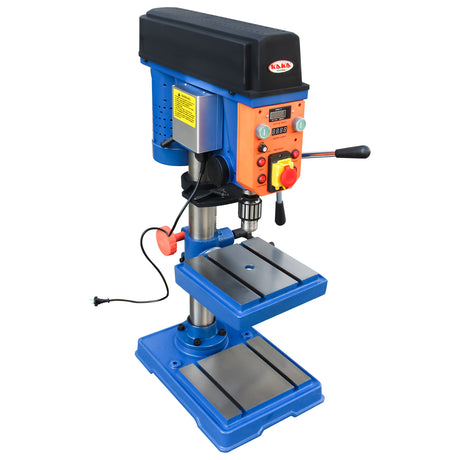

TitleKAKA INDUSTRIAL 5/8" Variable-Speed Benchtop Drill Press with Laser, Bench Top Drill Press for Metal and Wood Working DP-16Floor Drill Pres, Swing 20.8 inch,Max Drilling 1.57Inch , 2.2kW 220V 1-Phase, Powerfeed & Auto Downfeed, MT4 Taper, Digital RPM/DRO, Cast Iron Benchtop DP-40Floor Drill Pres, Swing 20 inch Max Drilling 0.98-Inch, 0.9kW (220V 3-Phase), 8-Speed (130-3200 RPM), Cast Iron Benchtop, MT3 Taper Spindle GD-25BDrilling and milling machine,230V460V-60HZ-3PH Main Moto power 1.5KW Gear Head Auto Feed Table Drilling and milling machine with 3 Axis DRO ZX-5325C
