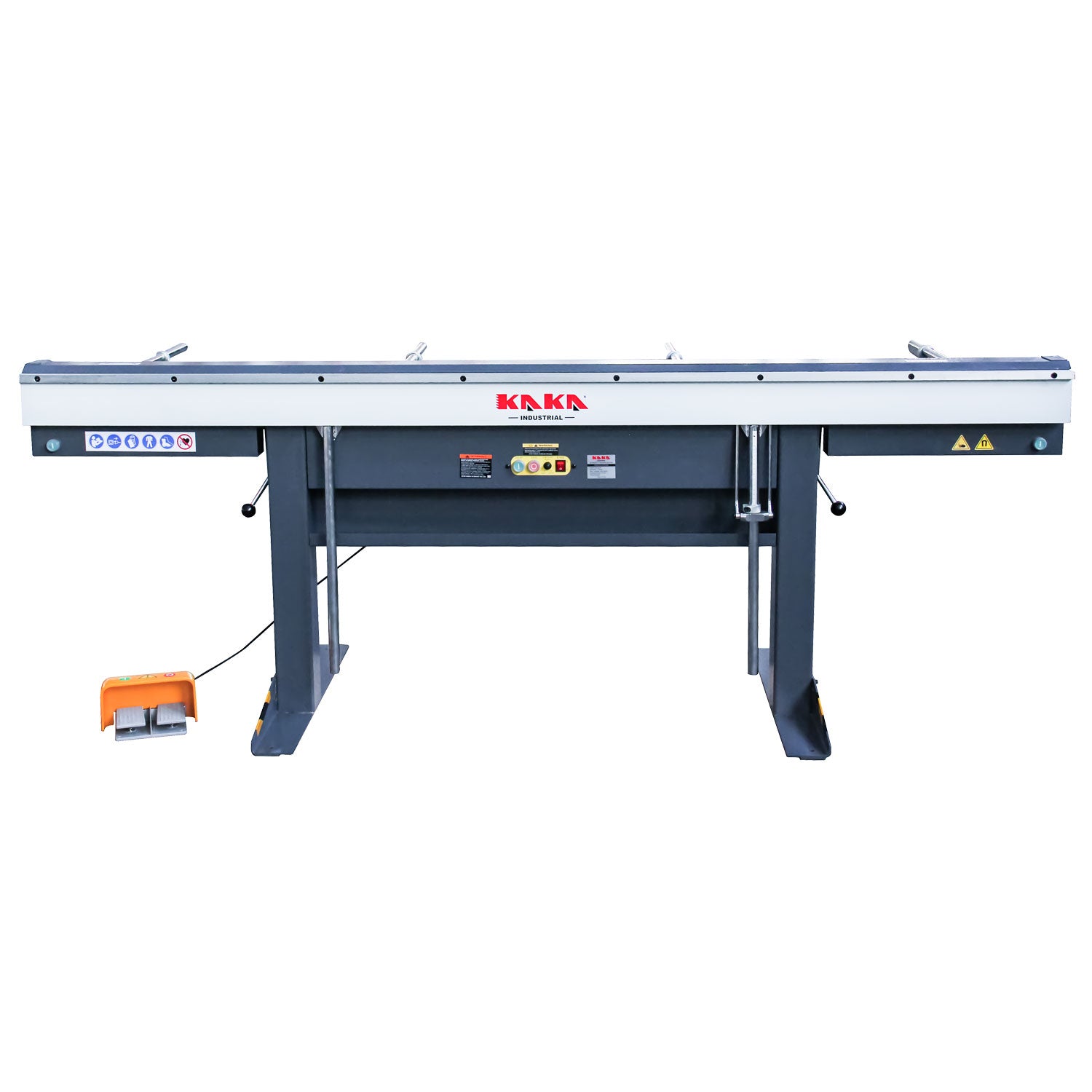

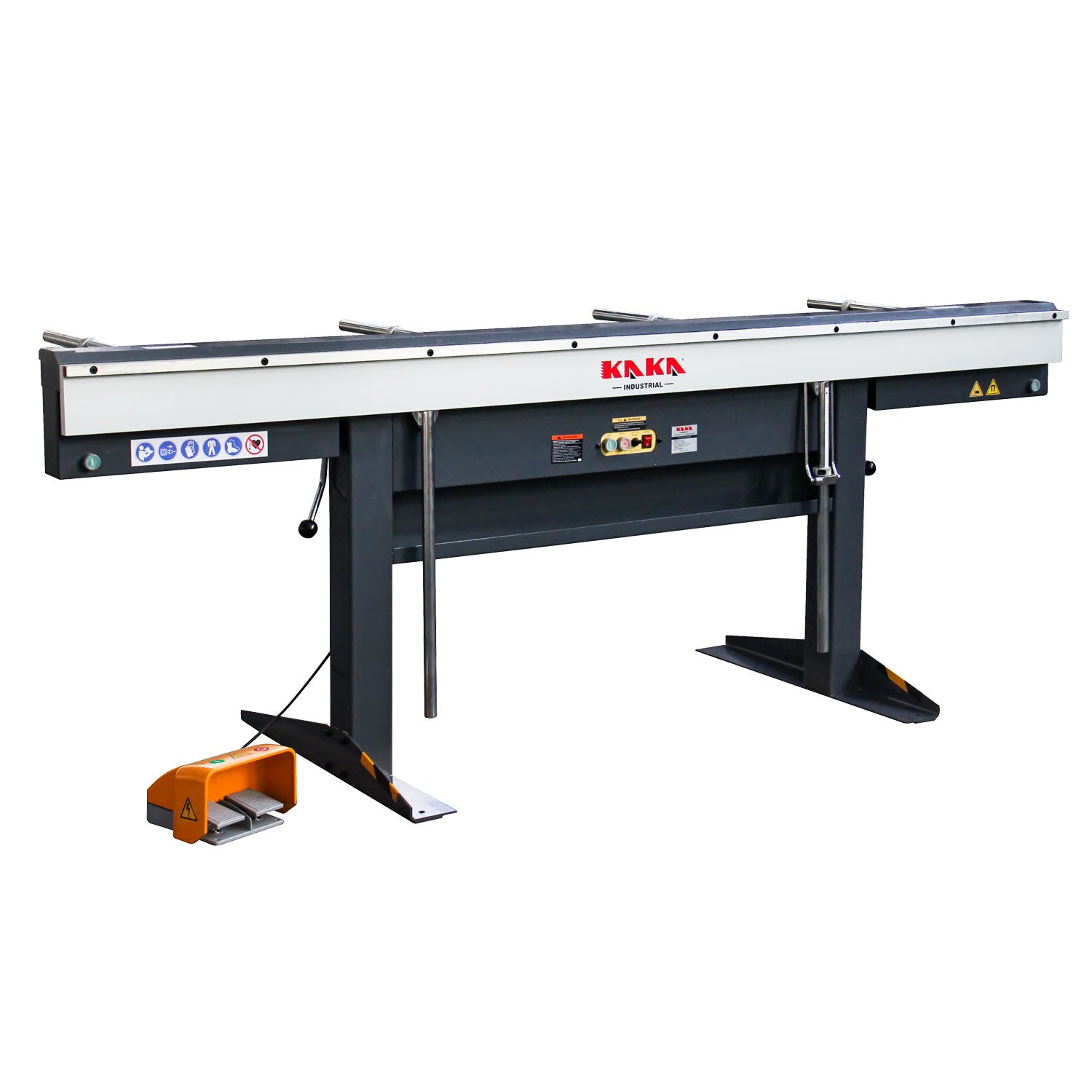

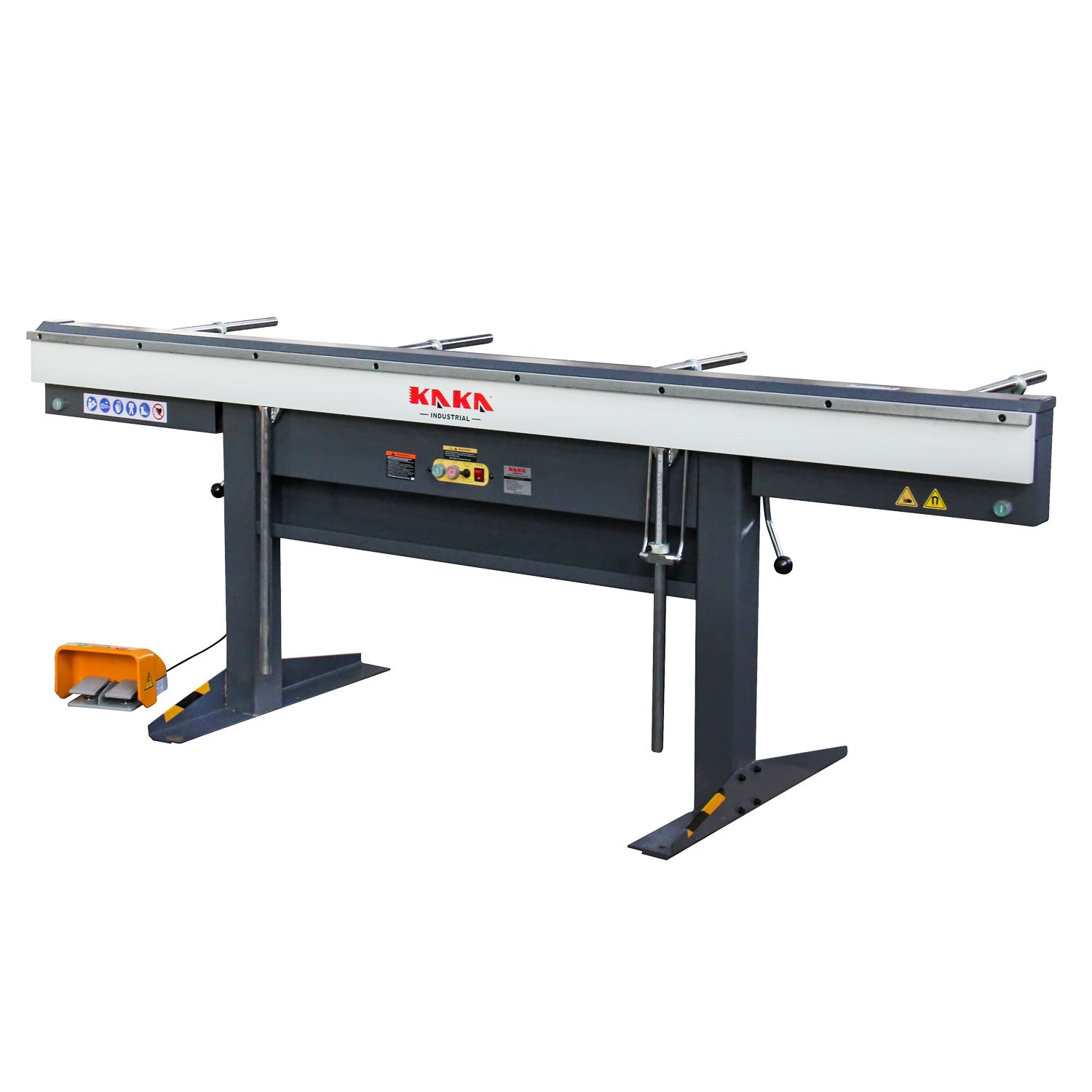

KAKA INDUSTRIAL Sheet Metal Brake 98-inch 12-Ton 16-Gauge Capacity Magnetic Box and Pan Brake, Electric Metal Brake Bender, 220V Single Phase EB-9816
The KAKA INDUSTRIAL EB-9816 Electric Sheet Metal Brake combines industrial power with precision engineering. Designed for HVAC professionals, metal fabricators, and artisans, this 12-ton machine handles large sheets with ease, making it a cornerstone tool for any serious workshop.
Key Features & Benefits:
- Powerful Performance: 12-ton (10.9 metric tons) clamping force for bending 16-gauge (1.6 mm) mild steel.
- Exceptional Capacity: 98-inch (2500 mm) bending length accommodates wide panels and large projects.
- Precision Bending: Magnetic box and pan brake design offers unlimited depth for complex shapes. The sliding angle guide ensures accuracy.

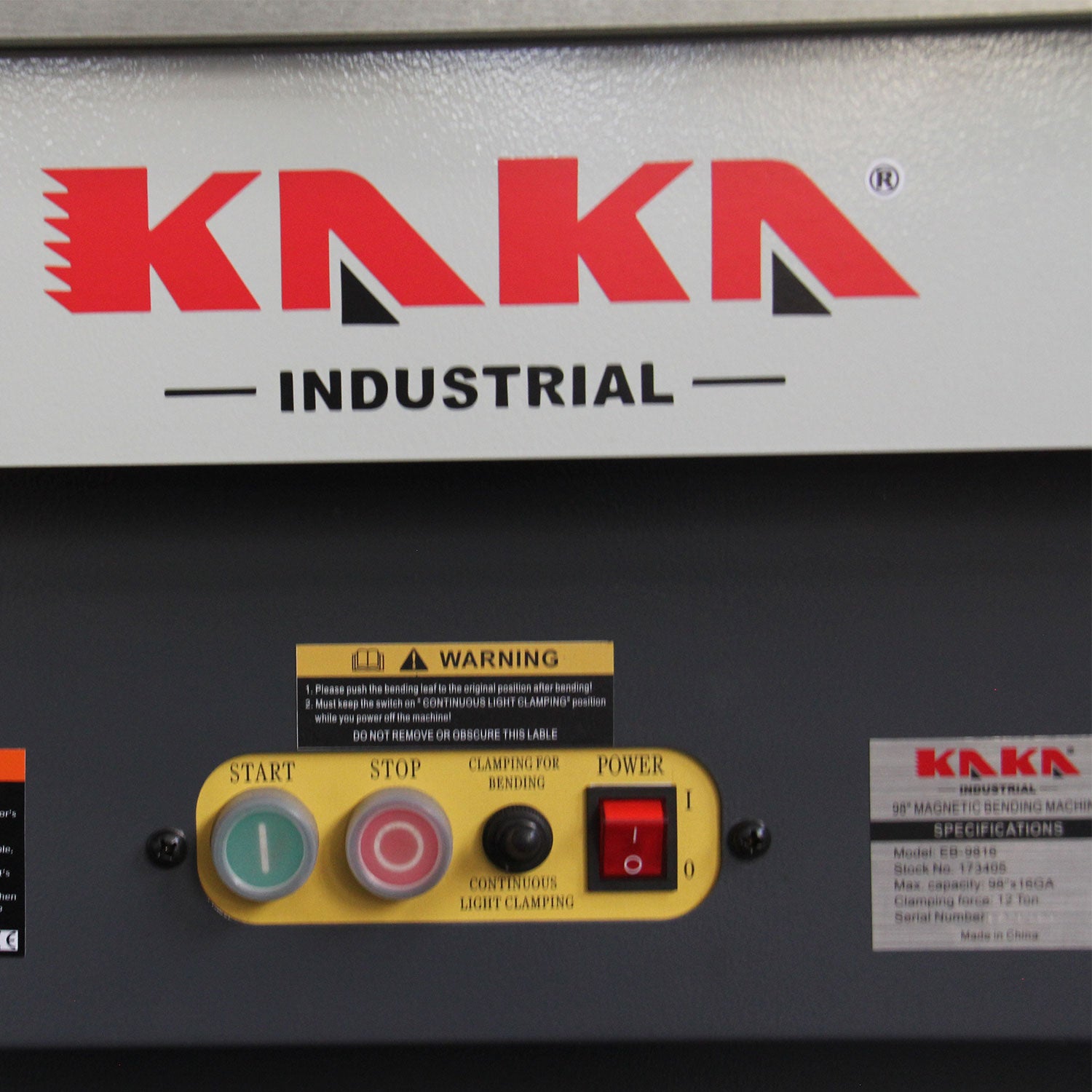

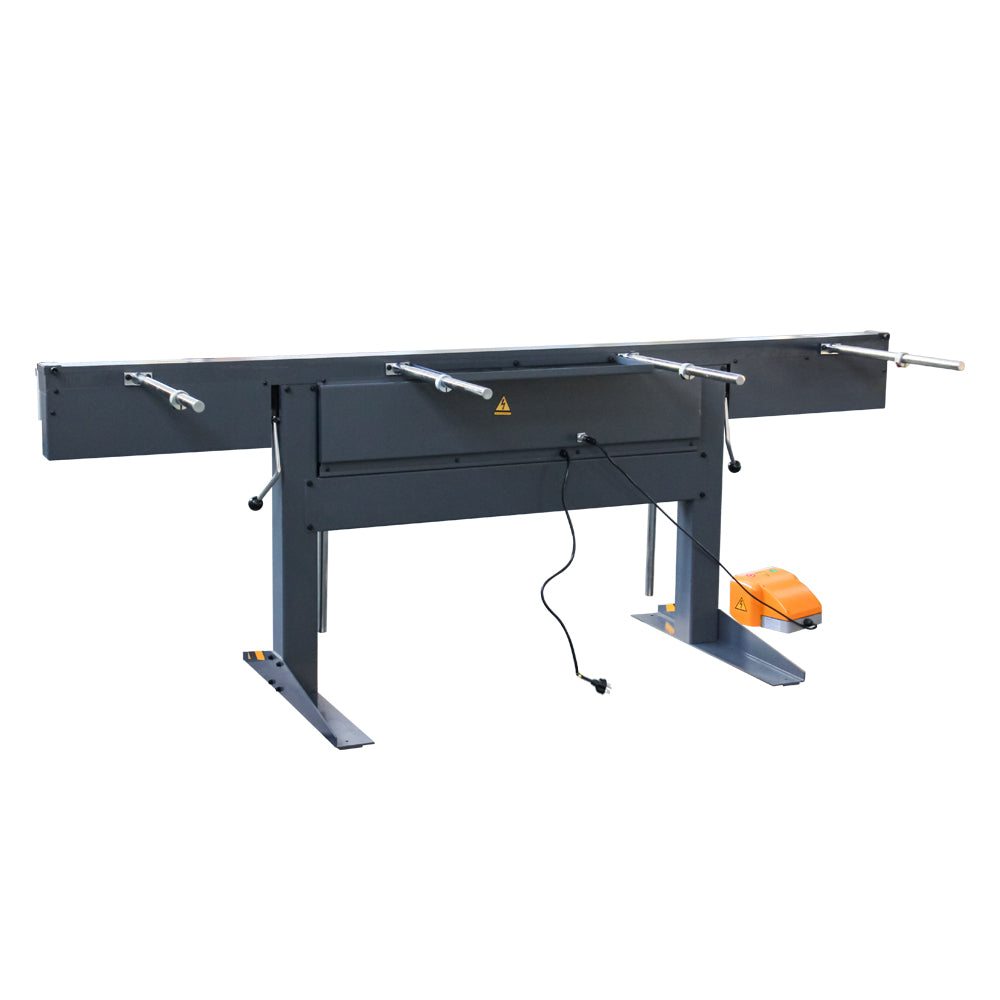

- Efficient Operation: Foot pedal control allows for hands-free material handling. Four back gauges (25.2 inches / 640 mm) ensure precise positioning.
- Durable Construction: Robust build with a 639 lbs (290 kg) net weight and a 30% duty cycle for sustained use.
- Safety Assured: Thermal cut-out protection at 70°C (158°F) prevents motor overheating.
Ideal Applications:
Perfect for HVAC ductwork, metal artwork, custom fabrication, industrial maintenance, and creating boxes, pans, and architectural elements.
Ready to Use:
This machine includes clamp bars and is designed for straightforward setup, getting you to work faster.
Invest in the KAKA INDUSTRIAL EB-9816 for a reliable, high-performance addition to your metalworking toolkit.
- 98 in Magnetic Sheet Metal Brake - EB-9816 supports 98 in x 16 gauge mild steel capacity, matching the manual-listed 2500 x 1.6 mm class for wide panels, duct sections, pans, covers, and formed sheet metal parts.
- 12 Ton Magnetic Clamping - Electromagnetic clamping applies force along the beam, helping hold compatible sheet metal during bending without the side-frame restrictions found on many conventional brakes.

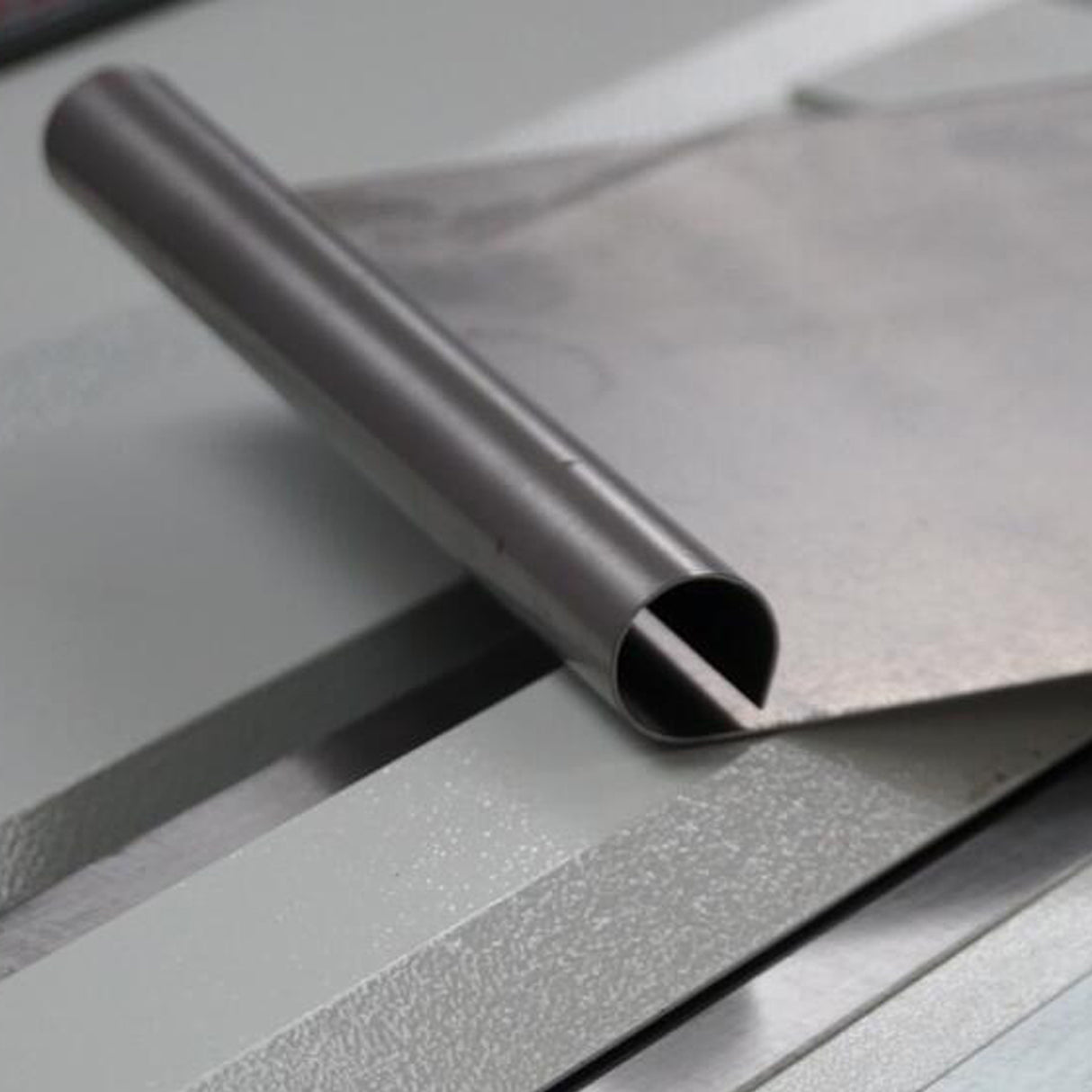

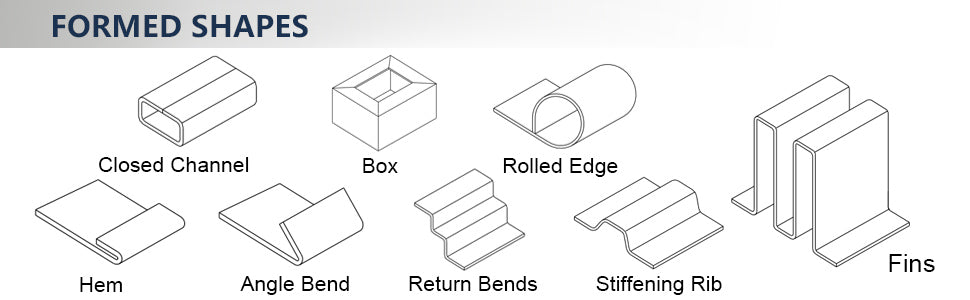

- Open-Ended Box and Pan Layout - The open-ended design helps form deeper boxes, pans, enclosed ducts, channels, return bends, and shaped parts when the clamp bar, material thickness, and bend length are within machine capacity.

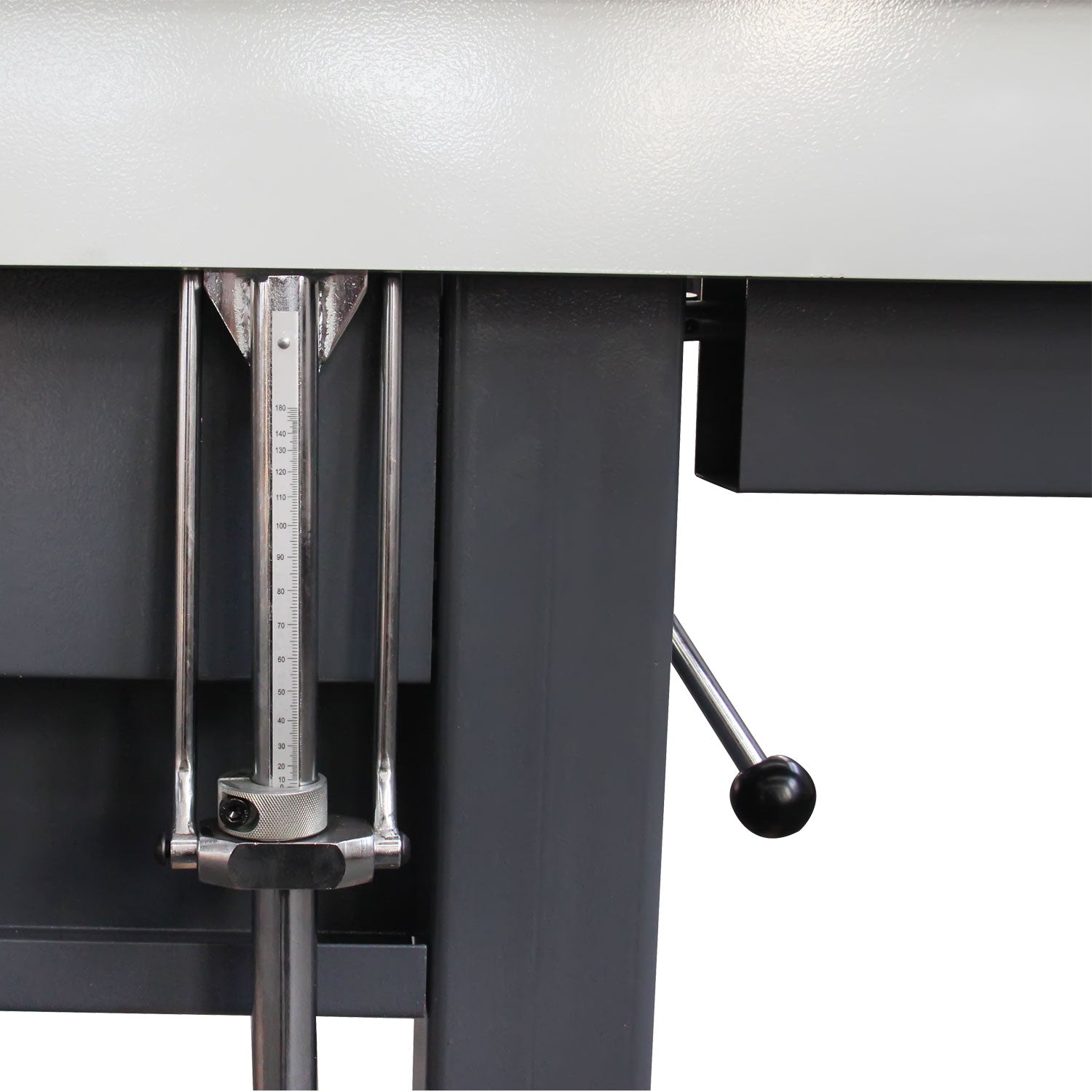

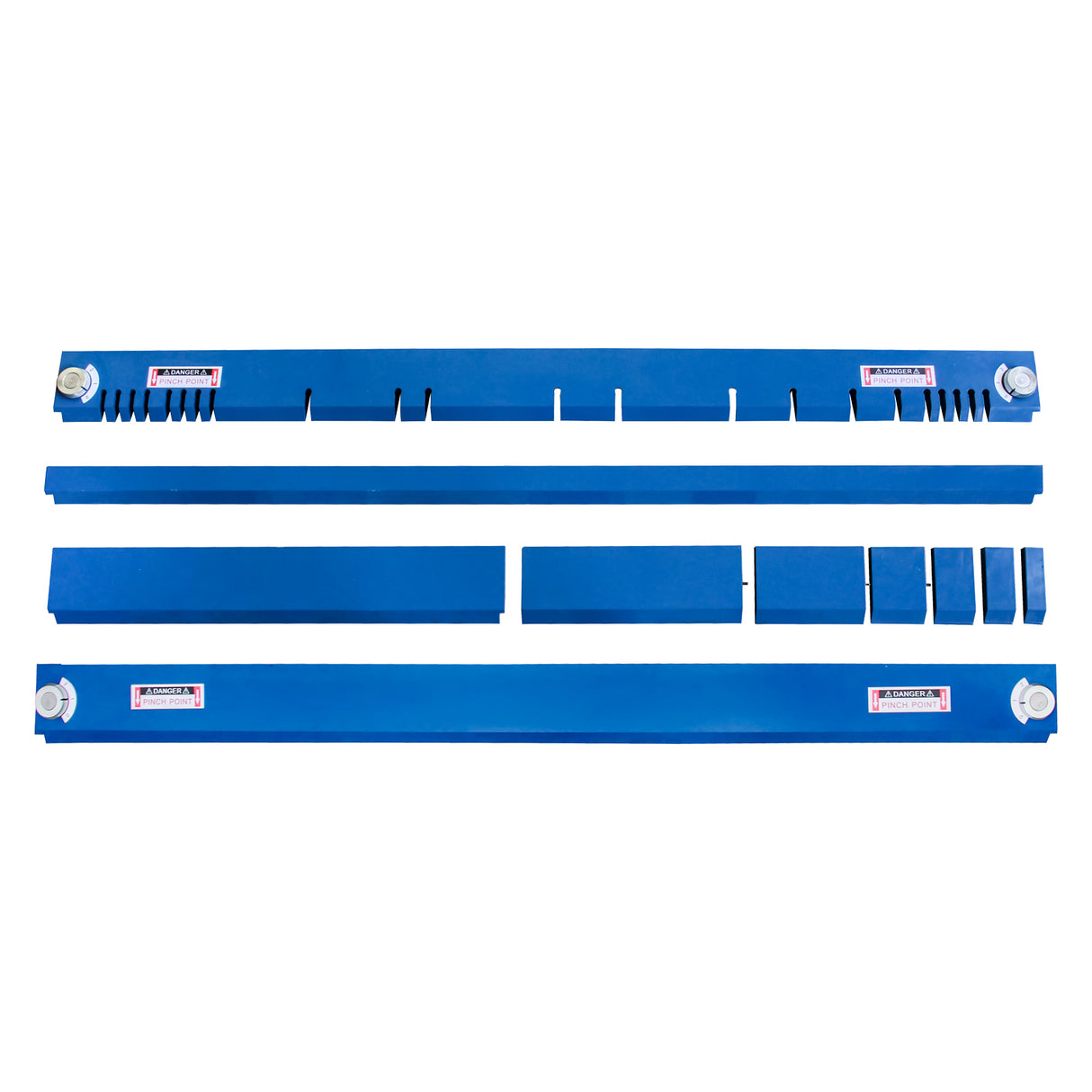

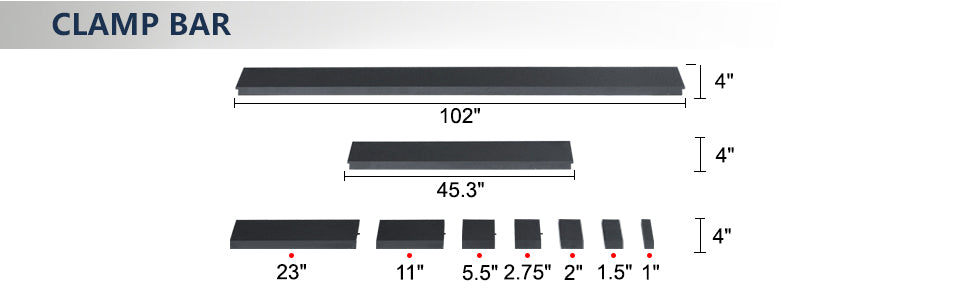

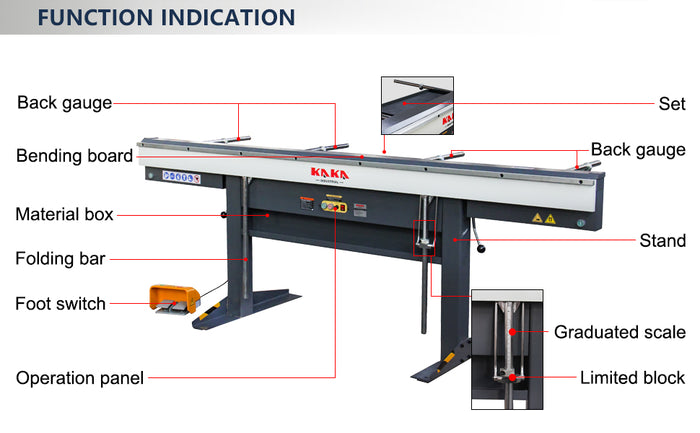

- Clamp Bars and Repeat Setup Support - Includes clamp bars for straight and segmented bending setups. Four back gauges, scaled stroke angle control, and product supports help position larger sheets for repeat shop work.
- 220V Single-Phase Shop Power - Listed specifications include 220V-60Hz-1PH power, 15 amp nominal current, 2.5 kW power rating, 30% duty cycle, foot switch, and thermal cut-out at 158 degrees F (70 degrees C).
| Item No. | 173405V220 |
| Model | EB-9816 |
| Max. Capacity | 98" × 16 Ga. |
| Clamping force | 12 Ton |
| Duty cycle | 30% |
| Back-gauge | 25.2 in |
| Foot switch | Standard |
| Norminal current | 15 Amp |
| Power | 2.5 kW (1PH) |
| Protection | Thermal cut-out 70℃ |
| Bending-edge length | 101.97 in |
| Distance between lifters | 99.53 in |

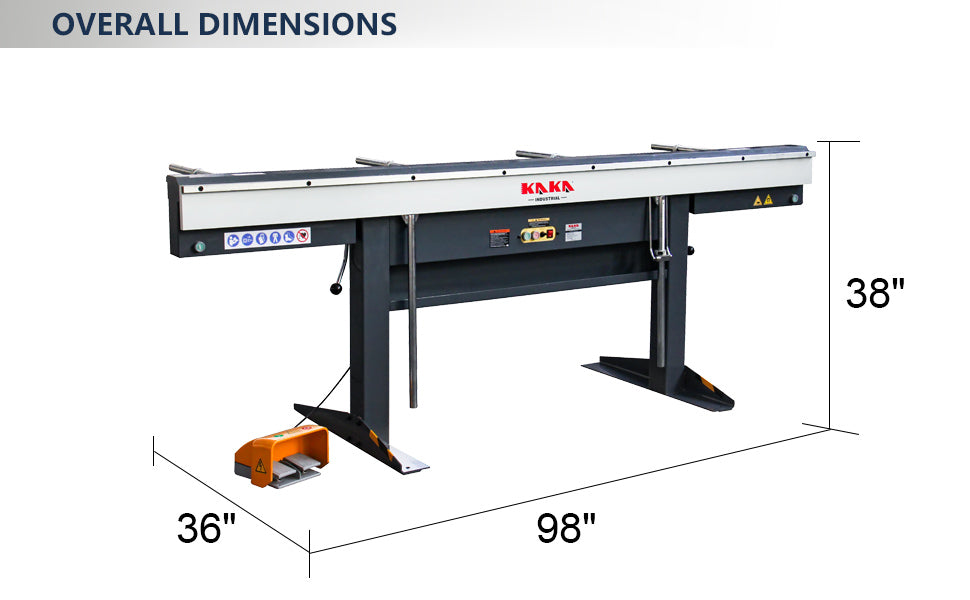

| Packing size | 106 × 44 × 15 in |
| N.W/G.W. | 639 / 888 lbs |
