KAKA INDUSTRIAL LLC  |  SKU: 188304V230

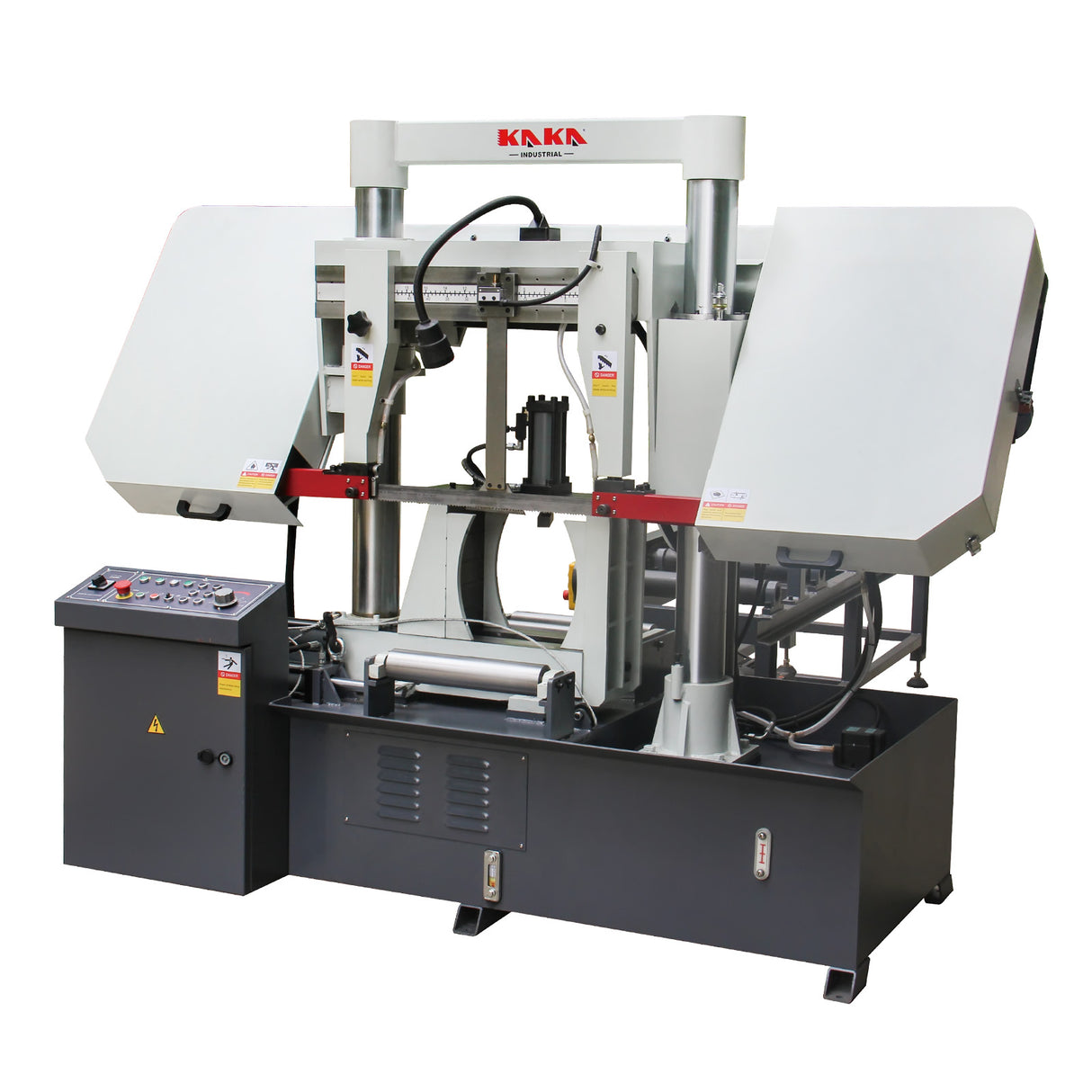

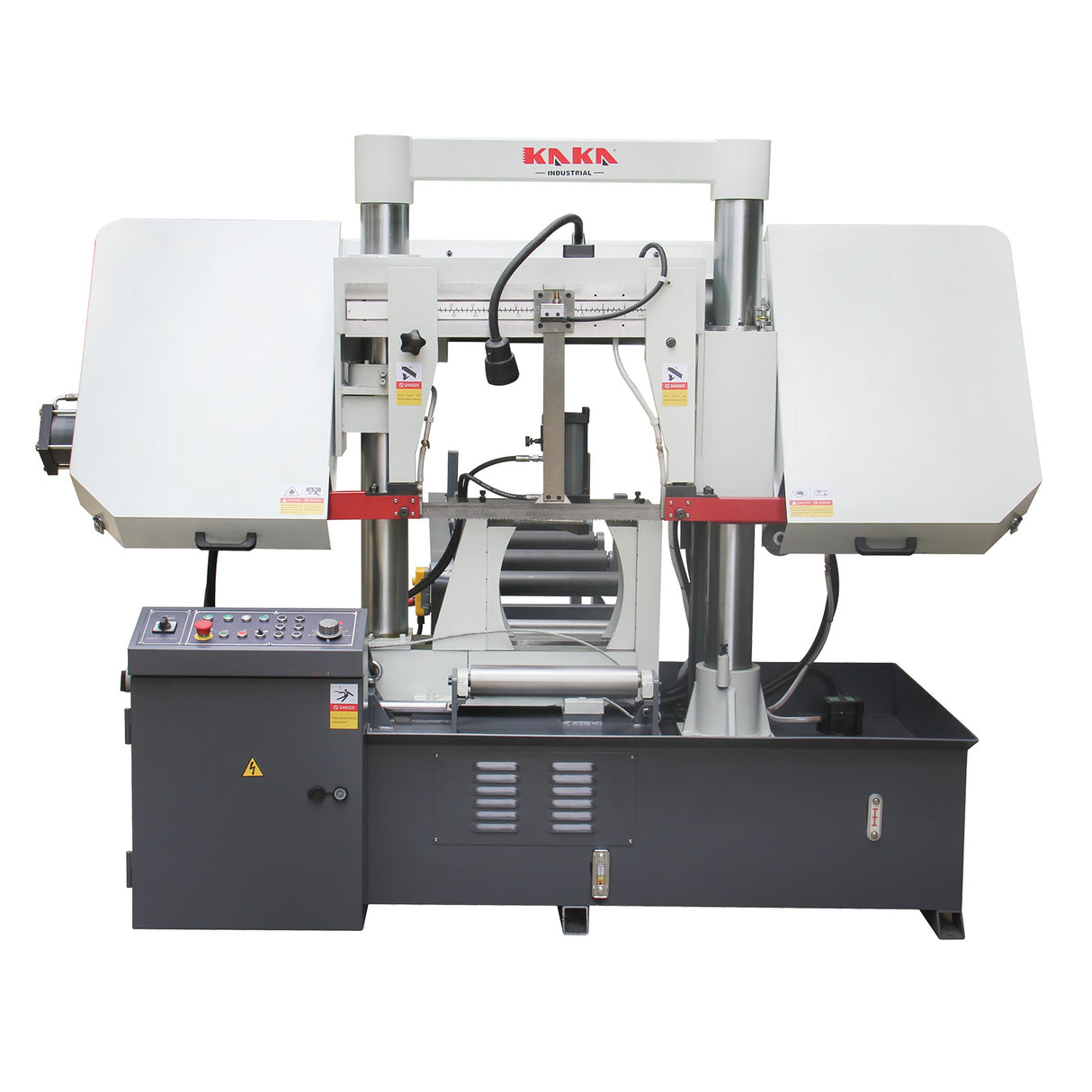

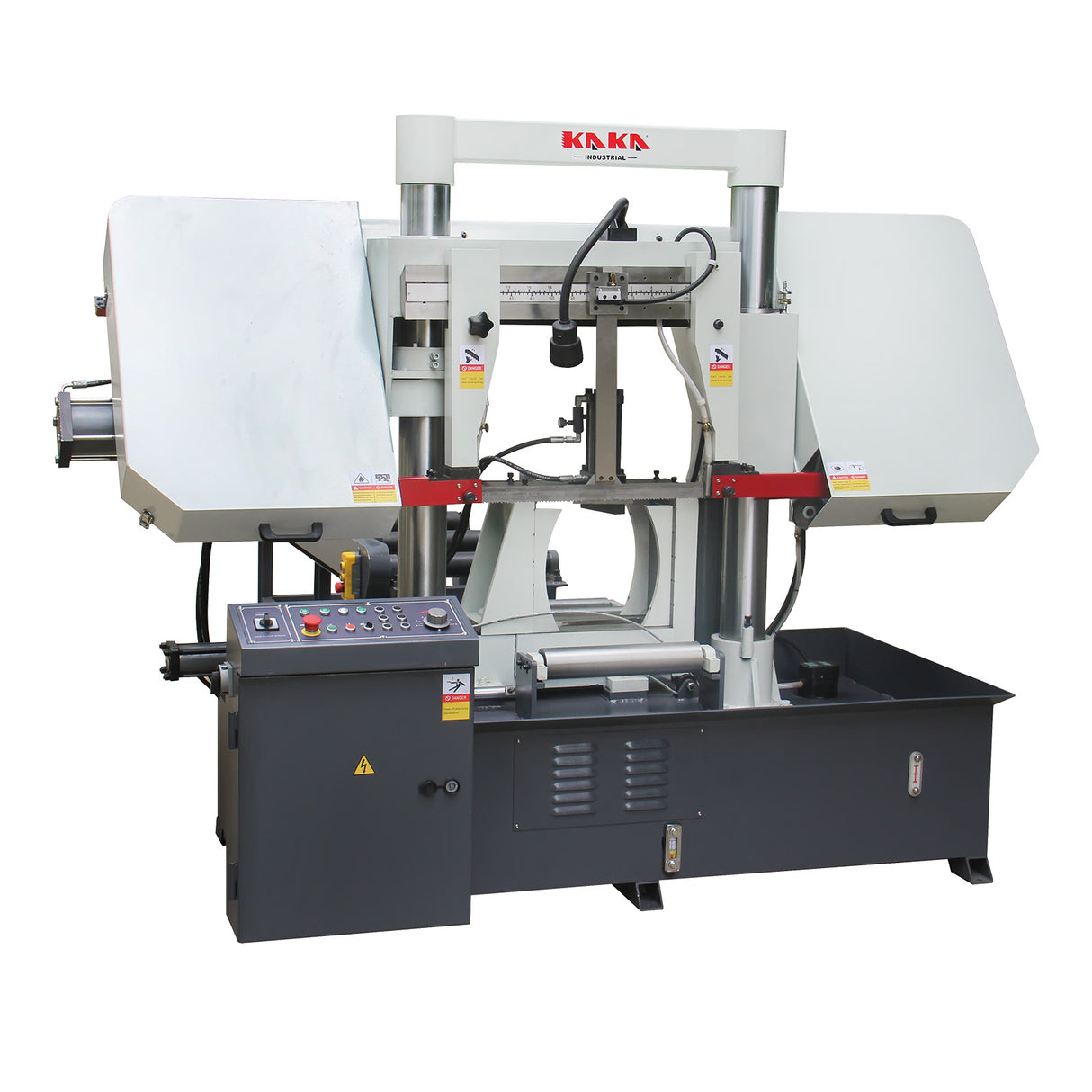

Kaka Industrial TGK-16A Double column horizontal band saw, Max cutting capacity 15.7 inch, vertical lifting, high stability. Cutting speed adopts hydraulic control, 230V 60HZ 3PH

$11,500.00 $14,379.00
Shipping calculated at checkout.

Powerful Cutting Capacity

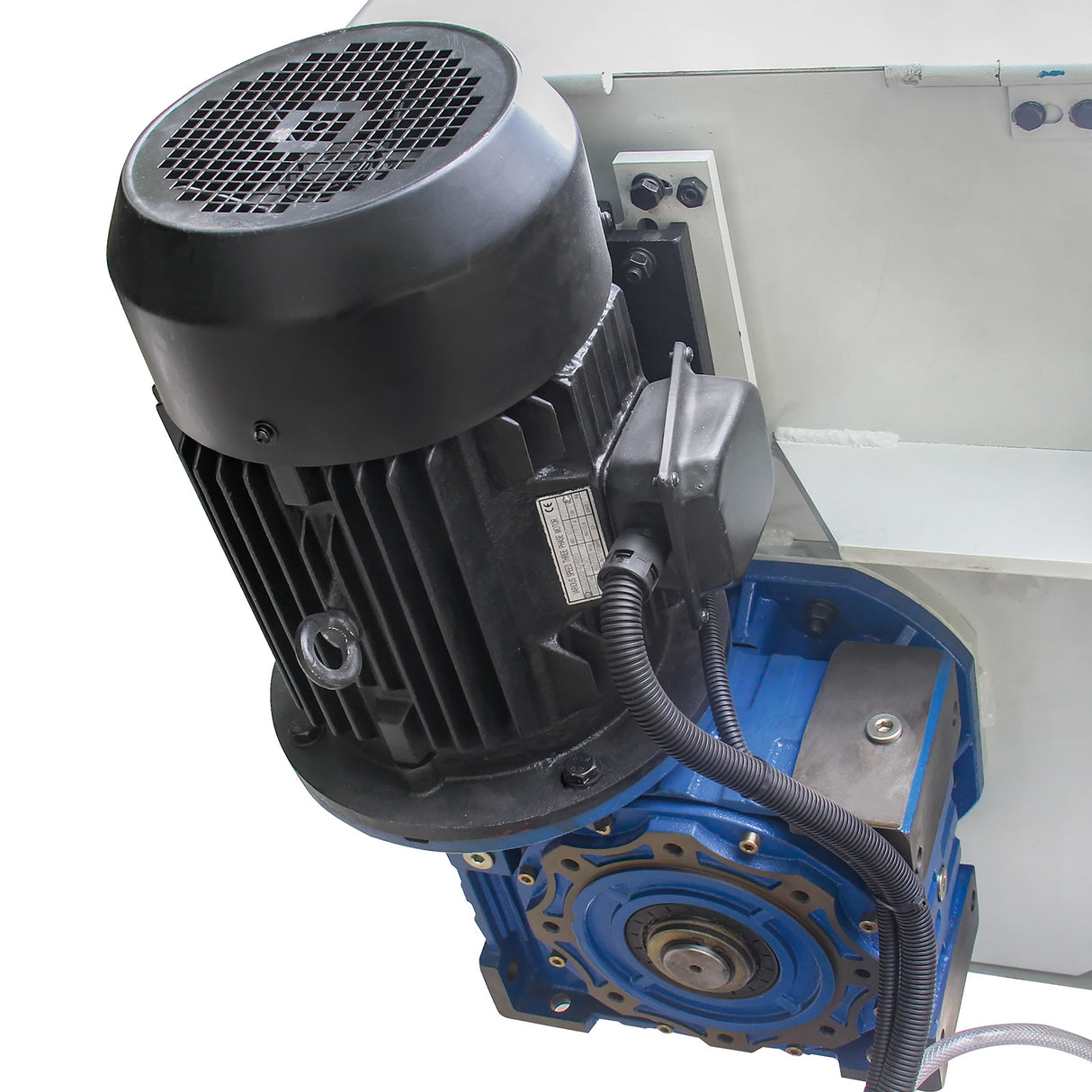

It runs on 230V power and is an industrial-grade double-column bandsaw. It uses a 3.0/4.0 kW double-speed motor to achieve two saw blade speeds of 36,56 m/min. The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately. This bandsaw can cut a wide range of materials, including metals, plastics, composites, wood, rubber, and more.

Flexibility and Versatility
This metal-cutting bandsaw has all the features needed for professional metal-cutting results, allowing users to perform a variety of cuts. It has a double-column structure, vertical lifting, and high stability.

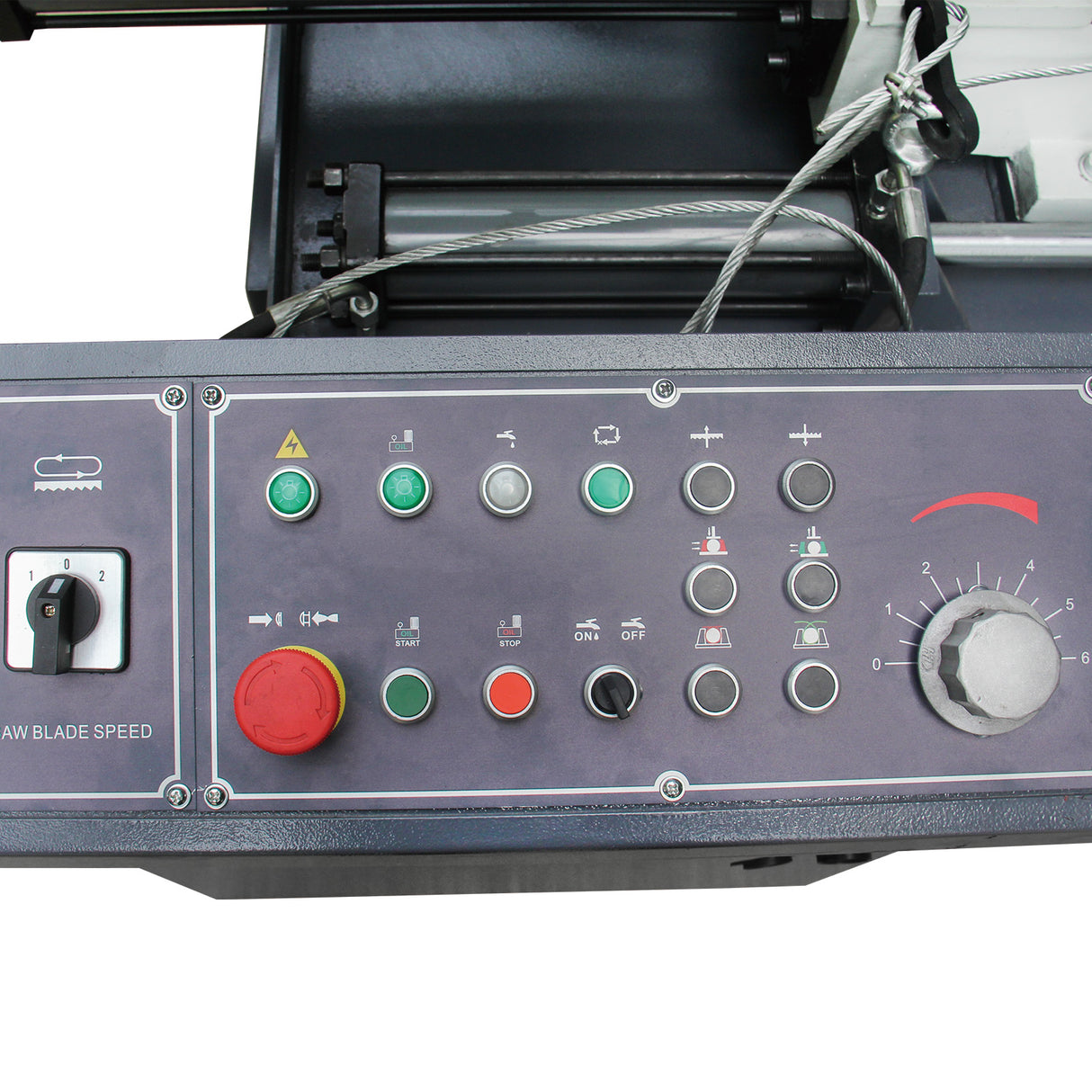

With its 2-step blade speed options, you can easily adjust the cutting speed to match the material you're working with, guaranteeing optimal performance and clean cuts.

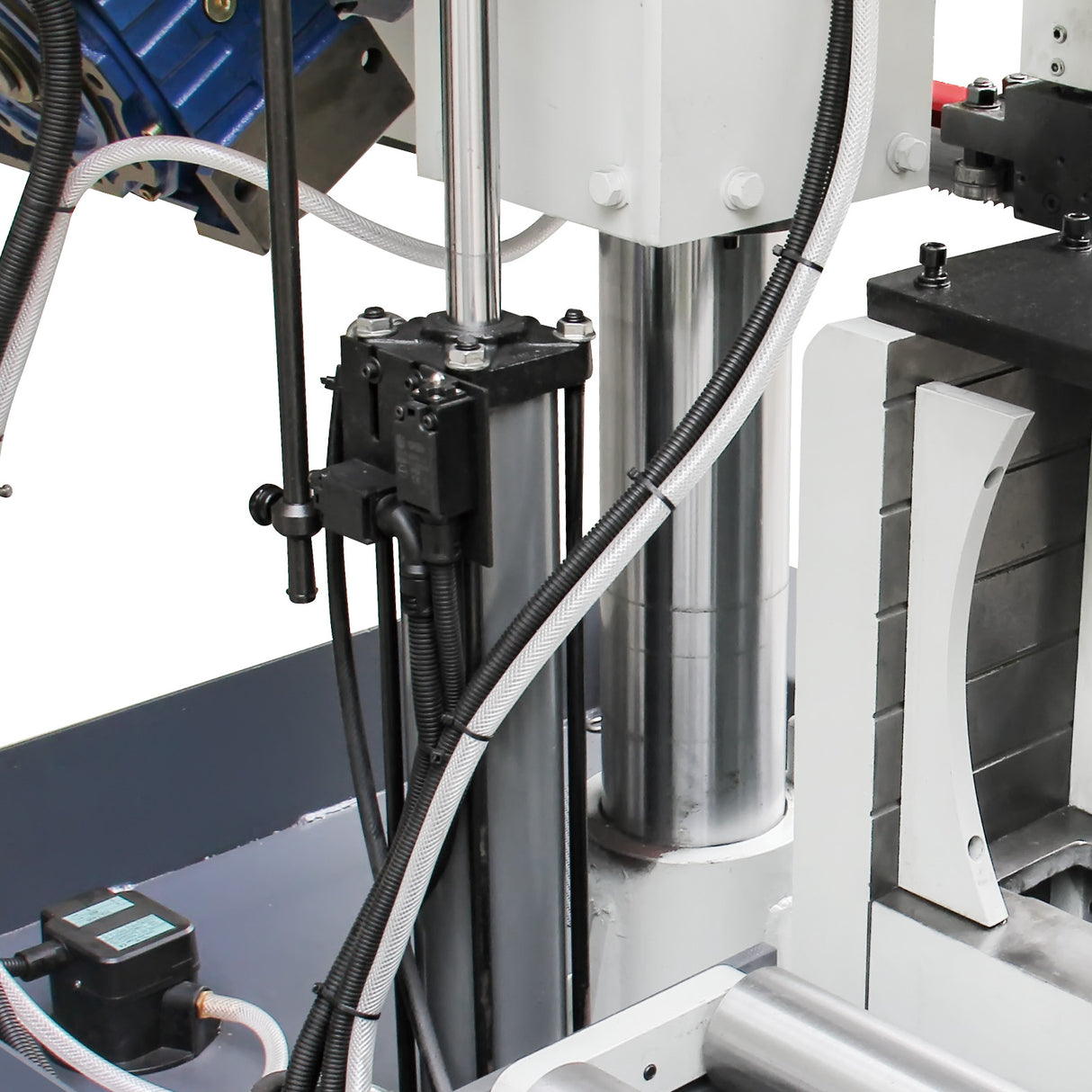

Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts.

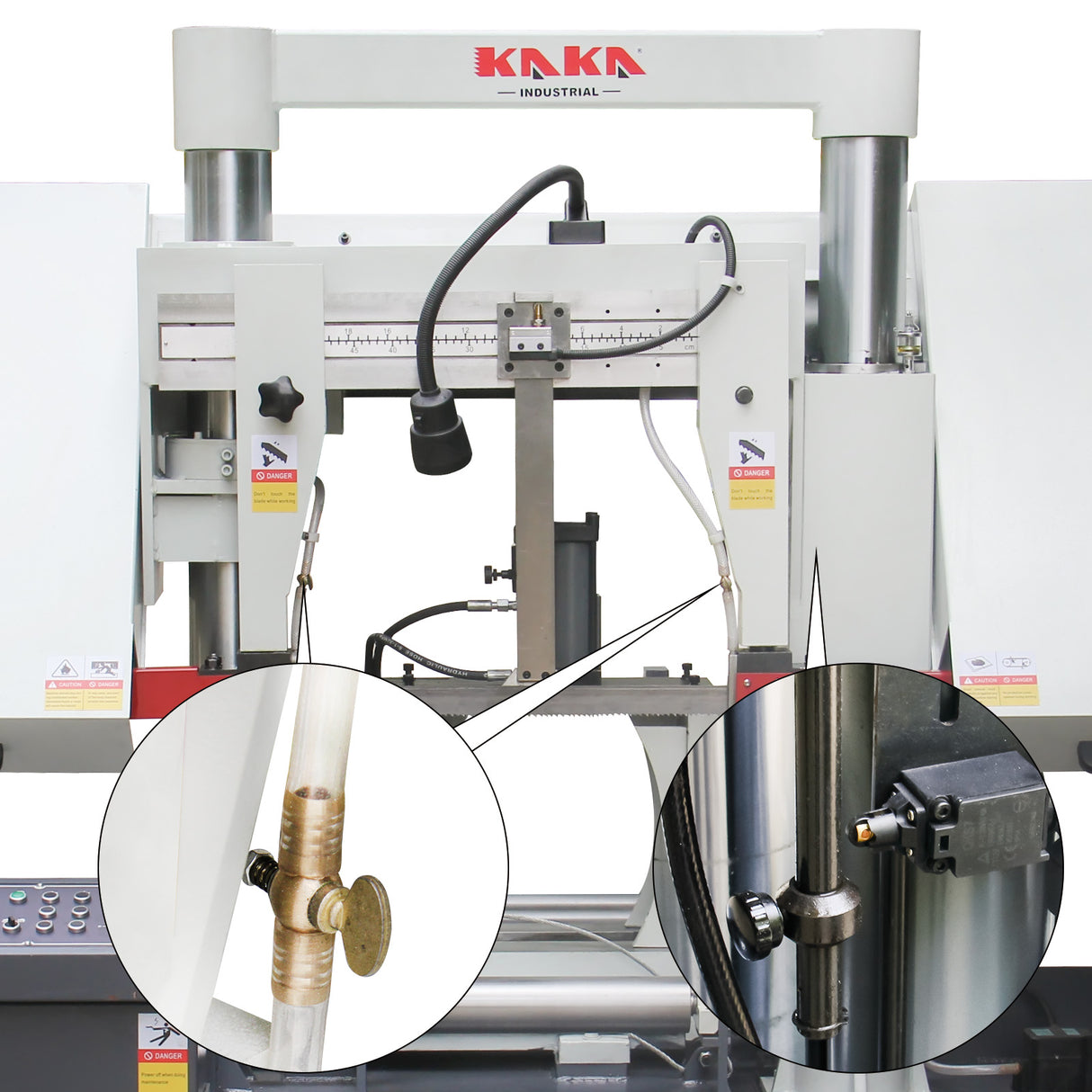

Hydraulic clamping is easy to operate. The built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.

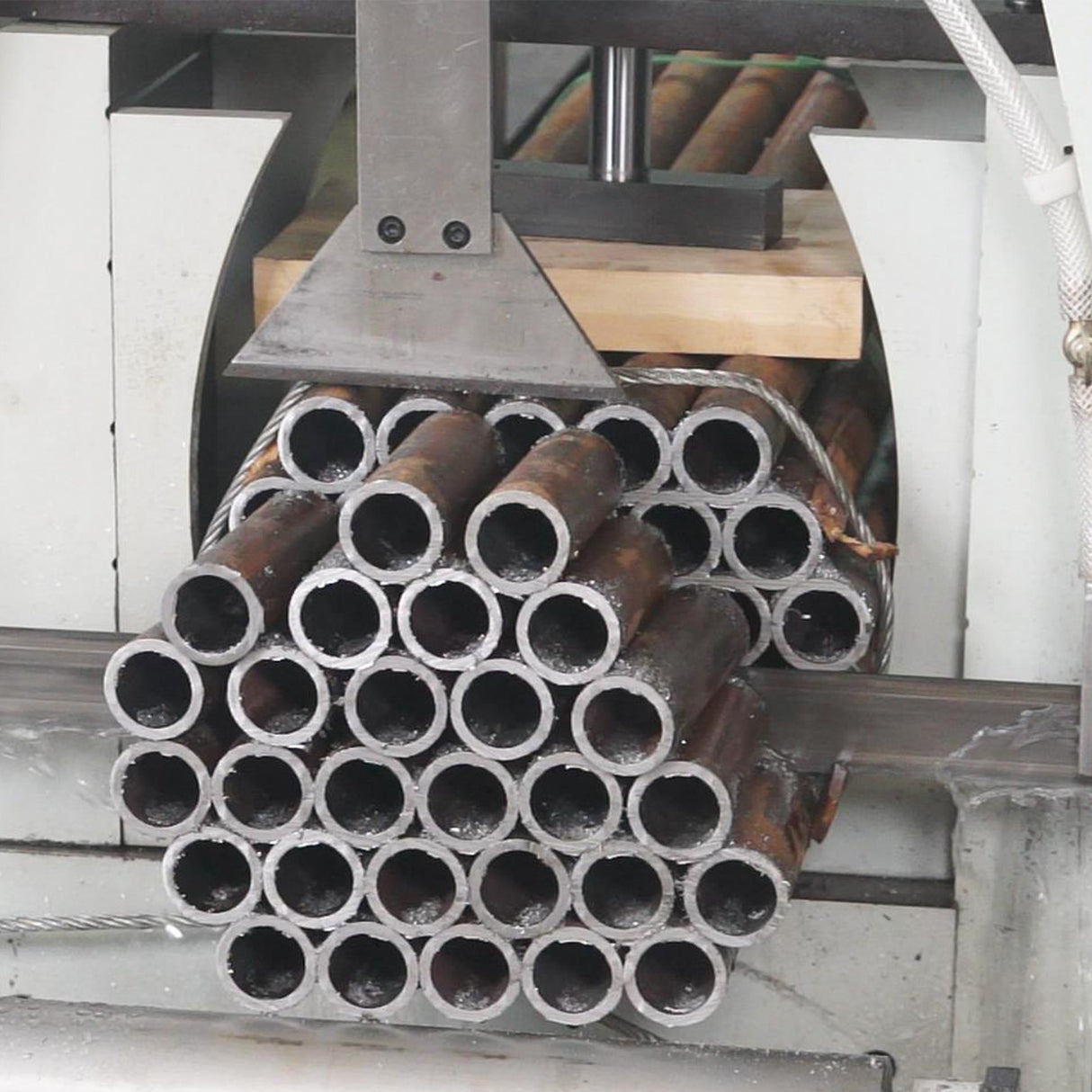

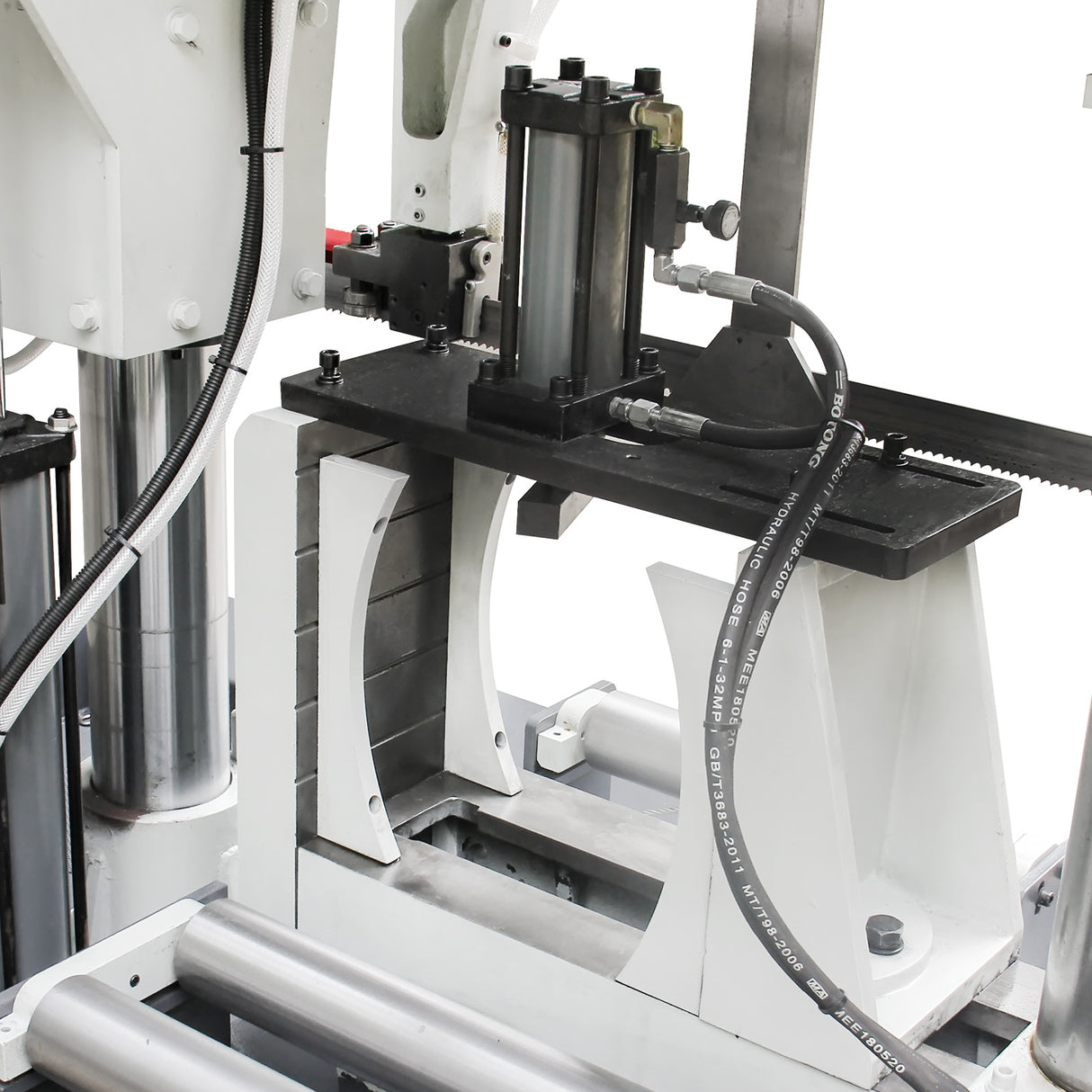

Standard extra clamp for hexagonal bundle material cutting

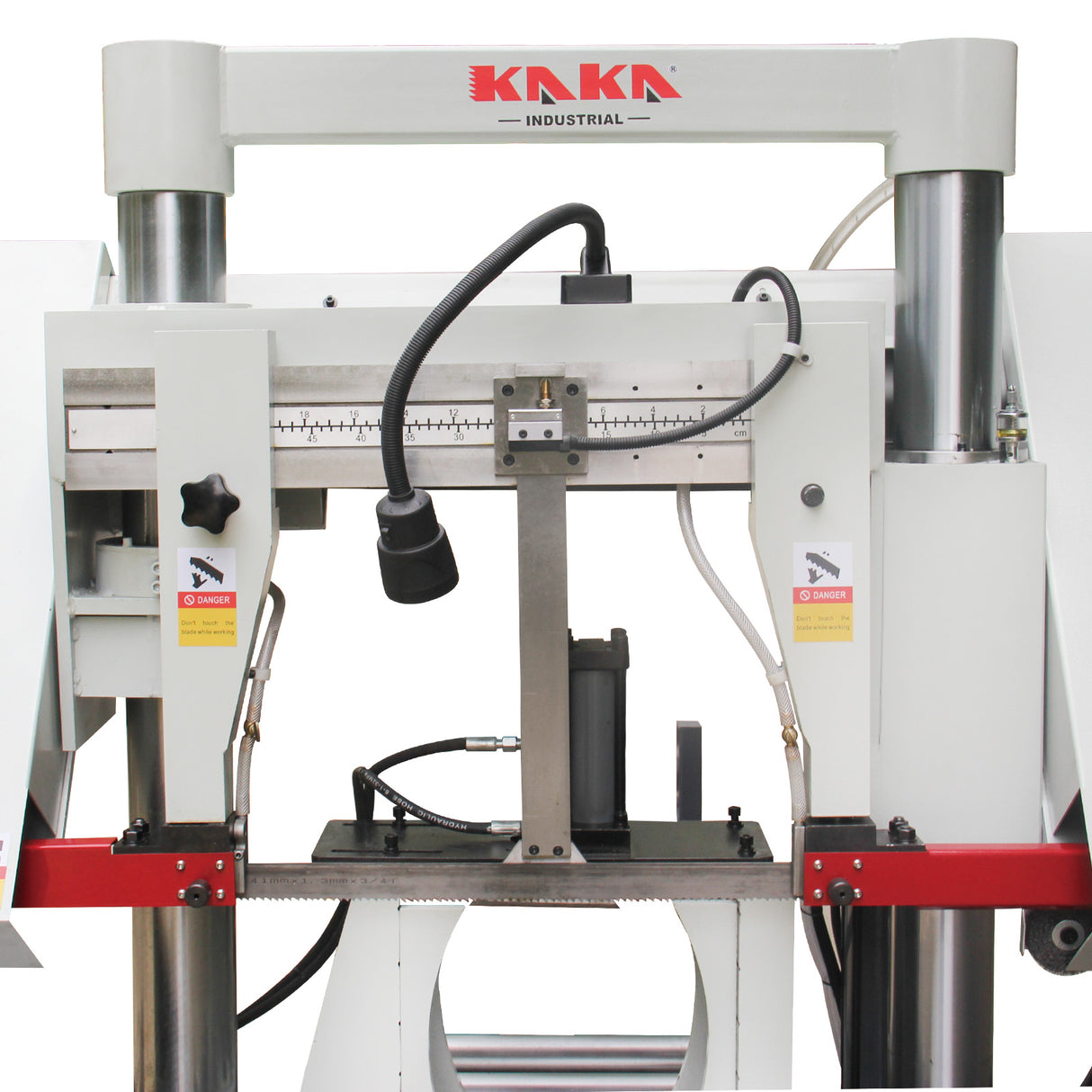

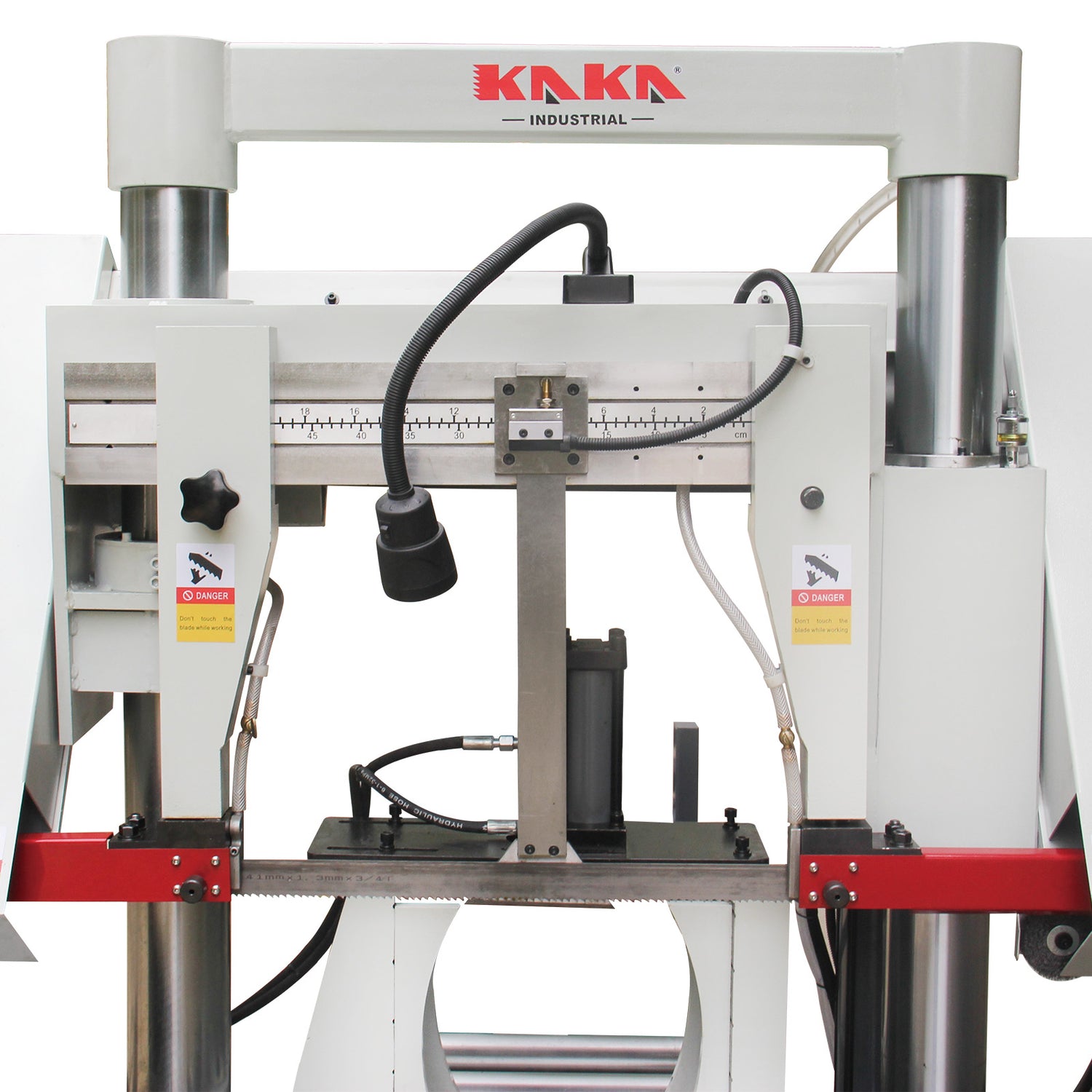

Never miss a detail again with the integrated work lights illuminating your workspace, creating a brighter cutting environment for optimal visibility.

Safety
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The band saw features a coolant system and an automatic shut-off setting.
Wide Applications
The metal-cutting bandsaw is a versatile tool used in various industries and tasks, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

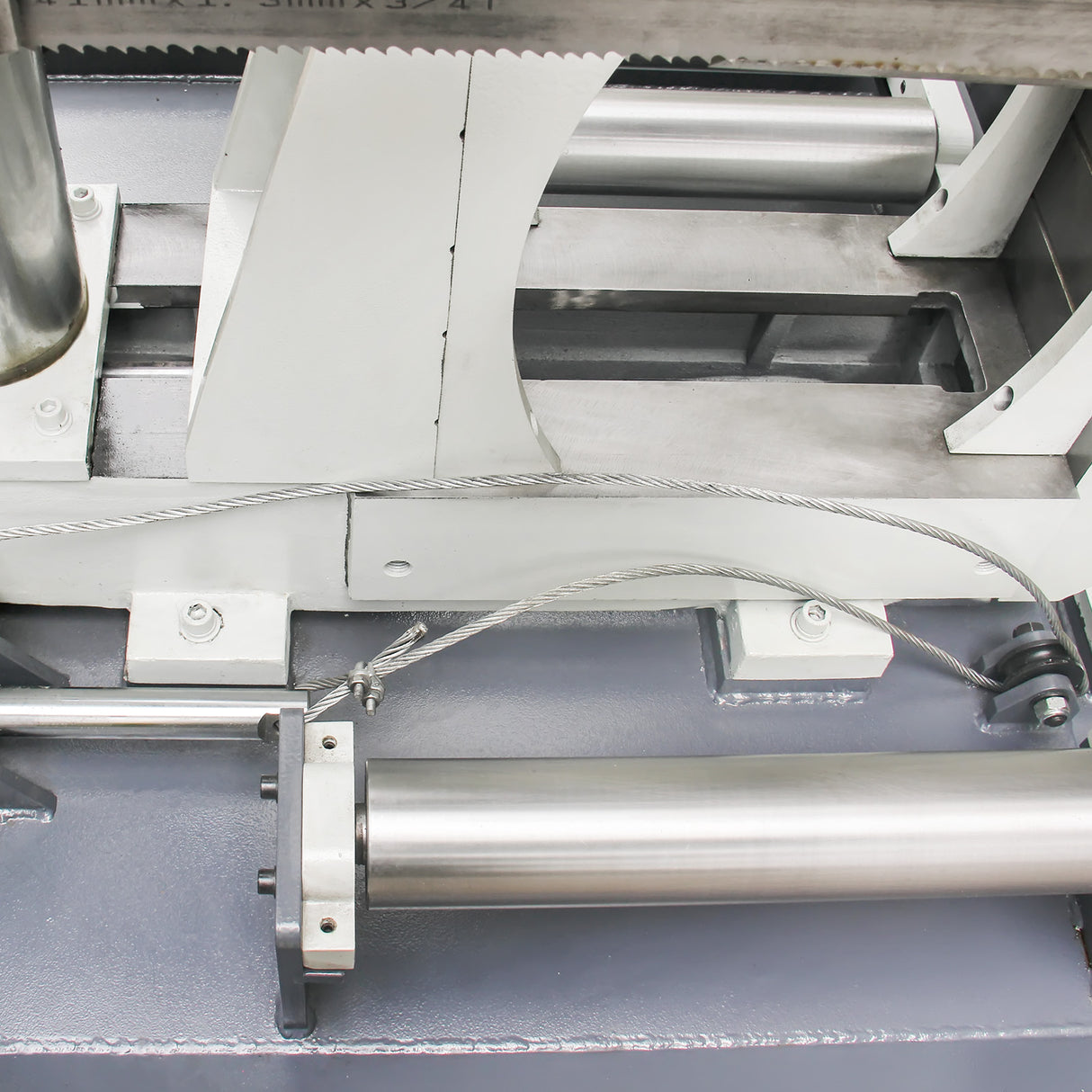

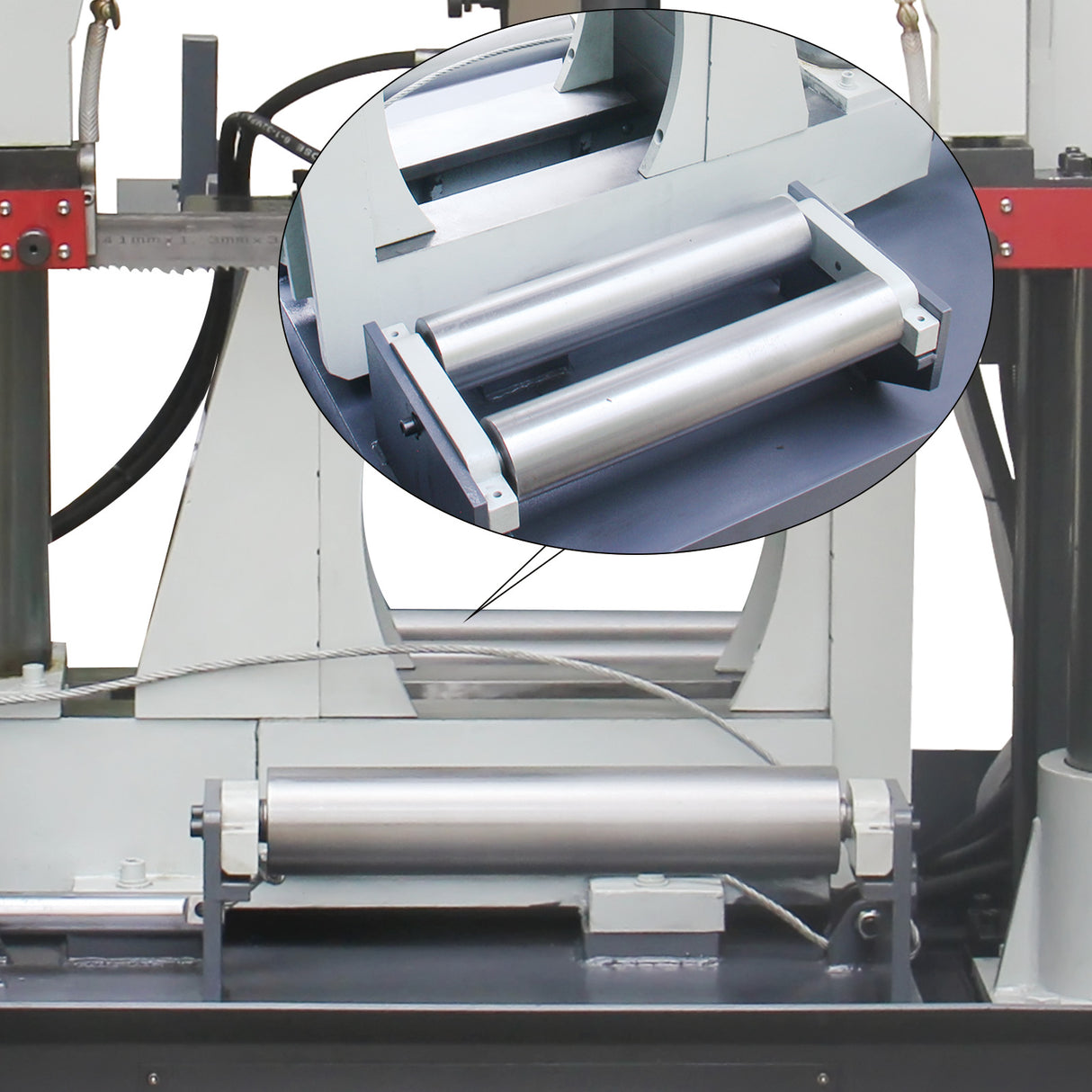

Standard: Material Support

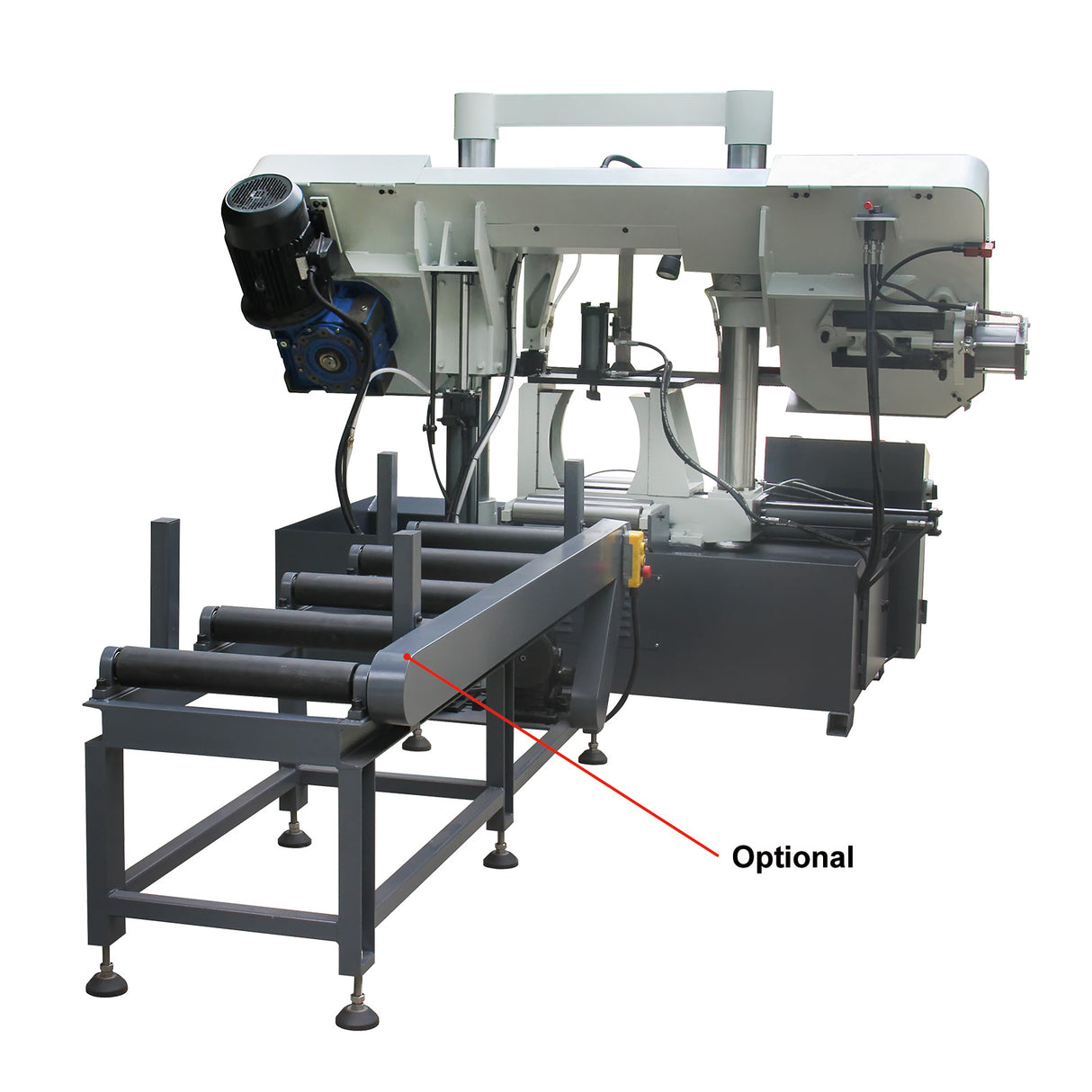

Optional: Electric feed roller table

Motorized Feeding Roller Conveyor Table 4,400 lbs Capacity (220V 3 Phase)

1. Hydraulic blade tension is standard
2. Standard working light and cooling system
3. Standard extra clamp for hexagonal bundle material cutting
4. 3.0/4.0 kW double speed motor to get two
5. Saw blade speed, 36,56 m/min
6. Double column structure, saw frame vertical lifting, high stability
7. Saw frame descent by hydraulic control, variable speed

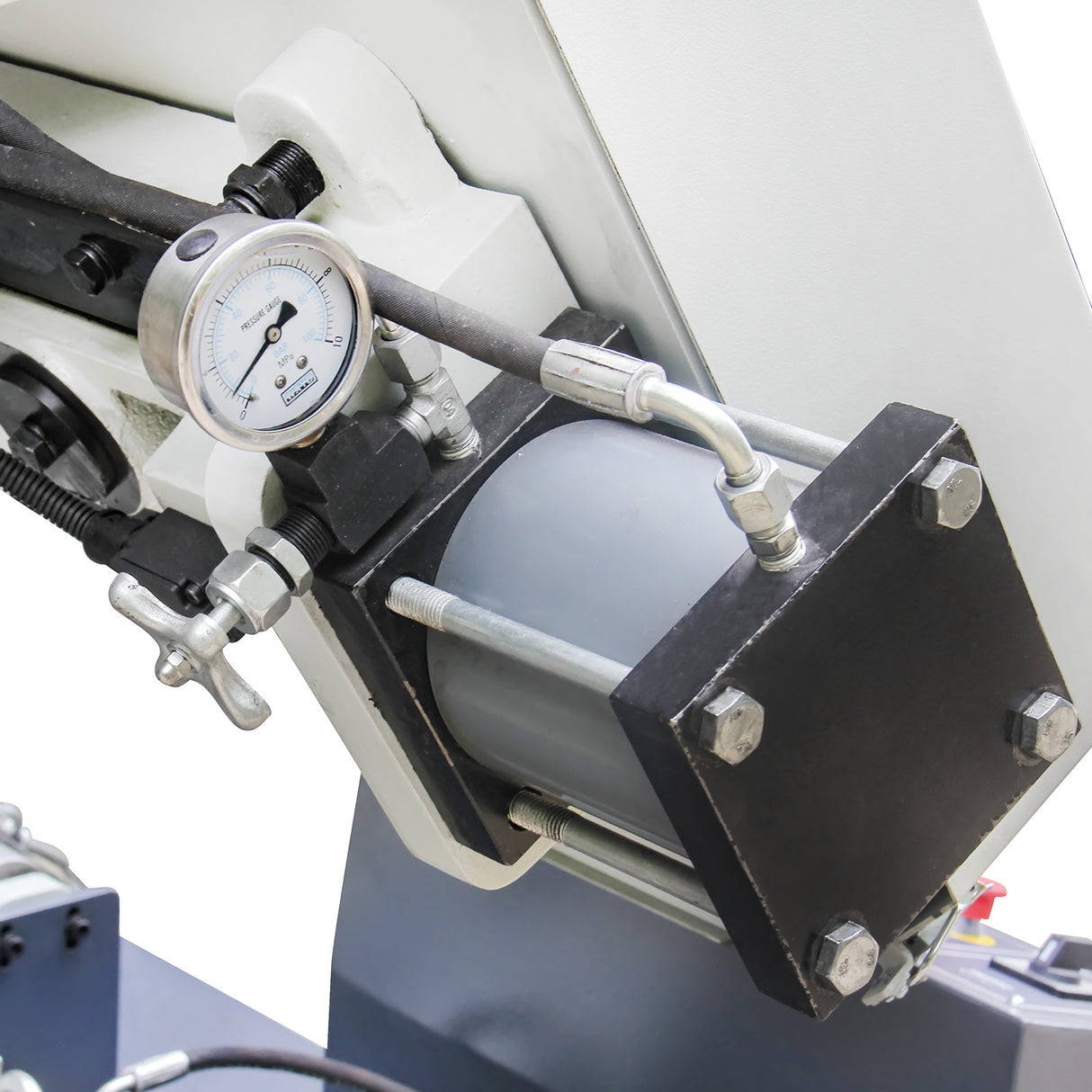

8. Hydraulic clamping vice and hydraulic blade tension adjustment

Item No.
188304
Model
TGK-16A
Max. cutting capacity
φ15.7"-15.7"x15.7"
Cutting speed @60Hz
141,220 ft./min
Feed speed
Hydraulic varable speed
Blade size
1.6"x0.05"x196.8"
Workpiece clamping
Hydraulic
Blade tensioning
Hydraulic
Main motor power
3.0/4.0 kW
Oil pump motor power
0.75kW
Coolant pump motor power
0.045kW
Drive
Gear
Packing size
106"x53"x58"
N.W./G.W.
3031/3318 lbs

  • Standard extra clamp for hexagonal bundle material cutting

  • Hydraulic Control
    Hydraulics precisely control blade descent, providing smooth operation for clean and uniform cutting

  • Coolant System
    The built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.
