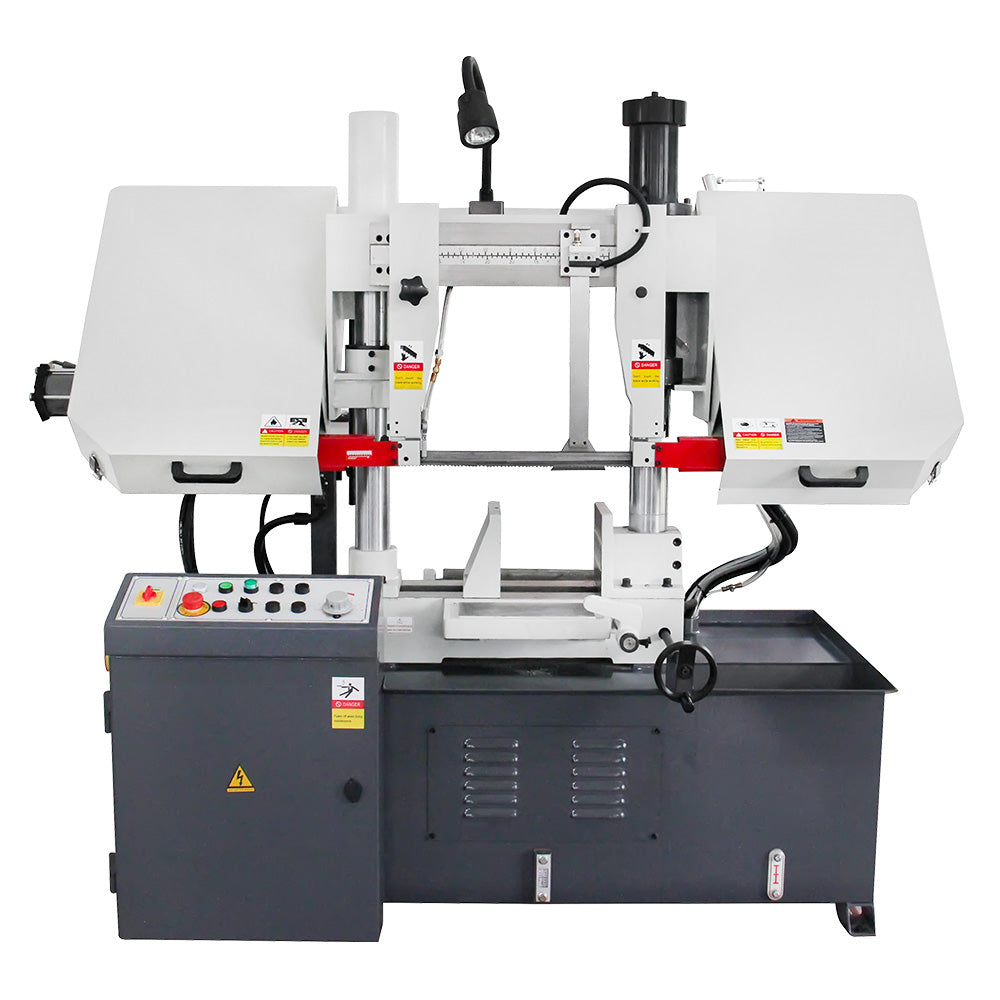

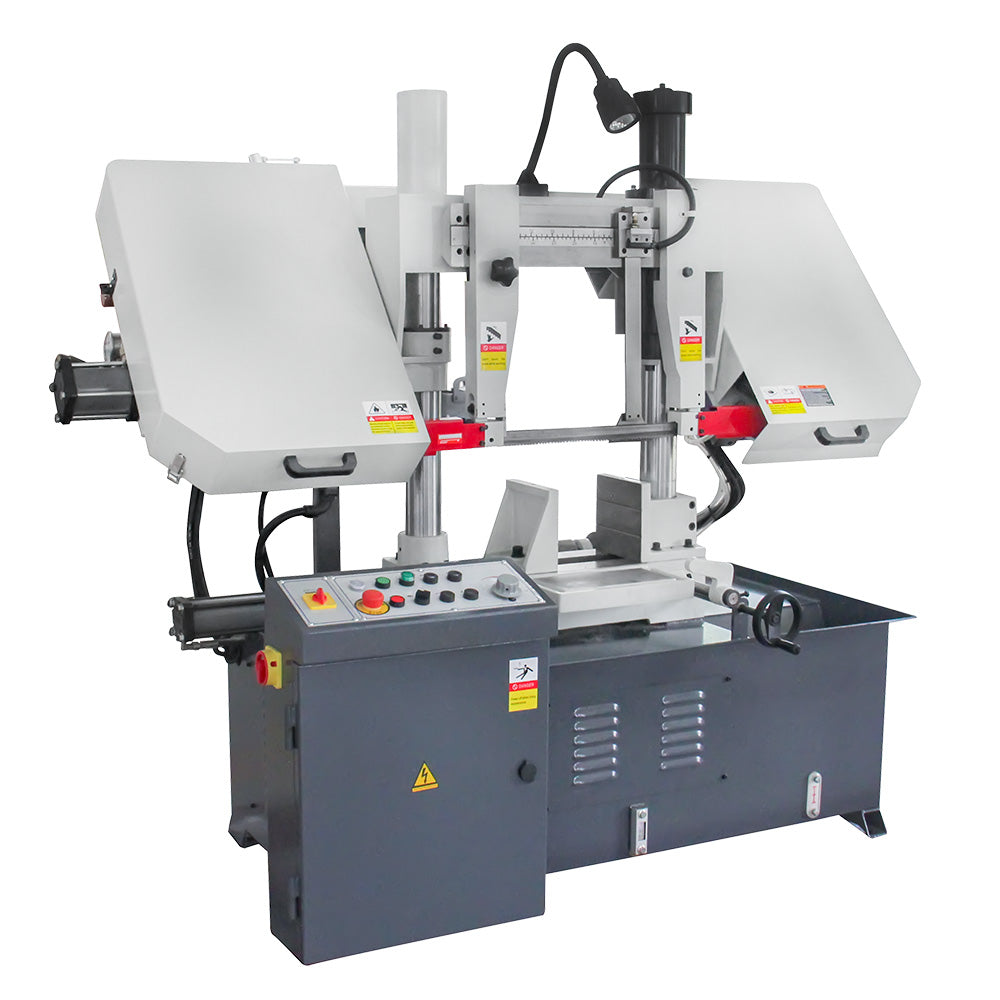

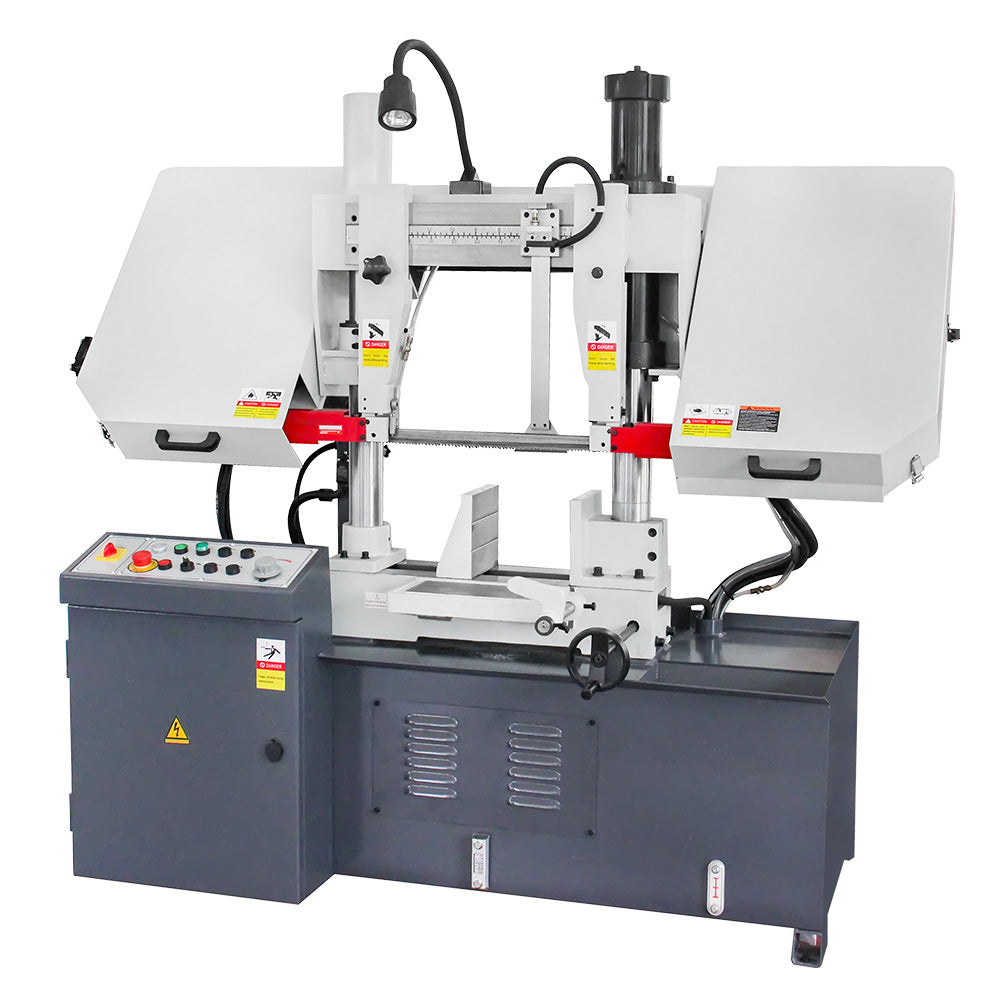

KAKA Industrial TGK-14 Double column horizontal band saw



Features:

  • Double column structure, vertical lifting, high stability.

  • Cutting speed adopts hydraulic control, variable speed.

  • Hydraulic clamping, easy for operation.

  • Optional: Hydraulic clamping system with three positions.



Specification:



Item No.

188302V230

Model

TGK-14

Max. cutting capacity

φ13.8"-13.8"x13.8"

Cutting speed

@60 Hz       177,272ft./min

@50 Hz       148,226ft./min

Feed speed

Hydraulic variable speed

Blade size

162"x1.3"x0.04"

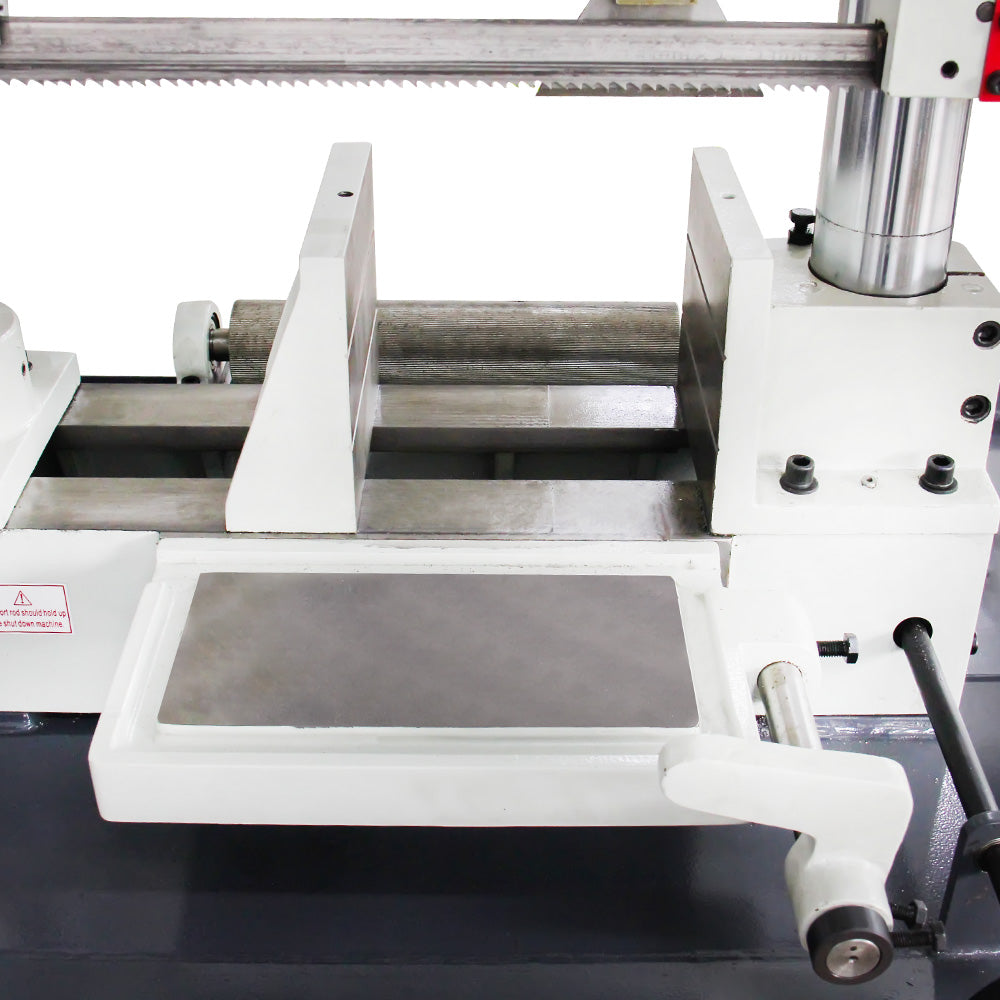

Workpiece clamping

Hydraulic

Blade tensioning

Hydraulic

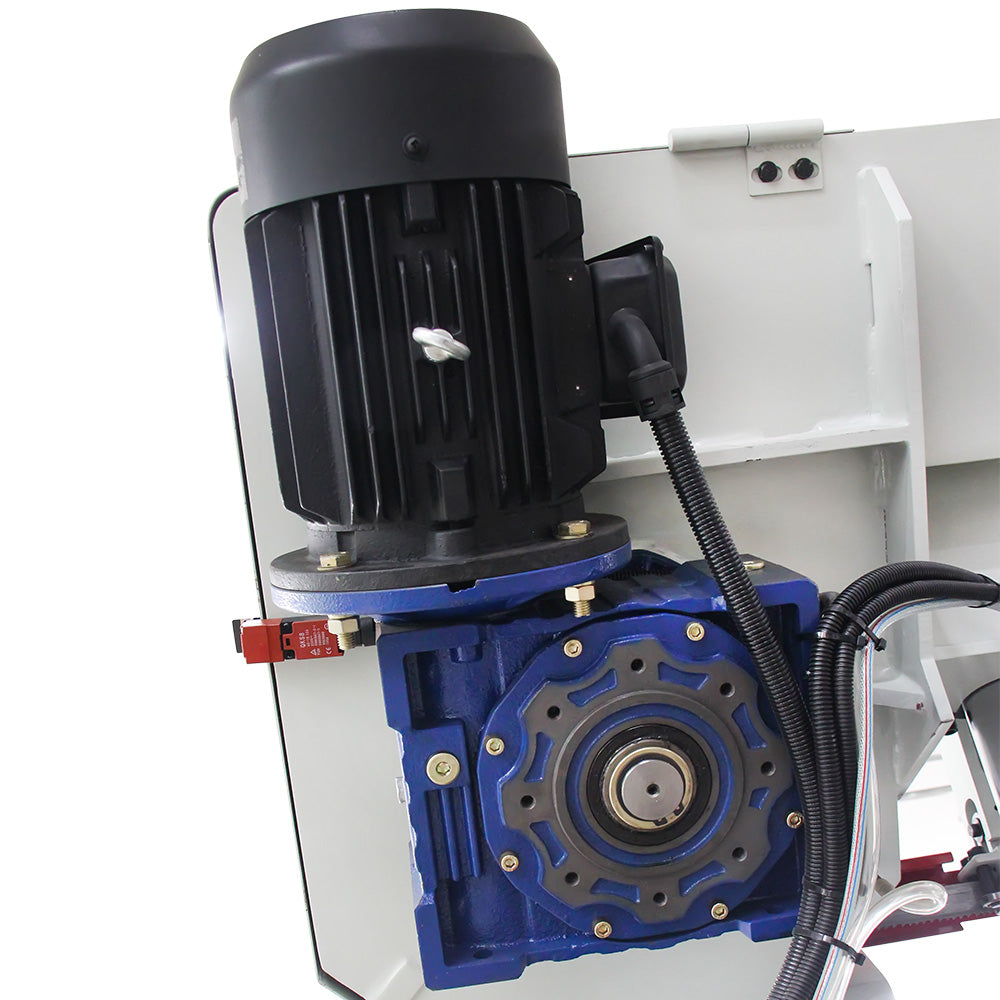

Main motor power

2.2/2.8 kW

Oil pump motor power

0.55 kW

Coolant pump motor power

0.04 kW

Drive

Gear

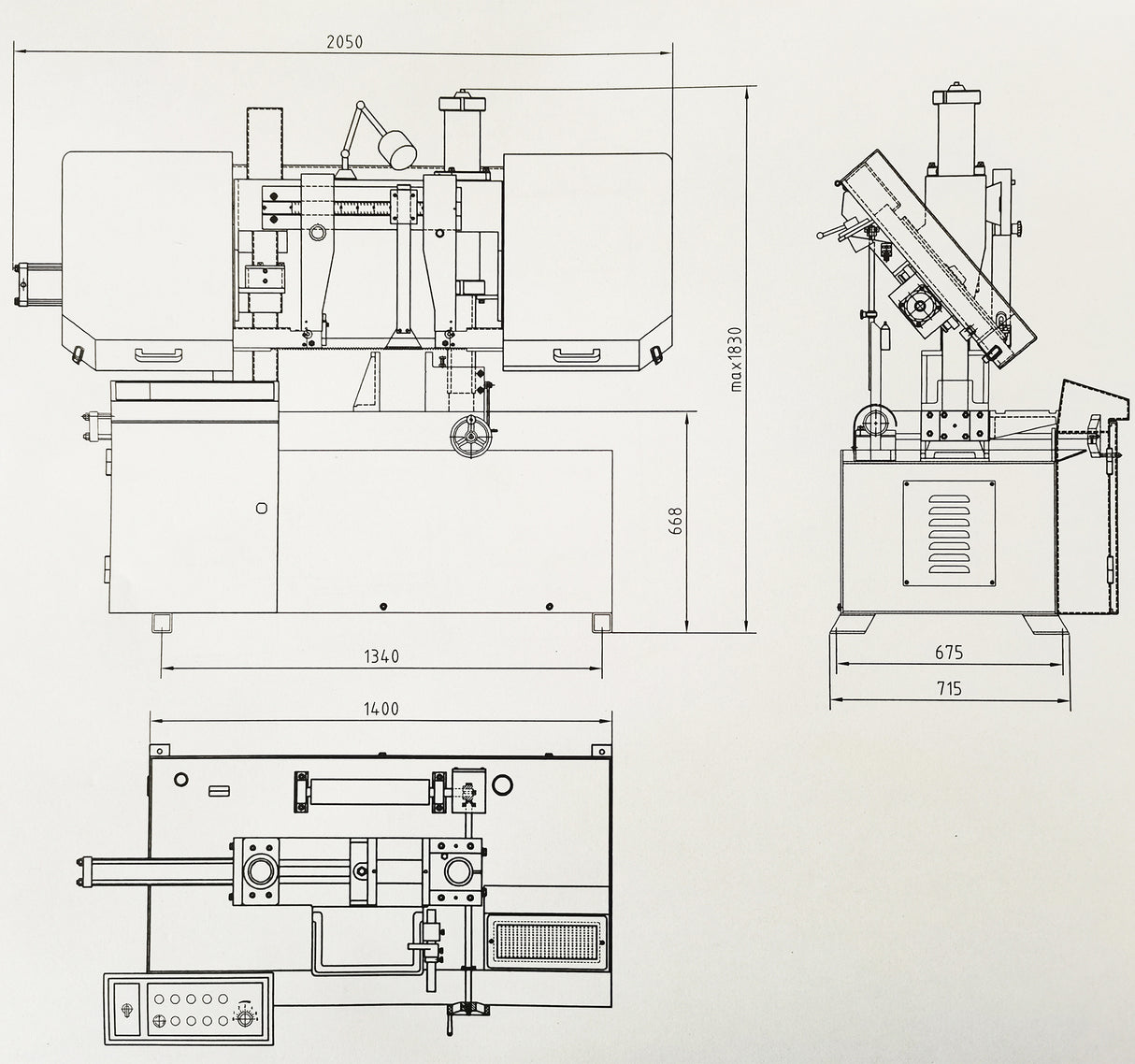

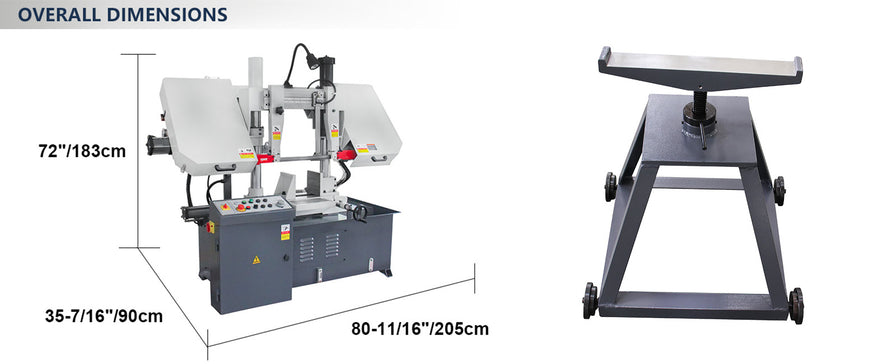

Overall dimension

84"x45"x59"

G.W./N.W.

1940/2183 lbs



Standard accessories:

Blade,

Hand wheel for manual feed,

Feed driving roller,

Hydraulic blade extension

Optional accessories:

Hydraulic clamping system with three positions
