KAKA INDUSTRIAL LLC  |  SKU: 271211V230

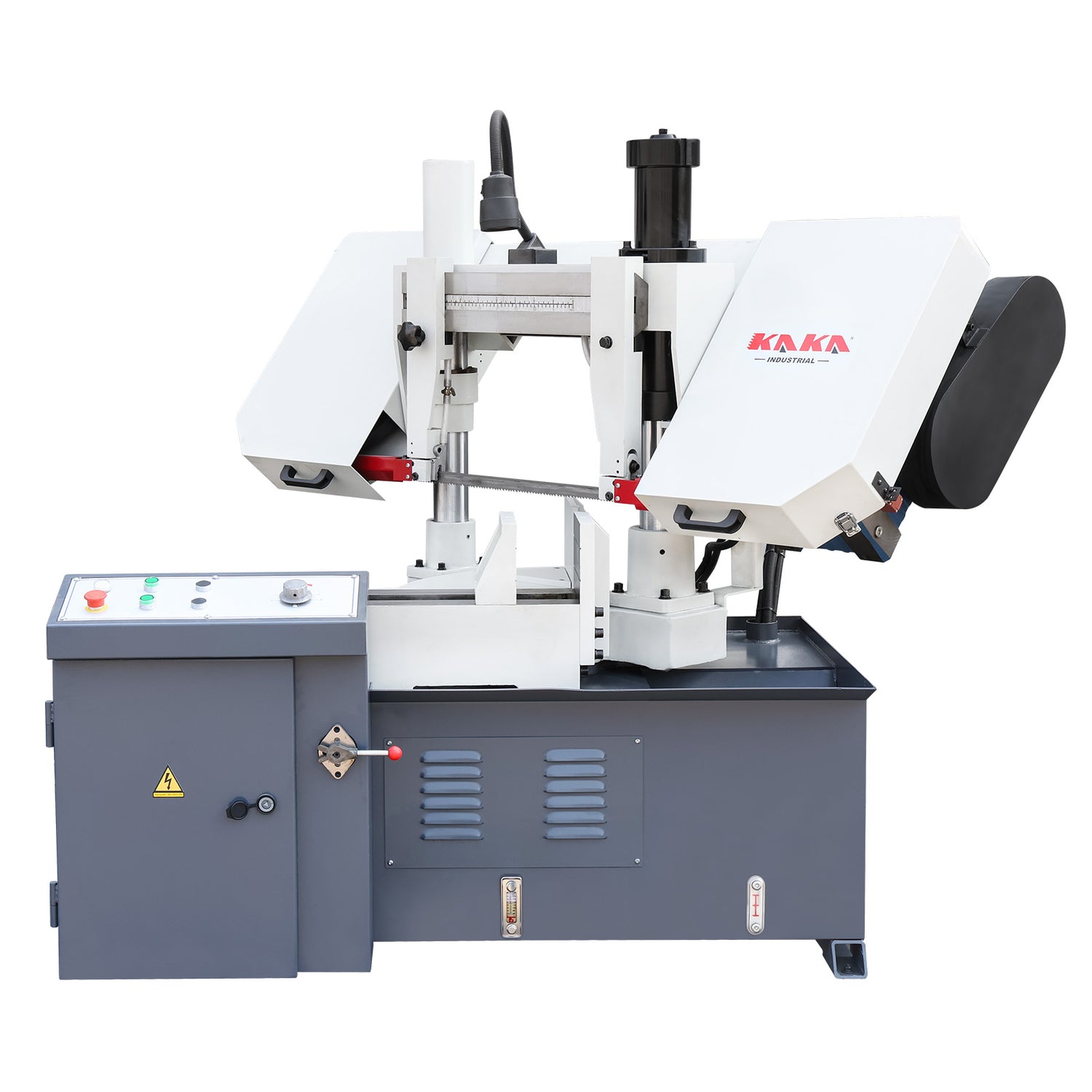

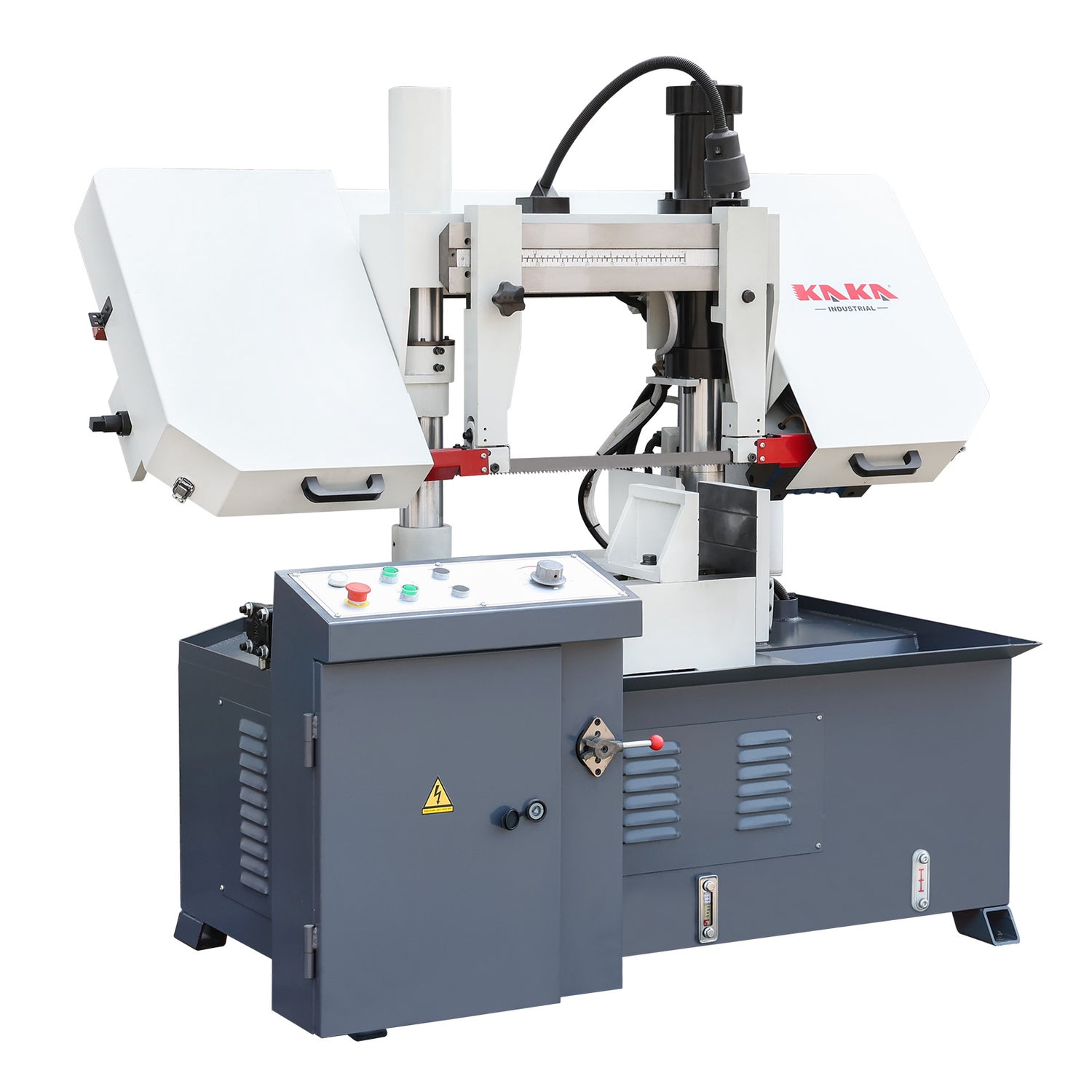

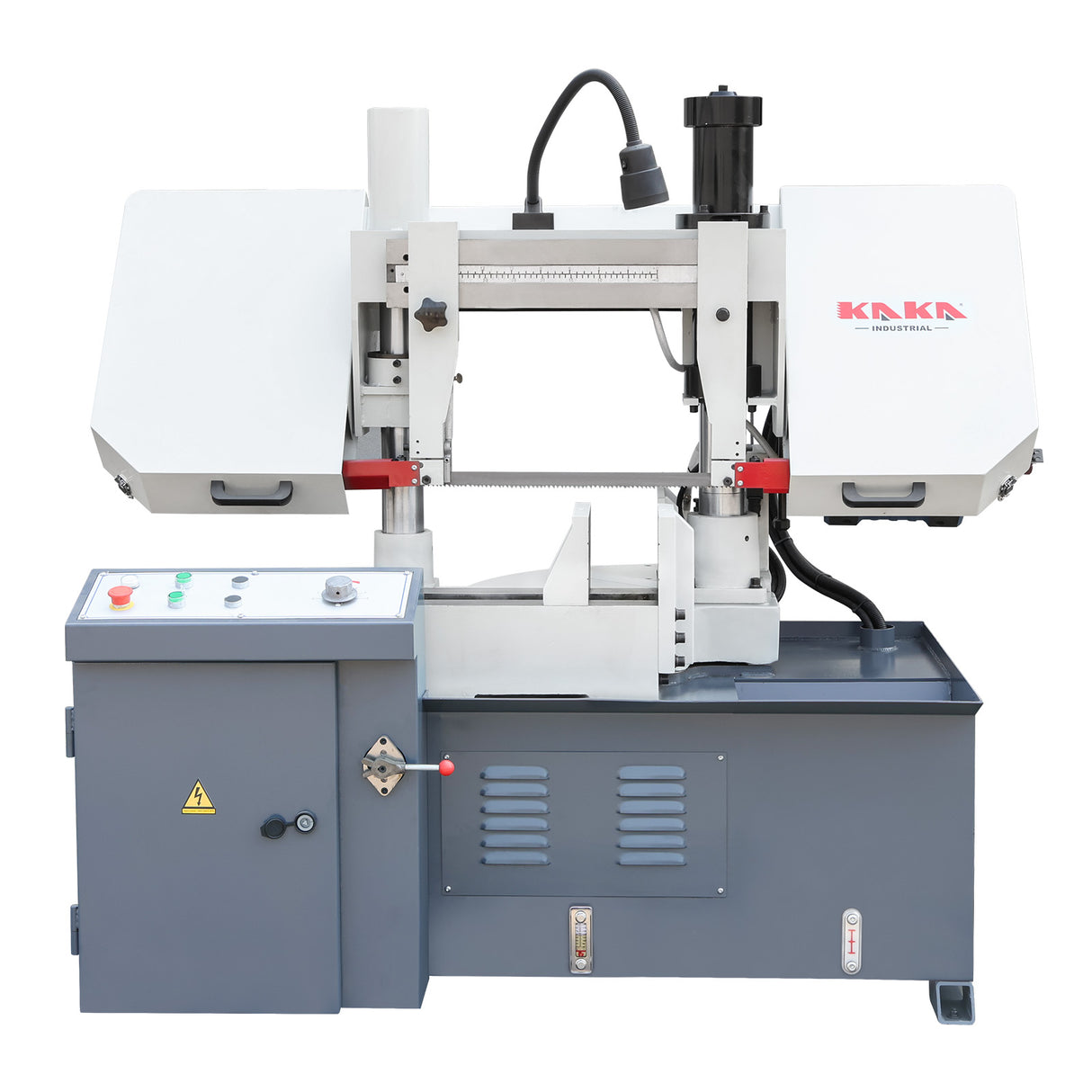

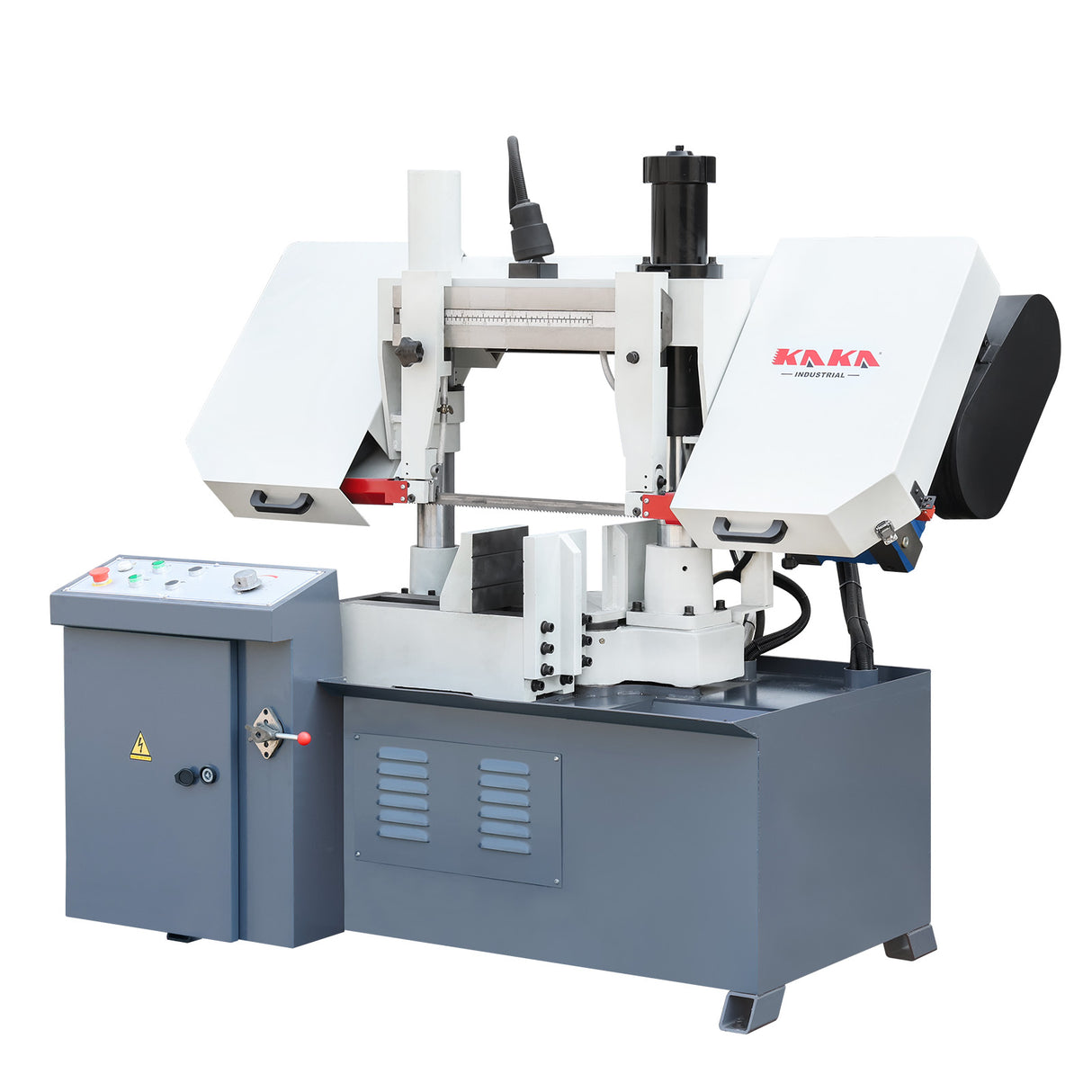

KAKA Industrial TBK-11A Double Column Swivel Head Band Saw, Hydraulic downfeed control with variable Cutting speed, Max cutting capacity 11 inch with 230V 3PH

$7,296.00
Shipping calculated at checkout.

KAKA INDUSTRIAL TBK-11A Semi-Automatic Mitering Horizontal Metal Cutting Band Saw Description

Powerful Cutting Performance

Designed for industrial-grade performance, this double-column bandsaw offers exceptional cutting power.

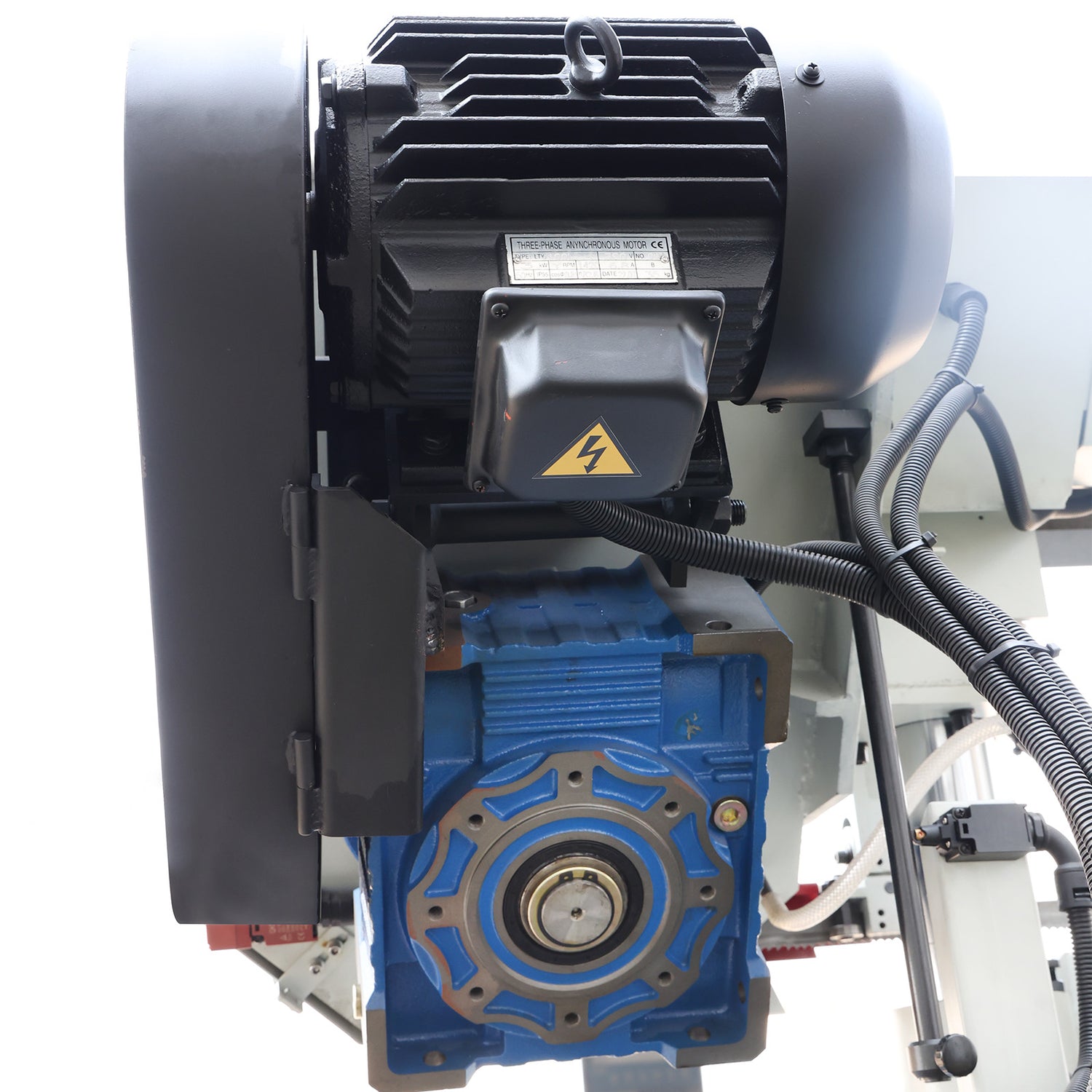

Equipped with 3-speed saw band settings (88, 148, and 226 ft/min), this saw delivers consistent cutting efficiency across a variety of materials, including metals, plastics, composites, wood, and rubber. The 3.0 kW main motor ensures that the blade effortlessly cuts through tough materials with reliable torque, while the 0.55 kW oil pump motor guarantees smooth operation.

The high cutting efficiency combined with powerful motor performance makes this saw the ideal choice for high-volume production environments that require precision and reliability.

Versatility for Every Job

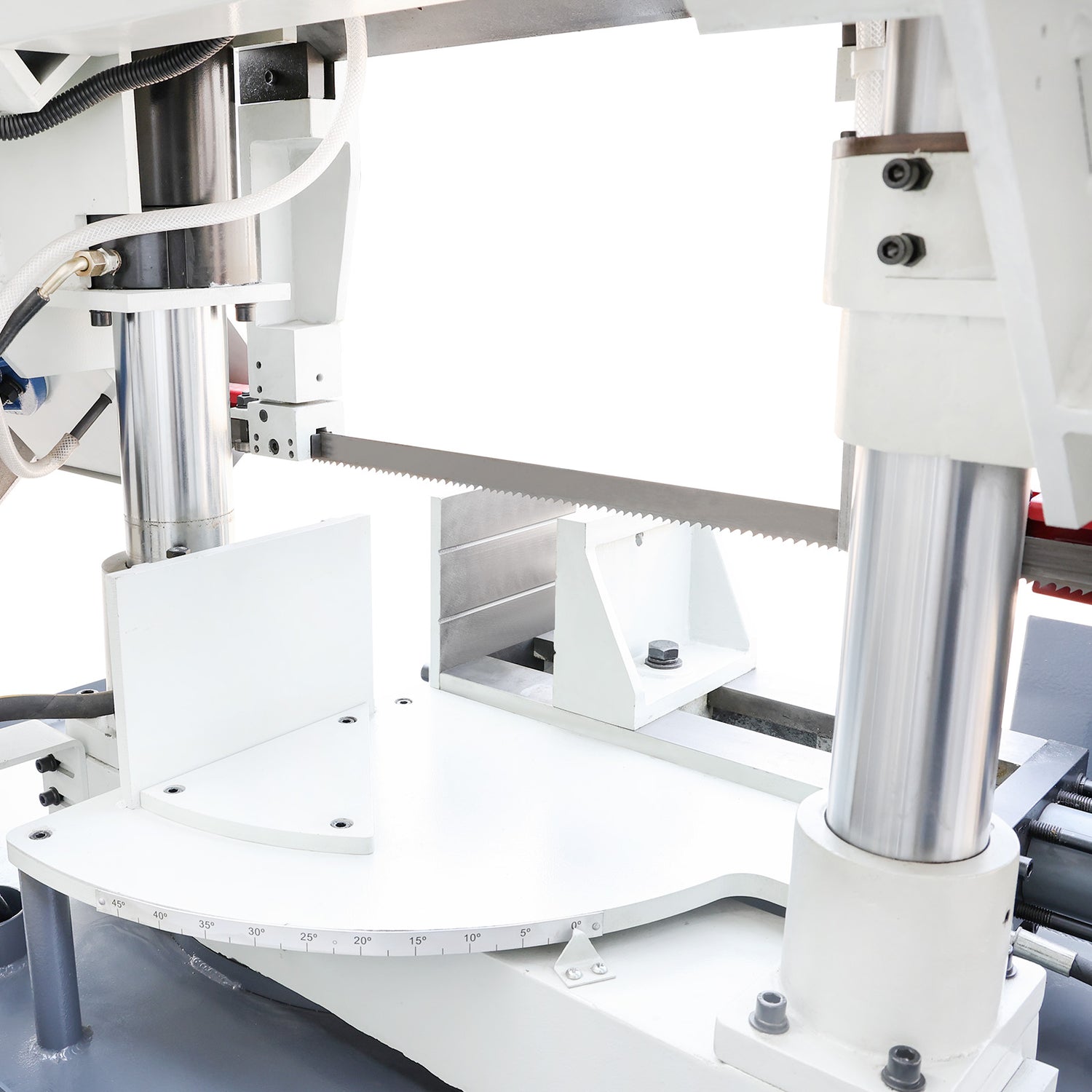

This hydraulic dual-column design provides unmatched stability and precision, ensuring smooth operation even during long production runs.

The swivel saw frame can be adjusted up to 45 degrees, allowing for easy angled cuts, while the angle indicator ensures accuracy.

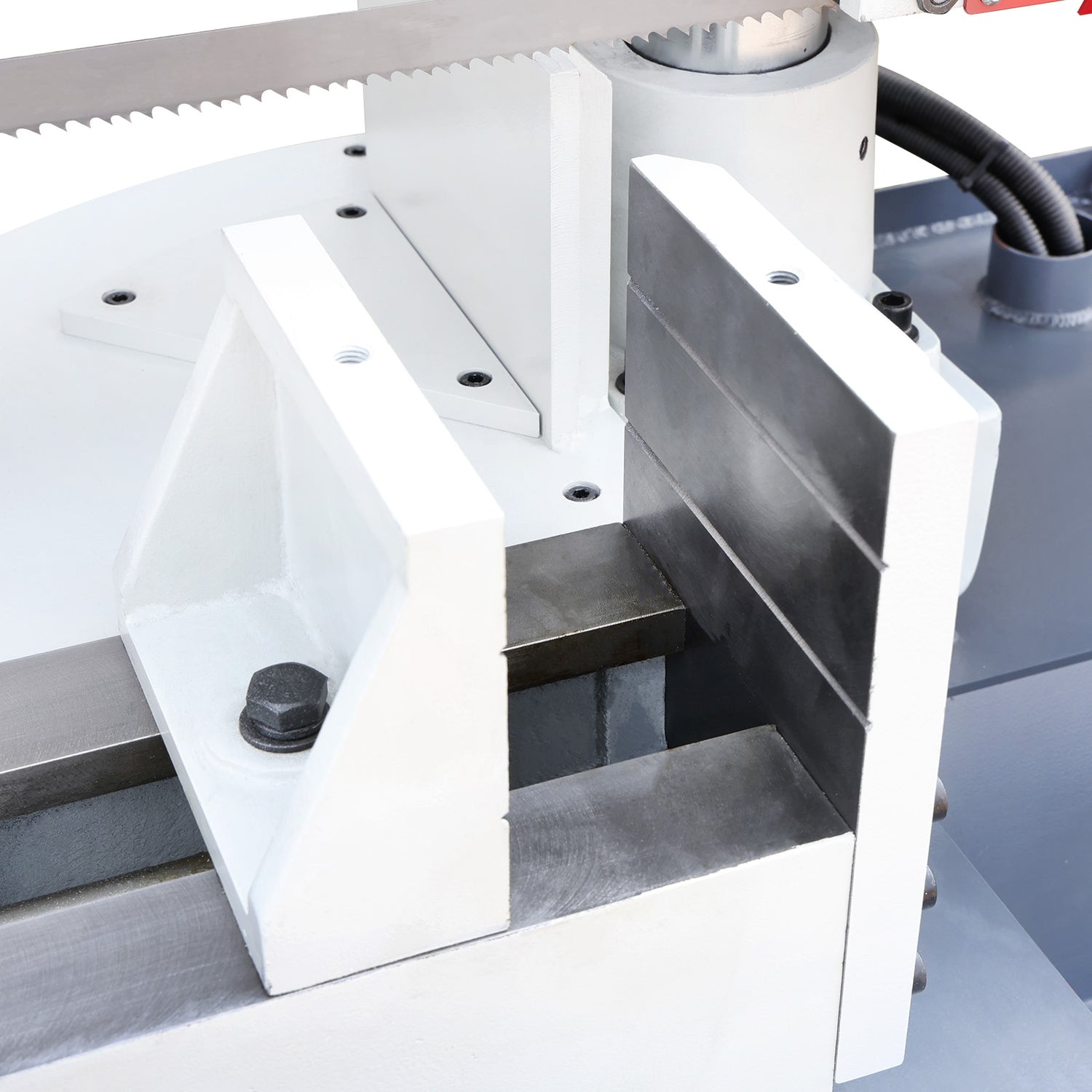

The hydraulic clamping system provide effortless control, ensuring stable and efficient cutting.

The hydraulic cylinders ensure smooth and consistent lowering of the blade, delivering uniform cuts with every operation.

A built-in cooling system keeps both the blade and workpiece cool during operation, extending the lifespan of the blade and maintaining cutting efficiency over long periods of use.

Safety Features for Peace of Mind

Safety is a key consideration in the design of this bandsaw. The hydraulic system offers reliable and responsive control, providing operators with a smooth cutting experience. Additional safety features include an automatic shut-off system, ensuring the saw stops if any issues arise, and full belt and blade guards for operator protection.

The high-carbon steel blade and brass fittings enhance durability, while the coolant system maintains the cutting environment and reduces heat buildup, preventing overheating and ensuring longer blade life.

Wide-Ranging Applications

This double-column swivel headbandsaw is a versatile tool used in numerous industries, including metalworking, fabrication, maintenance facilities, and educational settings. Whether you're in high-volume manufacturing, a workshop, or a hobbyist’s garage, this saw is designed to meet your cutting needs with speed, precision, and efficiency.

Material Support

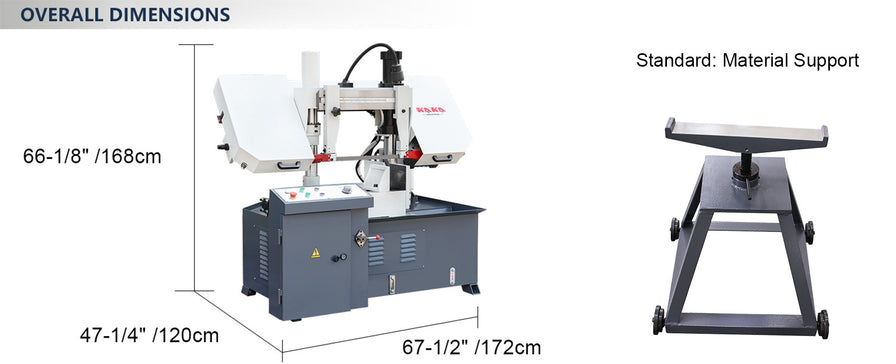

Equipped with a convenient material support for long-cutting materials.

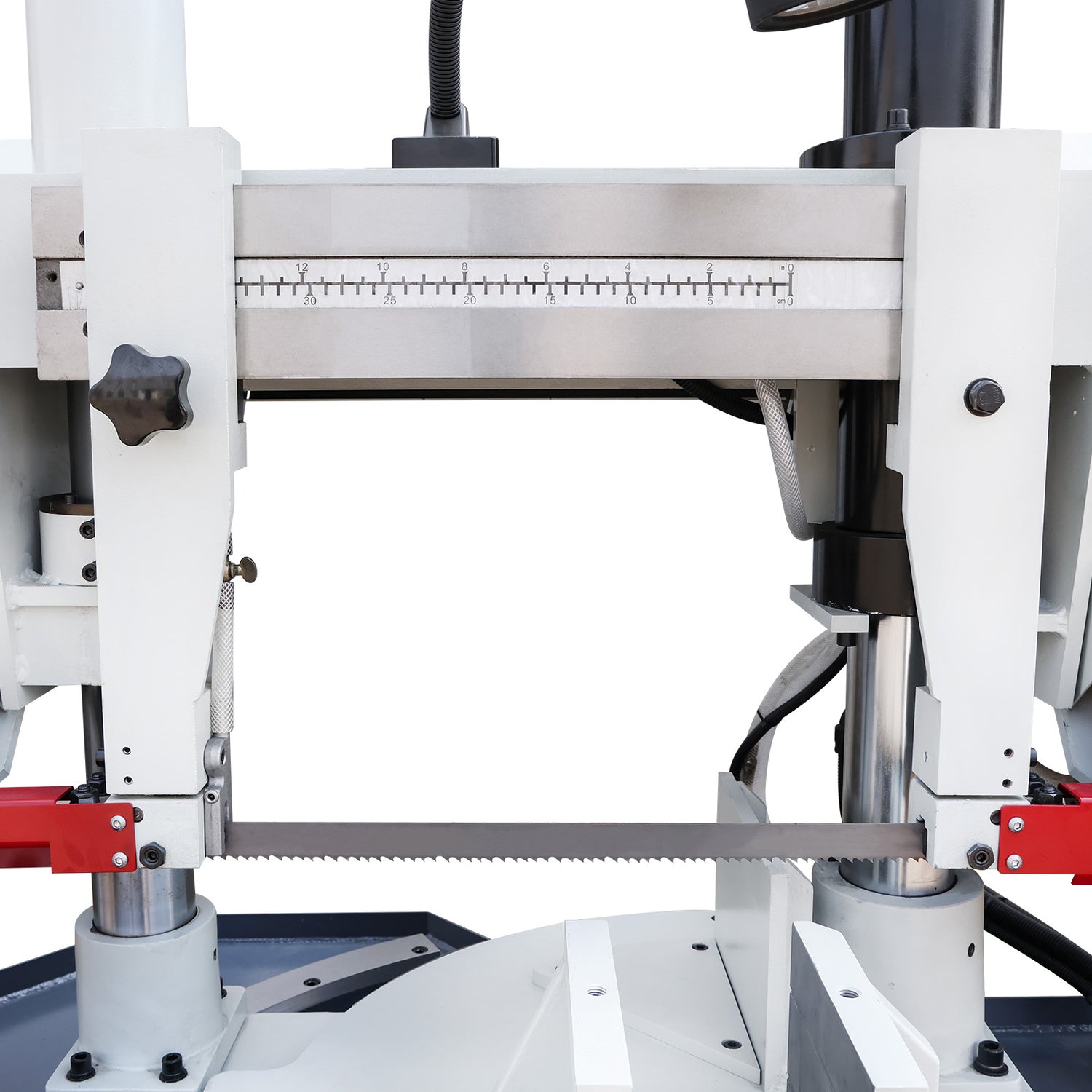

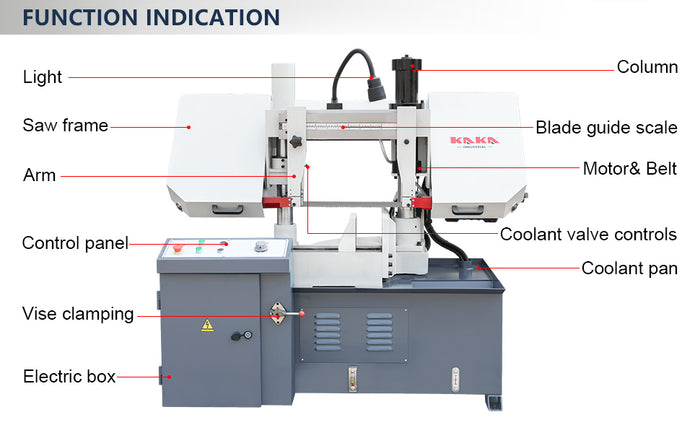

1. Double column bandsaw, vertical up and down
2. Auto shut off when cutting complete
3. Hydraulic cylinder to control saw bow down feed

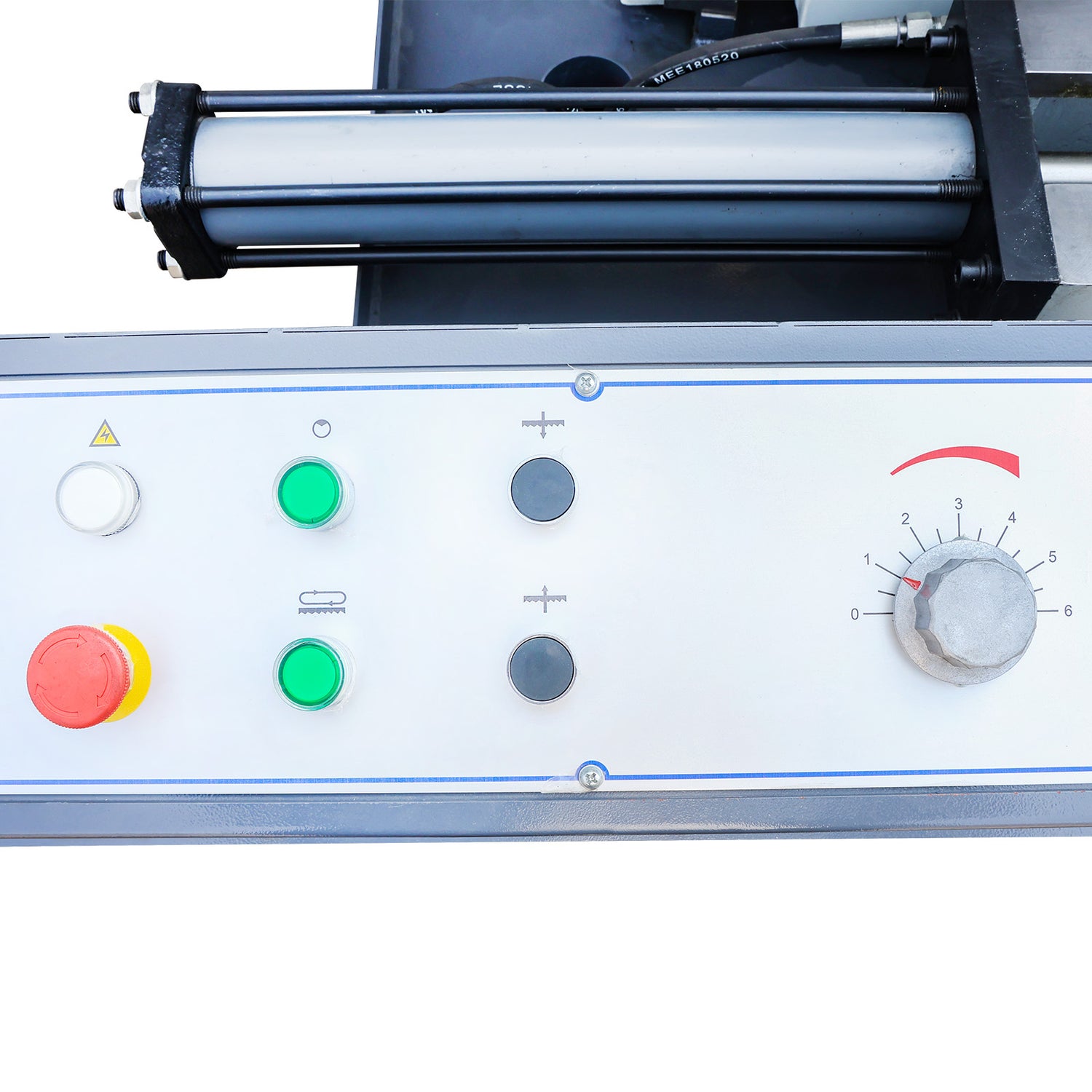

4. Control panel, easy to operate the machine
5. Angle cutting max. 45°

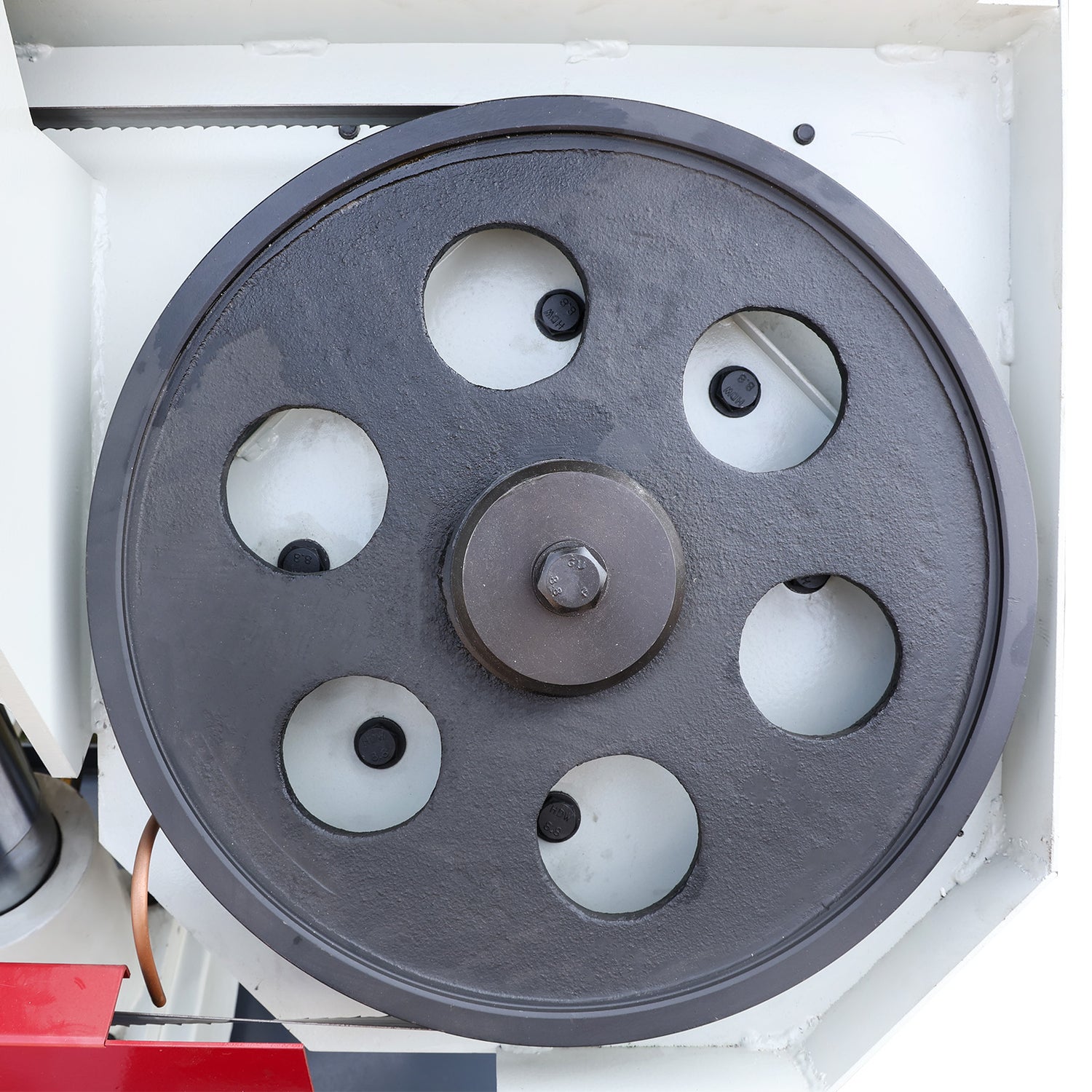

6. Belt drive bandsaw, 3 cutting speed

Item No.
271211
Model
TBK-11A
Max. cutting capacity
90°  ∅11"-12.5"x11"
45°  ∅6.6"-6.6"x11"
30°  ∅10.2"-10.2"x11"
Cutting speed @60Hz
88,148,226 ft./min
Feed speed
Hydraulic varable speed
Blade size
1"x0.035"x142-5/8"
Workpiece clamping
Hydraulic
Blade tensioning
Mechanical
Main motor power
3.0 kW
Oil pump motor power
0.55kW
Drive
Gear
Packing size
65"x36"x52"
N.W./G.W.
1808/2127 lbs

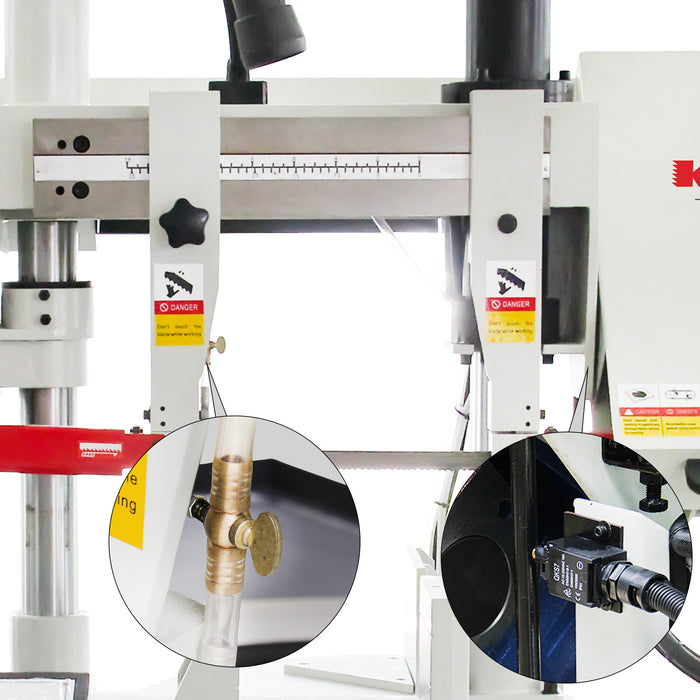

  • Cooling System

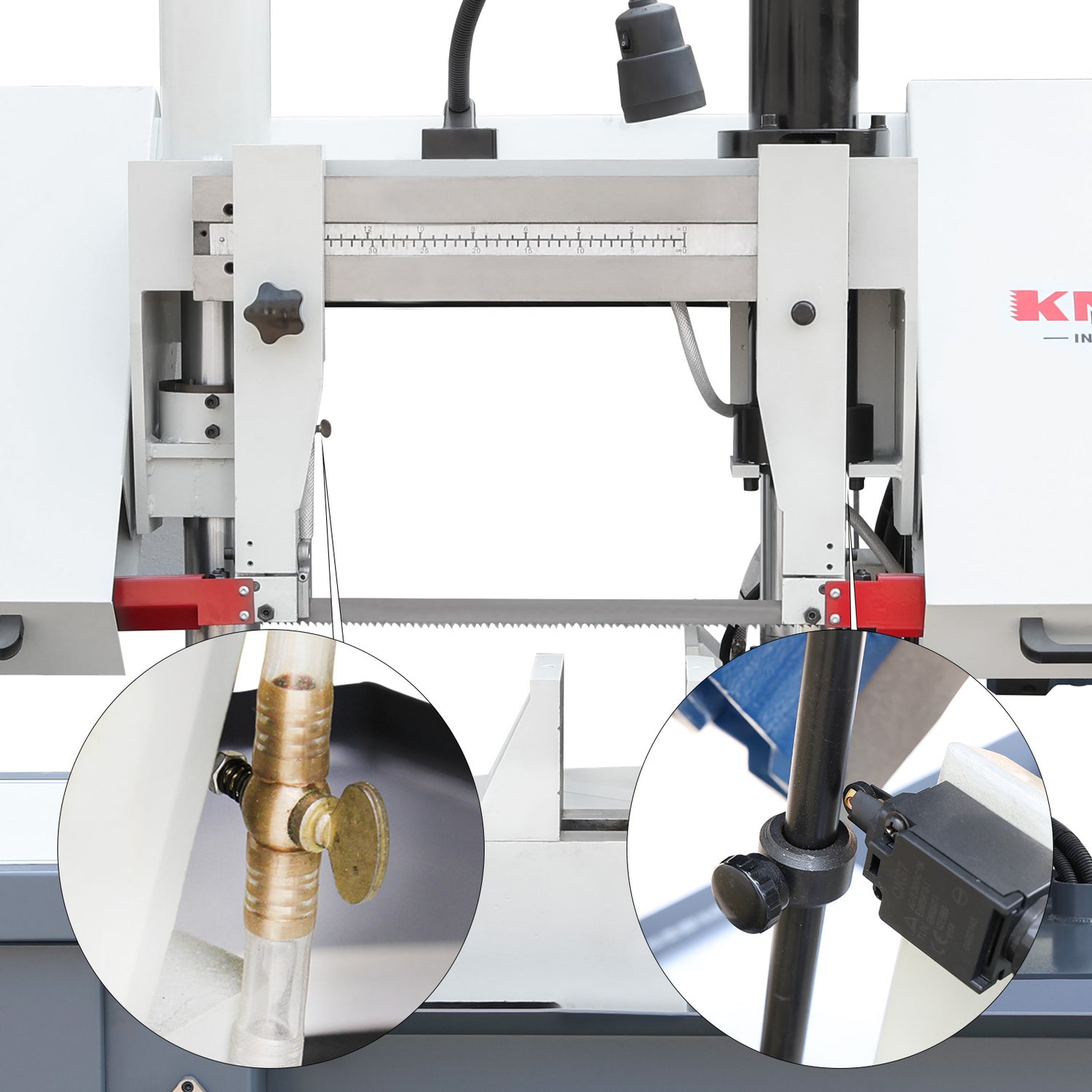

    Adjustable saw bow return position + built in coolant.

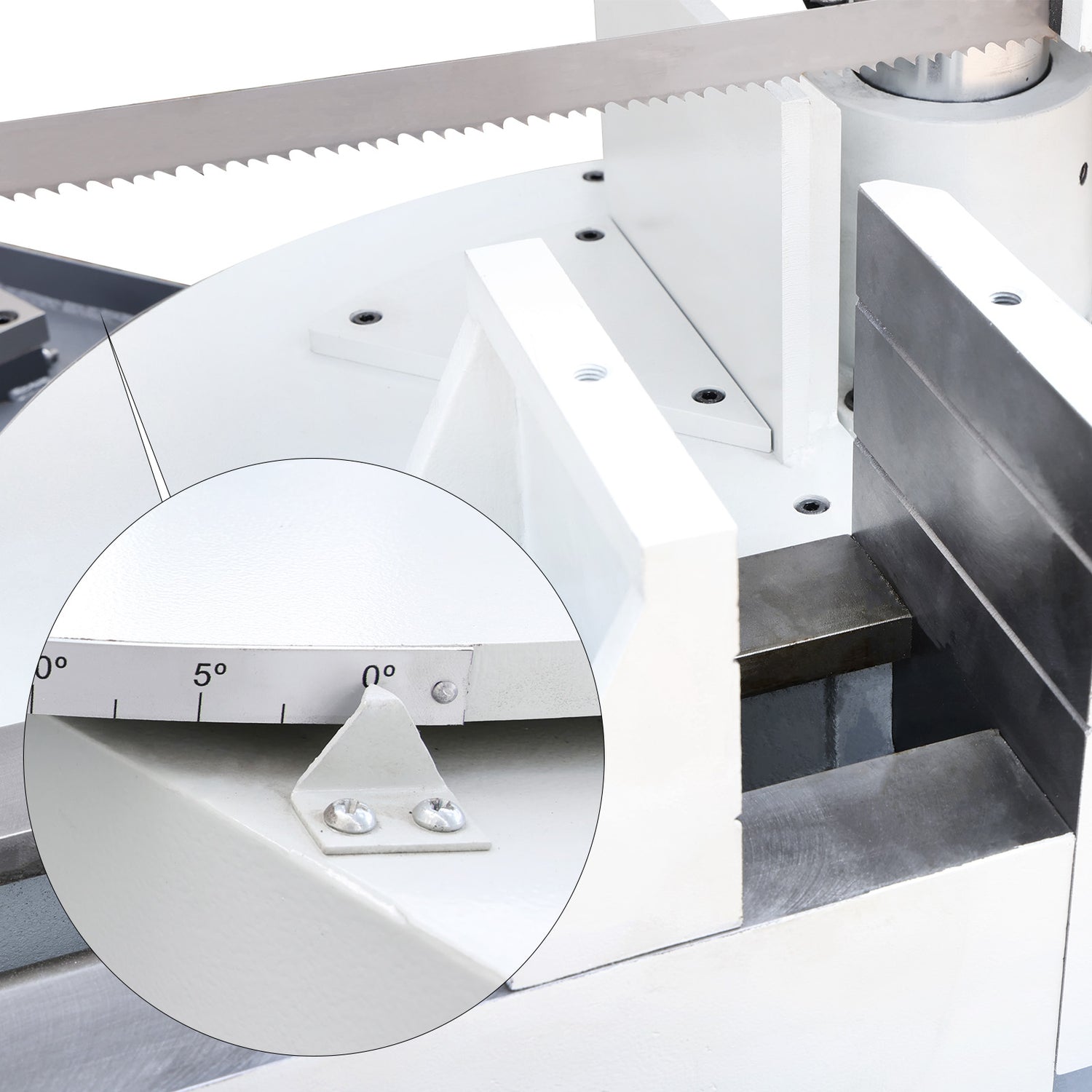

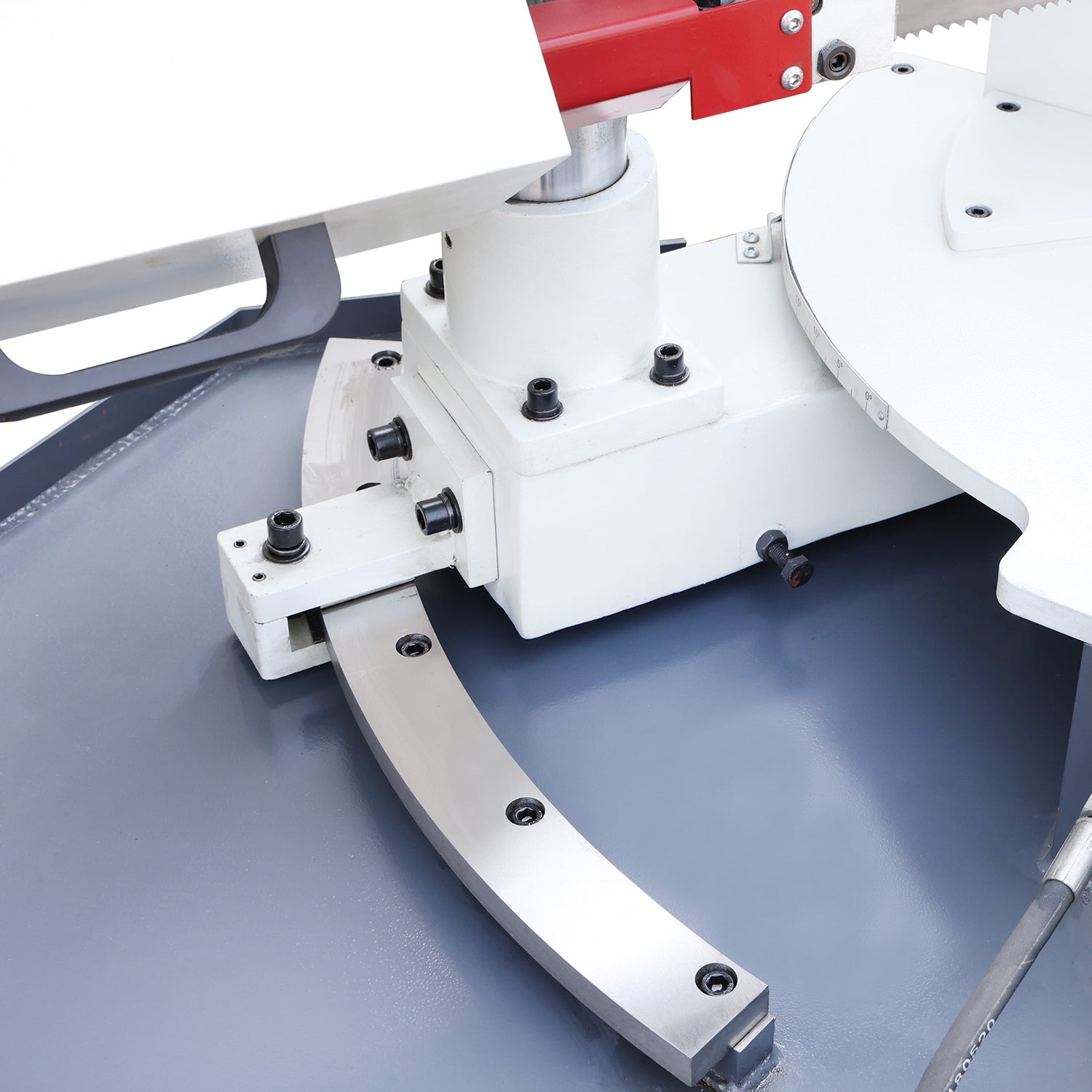

  • Swivel Saw Bow

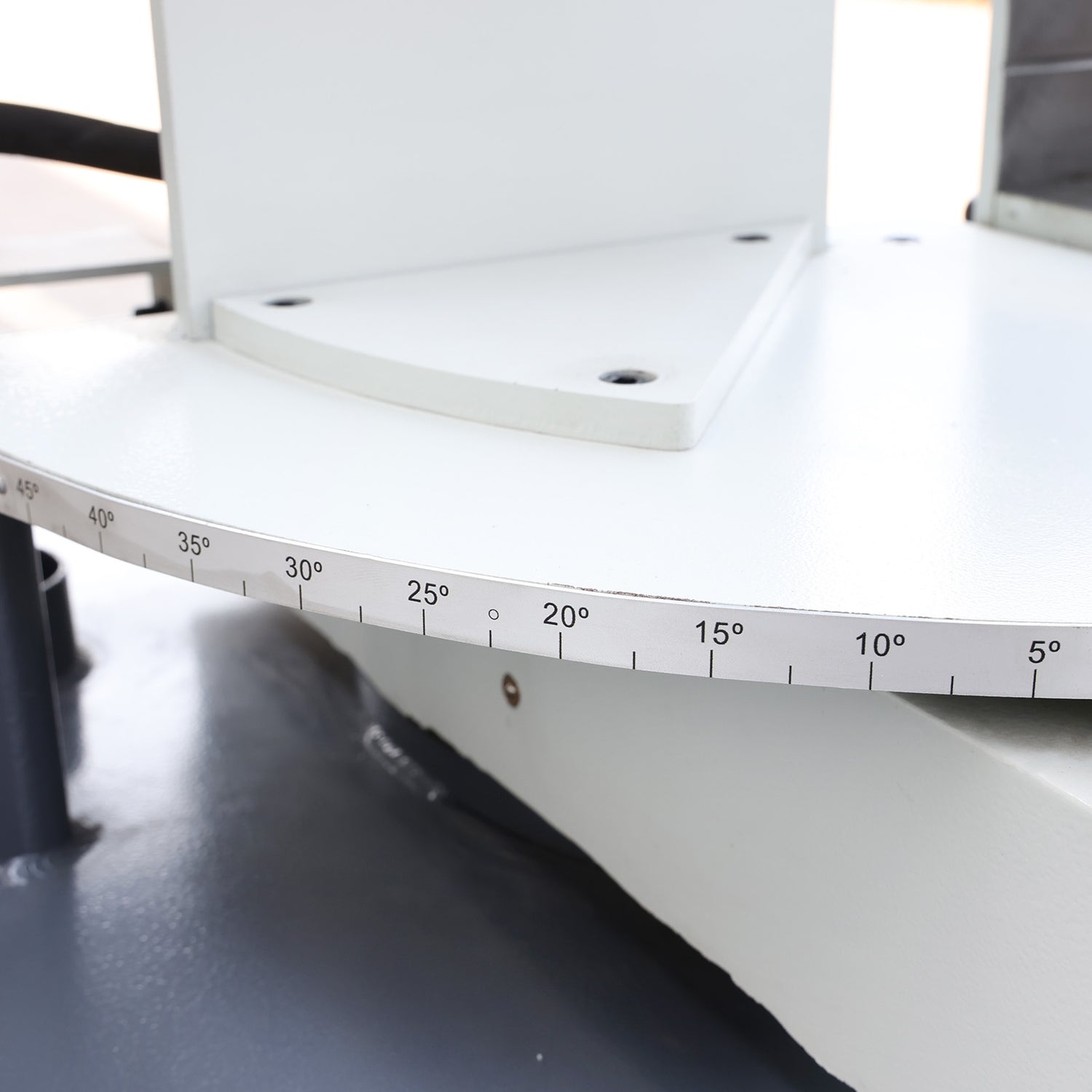

    Manual swivel saw bow with angle indicator + tray support.
    The precision hand wheel is driven to feed and has easy operation on the front side.

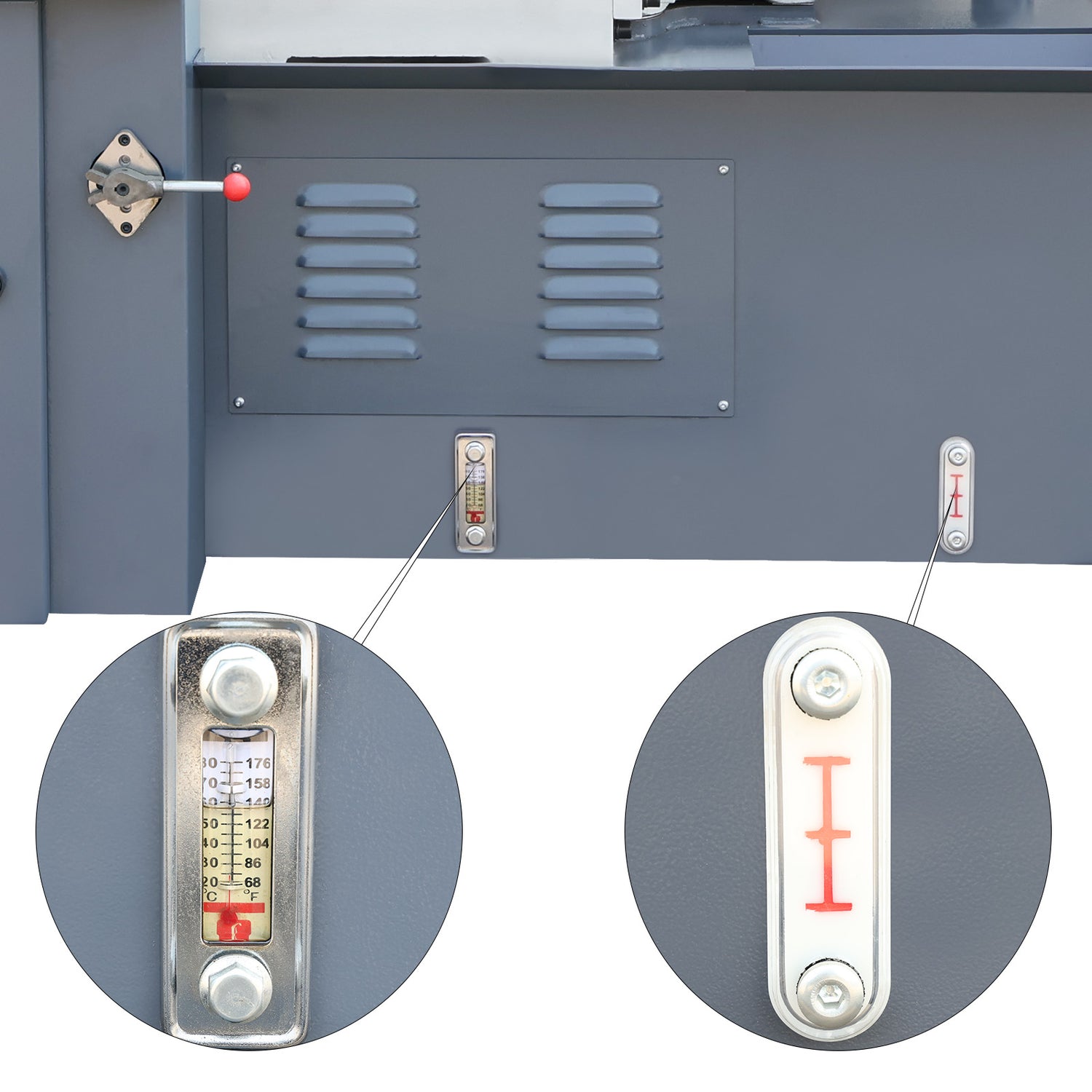

  • Gauge of Cooling Tank and Oil Tank

    It is easy to read the level of cooling and oil used. The temper of hydraulic oil is easy to read.
