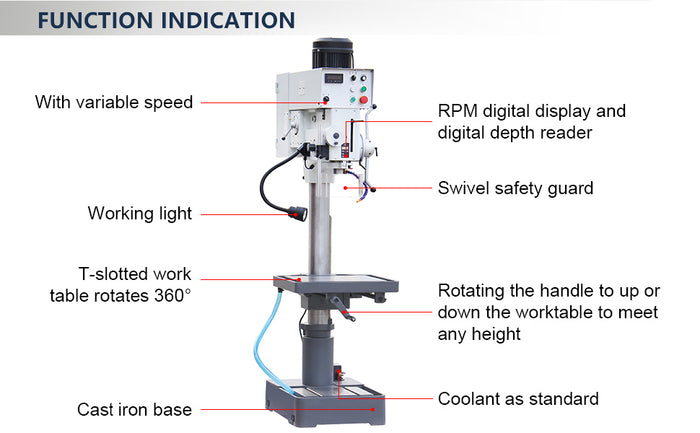

Features:
1. With variable speed.
2. Driven by gear with high torque.

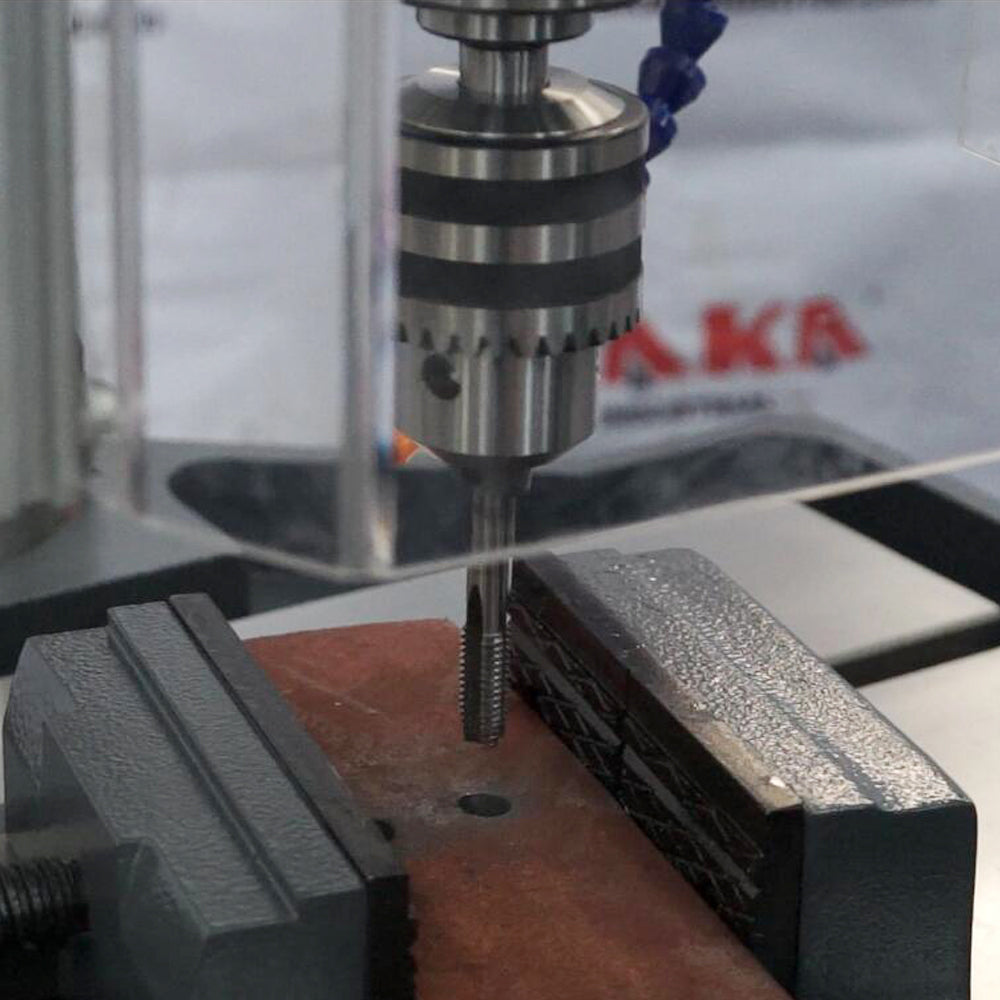

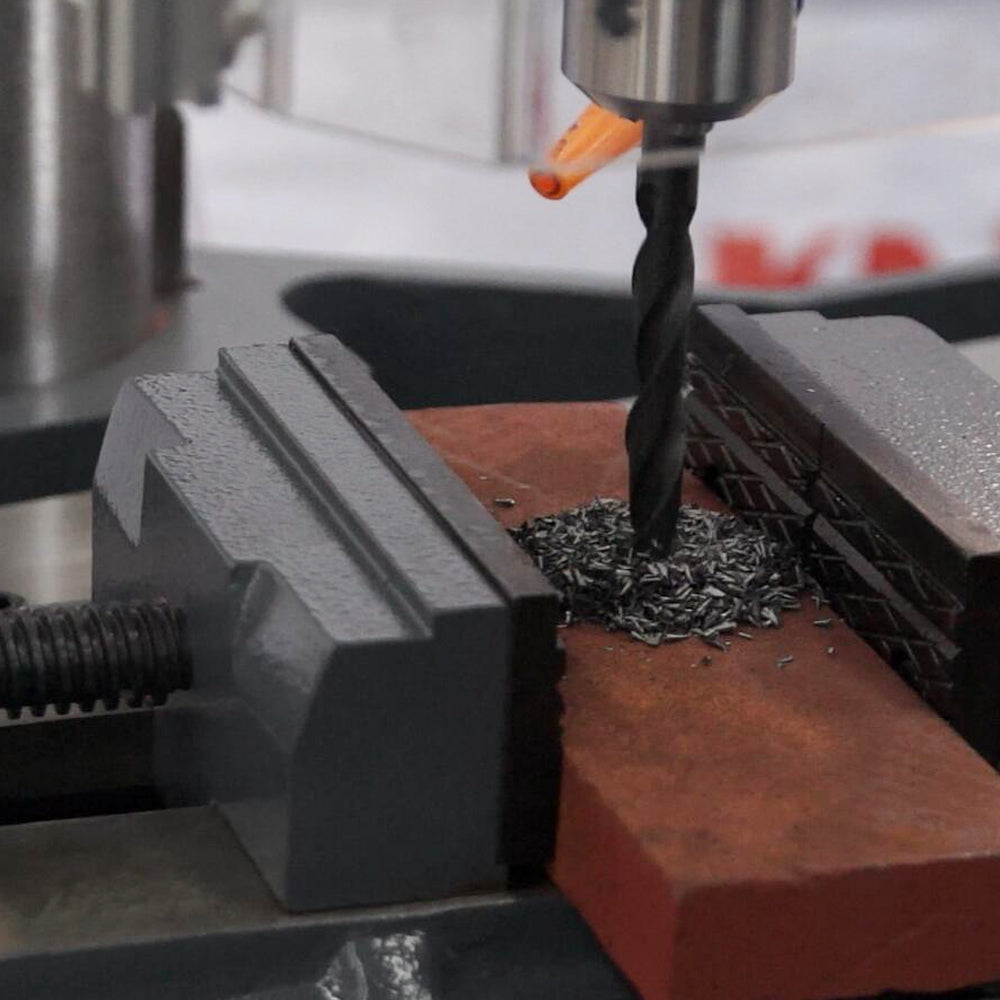

3. Large capacity for drilling and tapping
4. Casting iron structure for long durability

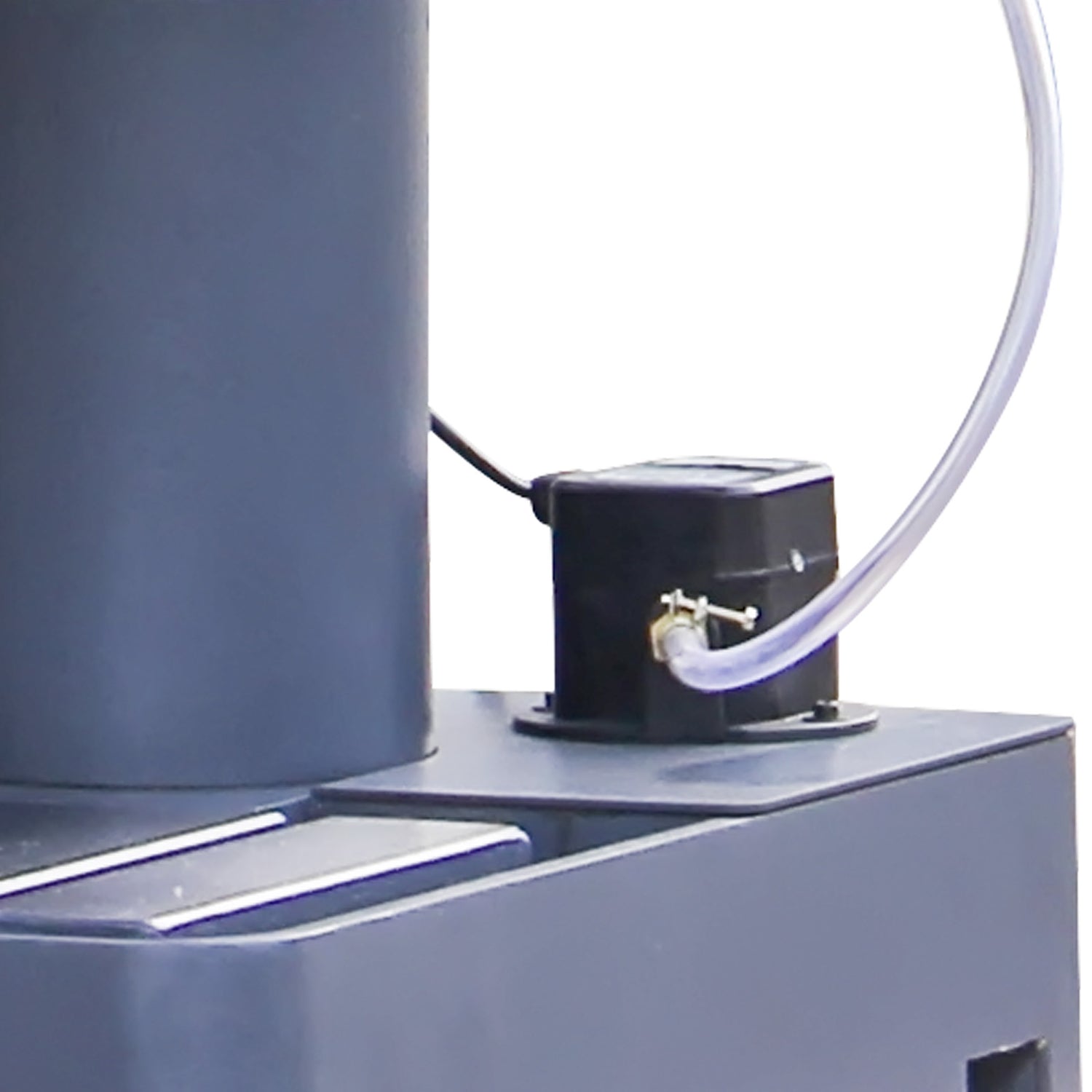

5. Coolant as standard
6. Safety guard with Micro switch
7. Variable speed
8. With mechanical automatic feed
Specification:
|
Item No.
|
190031
|
|
Model
|
DP-40
|
|
Max. drilling capacity
|
MT4 1.57in
|
|
Max. taping capacity
|
0.98in
|
|
Swing
|
20.8in |
|
Spindle taper
|
MT4
|
|
Spindle travel
|
7.5in
|
|
Spindle speed
|
245-2000 rpm 65-540 rpm
|
|
Spindle nose to table
|
23.8in
|
|
Spindle nose to base
|
45.2in
|
|
Quill diameter
|
2.95in
|
|
Column diameter
|
4.52in
|
|
Motor power
|
2.2 kW
|
|
Table size
|
22x18.5in
|
|
Table slot
|
0.62in
|
|
Base size
|
19x26in
|
|
Packing size
|
38x26x90
|
|
Net weight
|
832/979lbs
|
Accessories:
Standard accessories:
Coolant
KAKA Industrial provides 12 months warranty for this product.
1.10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
2.You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
3.Returned materials must be received at Kaka Industrial in new condition and in original packaging.
4.Altered items are not eligible for return.
5.Buyer is responsible for all shipping charges.
6.A 15% re-stocking fee applies to all returns.
