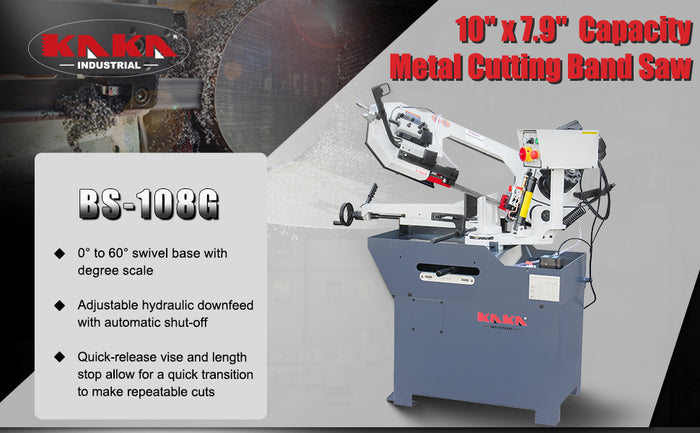

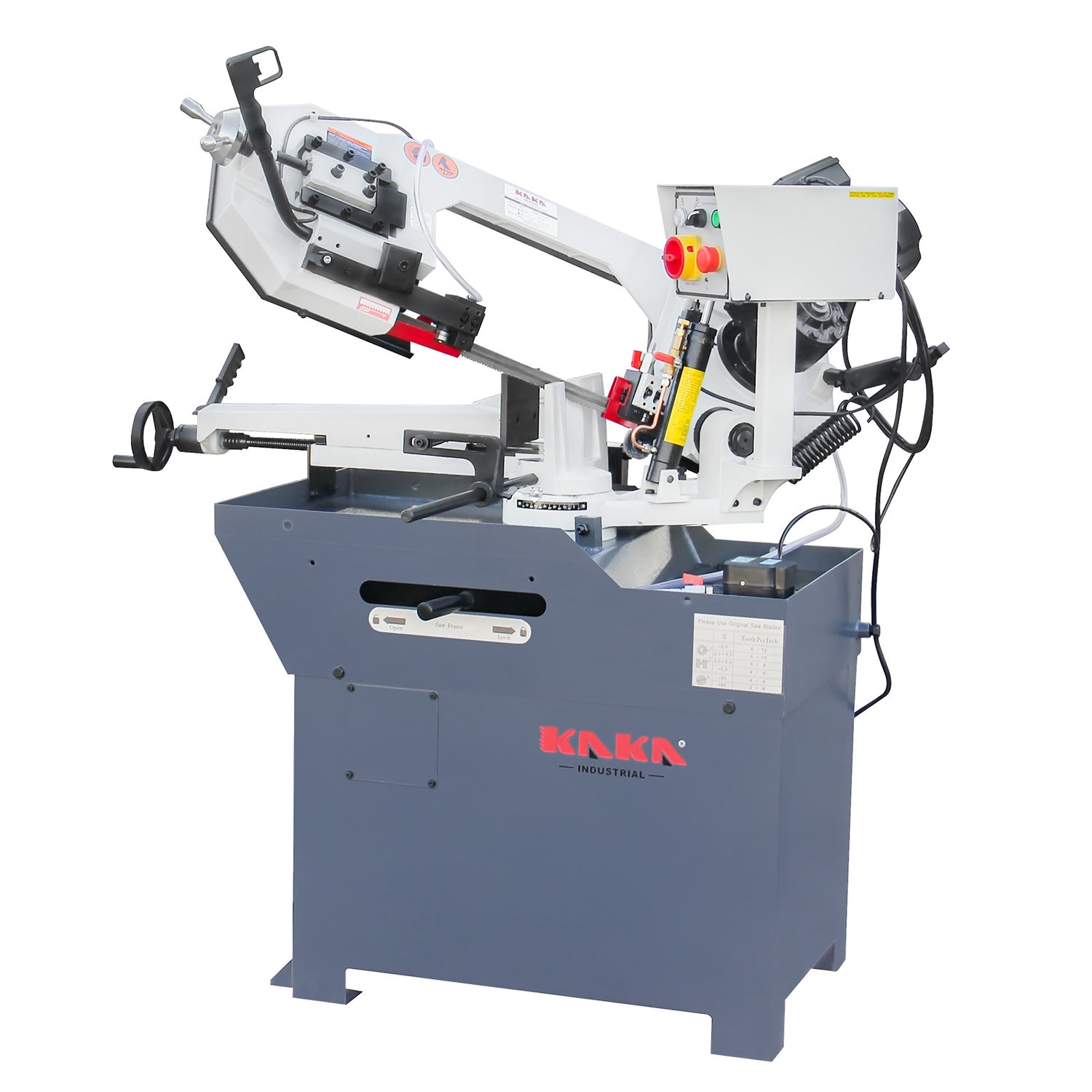

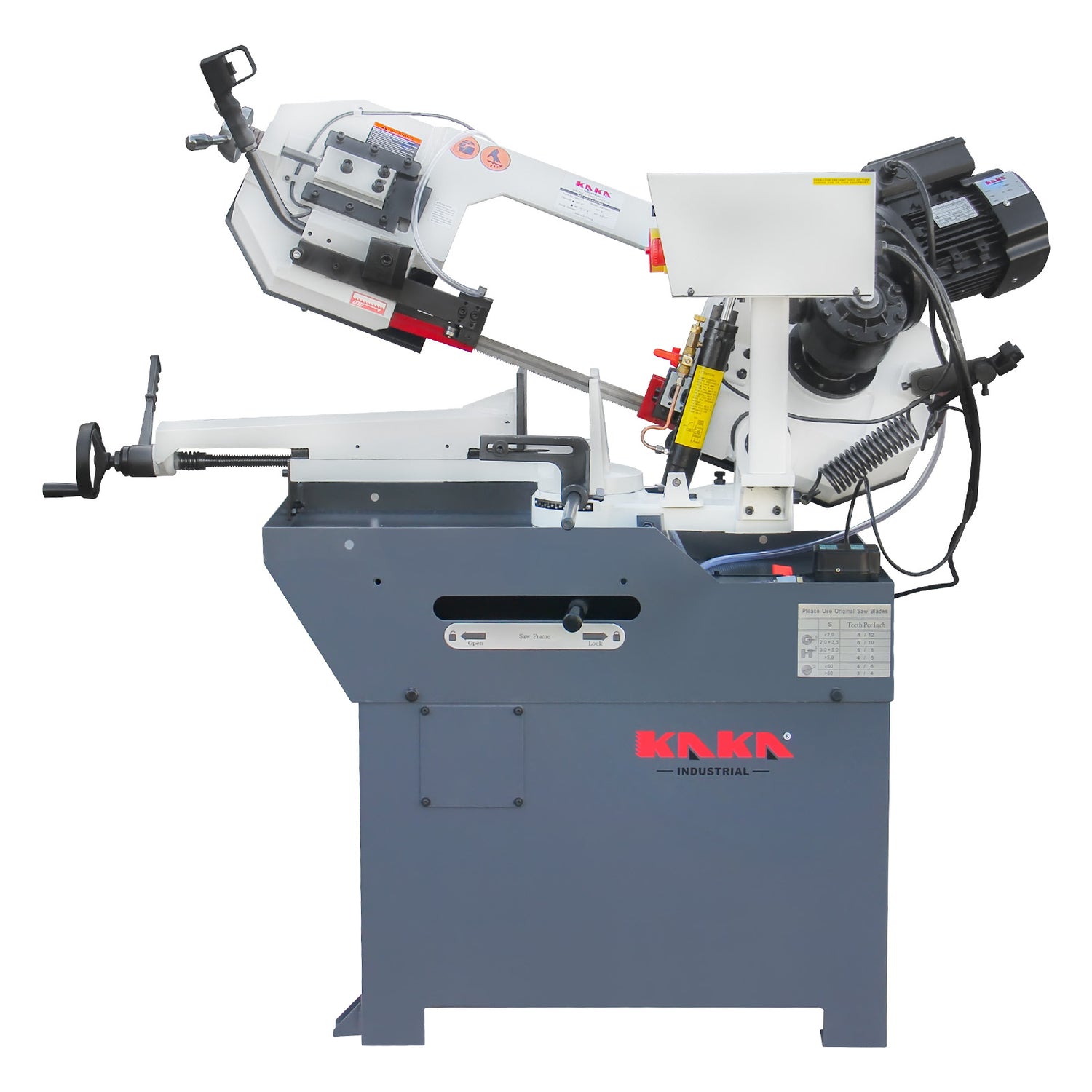

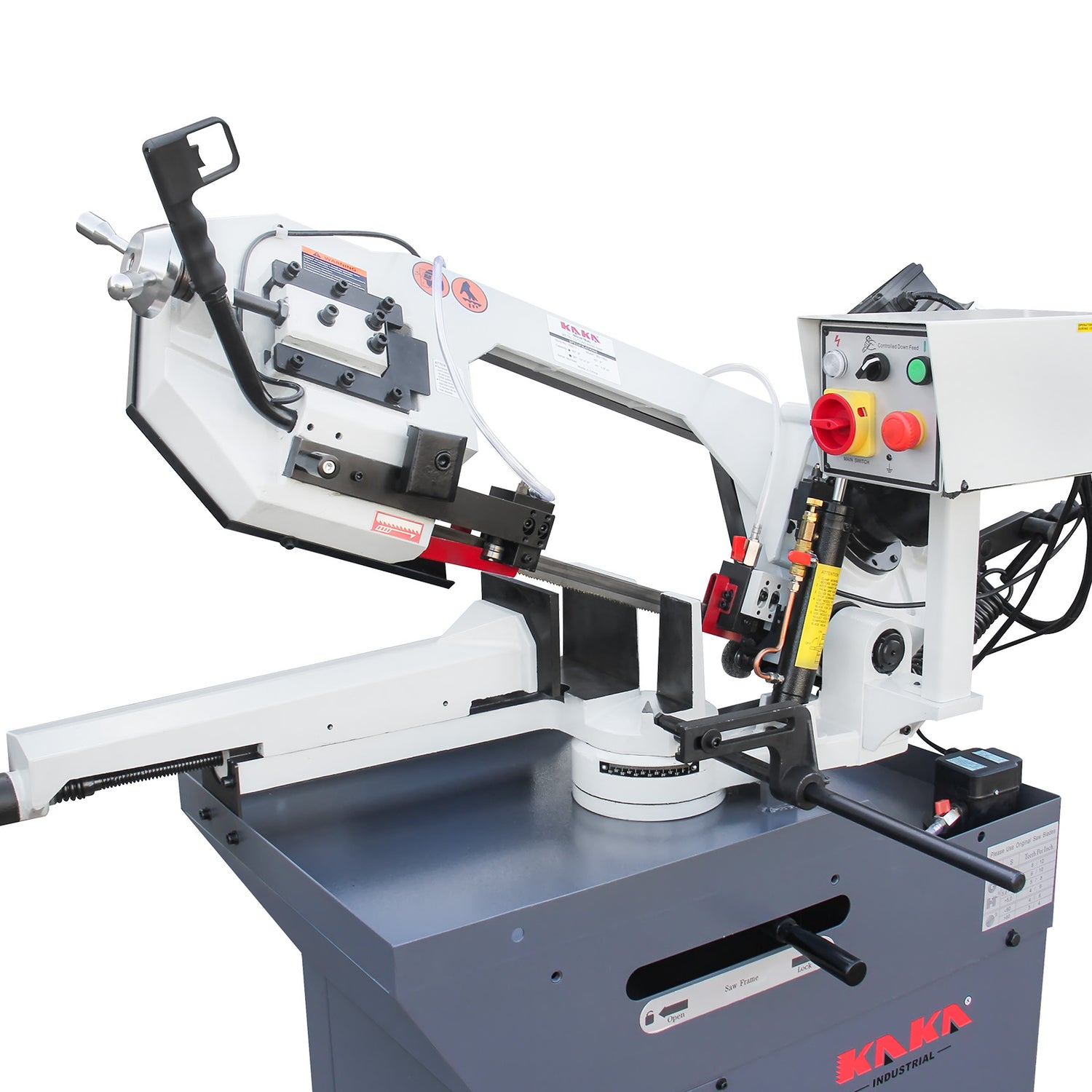

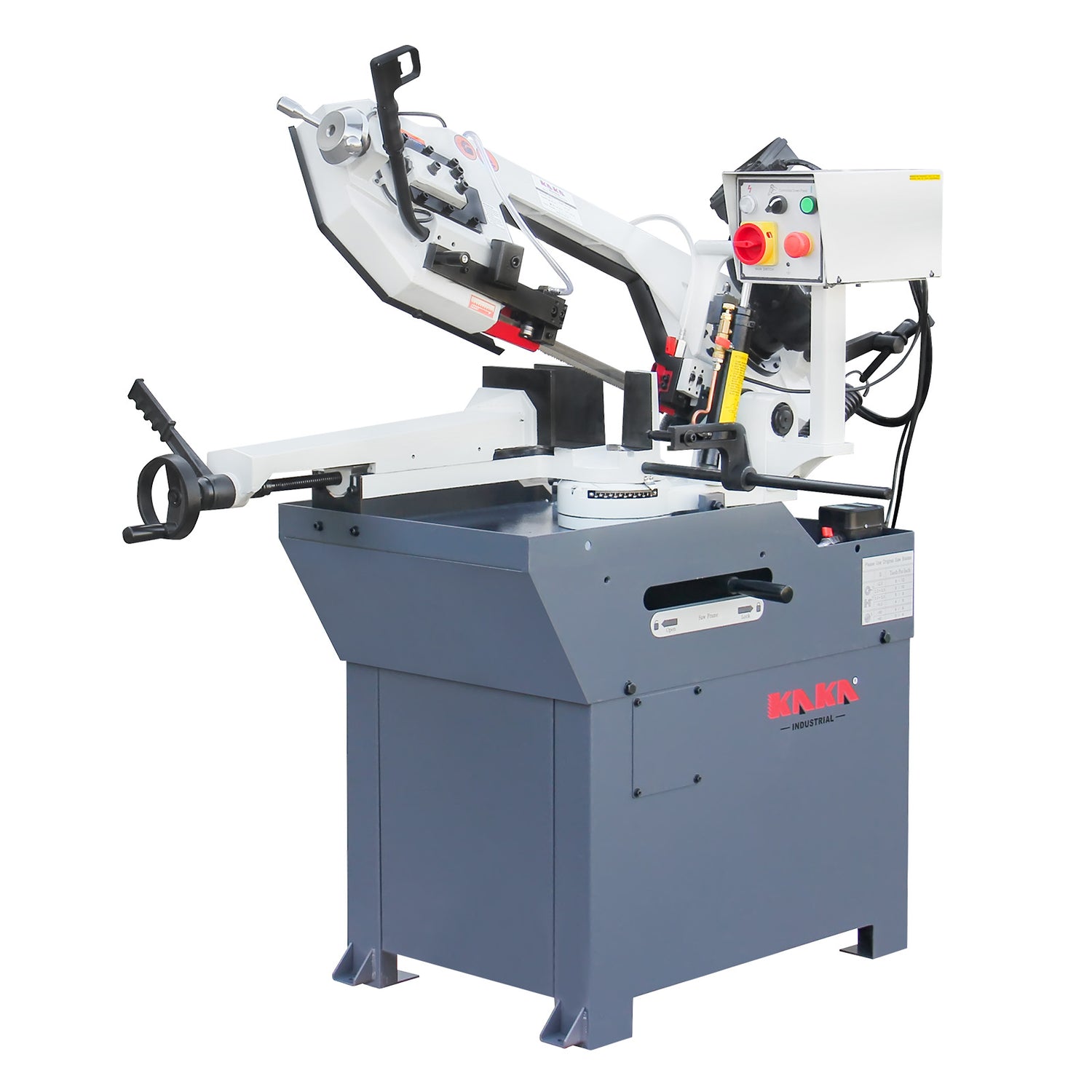

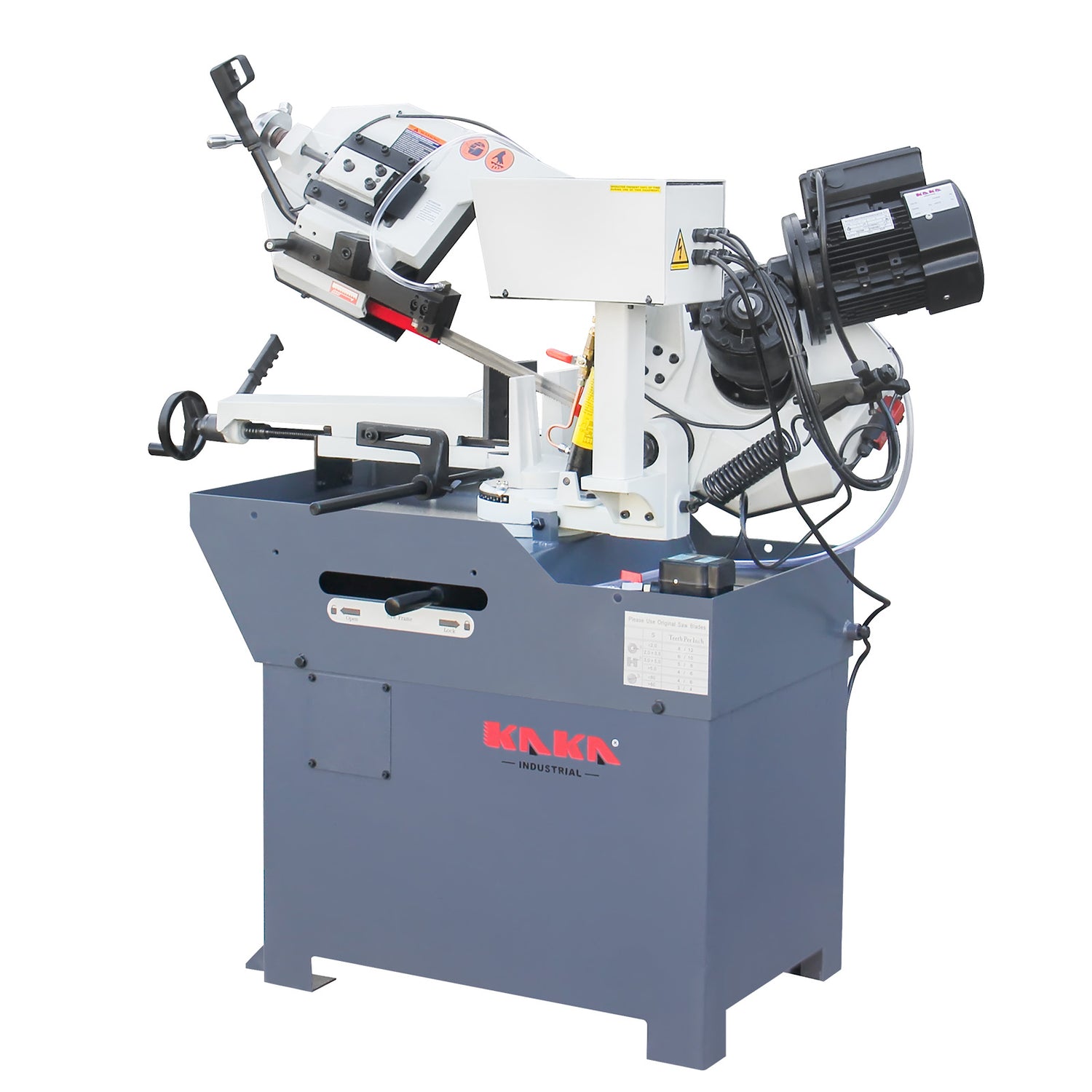

KAKA Industrial BS-108G Metal Cutting Band Saw,115V-60HZ-1PH

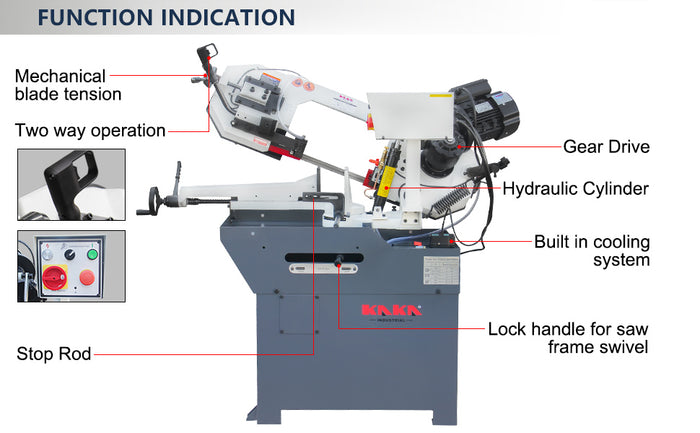

Features:

  1.  Rigid cast-iron design with steel base serving as utility shelf

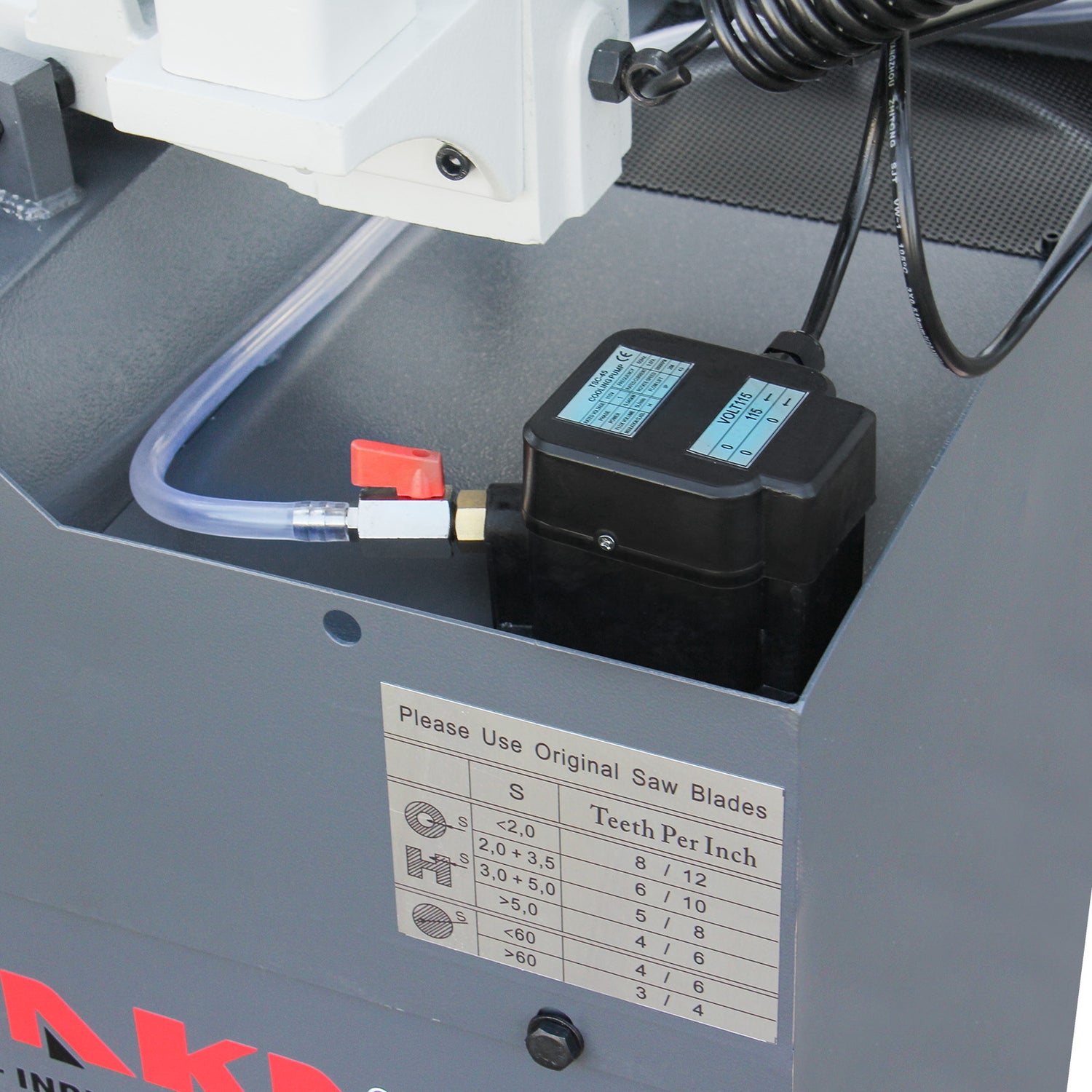

  2. Coolant pump ensures longer service life of saw blade and improve the precision of work piece

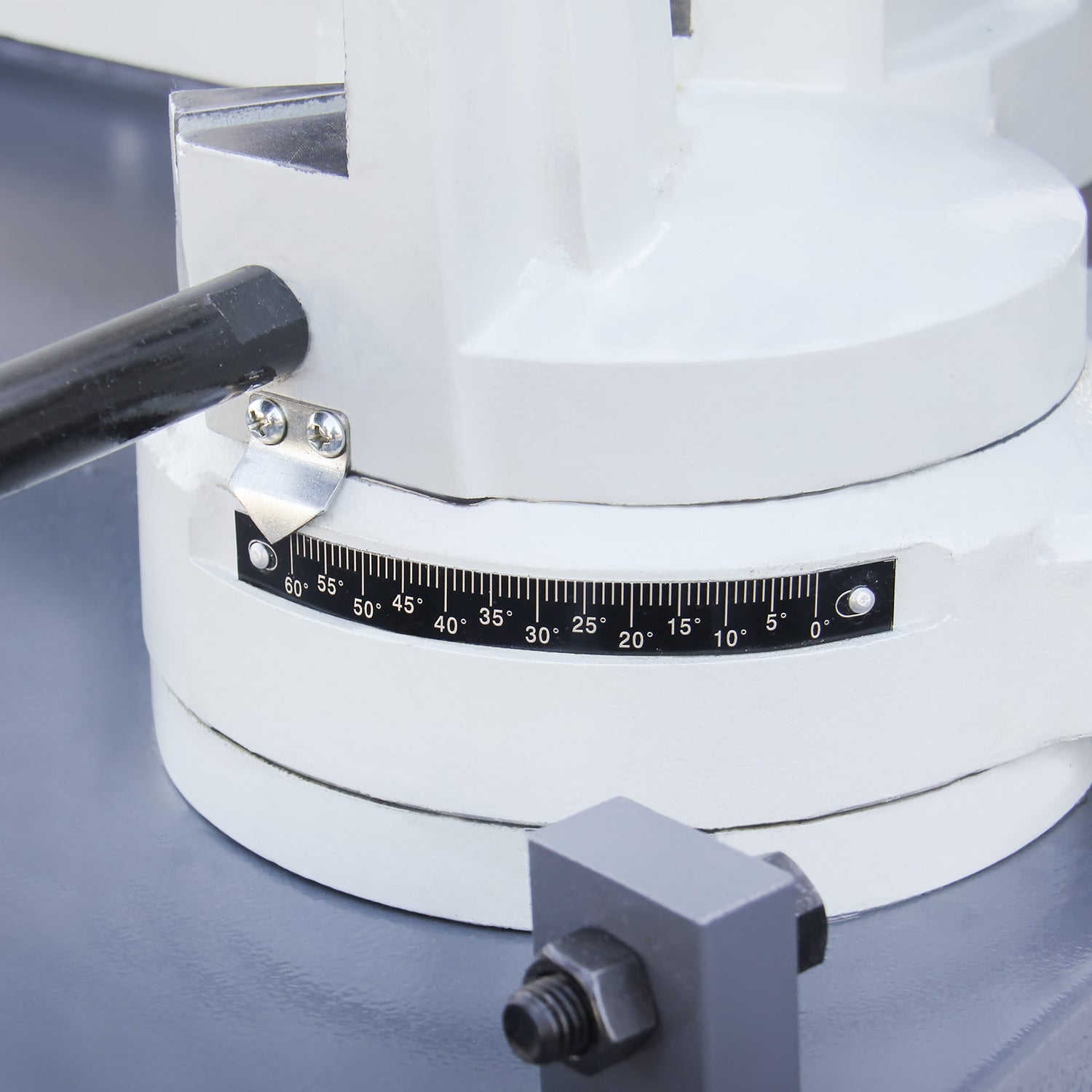

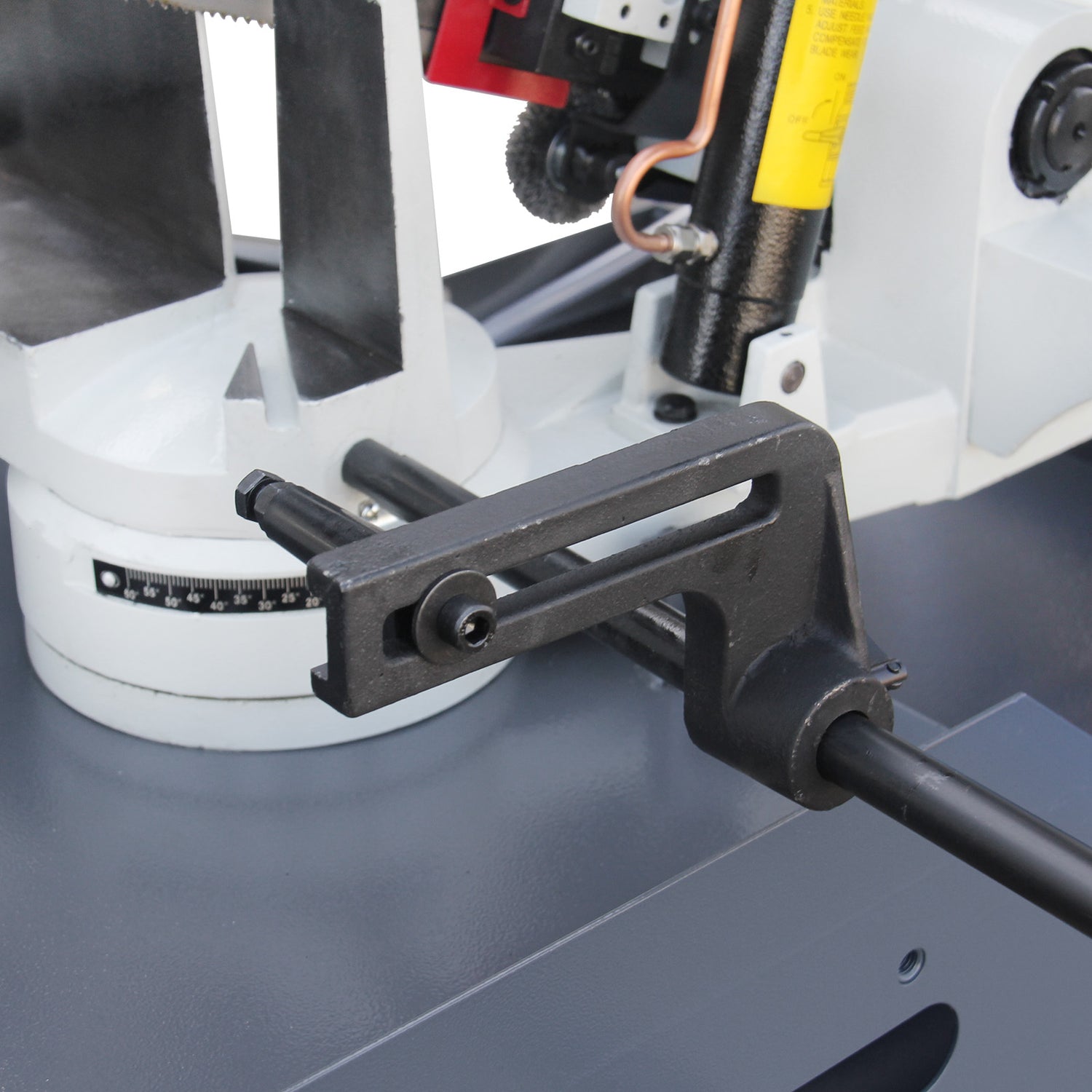

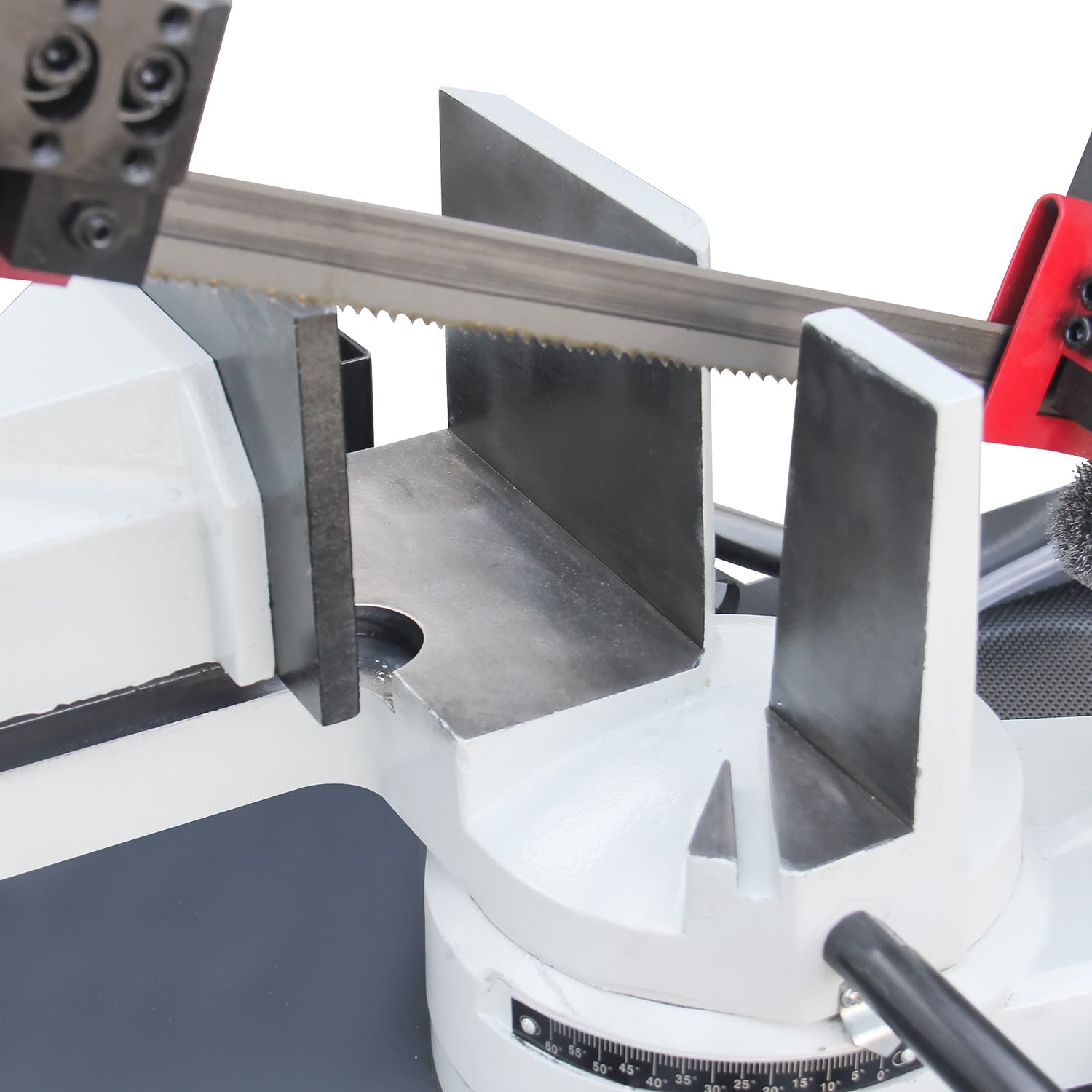

  3. Scale on the vise allows easy adjustments for angle cuts

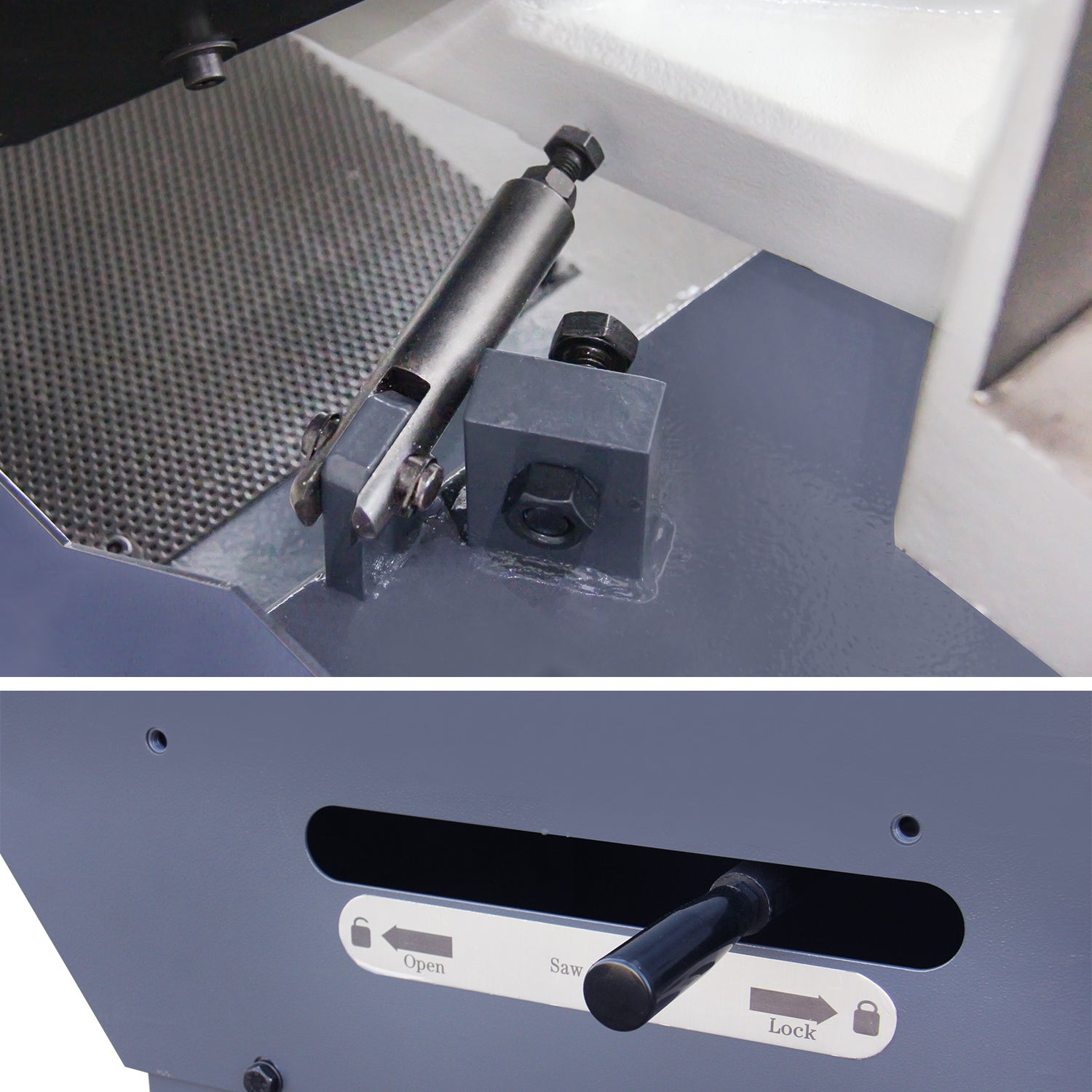

  4. Quick adjusting vise for angular cuts—the saw frame swivels, not the material.

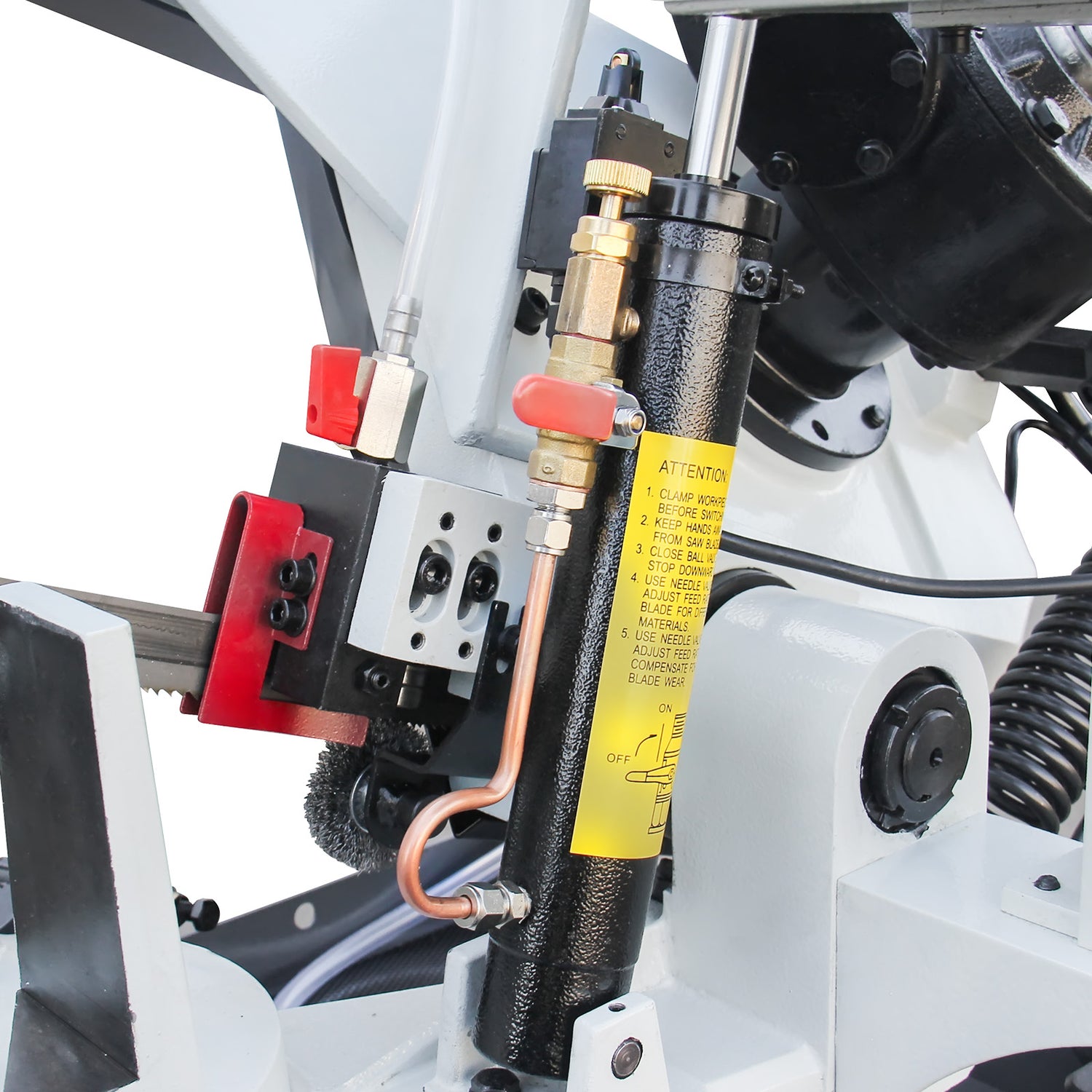

  5. Hydraulic cylinder for controlled descent
  6. Accident preventing devices on the fly wheel casing and on the blade
  7. Vertical rotation on bolt with adjustable tapered bearings without backlash
  8. Band stretching is obtained by electro-mechanical blade tension with micro switch
  9. European design, dovetail-type clamp movement and locking mechanism
  10. Worm gear box transmission structure
  11. The calibration of the jaw is convenient for adjustment and positioning at any angle (Scale on the vise allows easy adjustments for angle cuts)
  12. The falling speed of saw bow is controlled by hydraulic cylinder



Specification:

Item No.

188017

Model

BS-108G

Capacity

Circular @90°

227 mm (9”)

Rectangular @90°

260x110 mm (10”x4.3”)

Circular @60°(right)

90 mm (3.5”)

Rectangular @60°(right)

85x85 mm (3.3”x3.3”)

Circular @45° (right)

150 mm (6”)

Rectangular @45°(right)

150x125 mm (5.9”x5”)



Blade speed @ 60Hz

4P, 36MPM 118 FPM

Blade size

1x0.035x96 in

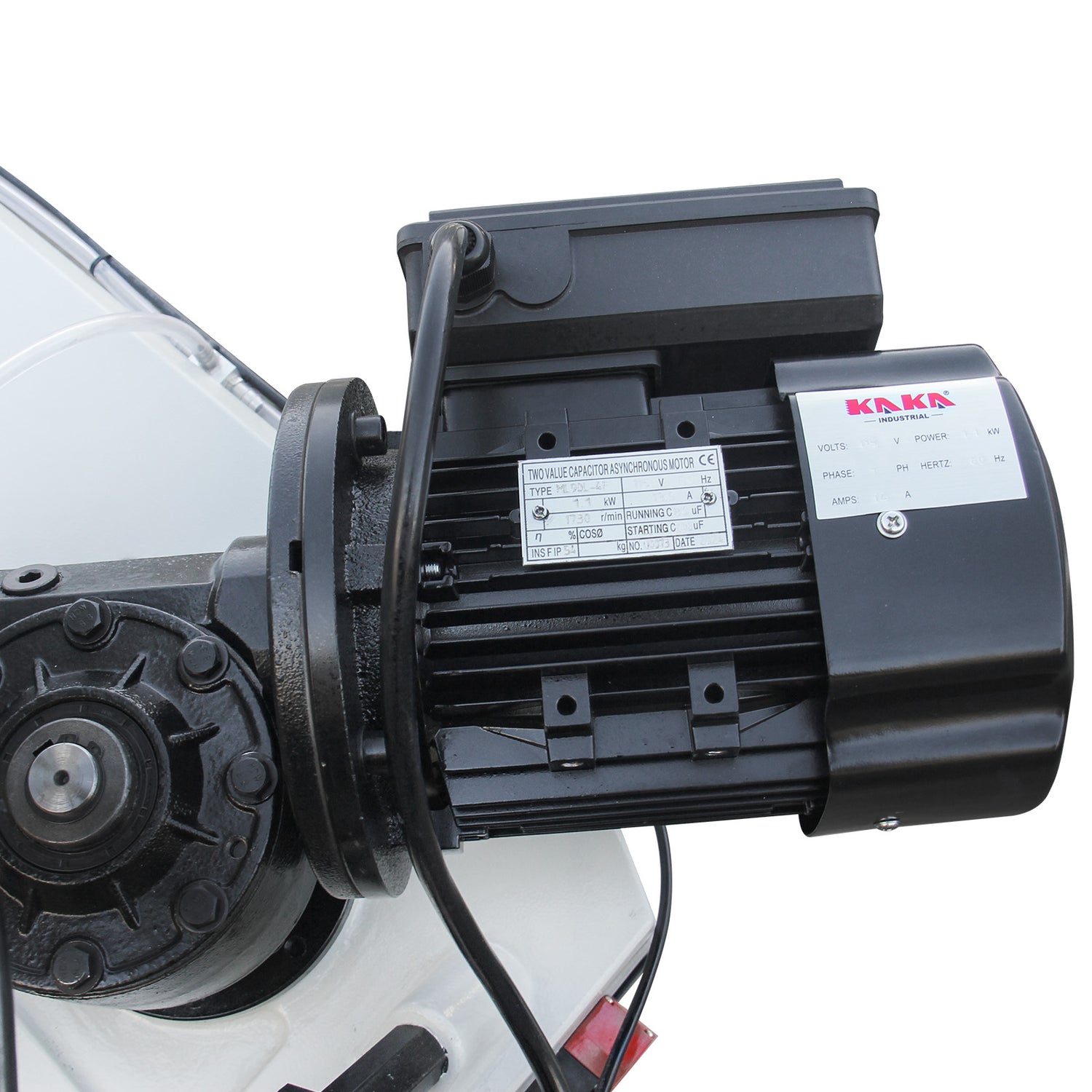

Motor power

1.5HP (Single Phase)

Drive

Gear

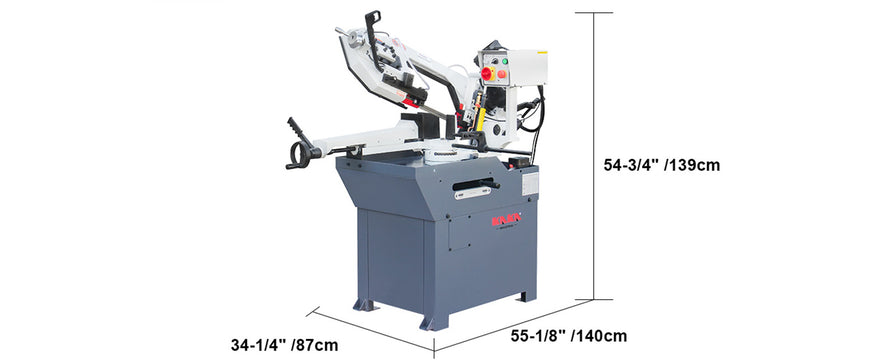

Packing size (body)

55x28x43 in

Packing size (body)

Together with in body

N.W./G.W.

418/579lbs

Accessories:

Standard accessories:
Blade

Electric coolant system
Optional accessories:
