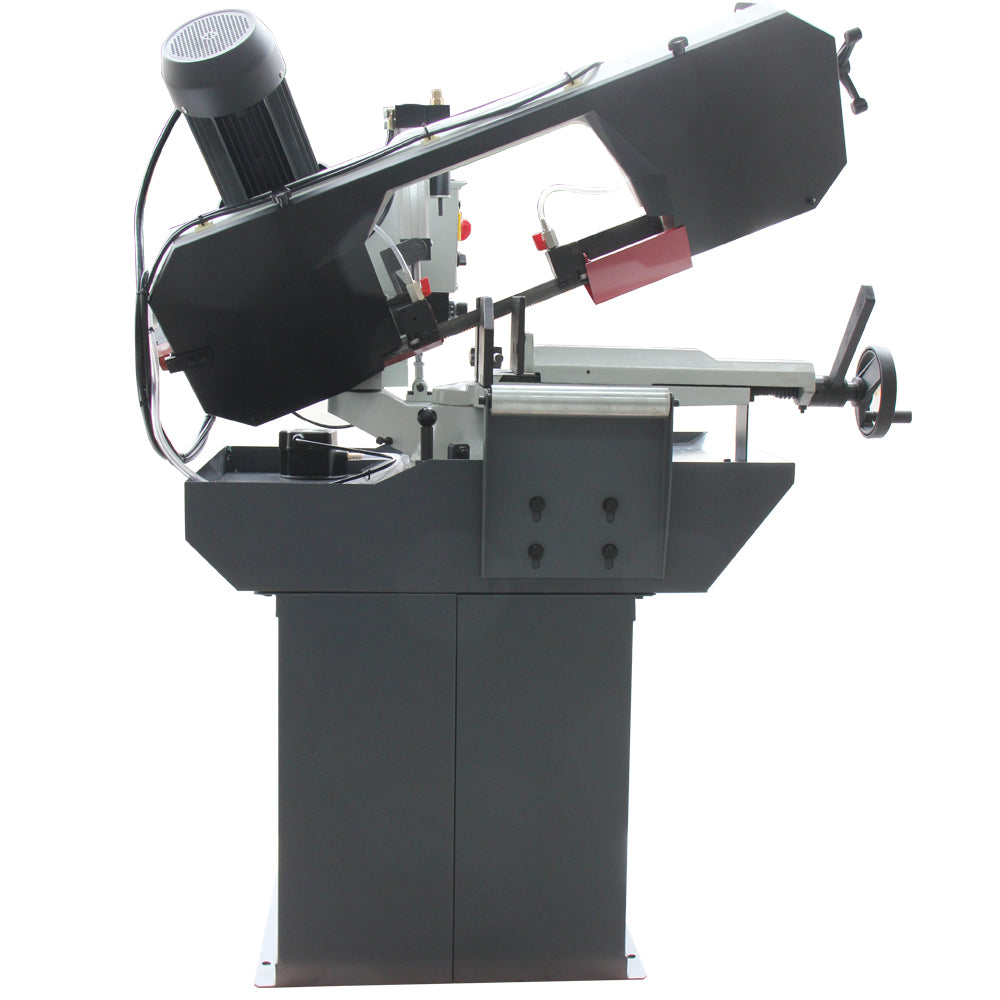

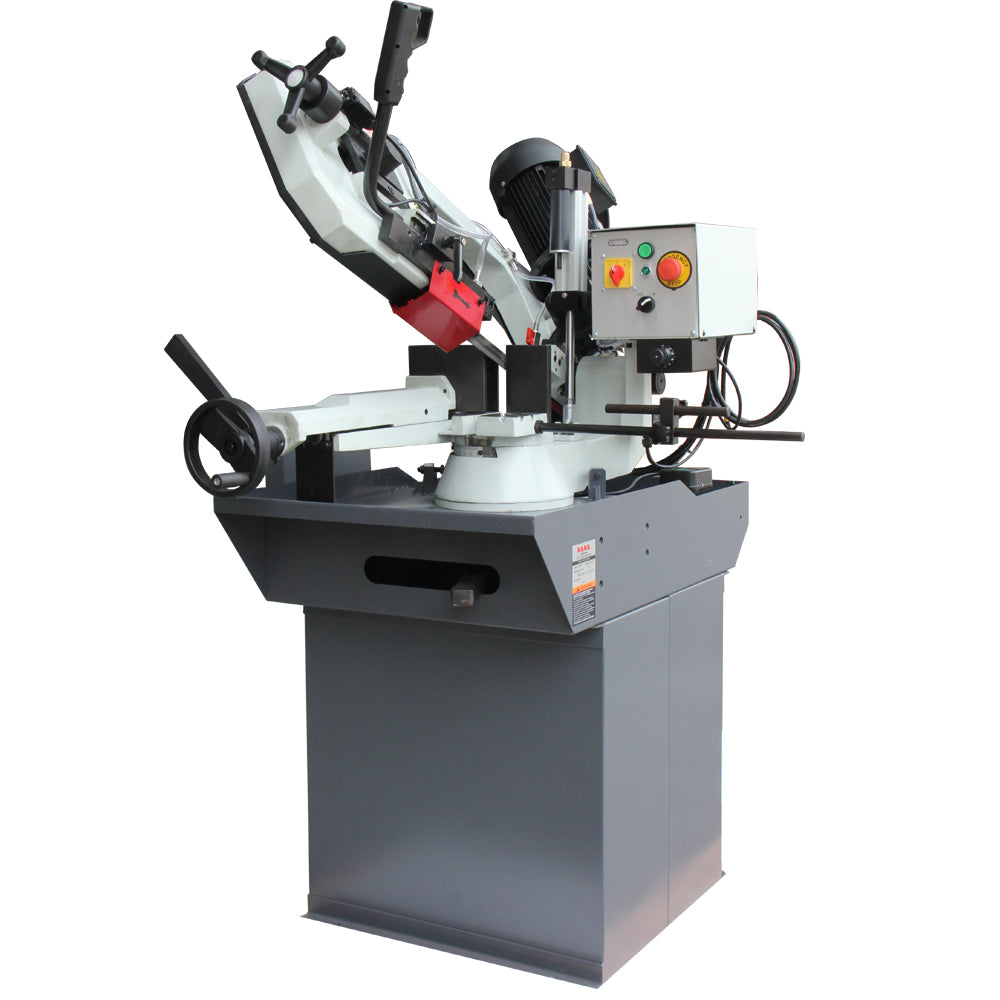

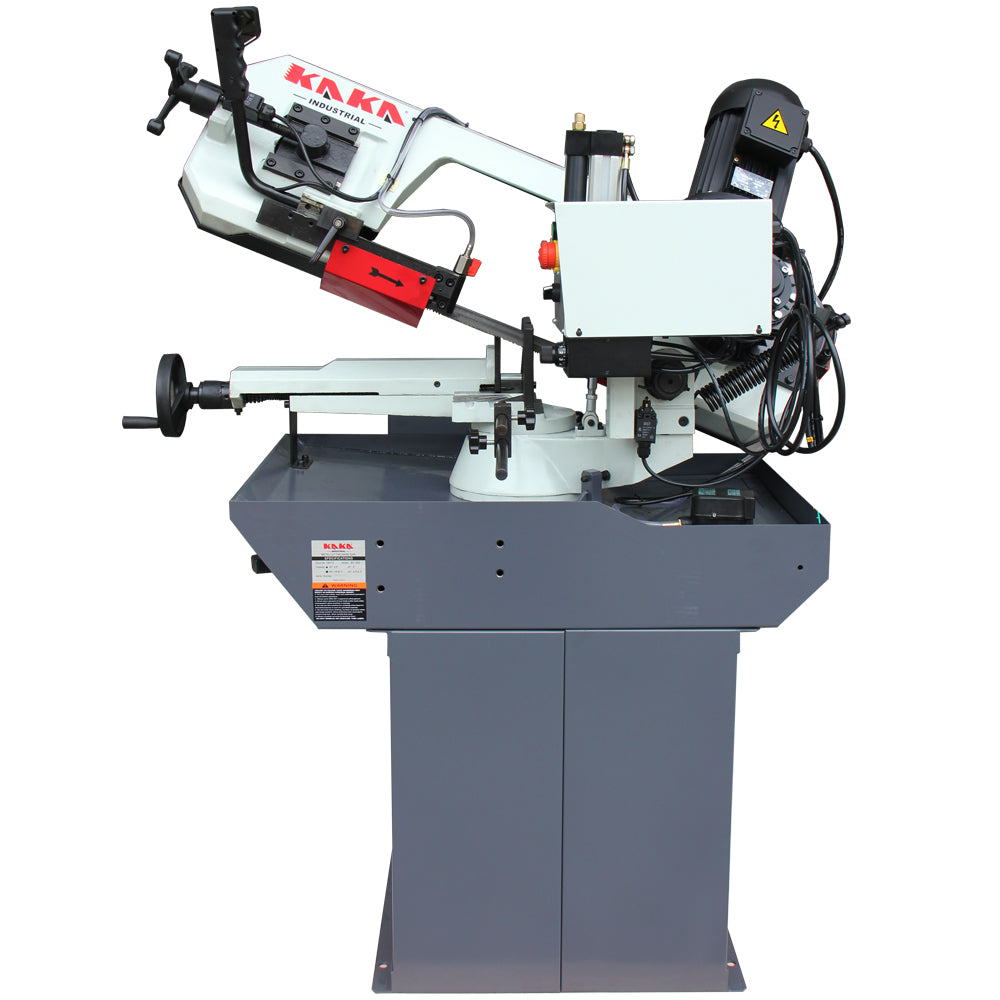

- Rigid cast-iron design with steel base serving as utility shelf
- Coolant pump ensures longer service life of saw blade and improve the precision of work piece

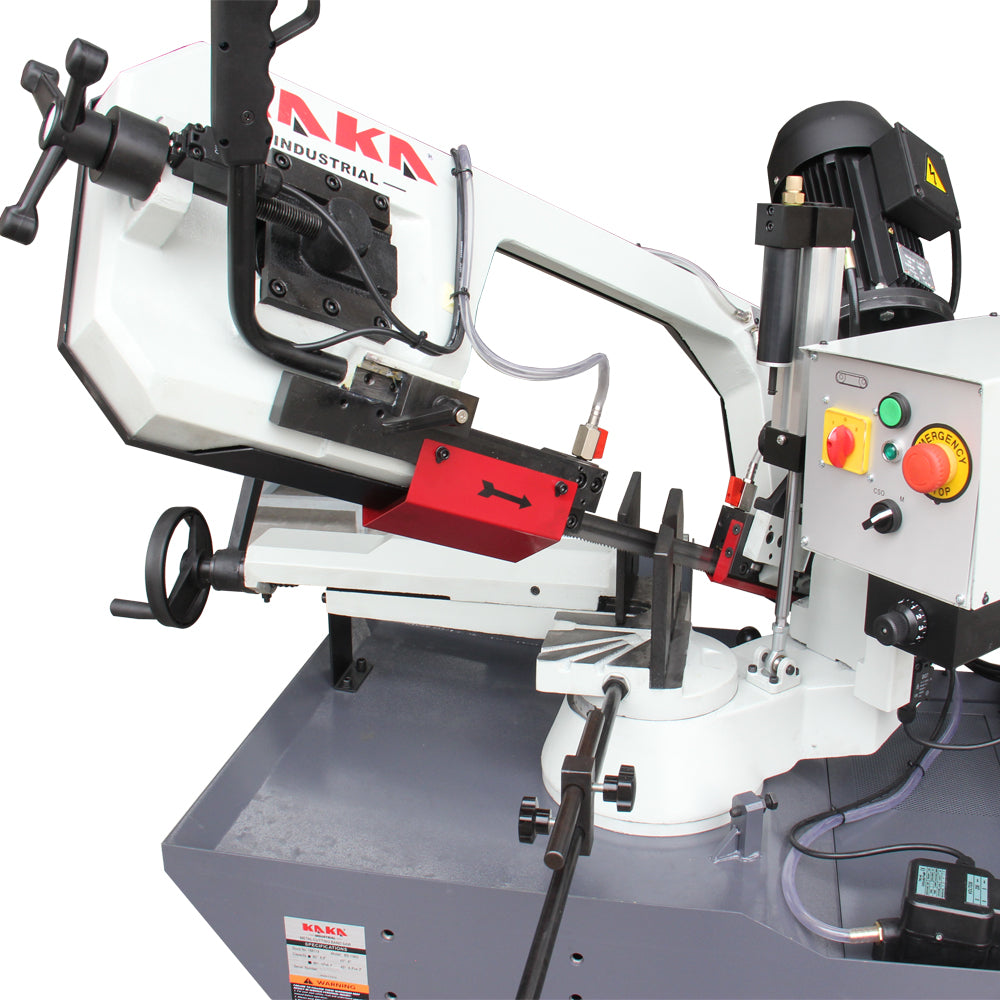

- Scale on the vise allows easy adjustments for angle cuts
- Quick adjusting vise for angular cuts—the saw frame swivels, not the material.
- Hydraulic cylinder for controlled descent
- Accident preventing devices on the fly wheel casing and on the blade
- Vertical rotation on bolt with adjustable tapered bearings without backlash
- Band stretching is obtained by electro-mechanical blade tension with micro switch
- European design, dovetail-type clamp movement and locking mechanism

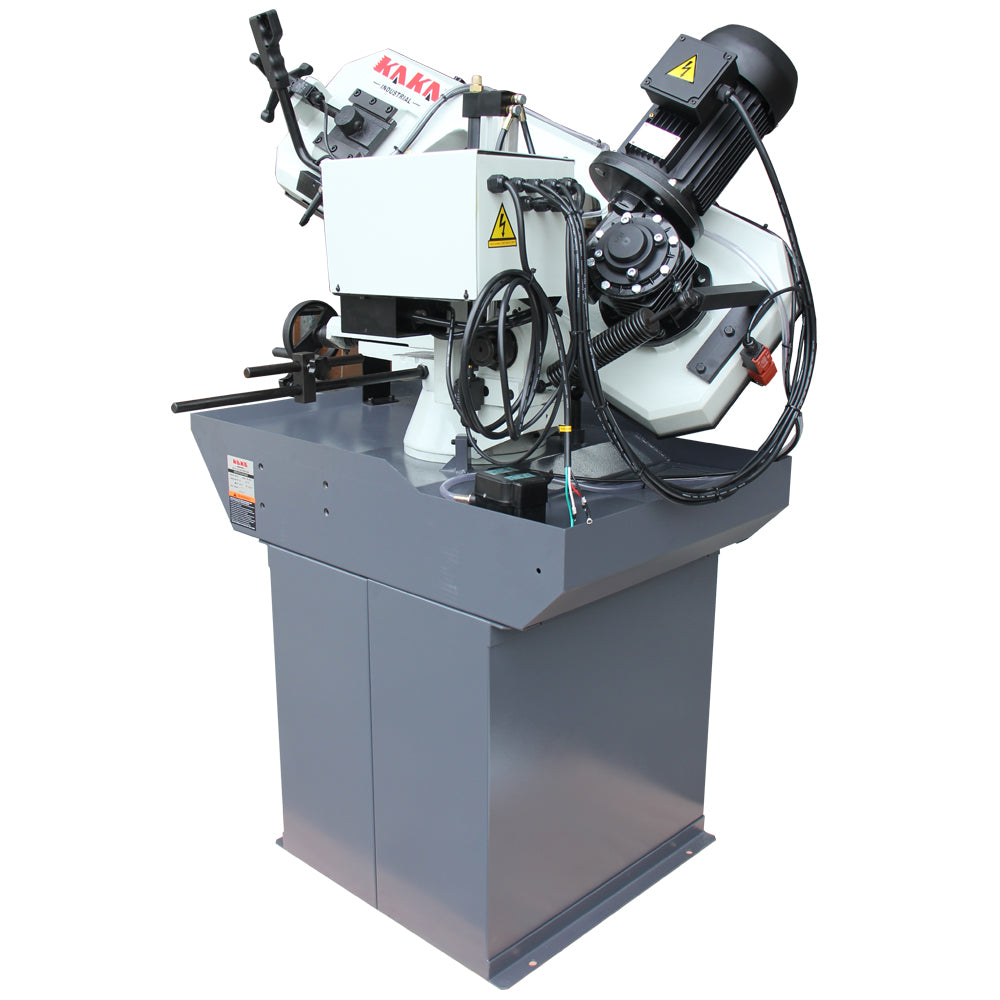

- Worm gear box transmission structure
- The calibration of the jaw is convenient for adjustment and positioning at any angle (Scale on the vise allows easy adjustments for angle cuts)
- The falling speed of saw bow is controlled by hydraulic cylinder
Specification:
|
Item No.
|
188019
|
|
Model
|
BS-106G
|
|
Capacity
|
Circular @90°
|
220 mm (8.6”)
|
|
Rectangular @90°
|
250X155 mm (10”x6.1”)
|
|
Circular @60°(right)
|
100 mm (4”)
|
|
Rectangular @60°(right)
|
80X95mm (3.1”x3.7”)
|
|
Circular @45° (right)
|
160 mm (6.3”)
|
|
Rectangular @45°(right)
|
160x110mm (6.3”x4.3”)
|
|
|
|
|
Blade speed @ 60Hz
|
4P, 36MPM 118 FPM
|
|
Blade size
|
1.06"X0.035"x96.46"in
|
|
Motor power
|
0.75/1.1kw,1.0/1.5HP (3PH)
|
|
Drive
|
Gear
|
|
Packing size (body)
|
53x32x44 in
|
|
Packing size (body)
|
27X16X25in
|
|
N.W./G.W.
|
559/632lbs
|
Accessories:
Standard accessories:
Blade
Electric coolant system
Optional accessories:
No.
KAKA Industrial provides 12 months warranty for this product.
1.10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
2.You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
3.Returned materials must be received at Kaka Industrial in new condition and in original packaging.
4.Altered items are not eligible for return.
5.Buyer is responsible for all shipping charges.
6.A 15% re-stocking fee applies to all returns.
