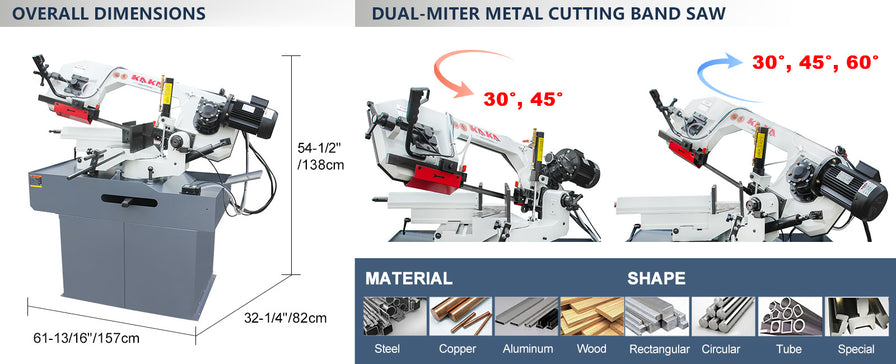

Kaka industrial BS-126G Metal Cutting Band saw

Featu

1. Electric coolant system
2. Accident preventing devices on the fly wheel casing and on the blade
3. Vertical rotation on bolt with adjustable tapered bearings without backlash
4. Band stretching is obtained by electro-mechanical blade tensioner with microswitch
5. It is characterized by manual operation mode.
6. The saw bow can rotate around.
7. The European design band saw has power break device (the machine will automatically power off when the rear protective cover is opened).
8. The falling speed of saw bow is controlled by hydraulic cylinder.
9. It is equipped with a block feeder (with fixed saw length).
10. Hydraulic cylinder for controlled descent
11. High-capacity band control by two-speed motor
12. Swivel on both sidesres


Specification:

Item:188122
Model:BS-126G
CapacityCircular @90°230mm(9”)
Rectangular @90°12.4"x6.7"
Circular @60°(Right)5"
Rectangular  @60°(Right)5"x5"
Circular @45°(Left & Right)8.25"
Rectangular @45°(Left & Right)8.25"x6.7"
Blade speed@50Hz40/80MPM
                    @60Hz48/96MPM
Blade size:27X0.9X2825mm
Motor0.75/1.1kW
DriveGear
Packing size:64"x35"x38" in(body)

                       29"x22"x24" in(stand)
N.W/G.W.771/859LB
