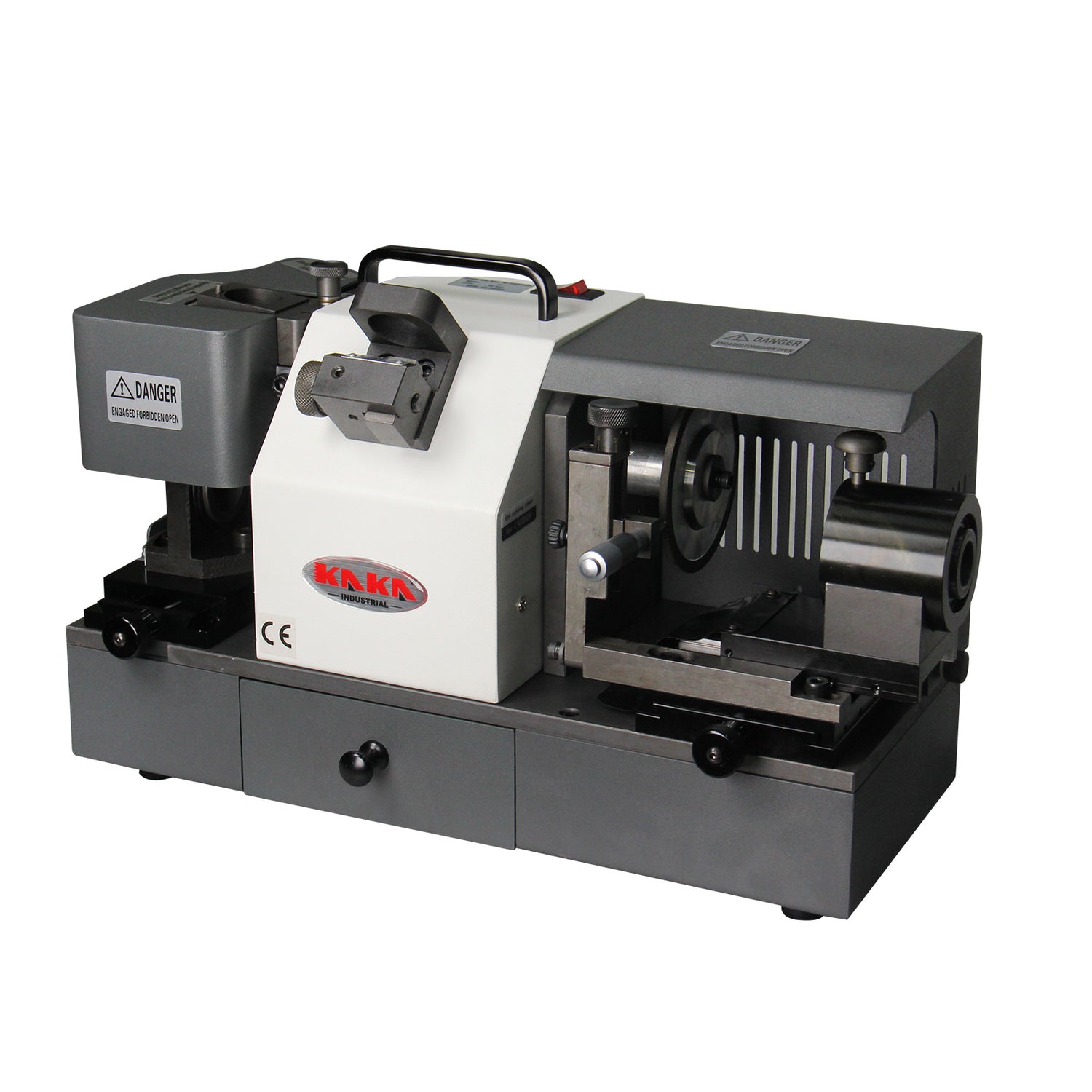

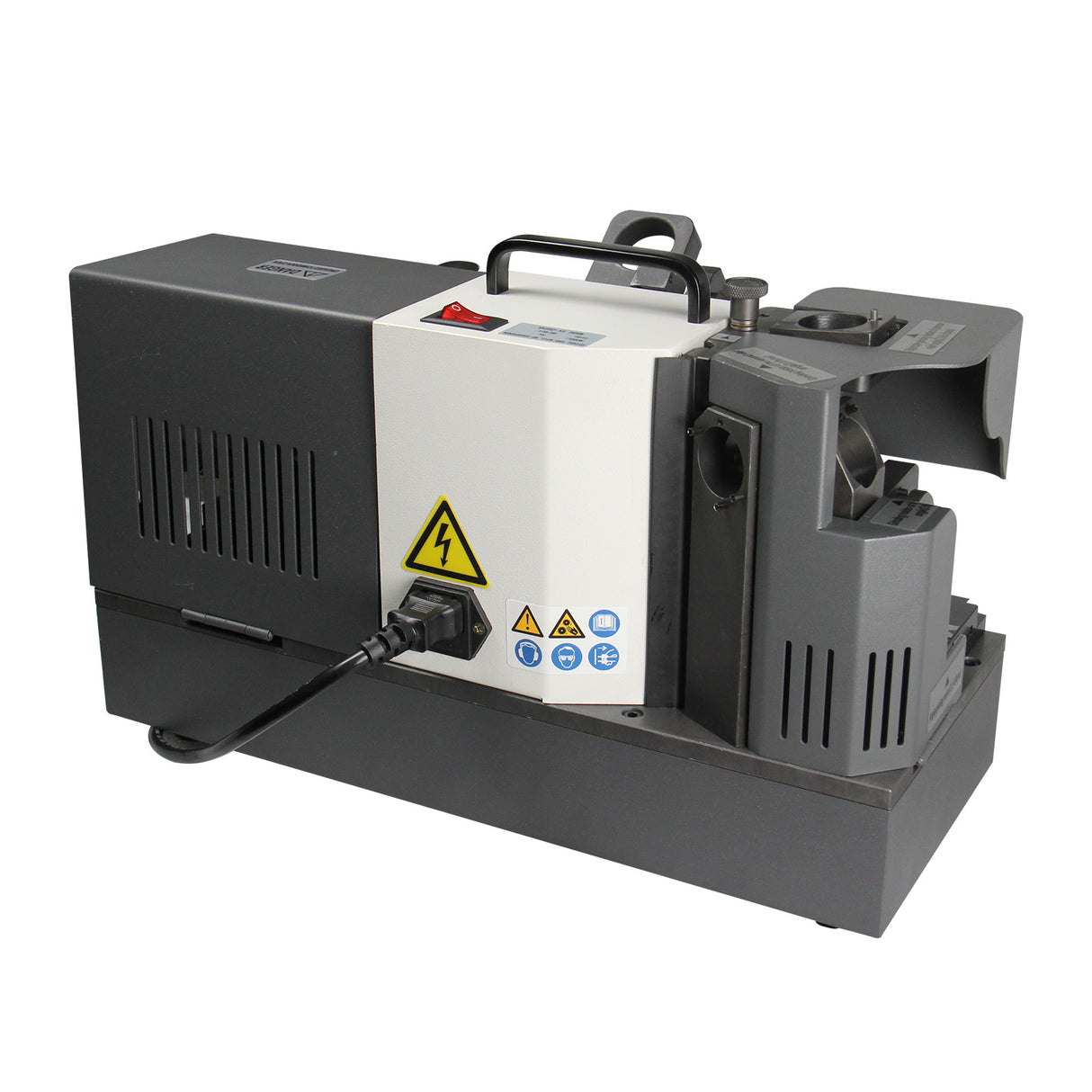

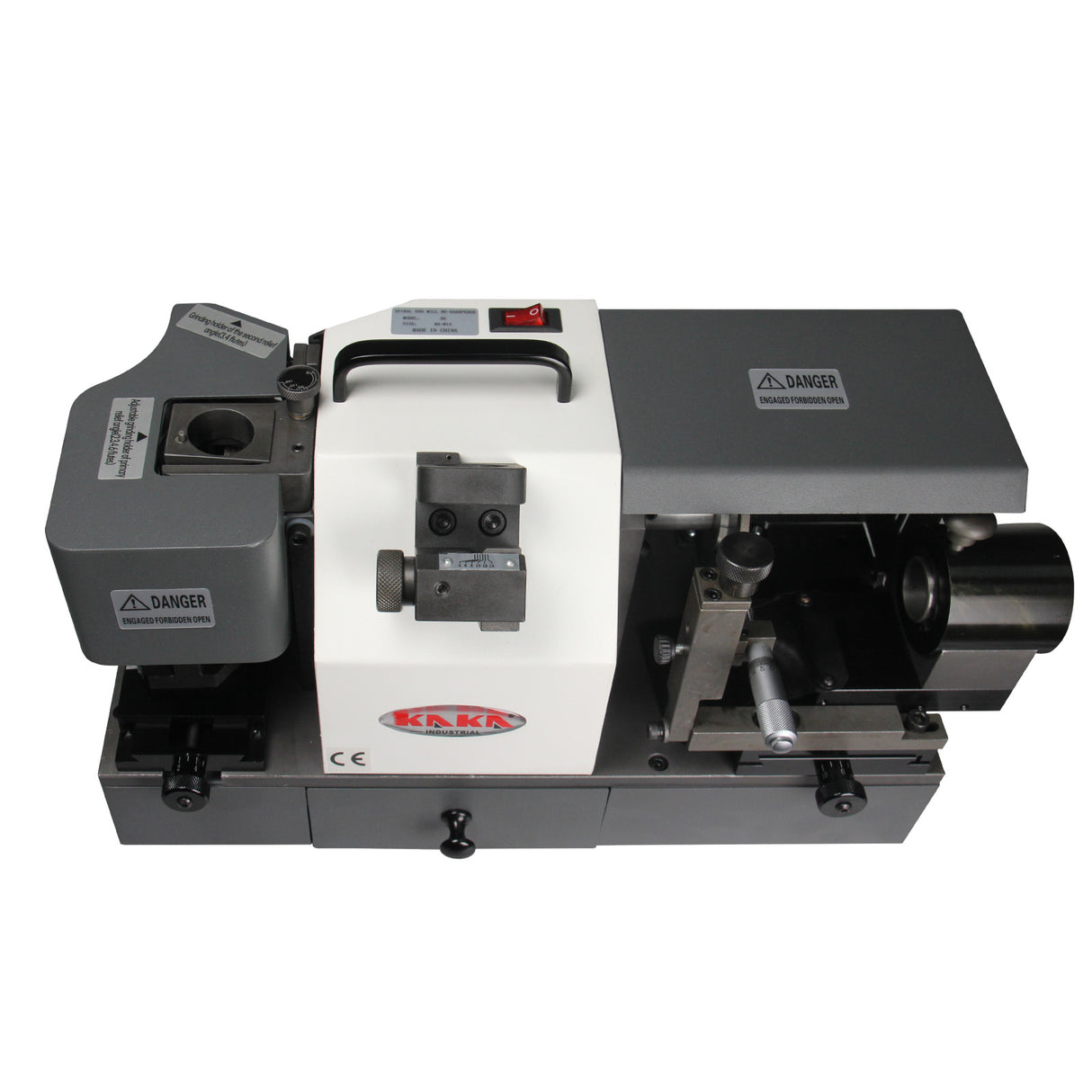

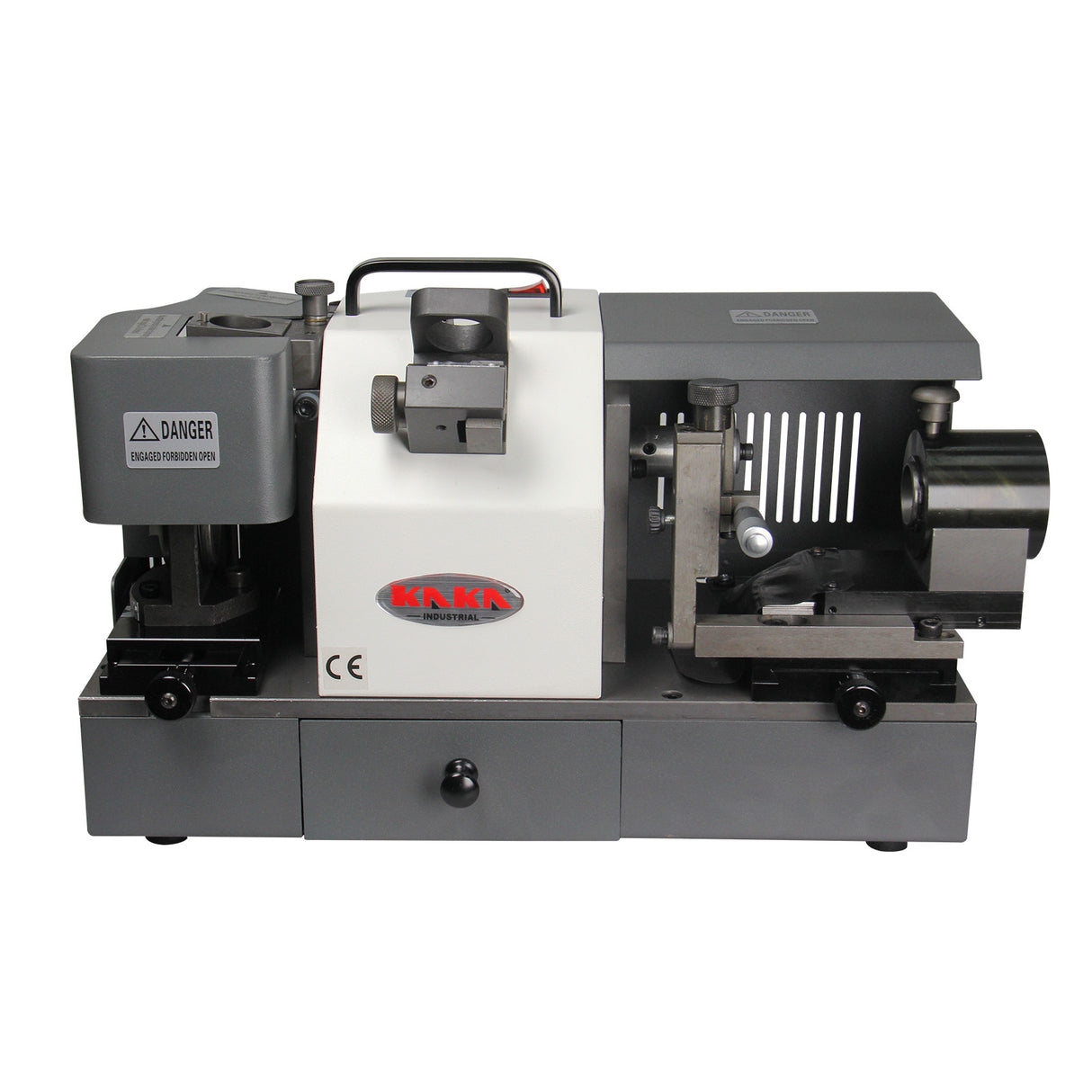

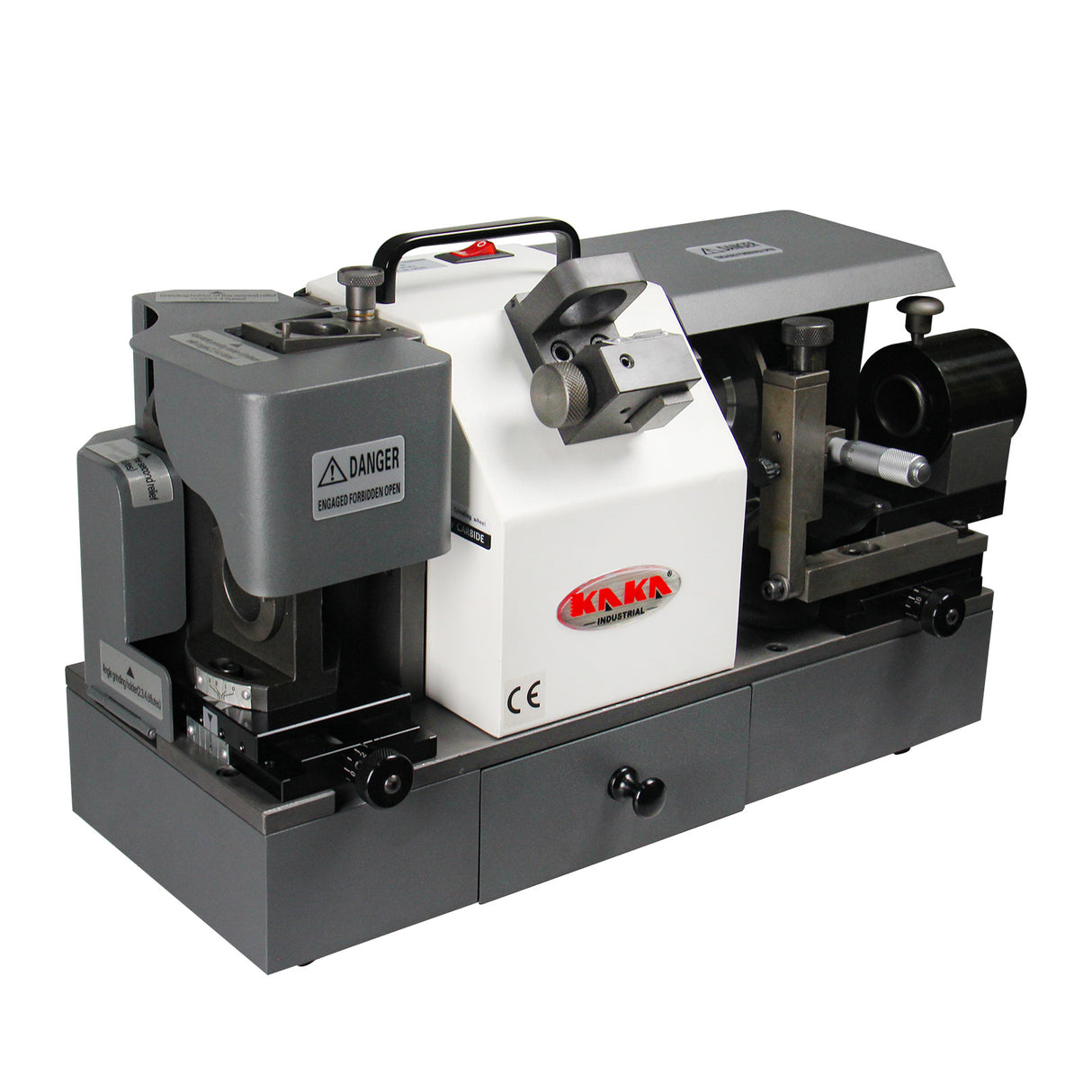

Kaka Industrial TX-X6 End Mill Re-sharpener

$2,469.00

Shipping calculated at checkout

SKU: 161905V110

Only 1 left!

1 9f4c74d2 52d3 4829 b800 6b1aea776ee1

Quality

assured

2

Caring

service

3

Guide

operation

▲PRODUCT INSTRUCTION

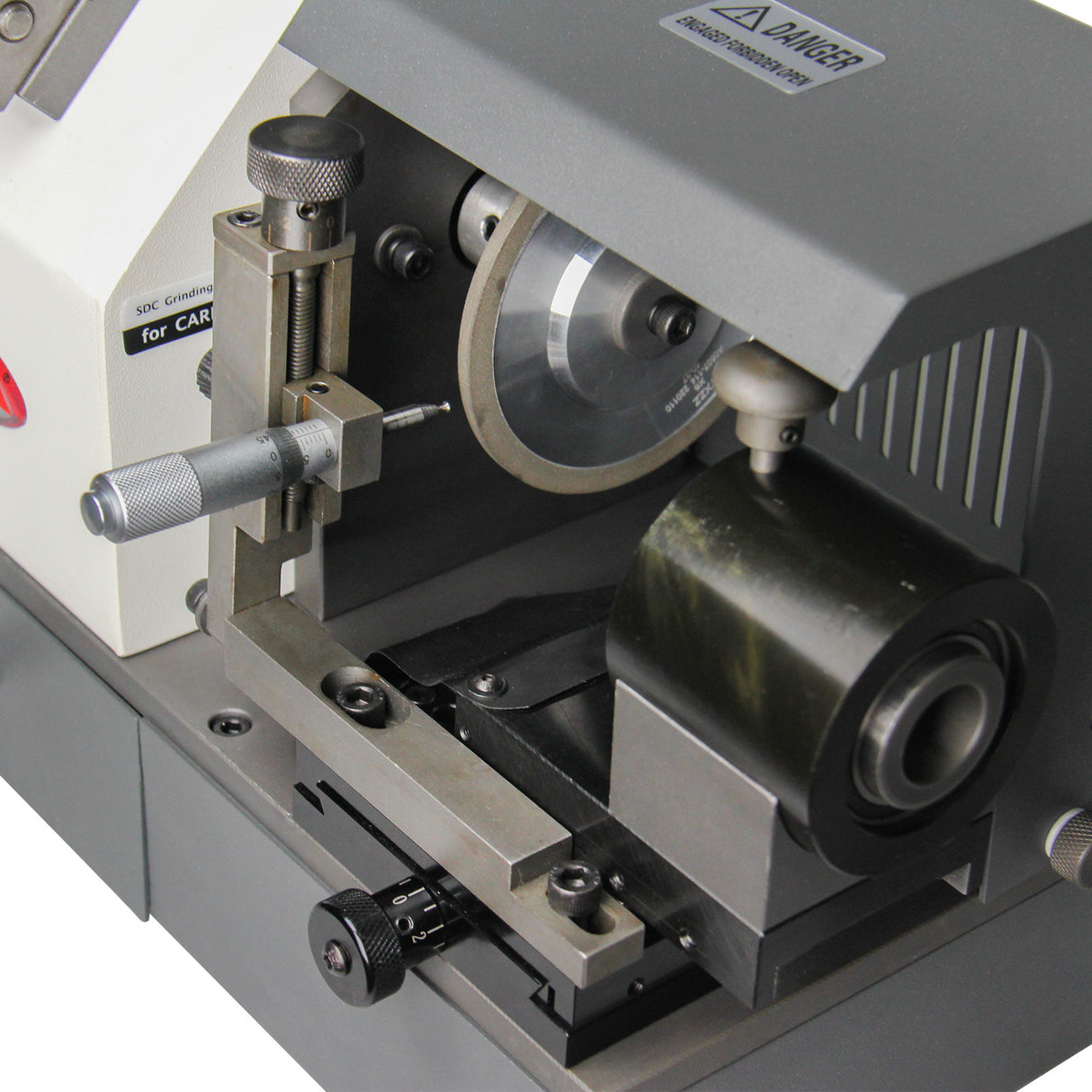

  1. Independent developing X6 includes the function of X3, and can also grind peripheral cutting edge.
  2. Portable end mill grinder can grind end mill of 2-flute, 3-flute, 4-flute and 6-flute ( size should be bigger than Ф12mm). Optional fixture group can grind 5-flute.
  3. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
  4. With diamond grinding wheel, only one piece can complete all procedures.  It can be equipped directly with an accurate angle and long service life.
  5. Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small or medium enterprises, family workshops, personal repair, all can achieve satisfying grinding results.

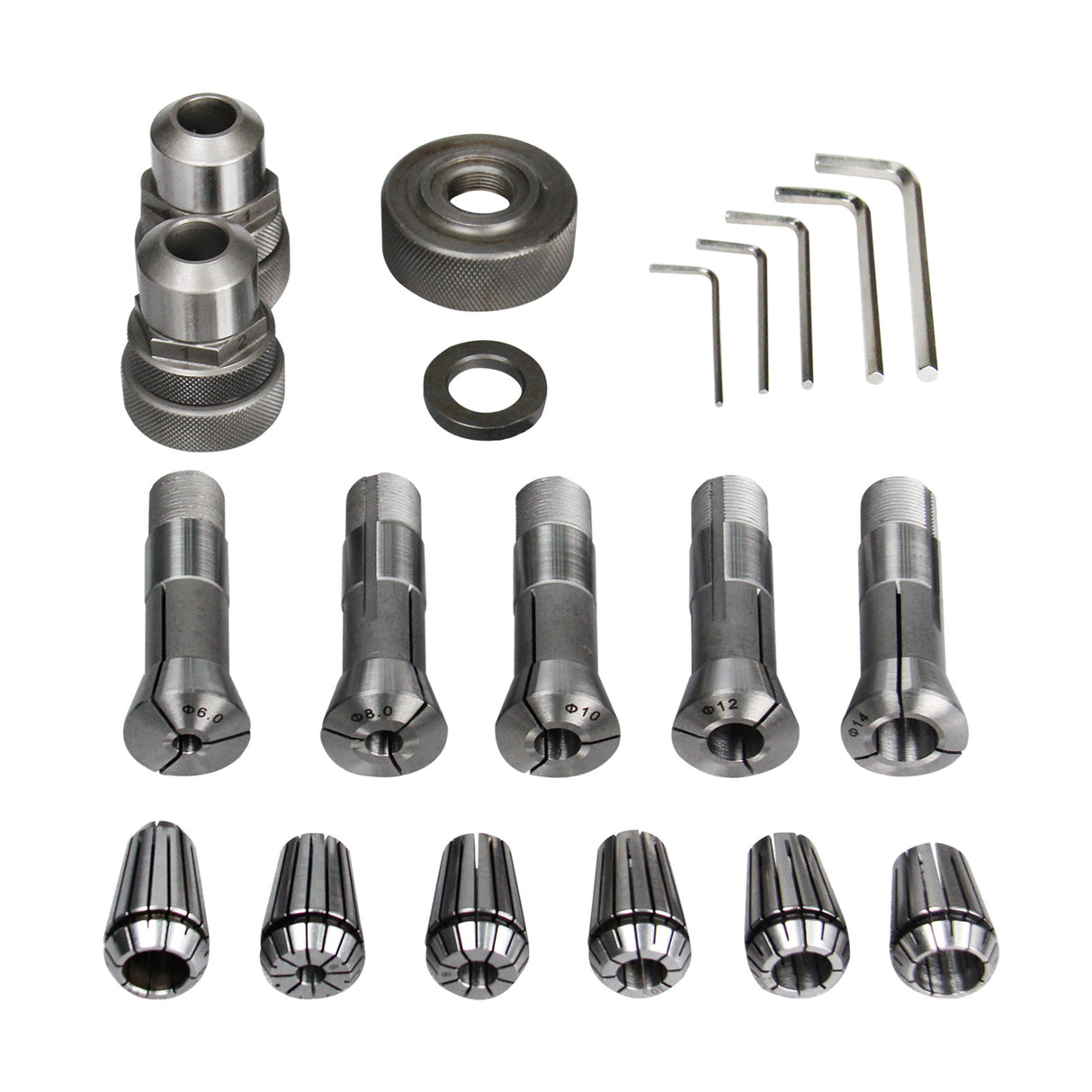

Standard equipments:
Collet chuck: 2 sets
ER20 collet: 6 pcs (ф4, ф6, ф8, ф10, ф12,ф14)
Hexagon wrench: 1 set
Standard SDC grinding wheel: 2 pcs (for carbide)

15# collet: 5 pcs(Φ6,Φ8,Φ10,Φ12,Φ14)

Hexagon wrench: 1 set

Model:

TX-X6

Diameter:

Φ4-Φ14mm

Power:

110V - 60HZ

Speed:

4400rpm

Point angle:

0°-5°

Dimension:

17X10X12 IN

Weight:

51LB

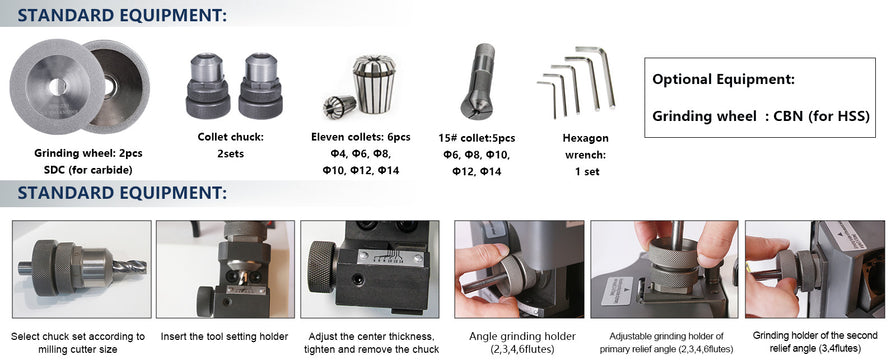

Standard Equipment:

 Face grinding wheel: SDC (for carbide)×1

Side grinding wheel: SDC (for carbide)×1

Six collets: Φ4,Φ6,Φ8,Φ10,Φ12,Φ14

2,4flutes*1piece

3,6flutes*1piece

Optional Equipment:

Face grinding wheel: CBN (for HSS)

Side grinding wheel: SDC (for carbide)×1


GRINDING EFFECT

Accurate to the knife

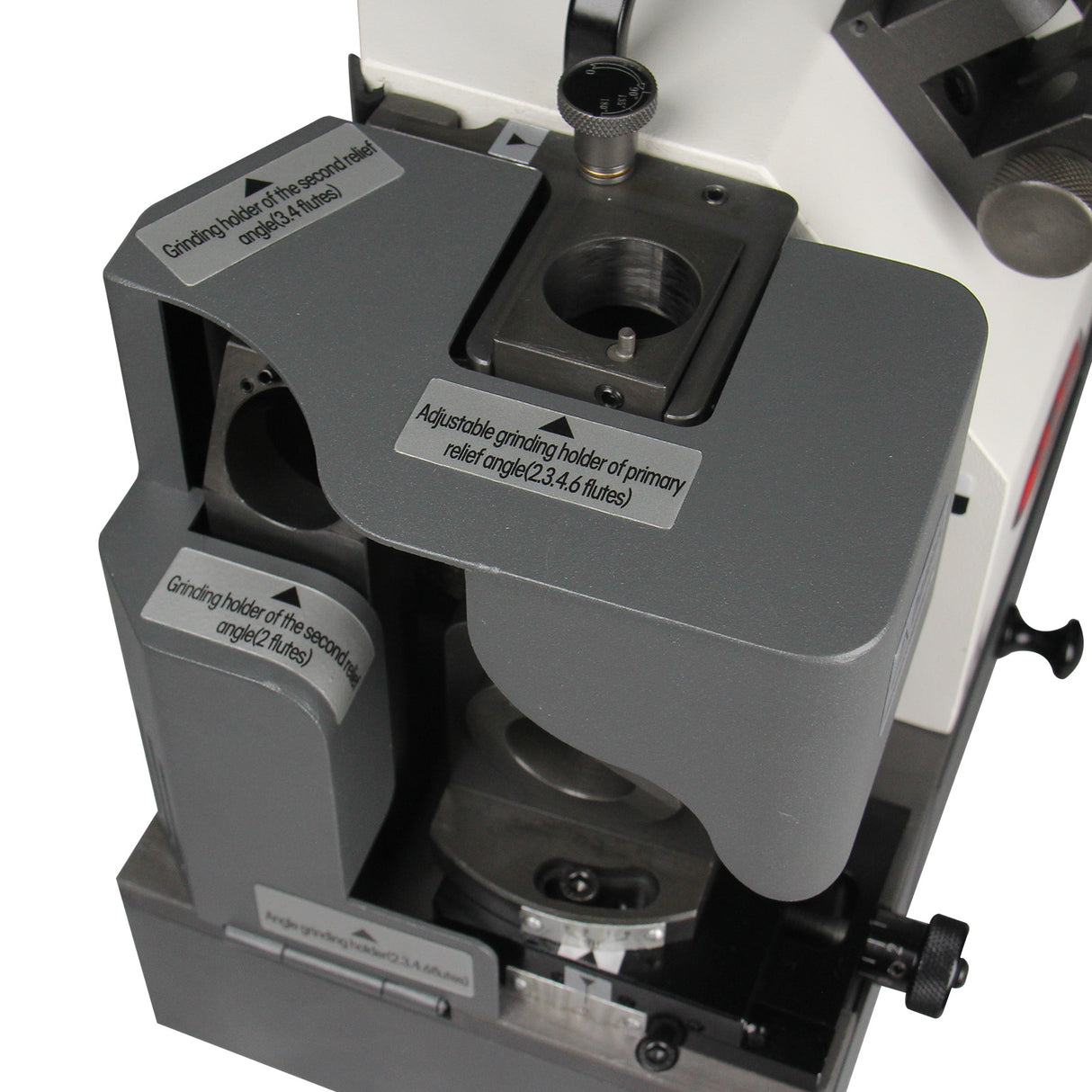

The machine can grind the end face of the milling cutter,the center Angle,the clearance Angle.

BIG SIZE, SUITABLE FOR ANY PLACE TO DO END MILL GRINDING

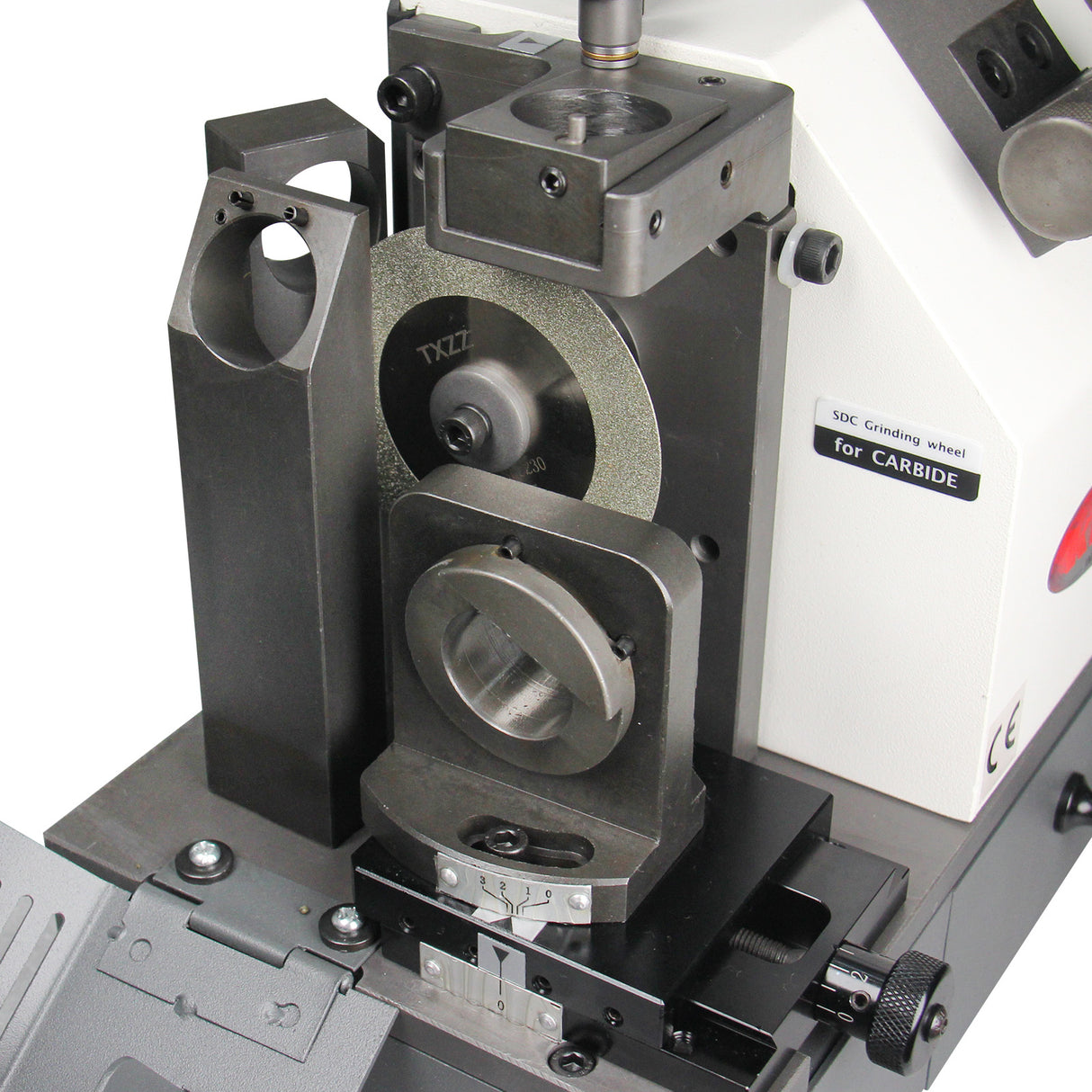

According to the material of milling cutter,it can be selected with CBN grinding wheel grinding white steel knife,SDC grinding wheel grinding hard alloy.
