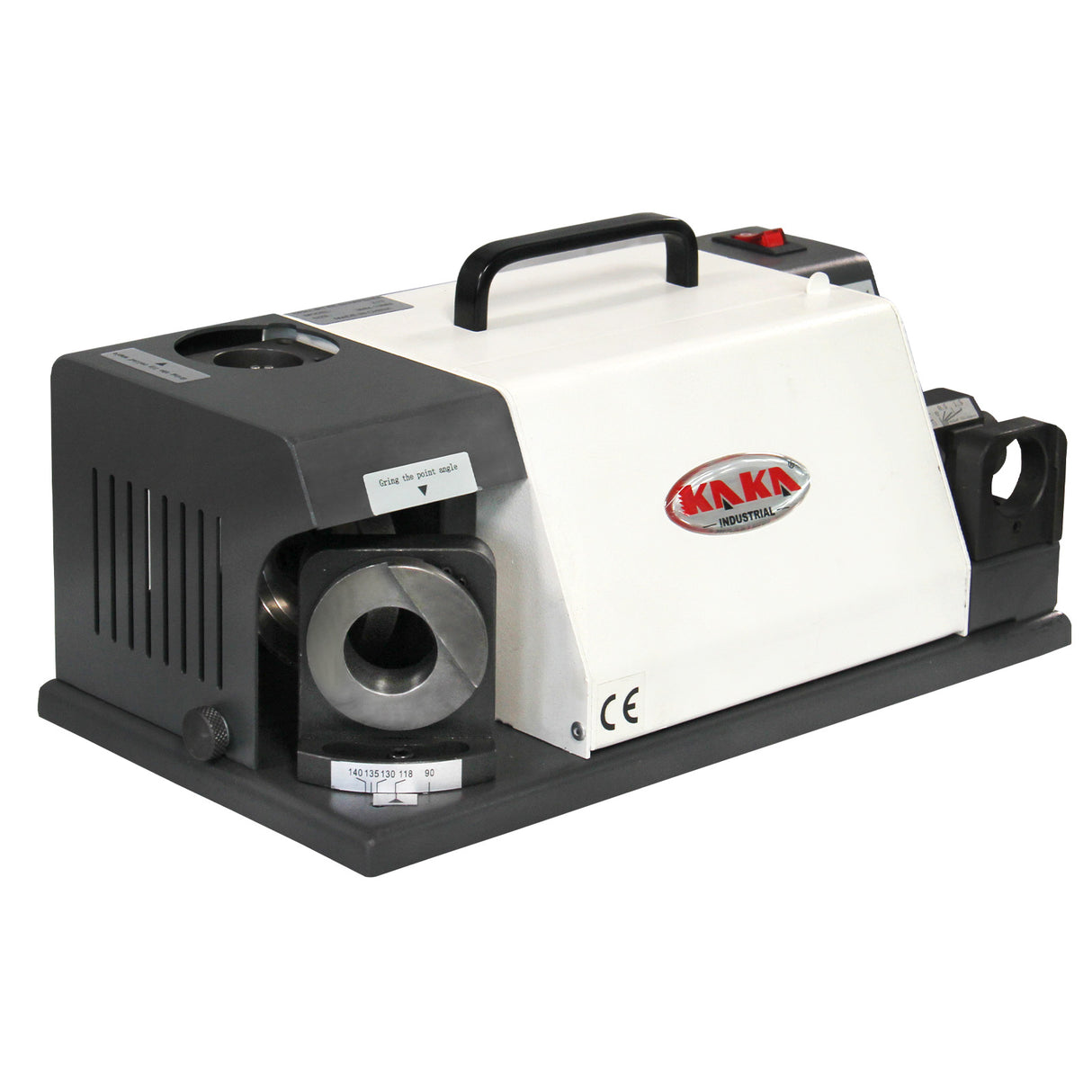

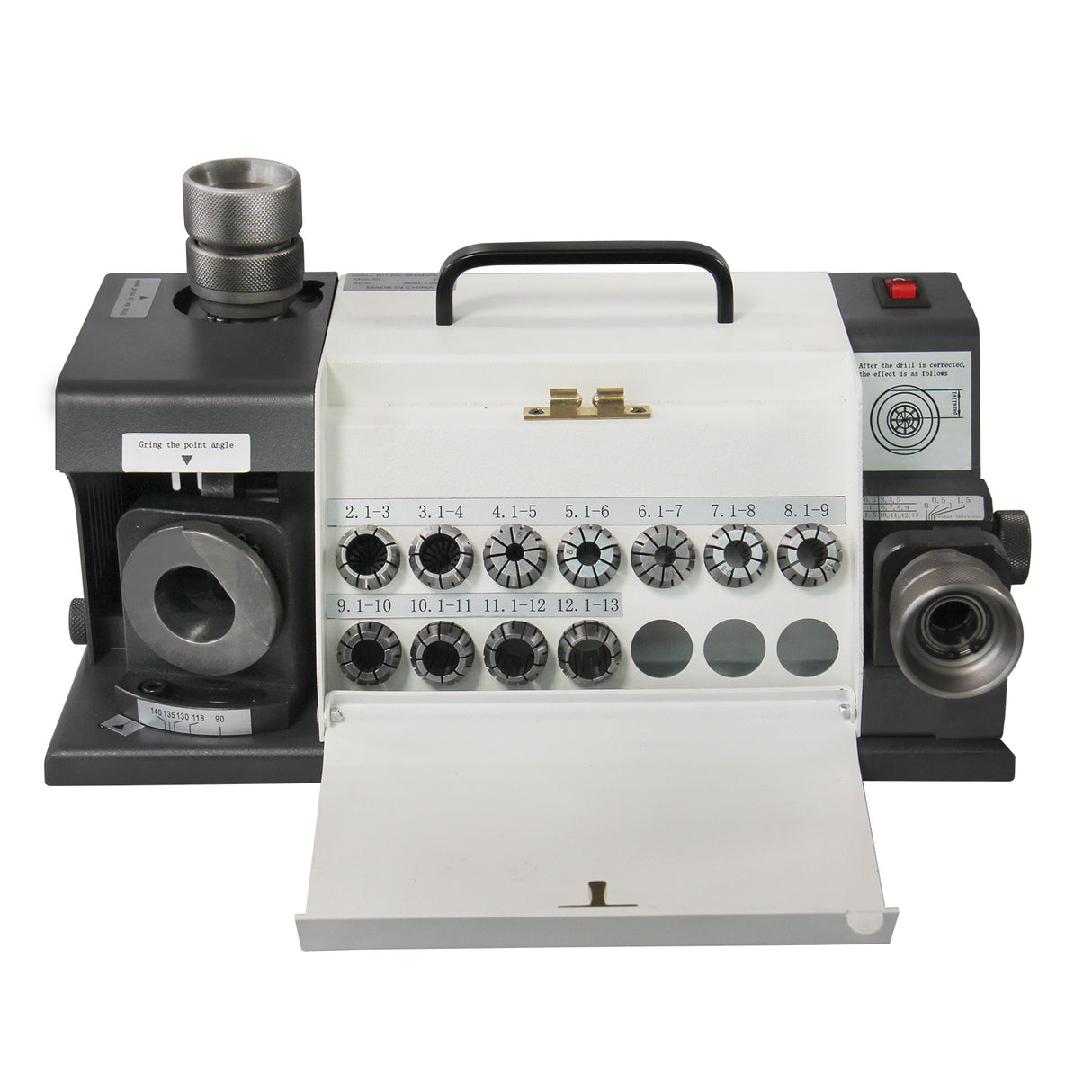

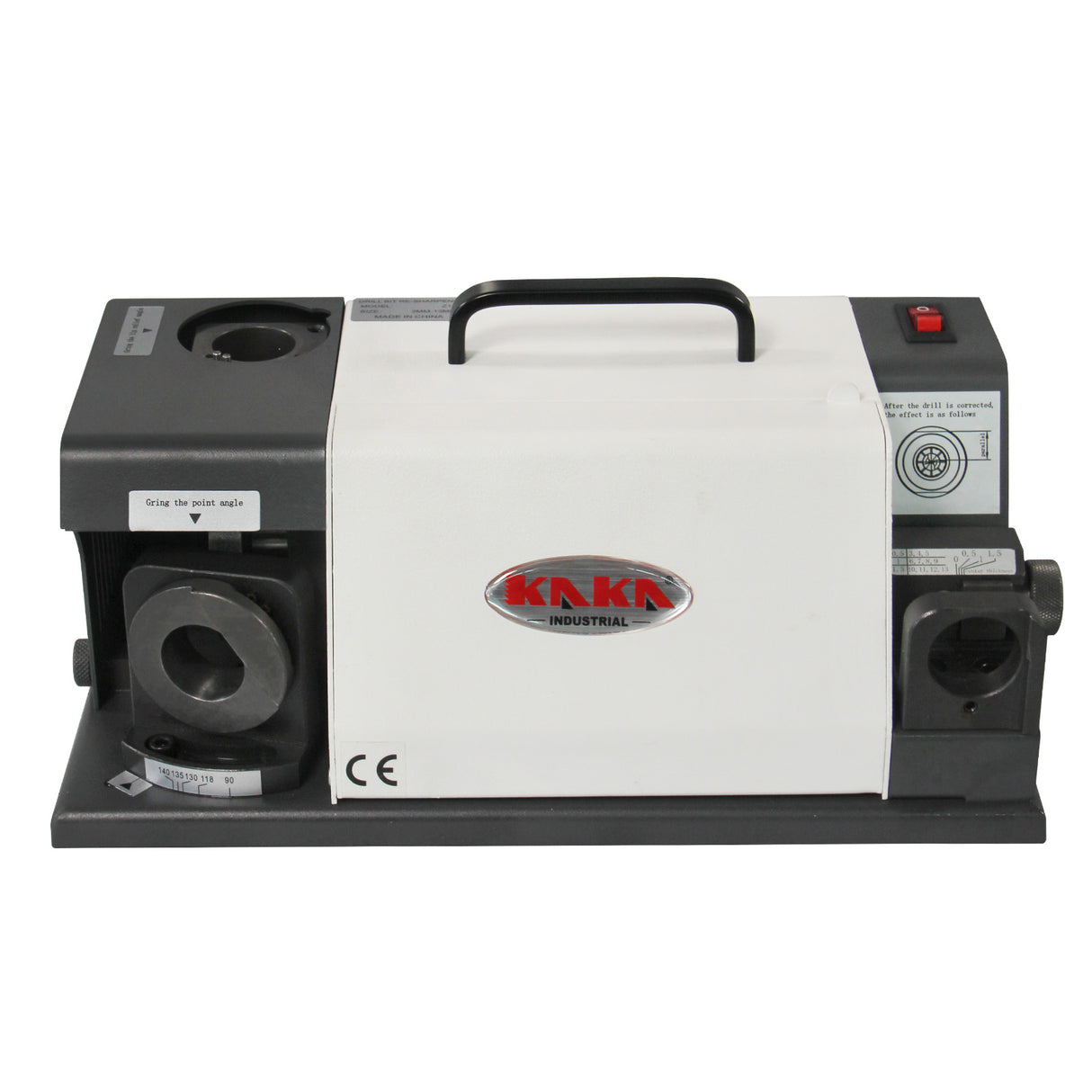

Kaka Industrial TX-Z13 Drill Bit Re-Sharpener

  1. Portable drill grinder, accurate and rapid, easy to operate, with no skill requirement to grind.
  2. Economic and saving cost, improve efficiency.
  3. With Taiwan Grinding Wheel, only one piece can complete all procedure, accurate angle and long service life.
  4. The electrically controlled and powerful DC motor, stable frequency, strong horsepower and long service life.
  5. It can sharpen the drill bit front cutting lip, lip relief angle.
  6. It can be effective co-ordination with the drilling material and speed, can control the quality and accuracy of the work piece, extend the life of the drill bit.

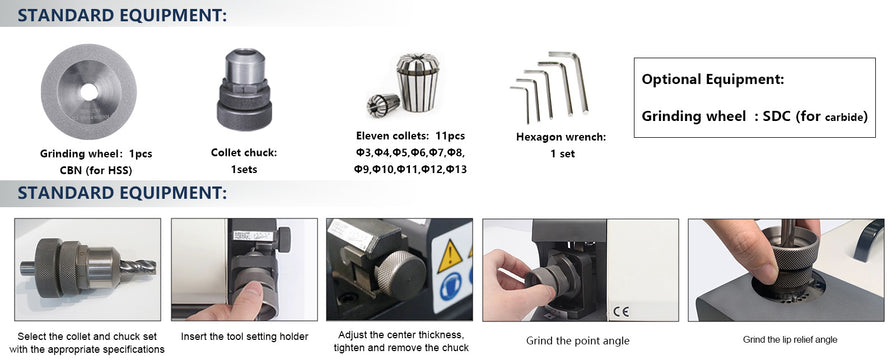

Standard with CBN grinding wheel for the HSS material, Optional SDC grinding wheel for the carbide material.

▲SPECIFICATION

Model

TX-Z13

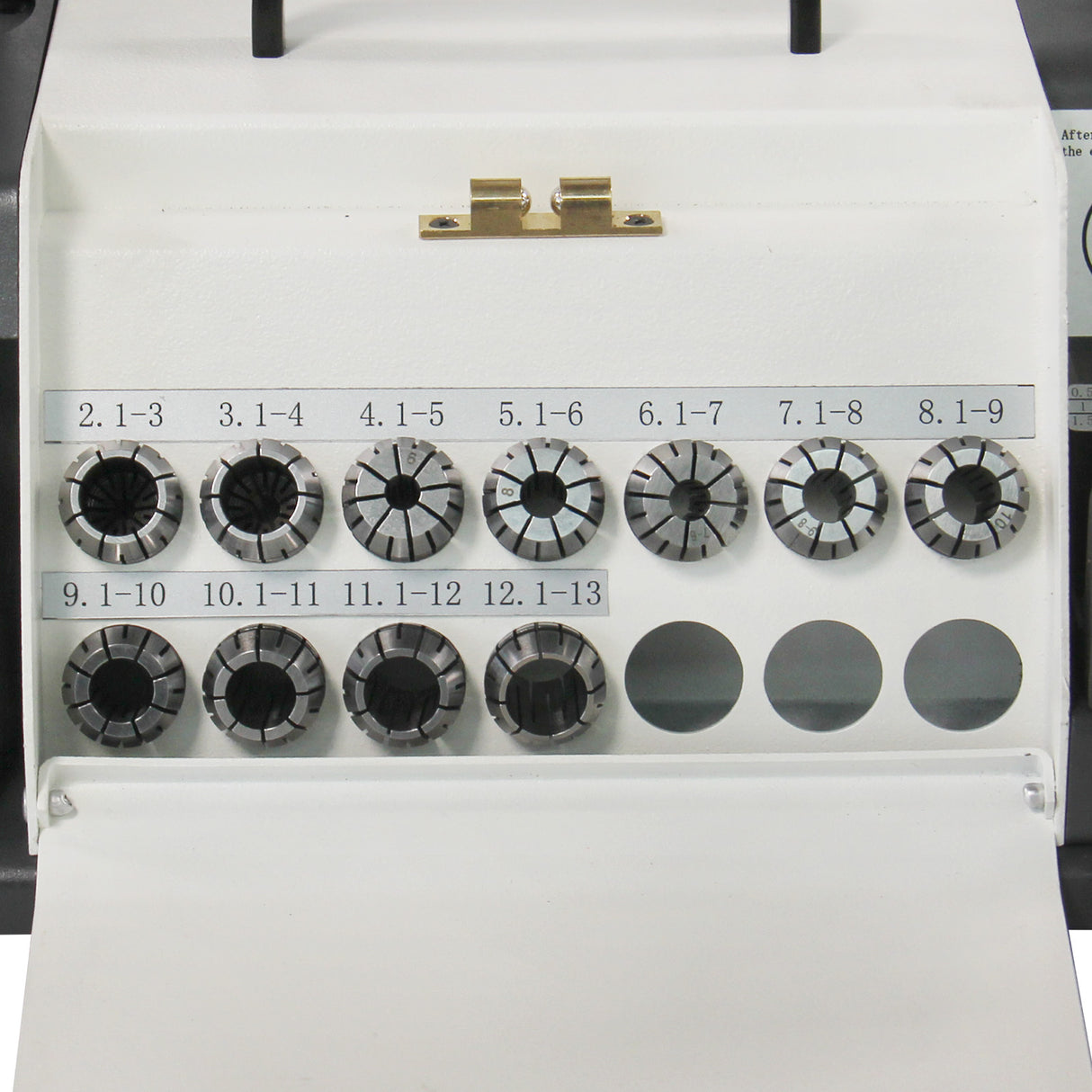

Grinding Range

Φ3-Φ13

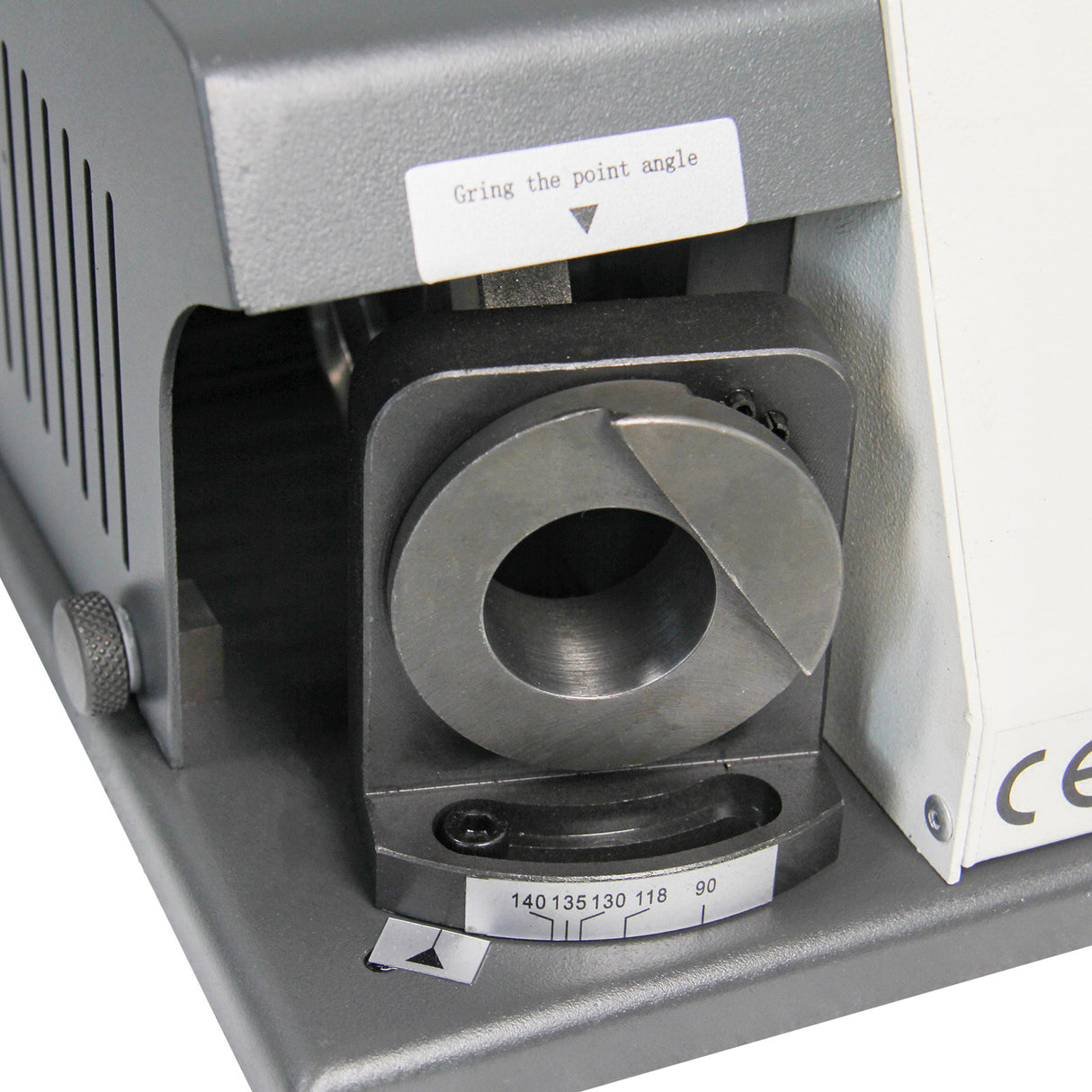

Point Angle

100°-135°

Power

AC220V

Motor

120W

Speed

4400rpm

Dimension

12X7X7.5 IN

Weight

20 LB

Still use a simple type of operation design, without any grinding experience can also quickly work, whether you are small and medium enterprises, family workshops, personal repair, all can achieve satisfy grinding results

SMALL SIZE, SUITABLE FOR ANY PLACE TO DO DRILL GRINDING.

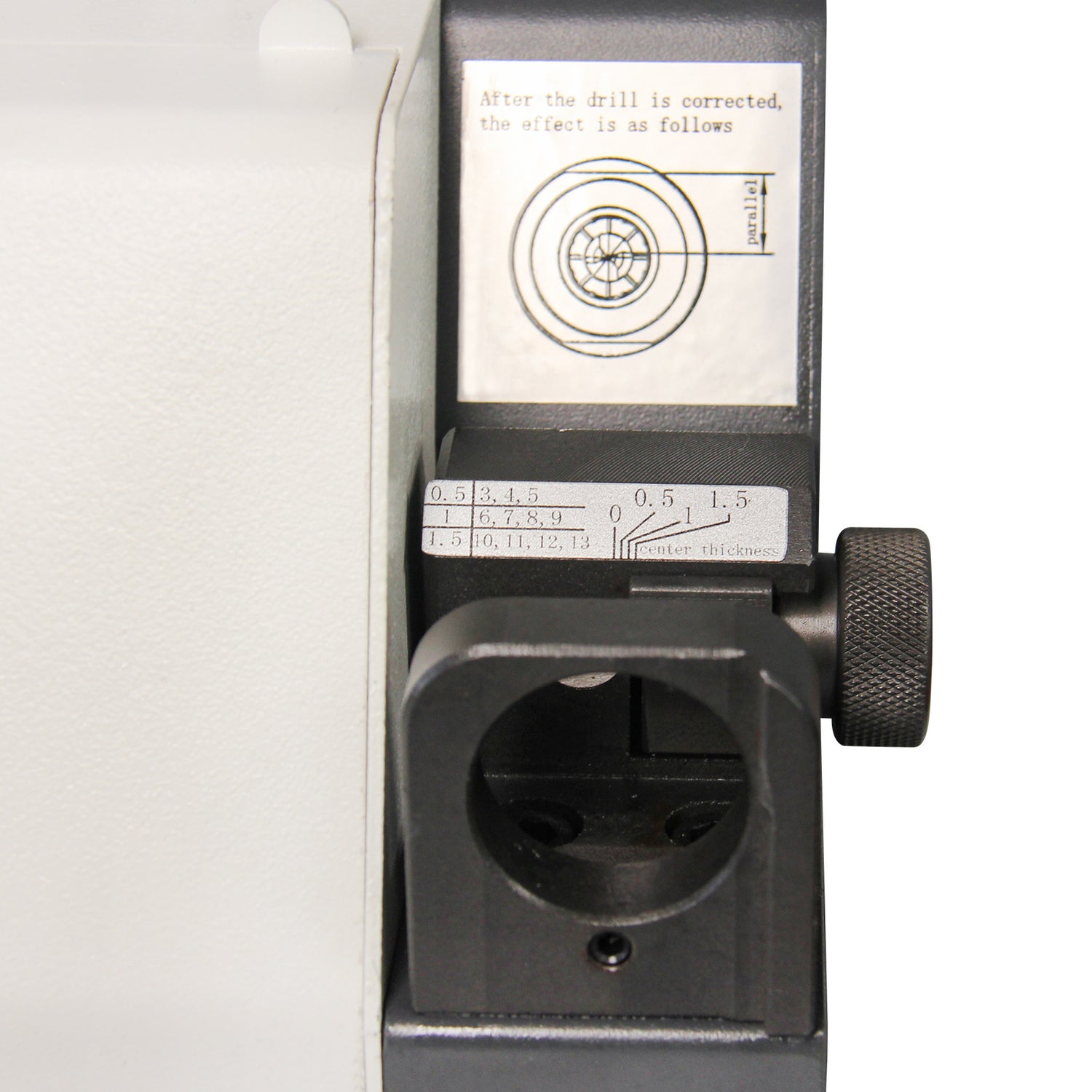

EASY TO DO THE DRILL SETTING

 According the diameter of the drill to adjust the scale, the operation steps are clear.

High precision and high efficiency.

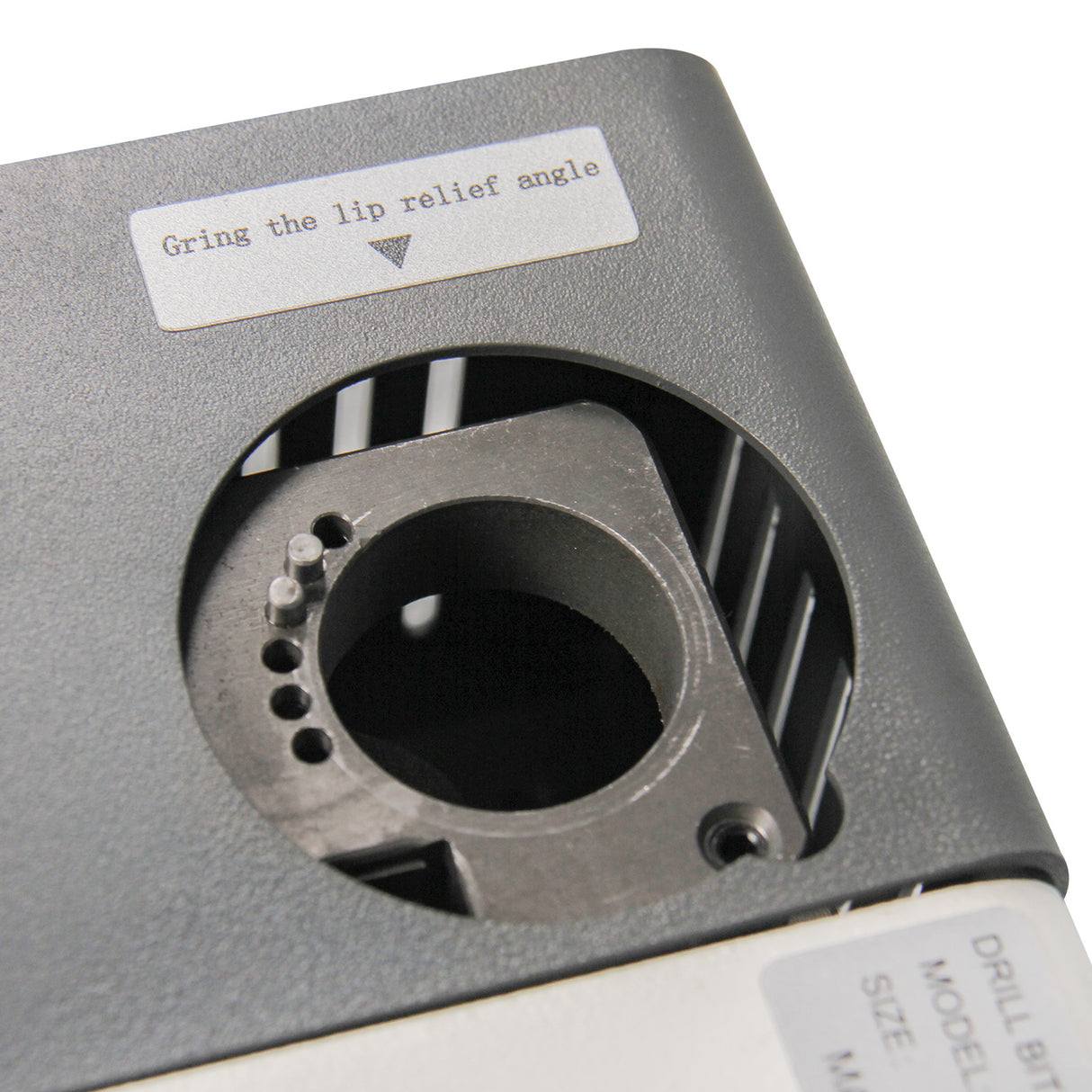

EASY FOR DRILL GRINDING

 According the parallel line of the grinding hole, insert the chuck, rotate left and right.

 It can be finished at one time.
