KAKA INDUSTRIAL LLC  |  SKU: GA310_173408

(Not Brand New) 48 inches Magnetic Brake, 6 ton magnetic clamping Magnabend Box and Pan Brake EB-4816M 16-Gauge Capacity 220V Single Phase

$2,478.42 $3,299.00
Unit price$2,478.42 / item
Shipping calculated at checkout.

Used Product Notice

This is a used product and may have some missing parts or accessories, paint damage, scratches, dents, or other cosmetic imperfections. These conditions do not affect the machine's normal operation. The machine is fully functional and operates normally.

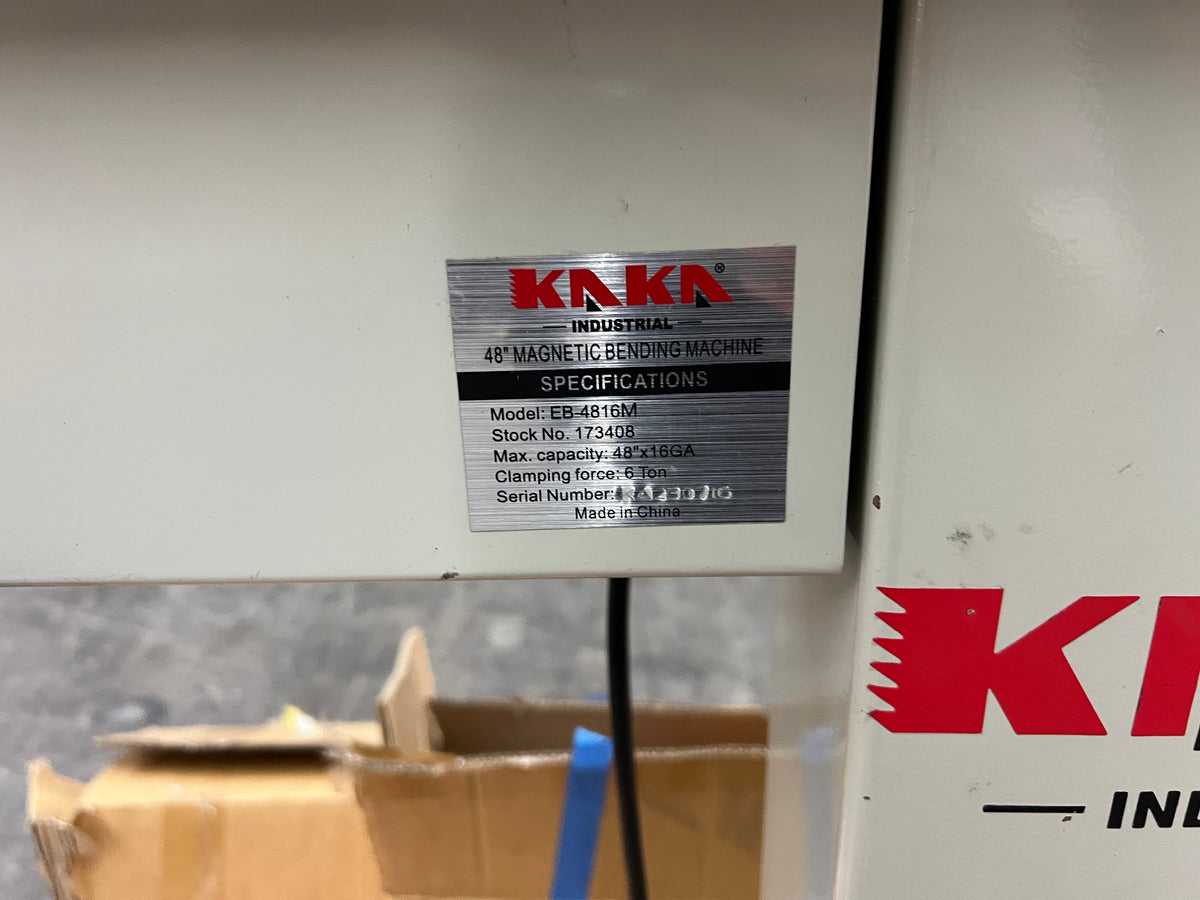

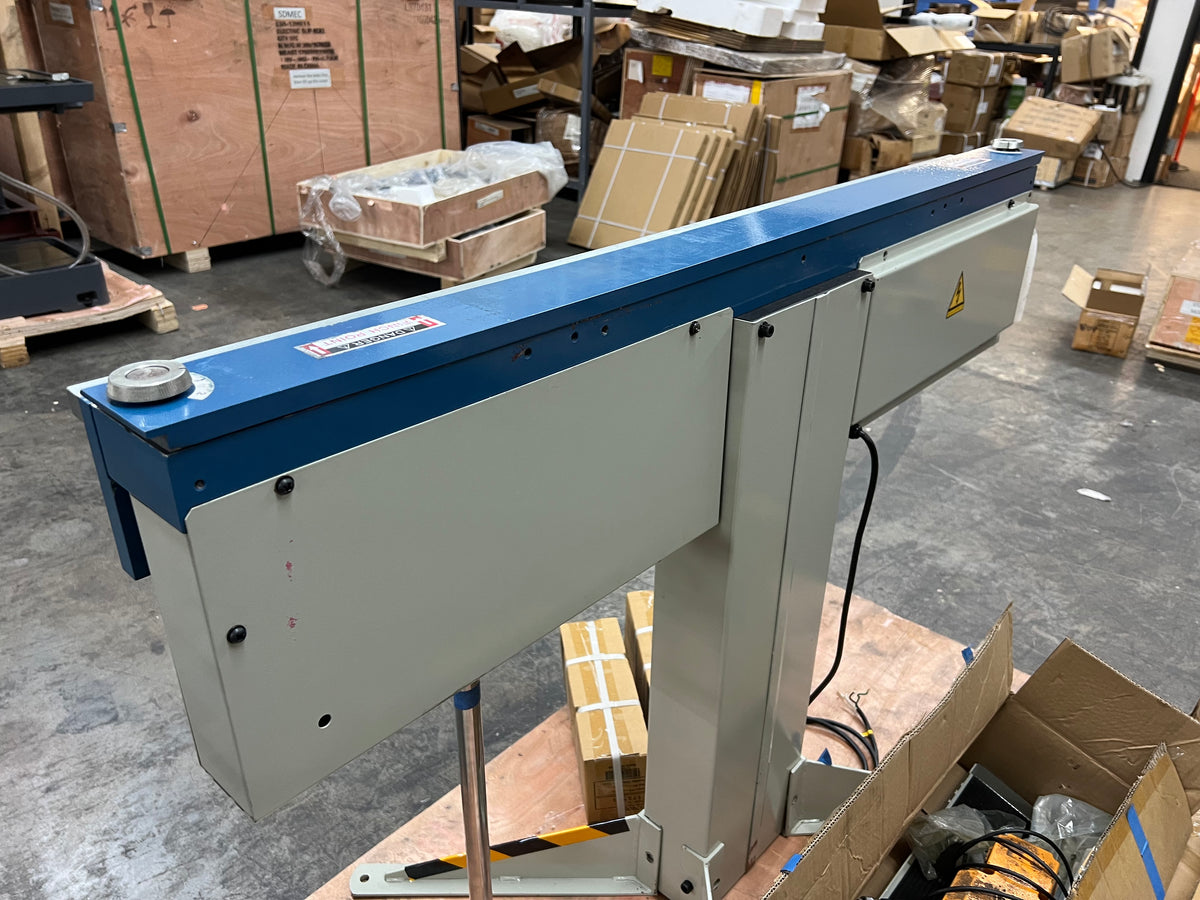

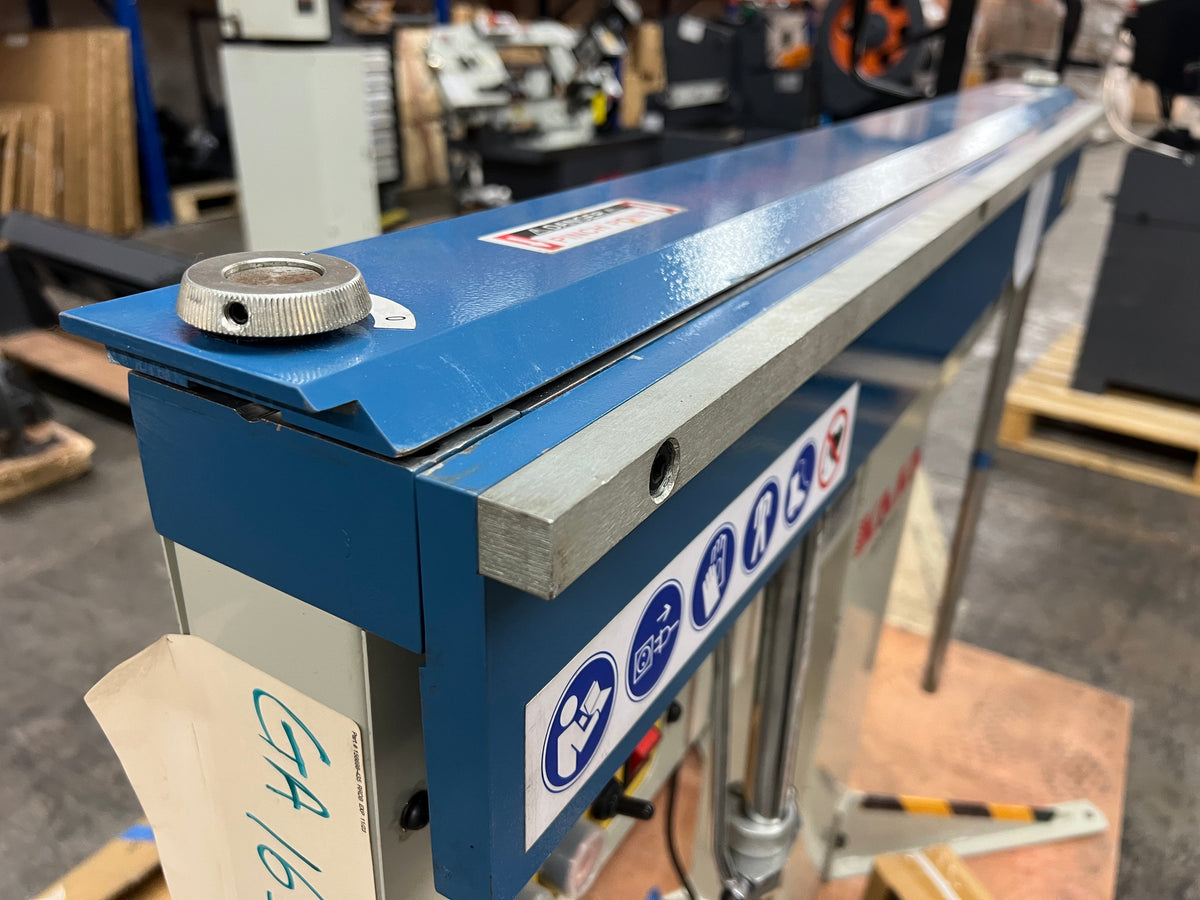

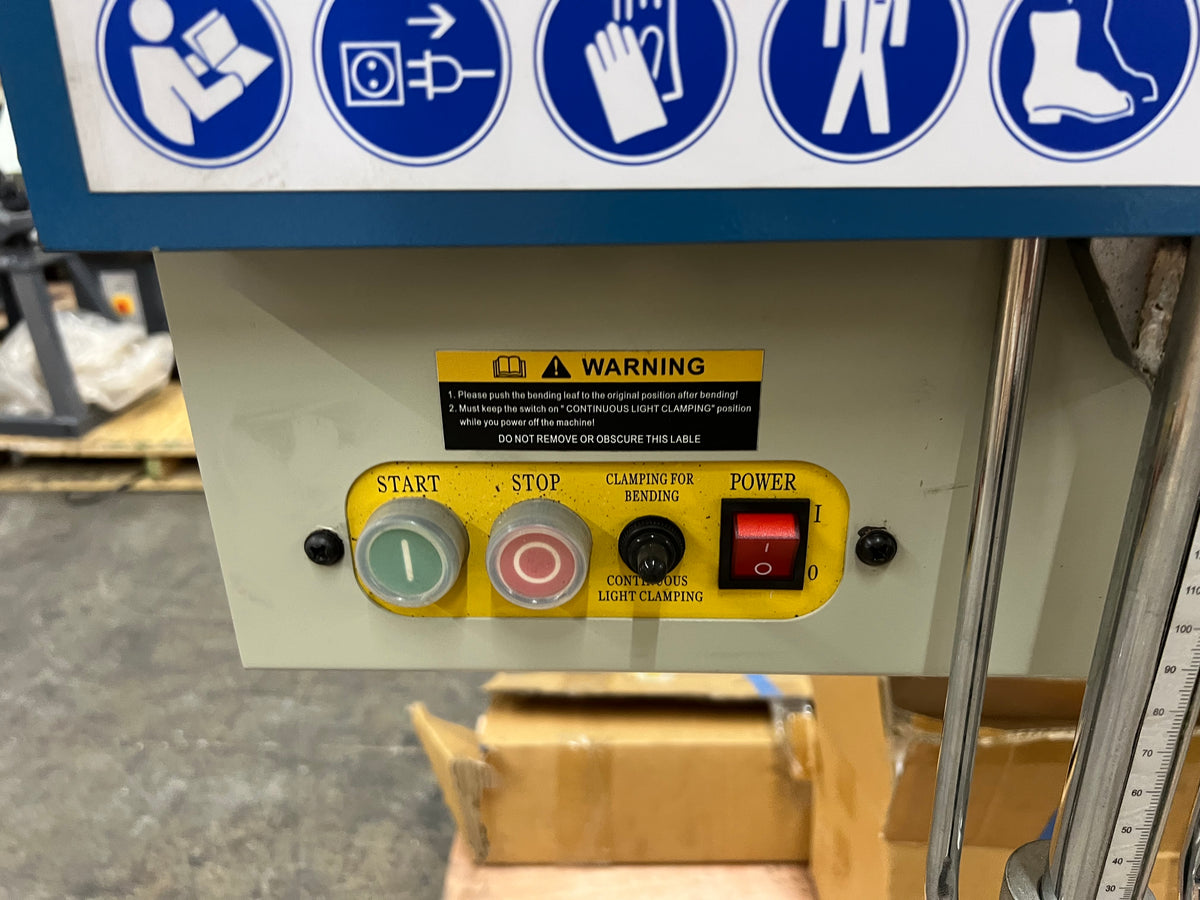

The main photos in the listing show the actual condition of the machine. Please review them carefully before purchasing.

Please note that free replacement parts are not provided for used products. By purchasing this item, you acknowledge and accept its used condition, including any missing parts or accessories and cosmetic imperfections.

We recommend local pickup so you can test the machine in person and inspect its actual condition before completing the pickup.

Thank you for your understanding. If you need more information about the machine, please feel free to contact us.

  1. Runs on 208V - 240V single-phase power

  2. 6-ton pressure across the entire beam

  3. No limitation to the depth or width of the box, open-ended design

  4. Scaled stroke angle control for repeatable bends

  5. 180°rotation bending beam

  6. Bends metal up to 135°

Features
  • Electromagnetic rather than mechanical clamping
  • Magnabend brake operates on single phase 208V-240V
  • Much greater versatility than conventional sheet metal benders
  • Can form deep channels, and completely closed sections
  • Buttons or foot pedal control clamping and unclamping, less fatigue
  • Quick and accurate sliding angle guide on bending arm
  • Infinite length bending in stages is possible
  • Open ended design allows folding of complex shapes
  • Adapts easily to customized tooling (clamp bars of special cross-sections)
  • Includes foot pedal, full length narrow, slotted & segmented clamp bars to fabricate boxes, pans and trays

Item No.
173408V220
Model
EB-4816M
Max. Capacity 48" x 16 Ga.
Clamping force 6 Ton
Duty cycle  0.3
Back-gauge  25.2 in
Foot switch
Standard
Norminal current
6 Amp
Power
2.2 kW (1PH)
Protection
Thermal cut-out 70℃
Bending-edge length
51.8 in
Distance between lifters
49.61 in
Packing size
57x44x15 in
N.W/G.W.  407/530 lbs

  • High Bending Capacity

    EB-4816 can bend boxes or pans to almost any depth since it doesn’t rely on conventional finger depths

  • Precise Positioning and Repeatable Bending

    Scaled stroke angle control lets you deliver repeatable bends time after time.

    The back gauge enables precise positioning, ensuring the precision, efficiency, and repeatability in bending operations

  • Magnetic Clamping

    The electromagnetic bar extends across the entire 48-inch working length, generating a powerful magnetic field that securely clamps the metal sheet in place

  • Versatile with Multiple Clamp Bars

    Multiple clamp bars offer flexibility, allowing for precise control and adaptability to different material thicknesses and bending needs

  • Extension Bending Bar

    Removable extension bending bar, Minimum the reverse bending depth

  • Radius Bending

    With the help of round bar or tube, it can make radius bending
