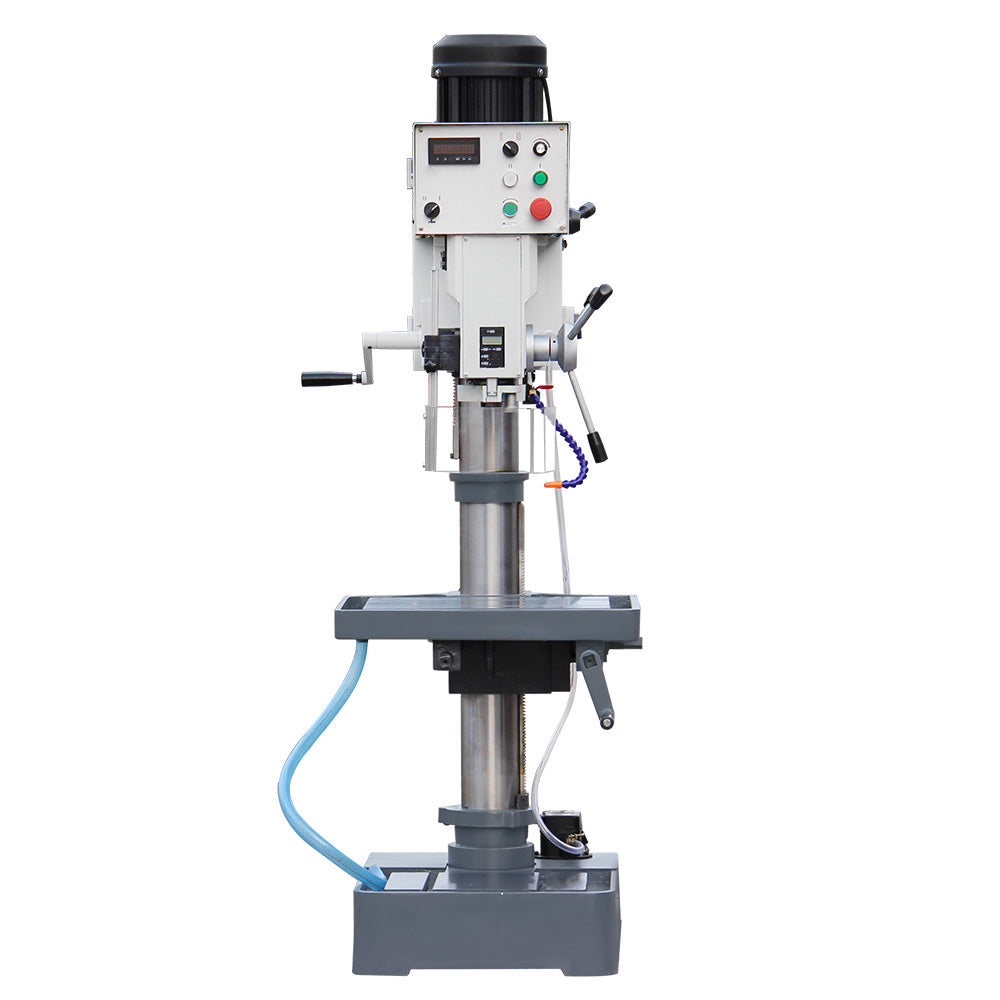

KAKA Industrial DP-32 Drilling and Milling Machine

Features:

1. With variable speed.
2. Driven by gear with high torque.
3. Large capacity for drilling and tapping
4. Casting iron structure for long durability

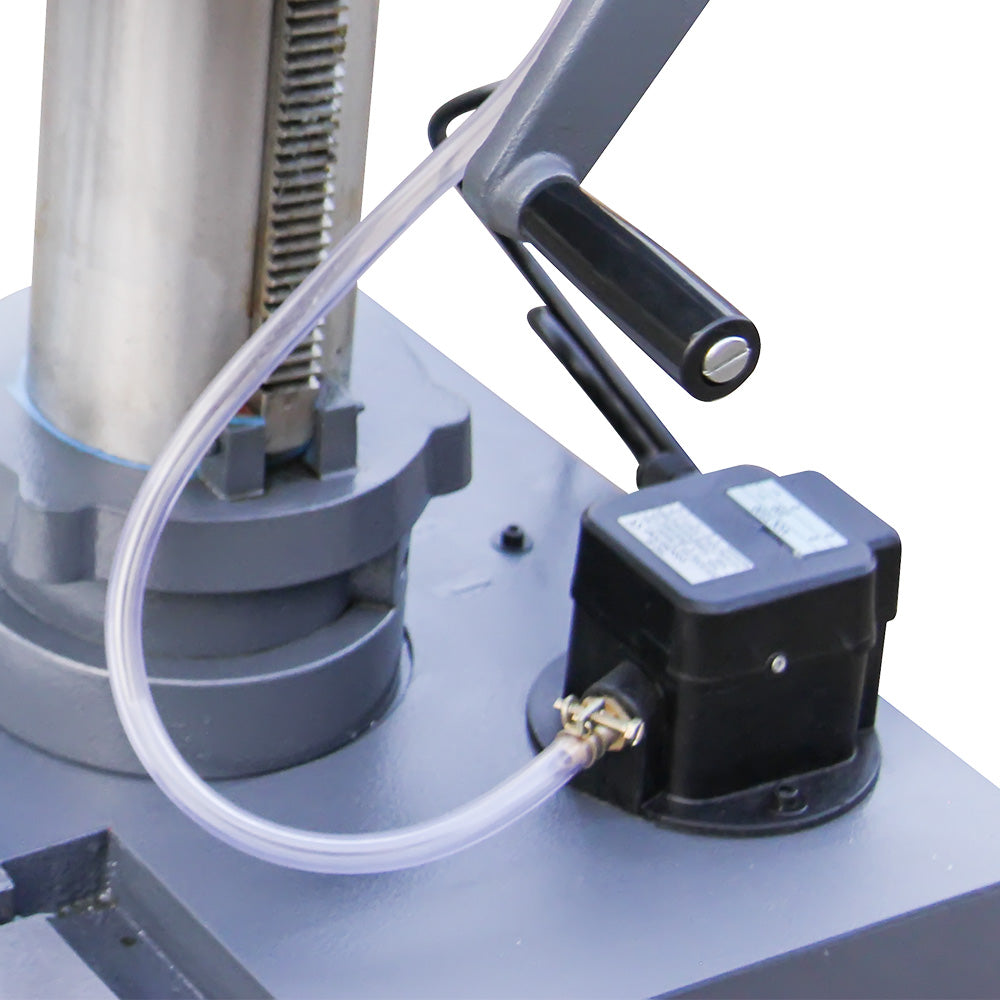

5. Coolant as standard

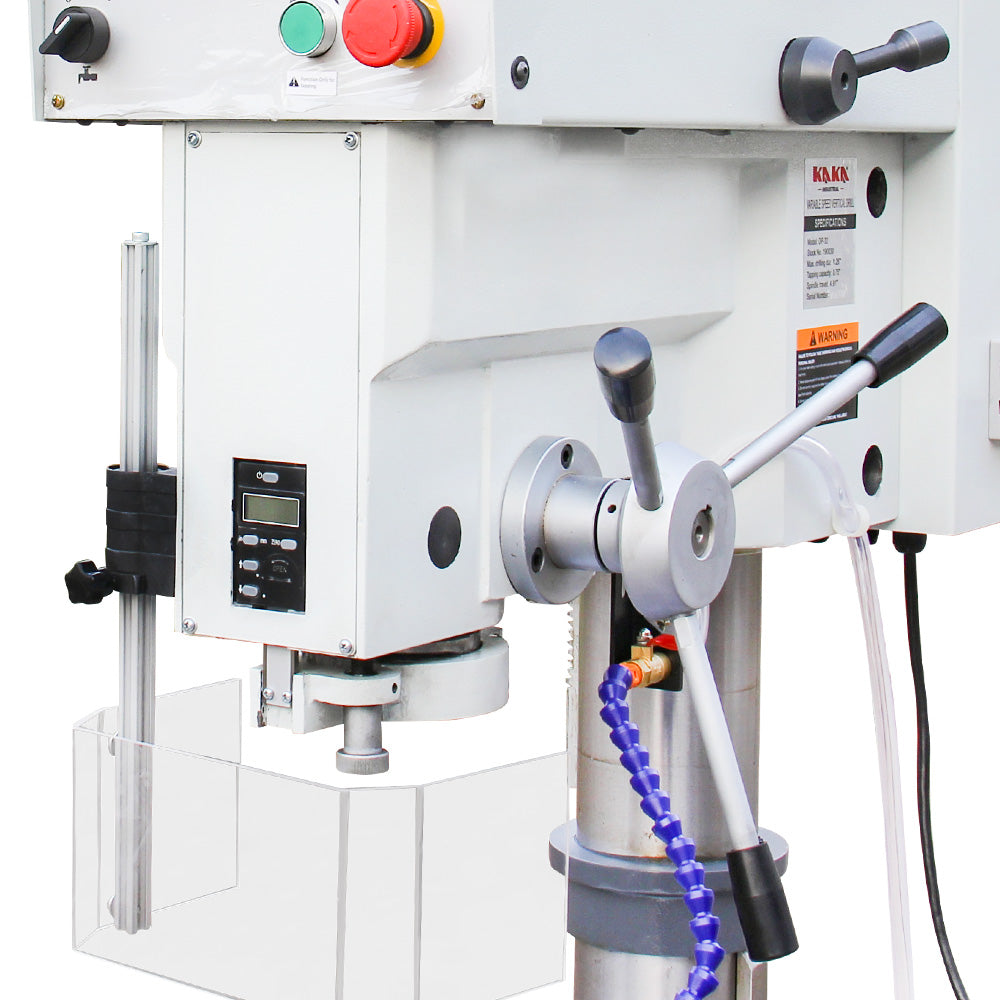

6. Safety guard with Micro switch
7. Variable speed

Specification:

Item No.

190030

Model

DP-32

Max. drilling capacity

MT3 32mm; MT4 40mm(optional)

Max. taping capacity

0.75" in/19 mm

Swing

20.8" in/530 mm

Spindle taper

MT3, MT4 (optional)

Spindle travel

5.9" in/150 mm

Spindle speed

245-2000 rpm 65-540 rpm

Spindle nose to table

20.8"/530mm

Spindle nose to base

46.5" in/1180 mm

Quill diameter

2.95" in/75 mm

Column diameter

4.52" in/115 mm

Motor power

1.5 kW

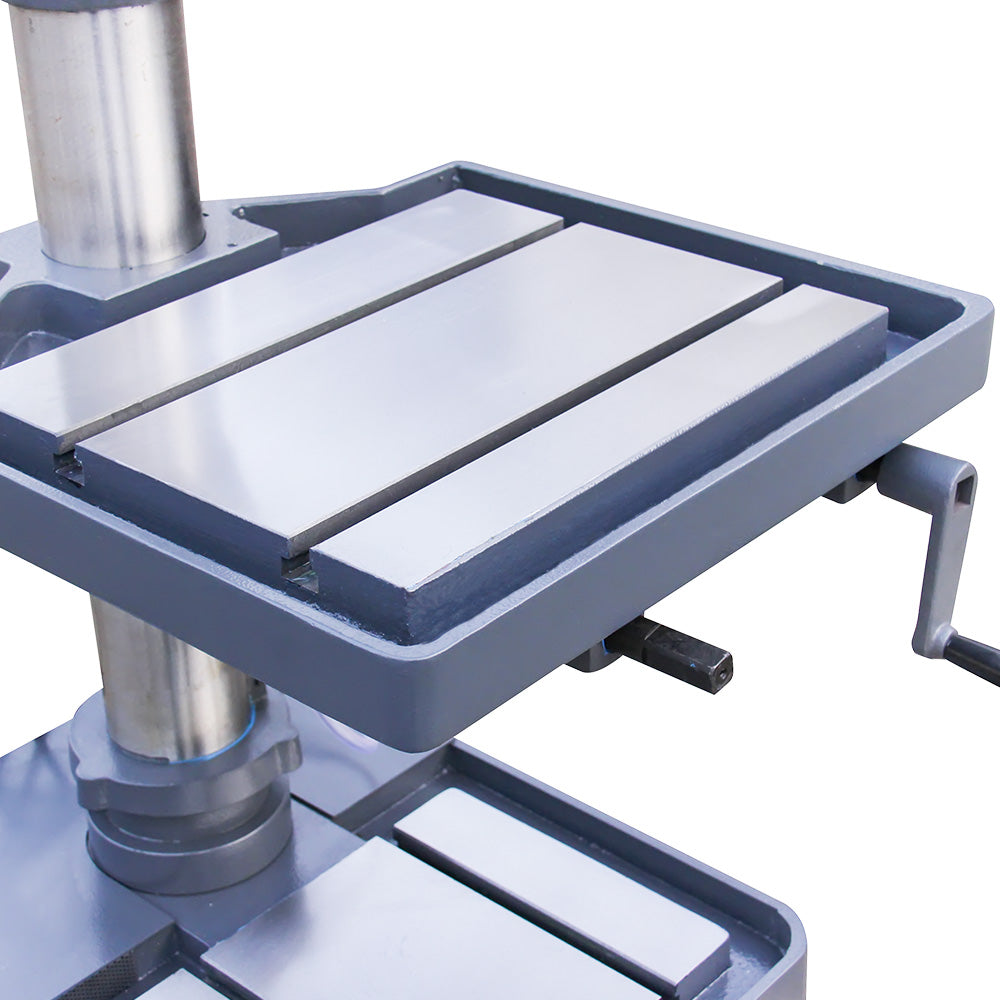

Table size

22x18.7" in560x470 mm

Table slot

0.62"in/16 mm

Base size(in)

26.9"x19"

Machine size(in)

37"x25"x79"

Net weight

340 Kg/750lbs

Accessories:

Standard accessories:
Coolant
