Kang Industrial HVP-41, Rotary Table with Dividing Plate DP-1, 4 Inch Rotary Table Milling Machine Horizontal Vertical Indexing Plate
Kang Industrial HVP-41, Rotary Table with Dividing Plate DP-1, 4 Inch Rotary Table Milling Machine Horizontal Vertical Indexing Plate is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

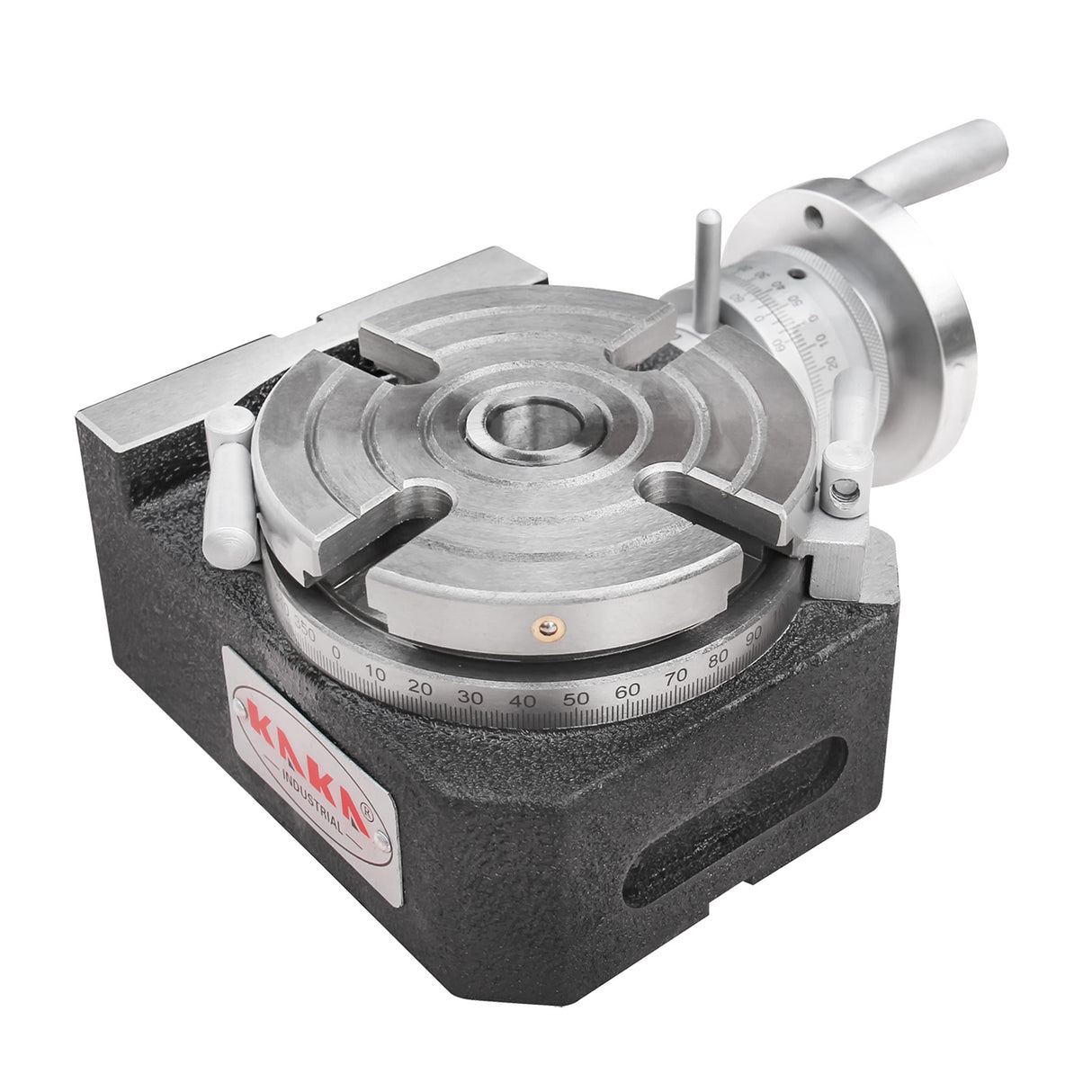

The vertical and horizontal rotary table is one of the main accessories of the milling machine. It is used for index boring, milling, circle cutting, spot facing, boring holes, etc. The rotary table can be used for complex work such as circle index boring and milling with an optional tailstock.
It is made from rigid cast iron materials, ensuring durability and longevity in demanding work environments.

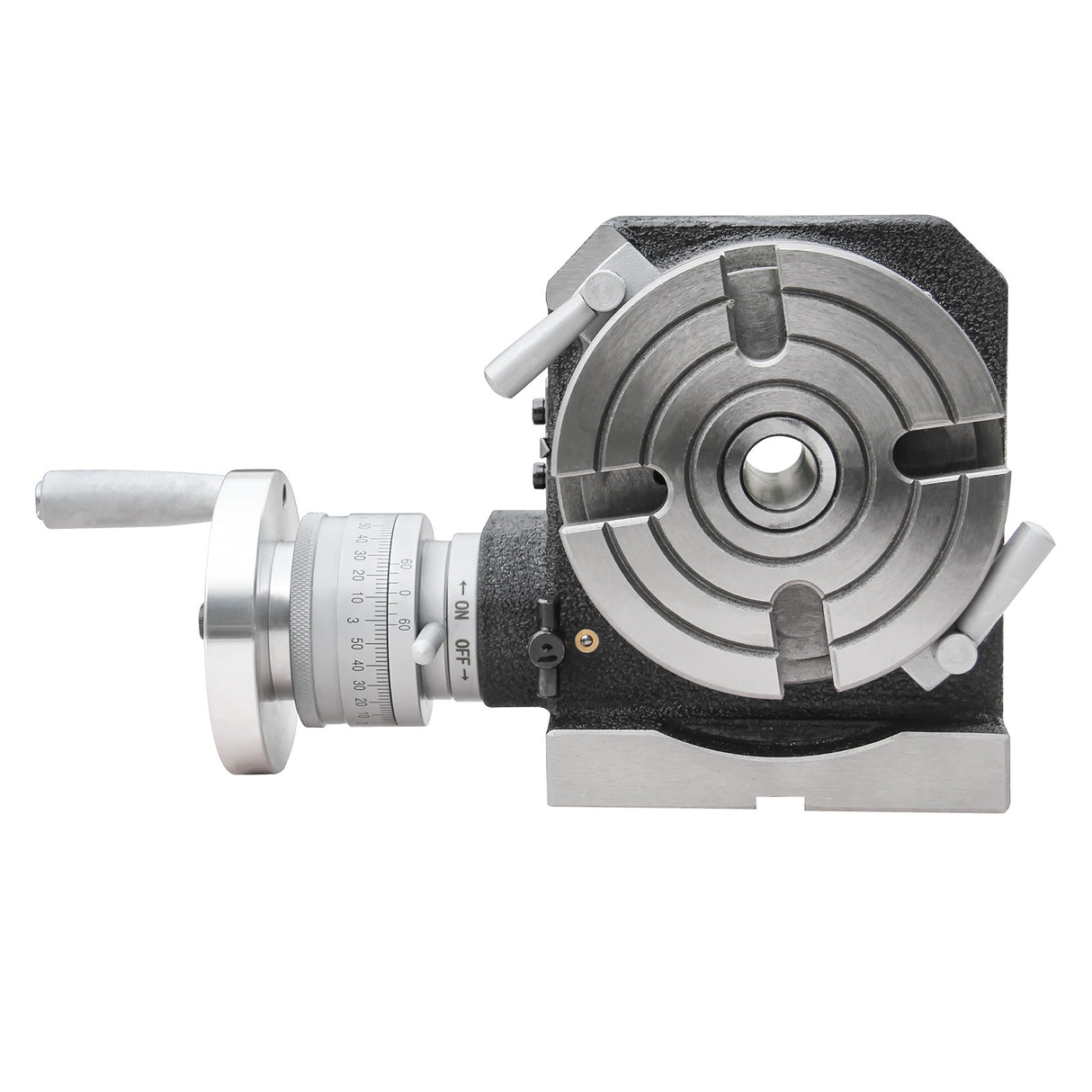

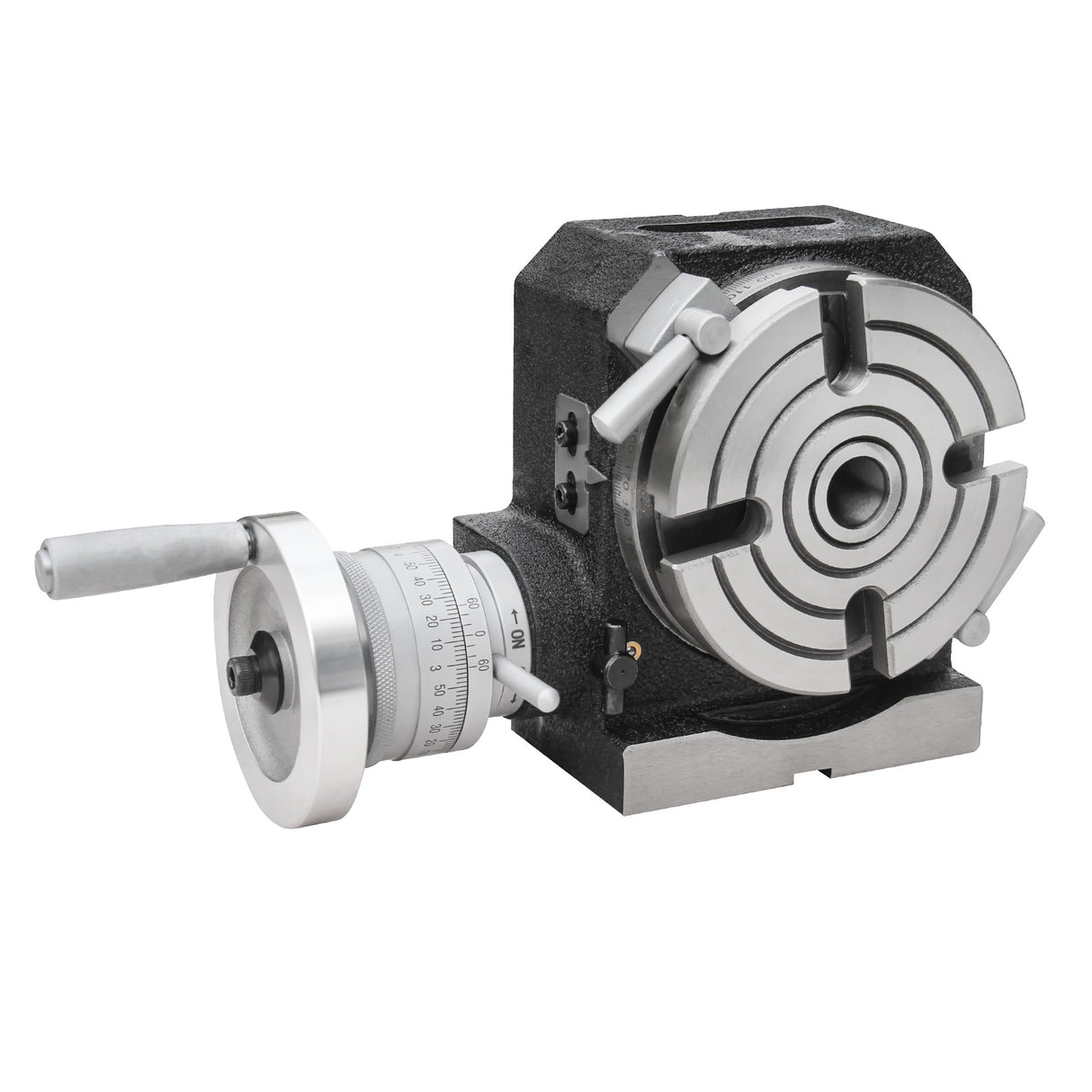

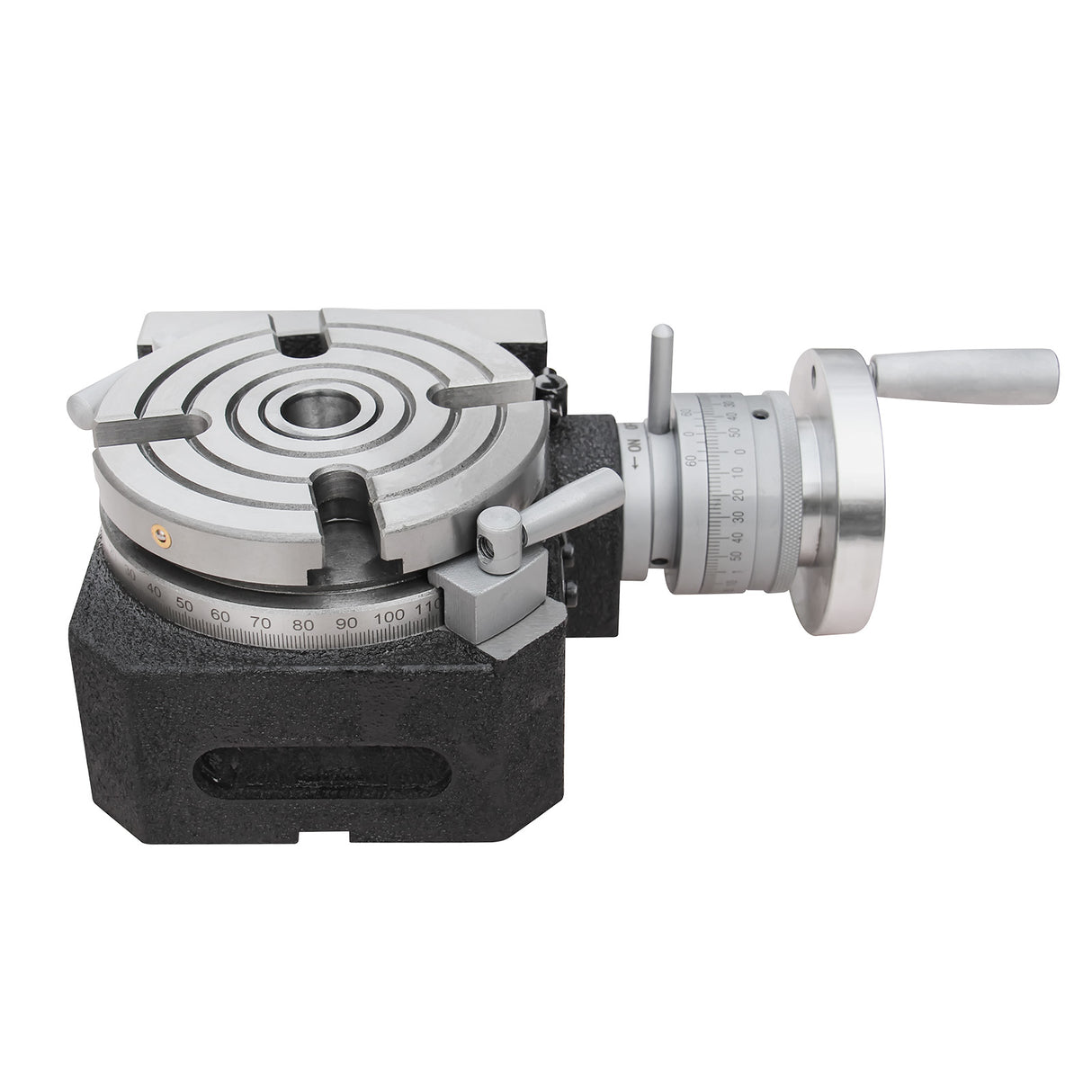

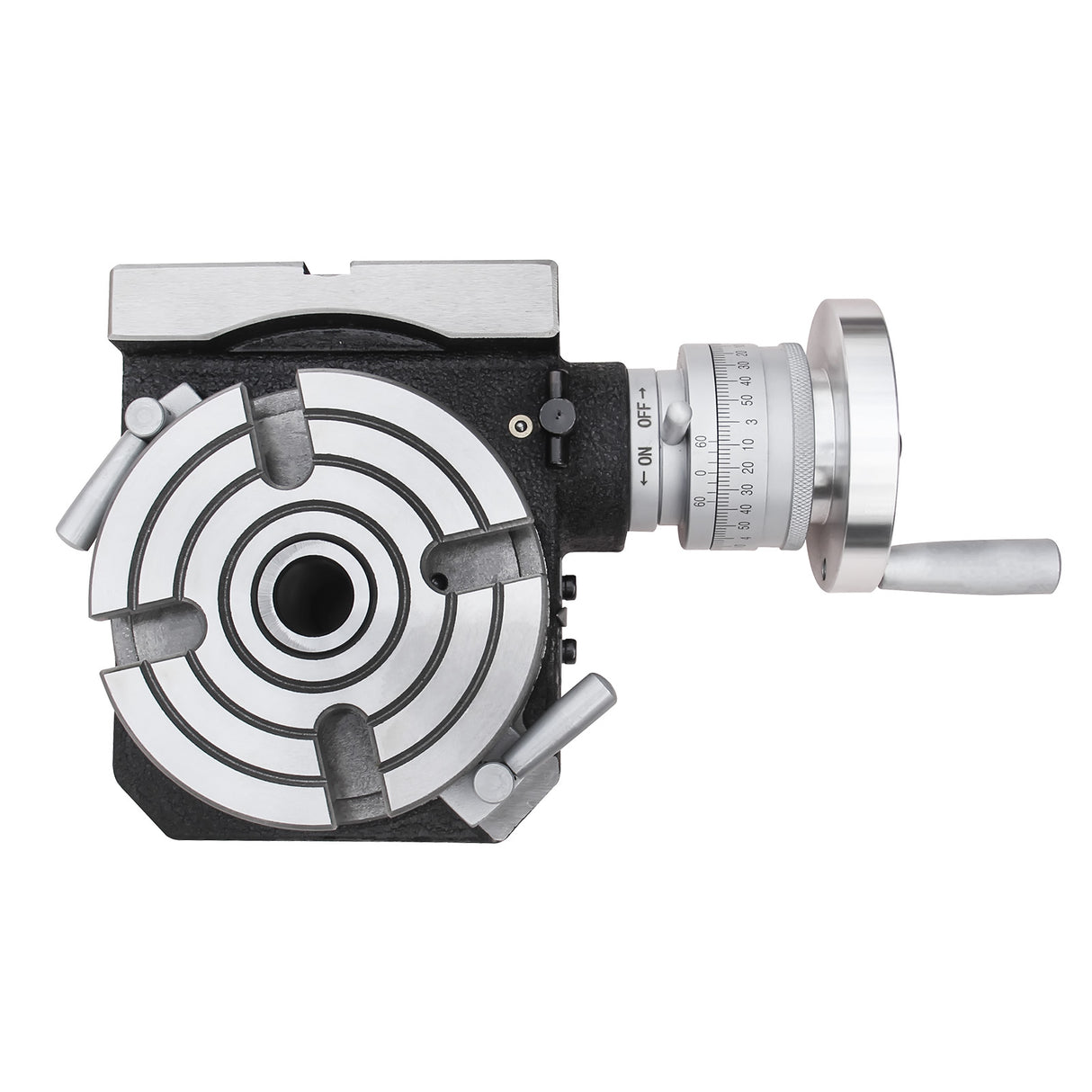

Easily switch between horizontal and vertical positions, allowing for flexibility in machining operations.

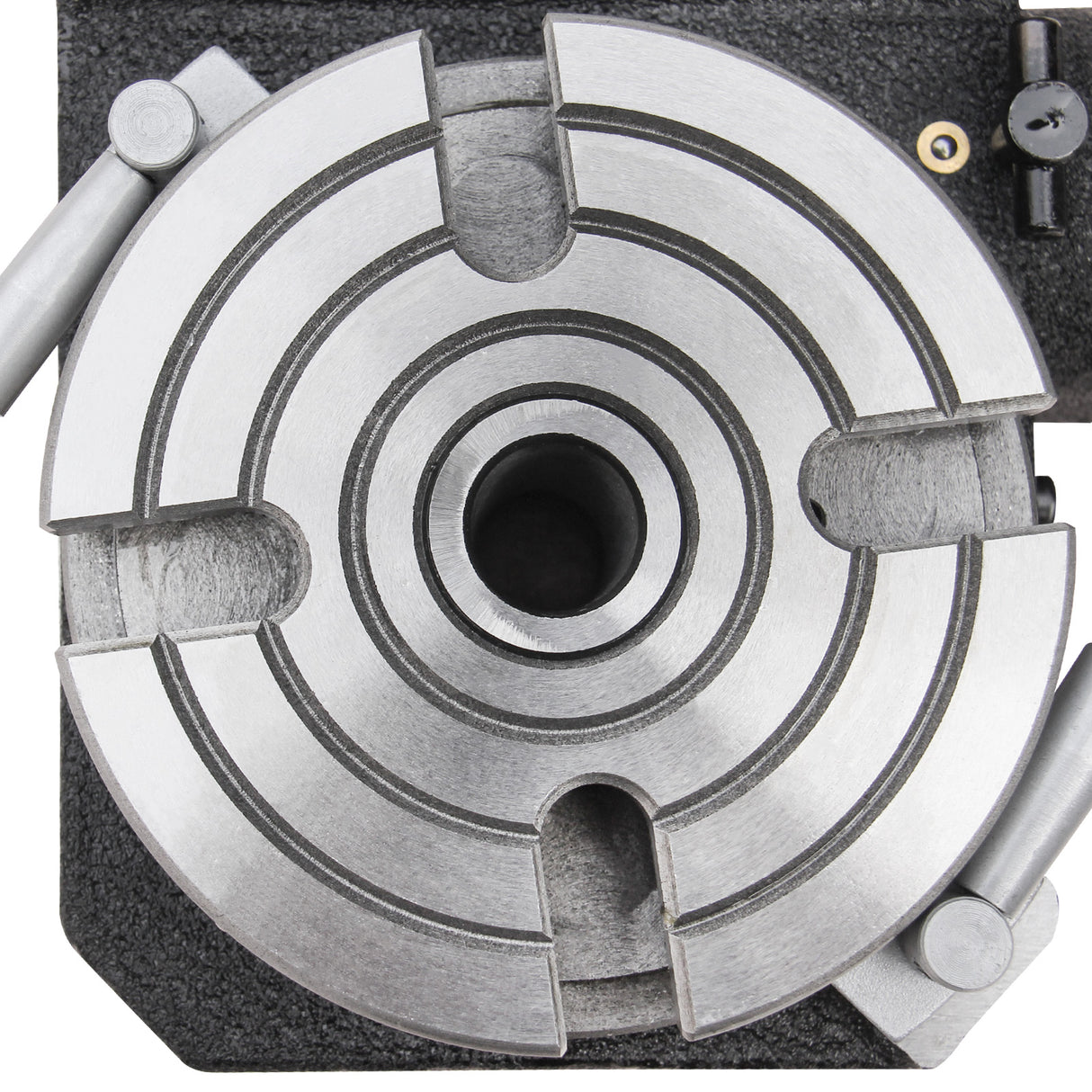

It is equipped with four slots, and this table ensures a stable and secure grip on workpieces, enhancing safety and accuracy.

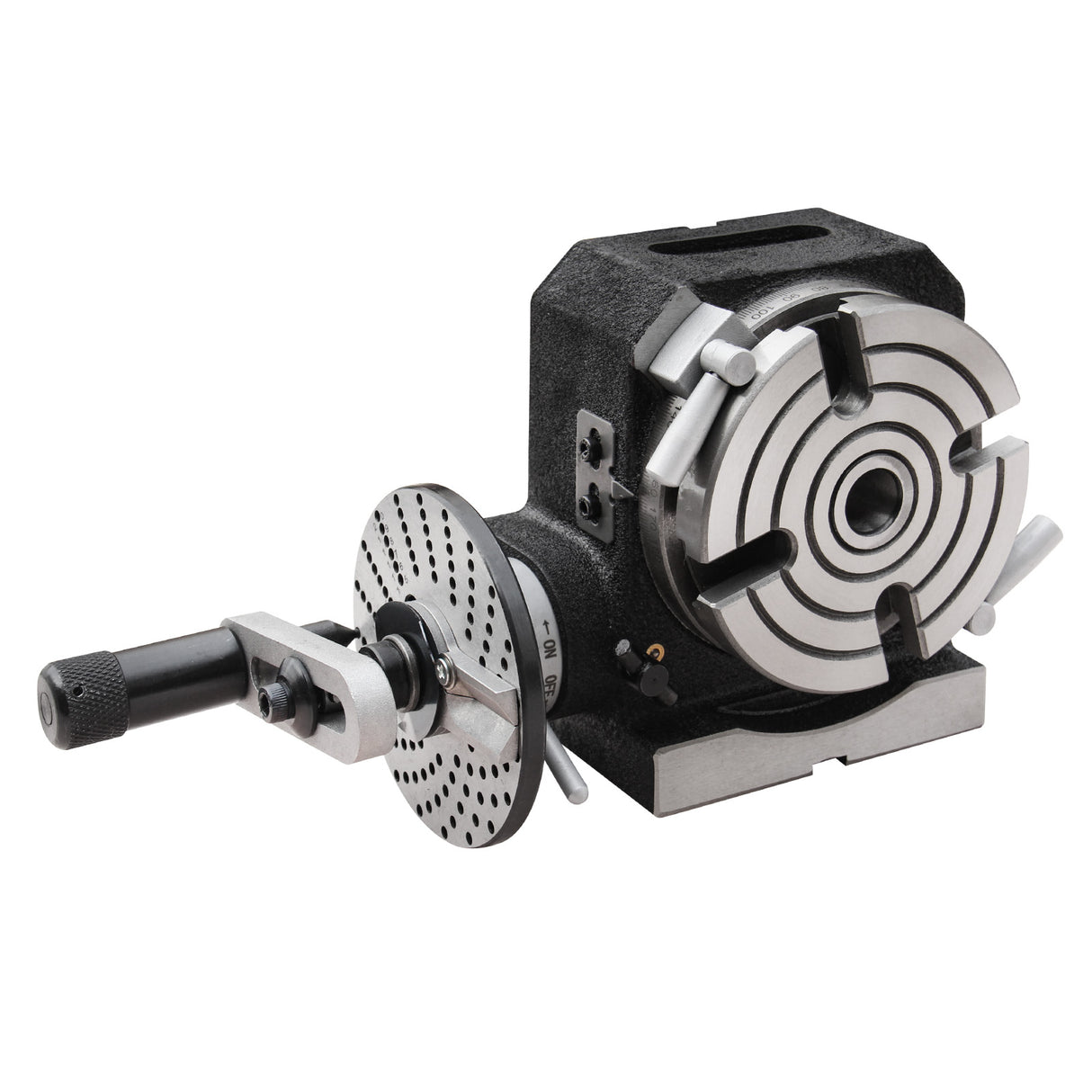

It has three index plates, enabling precise angular adjustments for various machining tasks.
Index Plate A: 15, 16, 17, 18, 19, 20
Index Plate B: 21, 23, 27, 29, 31, 33
Index Plate C: 37, 39, 41, 43, 47, 49

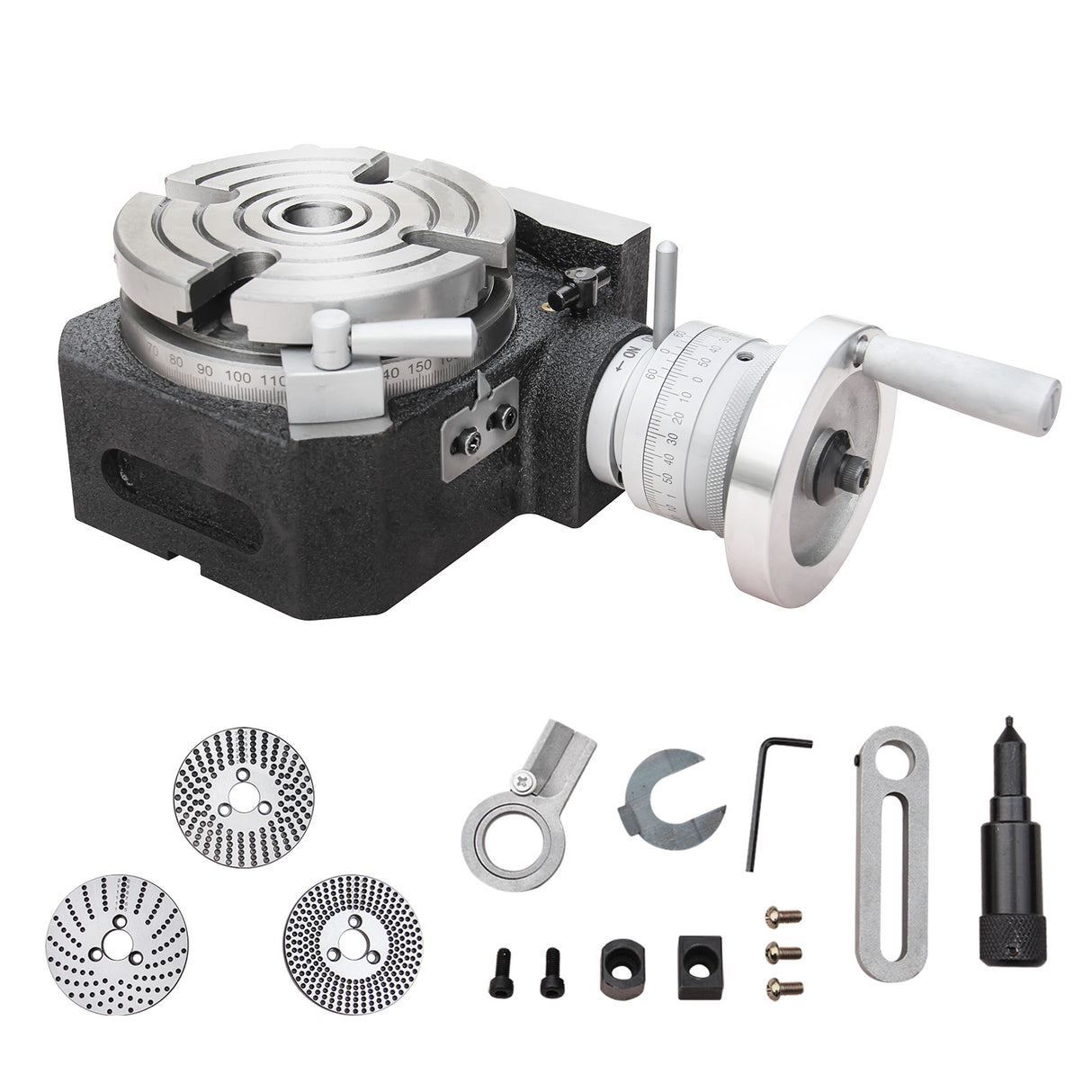

1. 4" Rotary table, with dividing set of 3 plates
2. 4" Horizontal & Vertical rotary table with 4 slots
3. Hardened and ground work 72:1 ratio

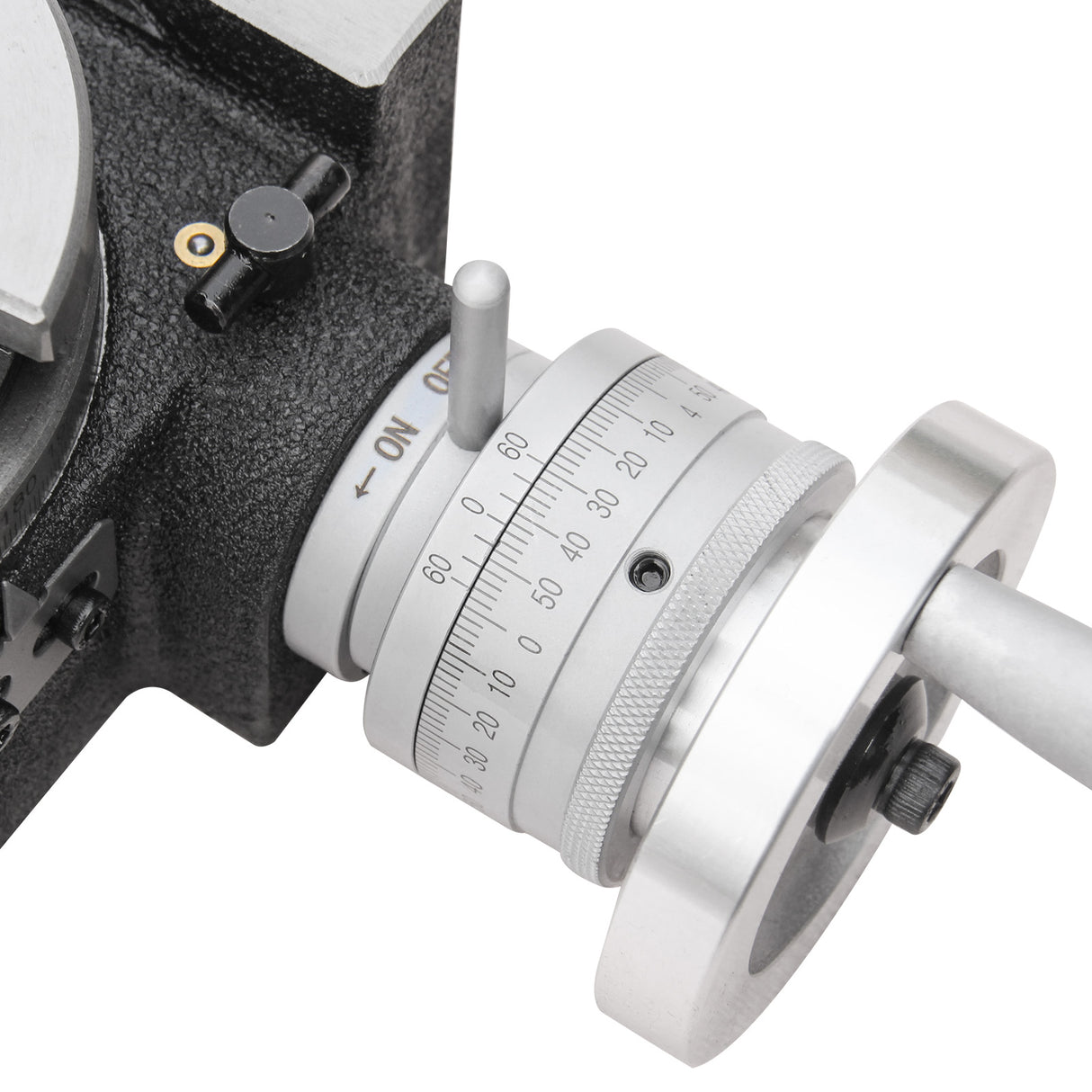

4. 360° table graduation
Item No. | 162311 |
Model | HVP-41 |
Diameter of the table | ∅4.3" /110mm |
Morse taper of the center hole | MT2 |
Height of center for vertical mounting | 3.37" /85.5mm |
Width of T-slot | 0.47" /12mm |
Adjacent angle of T-slot | 120° |
Width of the locting key | 0.47" /12mm |
Modules of worm and worm gear | 1 |
The transmission ratio of the worm gear | 1:72 |
Graduation of the table | 360° |
Rotating angle of table with one revolution of the worm | 5 |
Max. bearing(With table Hor.) | 88 lbs |
Max. bearing(With table ver.) | 44 lbs |
Packing size | 11.4"x9.4"x5.1" |
N.W./G.W. | 21/24 lbs |
