KAKA INDUSTRIAL LLC  |  SKU: 271210V230

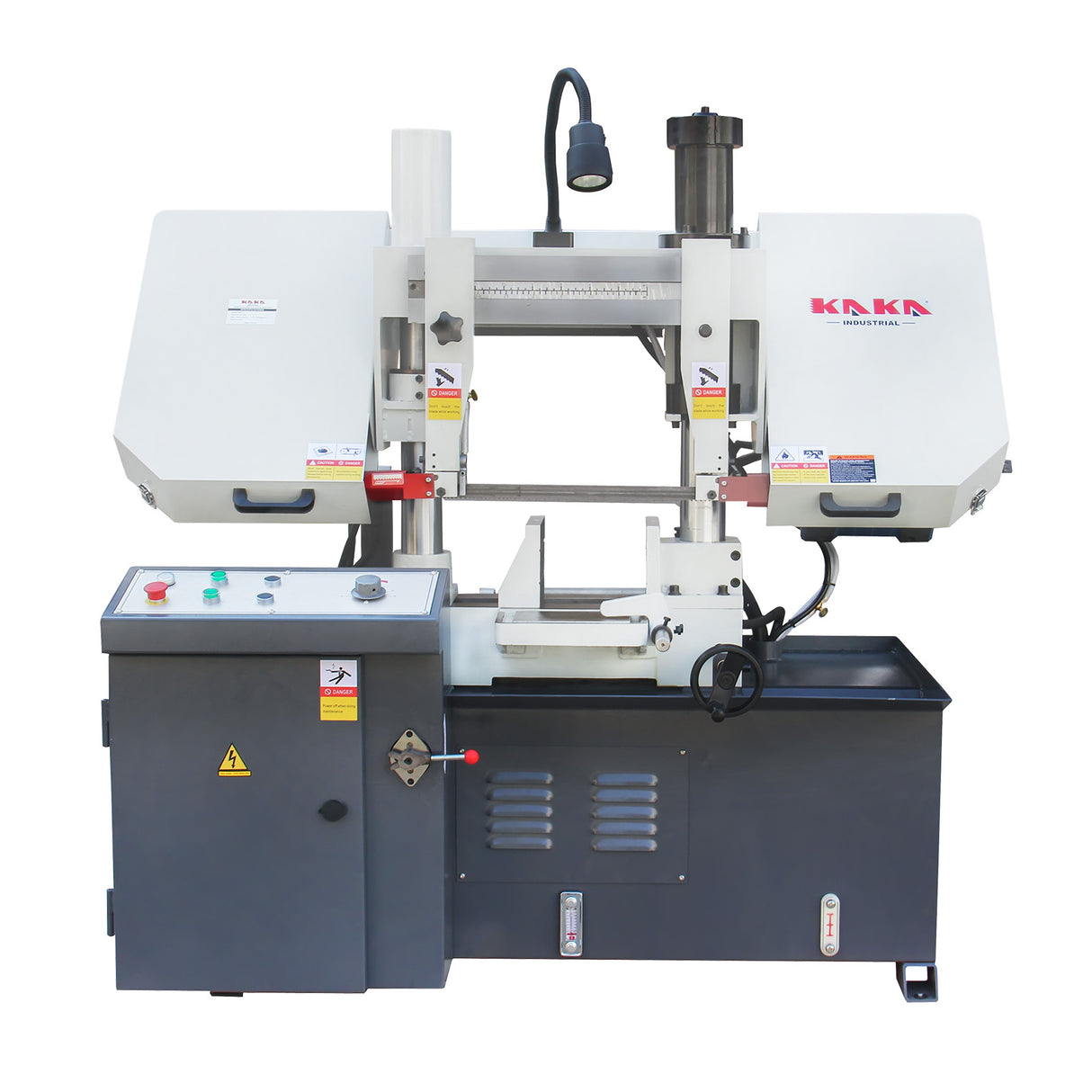

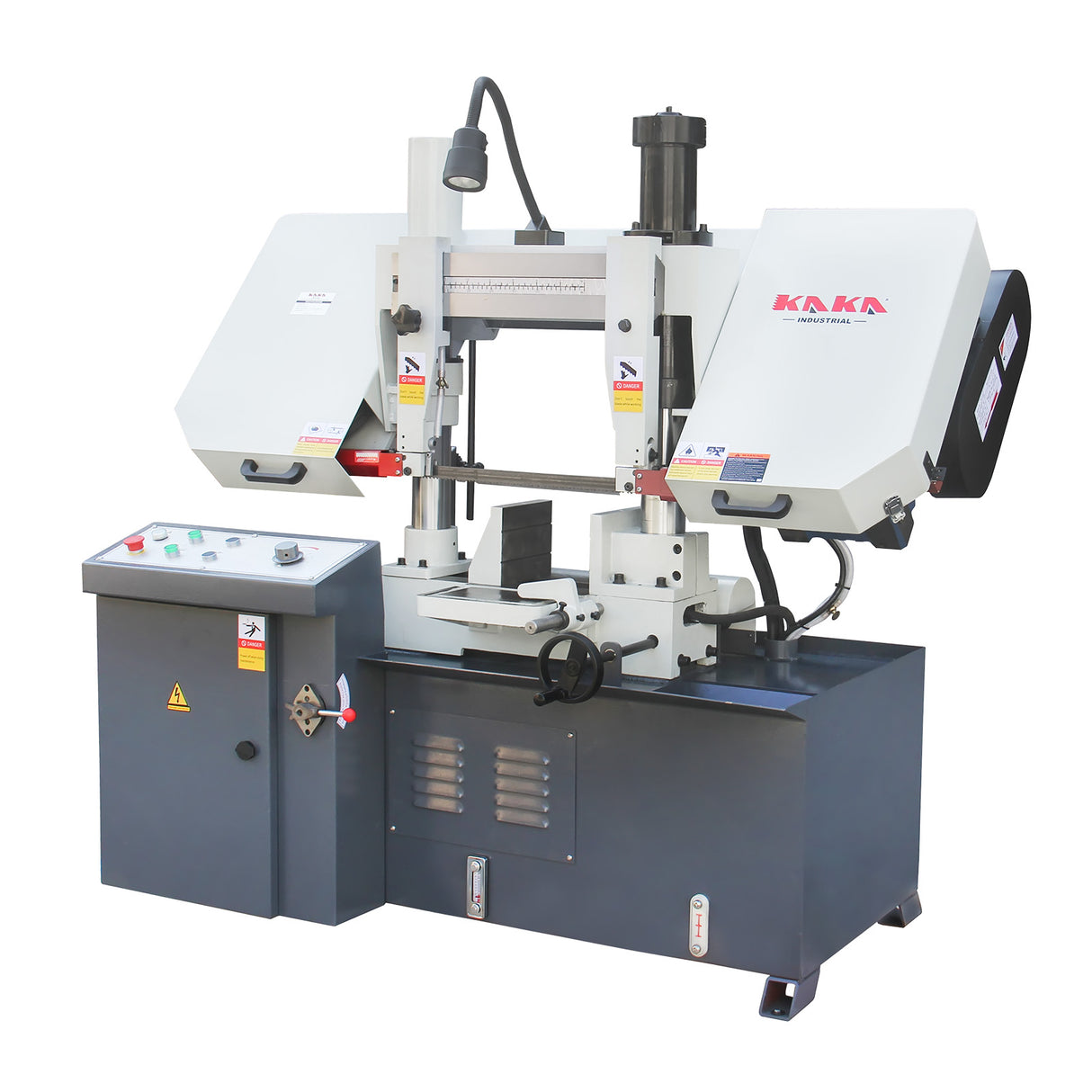

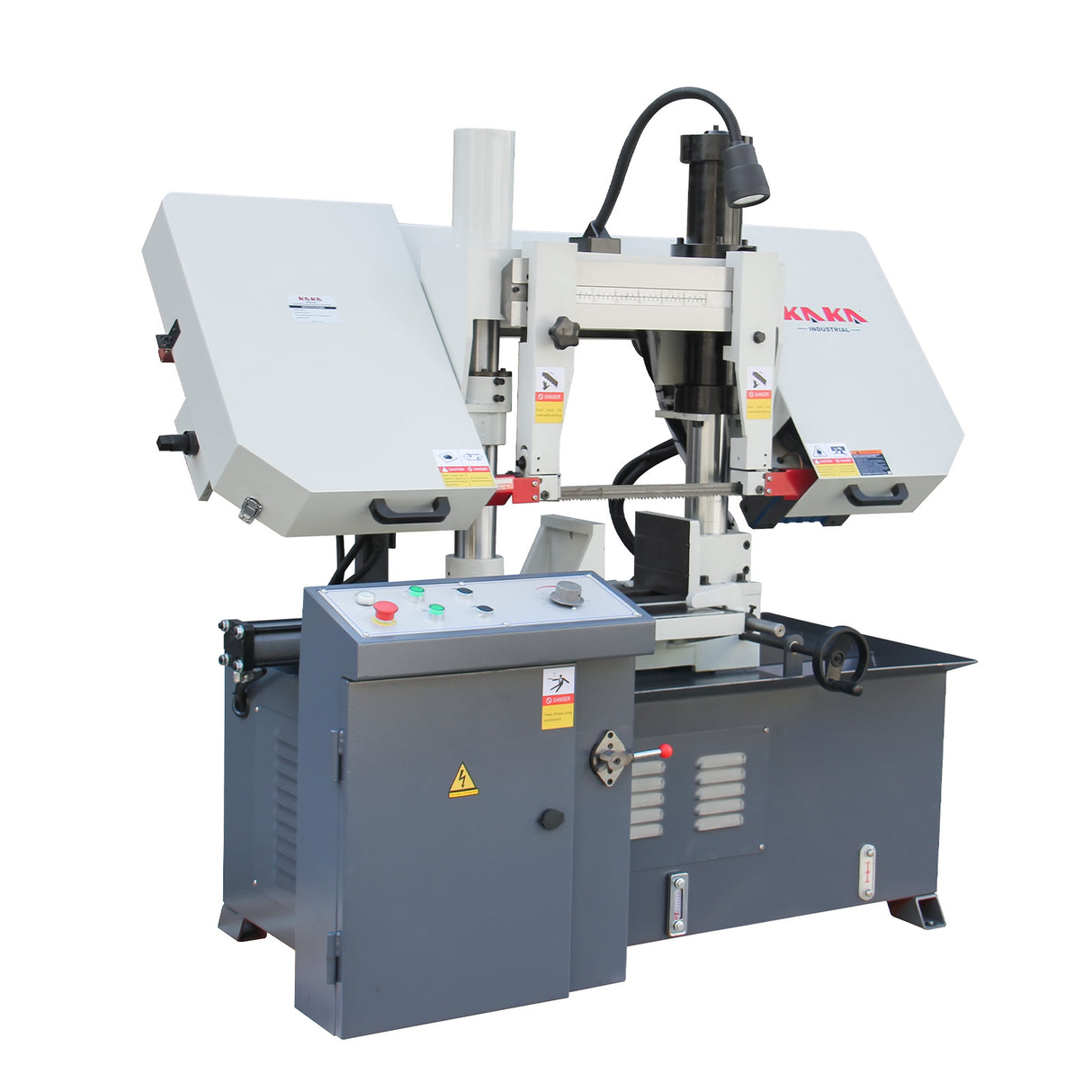

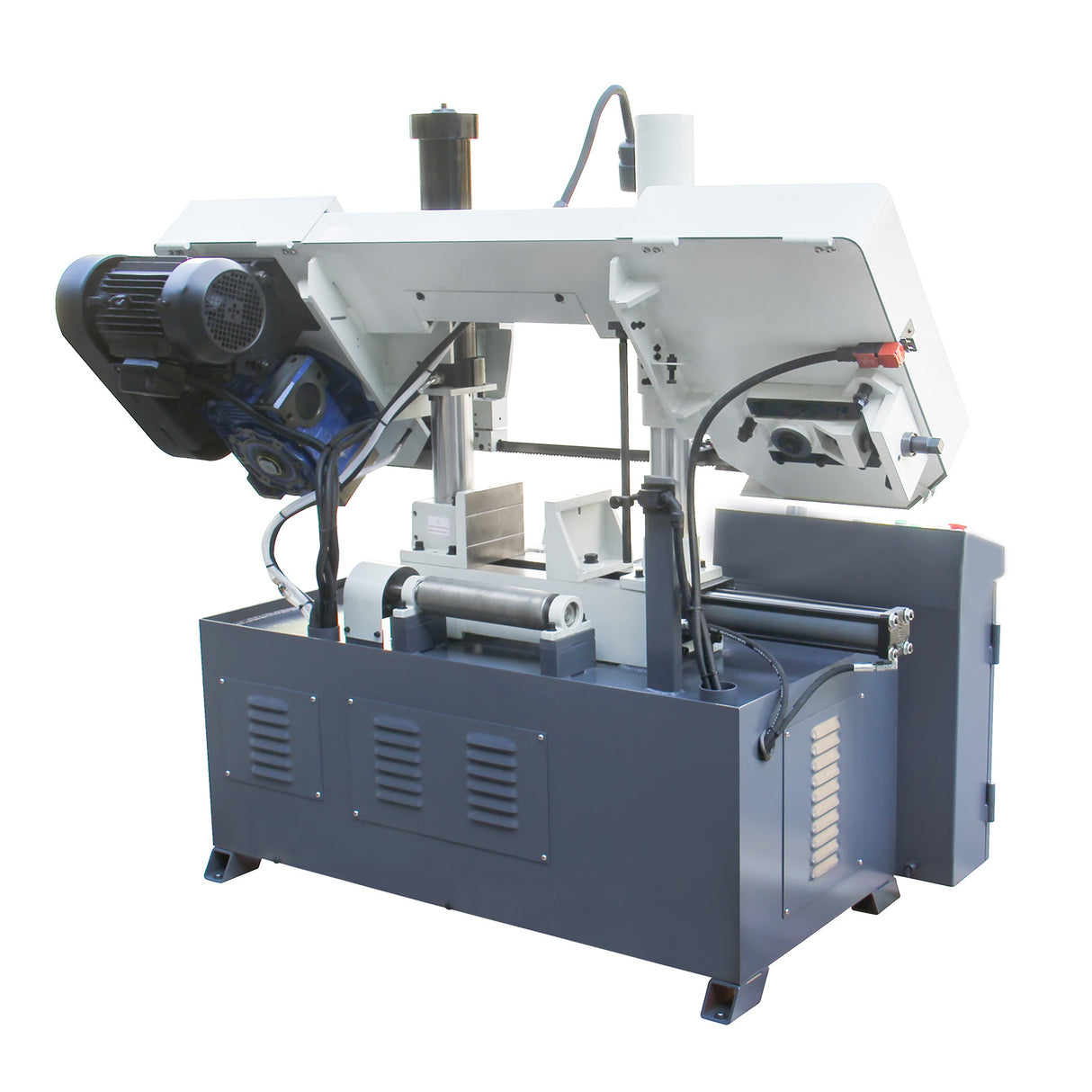

KAKA Industrial TBK-11 Double Column Band Saw, Hydraulic downfeed control, Max cutting capacity 11 inch with 230V 3PH motor

$5,589.99 $6,189.99
Shipping calculated at checkout.

Powerful Cutting Capacity
This industrial-grade double-column bandsaw runs on 230V power. It has a strong 3 kW motor and three cutting speeds: 28, 45, and 59 MPM. Gear drive: The powerful engine provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately. This bandsaw can cut various materials, including metals, plastics, composites, wood, and rubber.

Flexibility and Versatility
This metal-cutting bandsaw has all the features needed for professional metal-cutting results, allowing users to perform a variety of cuts. It has a double-column structure and high stability.
With its 3-step blade speed options, you can easily adjust the cutting speed to match the material you're working with, guaranteeing optimal performance and clean cuts.
Hydraulic cylinders provide precise control over lowering the cutting blade, offering smooth and consistent operation and resulting in clean and uniform cuts. Plus, the built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan.

Safety
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The band saw features a coolant system and an automatic shut-off setting. It also has a heat-treated high-carbon steel blade, brass fittings, and a full belt and blade guards complement.

Wide Applications
The double-column metal cutting band saw is a versatile tool used in various industries and tasks, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

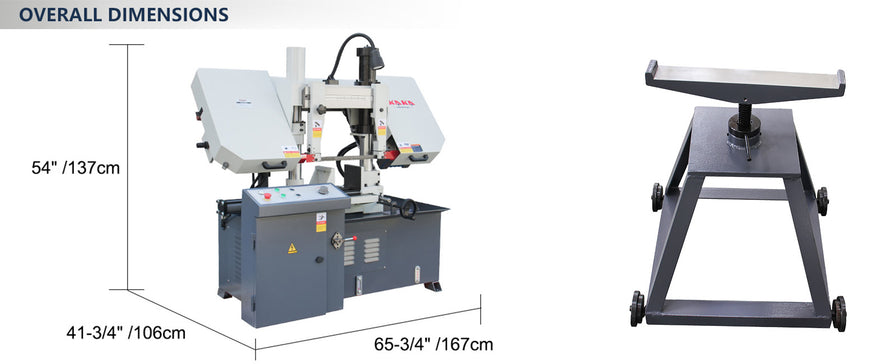

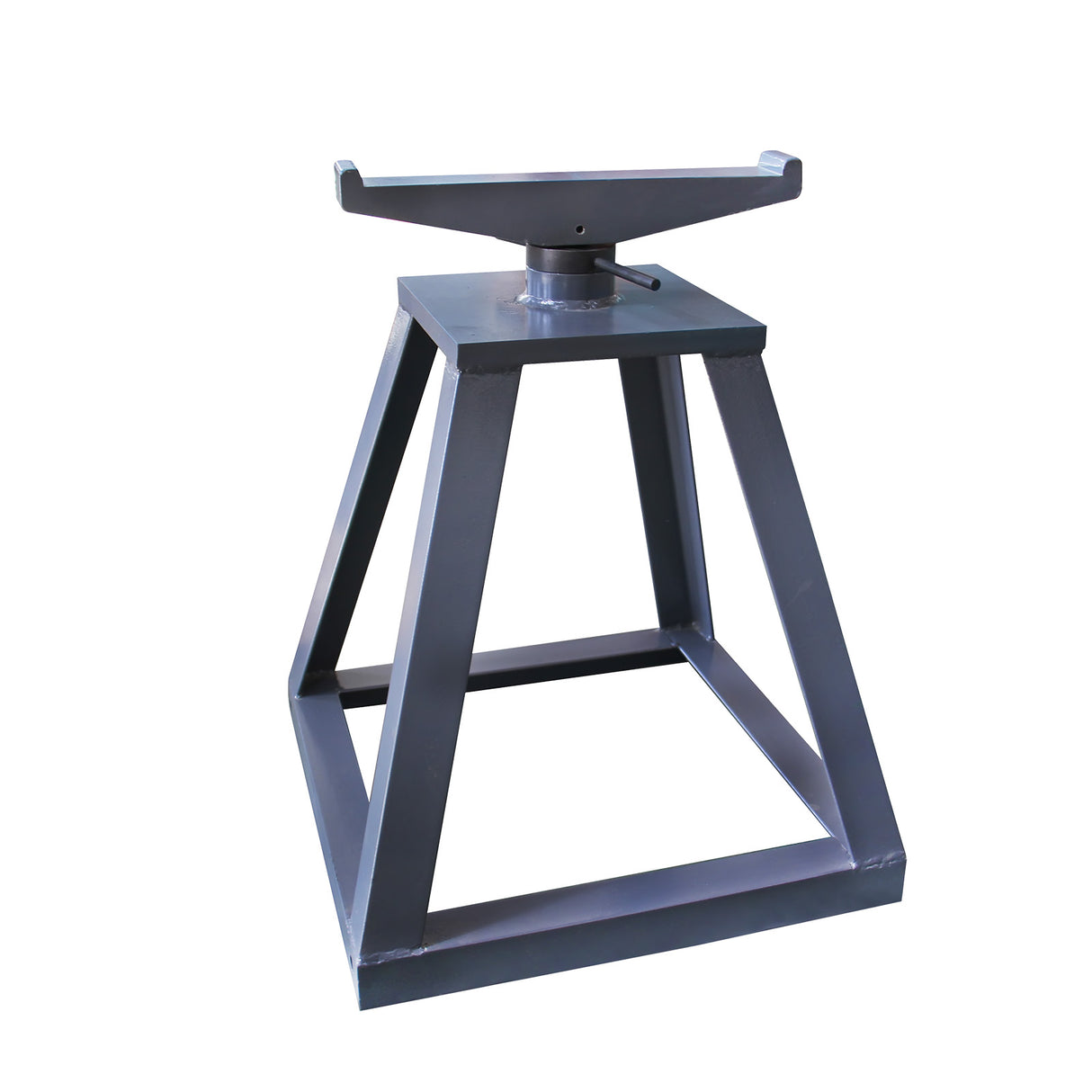

Material Support
Equipped with a convenient material support for long-cutting materials.

1. Double column bandsaw, vertical up and down
2. Auto shut off when cutting complete
3. Hydraulic cylinder to control saw bow down feed

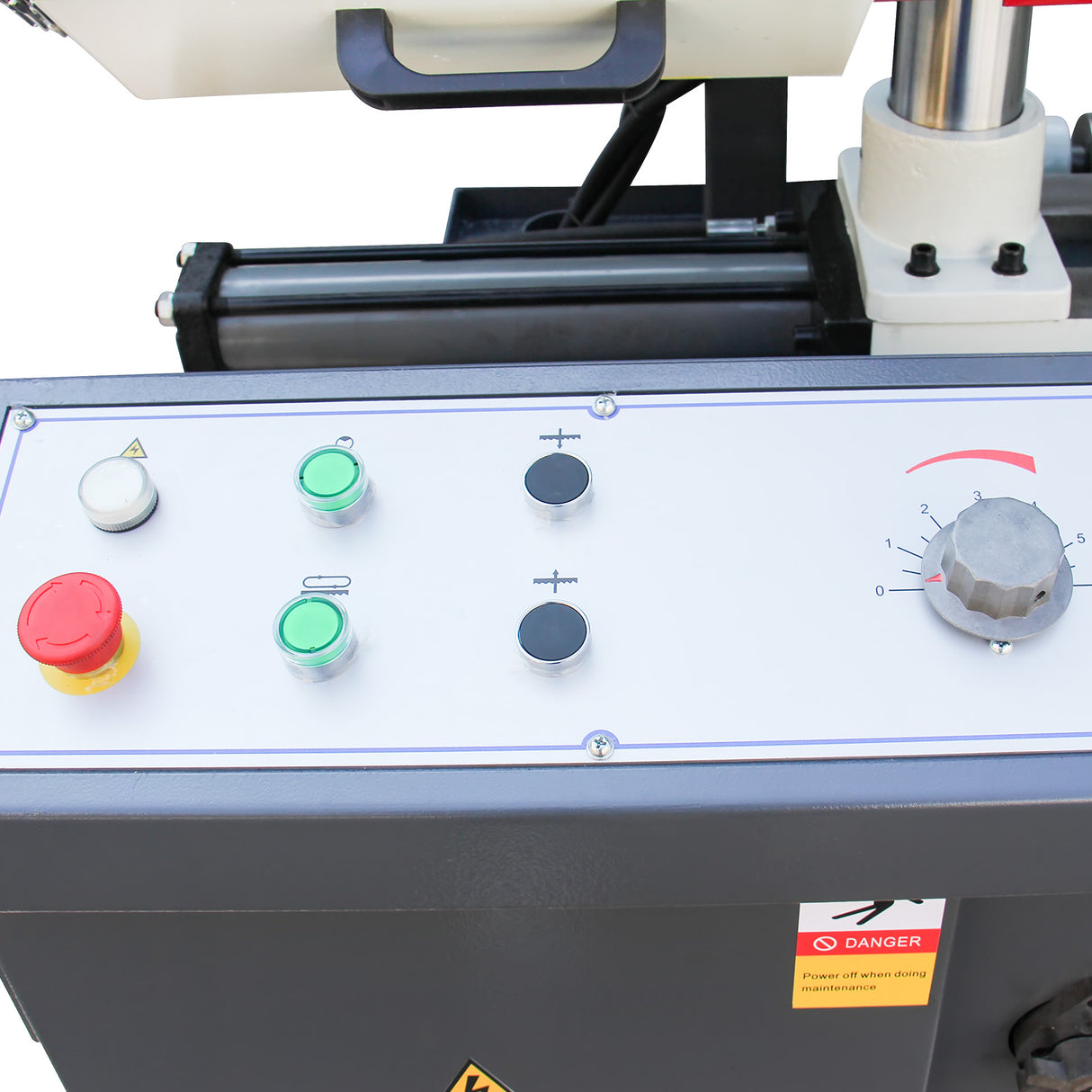

4. Control panel, easy to operate the machine
5. Belt drive bandsaw, 3 cutting speed

Item No.
271210
Model
TBK-11
Max. cutting capacity
∅11"-11"x11"
Blade speed
28,45,69m/min
Feed speed
Hydraulic variable speed
Blade size
1"x0.035"x138"
Workpiece clamping
Hydraulic

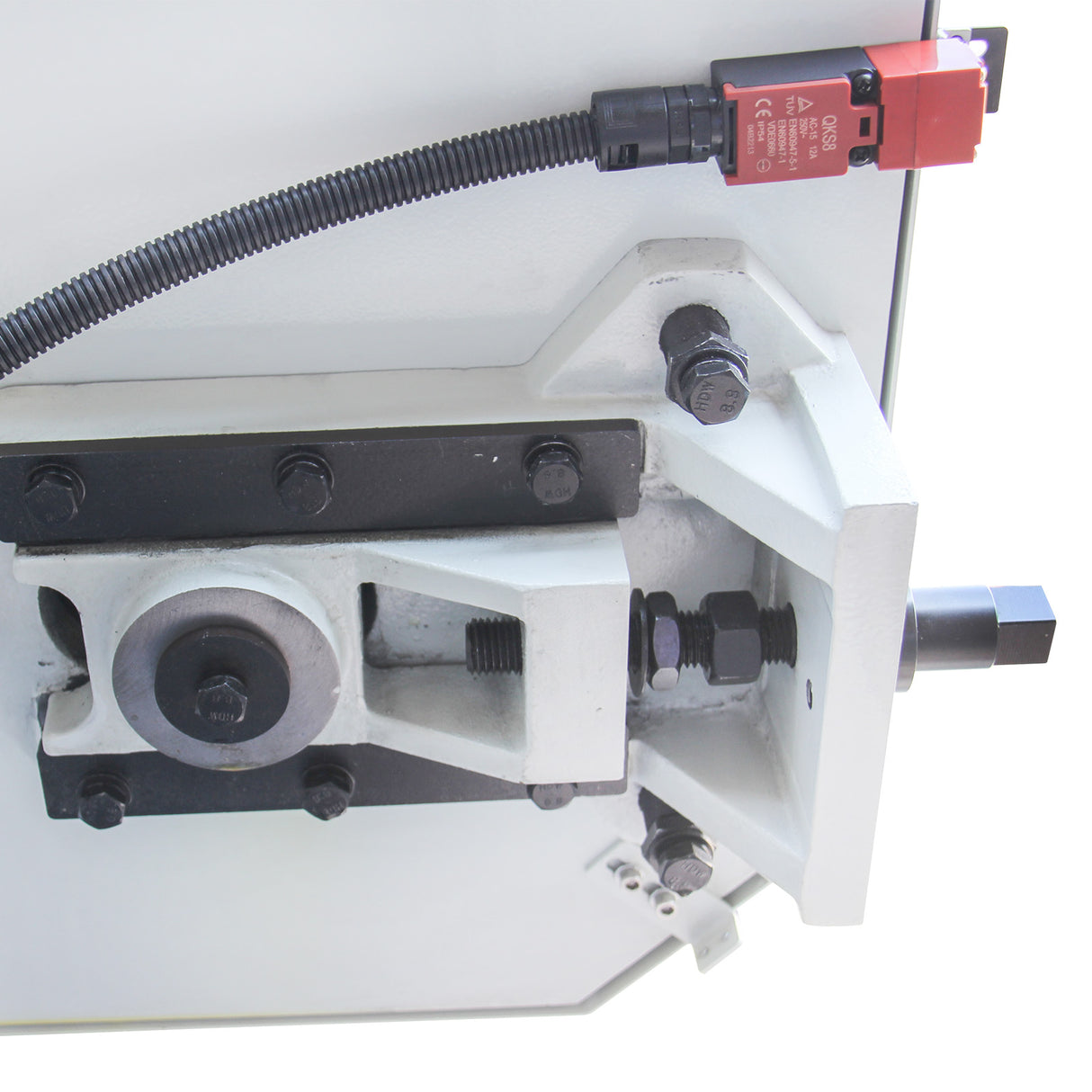

Blade tensioning
Mechanical
Main motor power
3.0 kW
Hydraulic station
0.55 kW
Drive
V-belt
Packing size
86"x51"x63"
N.W./G.W.
1529/1835 lbs

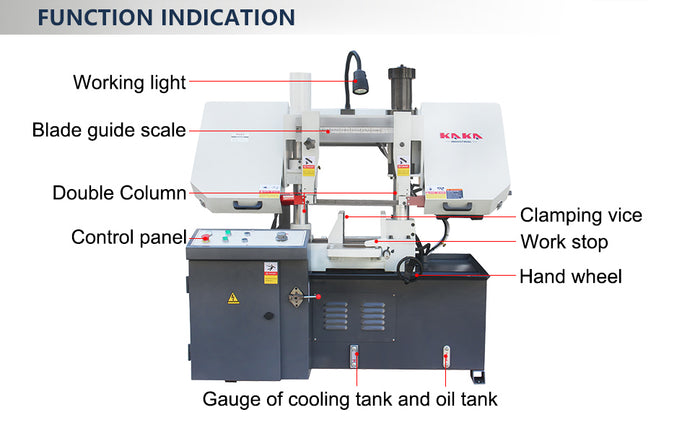

  • Double Column Structure

    Double column structure, vertical lifting, high stability

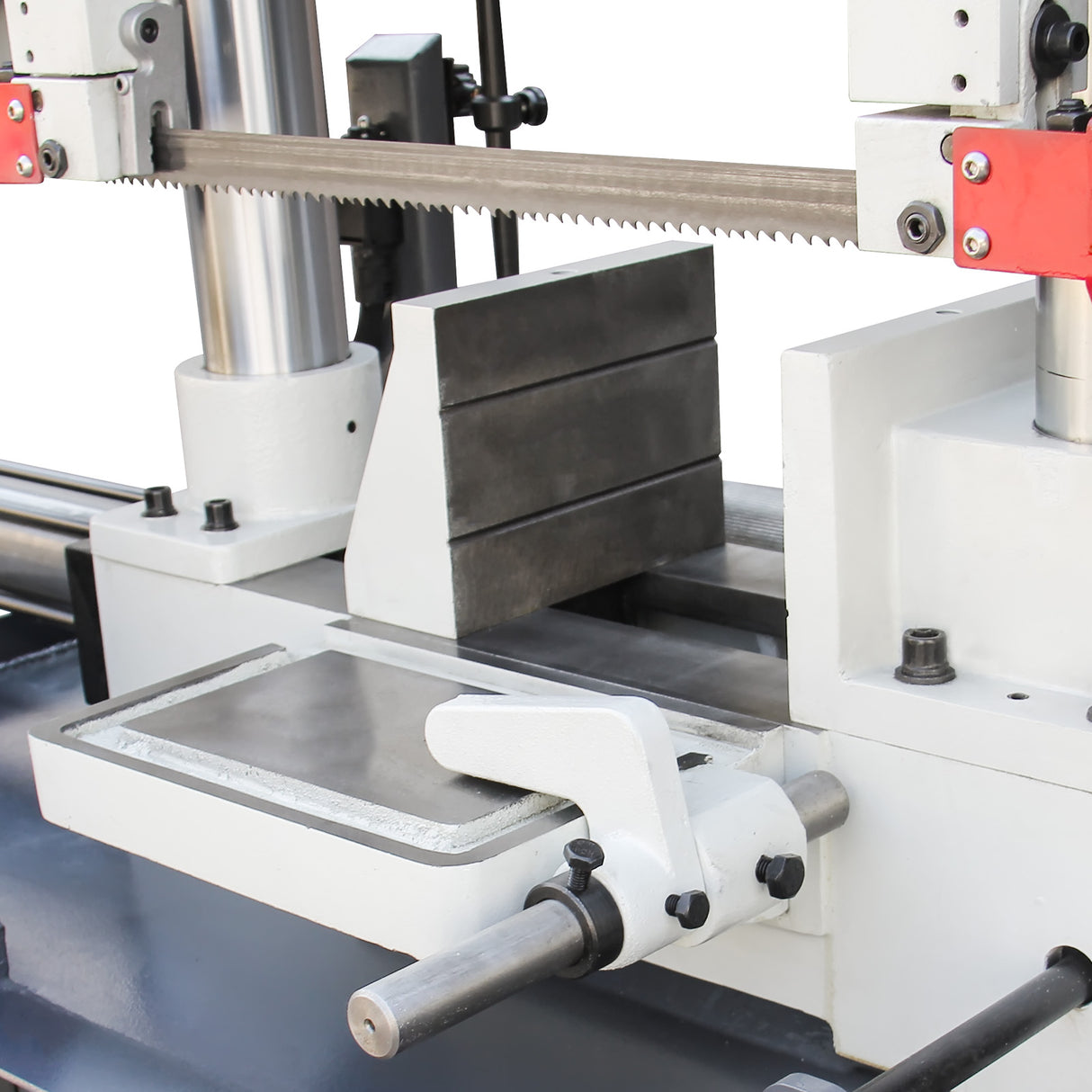

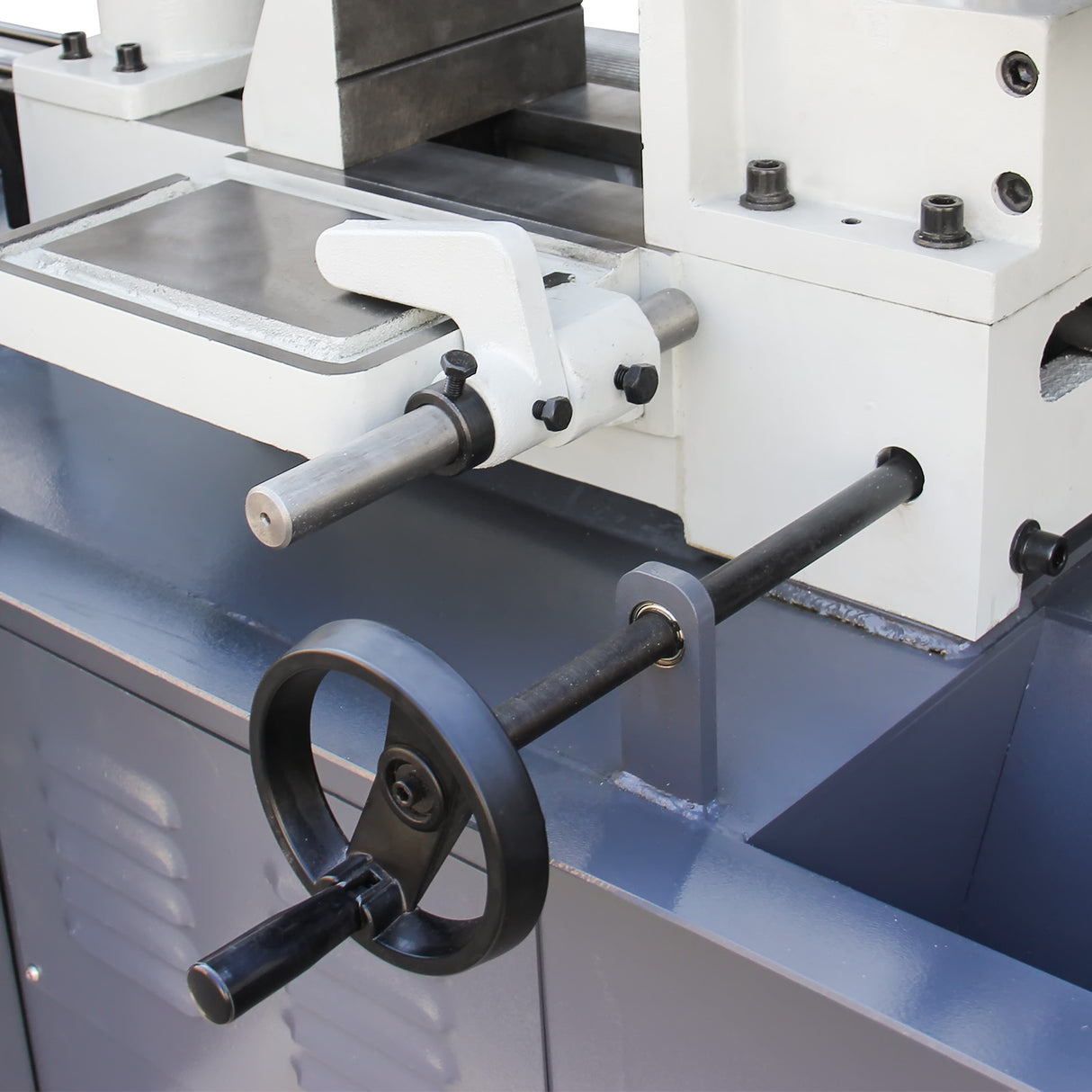

  • Hydraulic Control

    The hydraulic clamping vice ensures that the material does not move when cutting

  • Work Stop

    Equipped with material stop, easy-to-repeat cutting, improved work efficiency
