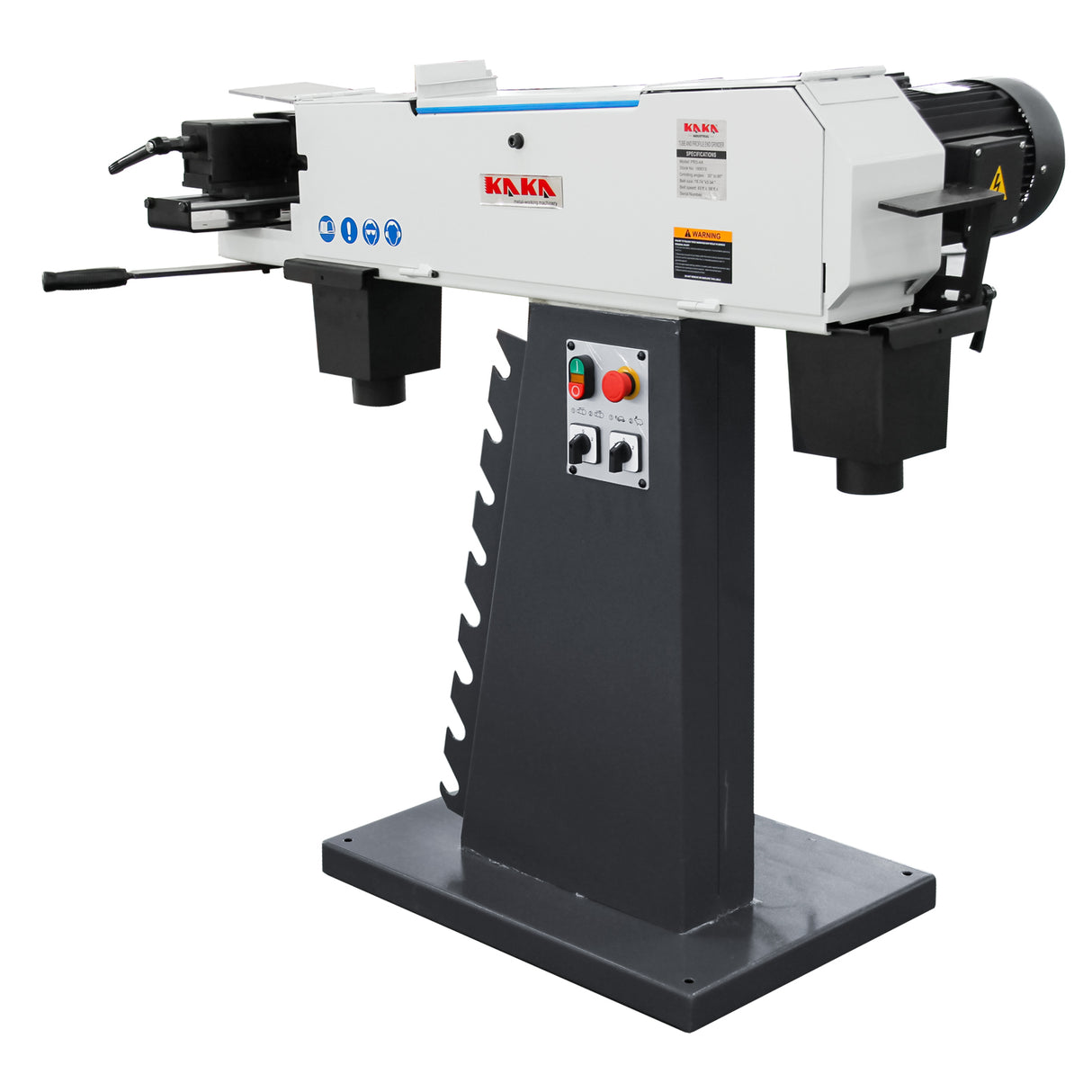

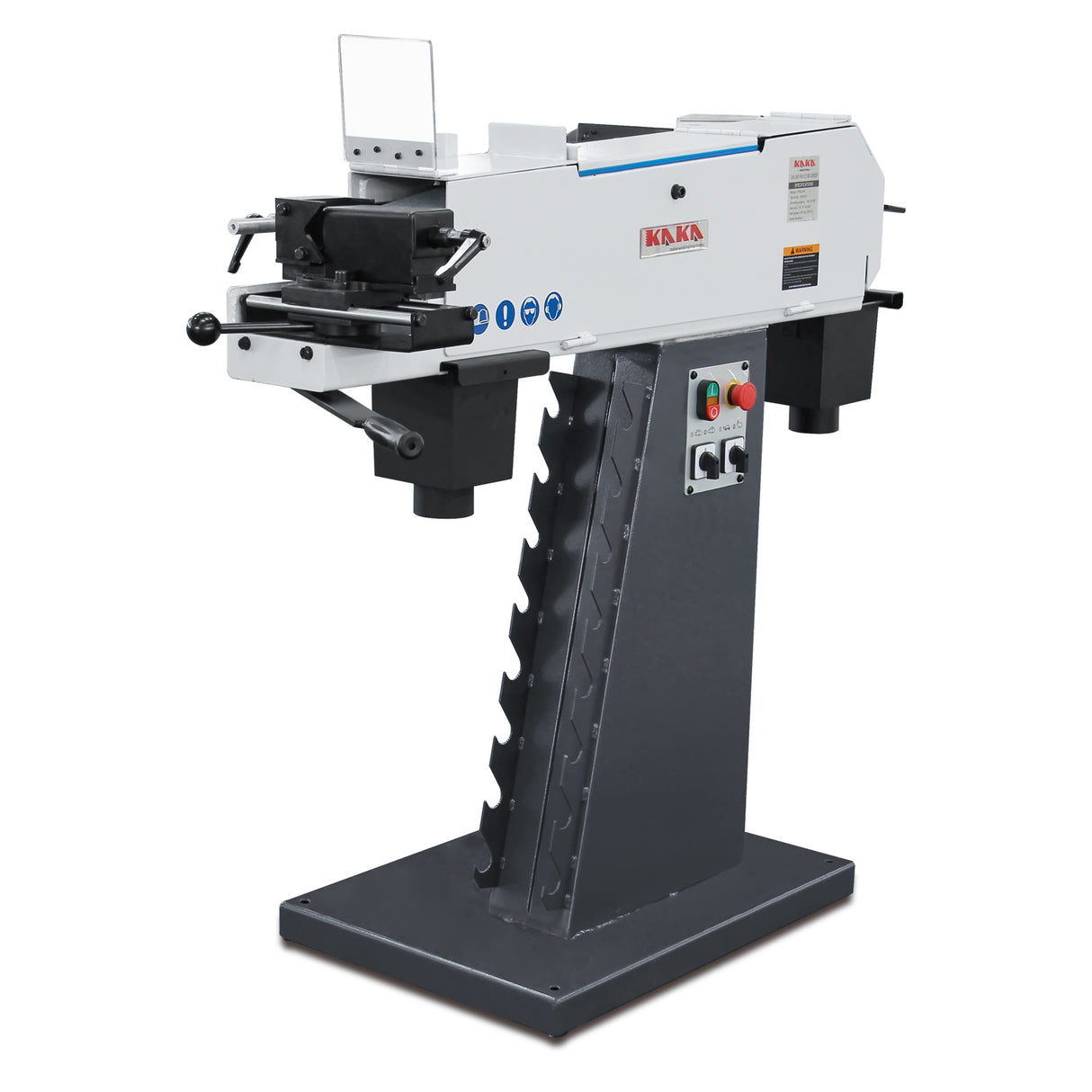

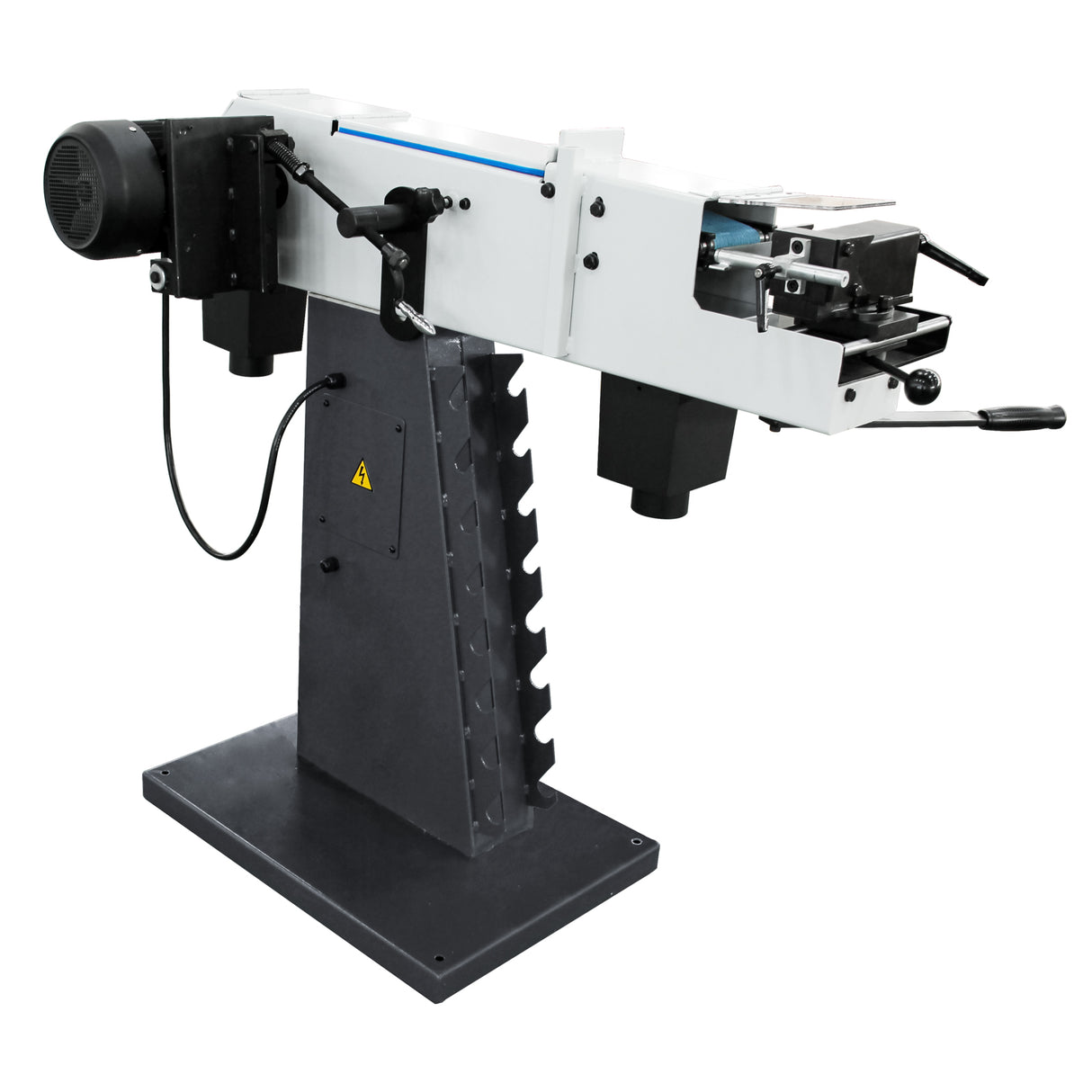

Kaka Industrial PRS-4A Belt Grinder, Wheel Metal Belt Grinder/Sander, Sander with Cast Iron Base, Grinds at angle from 30-90 degree, Arc cutting which is ideal for pipe-shaped, 220V-60HZ-3PH
Kaka Industrial PRS-4A Belt Grinder, Wheel Metal Belt Grinder/Sander, Sander with Cast Iron Base, Grinds at angle from 30-90 degree, Arc cutting which is ideal for pipe-shaped, 220V-60HZ-3PH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
High Grinding Capacity

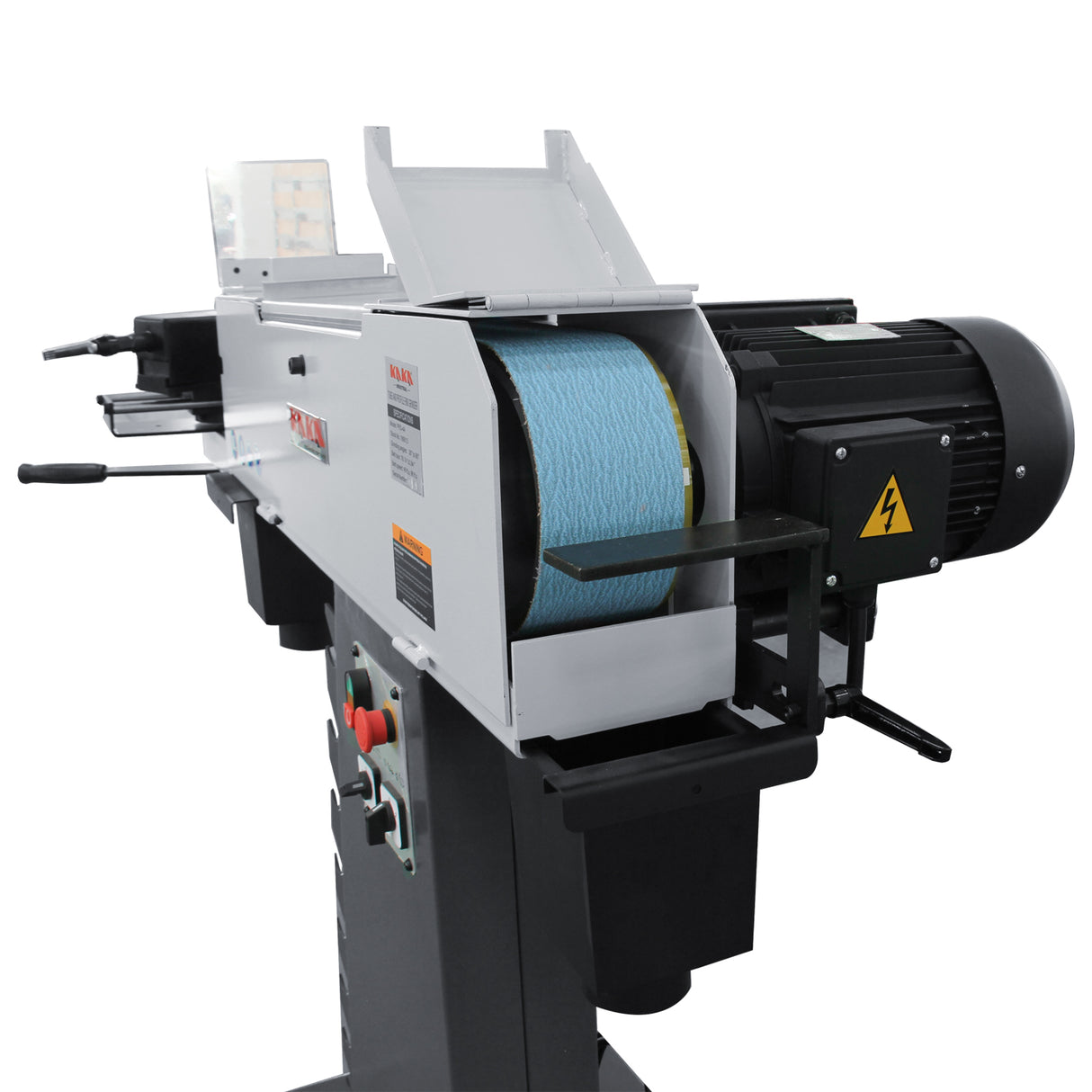

It runs on 415 V power and a double-speed motor. The powerful 2.2/2.8 kW motor moves the belt at 15 m/sec and 30 m/sec, easily removing material from even the most rigid steel.
Our belt grinder is suitable for different degrees of grinding and polishing processing of hardware products, such as furniture, heating equipment, locking sports equipment, and other industries.
Flexibility and Versatility
Two optional speeds fulfill different requirements. The clamp mouth of tube and profile end grinders feature multi-angle rotational positioning. It grinds at any angle from 30 to 90 degrees and any diameter from 20 to 76 mm.
Our tube and profile end grinder is especially suitable for burnishing various pipe materials and special-shaped parts. It has many optional molds of different specifications that are ideal for arc-cutting different-diameter pipe materials. It has a steady tri-angle stand with eight sets of roller holders.

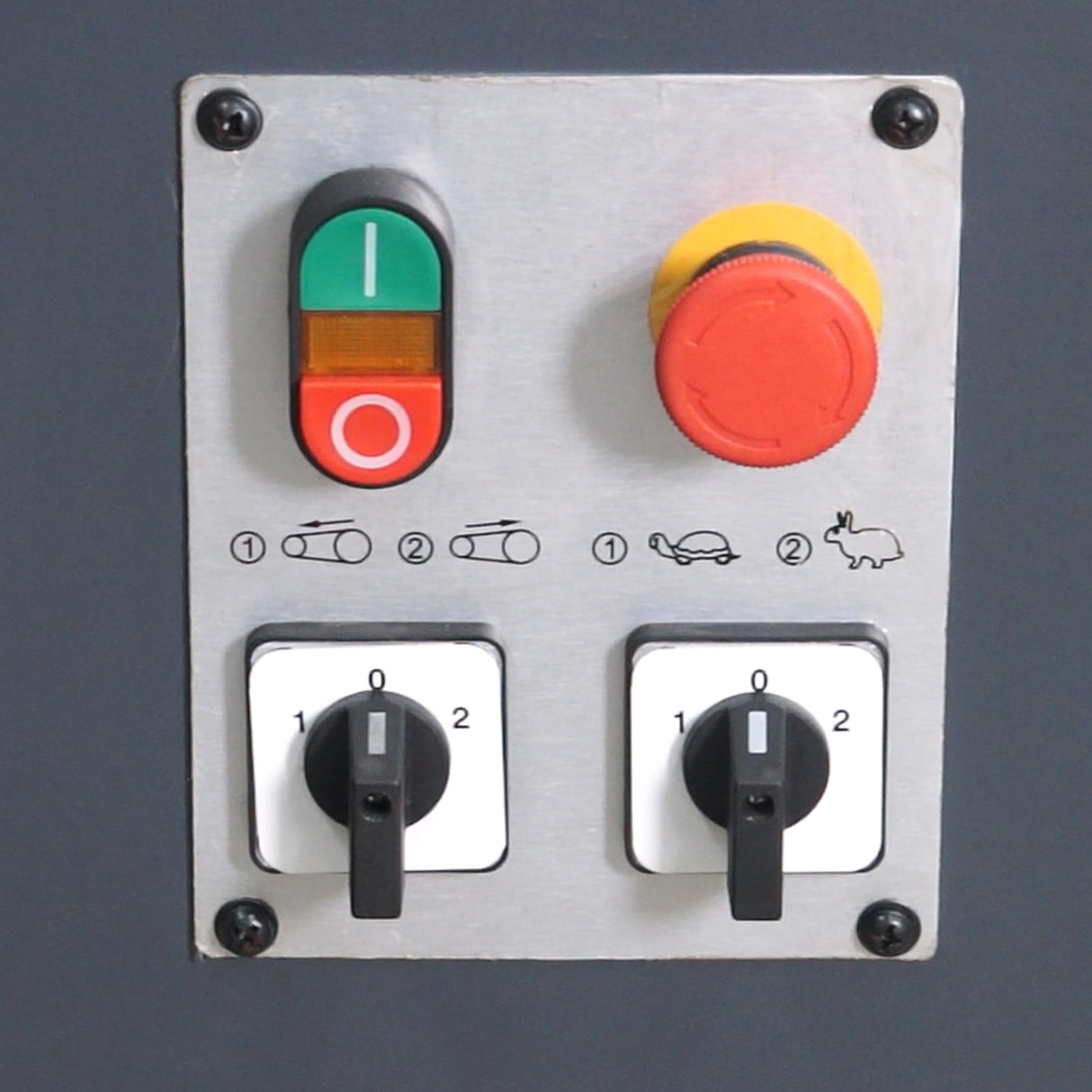

Our belt grinder is equipped with a vibration-proof protective device and an optional vacuum cleaner. It is made from heavy steel that is folded and electric welded for further rigidity and less vibration. Besides, it is equipped with an emergency stop switch so that it can be stopped urgently in any situation.
Wide Applications
The tube and profile end grinder is a versatile tool used in various industries and settings, including metalworking workshops, home workshops, construction sites, automotive repair shops, educational settings, and hobbyist workshops.

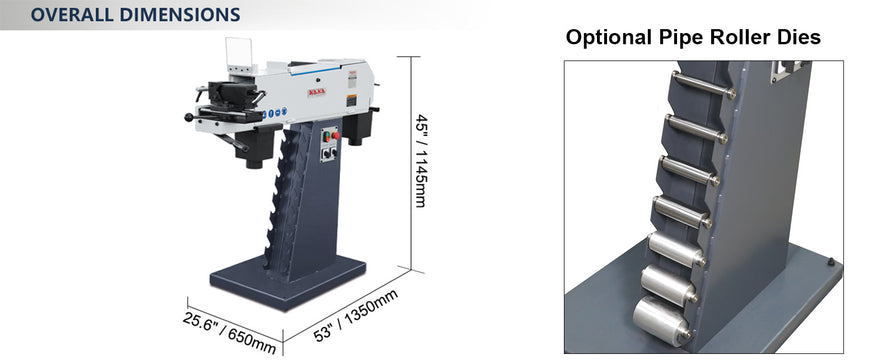

Optional Pipe Roller Dies
Inch: 1/2" , 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2"
Metric: 20mm, 26mm, 32mm, 42mm, 48mm, 60mm, 76mm

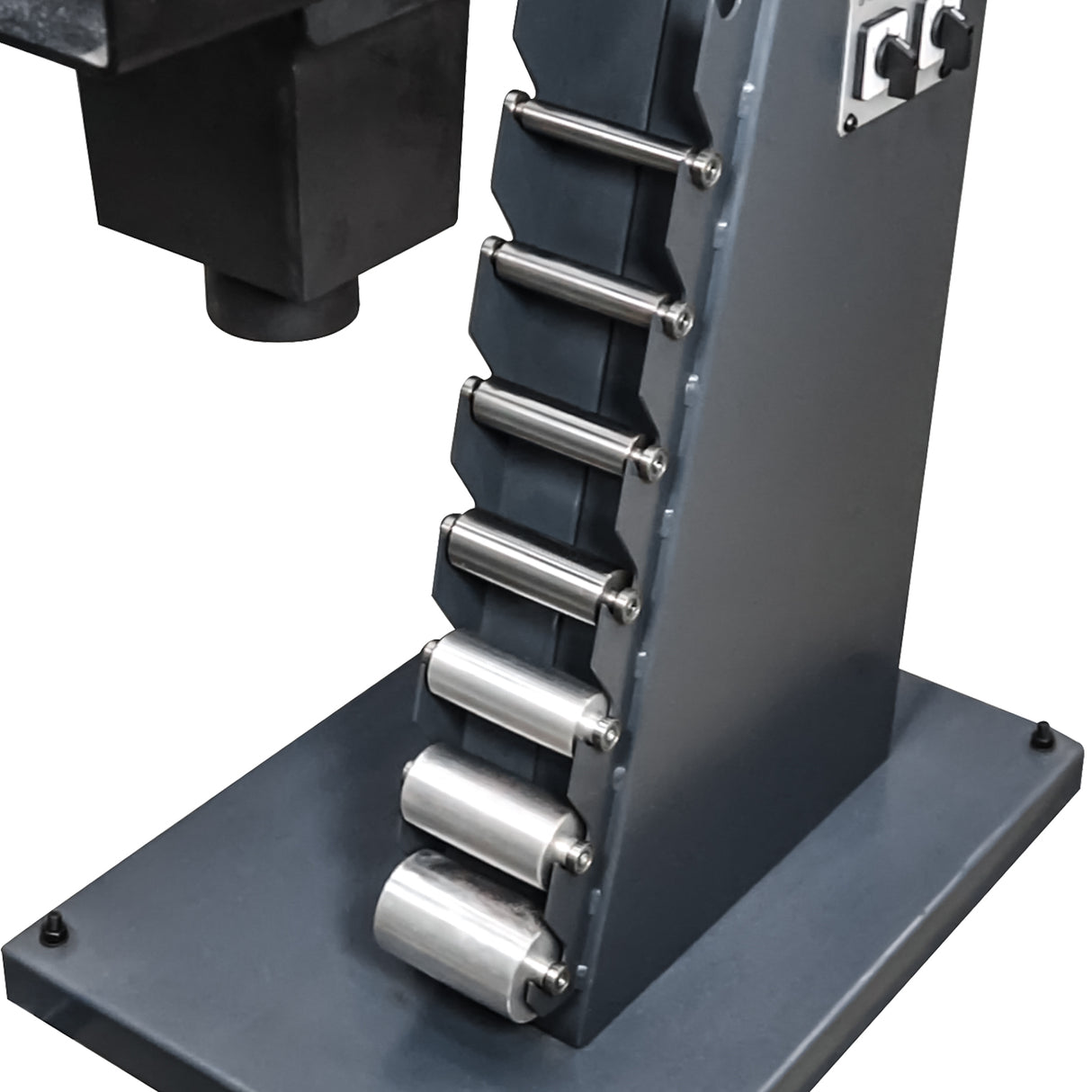

1. Steady Tri-angle stand with 8 sets roller holder
2. Two optional speeds fulfill different requirements.

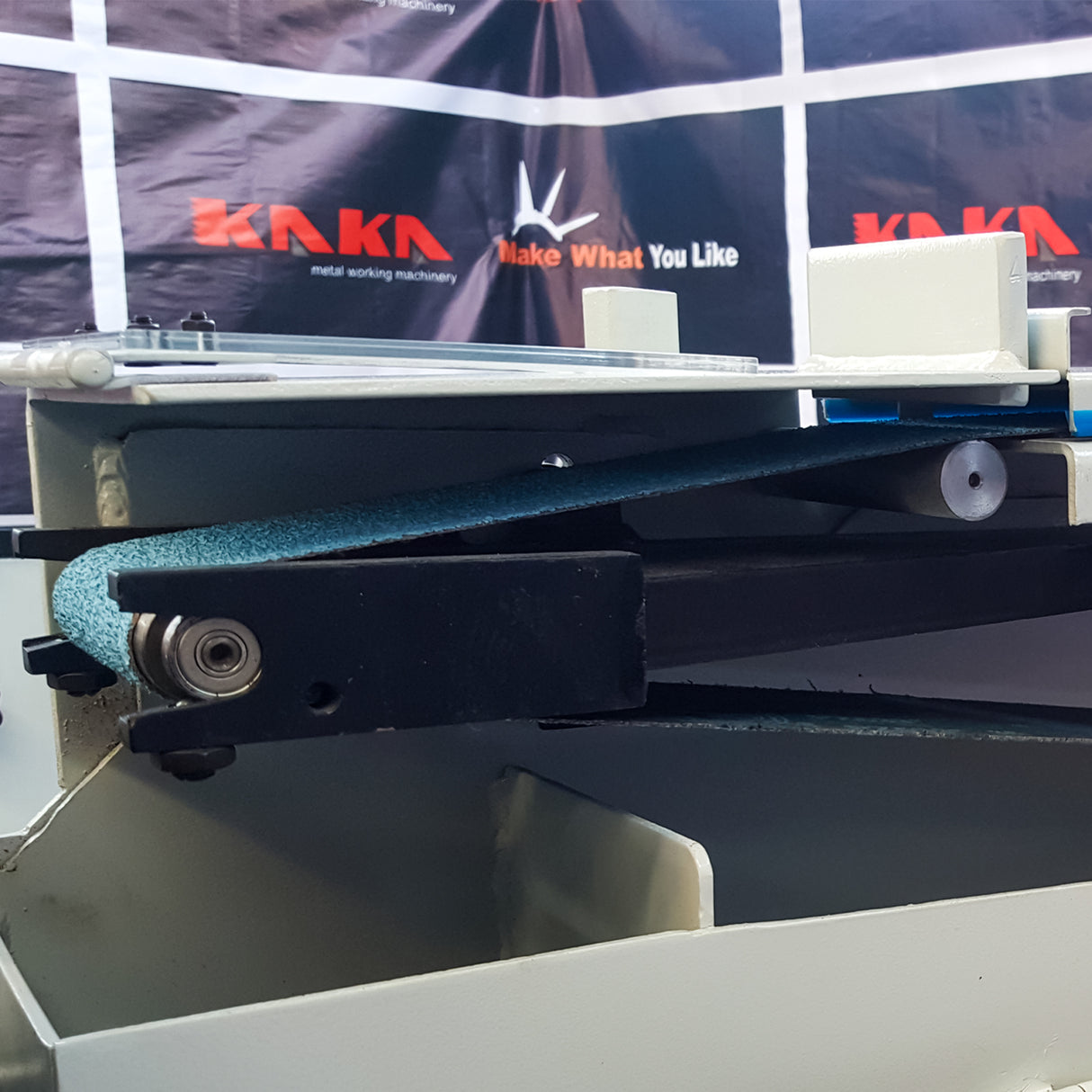

3. Standard roller: dia. 28mm
4. Our tube and profile end grinder is especially suitable for burnishing various pipe materials and special-shaped parts.

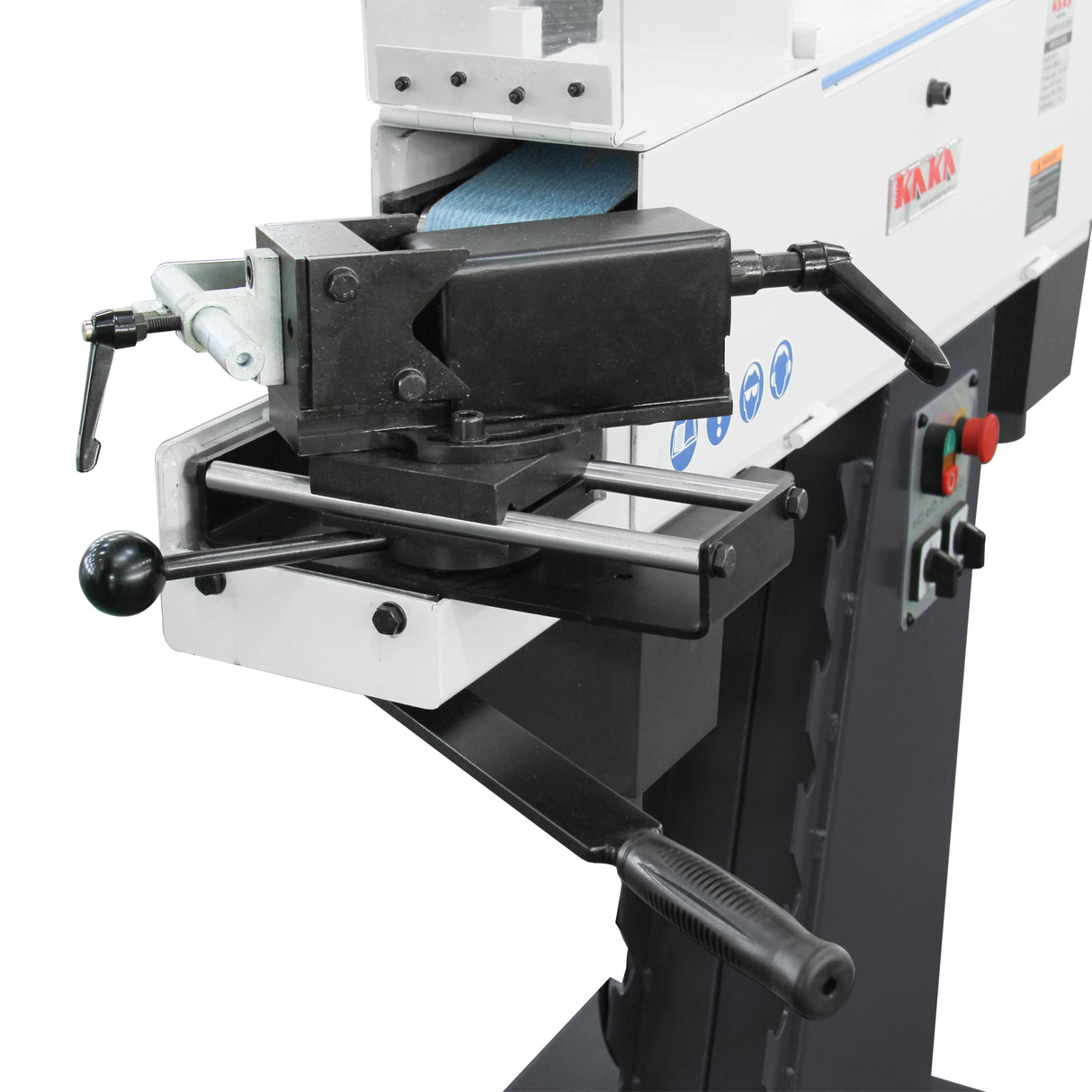

5. The clamp mouth of tube and profile end grinder features multi-angle rotational positioning
6. Grinds at any angle from 30 to 90 degree, any diameter from 20-76 mm

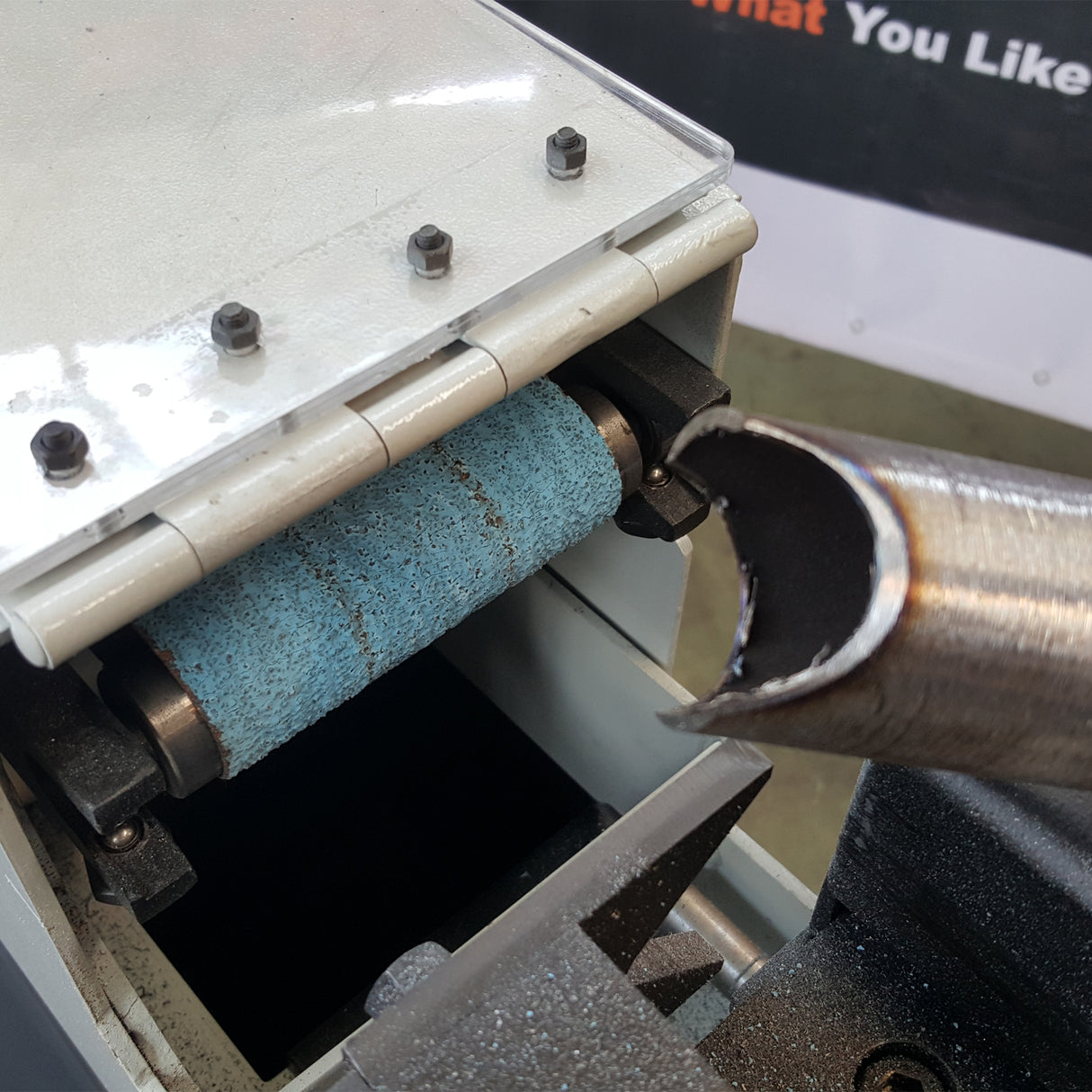

7. It has the advantage of arc cutting which is ideal for pipe-shaped parts
8. It has many optional molds of various specifications which are suitable for arc cutting of different-diameter pipe materials.
Item No. | 189013 |
Model | PRS-4A |
Motor Power | 2.2/2.8kW (3PH) |
Adjustable slide | 7.87"x2.95" |

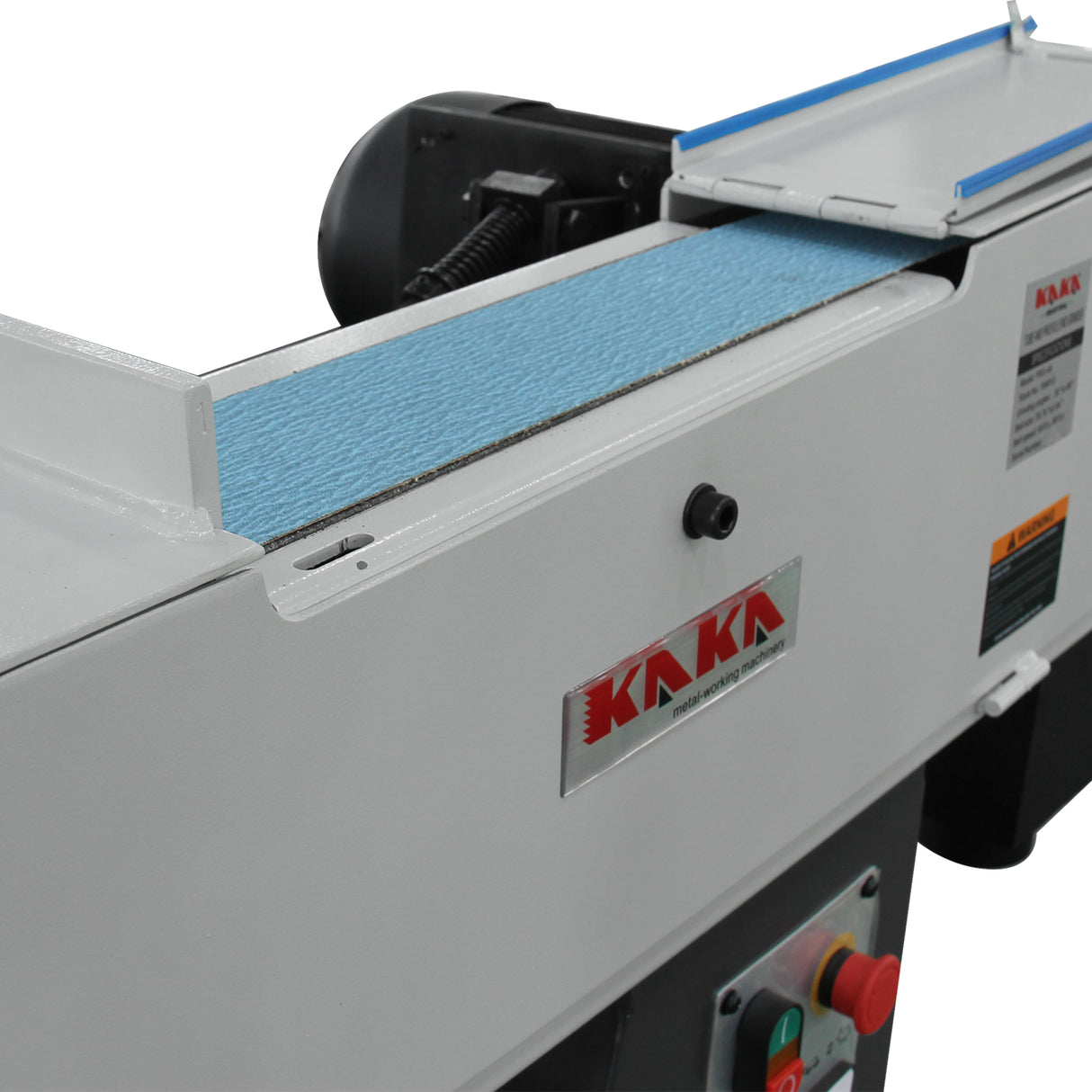

Belt Size | 79"x4" |
Belt Speed @60Hz | 49/118 ft/sec. |
Grinding ares | 30°to 90° |
Packing size | 54"x24"x27" |
N.W. /G.W. | 352/418 lbs |
