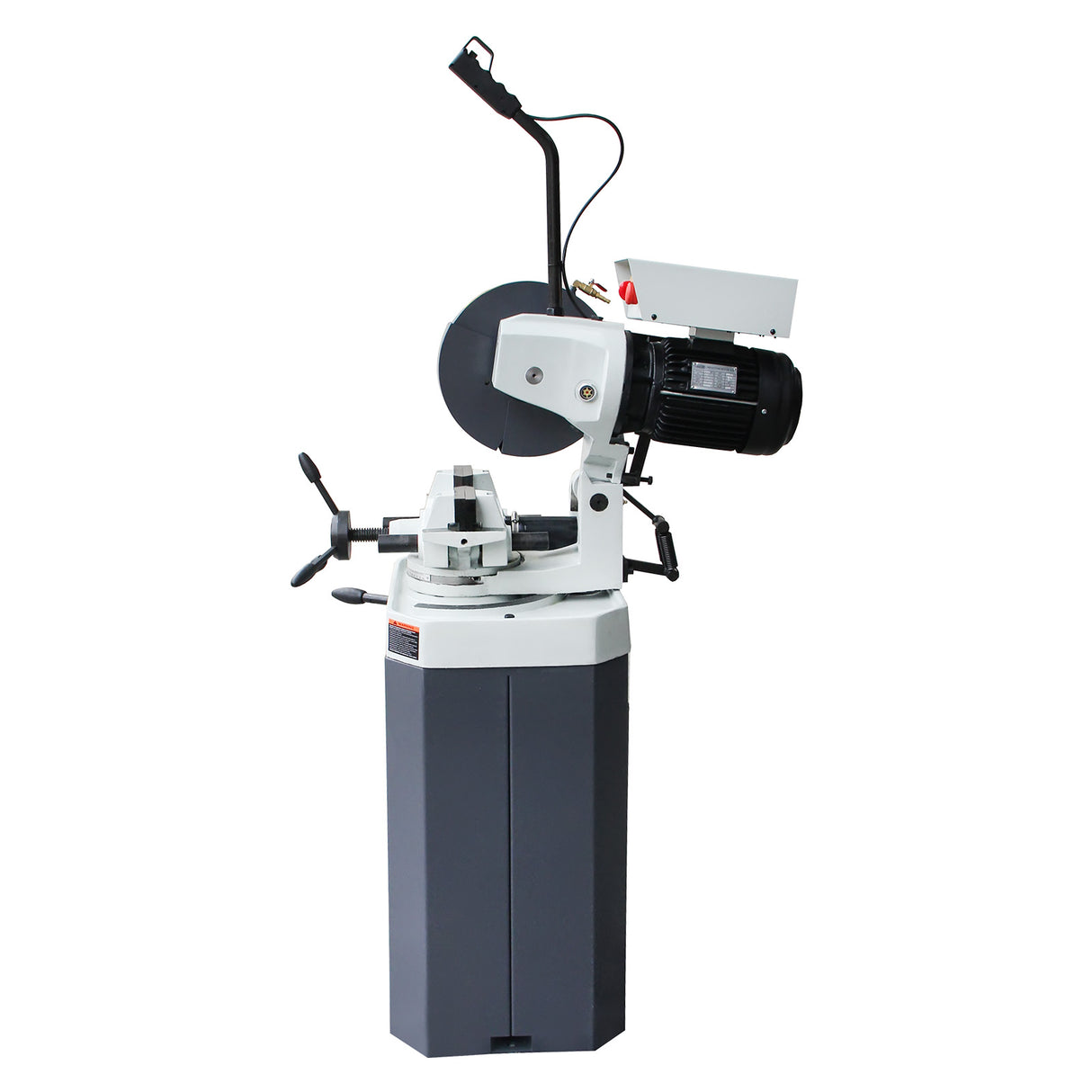

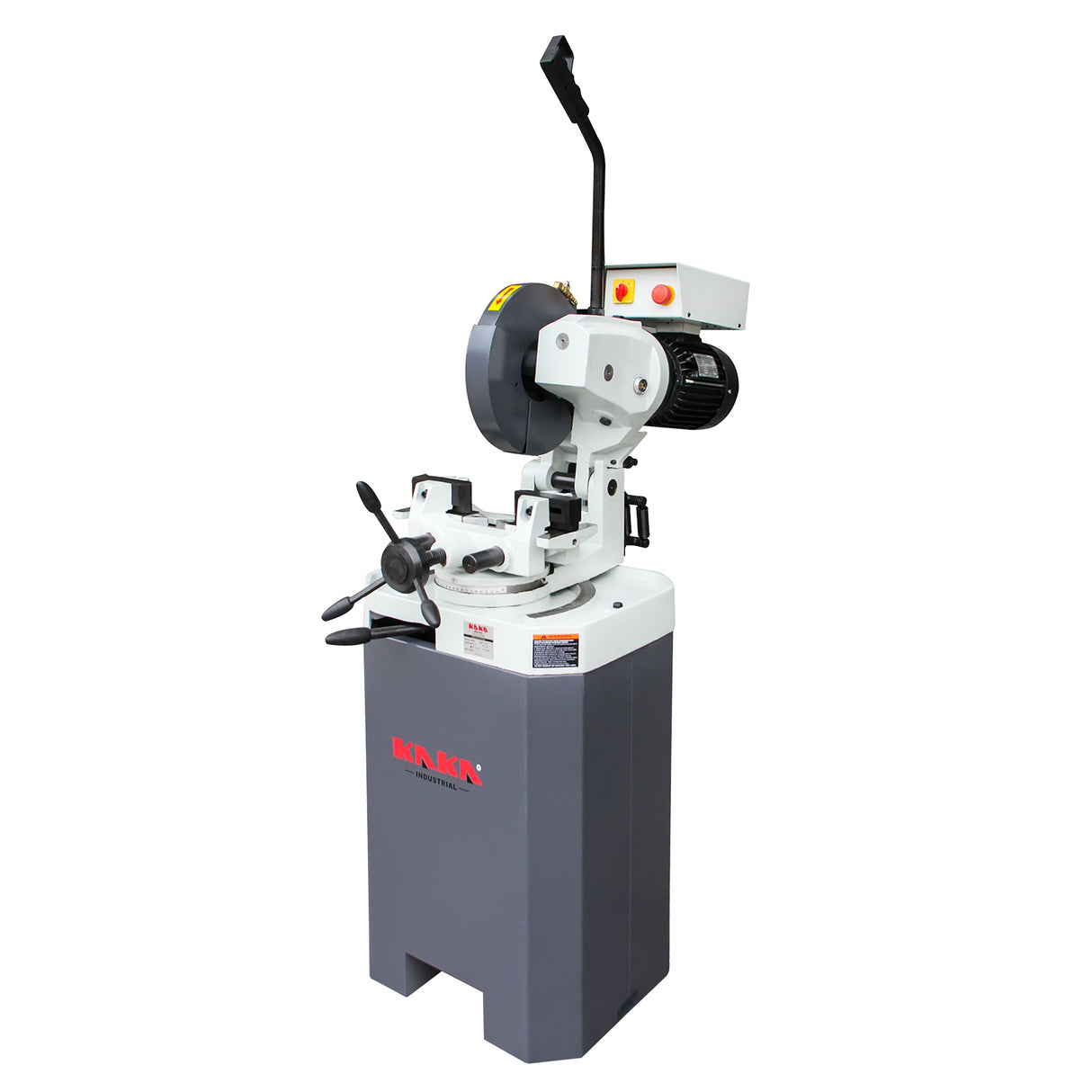

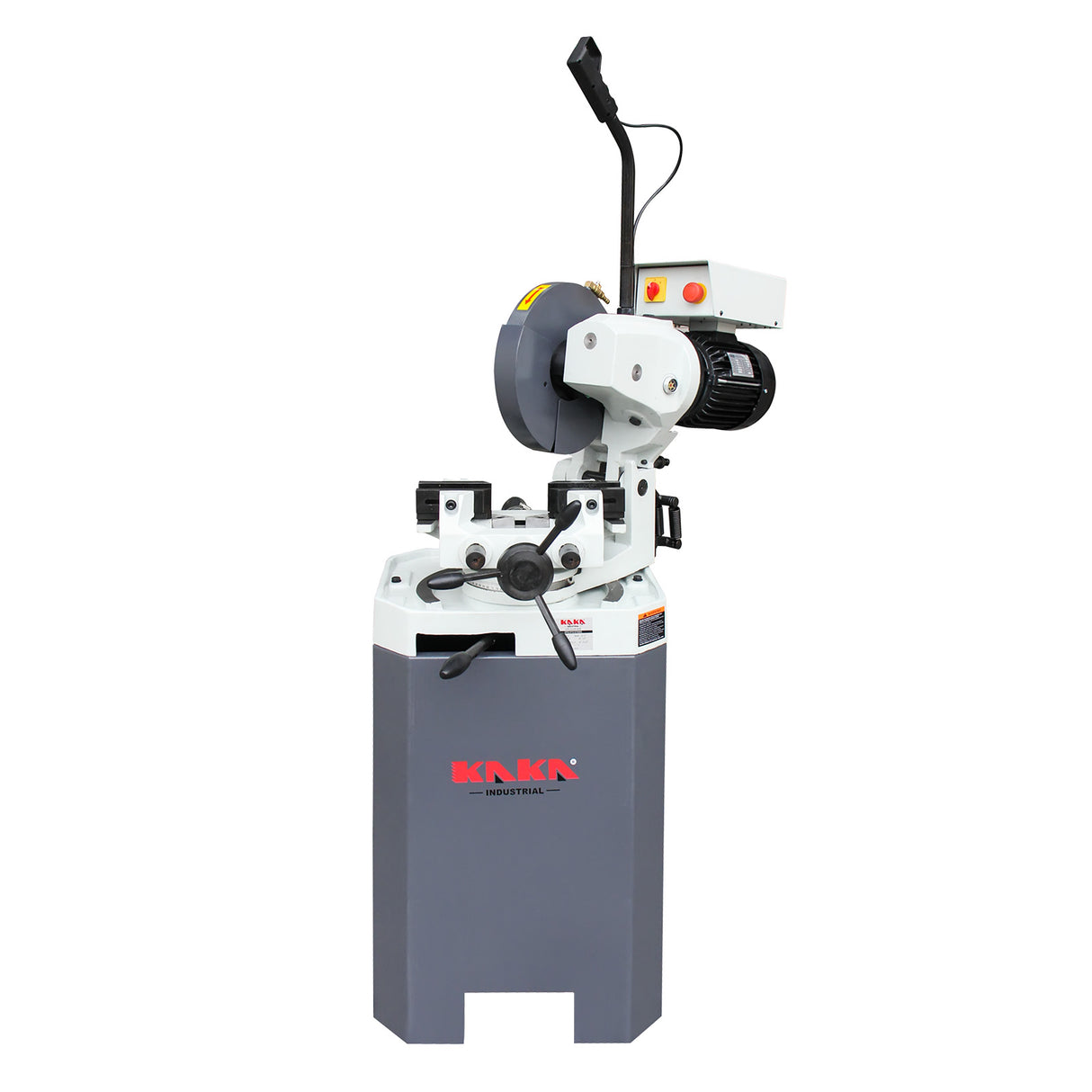

KAKA INDUSTRIAL CS-14 Heavy Duty Manual Circular Coldsaw for Ferrous Metal Cutting

The KAKA INDUSTRIAL CS-14 is a professional-grade, manual circular cold saw engineered for precision cutting of steel and other ferrous metals in workshops, fabrication shops, and industrial environments. Its dual-speed motor and robust gear drive system deliver the power and control needed for demanding metal cutting tasks.

CORE PERFORMANCE & BENEFITS

Efficient Dual-Speed Cold Cutting: Utilizing a 14-inch HSS blade, the CS-14 performs cold cuts on steel, transferring heat to the chips. The dual-speed motor (20/41 RPM) provides versatility for different cutting requirements on ferrous materials, ensuring clean, burr-free cuts with minimal material deformation.
Superior Power and Torque: The 1.5HP 3-phase motor, coupled with a gear-driven system, delivers the high torque needed for cutting ferrous materials consistently without bogging down.
Enhanced Precision and Versatility: The swivel head enables easy adjustments for ±45° miter cuts, while the double clamp structure ensures workpiece stability for accurate and repeatable results on steel.
Extended Blade Life with Coolant: The integrated coolant system reduces friction and heat when cutting steel, protecting your HSS blade from premature wear and maintaining cutting precision over time.

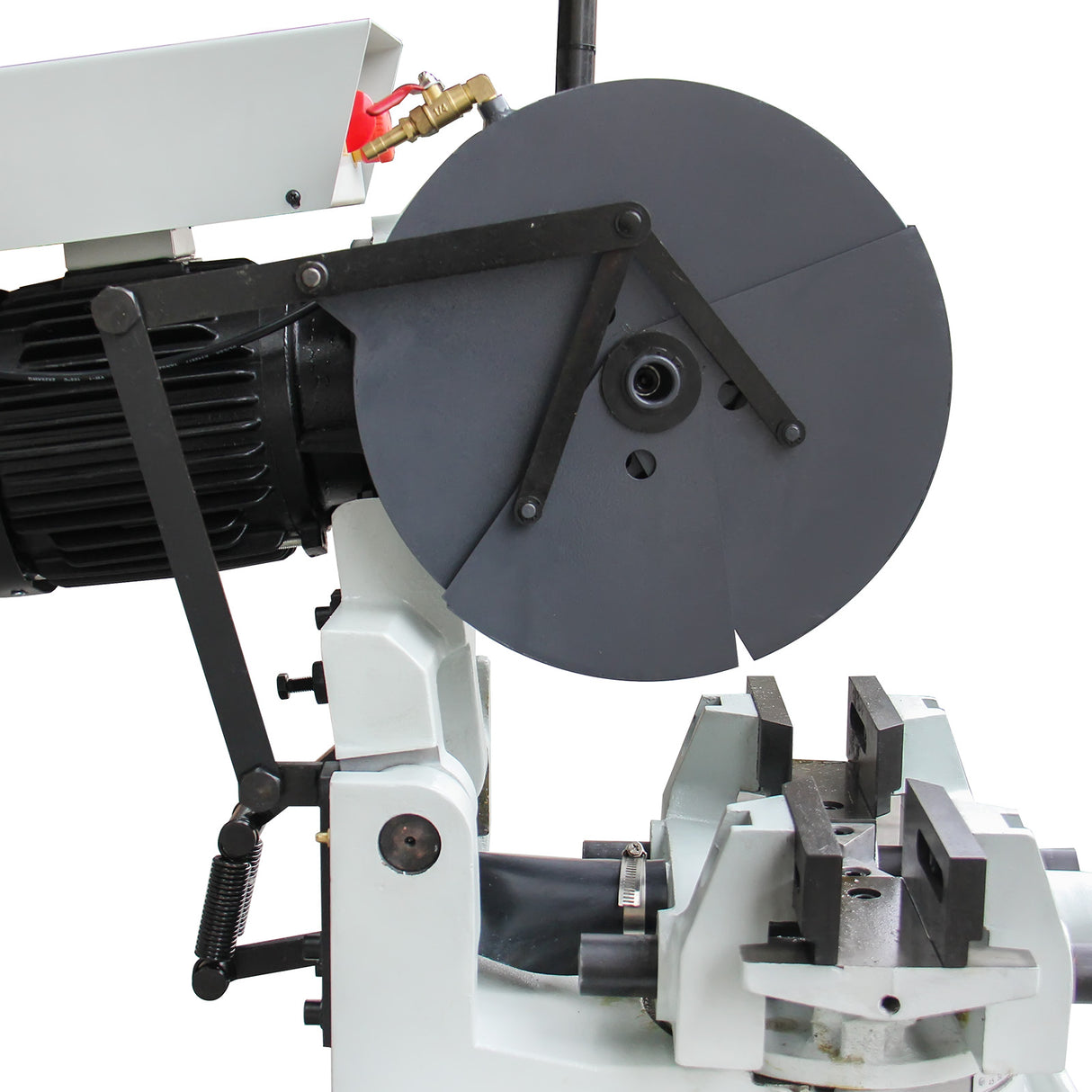

Operator Safety and Control: Features like the automatic blade safety hood are designed to prioritize operator safety during metal cutting operations.

OPERATIONAL GUIDANCE

Blade Selection: This machine is designed for use with 14-inch HSS cold saw blades, optimized for cutting ferrous metals.
Coolant Maintenance: Use a recommended mixture of coolant and water. Regularly check and clean the coolant system to prevent clogs and ensure effective cooling and lubrication when cutting steel.
Material Suitability: This cold saw is specifically designed for cutting carbon steel, low-alloy steels, and other ferrous metals. It is not recommended for use on stainless steel, aluminum, copper, or other non-ferrous materials.

TECHNICAL SPECIFICATIONS

Model: CS-14
Motor: 1.5HP (1.3kW), 230V 60Hz 3-Phase
Cutting Speeds: 20 RPM, 41 RPM
Max Blade Size: 13.8 inch
Cutting Capacity @90°: Round: 4.7”, Rectangular: 5.5”x4”
Cutting Capacity @45°: Round: 4.1”, Rectangular: 4”x4”
Drive Type: Gear
Net Weight: 520 lbs
Gross Weight: 594 lbs

10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
Returned materials must be received at Kaka Industrial in new condition and in original packaging.
Altered items are not eligible for return.
Buyer is responsible for all shipping charges.
A 15% re-stocking fee applies to all returns.

KAKA Industrial provides 12 months warranty for this product from the date of purchase.
Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

KAKA Industrial Cold Saw Spare Blades for CS-14

● Hss cold saw blade

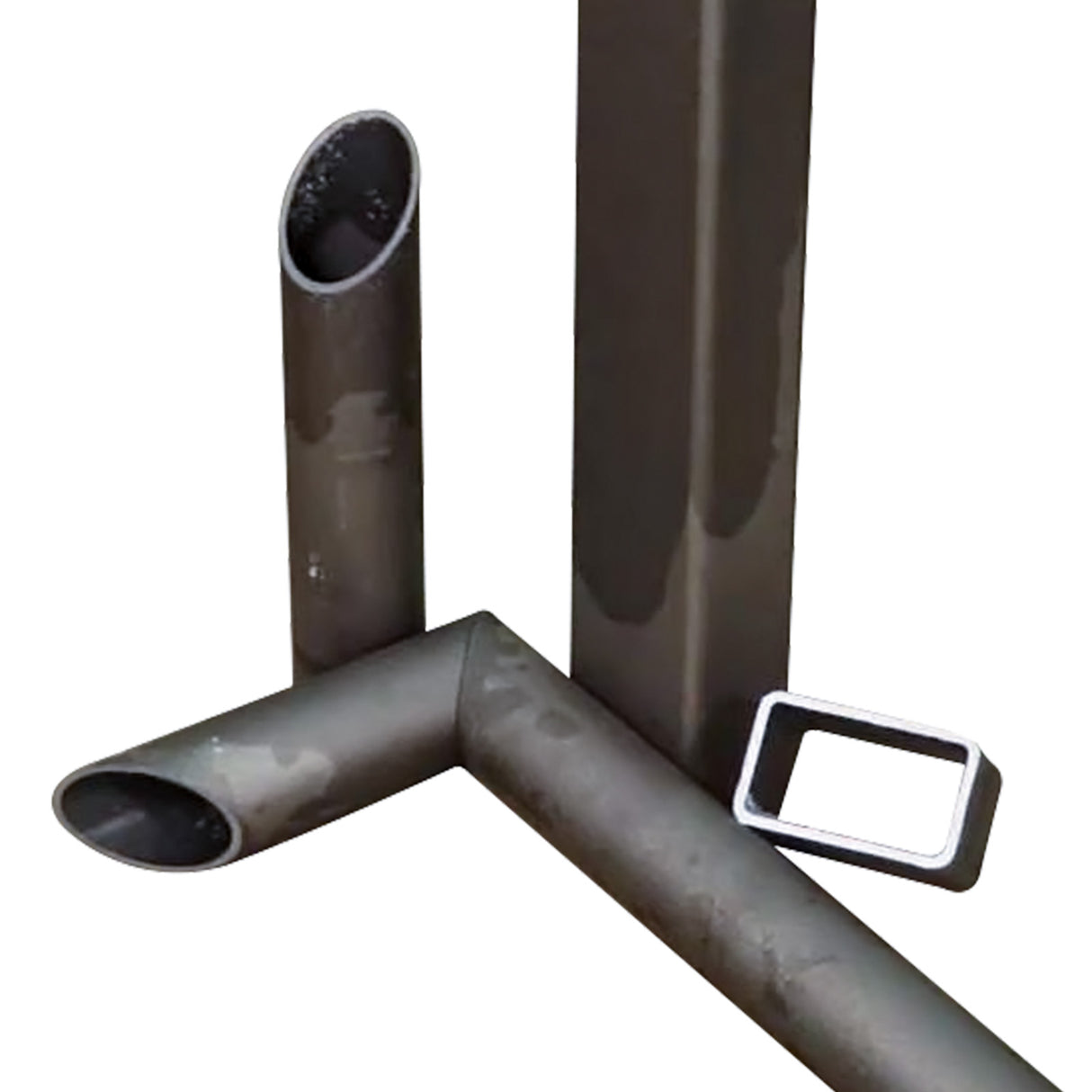

● Perfect for metal tubing cut application
● Smooth cut with minimum noise
● Clean cut finishing

1. Max. cutting 4.7" diameter

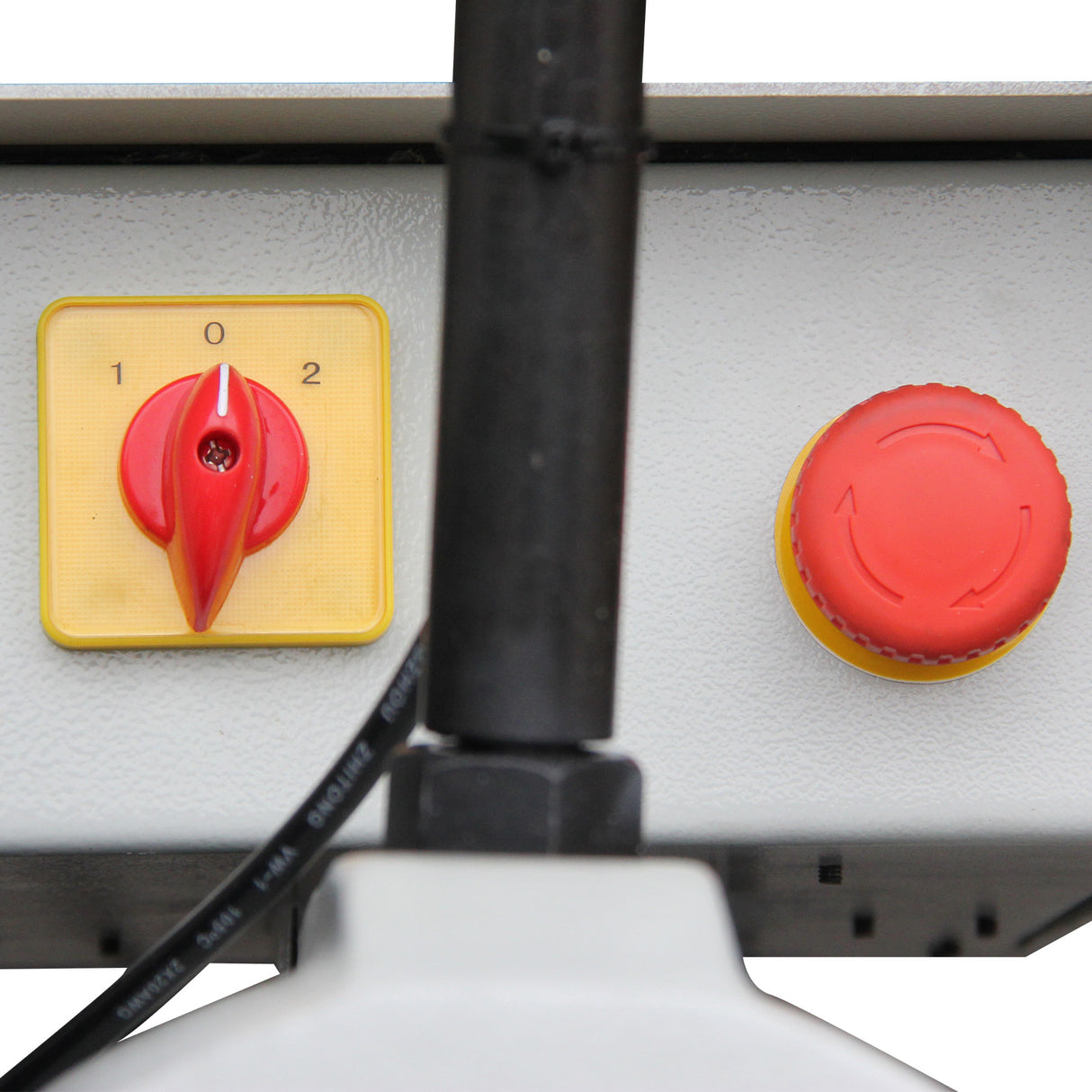

2. 3 phase strong double Speed motor
3. Movable head 45° right and left
4. Reduction unit in an oil bath
5. Built-in cooling system
6. HSS saw blade featured highly efficient and durable
7. Safety saw blade protection

Item No.	188020
Model	CS-14
Blade size	13.8"
Circular @90°	4.7"
Rectangular @90°	5.5"x4"
Circular @45°	4.1"
Rectangular @45°	4"x4"
Blade speed @ 60Hz	21,43rpm
Vice opening	5.7"
Motor power	750W 1HP/1.3kW 1.7HP(3PH)
Drive	Gear
Packing size (body)	39"x25"x39"
Packing size (stand)	30"x22"x19"
N.W./G.W.	520/594 lbs

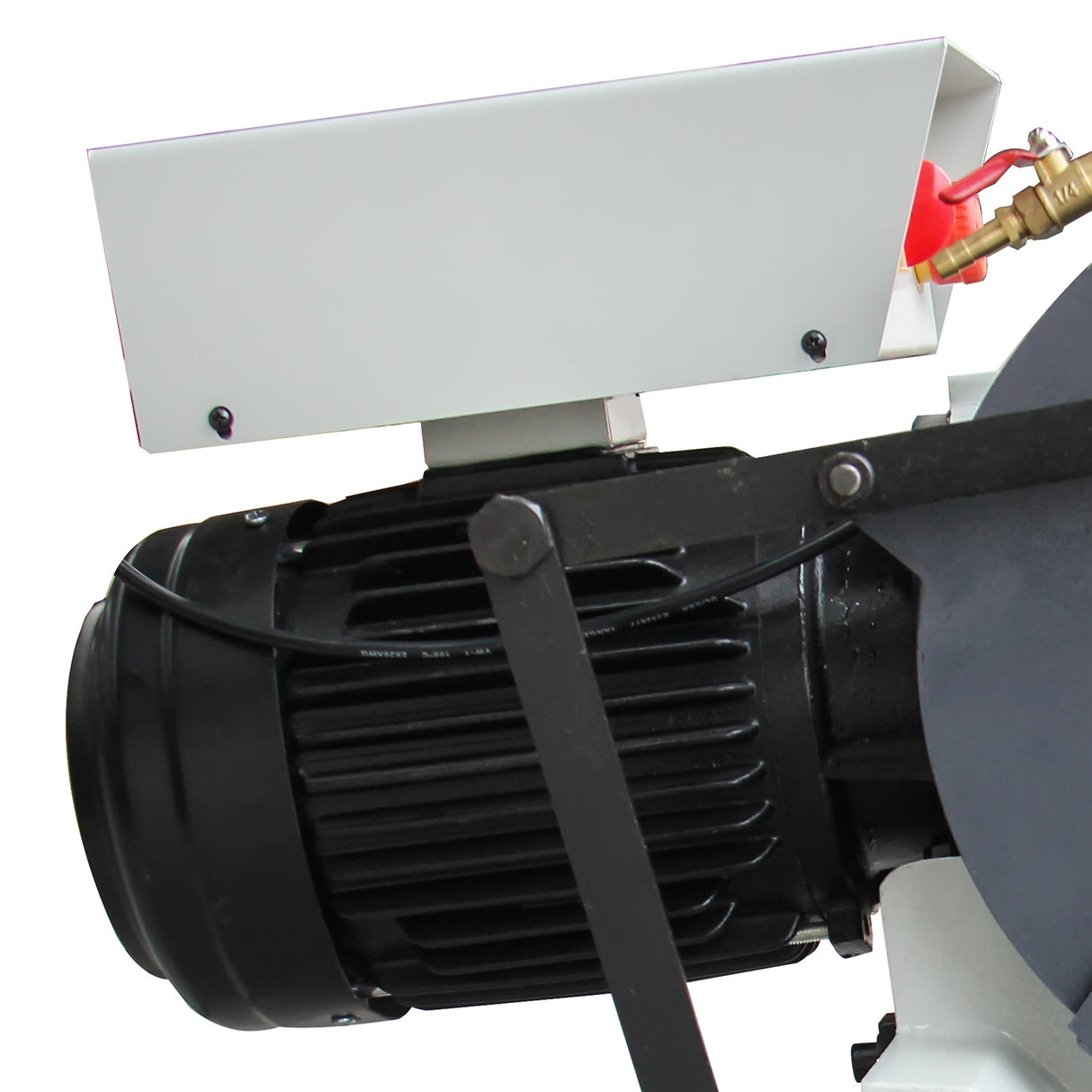

Motor

3-phase powerful double-speed motor.
Blade

The HSS saw blade is highly efficient and durable.

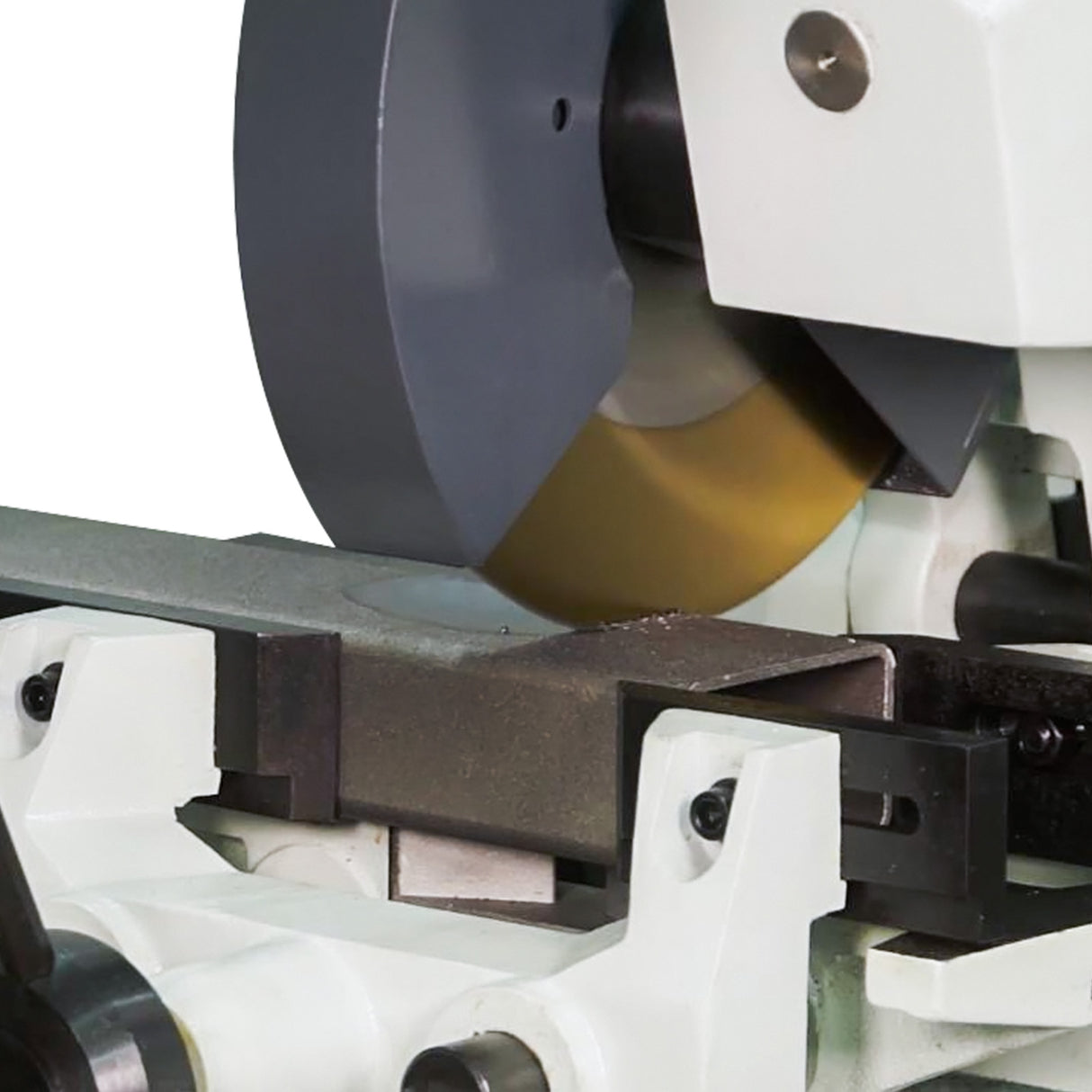

Vise

Two clamping points vise quick adjusting vise for angular cuts the saw frame swivels.

KAKA Saw

I had a cold saw previously from a competitor of yours that was lost in a fire.
It would still only be less than a year old. The KAKA is far and away easier to use for $1500 less. So far I love this saw.

Perfect saw at 1/2 the price of Bail#$y, super solid, nicely built, great vise

I anted a coldsaw for under $2k, everything I was seeing was only 10-11 inch. At a 45 degree miter (the main reason I use the coldsaw) they wouldn't cut much more than 2", this one for $1699 is a 14" and cuts 4" at 45 degrees, AWESOME!! (I cut mainly 2x4 steel box and 4x4 and 2x2)
its main motor is 220v 3 phase, the coolant is single phase 220v.
I run my shop on single phase 220v from solar, so I ripped out the relays, transformer etc and put a small profile 220 v inverter drive for under $200 from amazon in the same control box, I used the same trigger switch to start and stop the inverter. Now I can run on singe phase, and it smoothly accelerates and decelerates, (1 or 2 seconds is enough) , Now has fully variable speed, saves power and reduces heat and ware on the motor / gearbox. and the inverter has a relay output I used to turn the coolant pump on and off automatically. I LOVE THIS SAW

the motor and gearbox are the same ones that other manufactures sell, super solid! and all the guard hardware is nicely done, thick heavy duty metal.
It also has a really nice vise, the teeth never hit the vise no matter what angle you cut at and both sides of the vise move to keep the metal centered and it has jaws on both left and right, so you get double holding, less blade breakage due to material moving and you can gut from either direction.

It could do with a bigger fluid tank, but they all could.
