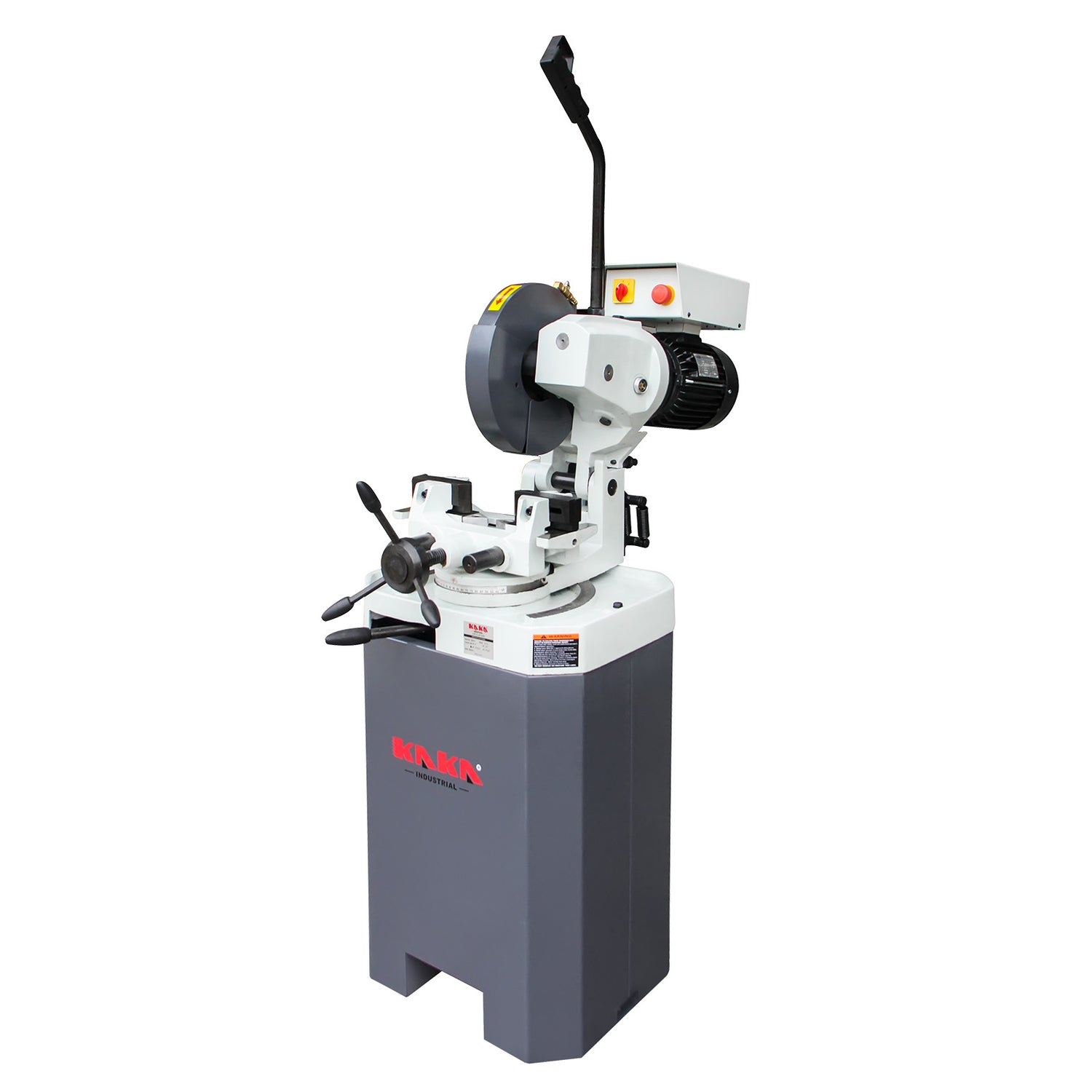

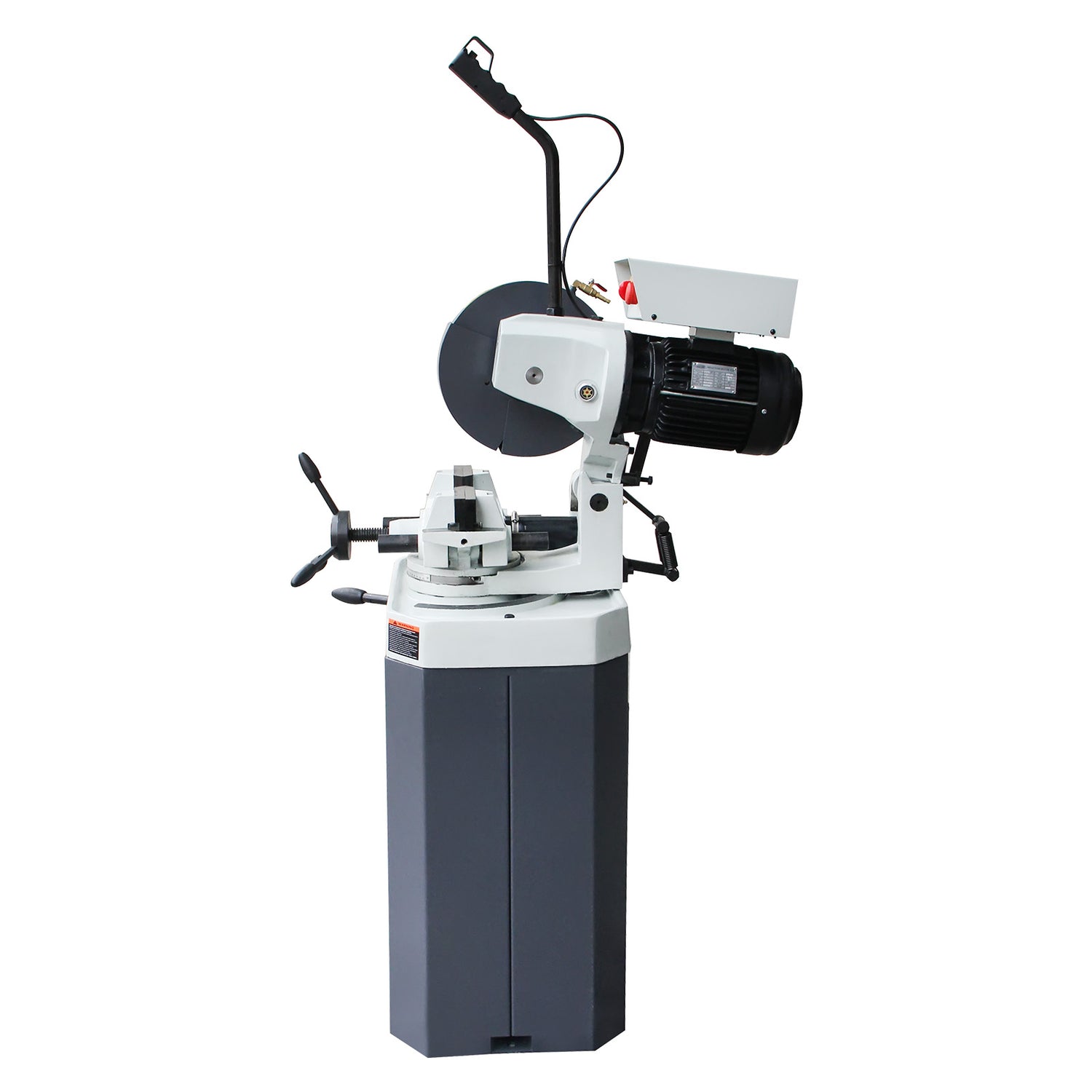

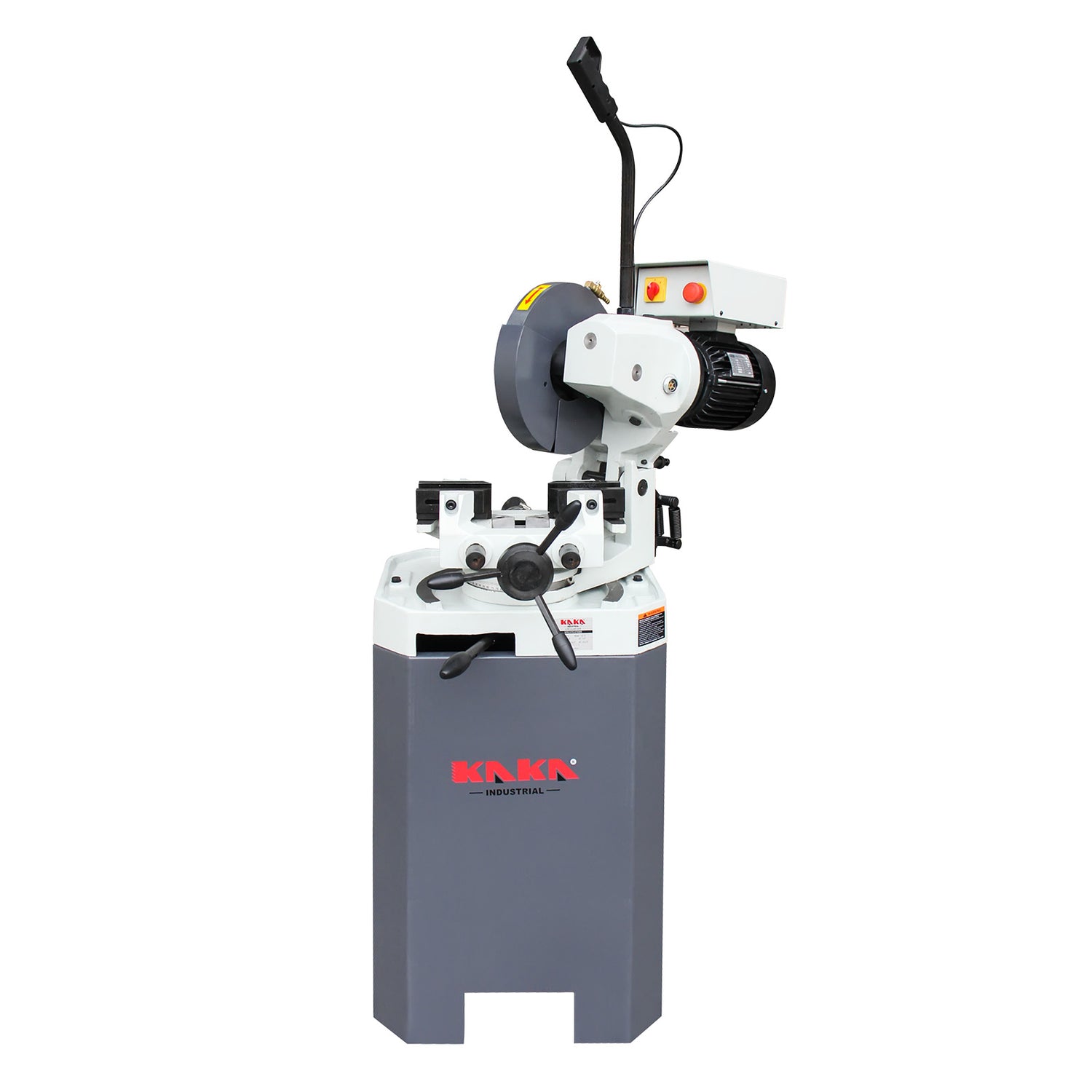

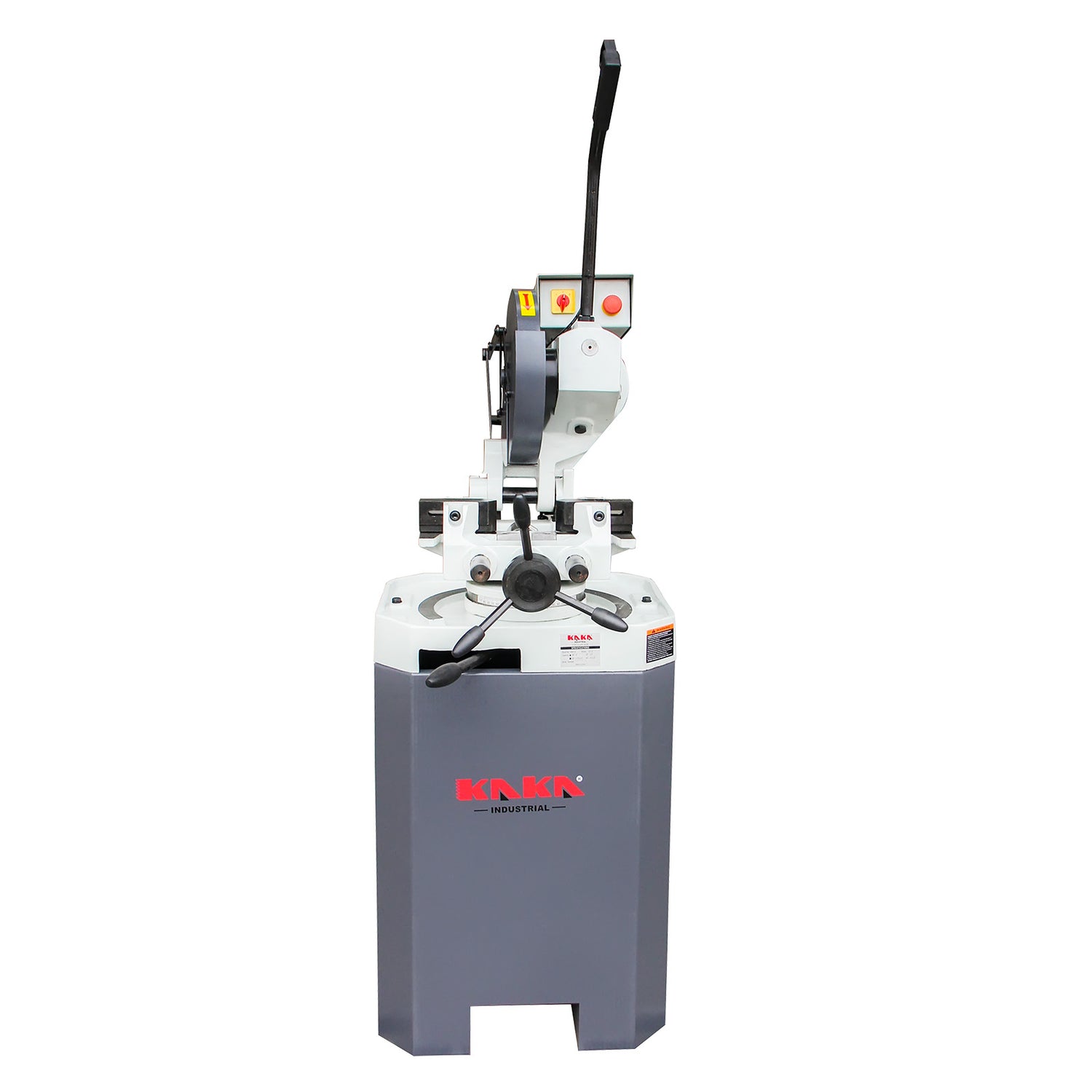

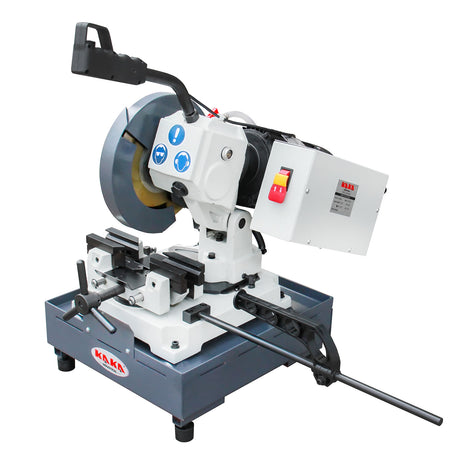

KAKA INDUSTRIAL CS-12 Heavy Duty Manual Circular Coldsaw for Ferrous Metal Cutting
The KAKA INDUSTRIAL CS-12 is a professional-grade, manual circular cold saw engineered for precision cutting of steel and other ferrous metals in workshops, fabrication shops, and industrial environments. Its dual-speed motor and robust gear drive system deliver the power and control needed for demanding metal cutting tasks.
CORE PERFORMANCE & BENEFITS
-

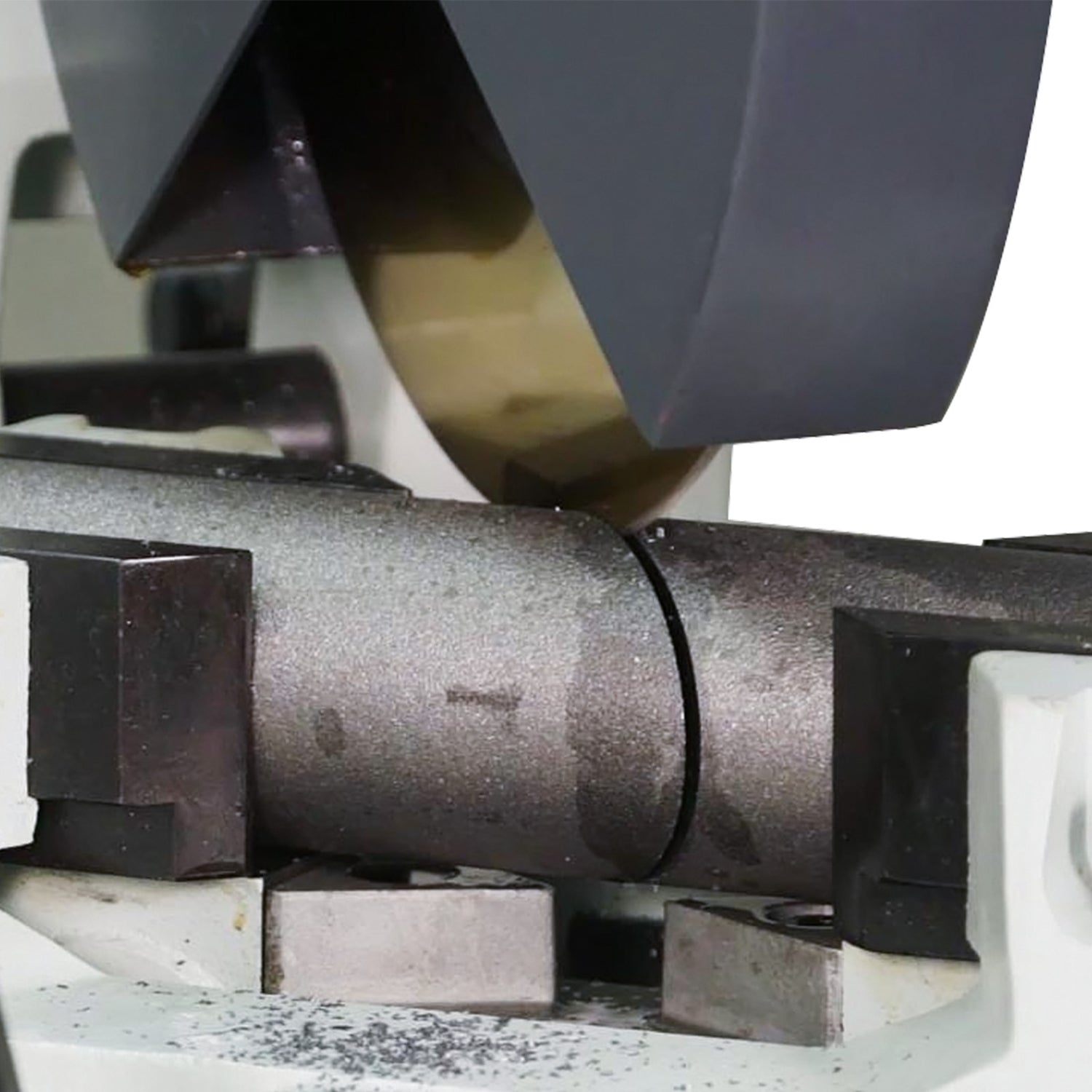

Efficient Dual-Speed Cold Cutting: Utilizing a 12-inch HSS blade, the CS-12 performs cold cuts on steel, transferring heat to the chips. The dual-speed motor (22/44 RPM) provides versatility for different cutting requirements on ferrous materials, ensuring clean, burr-free cuts with minimal material deformation.
-

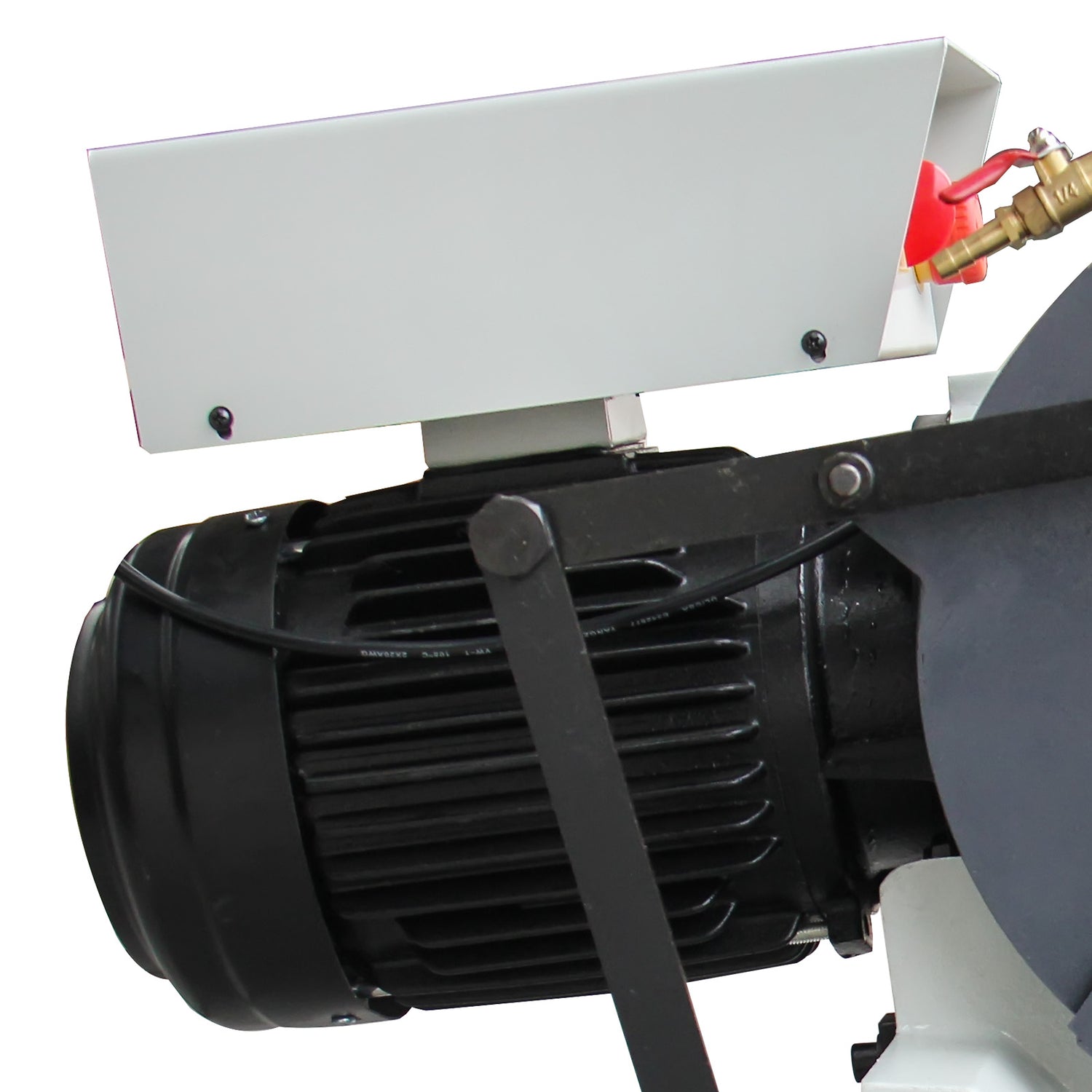

Superior Power and Torque: The 1.7HP 3-phase motor, coupled with a gear-driven system, delivers the high torque needed for cutting ferrous materials consistently without bogging down.
-

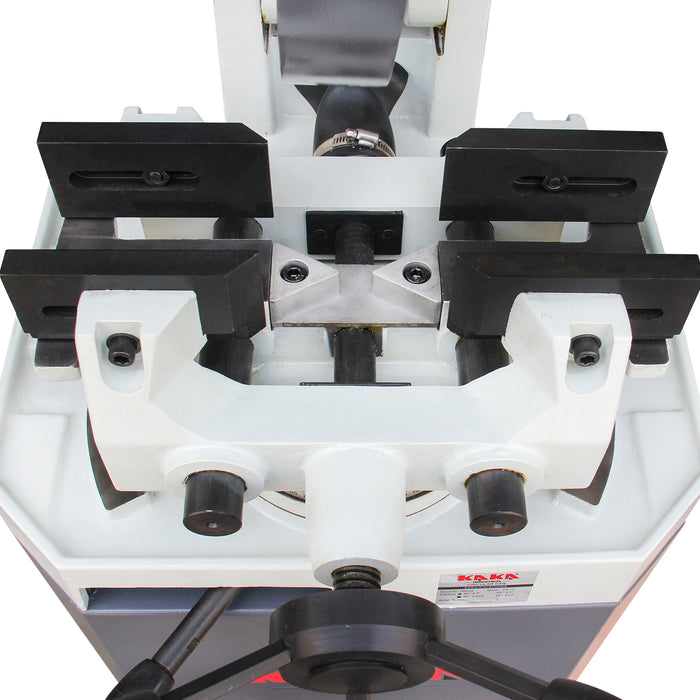

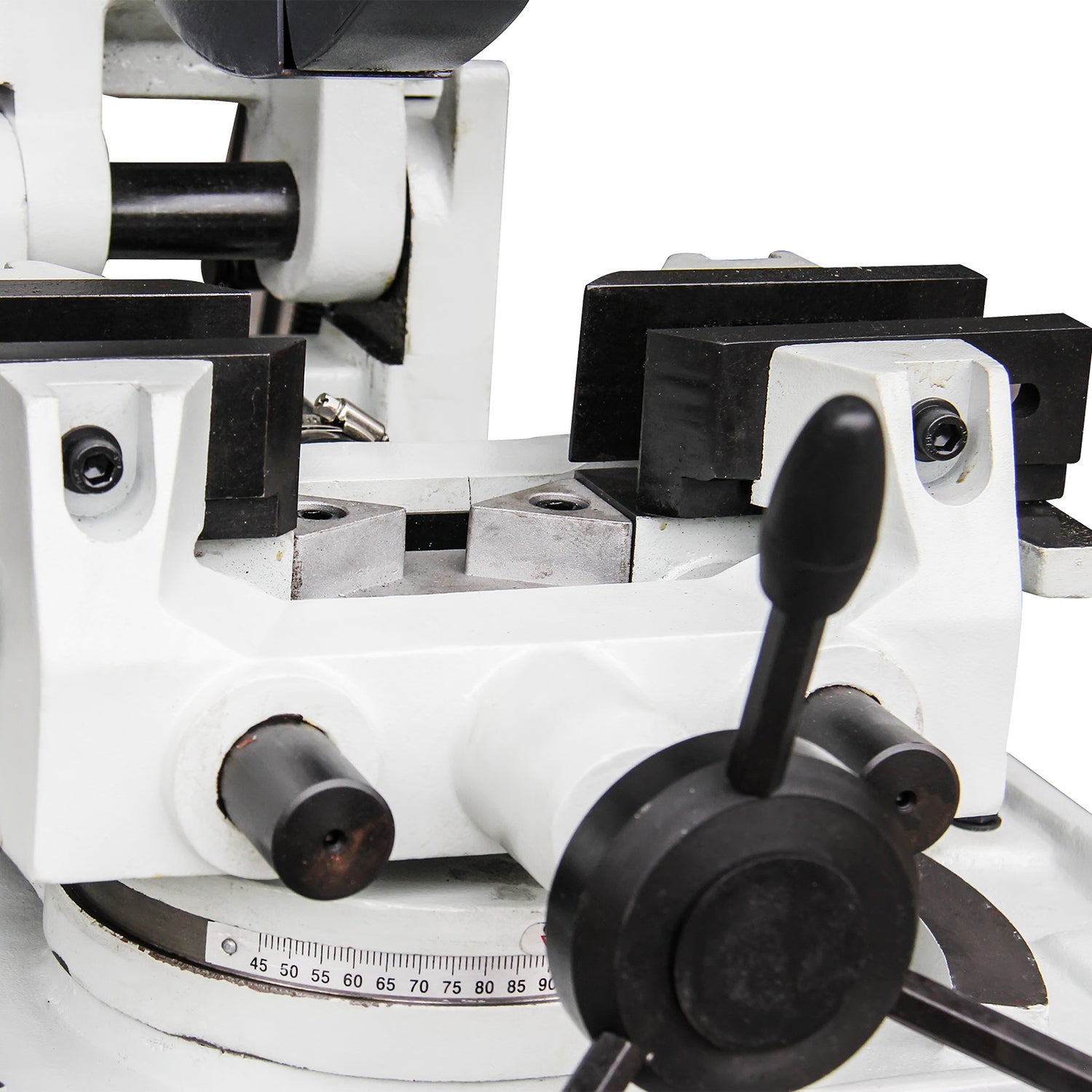

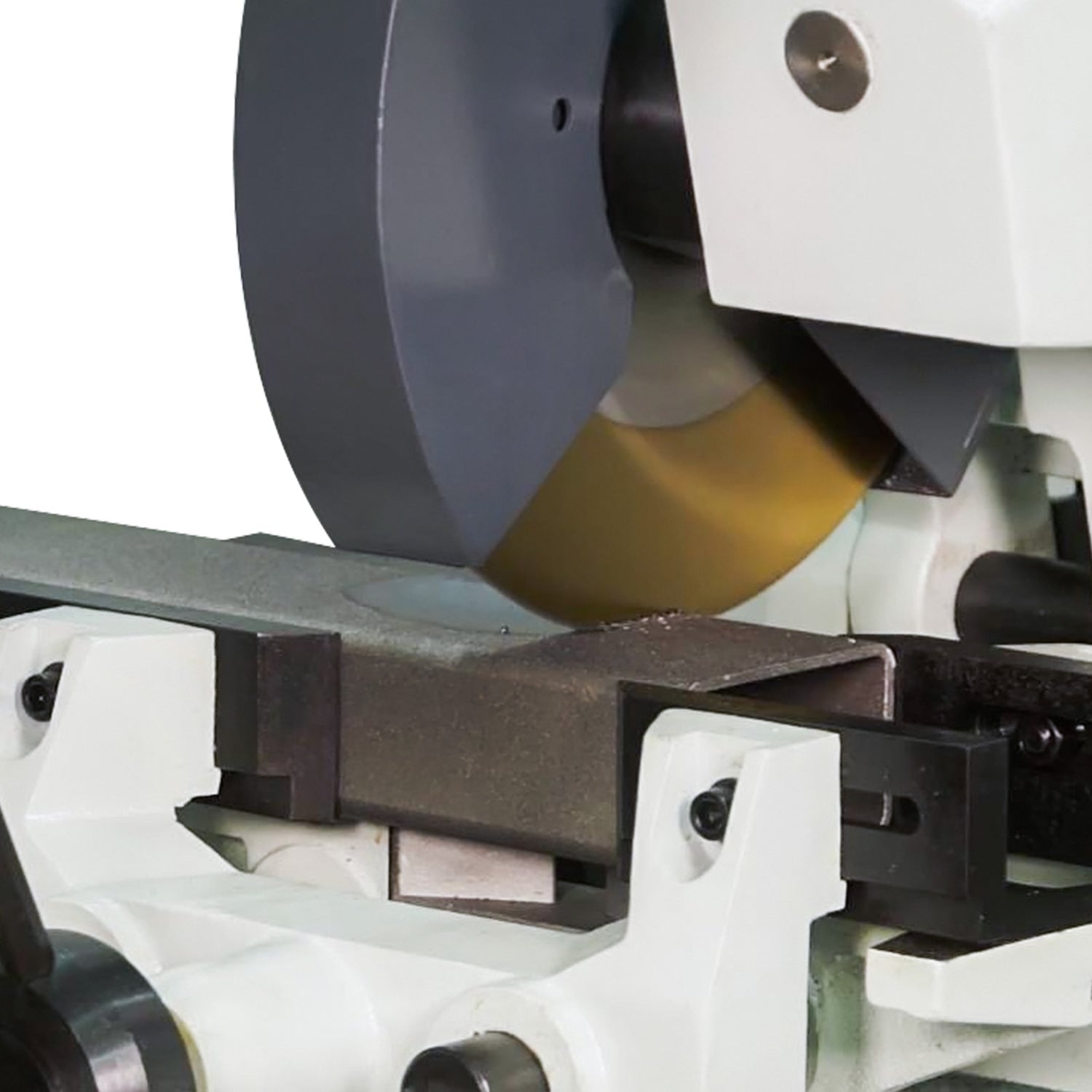

Enhanced Precision and Versatility: The swivel head enables easy adjustments for ±45° miter cuts, while the double clamp structure and quick-adjusting vise ensure workpiece stability for accurate and repeatable results on steel.
-
Extended Blade Life with Coolant: The integrated coolant system reduces friction and heat when cutting steel, protecting your HSS blade from premature wear and maintaining cutting precision over time.
-

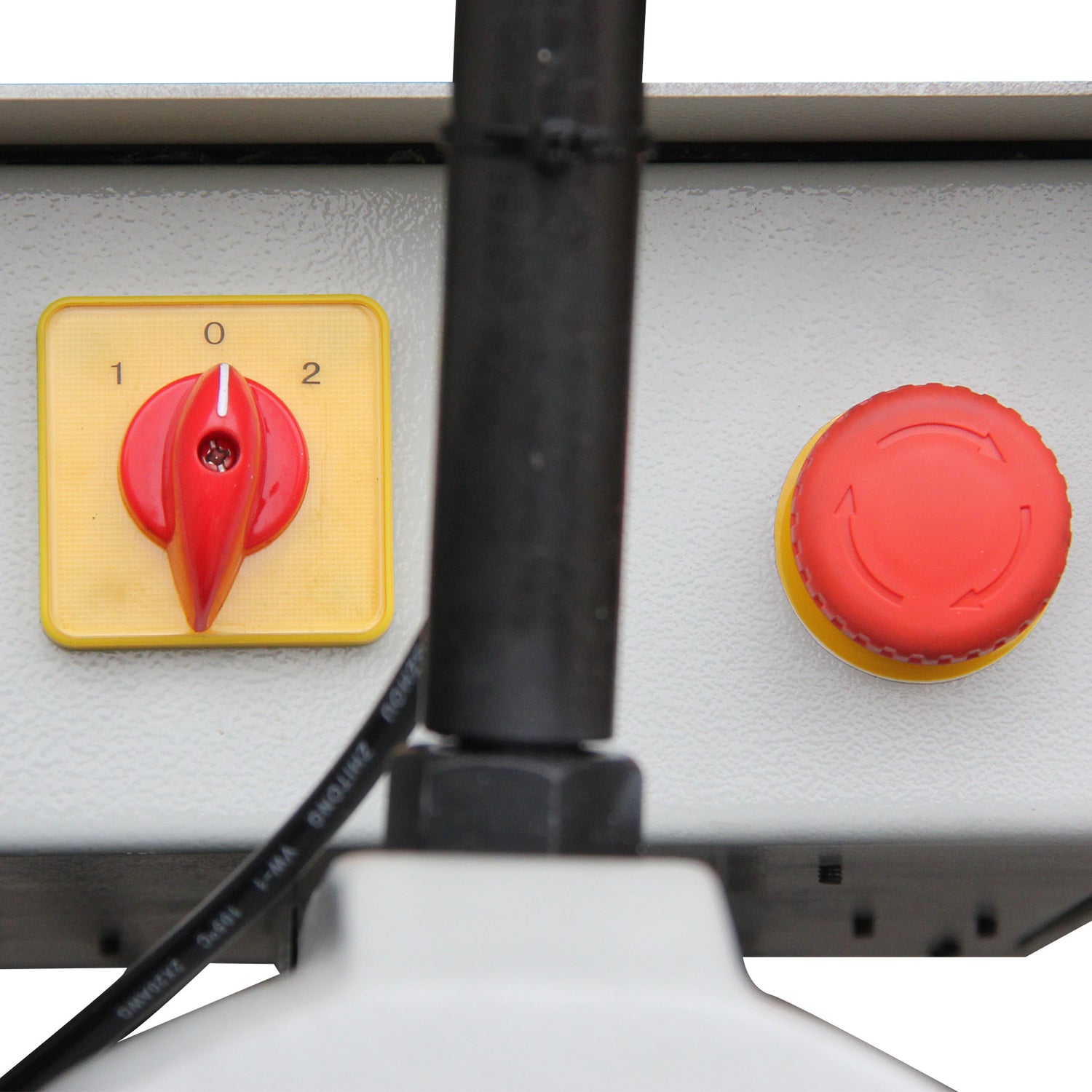

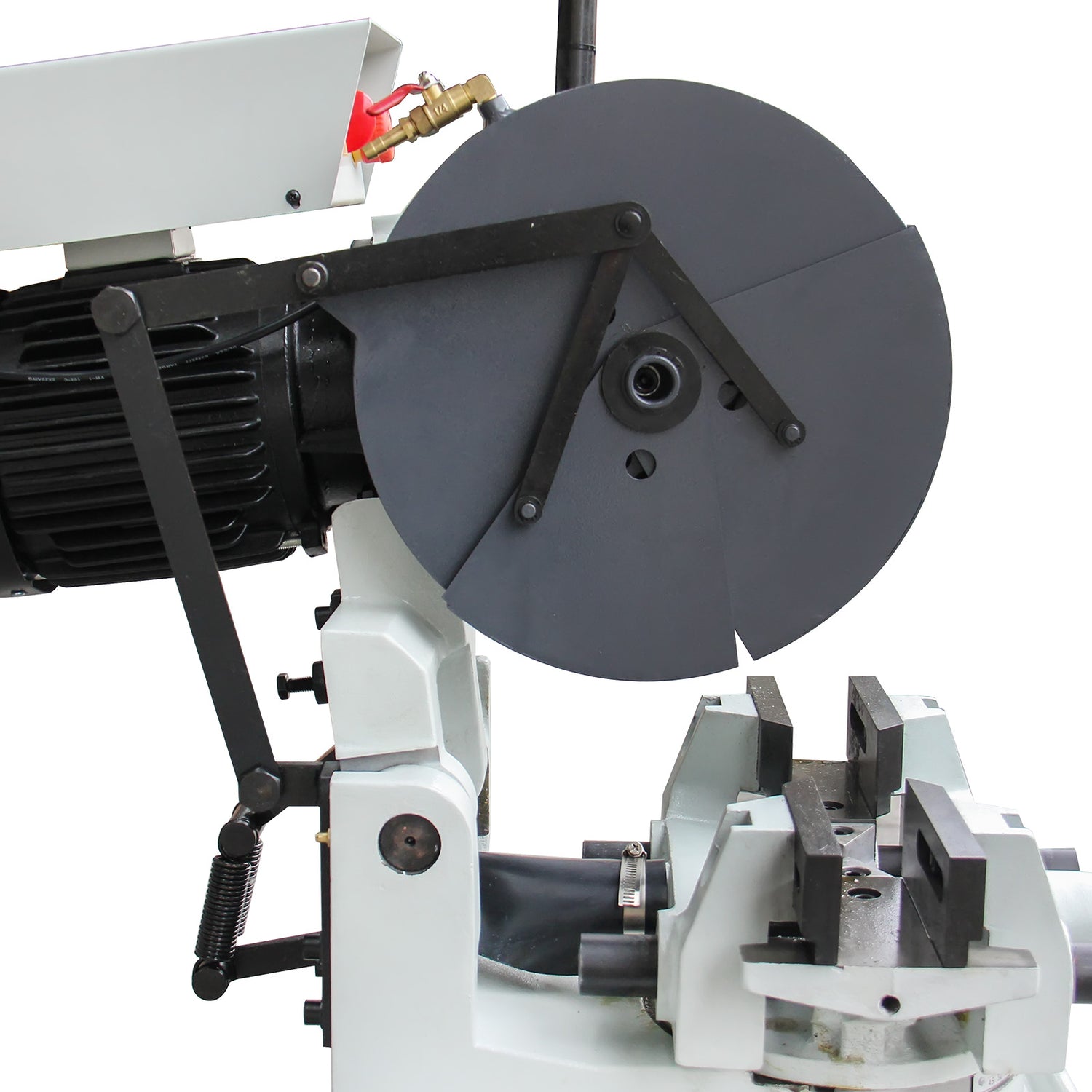

Operator Safety and Control: Features like the trigger switch and automatic blade safety hood are designed to prioritize operator safety during metal cutting operations.
OPERATIONAL GUIDANCE
-

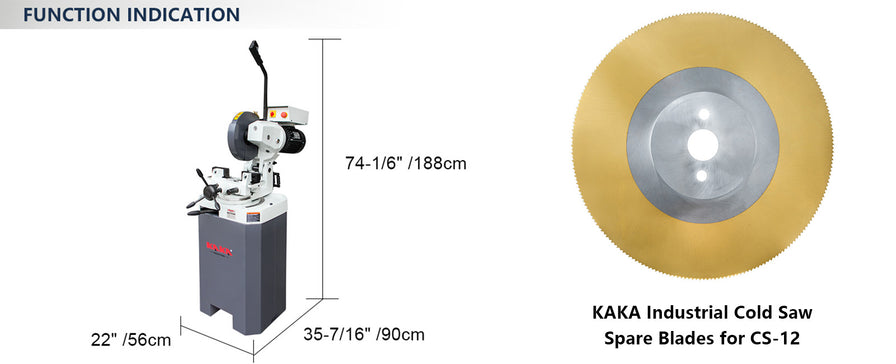

Blade Selection: This machine is designed for use with 12-inch HSS cold saw blades, optimized for cutting ferrous metals.
-
Coolant Maintenance: Use a recommended mixture of coolant and water. Regularly check and clean the coolant system to prevent clogs and ensure effective cooling and lubrication when cutting steel.
-
Material Suitability: This cold saw is specifically designed for cutting carbon steel, low-alloy steels, and other ferrous metals. It is not recommended for use on stainless steel, aluminum, copper, or other non-ferrous materials.
TECHNICAL SPECIFICATIONS
-
Model: CS-12
-
Motor: 1.7HP (1.3kW), 220V 60Hz 3-Phase
-
Cutting Speeds: 22 RPM, 44 RPM
-
Max Blade Size: 12.4 inch
-
Cutting Capacity @90°: Round: 4”, Rectangular: 5.5”x3.5”
-
Cutting Capacity @45°: Round: 3.5”, Rectangular: 4”x3.5”
-
Vice Opening: 5.7”
-
Drive Type: Gear
-
Net Weight: 500 lbs
-
Gross Weight: 575 lbs
