Sheet Metal Brakes, Shears and Slip Roll Machine, 52 INCH High Efficiency, 16 Gauges Shear Brake Roll Combination, Versatility, Solid Construction, 3-IN-1/5216
Sheet Metal Brakes, Shears and Slip Roll Machine, 52 INCH High Efficiency, 16 Gauges Shear Brake Roll Combination, Versatility, Solid Construction, 3-IN-1/5216 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description

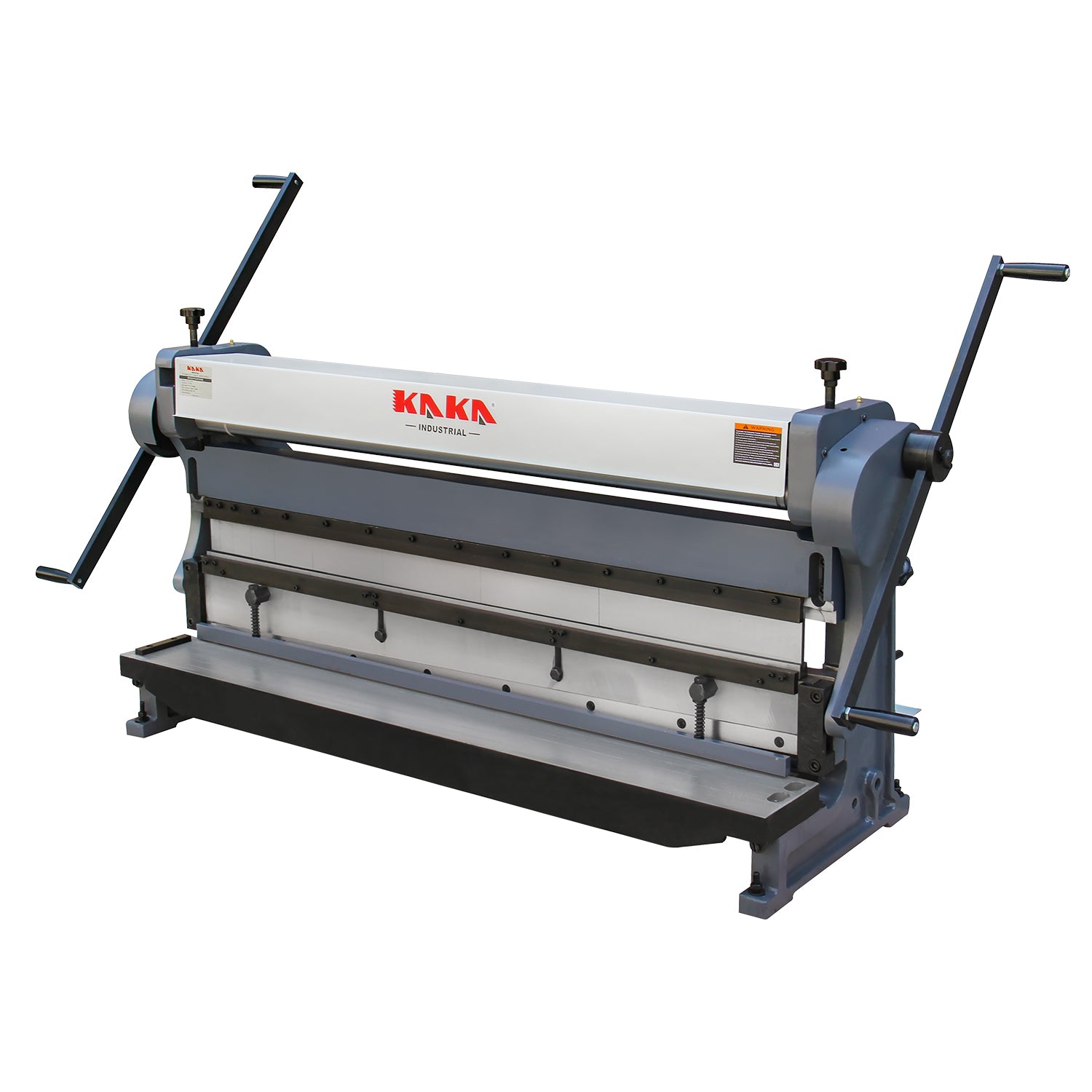

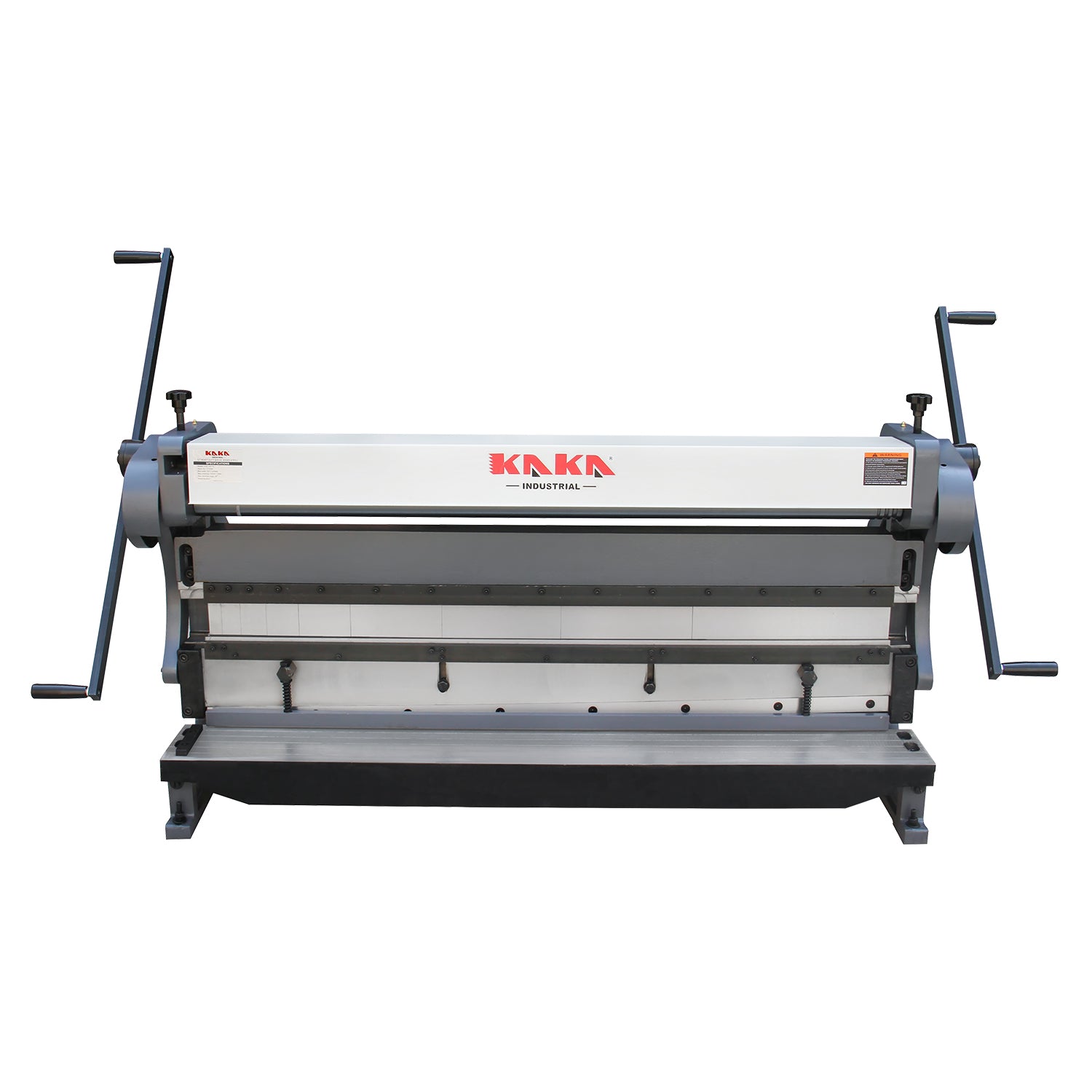

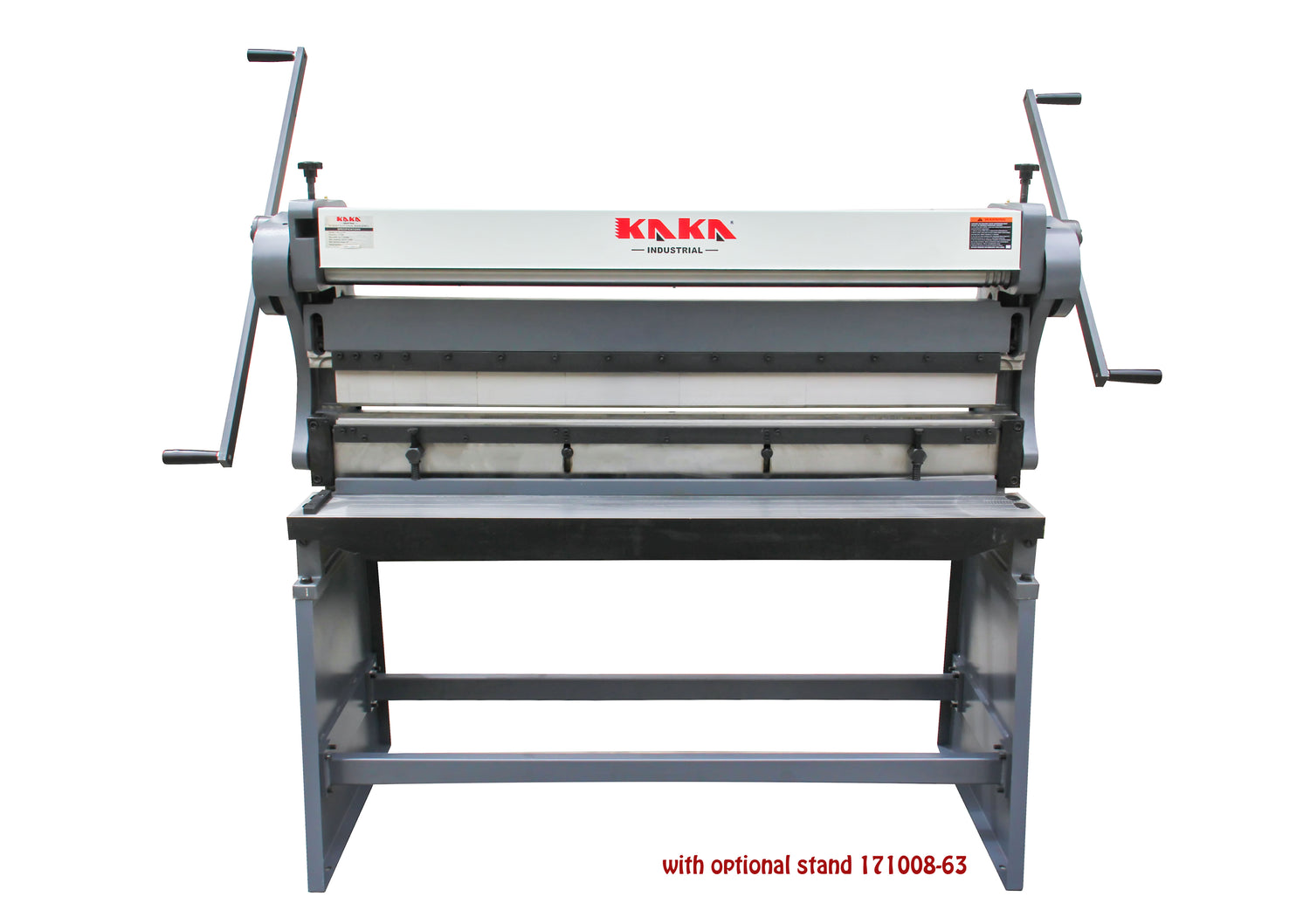

KAKA INDUSTRIAL 3-IN-1/5216 is a 52 in shear brake roll for cutting, bending, and rolling compatible sheet metal.
1. 52 in 3-in-1 Sheet Metal Machine - 3-IN-1/5216 combines manual sheet metal shear, press brake, and slip roll functions for compatible sheet cutting, bending, and rolling.
2. Function-Specific Capacity Note - Listed 16 gauge capacity applies to the machine specifications; 1.0 mm sheet can be sheared and rolled, but the V-groove brake design is not suitable for bending 1.0 mm sheet.

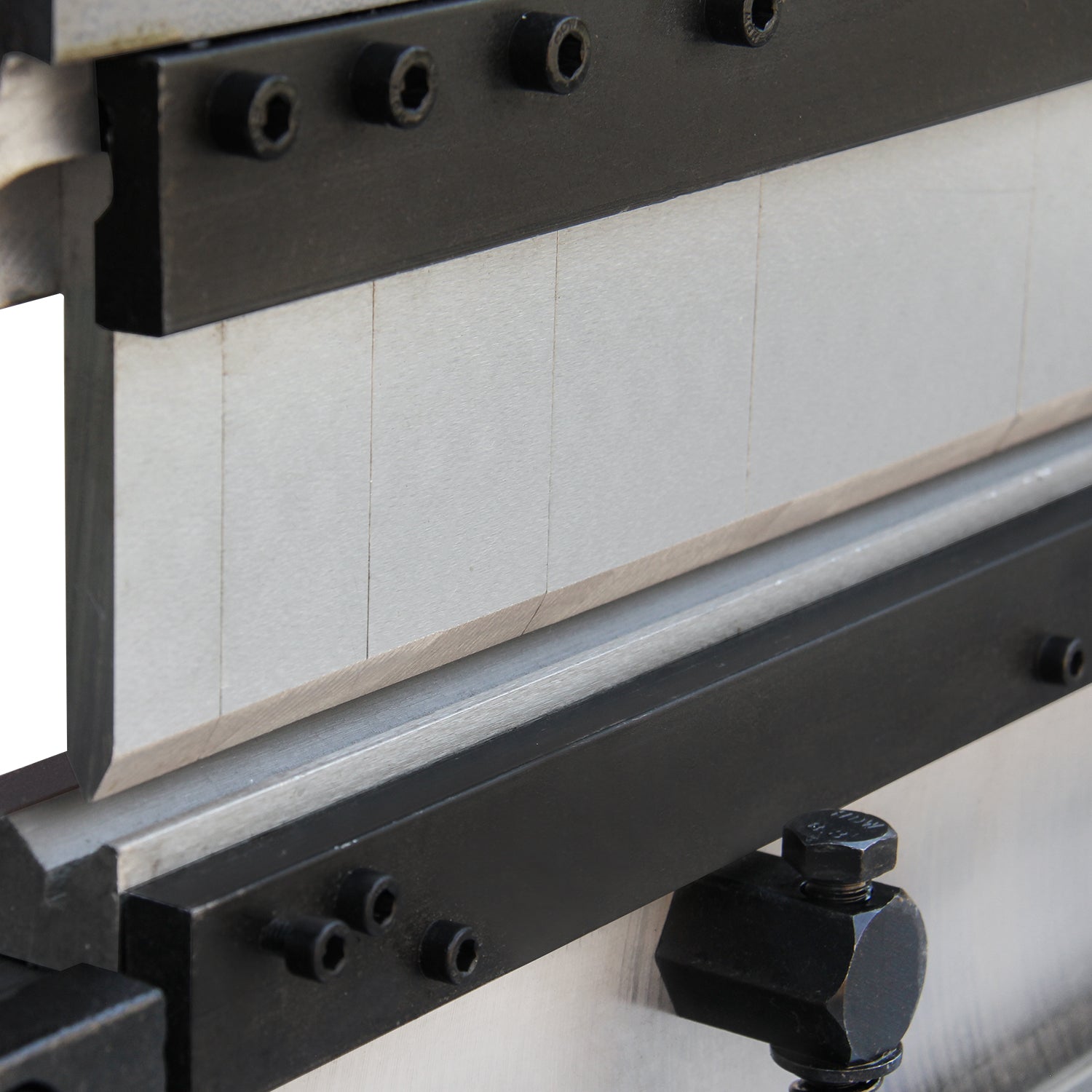

3. Brake Setup for Boxes and Pans - Removable dies and segment fingers support box, pan, flange, enclosure, and bracket bending within compatible material thickness and setup limits.

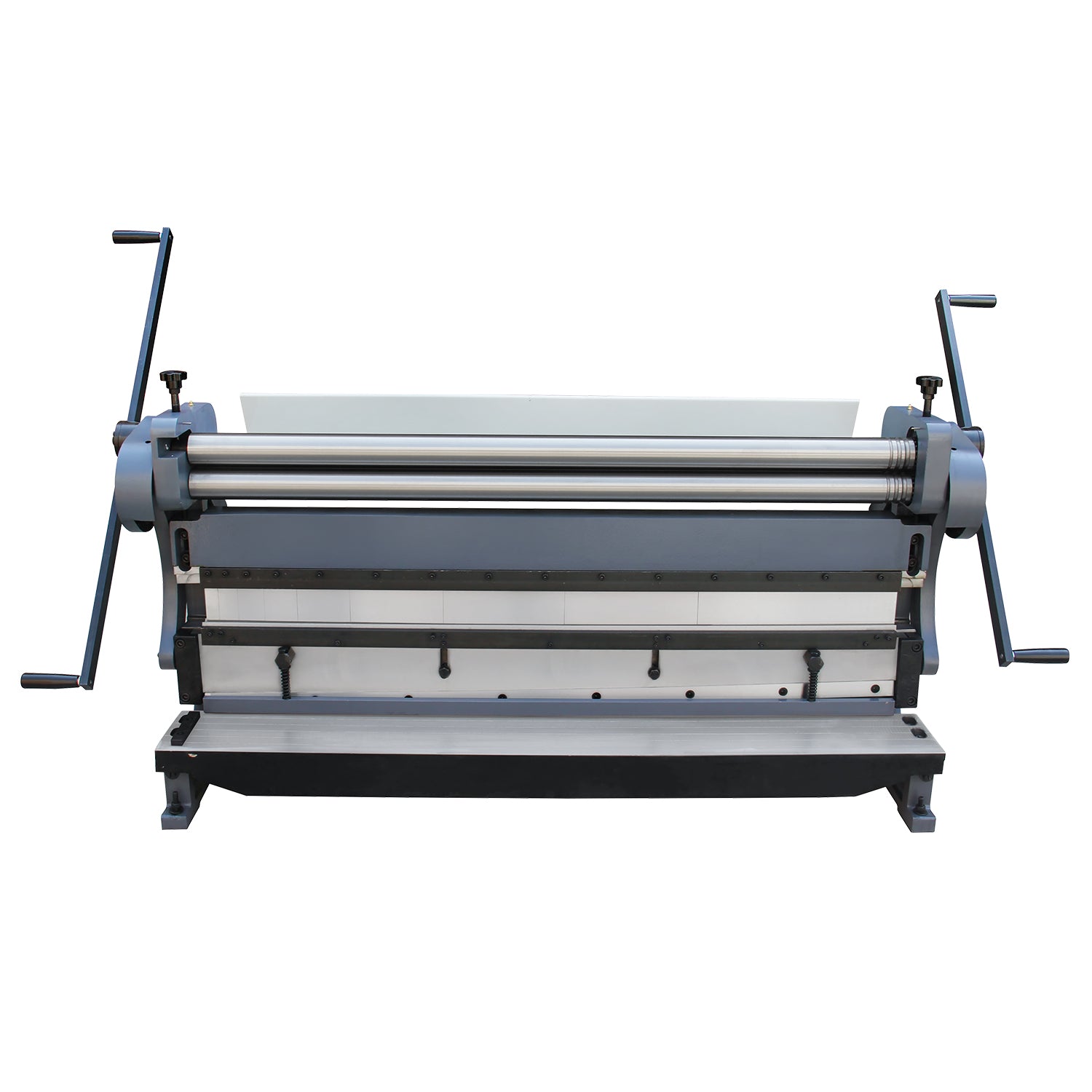

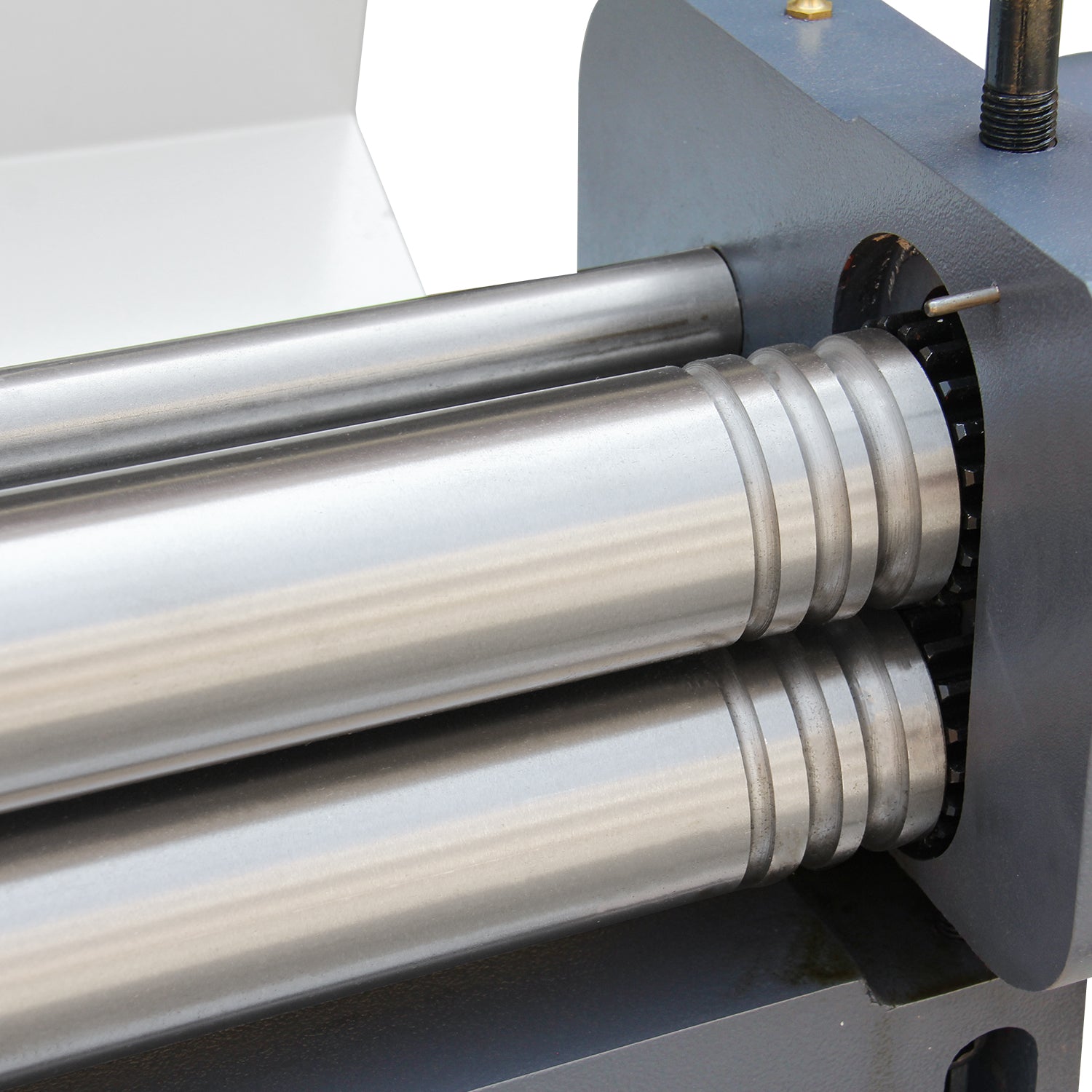

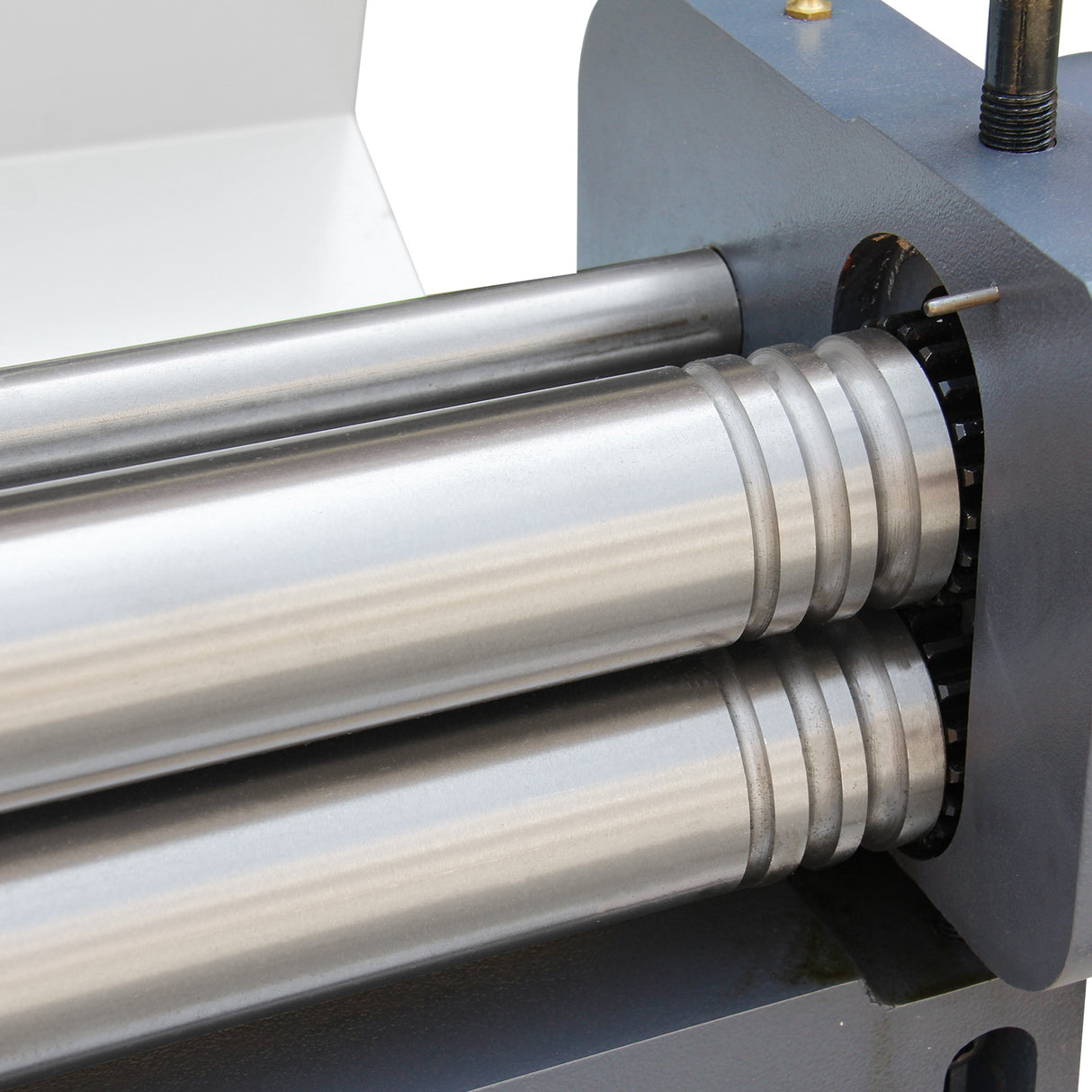

4. Slip Roll for Curved Parts - Rolling function supports cylinders, cones, and curved sheet metal parts with a listed 2.36 in minimum rolling diameter.

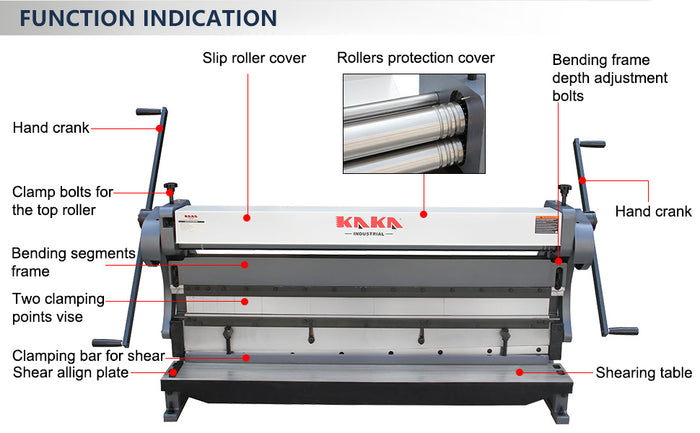

5. Manual Shop Layout - Steel-welded frame, two-position handles, back gauge, and rollers with forming grooves support cutting, bending, and rolling work in fabrication, maintenance, HVAC, and repair shops.
This 3-in-1 sheet metal machine combines a manual sheet metal shear, press brake, and slip roll in one shop machine. It is designed for users who need one machine for straight sheet cutting, box and pan bending, flanges, cylinders, cones, ductwork parts, brackets, covers, and other formed sheet metal components.
Important capacity note: the machine has a listed 16 gauge capacity for its main functions, but capacities are function-specific. Because of the V-groove brake structure, 1.0 mm sheet is suitable for the shearing and slip rolling functions, but it is not suitable for the bending function. Confirm material type, thickness, and bending setup before use.
- Model: 3-IN-1/5216.
- Machine type: 3-in-1 sheet metal shear, brake, and slip roll.
- Bed width: 52 in.
- Max. shearing thickness: 16 gauge.
- Max. bending thickness: 16 gauge, with V-groove limitation for 1.0 mm sheet.
- Max. bending angle: 90 degrees.
- Max. rolling thickness: 16 gauge.
- Minimum rolling diameter: 2.36 in.

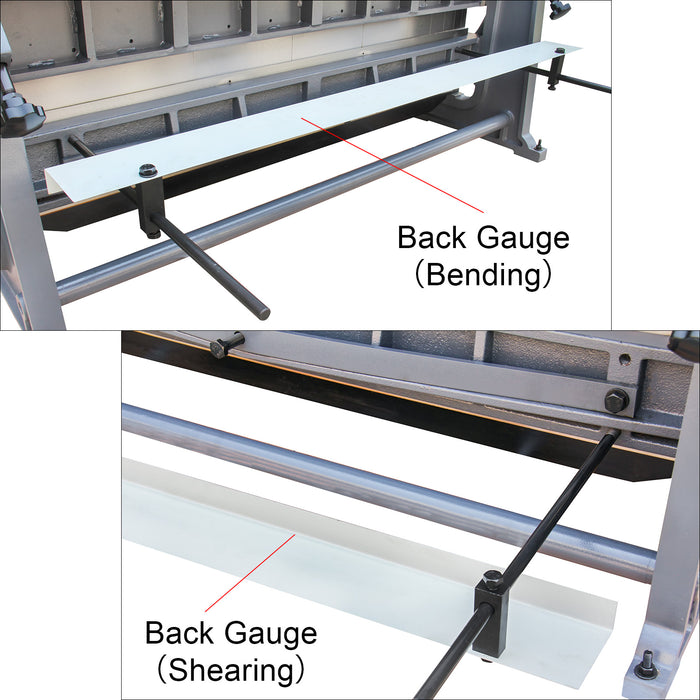

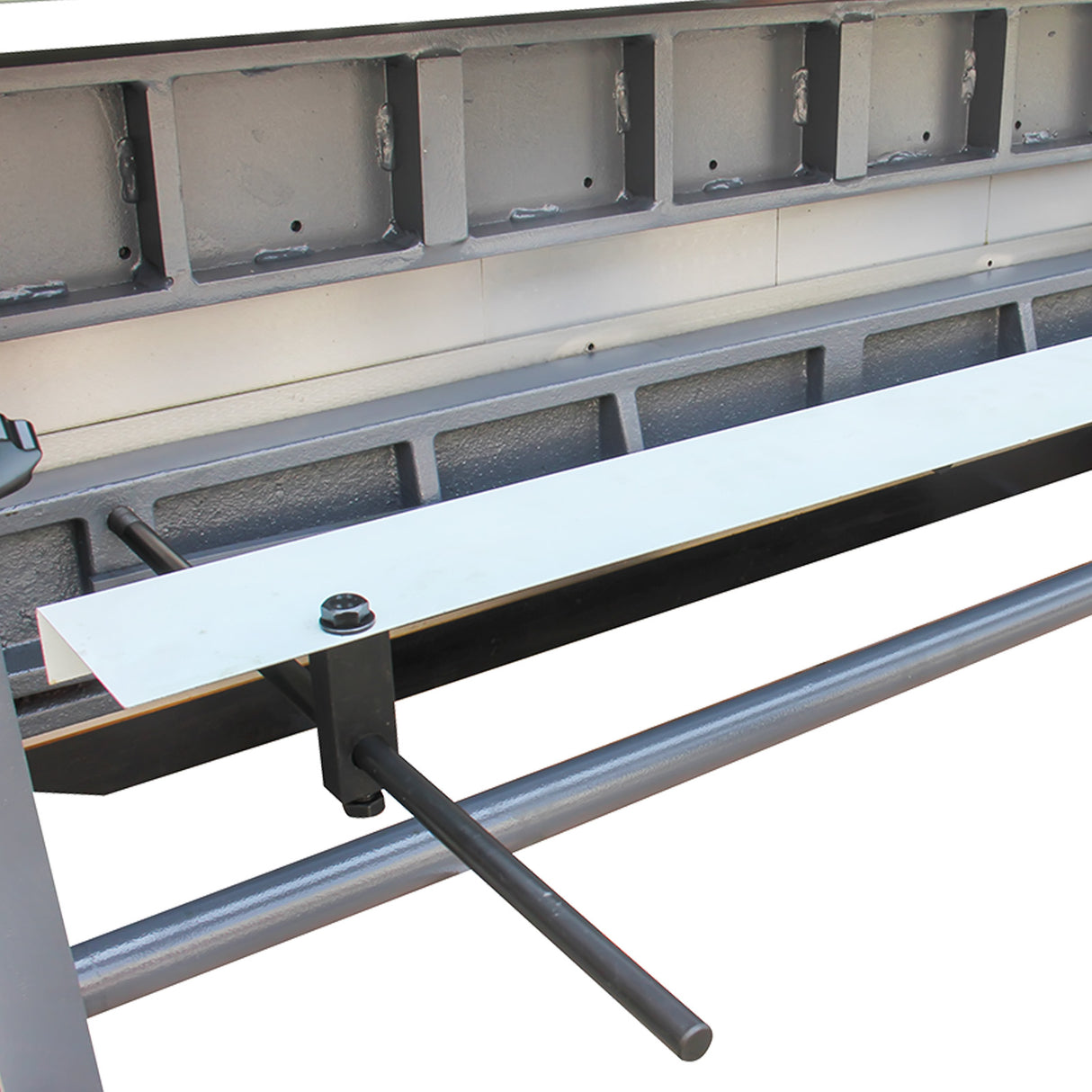

- Setup features: removable segment fingers, back gauge, two-position handles, and rollers with forming grooves.

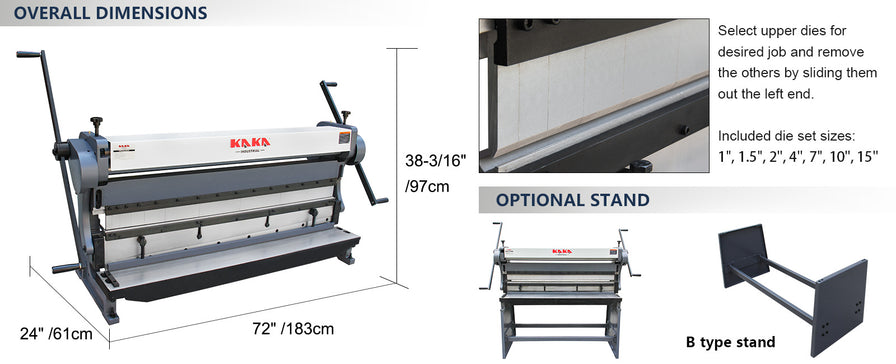

- Packing size: 71 x 23 x 37 in.
- Net weight / gross weight: 1036 / 1168 lbs.
Use proper material support and follow the listed capacity for each function. Do not assume the same sheet thickness is suitable for shearing, bending, and rolling without checking the workpiece and setup.
Customer Q&A Answer: Question: Can this machine bend 1.0 mm sheet metal? Answer: No, not for bending. The 3-IN-1/5216 can shear and roll 1.0 mm sheet, but because of the V-groove brake design, 1.0 mm sheet is not suitable for the bending function. For bending, please follow the compatible material thickness and setup limits for this machine.
Manual
3-IN-1/5216 Manual
- All-in-One Functionality for Maximum Efficiency: This 3-in-1 machine combines shears, brakes, and slip rolls. Perfect for workshops and factories, it cuts mild steel, bends boxes and pans, and rolls cylinders, cones with precision and ease.
- Heavy-Duty Build for Reliable Performance: Designed for durability, this press brake handles up to 16-gauge (1.5mm) mild steel with a 52-inch working length. The cast iron body ensures long-term use, while removable dies and segment fingers allow precise bending for various metalworking applications.
- Precision Cutting, Bending, and Rolling: Engineered for accuracy, this sheet metal bender features a back gauge for repeatability, segmented fingers for intricate bends, and two-position handles for control.
- User-Friendly Design: Ergonomic handles and sheet metal roller with forming grooves ensure smooth operation. Removable male and female dies allow easy forming.
- Versatile Applications for Workshops and Factories: Ideal for household and industrial use, it forms curved components, straight cuts, and bends. Perfect for custom metal parts, enclosures, and automotive repairs, offering professional results in a compact, multifunctional design.
| Item No. | 171008 |
| Model | 3-IN-1/5216 |
| Bed width | 52 in |
| Max. shearing thickness | 16 Ga. |
| Max. bending thickness | 16 Ga. |
| Max. bending angle | 90° |
| Max. rolling thickness | 16 Ga. |
| Min. rolling dia. | 2.36 in |
| Packing size | 71x23x37 in |
| N.W./G.W. | 1036/1168 lbs |
