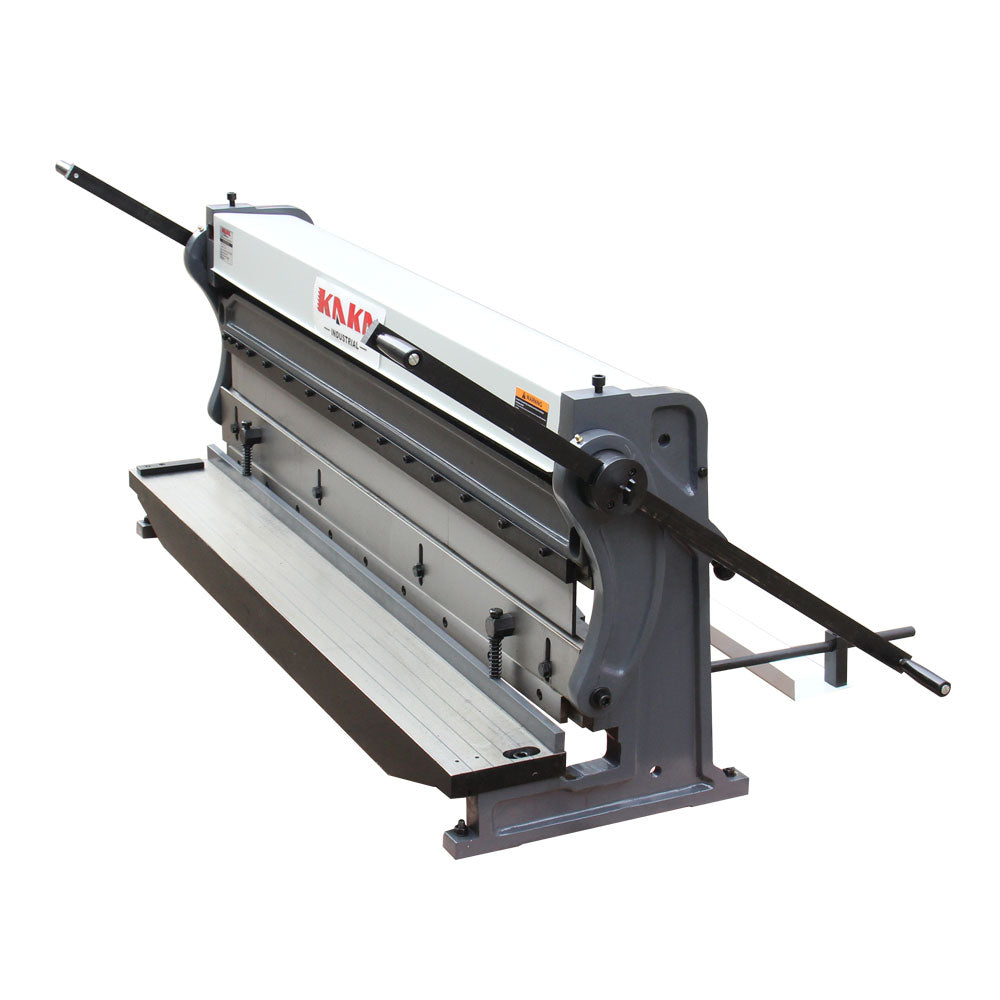

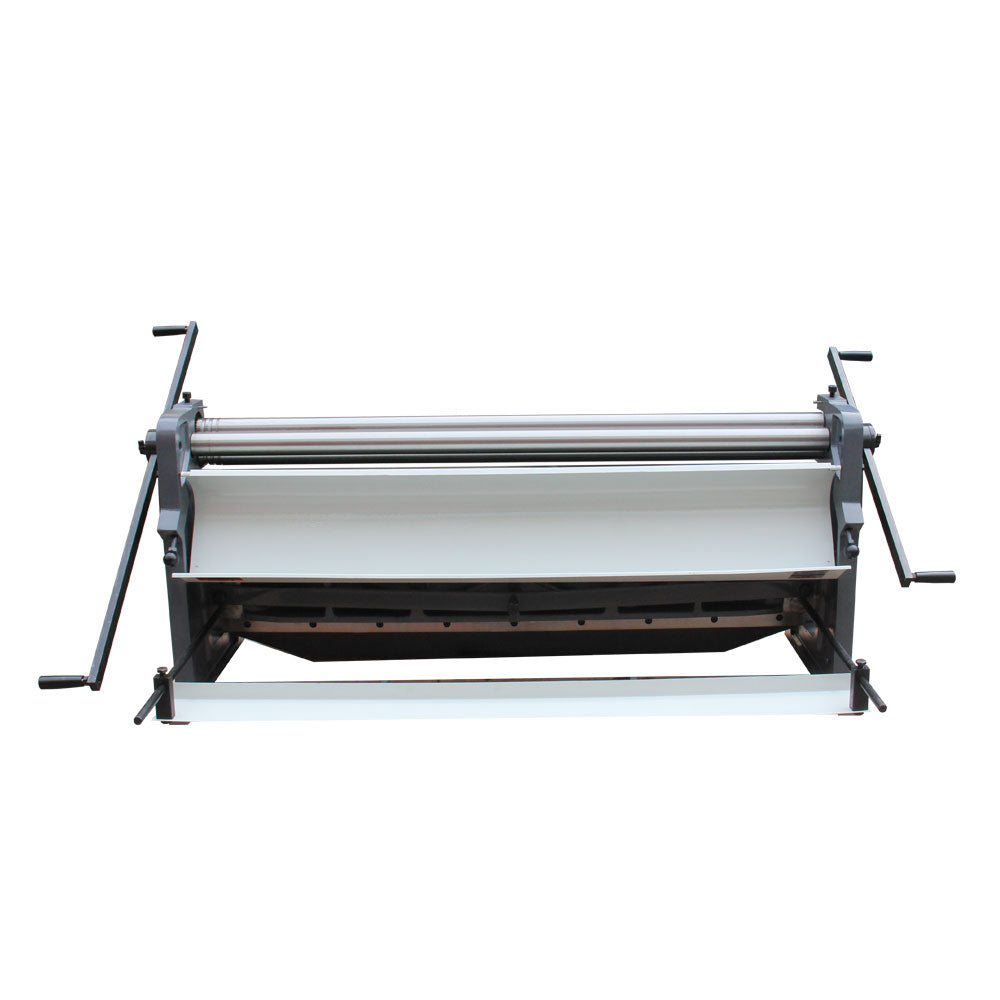

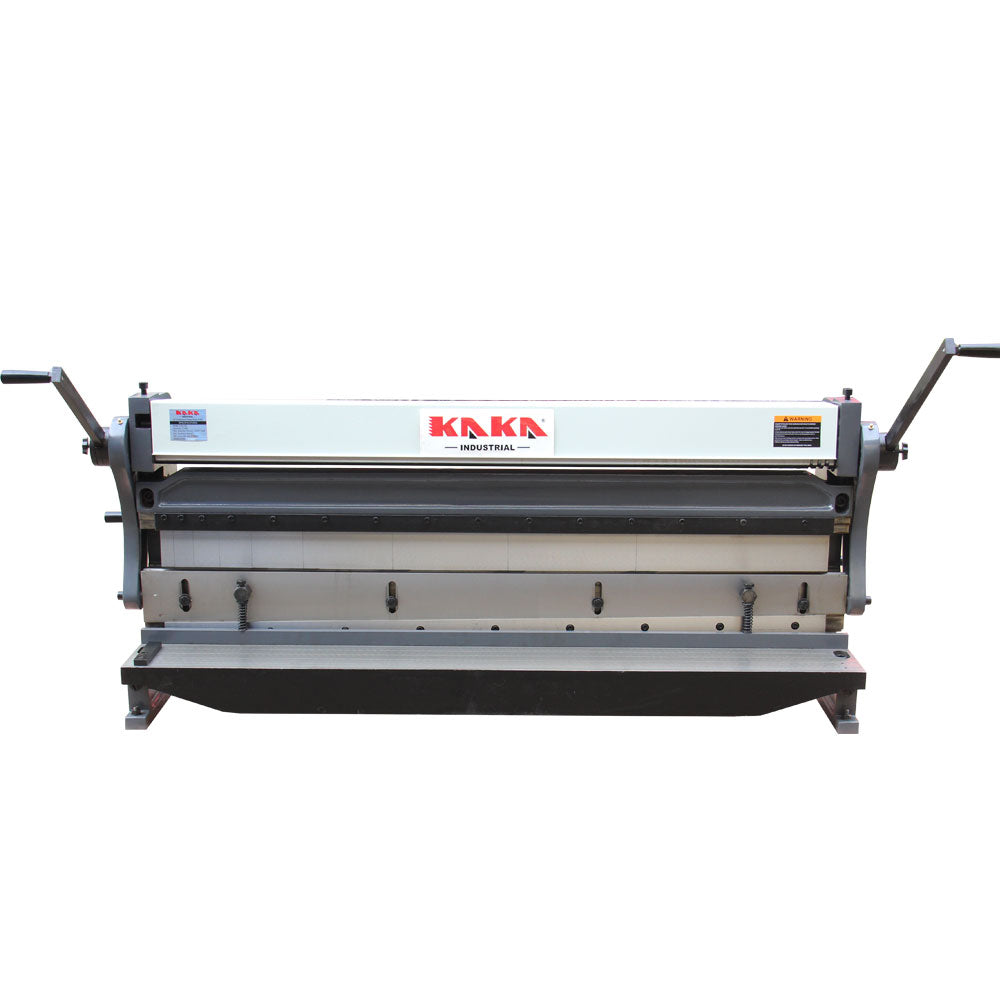

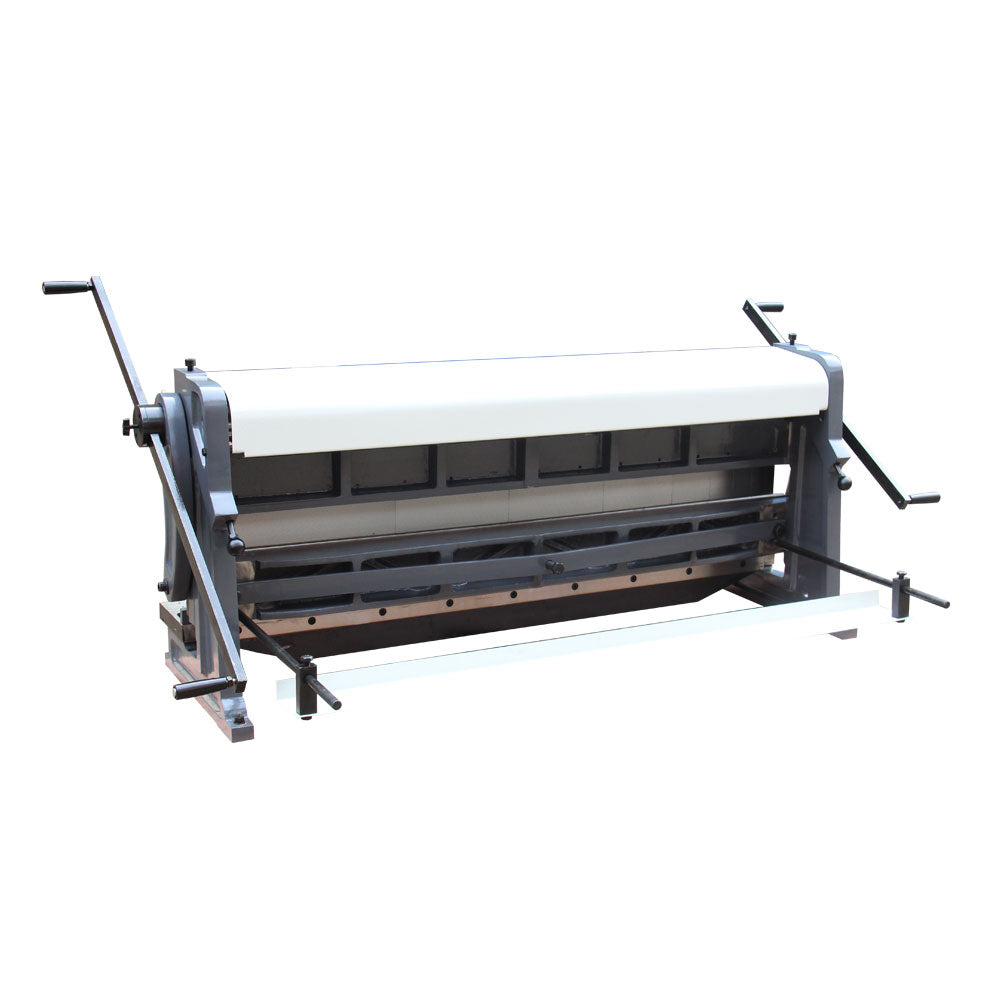

Kaka 3-IN-1/52, 52-in Sheet Metal Brake, 3-in-1 Shear Brake Roll Combinations

1.Press brake has hardened adjustable dies that allows the fabricator to make certain boxes and pans

2.Slip rolls has hardened rolls with three wire grooves for small round rod

3.The metal shear can cut at full capacity across the entire width of the machine.

4.Folding with max. Angle of 90°

5.A back gauge is included to help with repeatability.

6.Heavy Cast Iron Frame

Specification:

  • Item No.171006
  • Model3-IN-1/52
  • Bed width (in)52"
  • Max. shearing thickness:20Ga
  • Max. bending thickness 20Ga
  • Max. Bending angle90°
  • Max. Rolling thickness 20Ga
  • Min. Rolling dia. (in)1.96
  • Packing size (in)66x21x31
  • N.W. / G.W. (lb)608/654

Standard accessories:

1. Back gauge2. Handles
