HV-8 TSL Vertical & Horizontal Rotary Table

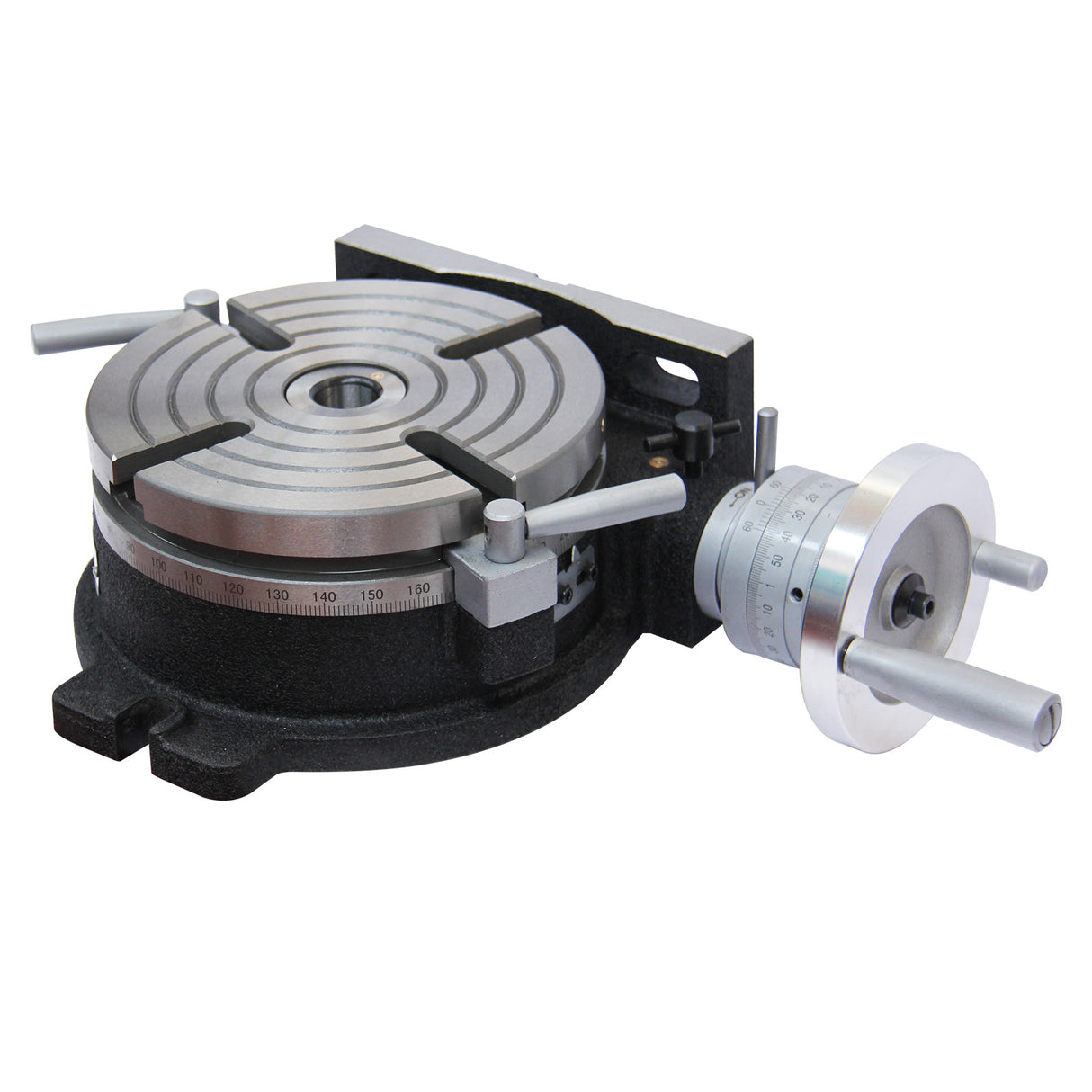

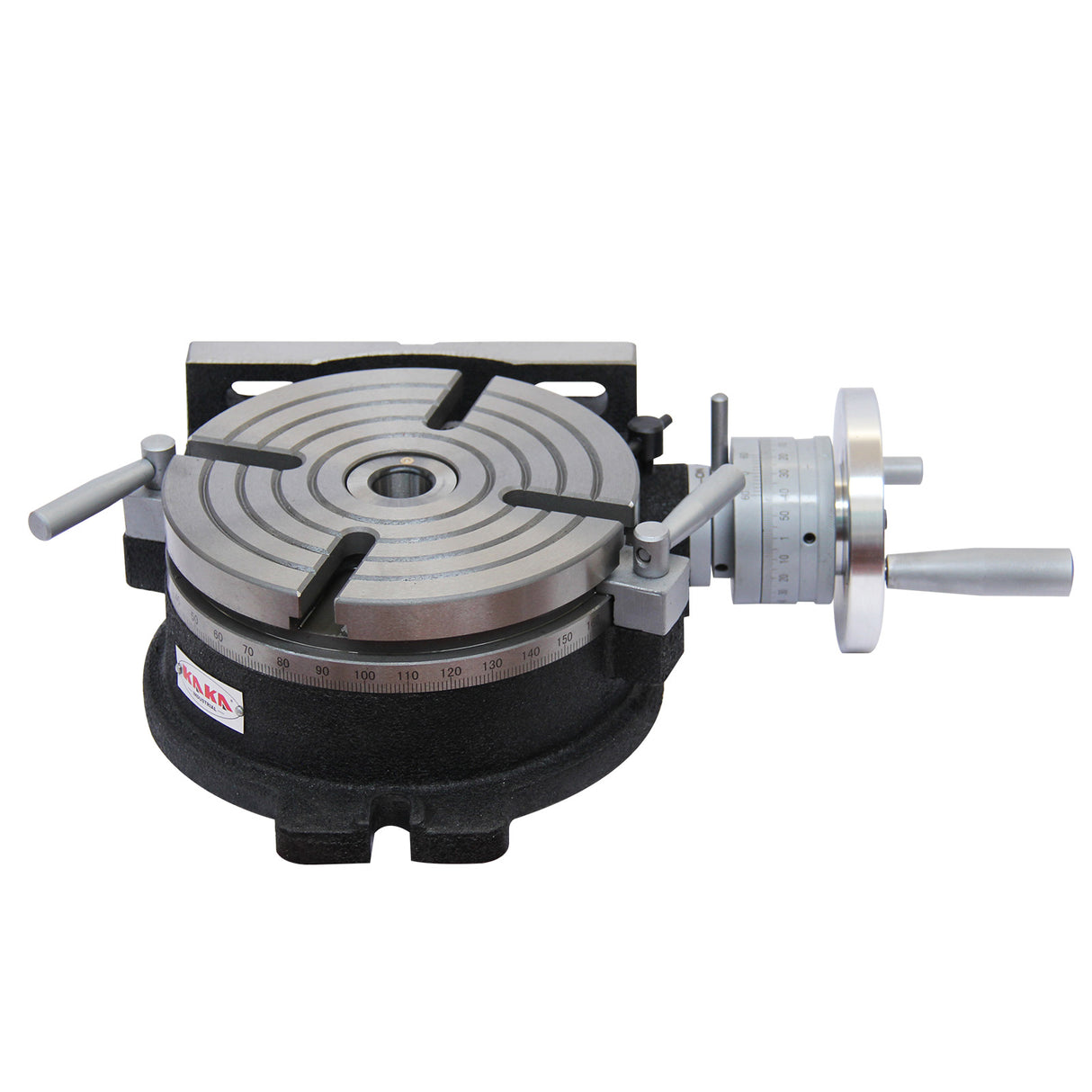

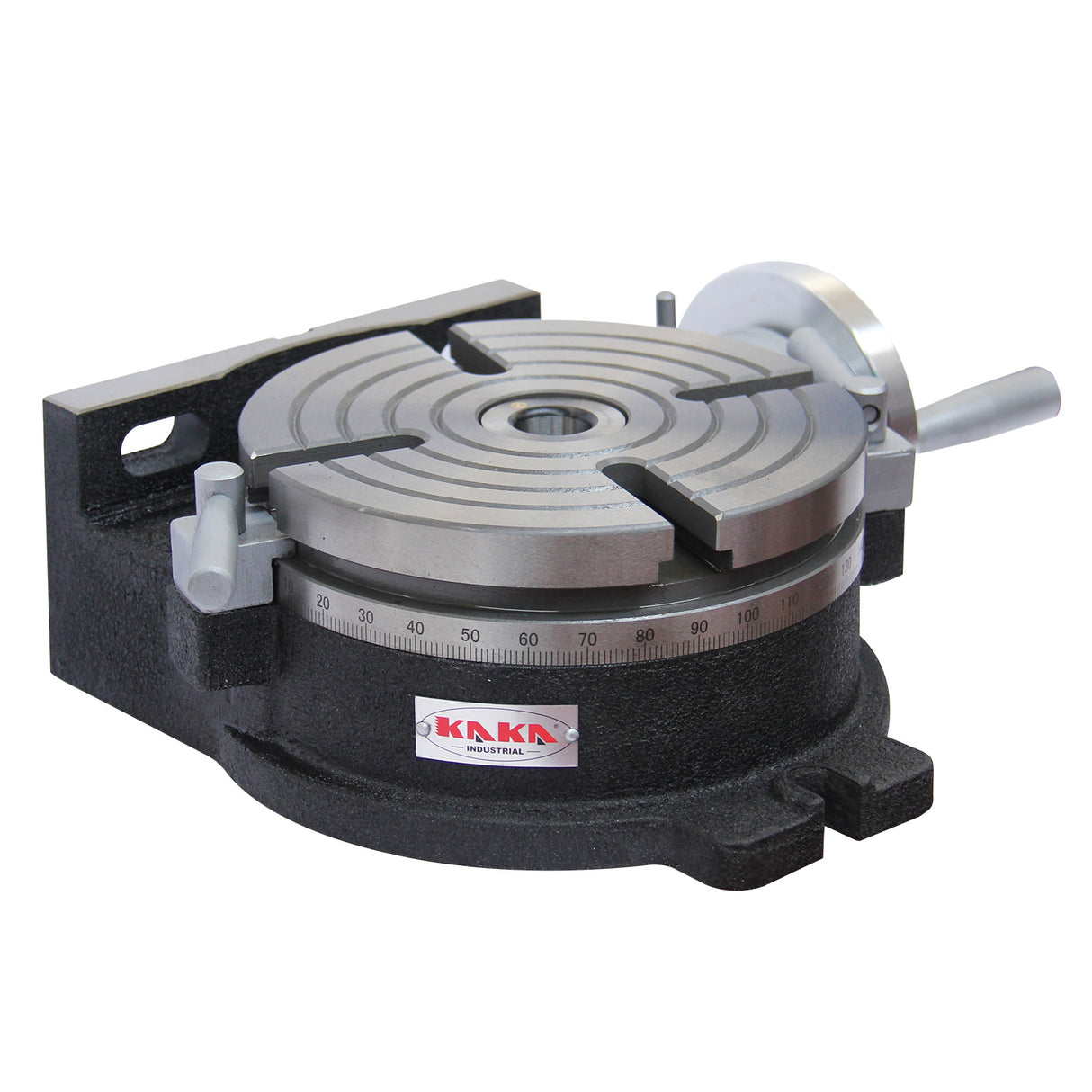

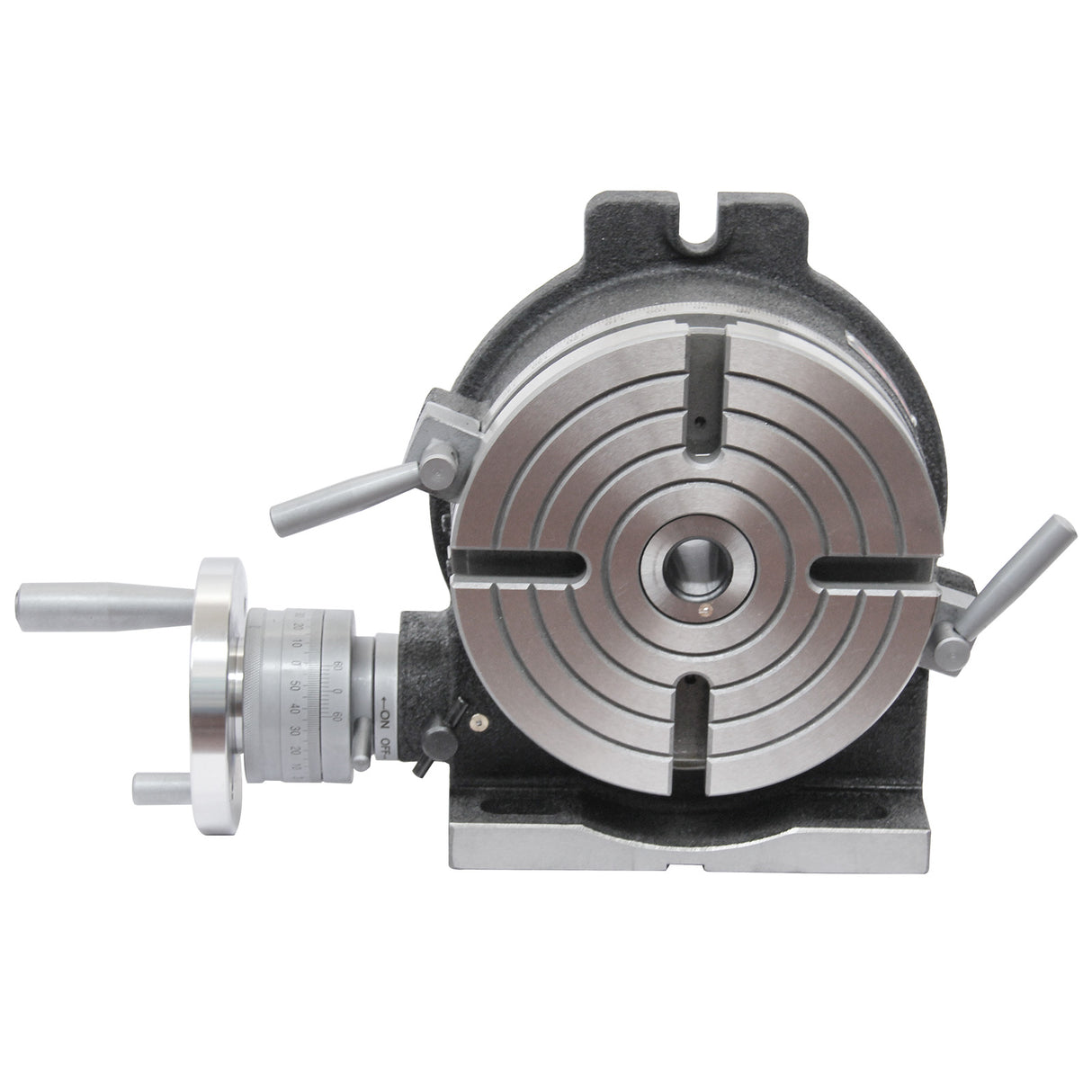

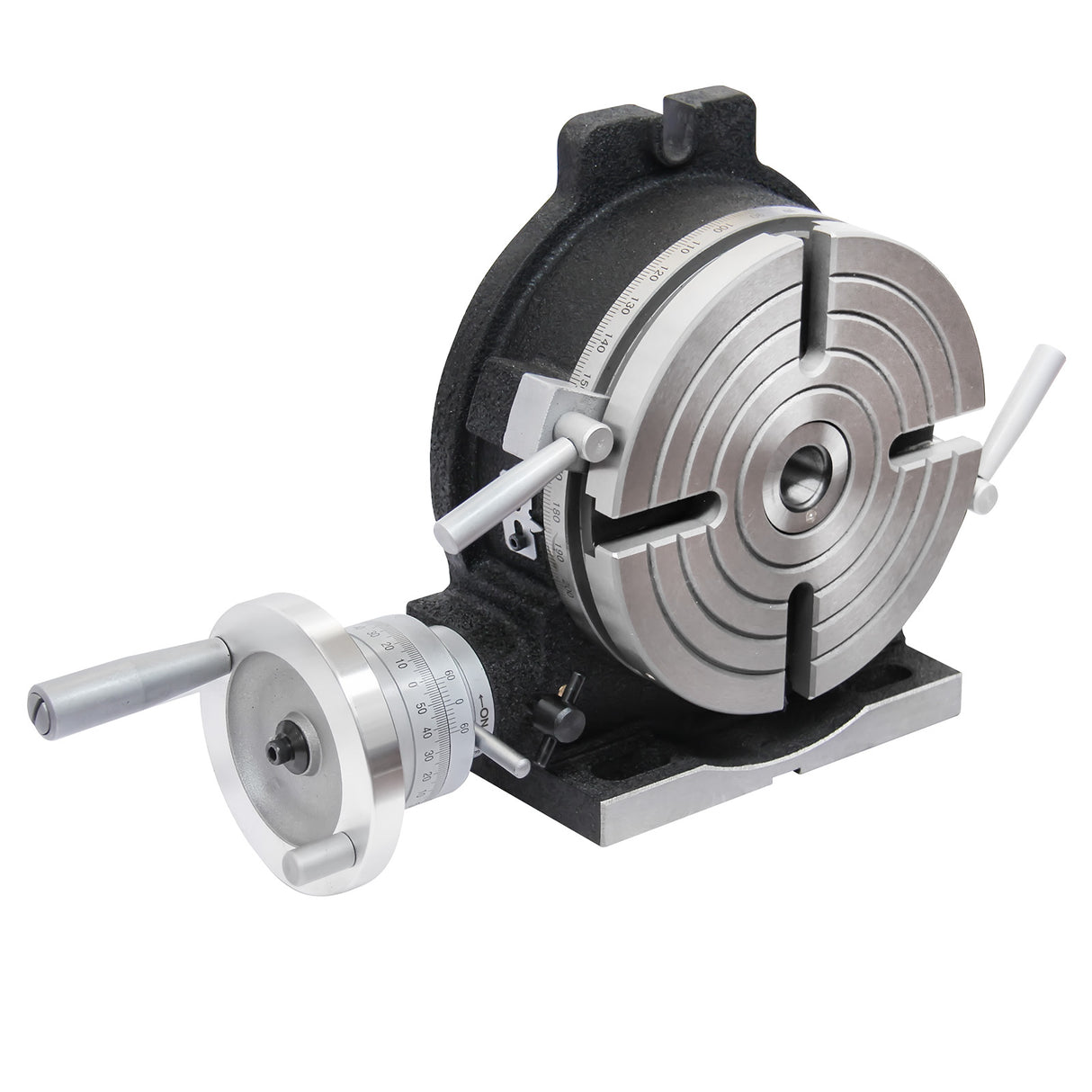

TSL vertical&horizontalrotary table is one of the main accessory of milling machine, it is used for index boring, milling,circle cutting, spot facing and boring hole etc on milling machine. Rotary table in vertical with working together can used on complex work for circle index boring and milling.

MODEL:HV-8

SKU:161108

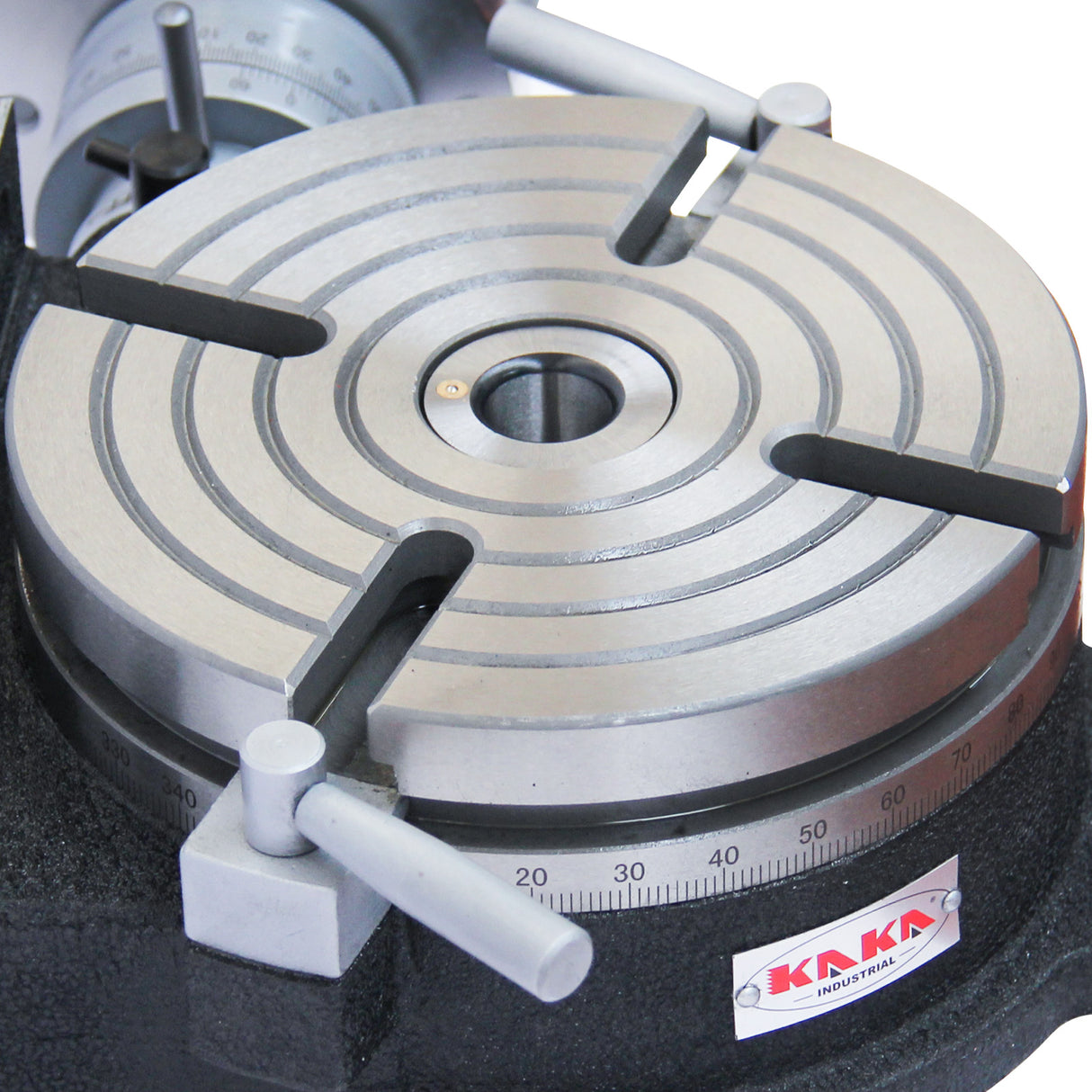

Diameter of table (in):φ7.8

Morse taper of the center hole:MT3

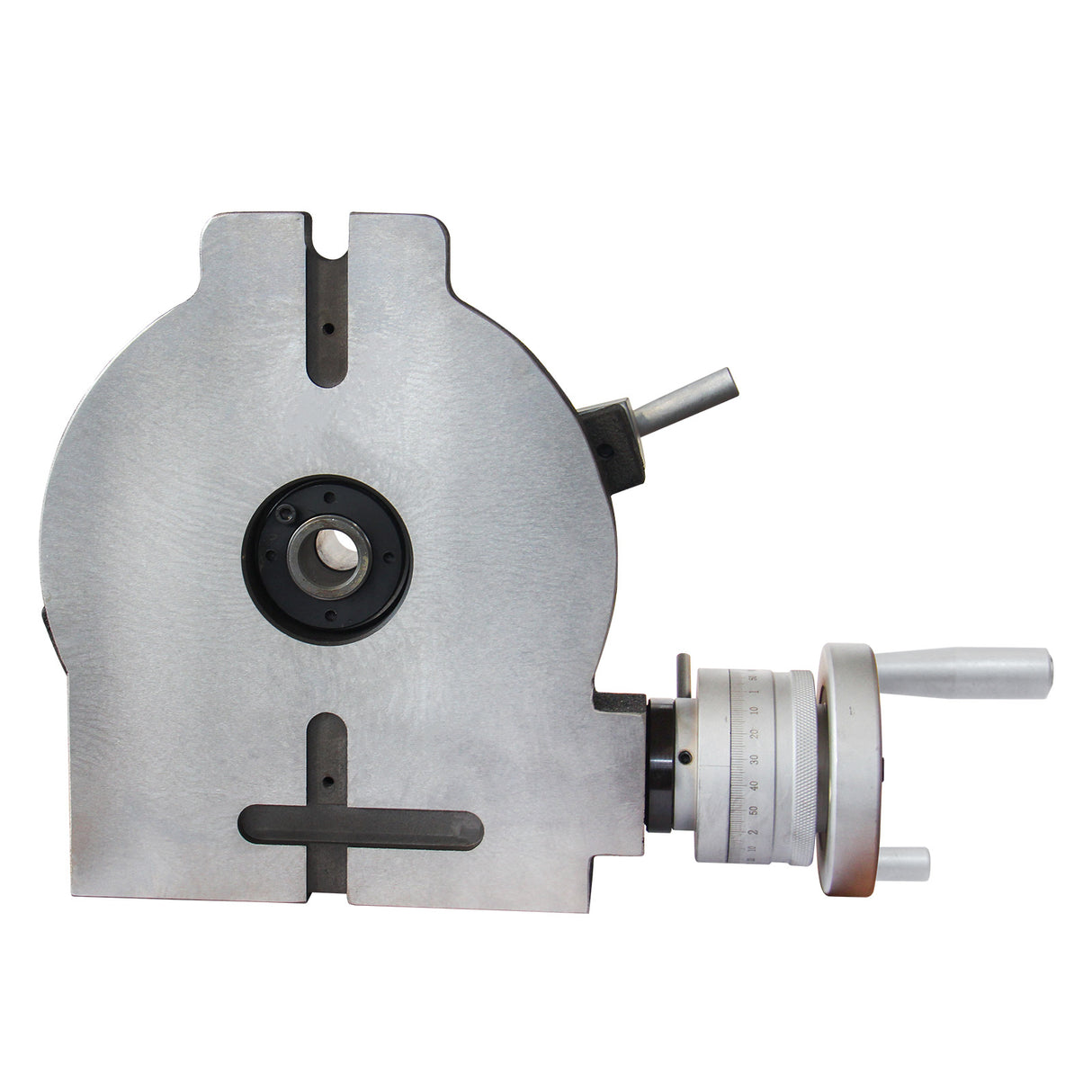

Height of center  for verti mounting (in):5.3"

Width of T-slot(in):0.472"

Adjacent angle of T-slot:90"

Width of the locting key (in):0.62

Modules of worm and worm gear:1.5

Transmission ratio of the worm gear 1:90

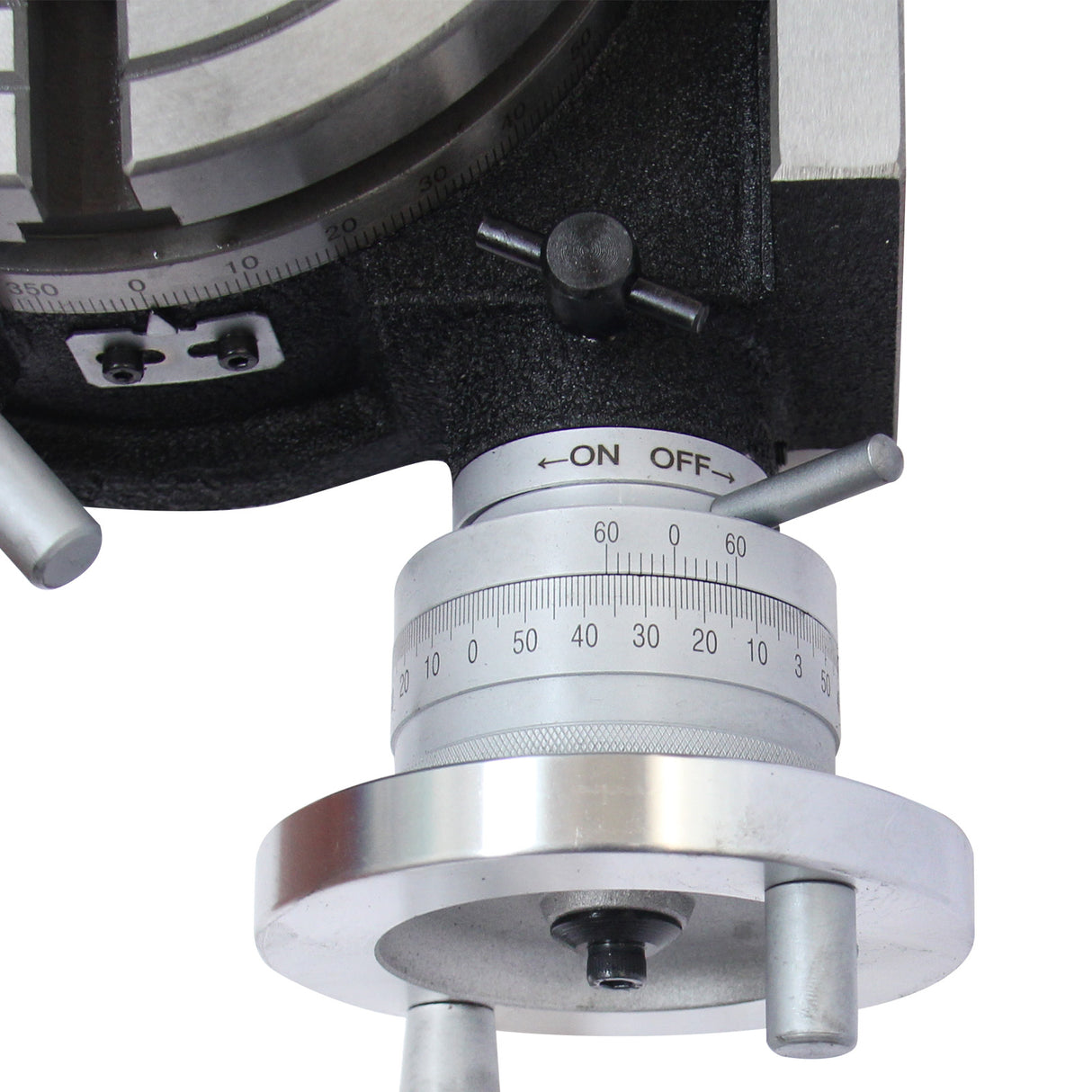

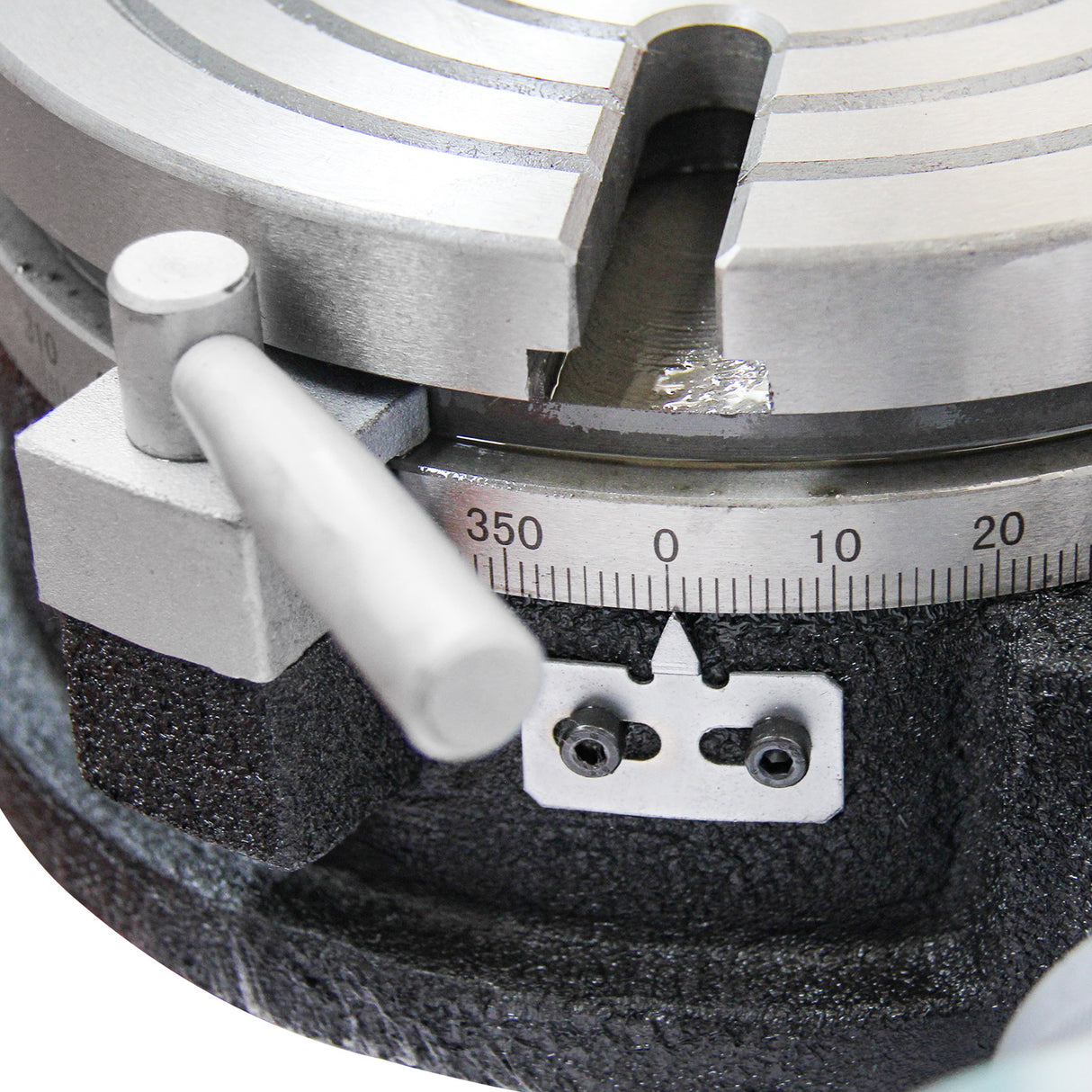

Graduation of the table:360°

Rotating angle of table with one revolution of the wrom:4"(1' Per graduation)

Minimum value  of vernier:10"

Indexing accuracy:80"

Max.bearing(With table Hor.)lb:330

Max.bearing(With table ver.)lb:165

N.W./G.W. 62/67 lb

Gase dimensions:15x12x7 in
