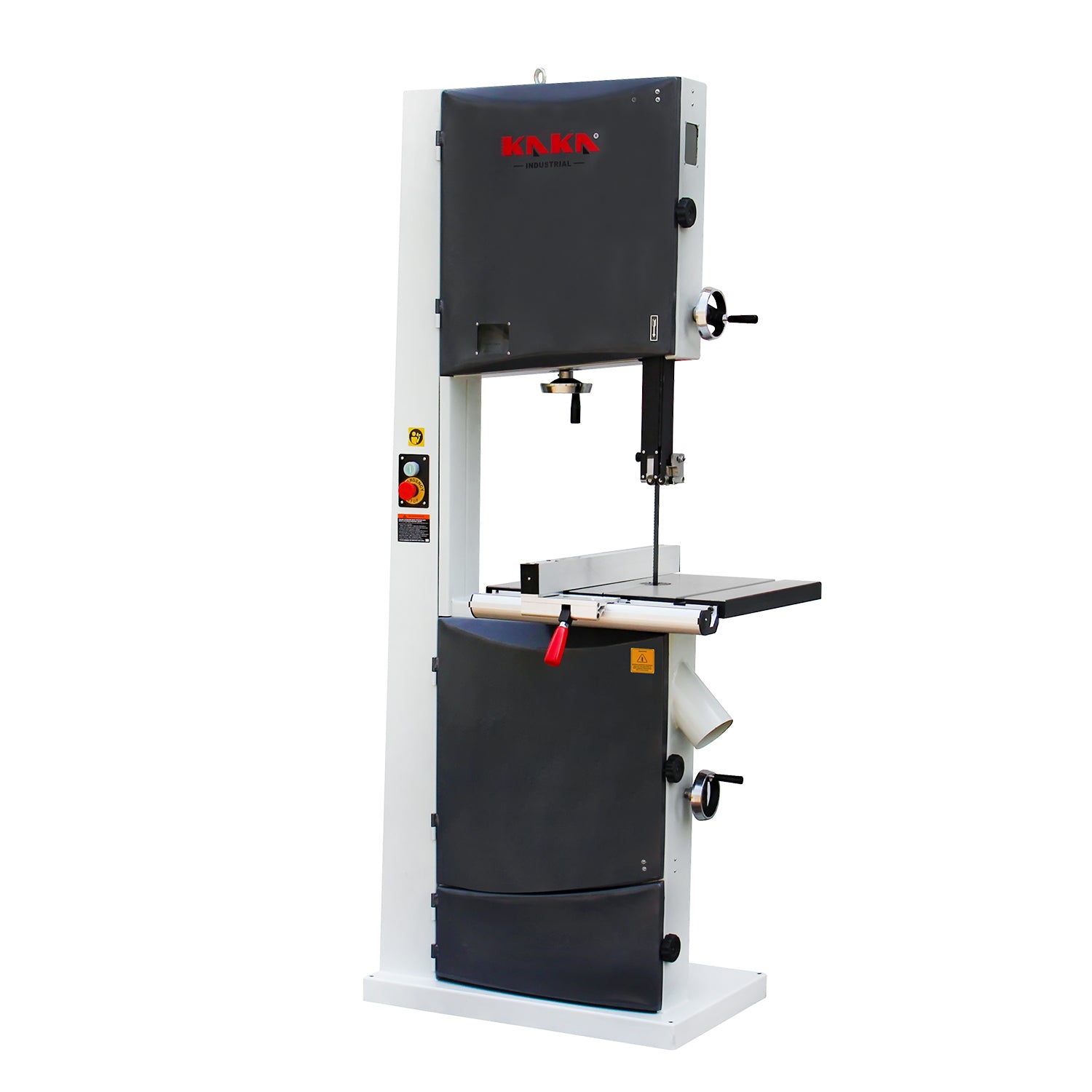

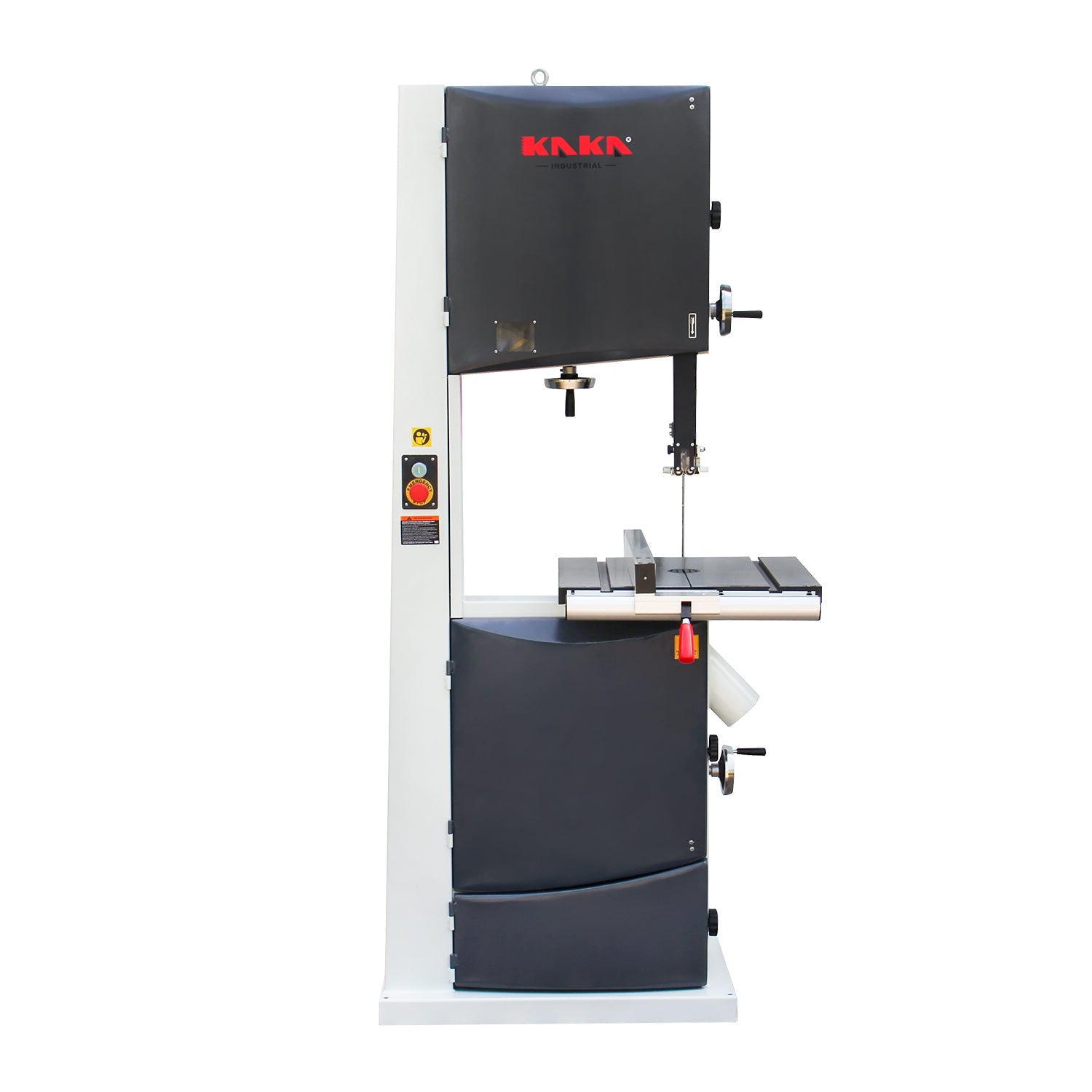

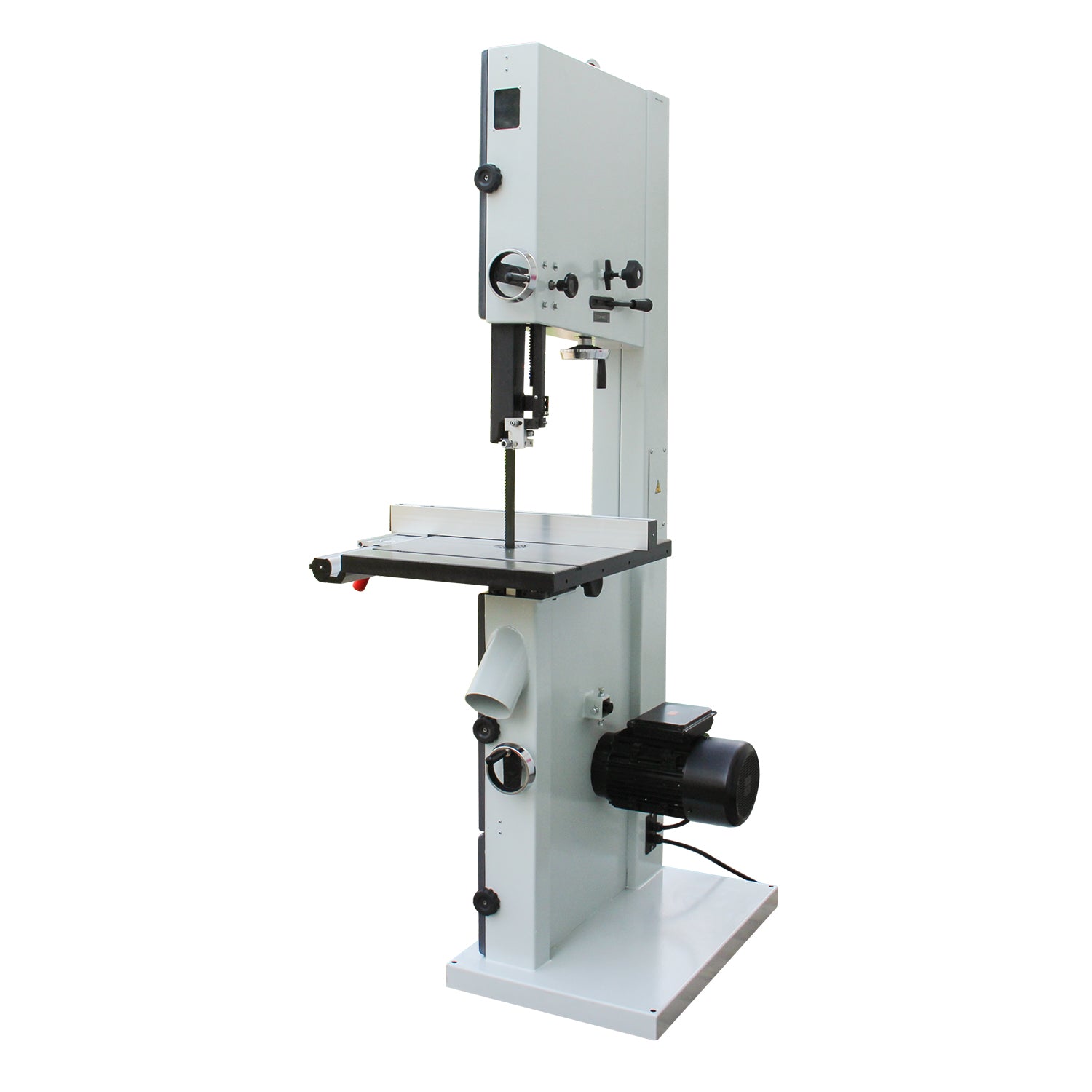

1.The precision wood cutting band saw is a vertical type
2. 330mm Re-Saw capacity: Largest re-saw capacity for slicing veneers, book matched projects and lumber sizing.
3. Quick release blade tension：Quickly release the blade tension when changing blades or when machine is off, increasing blade life
4. 406x546mm work table: Large work space for your material
5. Edge facing thrust bearings: Extends blade life and improves stability
6. 2 Speeds 440/900 m/min: Allows cutting of non-ferrous materials
7. Hinged blade guide with sight window: Easy access blade changes and workpiece visibility

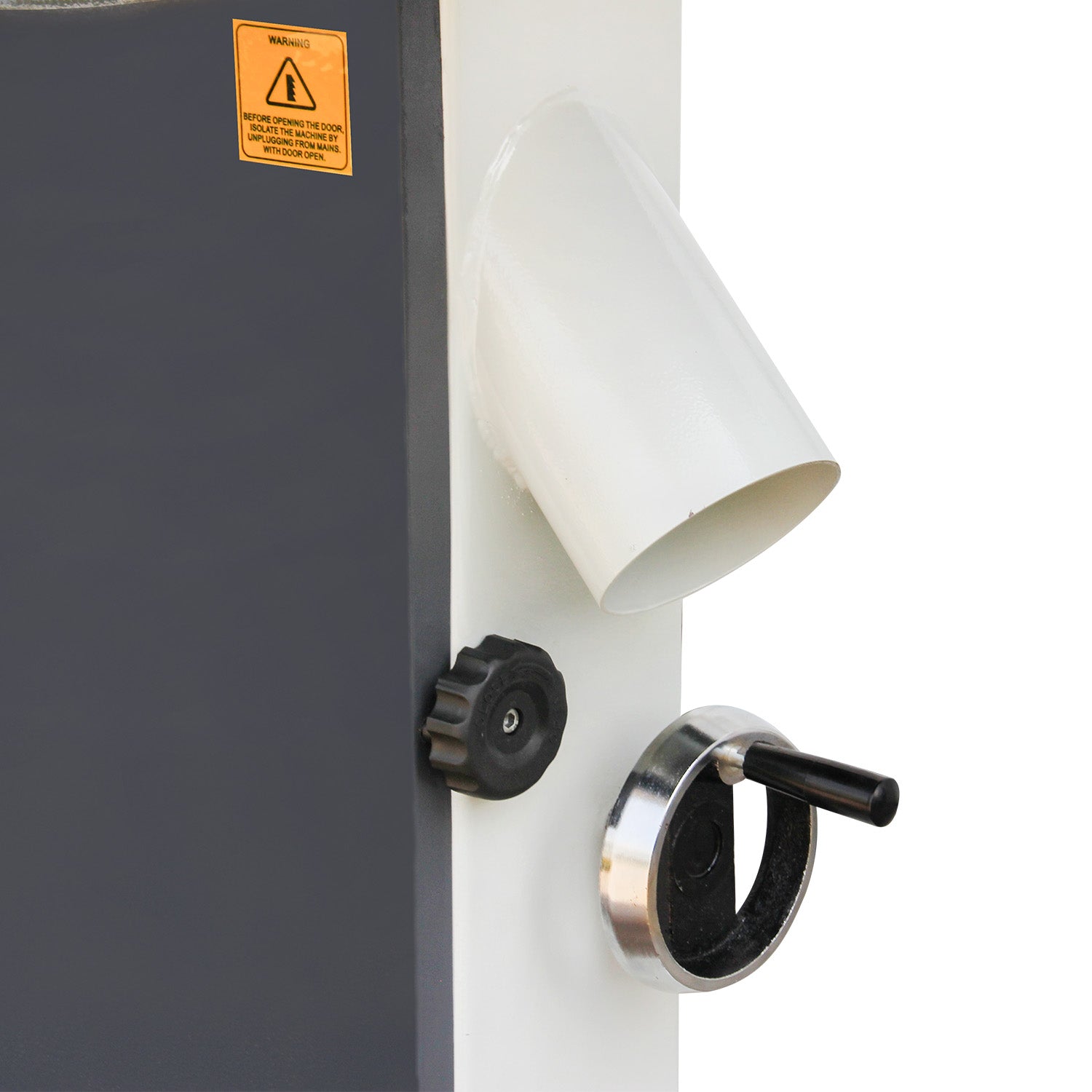

8. 99mm dust port: Attach your dust collection system for a cleaner work environment

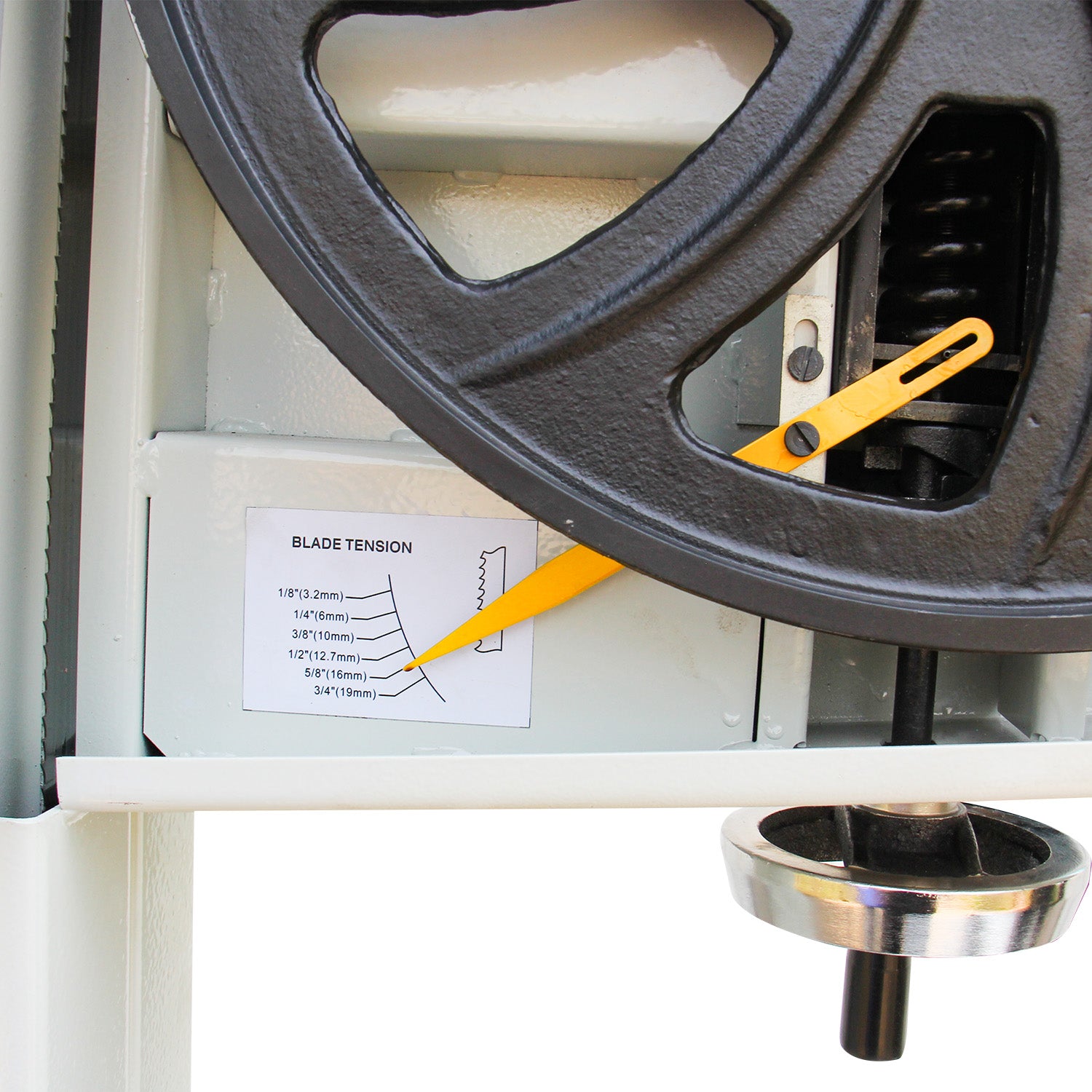

9. Blade tension window: Check your blade tension without opening the door

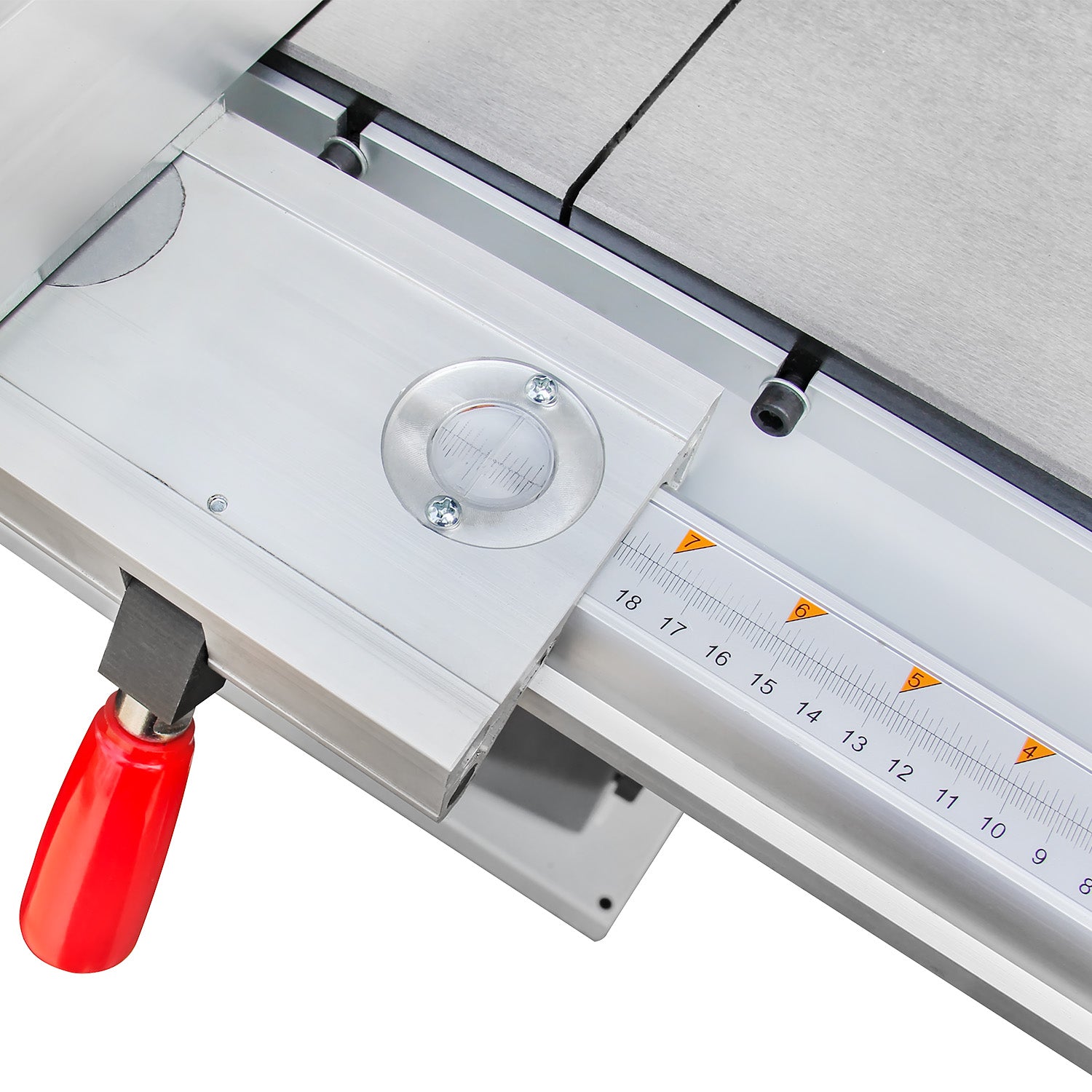

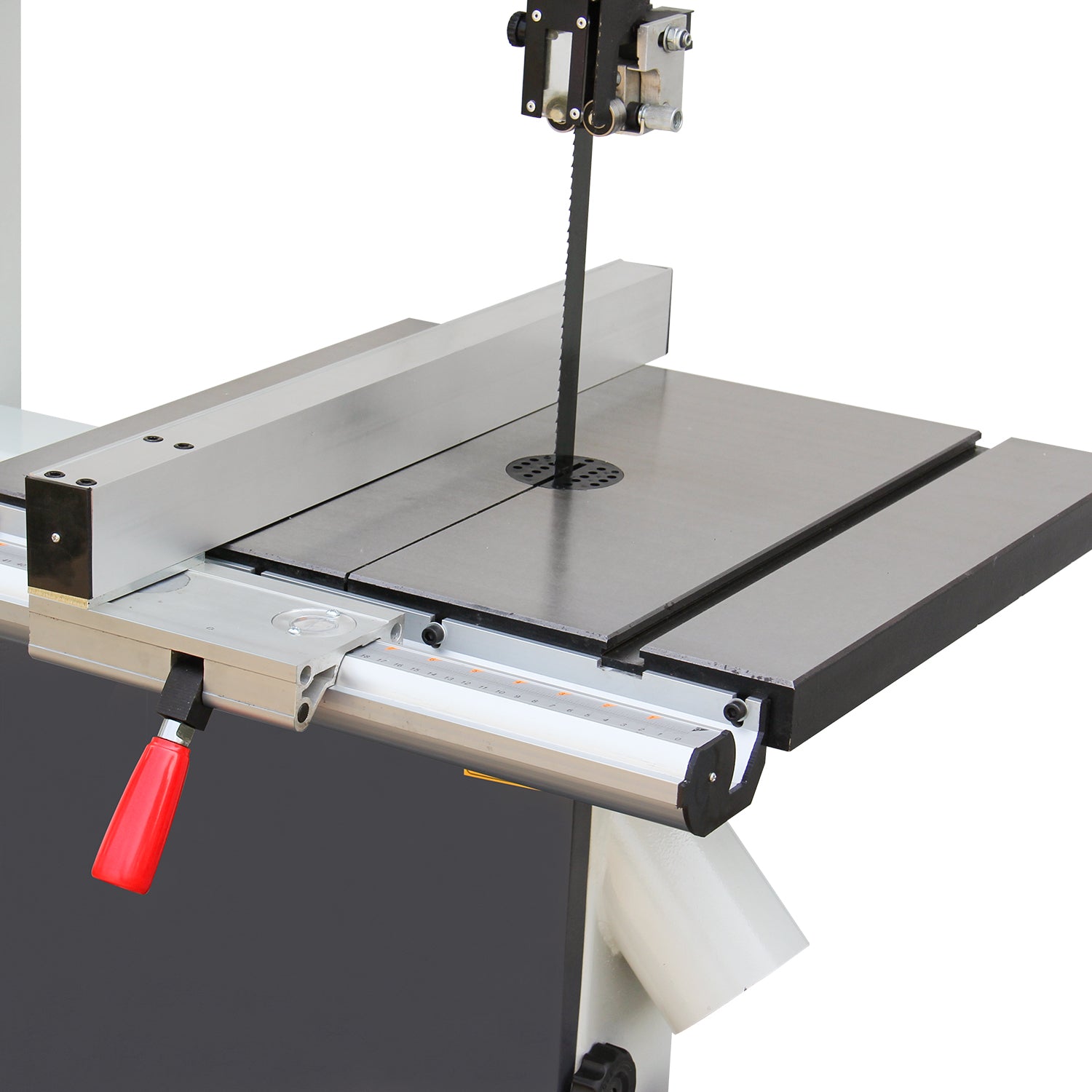

10. Heavy duty fence with drift adjustment: Blade drift in your workpiece can be easily adjusted. The fence can be mounted right or left of the blade; includes re-saw bar.

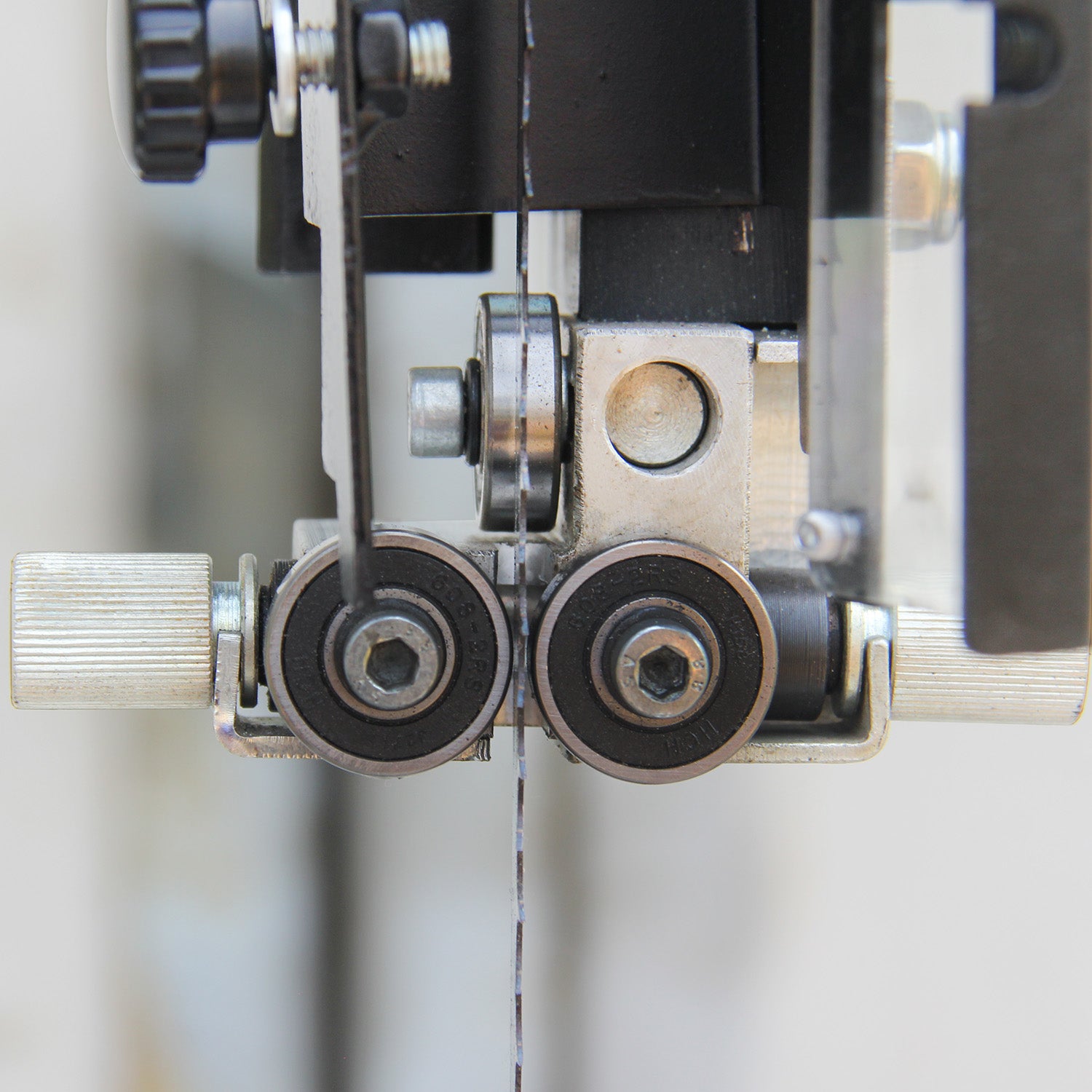

11. The saw blade of the woodcutting bandsaw has a fine-tuning guide bearing to ensure the cutting precision.
12. There is a wheel gear and toothed ring under the large working table which facilitates the rotation. The wood cutting bandsaw is equipped with a movable guide rail on the working table.
13. The wood cutting band saw can be combined with a dust collection device whose bore diameter is 99MM so it can maintain a clean environment.

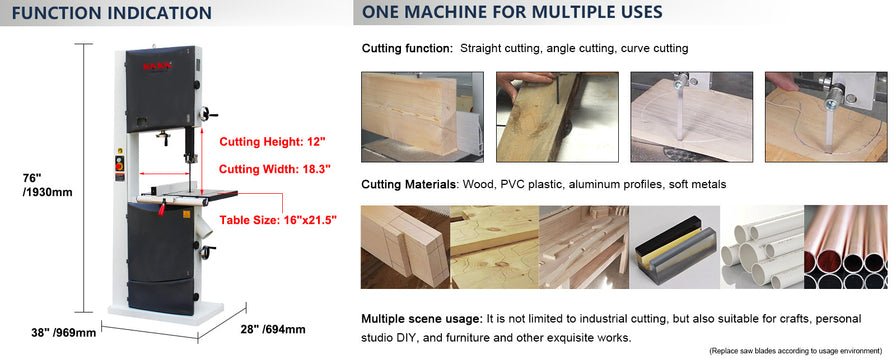

14. Main technical parameter
Specification:
Model WBS-18
Cutting capacity Height 3305 mm
Width 467 mm
Blade Width 6-32mm
Length 3607 mm
Table Size 533x483 mm
Left tilt 10°
Right tilt 45°
Groove “T” slot (2)10x19 mm
Height to floor 1959 mm

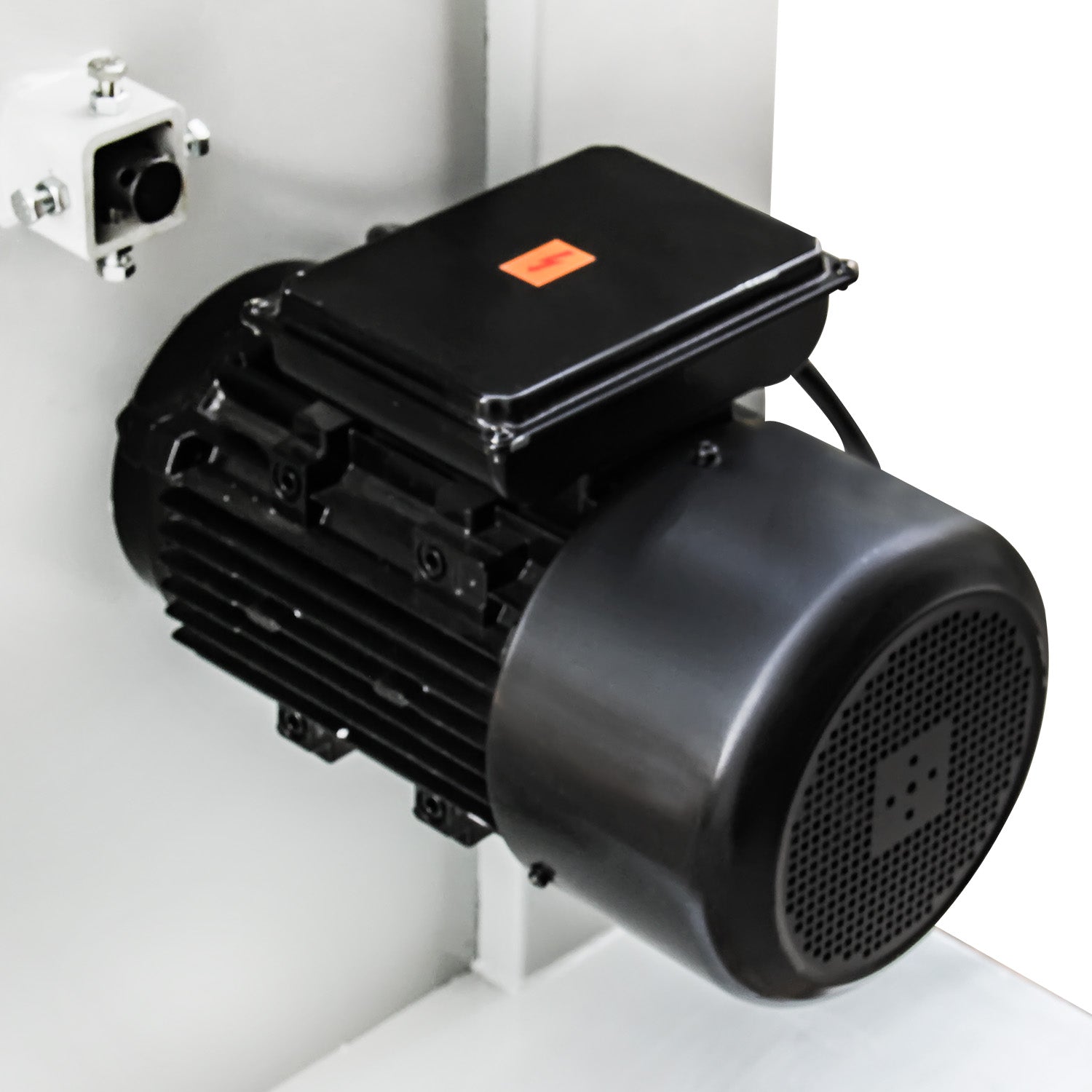

Motor Amps 11A
Horsepower 2.2kW/3HP
Volts 115/230V
Speed capacity 2
Speed range 460/980 m/min
Overall Height 1930 mm
Width 969 mm
Depth 694 mm
Net weight 176 kgs
Standard accessories:
Optional accessories:
