KAKA INDUSTRIAL LLC | SKU: 170004V220

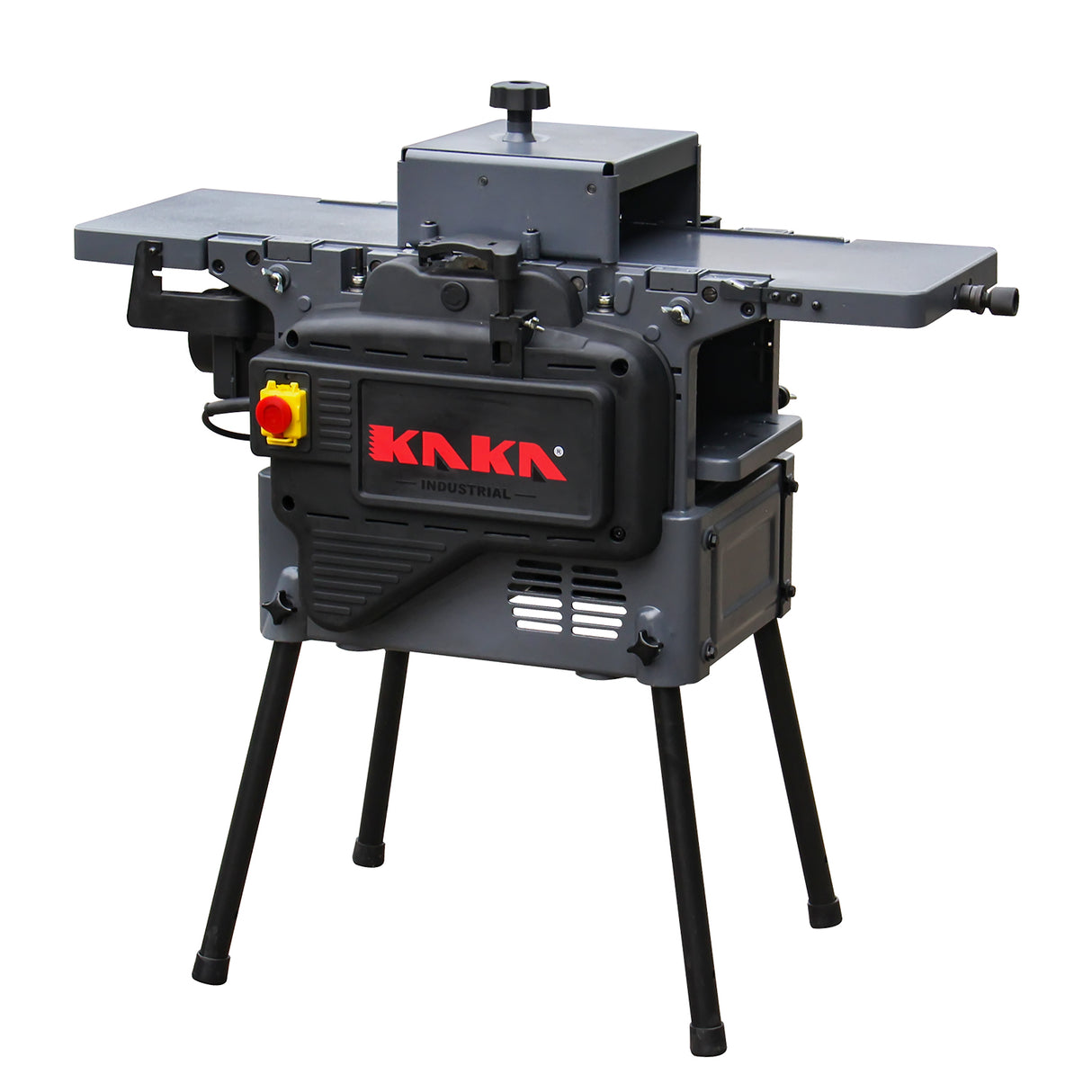

Multifunctional woodworking machine(Planer+Thicknesser+Cutter+Drill)220V-60HZ-1PH WM-3020

$1,499.99

Shipping calculated at checkout.

Description
Video
Video
Manual
Summary of Return Policy
Warranty
Delivery and Shipping

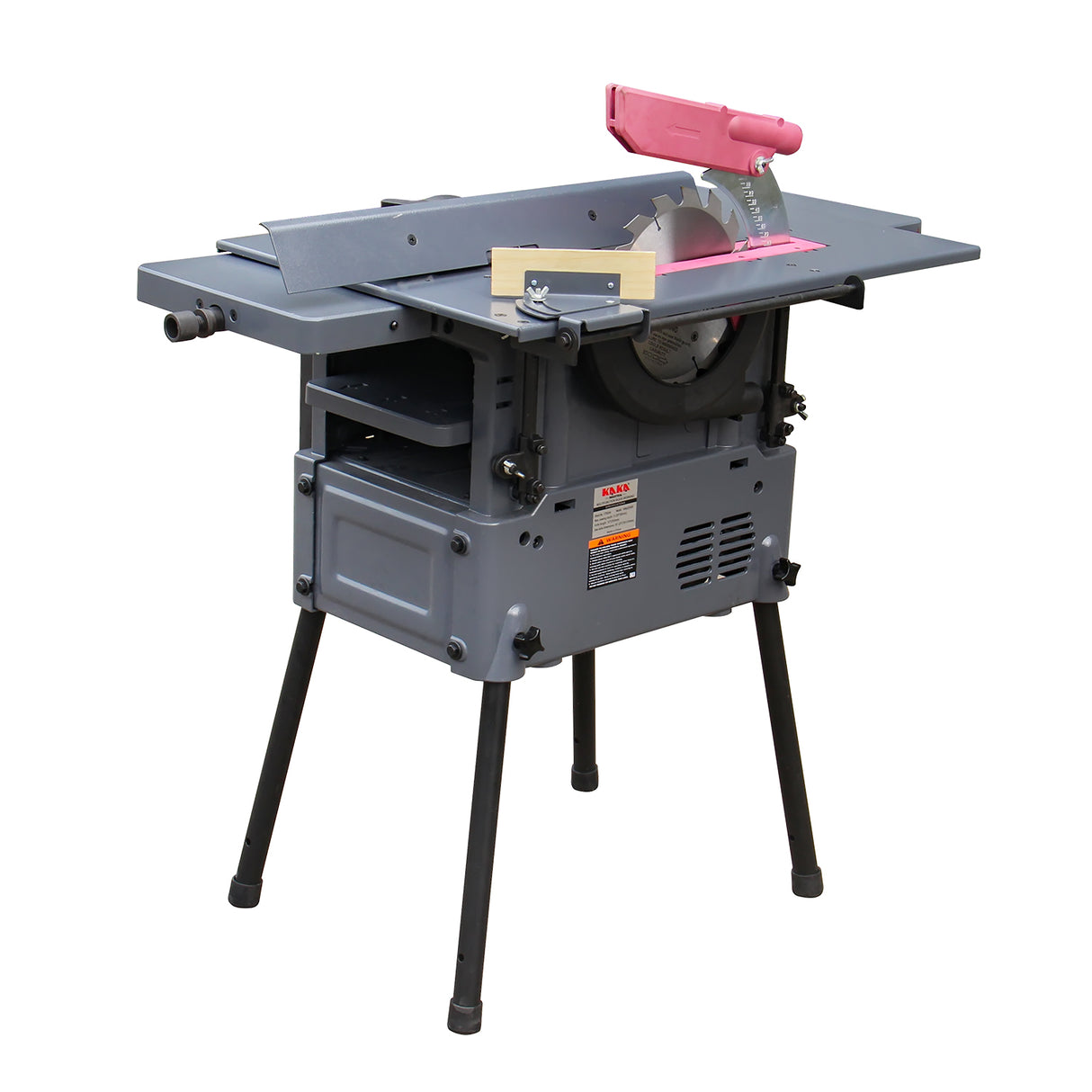

1.Multifunctional portable woodworking machine WM-3020 is the most functional one

2.The basic function: thicknessing, sawing, planing, milling and drilling.

3.This machine does not require special working place as there are supporting legs in the set of shipment

4.Max. section of working object at thicknessing: 9.8x6.3 inch

5.Dimension of table at thicknessing (L x W):22.8x9.8 inch

Specification:

Item No.470004

Model:WM-3020

Max. one-way planing thickness:9.8 inch

One-way planing depth:0-1.37 inch

Max. sawing depth:3.35 inch

Max. planing thickness with use of clamping device:9.8 inch

Max. thickness of clamped object:2.36 inch

Range of cutting and planing angles at using devices:0-45 degree

Rated diameter of saw-blade:9.8 inch

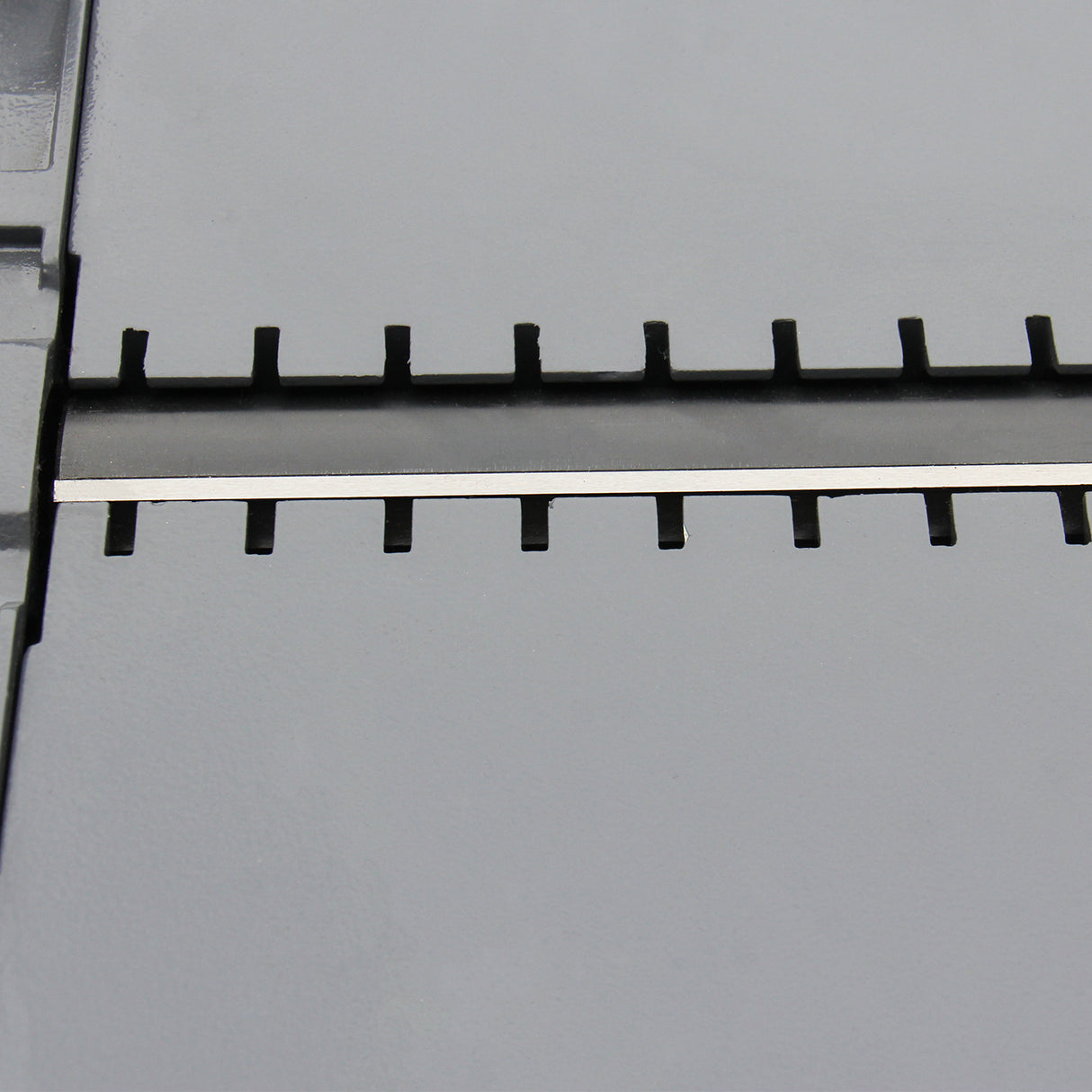

Quantity of knives:2 pcs

Knife length:9.8 inch

Saw table dimensions L x W:29.5x20 inch

Dimensions of the tables (mobile and immobile) at paning L x W:39.3x12.5 inch

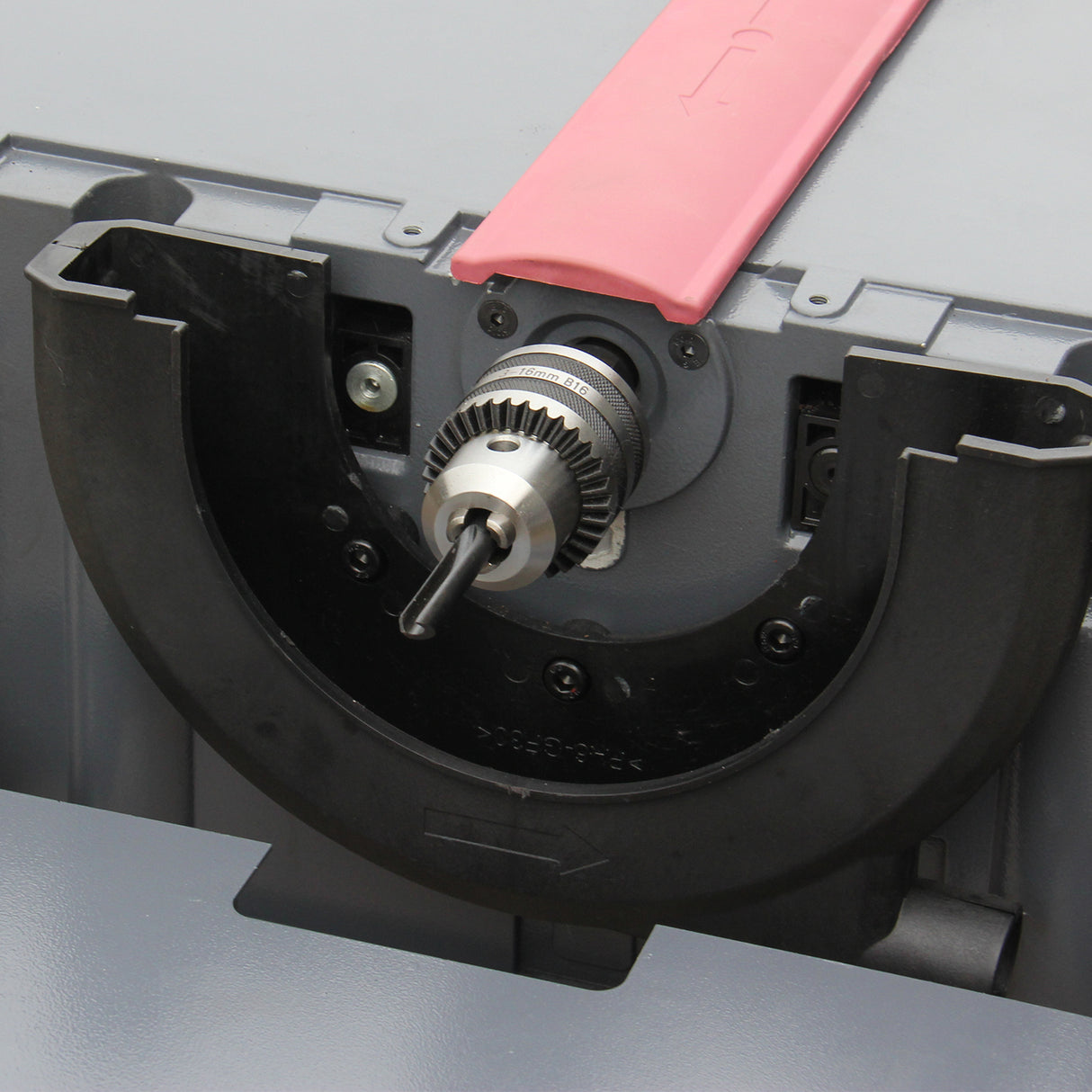

Table dimensions at milling/drilling, LxW:14.5x7.8 inch

Rated idle RPM:5500 revs/min

Rated input power:2.2 kW

Working mode of electric motor:S6-40

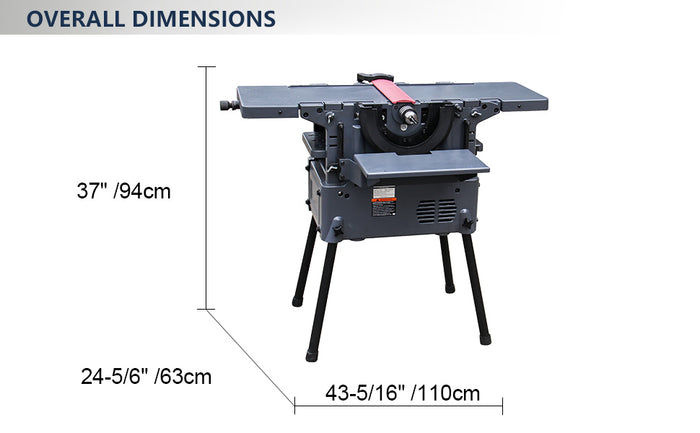

Packing size:41x21x21 inch

N.W./G.W.:172/181 lbs

10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
Returned materials must be received at Kaka Industrial in new condition and in original packaging.
Altered items are not eligible for return.
Buyer is responsible for all shipping charges.
A 15% re-stocking fee applies to all returns.

KAKA Industrial provides 12 months warranty for this product from the date of purchase.
Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Powerful Performance

Equipped with a 2.2 kW motor operating at 220V-60Hz single-phase power, delivering consistent power for demanding tasks.
Rated at 5500 RPM for efficient cutting and planning.

Multifunctional Capabilities

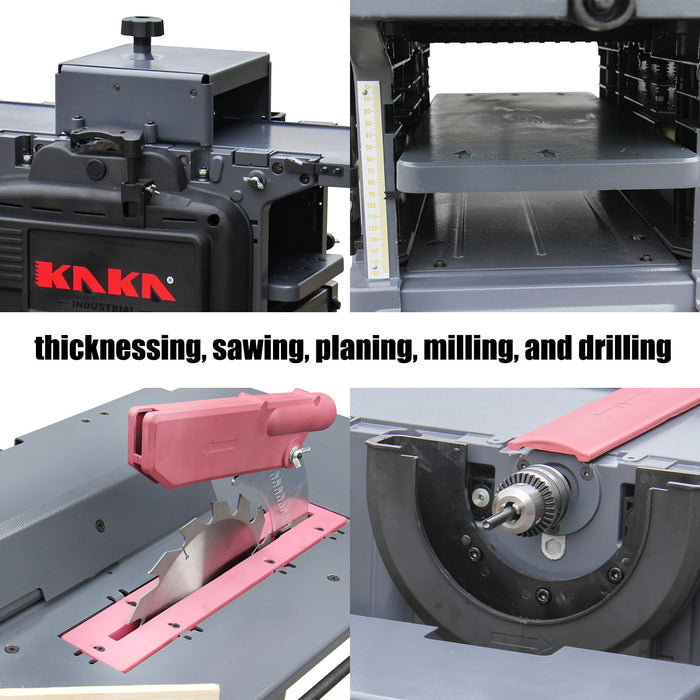

Perform thicknessing, sawing, planing, milling, and drilling tasks, all with one machine.
Planing: Max. One-way planing thickness: 9.8 inch. Planing depth adjustable from 0 to 1.37 inches

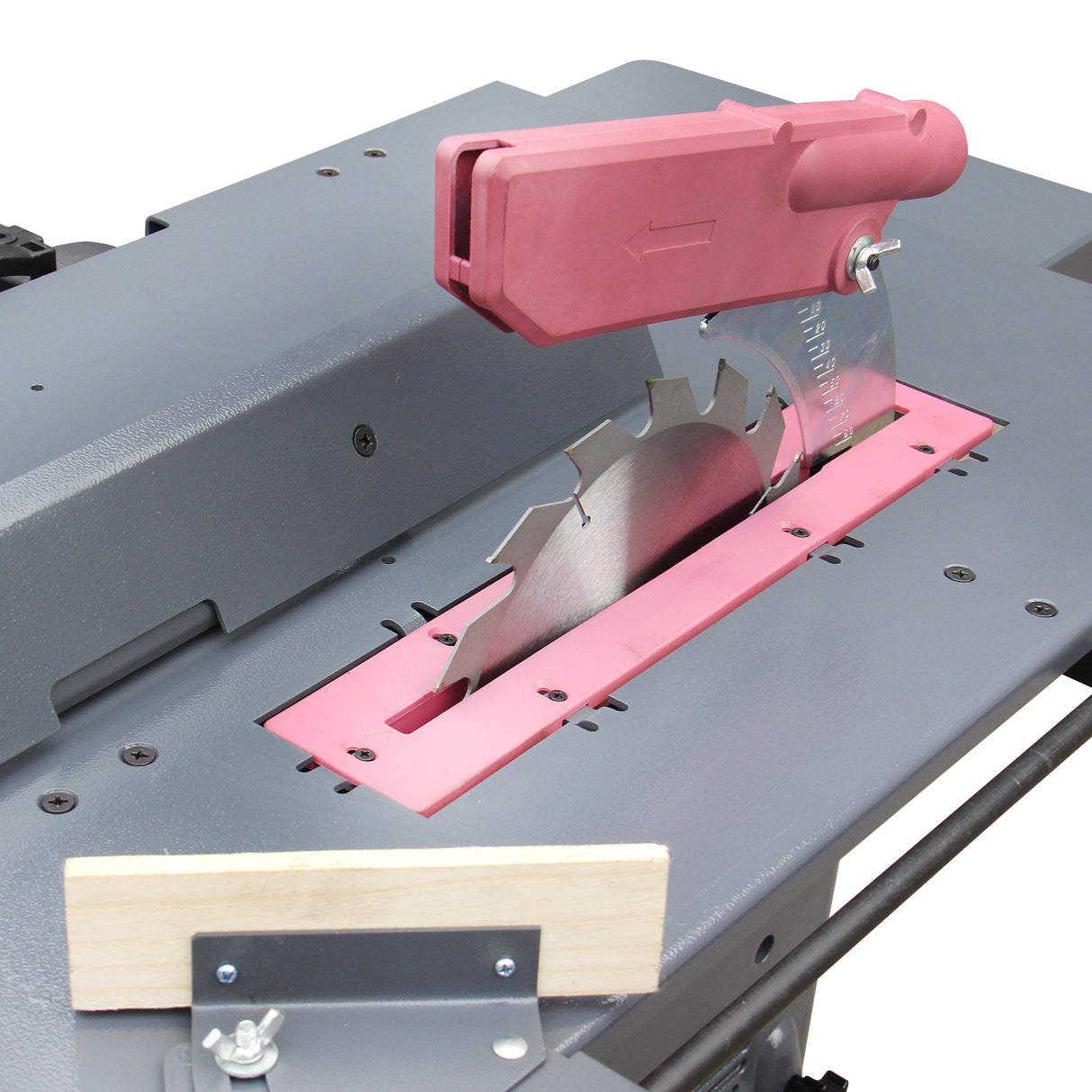

Sawing: Achieve a maximum sawing depth of 3.35 inches with the included 9.8-inch saw blade. Milling and drilling table dimensions: 14.5 x 7.8 inches.
It saves workspace and costs while delivering professional-grade performance.

User-Friendly Design

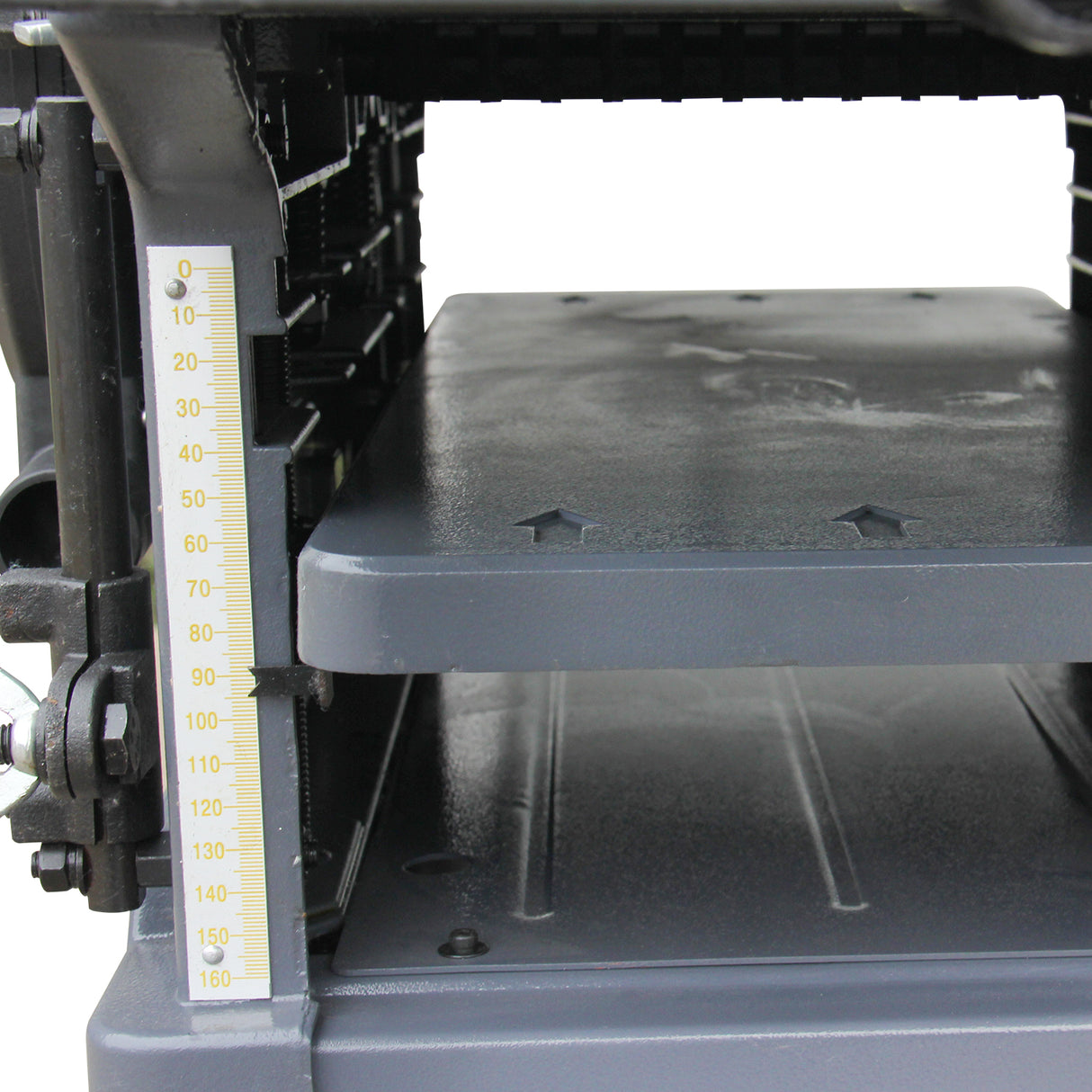

Adjustable Thicknesser: Features a scale for easy and precise adjustments.

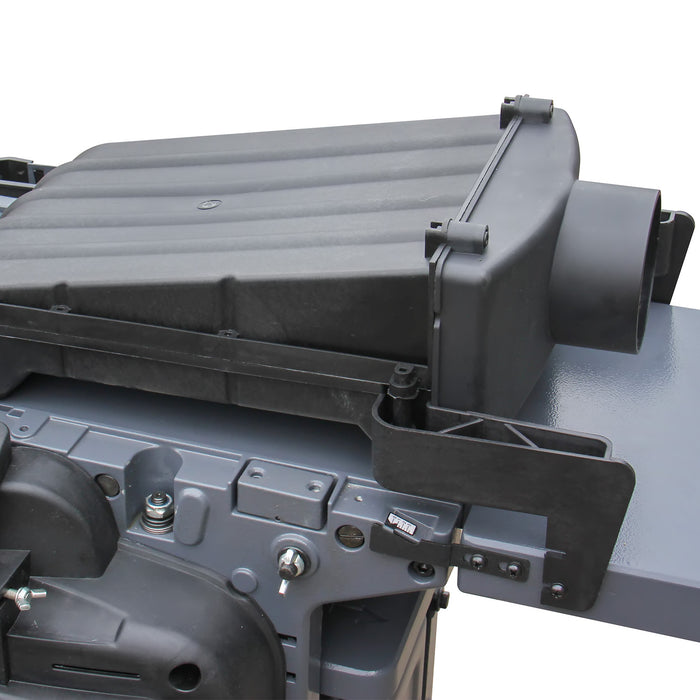

Dust Collection: The planer cover includes a dust port for connecting to a dust collector, ensuring a clean workspace.

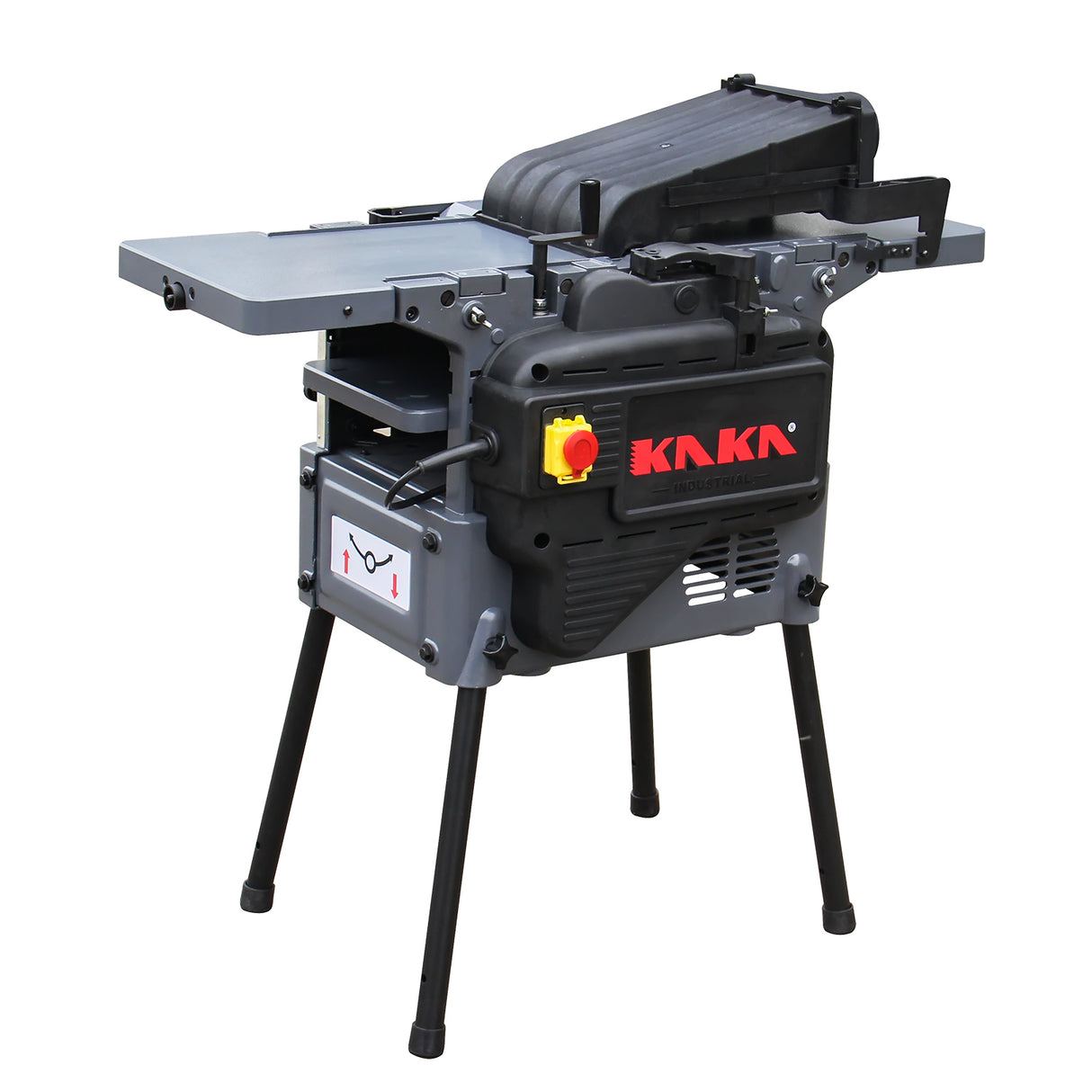

Portable Setup: Comes with supporting legs, allowing it to be used anywhere without a dedicated workspace.

Wide Applications

Our multifunctional woodworking machines are designed for a wide range of woodworking applications. Some common use cases include thickness, sawing, planing, milling, drilling, DIY, and custom projects.
Its space-saving design and durable construction make it ideal for any workshop or home garage.

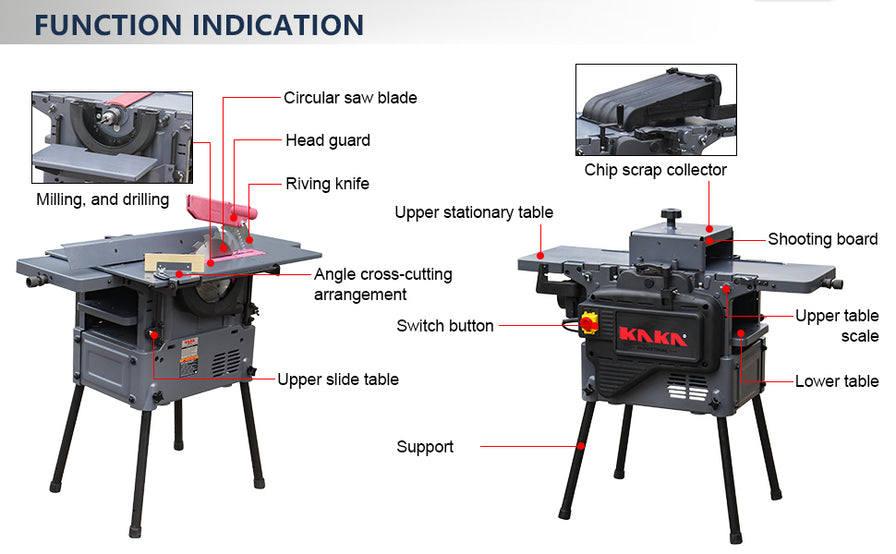

Multifunctional Design

•The essential functions are thickness, sawing, planing, milling, and drilling.

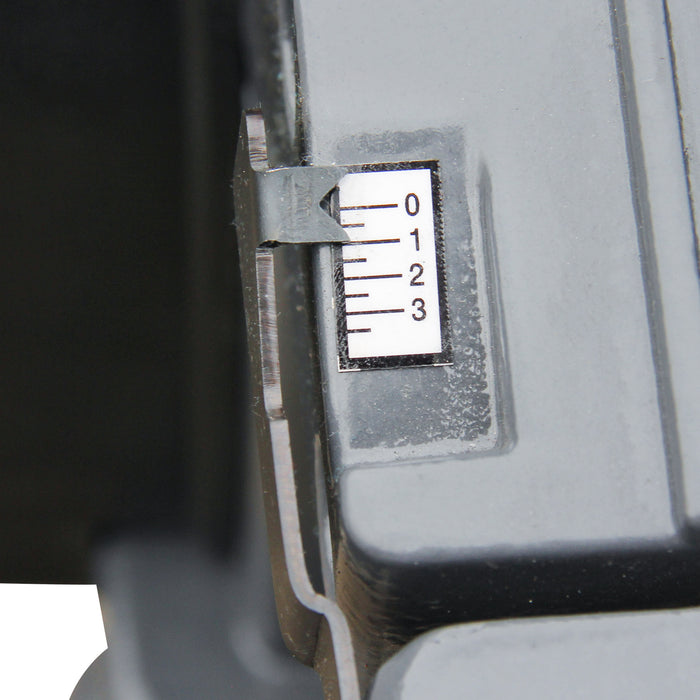

Adjustable Thicknesser

• Planing depth is adjustable from 0 to 1.37 inches.
• Features a scale for easy and precise adjustments.
Dust Collection

•Dust port included for connection to a dust collector, •keeping your workspace clean.
