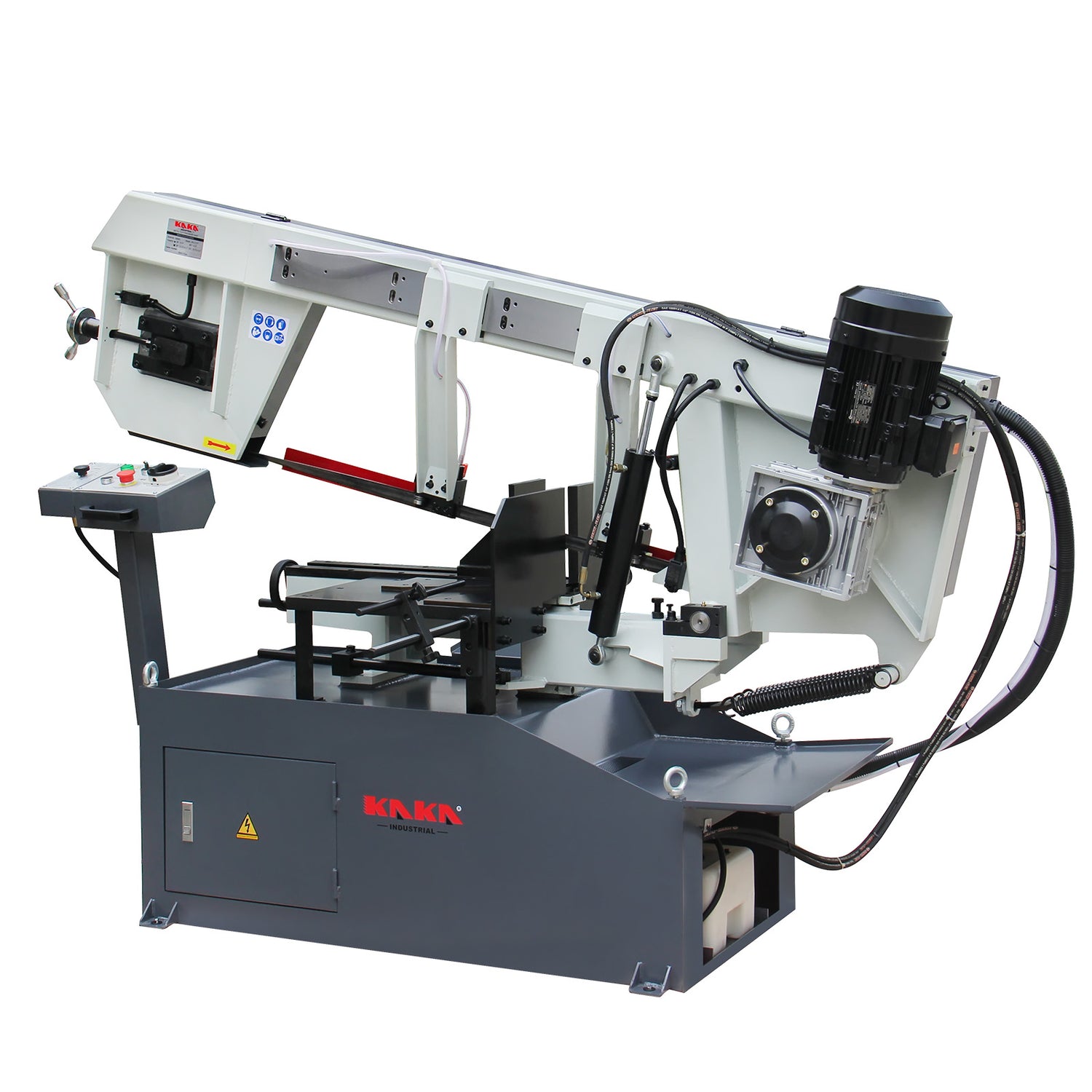

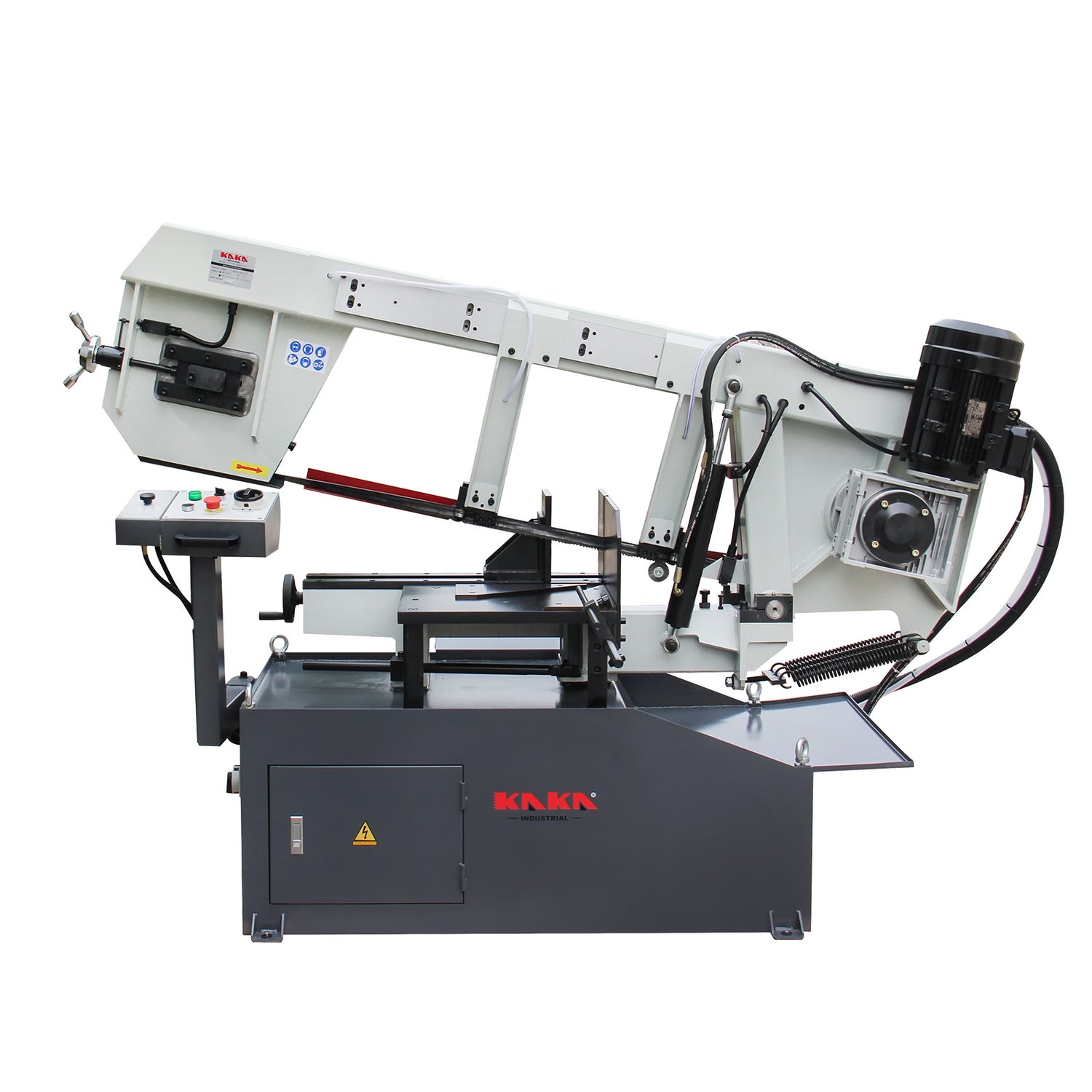

Kaka Industrial BS-2114T,Horizontal bandsaw 21.6"x14“ Capacity Metal Cutting Band Saw, Swivel Head Miter Metal Cutting Band Saw, Round Bar Cutting, Runs on 220V-60HZ-3PH
Kaka Industrial BS-2114T,Horizontal bandsaw 21.6"x14“ Capacity Metal Cutting Band Saw, Swivel Head Miter Metal Cutting Band Saw, Round Bar Cutting, Runs on 220V-60HZ-3PH is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Powerful Cutting Ability
It runs on 220V power and a 3HP motor. It has a gear drive and two cutting speeds: 48/70 M/Min. The powerful motor provides the torque to drive the bandsaw blade through metal workpieces efficiently and accurately.
The bandsaw can cut through round metal workpieces with a maximum diameter of 15.7 inches and is suitable for cutting round bars, pipes, and other cylindrical stock materials.
Additionally, the bandsaw can cut rectangular metal workpieces with dimensions of up to 21.6" in width and 14" in length, making it ideal for cutting flat or rectangular stock materials such as steel plates or structural beams.
Flexibility and Versatility
This band saw has all the features needed for professional metal-cutting results. It allows users to perform a variety of cuts, from straight and curved cuts to complex designs. Equipped with a hydraulic down feed and variable speed control, you'll have complete control over the cutting process, ensuring precise and efficient results every time.
With its 2-step blade speed options, you can easily adjust the cutting speed to match the material you're working with, guaranteeing optimal performance and clean cuts—miters up to 60 degrees with an indicator to show the degree.
Plus, the built-in cooling system ensures that the blade and workpiece stay cool during operation, prolonging their lifespan. It is also equipped with a sliding vise with a quick clamp, which makes replacing the cut detail efficient.
Safety
Hydraulic systems enhance safety by providing operators with reliable and responsive control over the cutting process. The built-in coolant system protects overheated saw blades. The cutting band saw machine will automatically shut down after the cutting is completed, providing overheating protection and making the cutting process safer.
Wide Applications
The metal cutting band saw is a versatile tool used in various industries and settings, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.
METALCUTTINGBANDSAW BS-2114T
Precision and solidity puts it at the forefront of band saws with the possibility of cutting at any angle up to 60°
The guides are equipped with sintered carbides which improve accuracy in series cuts
The stable and refined construction provides the machine with very high Rigidity and stability when cutting,which ensures precision cutting and Long trouble-free operation

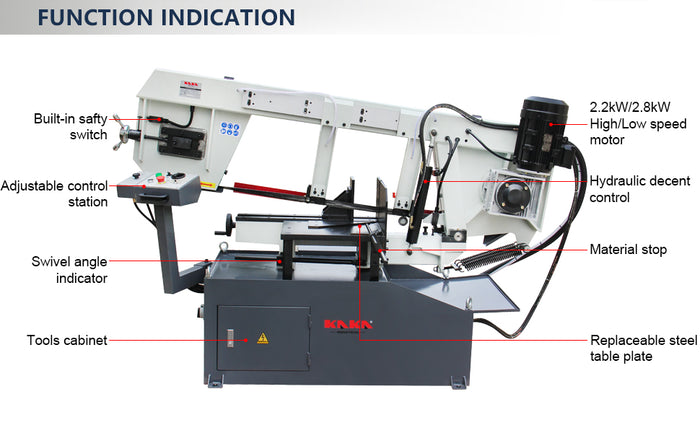

1. Runs on 220V-3PH power, doulbe speed motor
2. Max. cutting 15-3/4" Round and 21-5/8"x16" rectangular at 90 degrees
3. Miters up to 60 degrees with a indicator to show the degree
4. Gearbox transmission, makes the saw more reliable than saw with belt and pulley

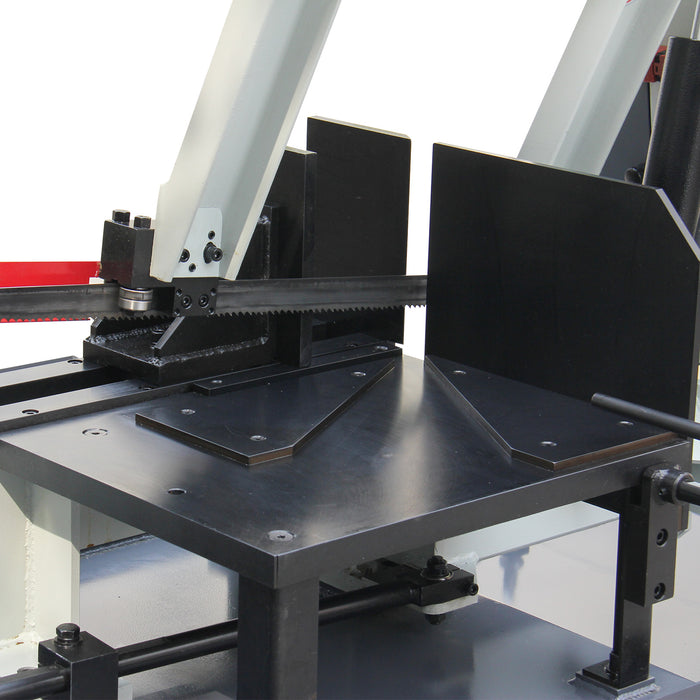

5. Quick lock vise make the fast clamping

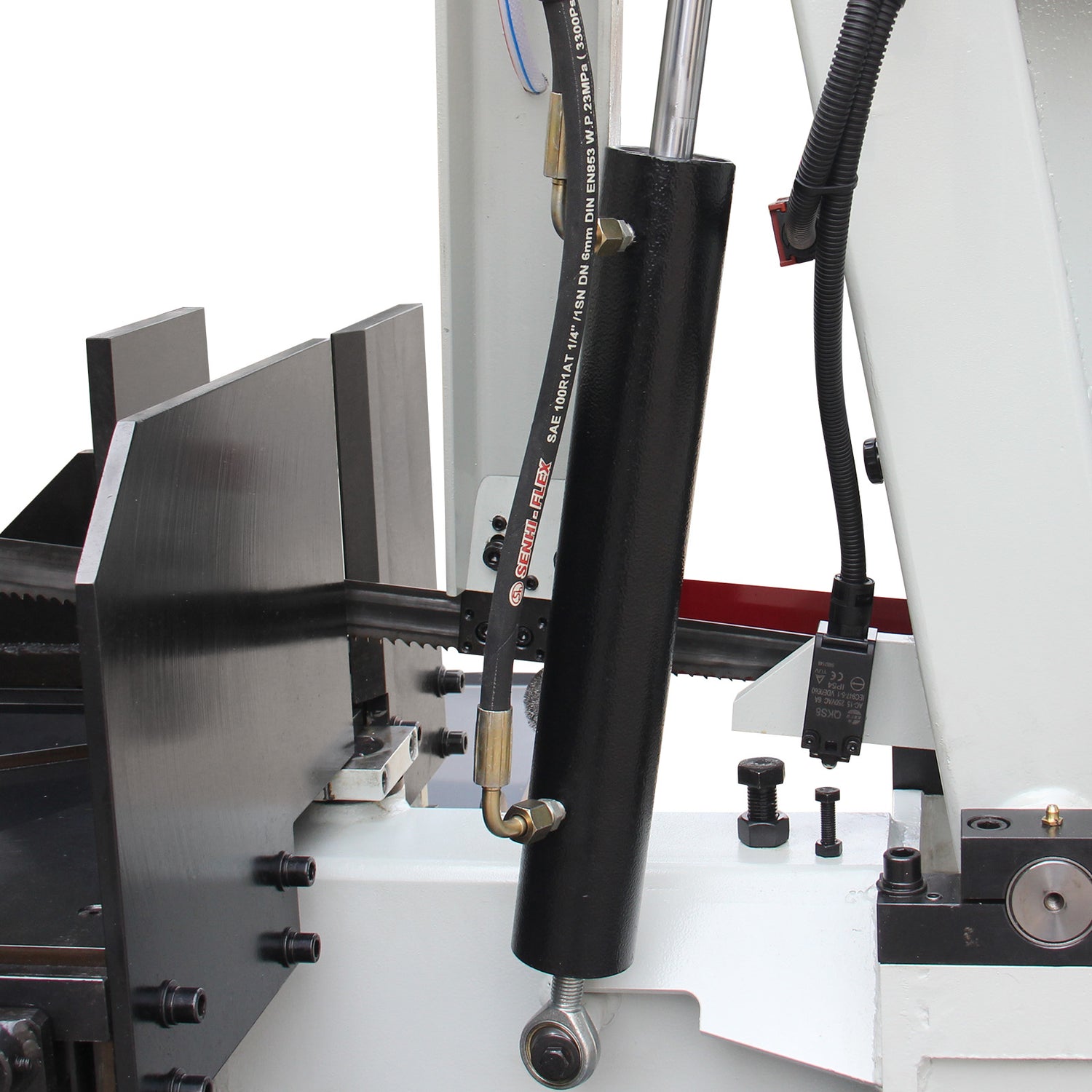

6. Hydrauic descent of the saw frame, adjustable feeding speed
7. Mechnical blade tension with a safety switch to stop the machine once blade loosing
8. Automatic shut off, stops the machine when finish one cutting
9. Material stop allows you make repeat cuts
Item No. | 188065 |
Model | BS-2114T |
Circular @ 90° | 15.7" |
Rectangular @90° | 21.6"x14" |
Circular @ 60° | 6" |
Rectangular @60° | 10"x8" |
Circular @45° | 13.3" |
Rectangular @45°(Left) | 14"x13.3" |
Blade speed @60Hz | 57/84 MPM |
Blade size | 1.3"x0.04"x173.4" |
Motor power | 2.2/2.8KW |
Drive | Gear |
Packing size | 91"x32"x62" |
N.W./G.W. | 1278/1566 lbs |
