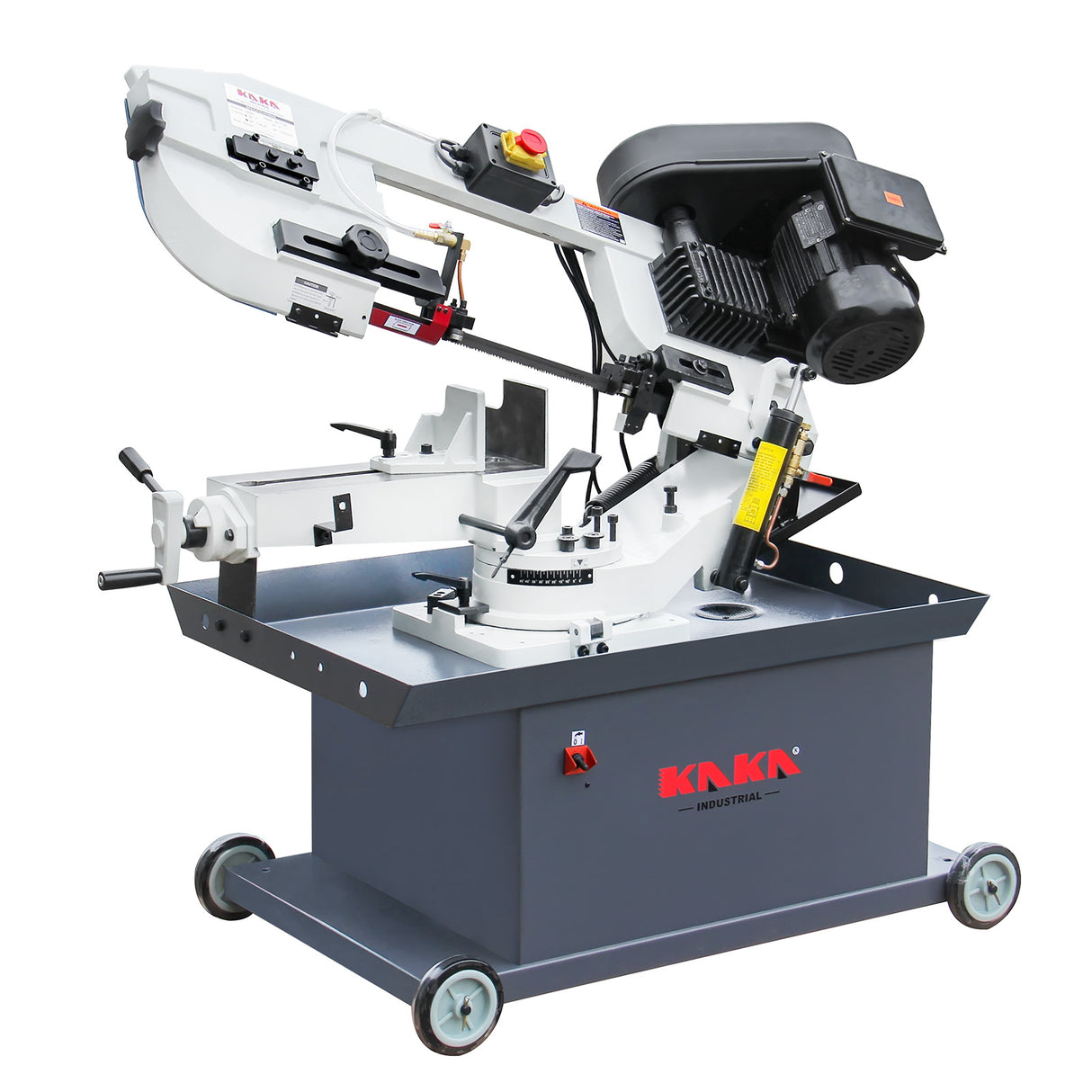

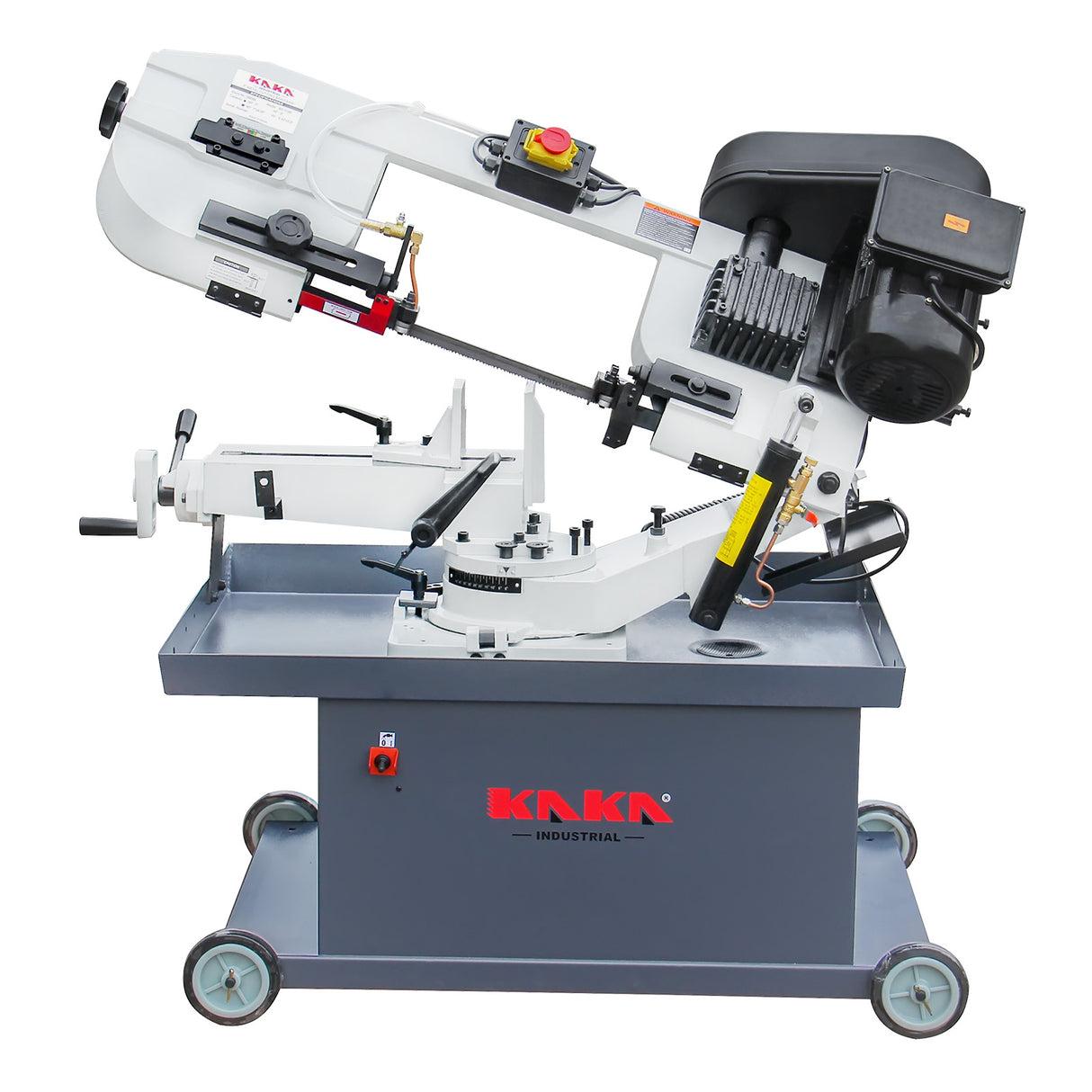

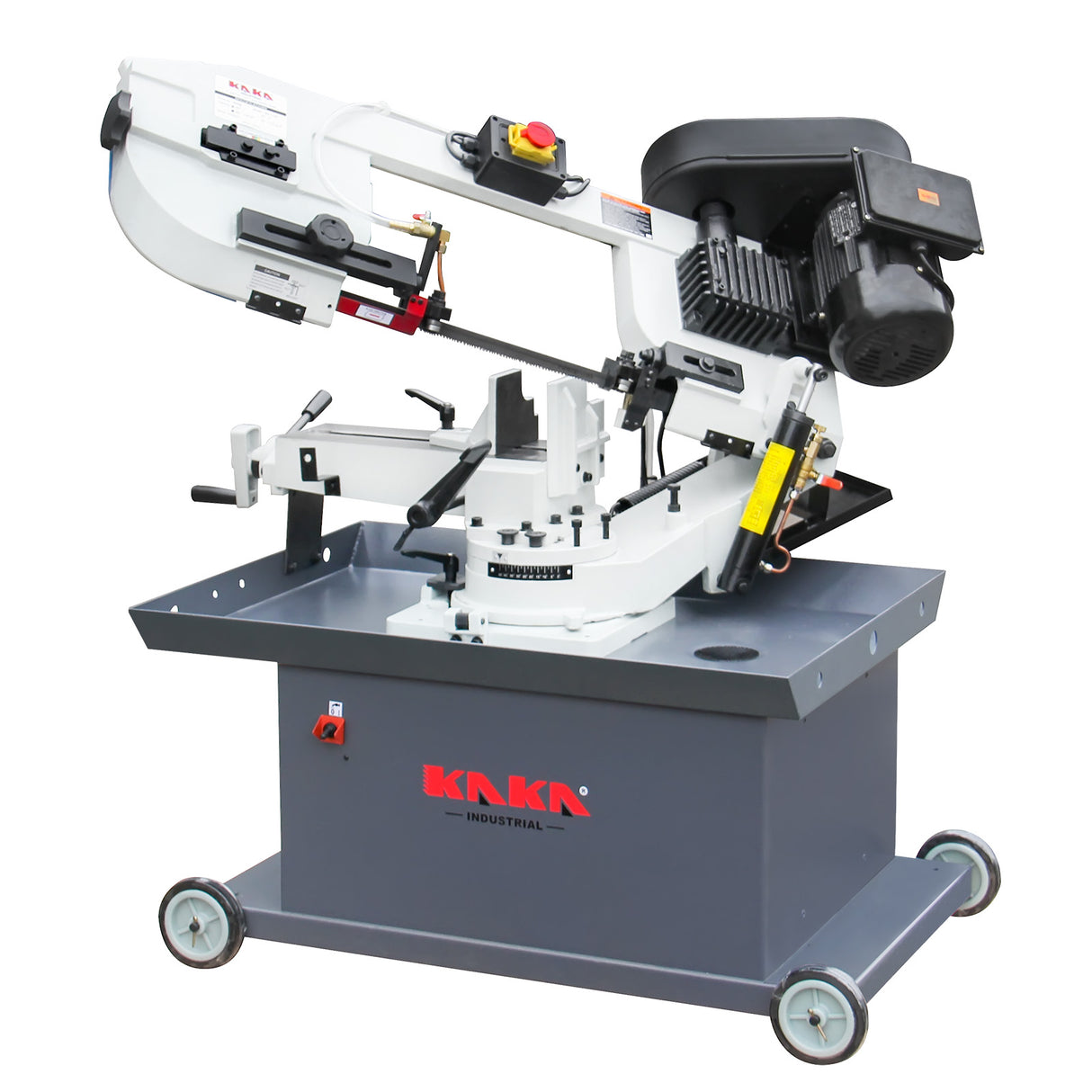

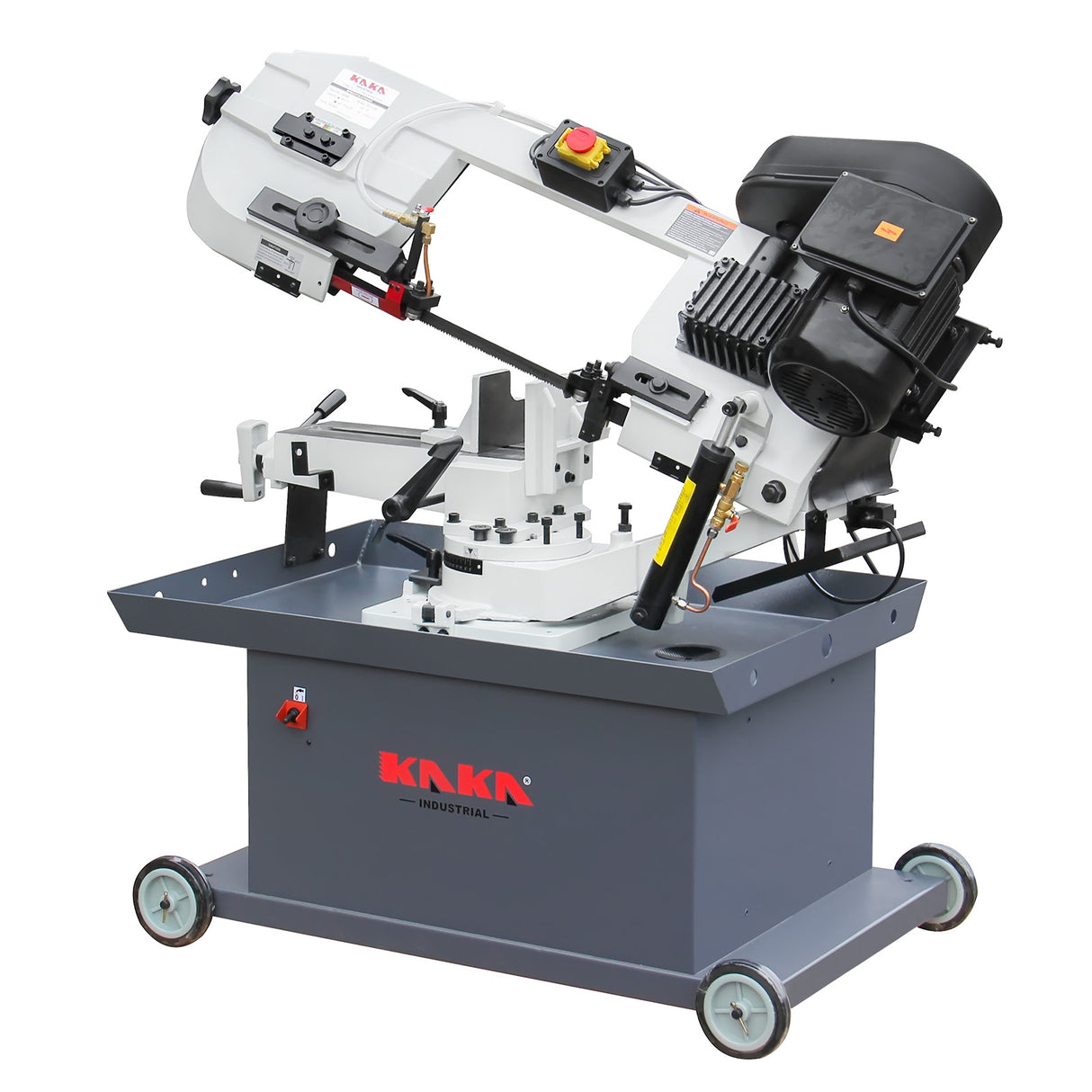

Kaka Industrial BS-712R | 7" x 8-1/4" Horizontal Metal Band Saw, 1.5HP Dual Voltage 45°-90° Bow

$1,879.00 $1,978.00
Shipping calculated at checkout.

BS-712R vs BS-712N — Which One to Choose?

Feature BS-712R (this model) BS-712N
Rectangular capacity @ 90° 7" x 8-1/4" 7" x 12"
Circular capacity @ 90° 7" 7"
Swivel bow for angle cuts Yes — 45° to 90° No (90° only)
Motor 1.5 HP, dual voltage 115V/230V 1.5 HP, dual voltage
Blade speed 4 speeds (pulley) 4 speeds (pulley)
Price $1,879.00 $1,499.00

Choose BS-712R if you need angled/miter cuts (45°-90° swivel bow) and horizontal+vertical dual-mode operation. Choose BS-712N if you need maximum 12" rectangular capacity at a lower price and 90° straight cuts are enough.

• Adjustable blade speed, two pulley wheels offer 4 step speeds.

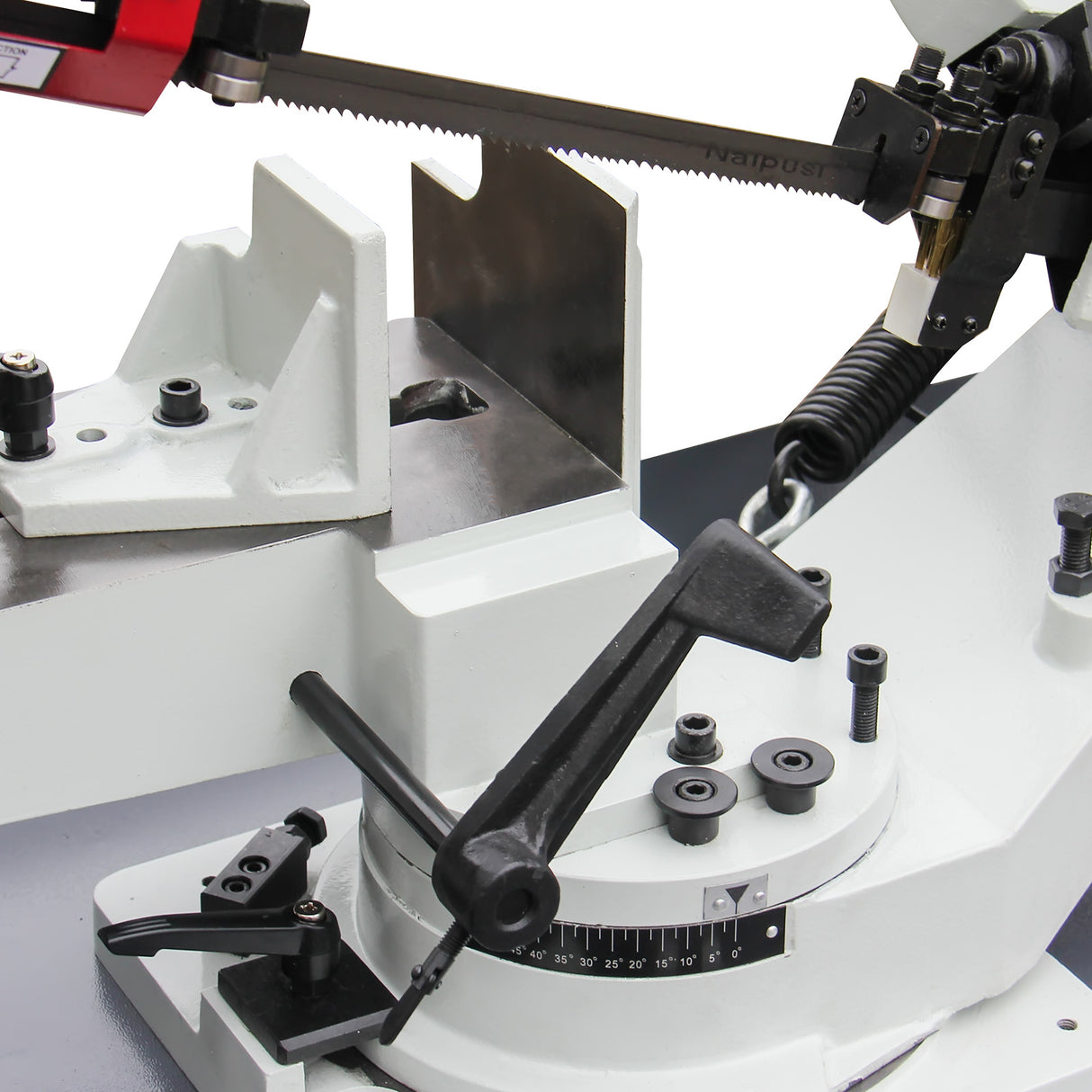

• The saw bow is rotatable, rotating the frame up to 45 degrees for angled cuts
• This bandsaw is equipped with dual voltage 115V or 230V single phase, motor, pre-wired for 115V. You can  also rewire as needed.
• Wheels on the stand make the machine movable, saving space and making transportation easier.

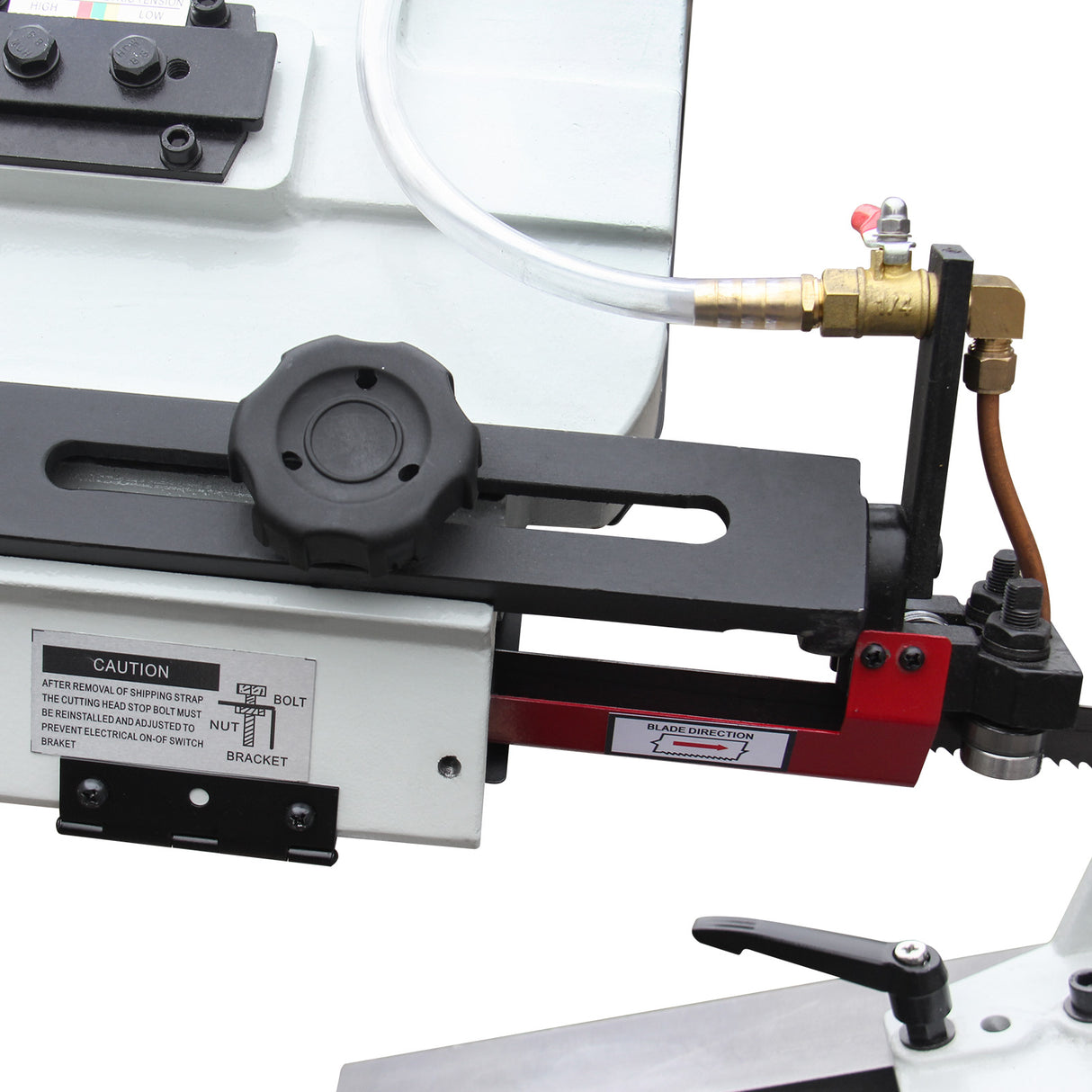

• Adjustable bearing blade guides, help align the saw blade and increase the lifetime of use

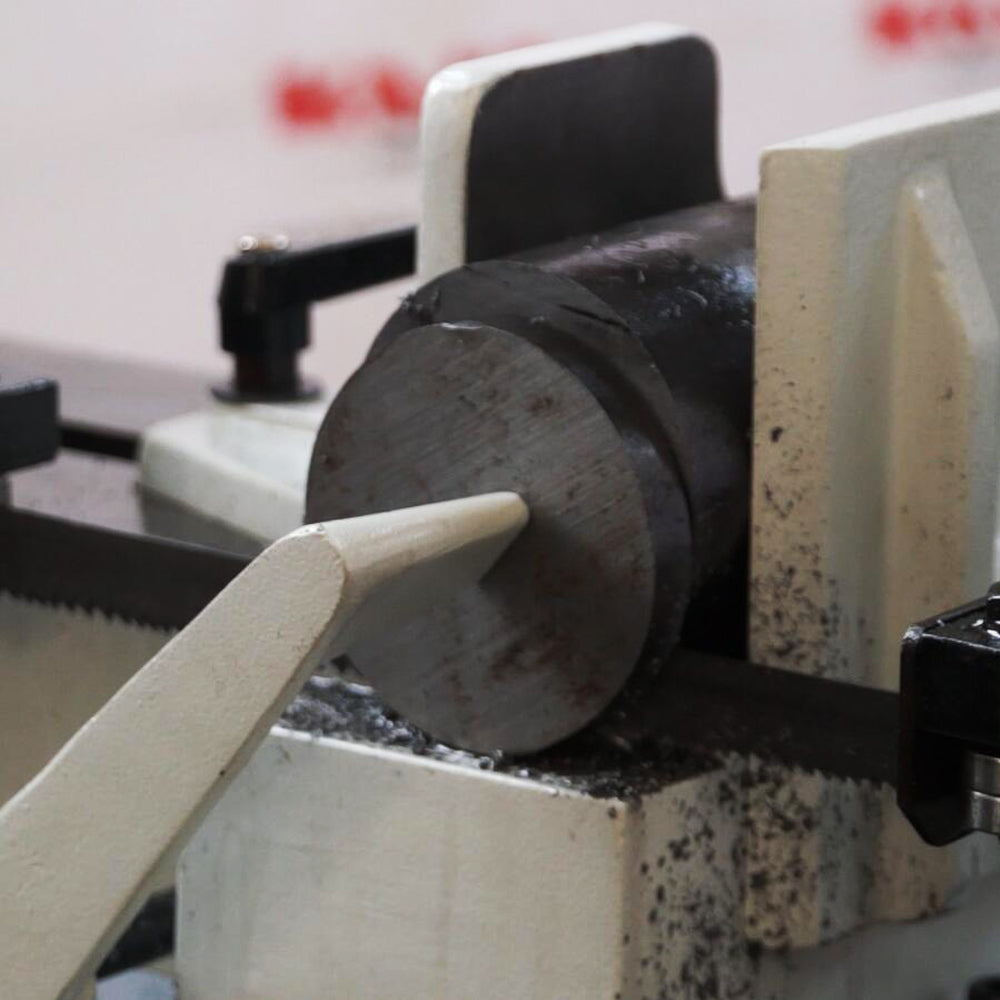

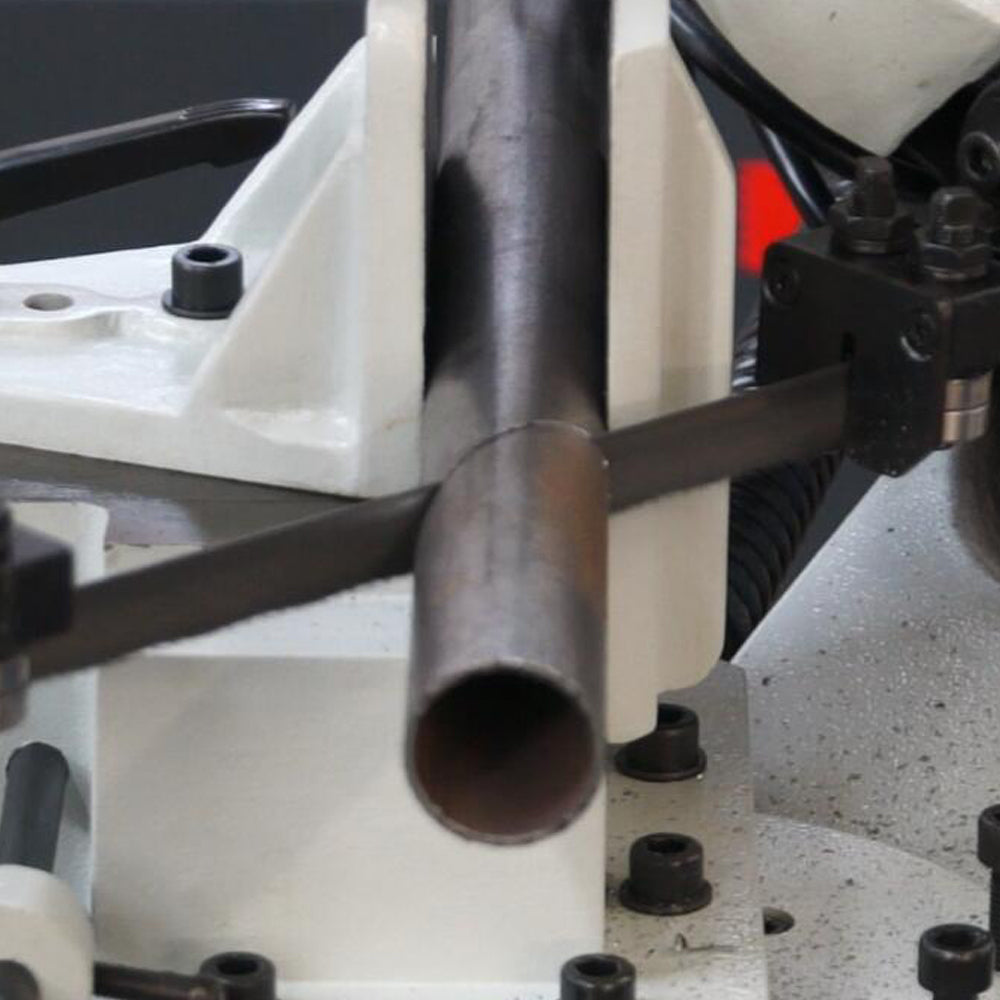

• The powerful motor provides the necessary torque to drive the bandsaw blade through metal workpieces with efficiency and accuracy. The bandsaw can cut through cylindrical metal workpieces with a maximum diameter of 7" and is suitable for cutting round bars, pipes, and other cylindrical stock materials. Additionally, the bandsaw can cut rectangular metal workpieces with dimensions of up to  7"x8-1/4",making it ideal  for cutting flat or rectangular stock materials such as steel plates or structural beams.
• Versatility and flexibility: This horizontal/vertical band saw has all the features needed for professional results in metal cutting, allowing users to perform a variety of cuts, from straight and curved cuts to complex designs. Switching between horizontal and vertical cutting modes on the same machine is quick and easy, saving time and effort compared to using multiple machines, greatly improving production efficiency.
• Safety: The band saw features a coolant system and automatically shut off setting .A heat-treated high carbon steel blade, brass fittings and ball valves, fully shielded guide bearings and a full complement of belt and blade guards. The band saw blade switches off automatically when the task is completed, and a built-in coolant system protects overheated saw blades for smooth, safe and continuous operation.
• Extensive use: The band saw is a versatile tool that can be used in a wide range of applications across different industries and settings, including metalworking industries, fabrication shops, maintenance facilities, educational settings, and hobbyist workshops.

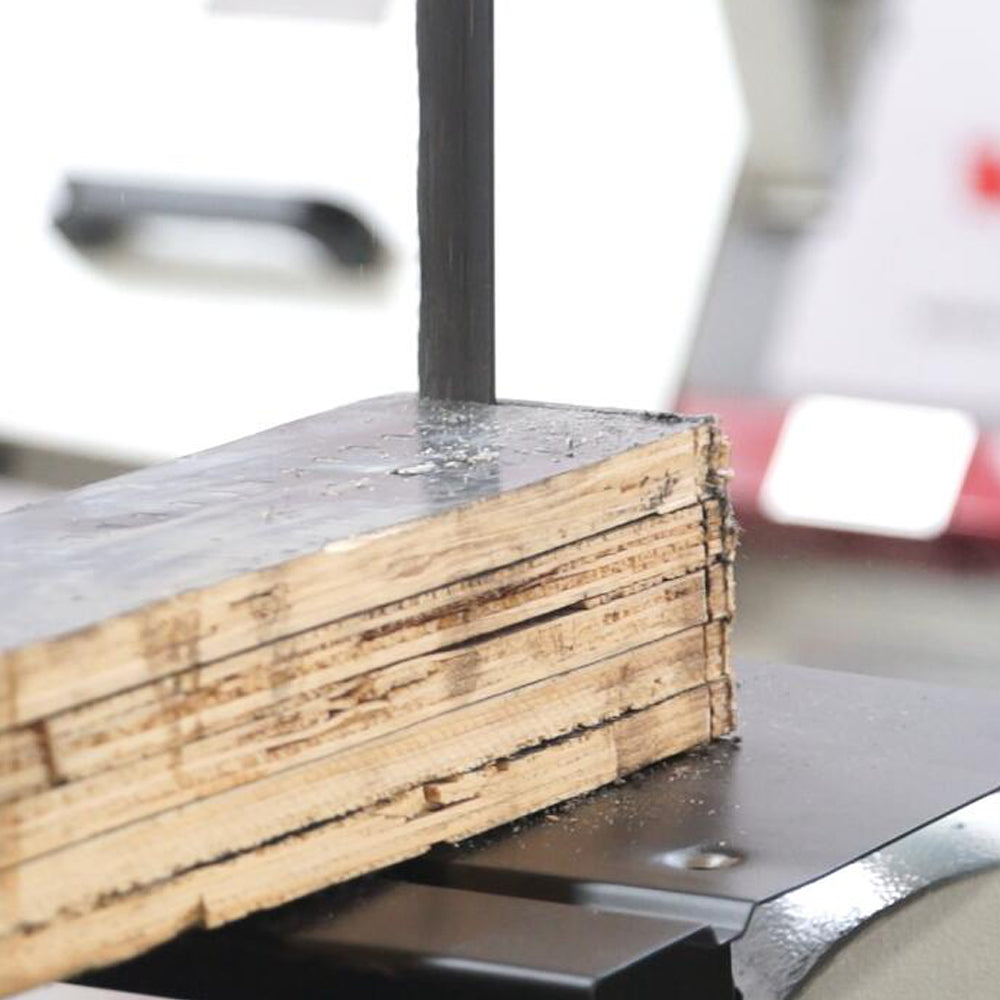

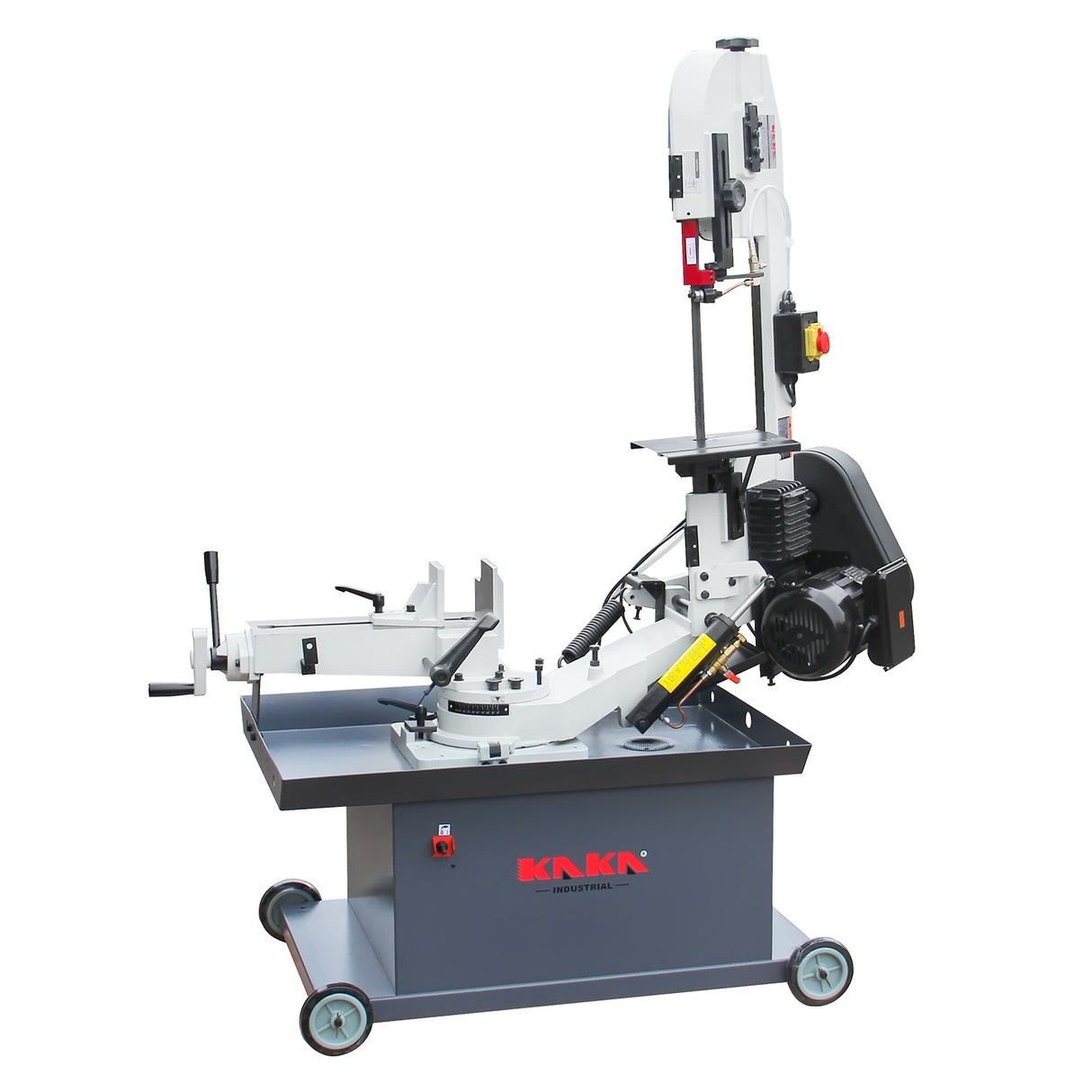

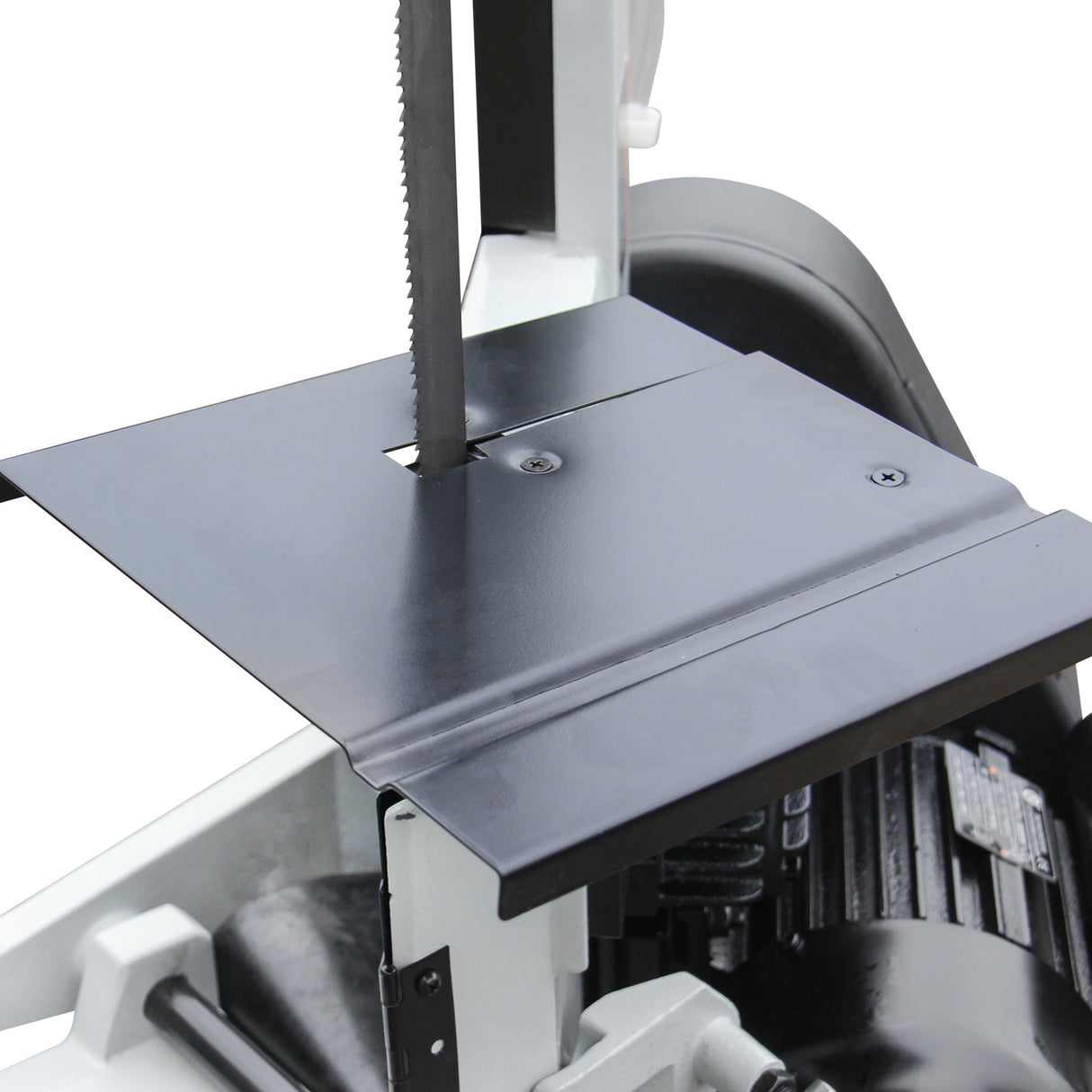

You could operate the band saw vertical

• This type of band saw allows users to perform a wide range of cuts, from straight and curved cuts to intricate designs. Whether you need to rip board, resaw thick stock, or create complex shapes, this machine can do it.
• Switching between horizontal and vertical cutting modes on the same machine is quick and easy, saving time and effort compared to using multiple machines,greatly improving production efficiency.

1. Max. cutting 7" round and 7"x8-1/4" Rectangular at 90 degrees
2. Single phase motor, could work anywhere
3. Two pulley wheels offer 4 step speeds
4. Swivel frame max. to 45 degrees to get angle cutting
5. Wheels on the stand make the machine movable
6. Standard cooling system maximum cutting efficiency
7. Adjustable bearing blade guides, help align the saw blade and increase the lifetime of use

Item No.
188008
Model
BS-712R
Circular @ 90°
7"
Rectangular @90°
7"x8.25"
Circular @45°
5"
Rectangular @45°
3.33"x5.5"
Blade speed @60Hz
27, 41, 59 ,78 MPM
Blade size
3/4"x0.035"x93"
Motor power
1.1KW 1.5HP
Drive
V-belt
Packing size
51"x29"x46"
N.W./G.W.
407/525 lbs

  • Band Saw

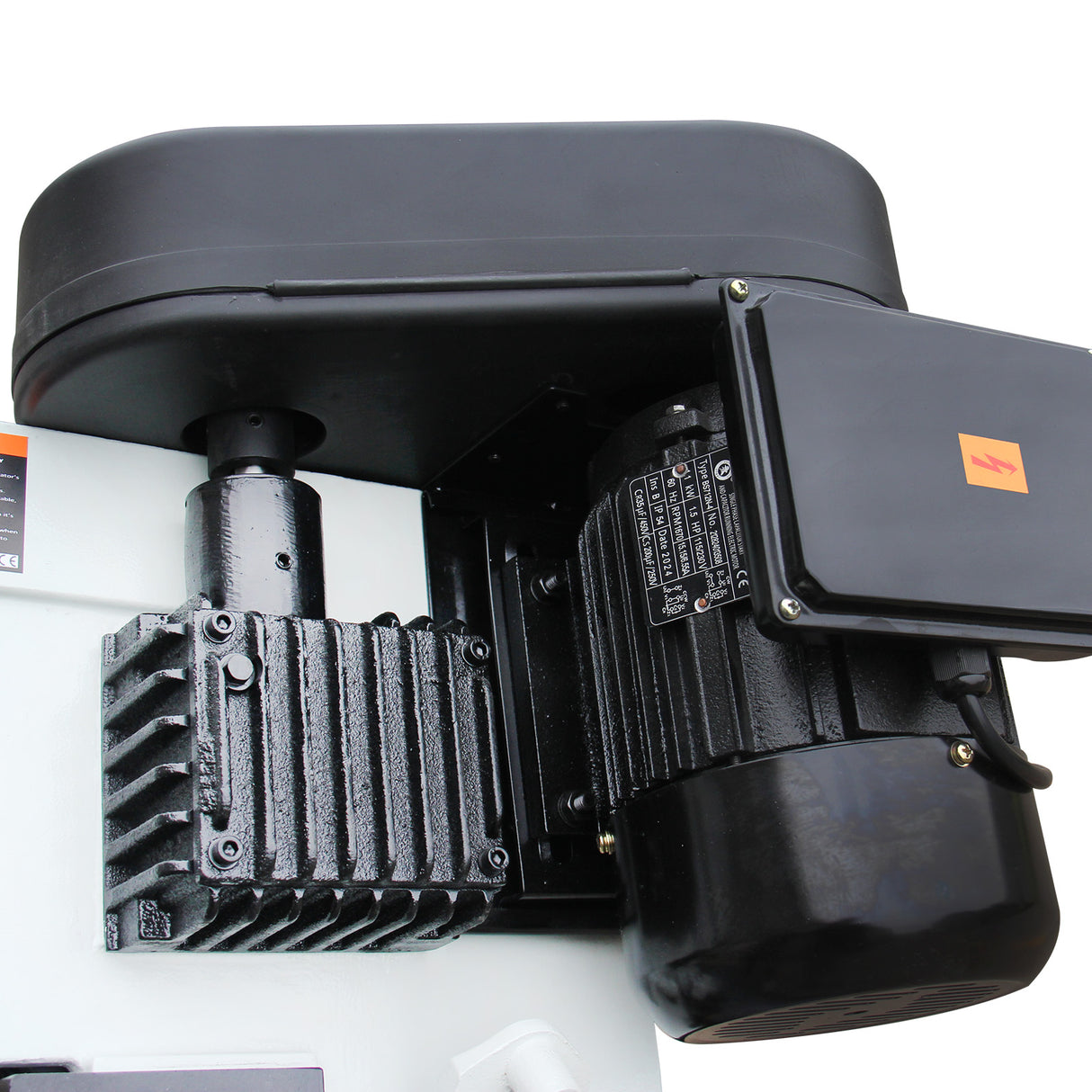

    • Adjustable Blade Speed, Two pulley wheels offer 4 step speeds
    • Steels, bearing bronze 86 Small Largest, Medium to high carbon 132 Medium Large
    • Steels soft brass 178 Large Medium
    • Aluminum plastic 260 Largest Small

  • • Saw bow rotation

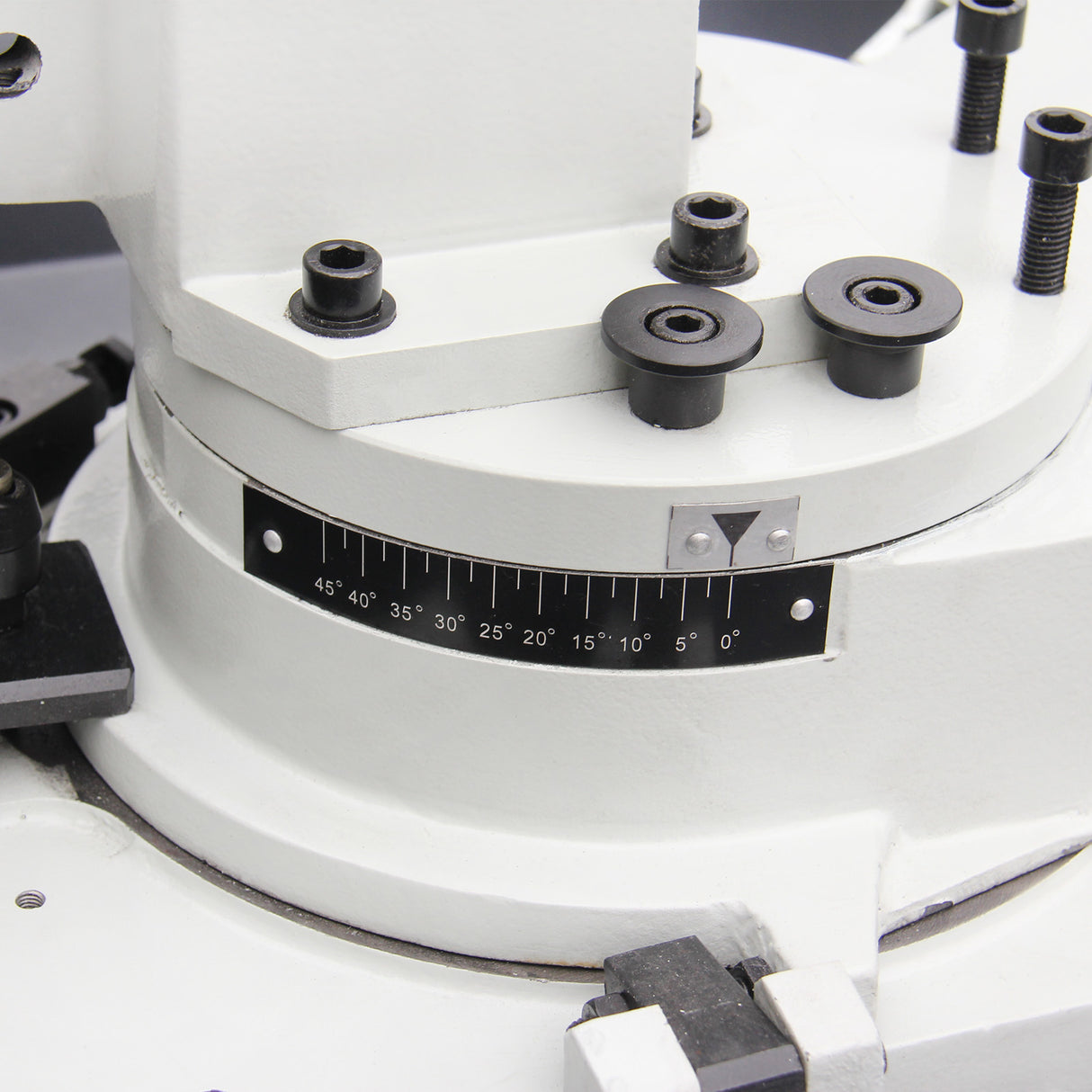

    • Swivel saw frame with scale
    •Swivel frame max. to 45 degrees to get angle cutting

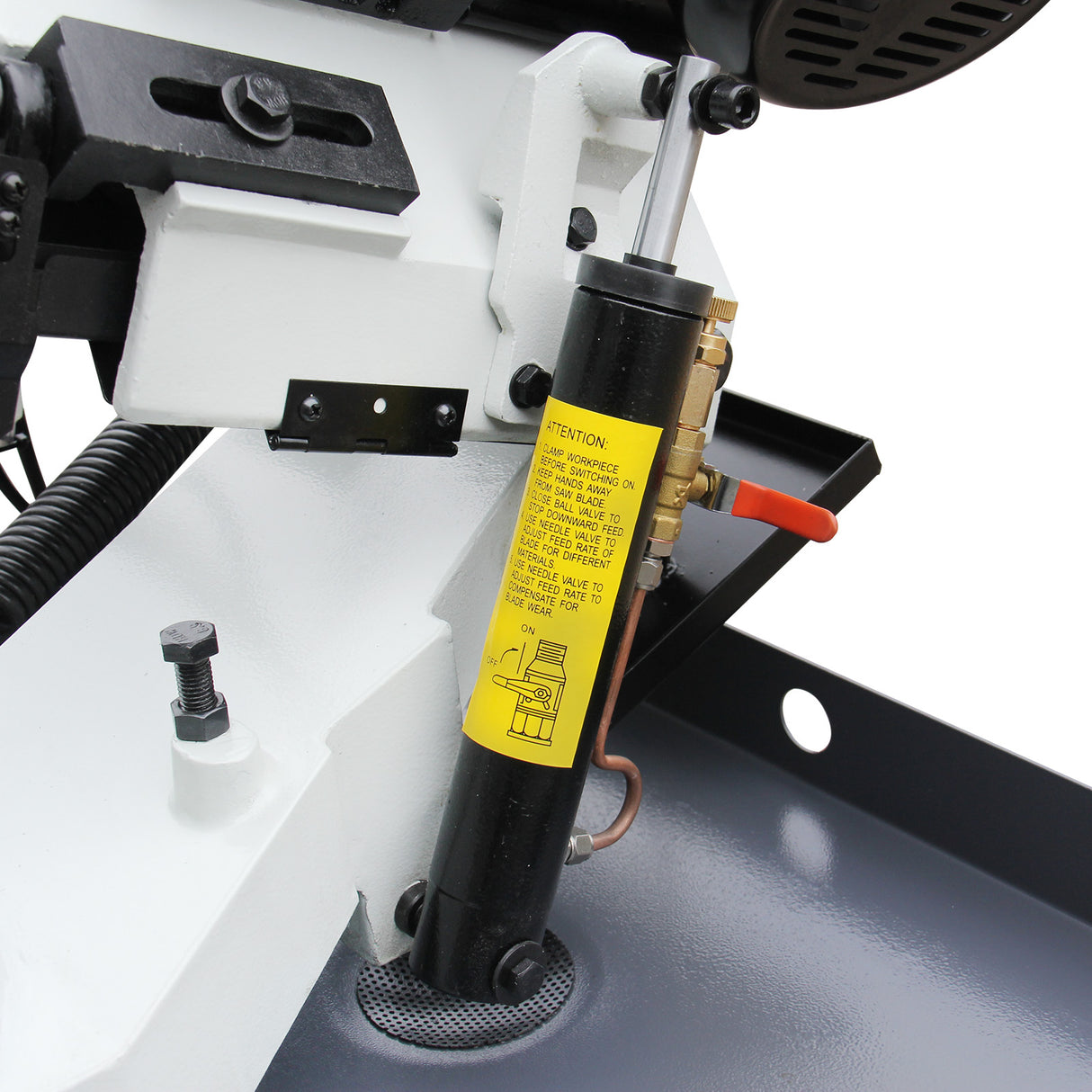

  • • Hydraulic Cylinder
    • Hydraulic downfeed offers maximum control,micro-adjustable feed rate for longer blade life.
