10 Ton OBI Mechanical Power Press, 140 SPM, C-Frame Structure, JB23-10

Get 2% OFF discount for your first order. Code: NEWCUST

  • Customer Service

  • (909) 443-7923

  • info@kakaindustrial.com

  • Contact Us
1 10
KAKA INDUSTRIAL LLC  |  SKU: 162013V220

Mechanical Punch Press, 10 Ton OBI | 140 strokes/min flywheel drive 1.96 in slide stroke, 7.08 in die height JB23-10

$7,200.00 $8,200.00
Shipping calculated at checkout.

Mechanical Punch Press, 10 Ton OBI | 140 strokes/min flywheel drive 1.96 in slide stroke, 7.08 in die height JB23-10 is backordered and will ship as soon as it is back in stock.

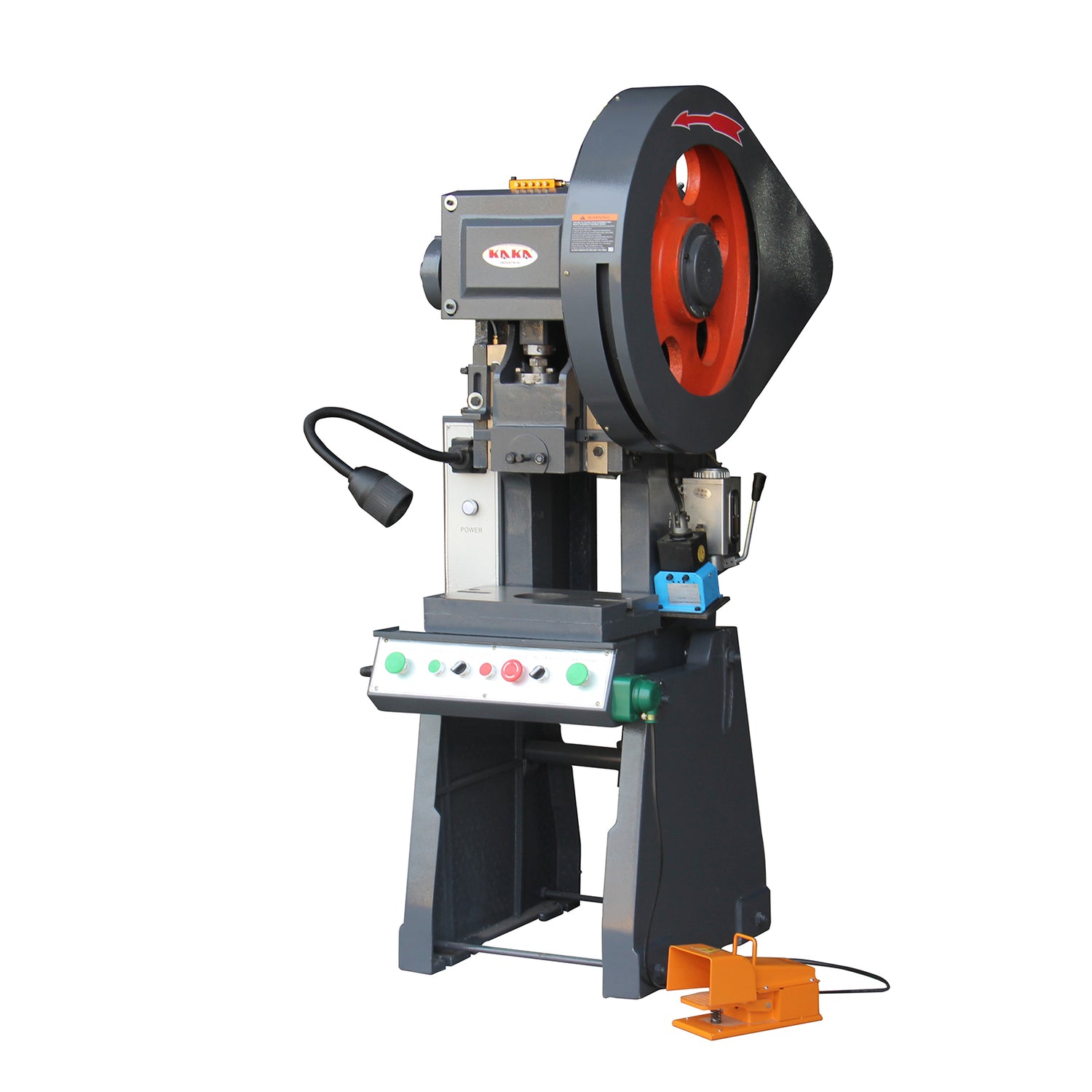

  • 10 Ton Mechanical Punch Press: The JB23-10 is an OBI-style mechanical punch press designed for sheet metal stamping, blanking, punching, forming, and light bending operations with compatible punch and die tooling.

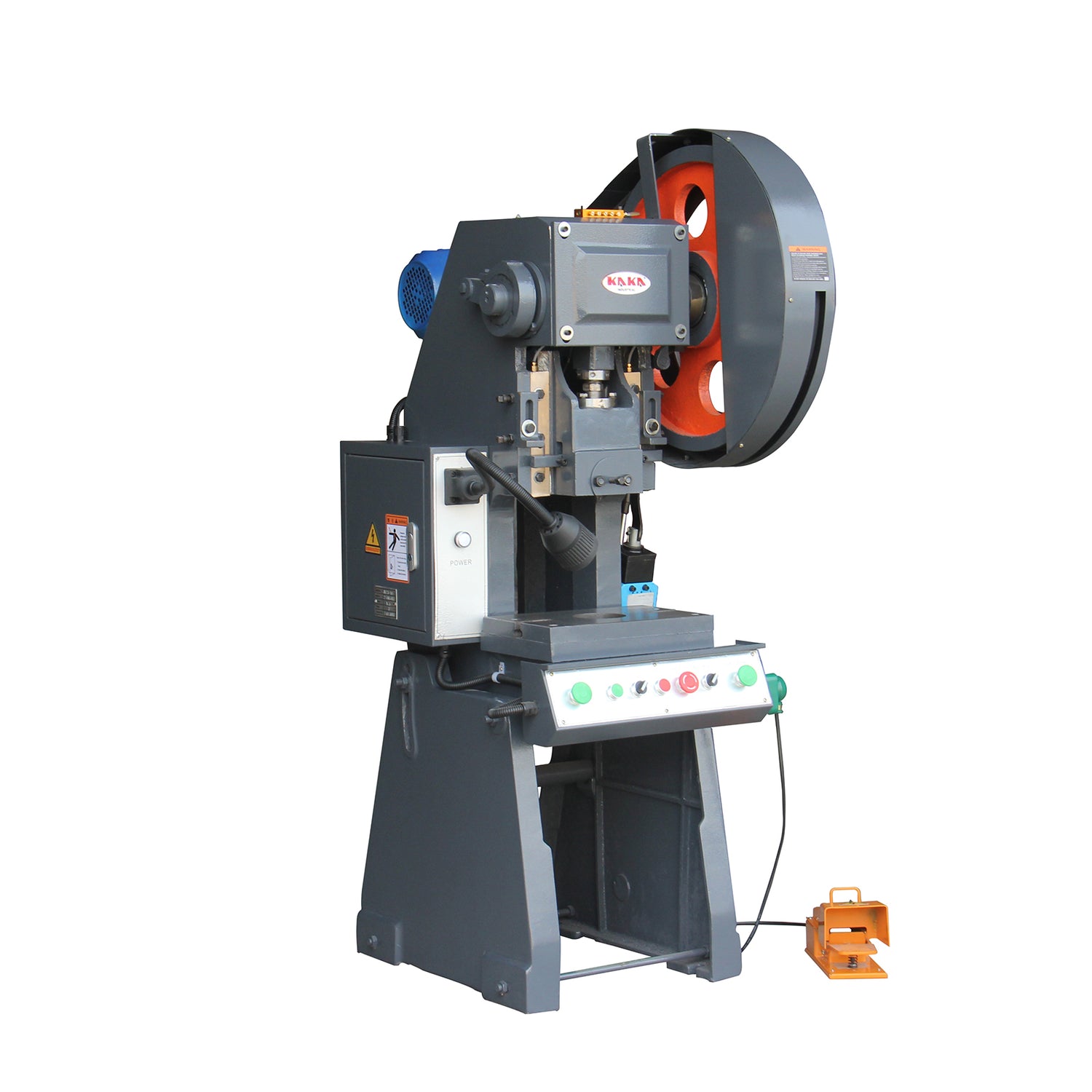

  • Open Back Inclinable C-Frame: The open back C-frame gives access around the die area, while the body tilts up to 20 degrees to help finished parts or scrap move away from the work area after each stroke.
  • Flywheel-Driven Repeated Strokes: A 1.5 kW Y90L-6 motor drives the flywheel and clutch system to deliver repeated mechanical press strokes at 140 strokes per minute for shop and production-oriented metalworking tasks.
  • Adjustable Die Setup: The press provides a 1.96 in slide block stroke, 7.08 in maximum die set height, and 1.57 in die height adjustment to support setup with suitable dies for sheet metal work.

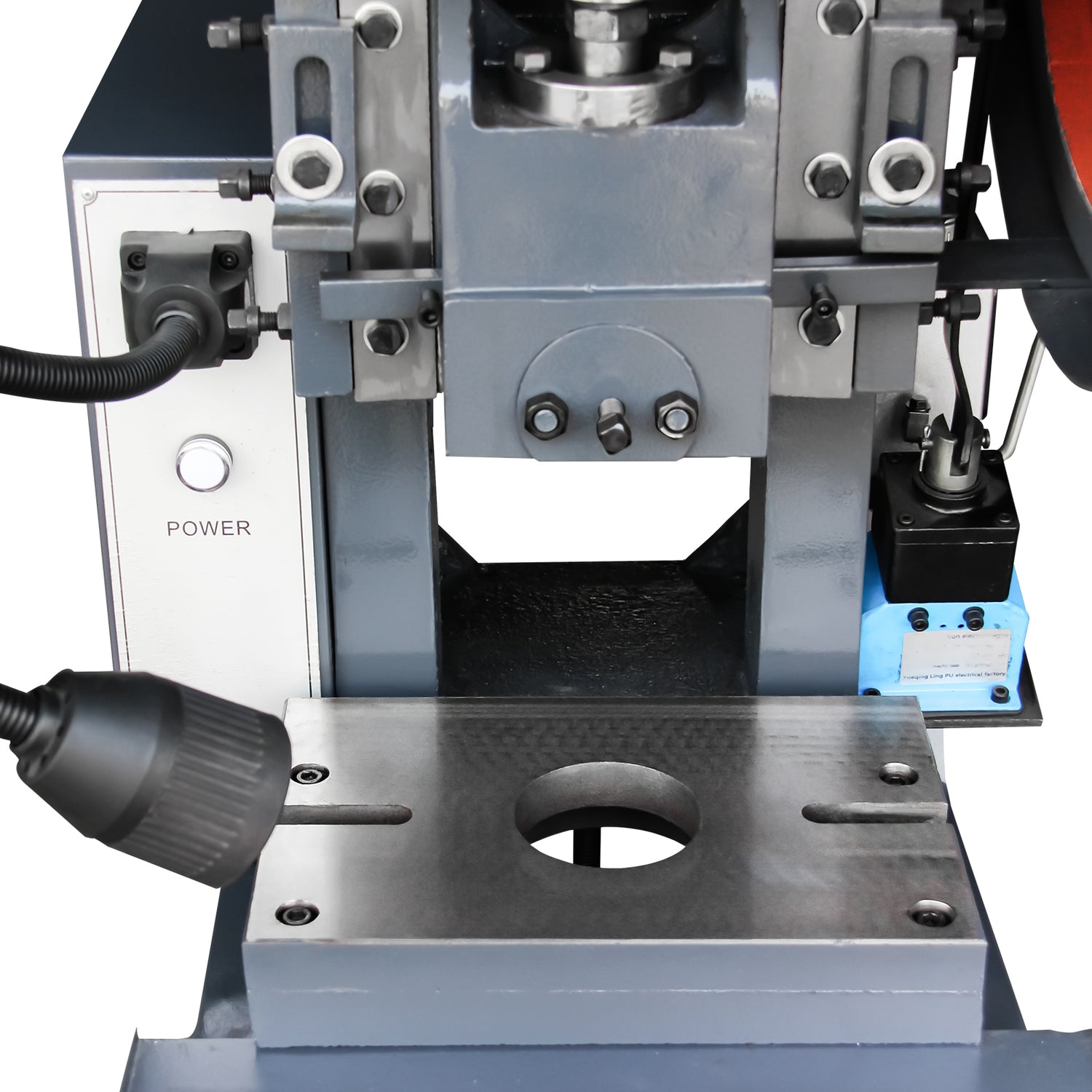

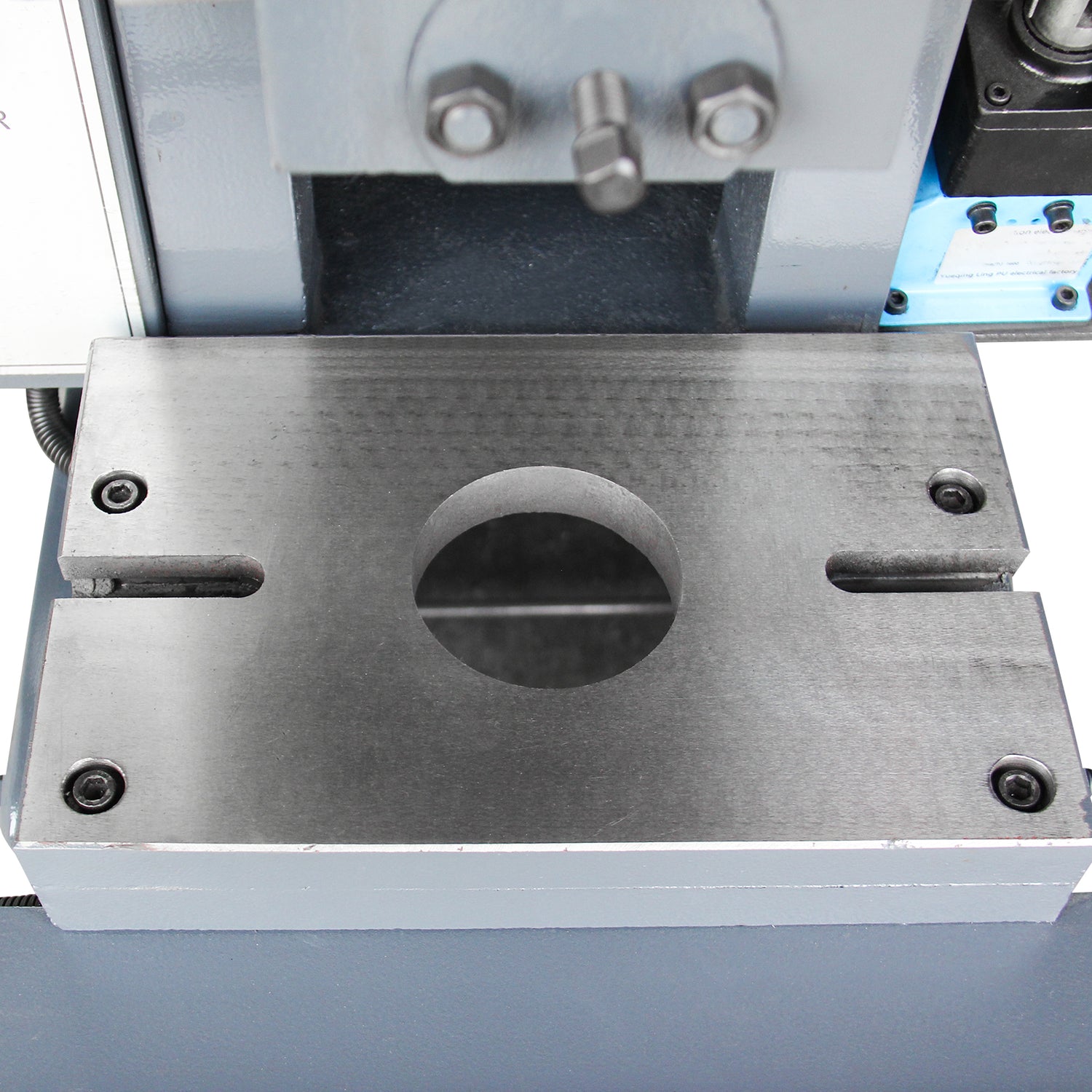

  • Shop-Ready Working Area: The 11.8 x 18.9 in worktable, 6.3 in table hole, 1.96 in bolster thickness, foot switch, dual-hand buttons, and work light support controlled operation in fabrication and stamping environments.
  • Power, precision, and performance meet in the KAKA INDUSTRIAL JB23-10 Mechanical Power Press. Delivering a 10-ton punching force (100 kN) and running at 140 strokes per minute, this metal punch machine handles forming, blanking, punching, and bending with ease. Ideal for metal fabrication, automotive repair, and workshop production, it provides professional-grade results every time.

  • Built with a rigid C-frame design and 20° tilting bed, the JB23-10 offers excellent visibility and convenient part removal. The 1.5 kW Y90L-6 motor powers a high-grade cast iron flywheel, ensuring smooth, stable operation and continuous strokes for mass production. Its 7.08 in die set height and 1.57 in adjustable stroke allow precise setup for various applications.

  • Safety and usability come standard with dual-hand and foot pedal controls, a work light, and OSHA-style protection features. The 11.8 × 18.9 in worktable and 1.96 in bolster thickness provide ample workspace and durability, while the precision-ground slides and bronze bushes ensure long-lasting accuracy.

  • Stable C-frame design

  • 10-Ton Max Punching Force

  • 140 Strokes Per Minute

  • Body Tilts Up to 20°

  • Flywheel Mechanical System

Model
JB23-10
SKU
162013V220
Nominal force
100 kN
Stroke under nominal force
0.11 in
Slide block stroke
1.96 in
Number of stroke
140 times/min
Max die set height
7.08 in
Die set height adjustment
1.57 in
Distance from slide block
center to the frame: 6.69 in
Workable dimensions (F·B×L·R)
11.8x18.9 in
Dimensions of worktable hole
φ6.3 in
Thickness of bolster
1.96 in
Dimensions of slide block
(F·B×L·R): 5.9x9 in
Distance between columns
of body: 8.6 in
Motor Type
Y90L-6
Motor Power
1.5 kW
Max. inclinable angle
20°
N.W./G.W.
1102 lbs

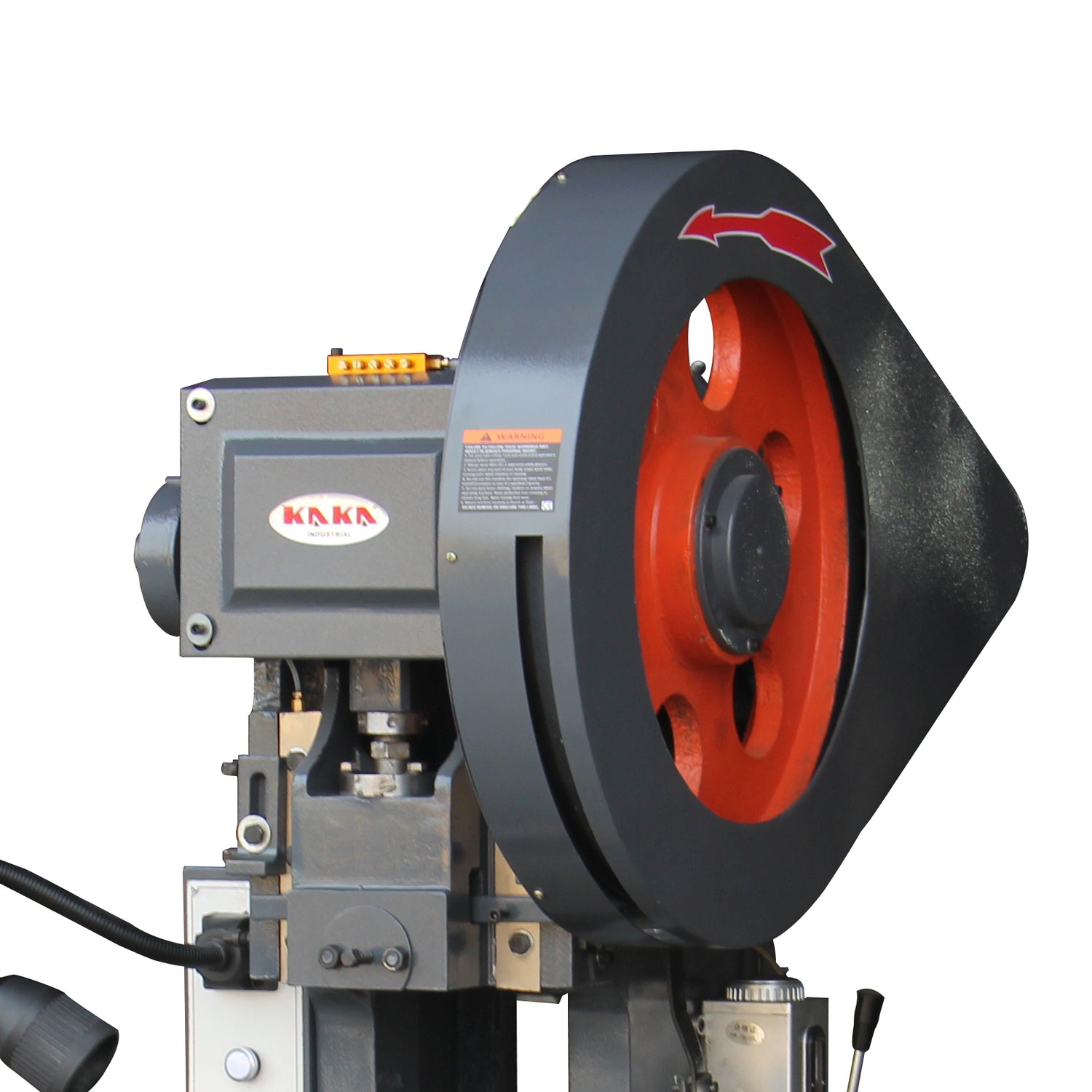

  • 10-Ton punch press cast iron flywheel with orange center and black rotation guard, storing energy for consistent strokes, model JB23-10

    Flywheel Mechanism

    The high-quality cast iron flywheel efficiently stores and releases energy for consistent pressing operations.

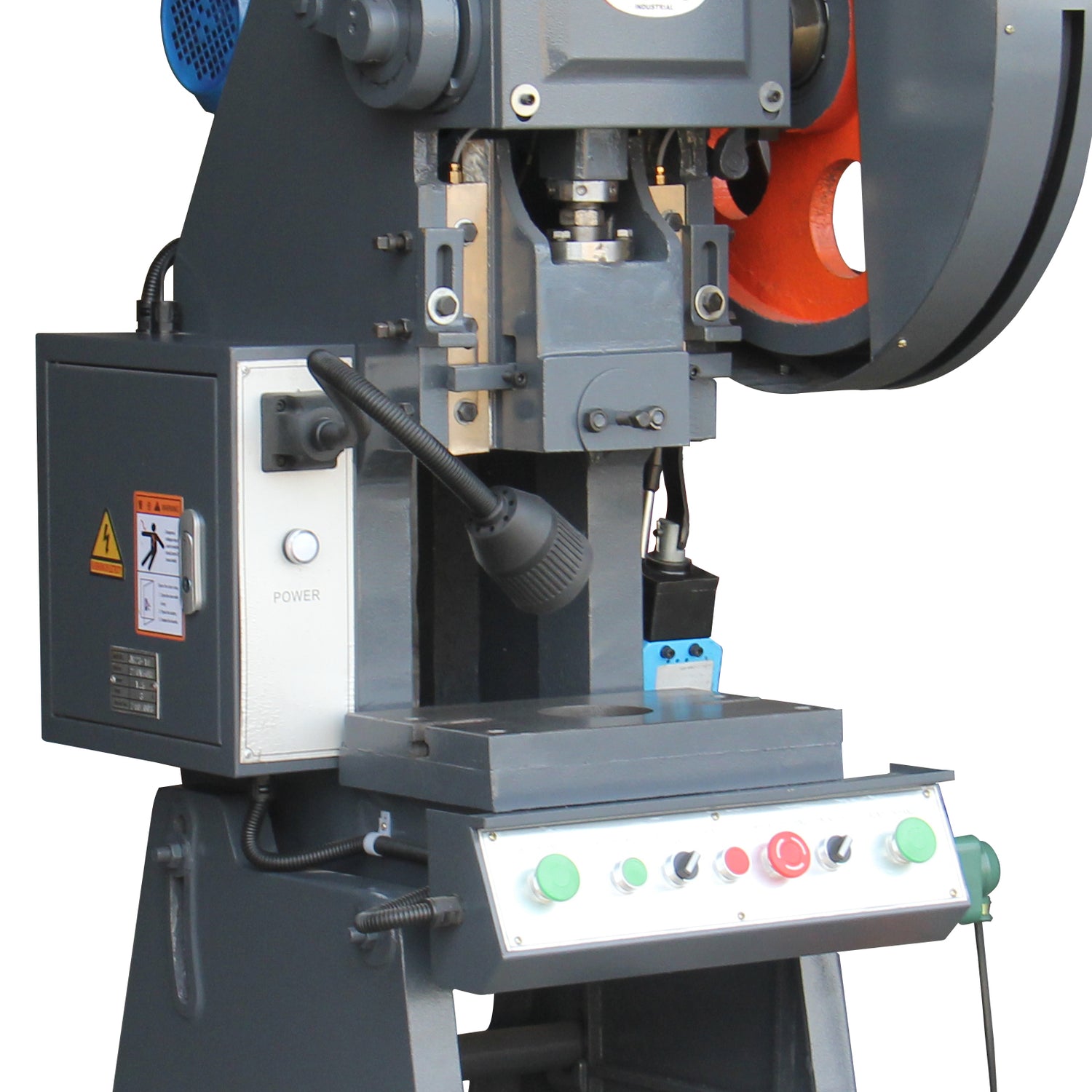

  • Upper frame and control panel of a 10-Ton OBI mechanical punch press, highlighting the slide block and safety labels, model JB23-10

    C-Frame Structure

    The open design of the left and right sides facilitates rapid material handling and provides a stable working environment, thus increasing productivity.

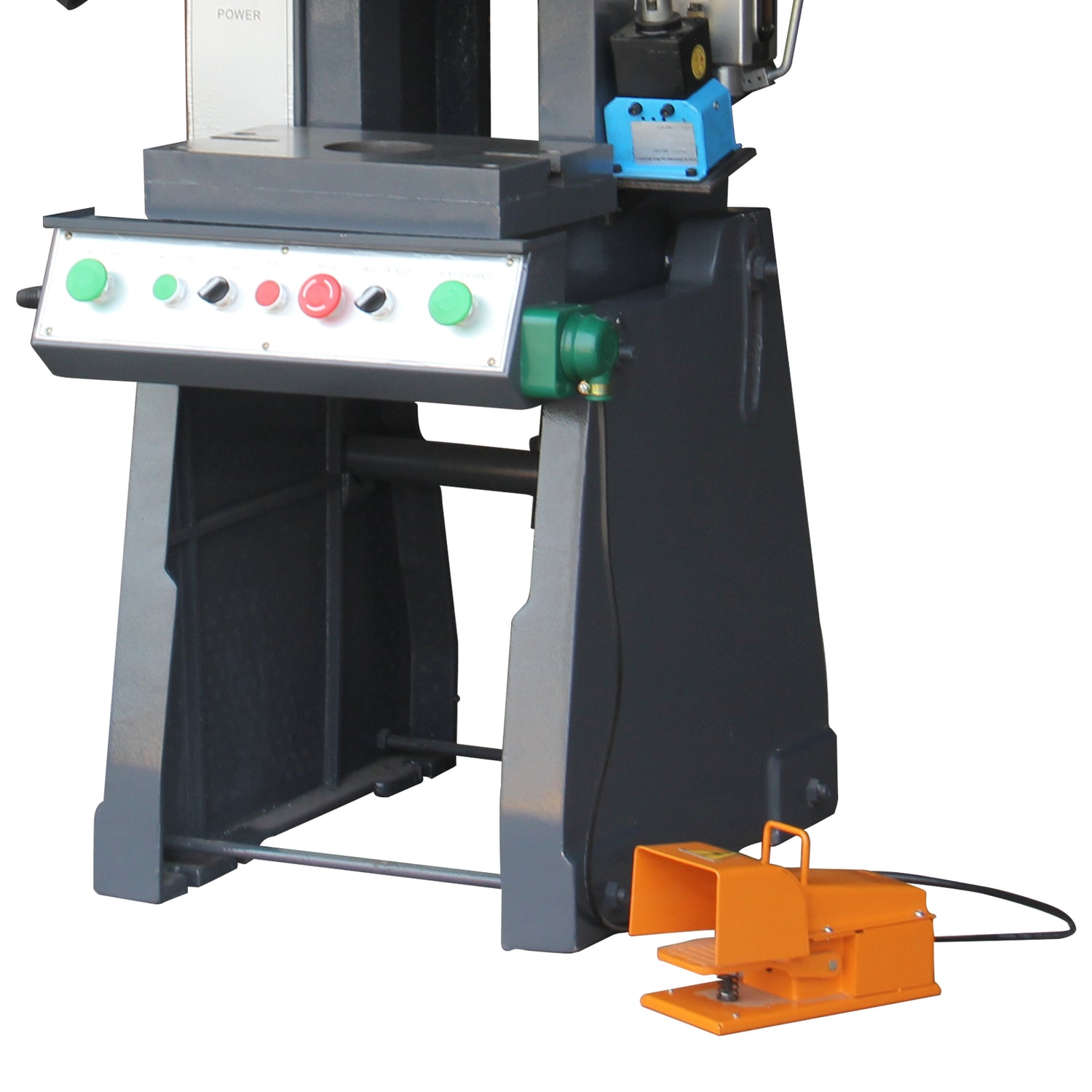

  • Lower base and orange foot pedal control of a mechanical punch press, providing dual safety operation for fabrication, model JB23-10

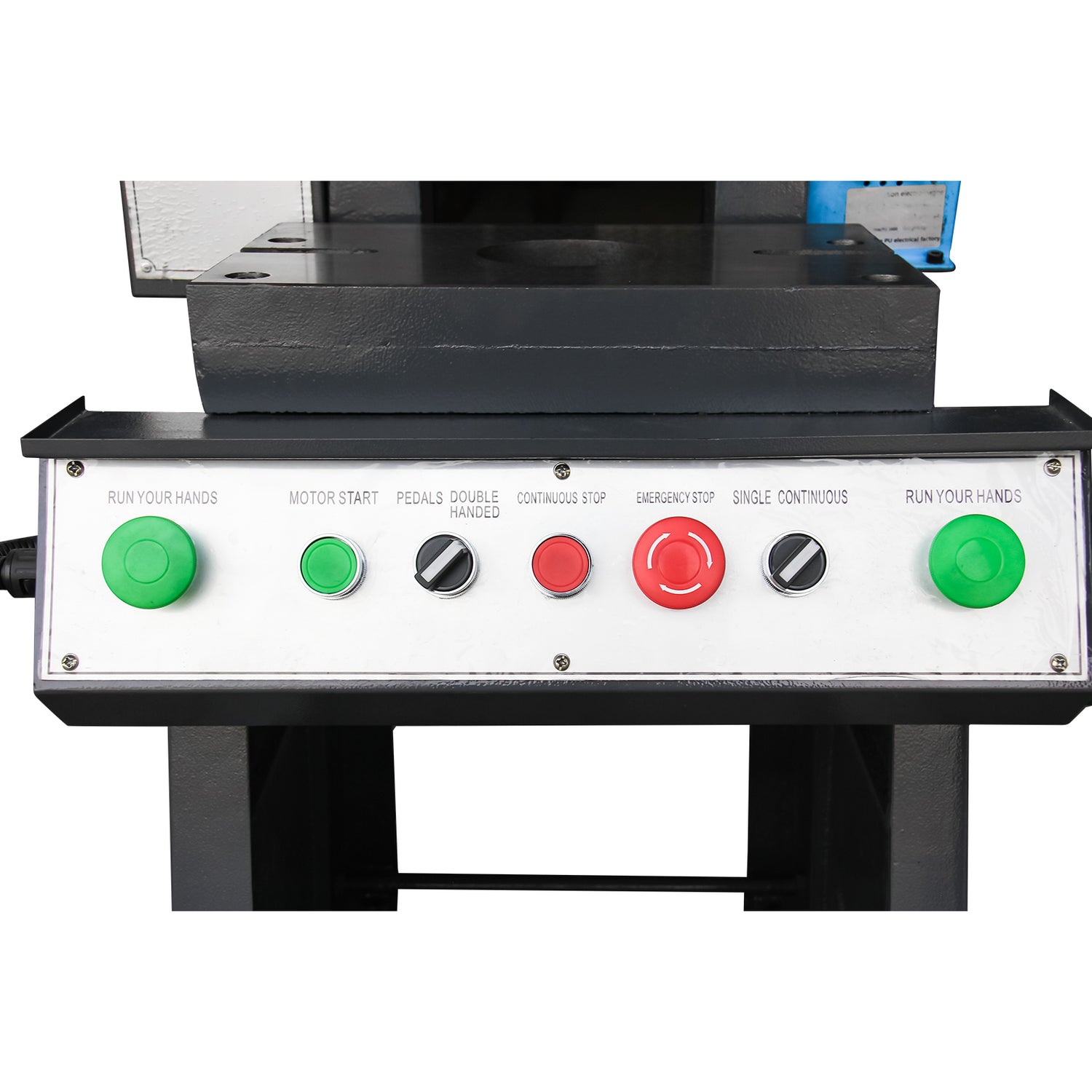

    Dual Control System

    Equipped with foot pedal and two-hand buttons for safe, flexible control during continuous or single-cycle punching.
