KAKA INDUSTRIAL LLC  |  SKU: 182022V220V240

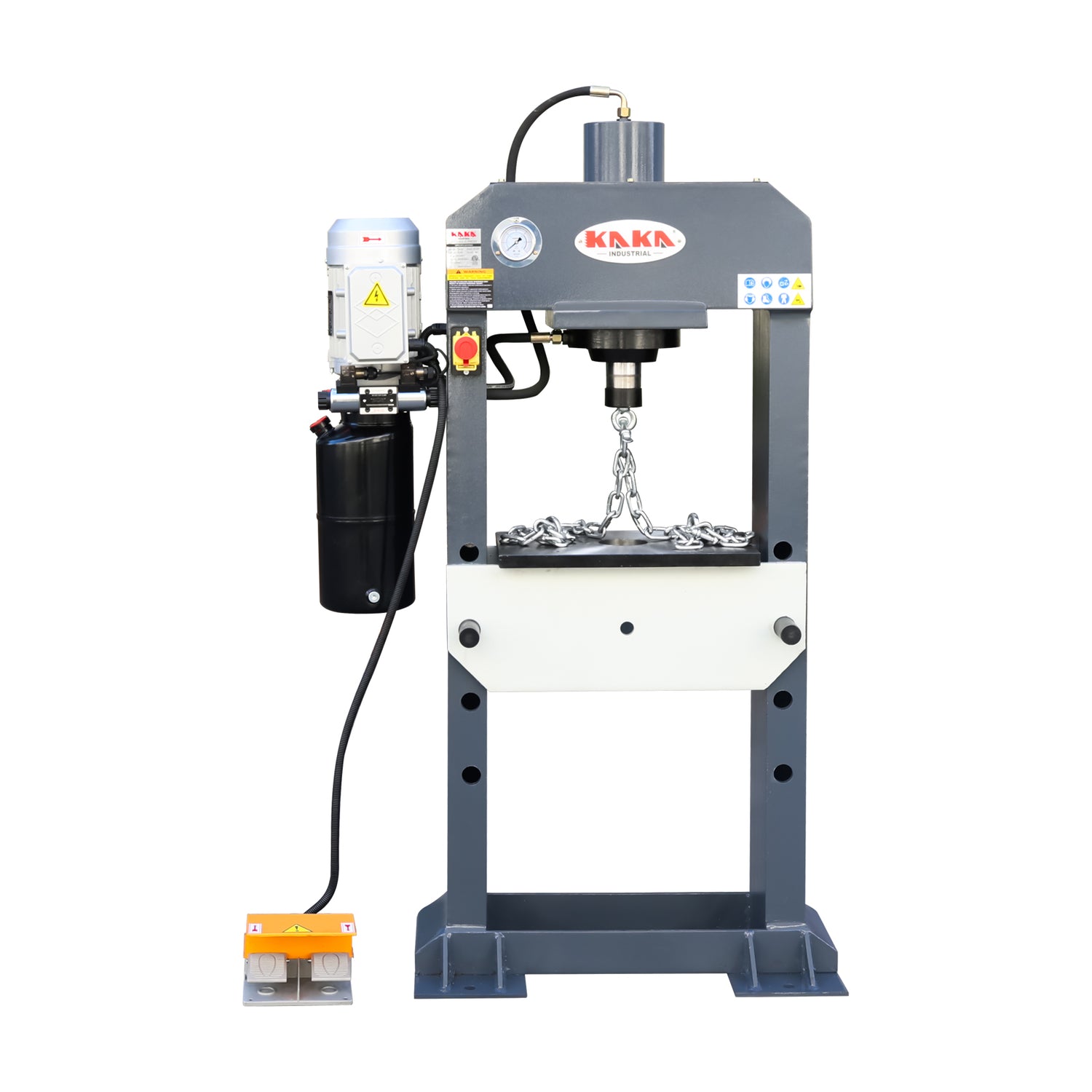

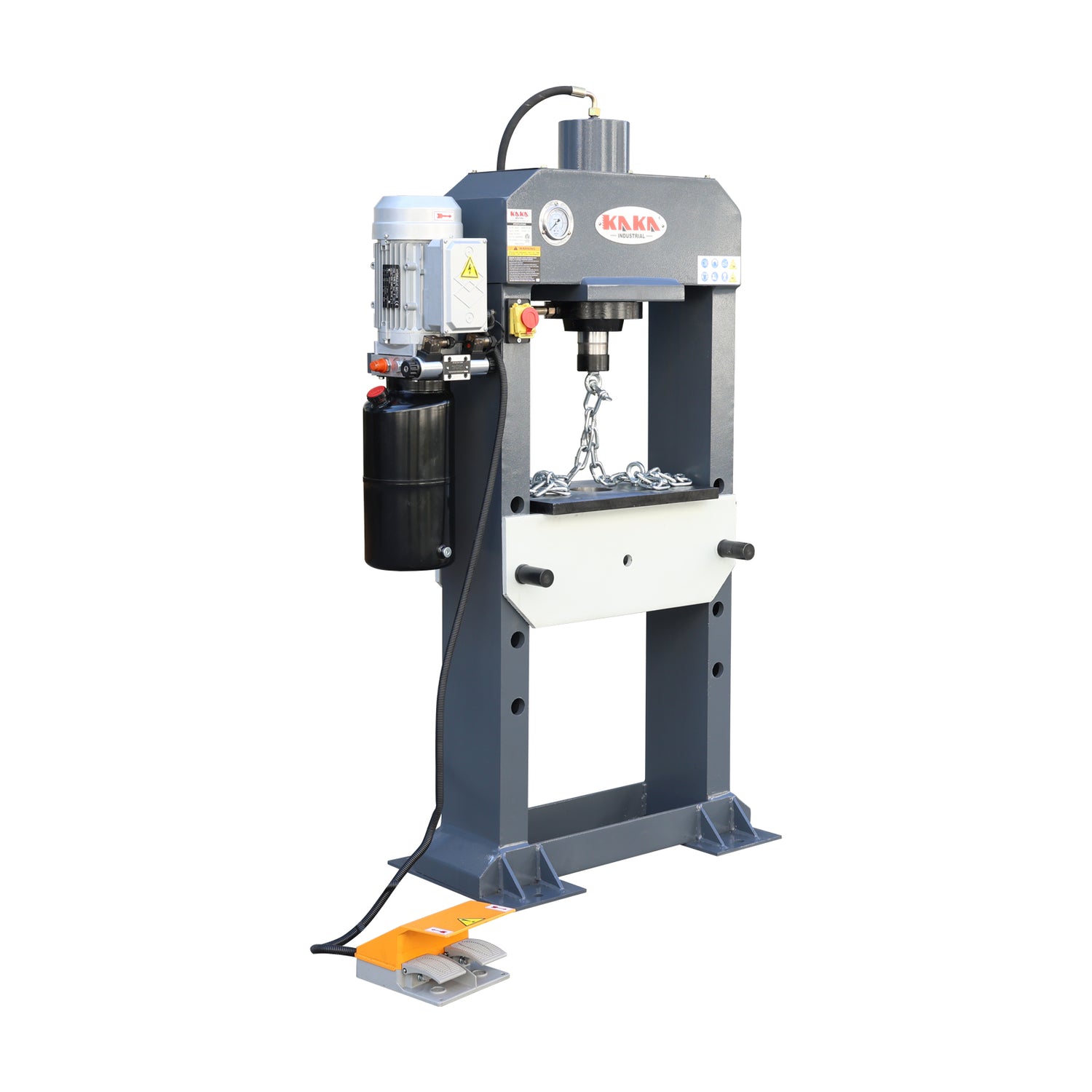

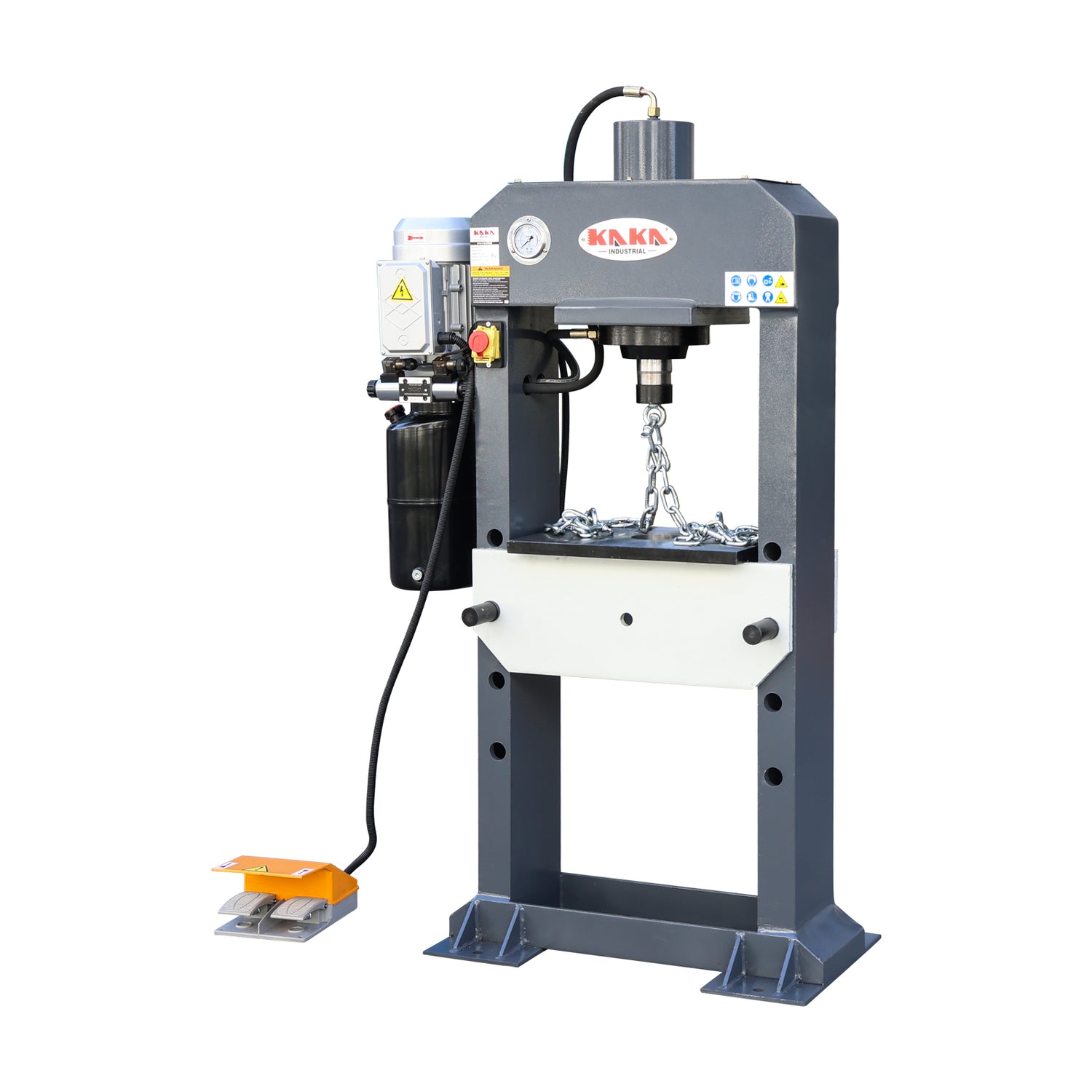

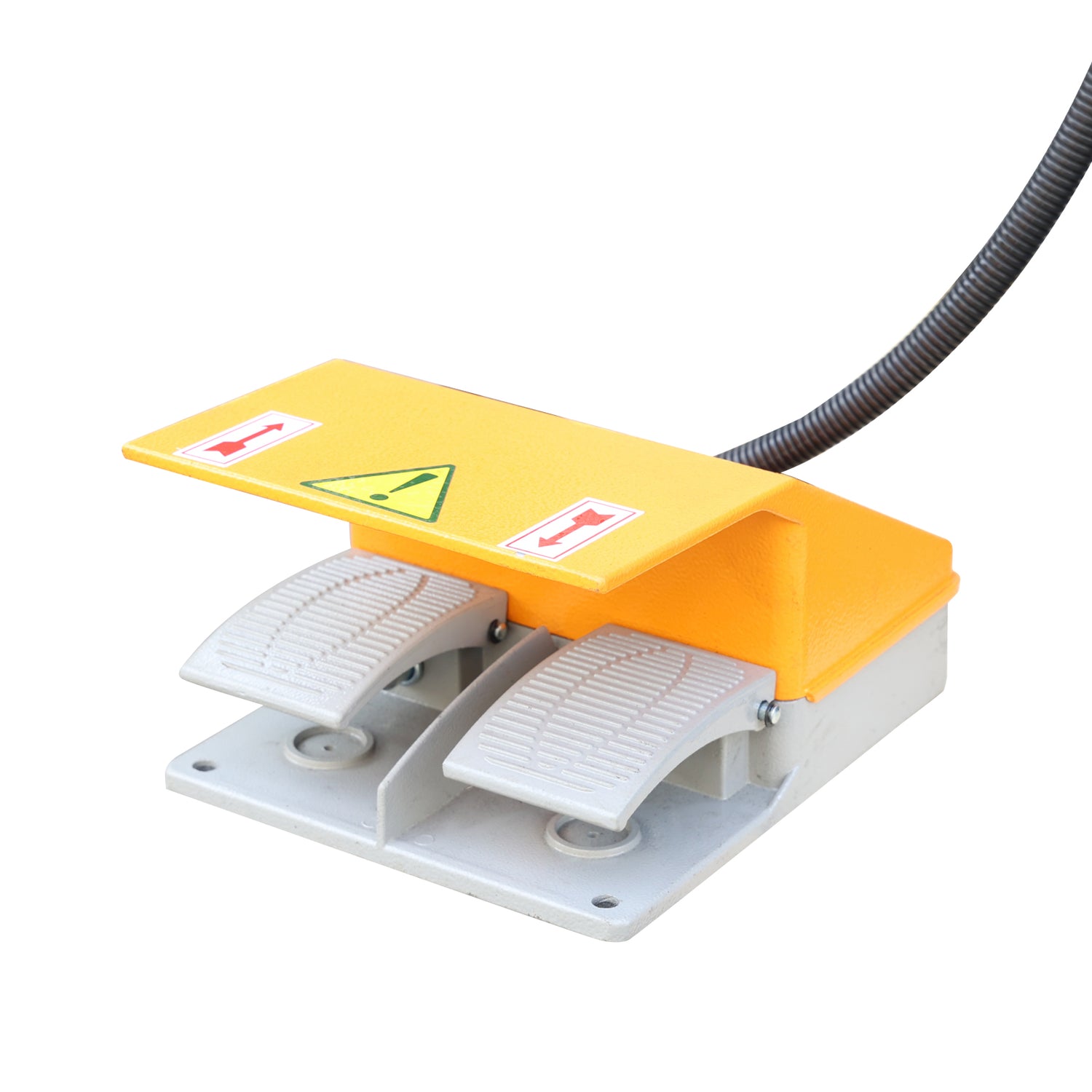

KAKA INDUSTRIAL Hydraulic Press, 25-Ton H-Frame Hydraulic Shop Press with Foot Pedal, 9.8-Inch Stroke Electric Hydraulic Press with Pressure Gauge for Pressing, Stamping HP-25F

$3,559.00
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

  • Heavy-Duty Capacity: The HP-25 electric hydraulic press delivers 25-ton force with a 9.84 in stroke and 4.92 in ram diameter, ideal for bending, forming, and straightening.
  • Sturdy H-Frame Build: This h-frame shop press features reinforced steel construction, corrosion-resistant coating, and stable vertical supports for long-lasting performance.

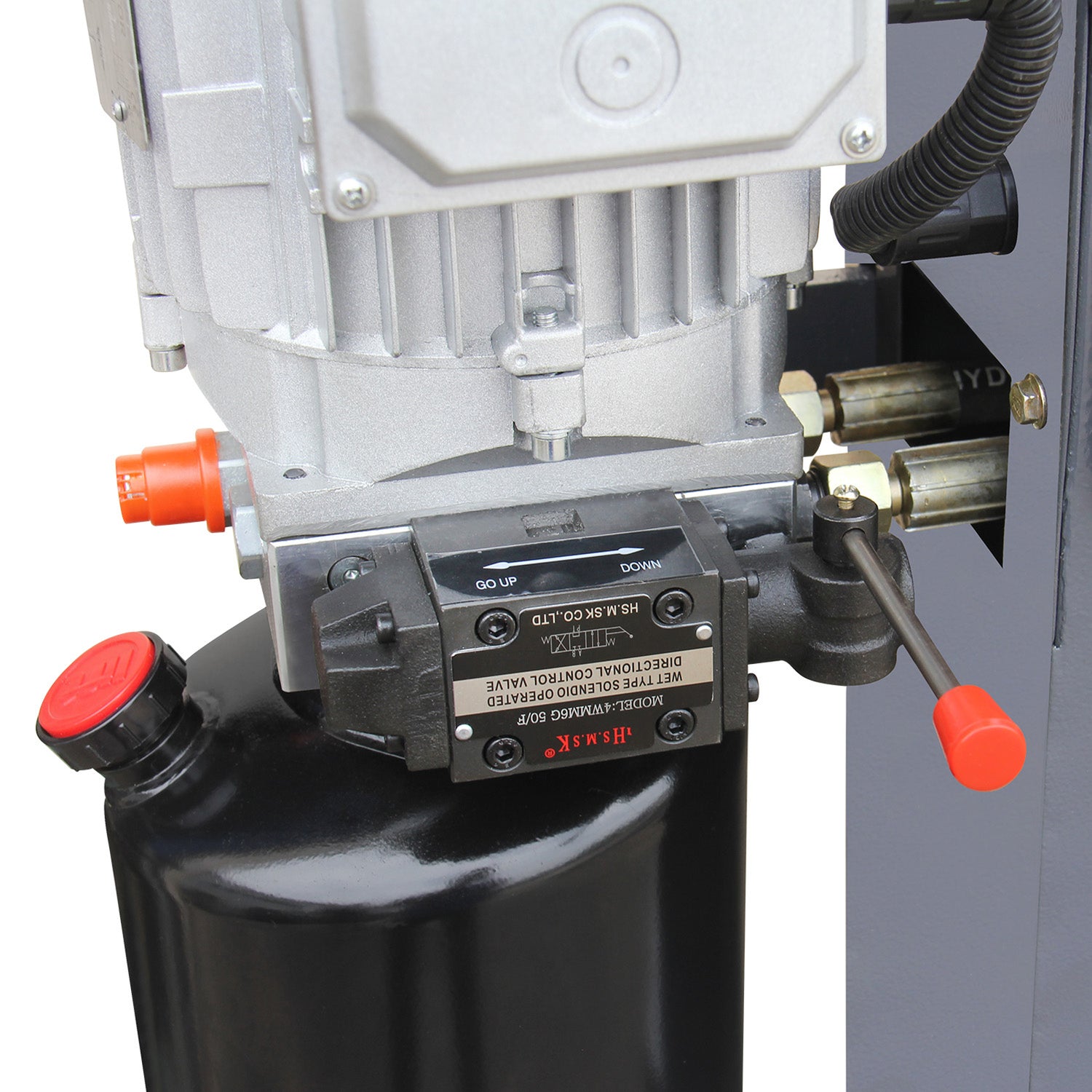

  • Electric Pump Efficiency:Equipped with a 220V single-phase gear pump (CBN2.0) and 8L reservoir, this electric hydraulic shop press ensures smooth, powerful, and reliable operation.

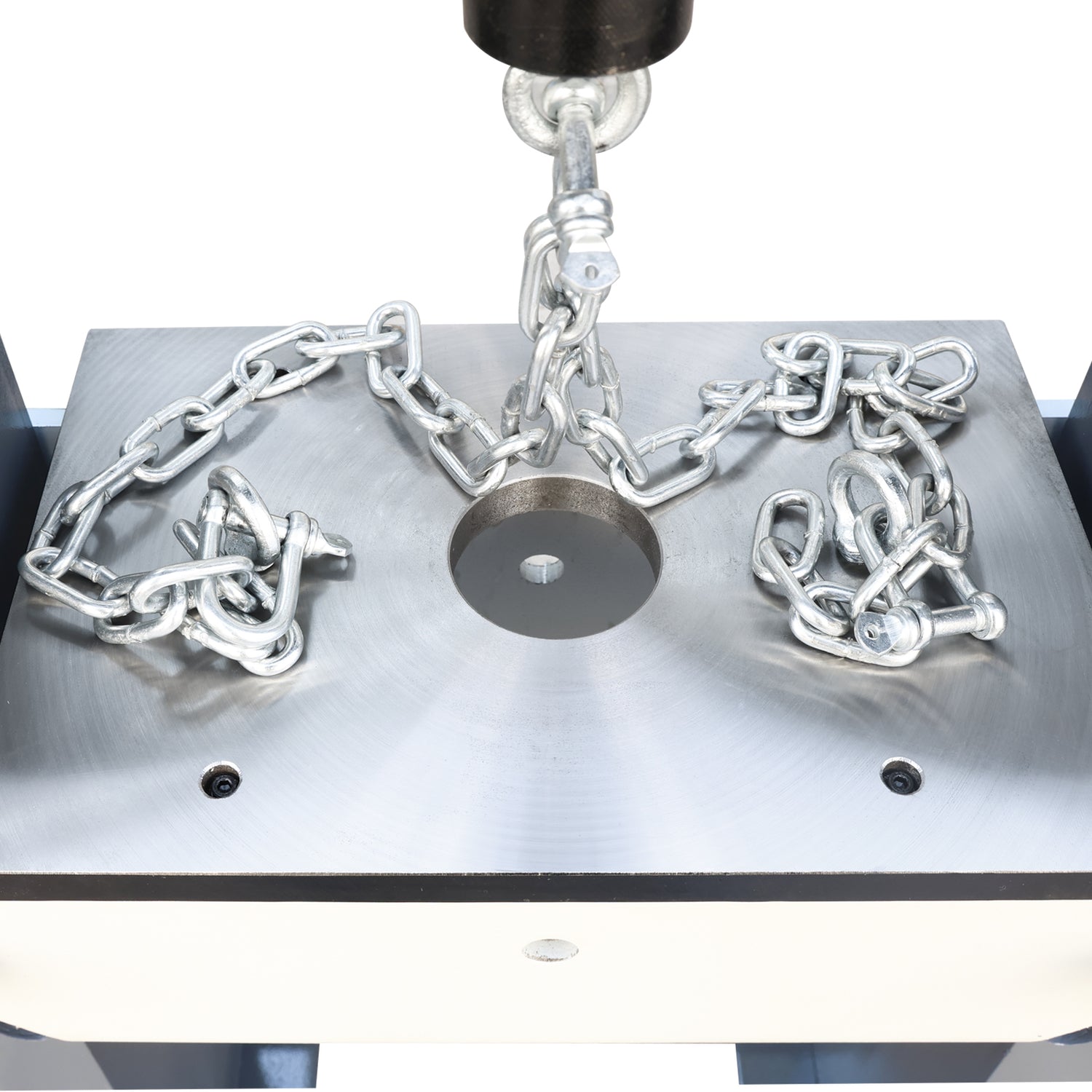

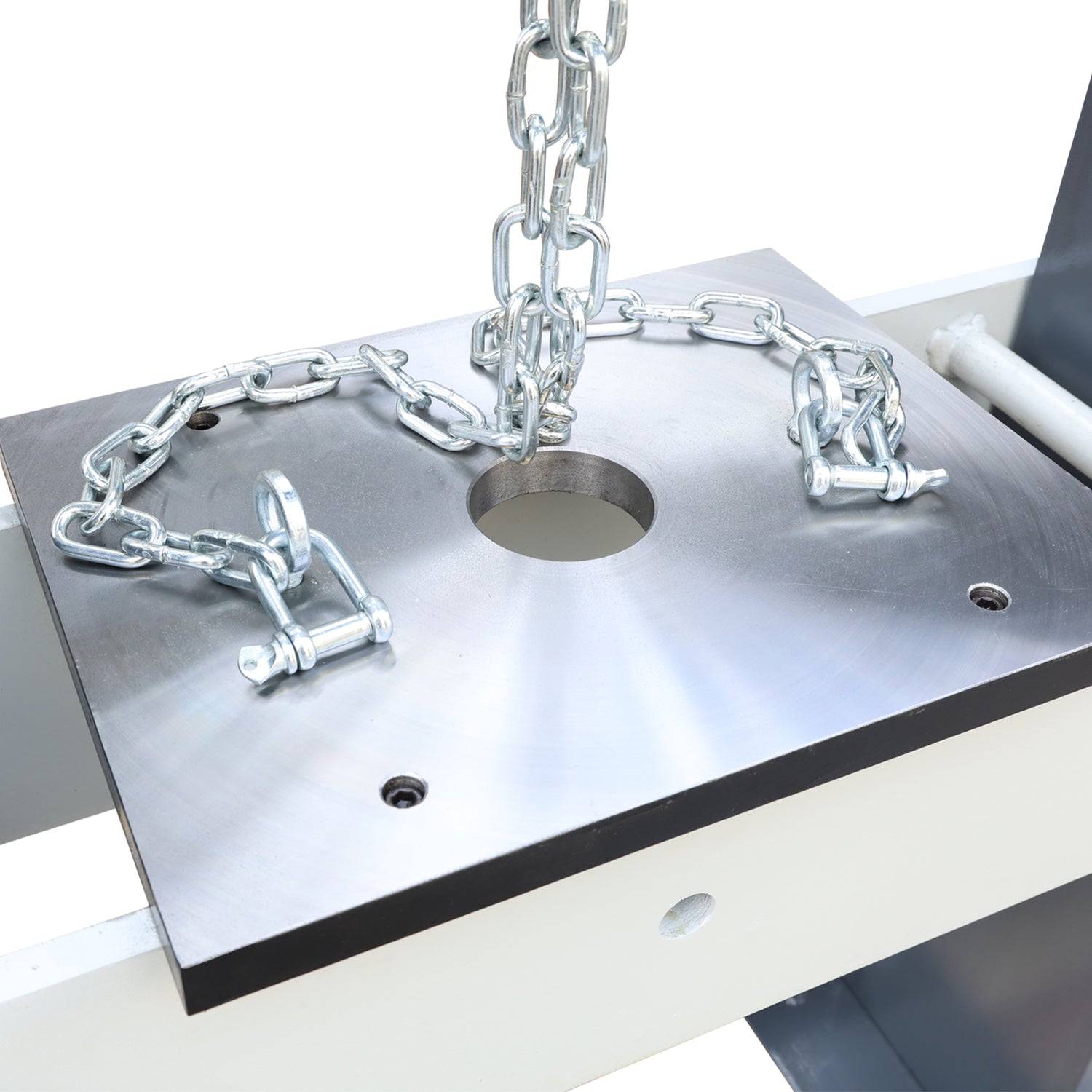

  • Adjustable Work Table: With 4 bed adjustment holes spaced 5.31 in apart, this shop press electric adapts to diverse workshop needs.

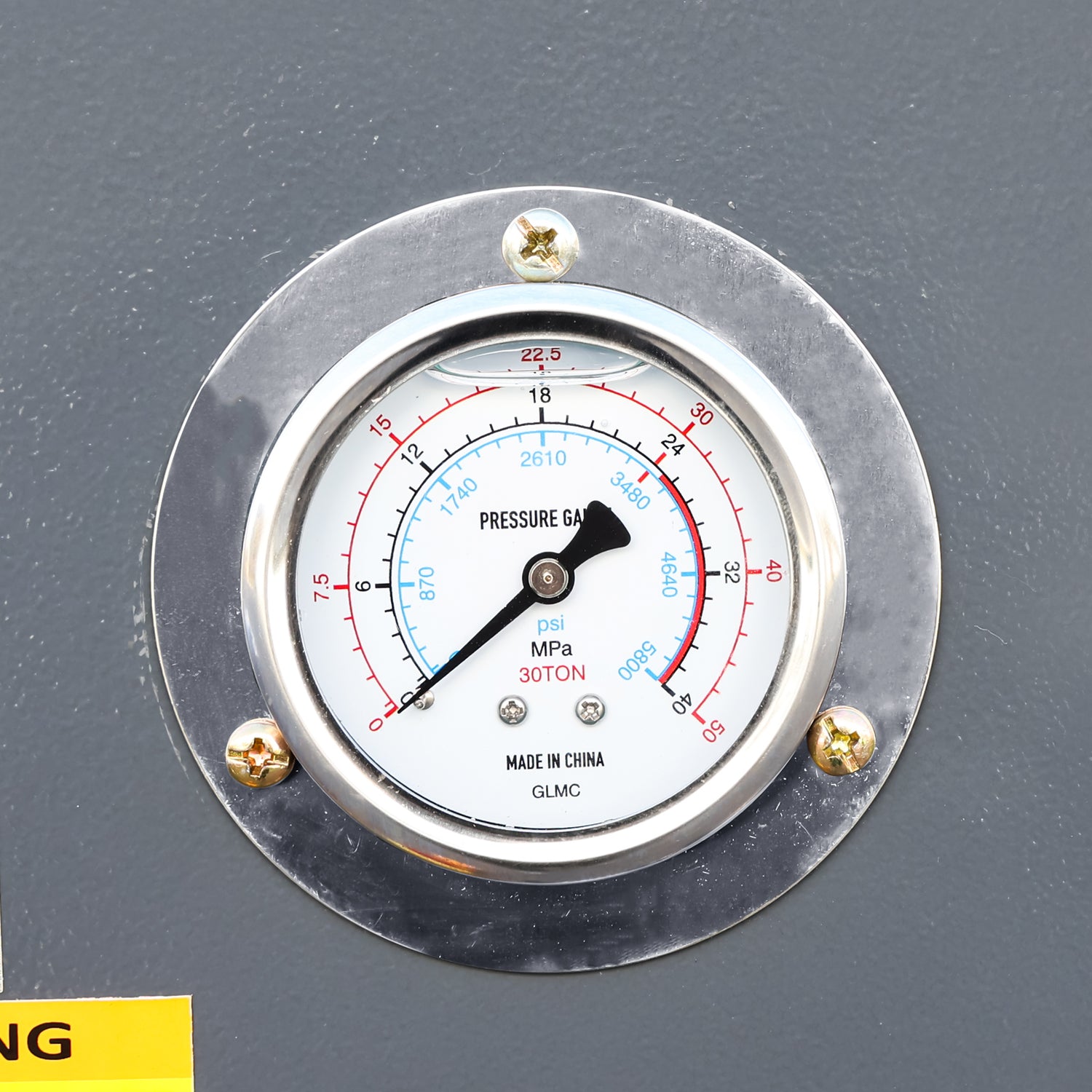

  • Accurate and Versatile: The fluid-filled dual-scale gauge provides precise readings. Perfect hydraulic press machine for automotive, metal press work, repair shops, or home use.

Specifications

Model HP-25F
Pressure 25 ton
Ram Maximum Stroke 9.84 in

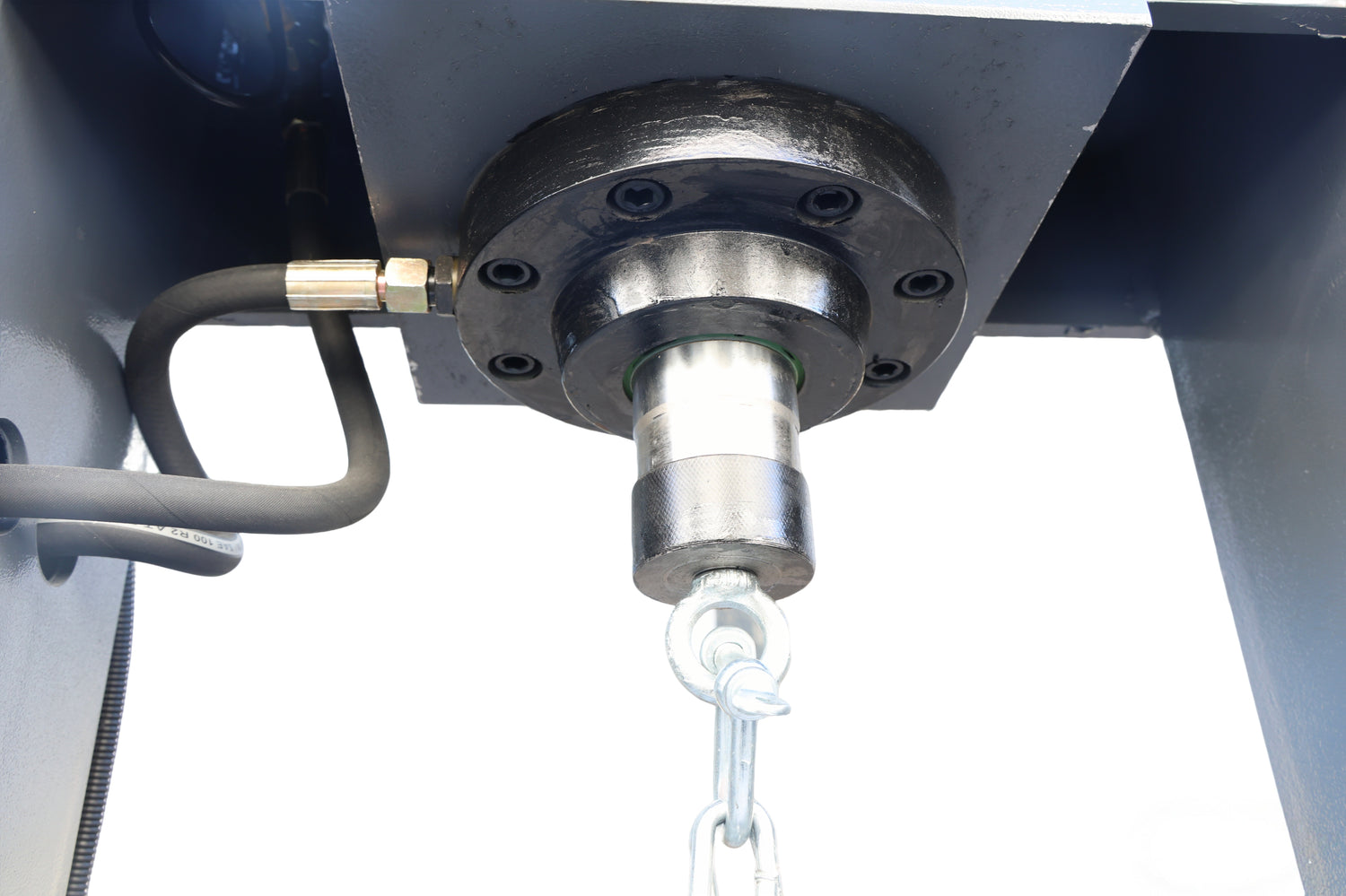

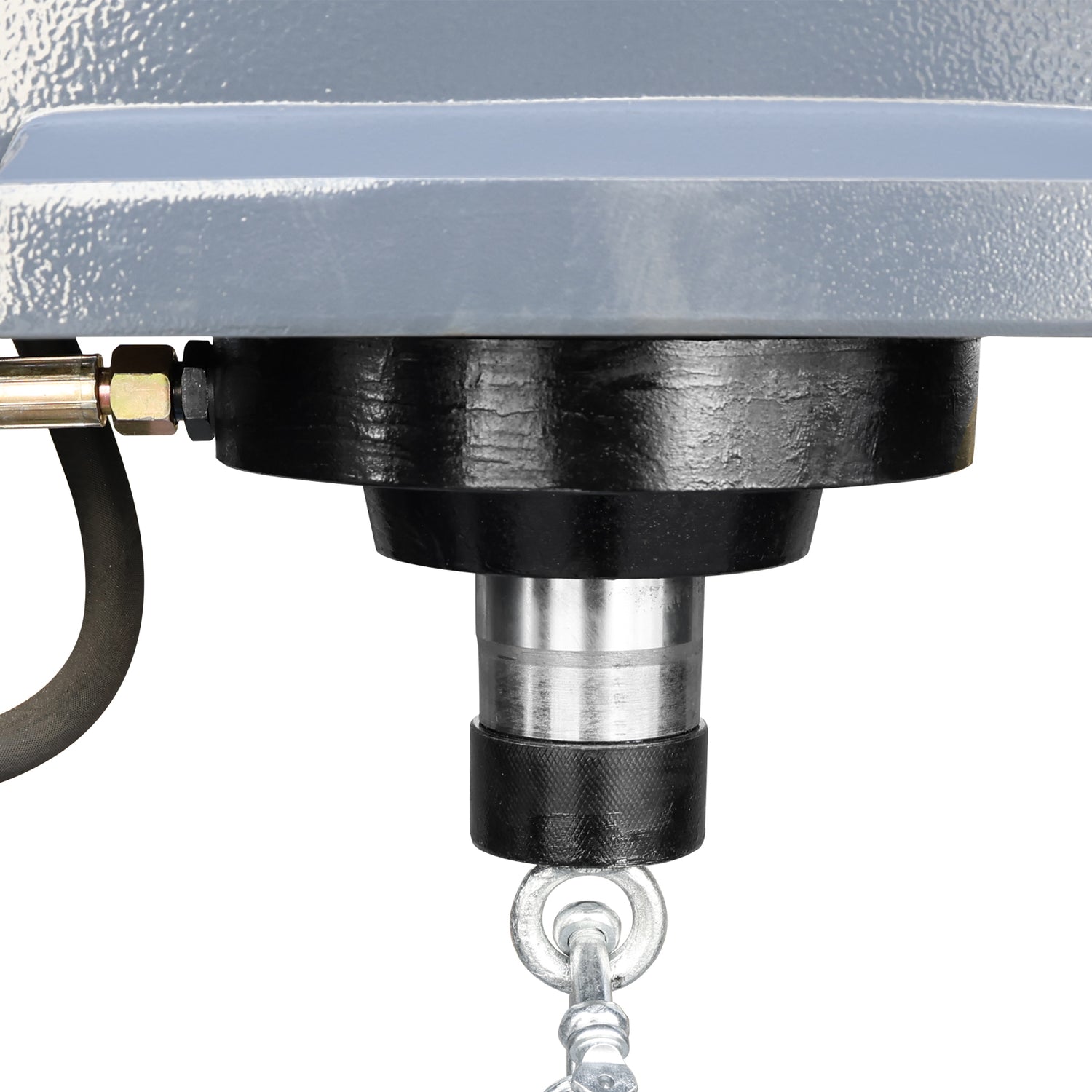

Ram Diameter 4.92 in
Maximum Distance to Table 20.08 in
Base Size 11-5/6×10-1/4 in
Bed Support Pin Diameter 1.358 in
Number of Bed Adjustment Holes 4
Bed Adjustment Hole Spacing 5.31 in
Pump Type Gear pump CBN2,0
Reservoir Capacity 8 L
Packing Size 45×22×71 in
N.W./G.W. 661/794 lbs
