Kaka Industrial EB-4816M Magnetic Sheet Metal Brake, 48-Inch Magnetic clamping Pan and Box Bending Brake, 16-Gauge Mild Steel Capacity, 6-ton magnetic power, bend boxes or pans to any depth 220V-60HZ-1PH

EB-4816M Applicable Accessories Please click: here:https://www.kakaindustrial.com/collections/eb-4816m-applicable-accessories

KAKA Industrial EB-4816 Manual Magnetic Sheet Metal Brake, Box and Pan Brake

• The KAKA EB-4816M 48-Inch Professional Magnetic Sheet Metal Brake is significantly different from traditional bending machines because it uses a powerful electromagnetic system to clamp the workpiece, rather than relying on mechanical methods for tightening. This feature brings numerous advantages to the machine.
• The main difference between the EB-4816M and EB-4816B is that the EB-4816B features a storage base for clamp bars, offering space-saving convenience and easy to catch.
• This machine is the ultimate solution for metalworking, automotive repair, HVAC, and DIY professionals. Its innovative open-ended design allows you to easily bend enclosed ducts, boxes, and complex shapes, overcoming the limitations of traditional brakes.
• It can bend a variety of materials, including steel, aluminum, copper, coated sheets, and stainless steel. It's especially suitable for products that require no pressure marks or dents, thanks to the electromagnetic clamping system, which ensures uniform clamping force across every square centimeter.

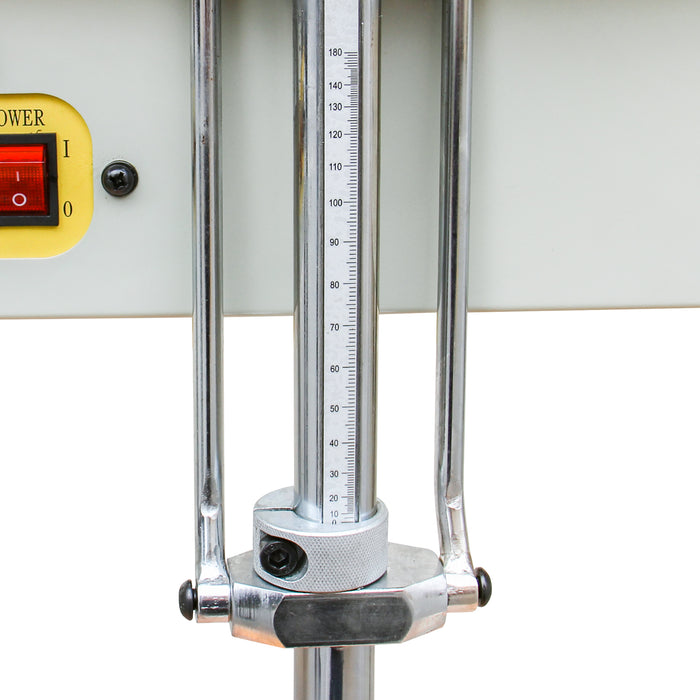

• With multiple clamp bars, the EB-4816M offers unmatched flexibility for various bending tasks, from straight bends to intricate box and pan applications. The foot pedal control allows for hands-free operation, increasing safety and efficiency in busy workshops. Precision features like scaled stroke angle control and blade gap adjustment make it easy to achieve repeatable, high-quality results on 16-gauge mild steel and other materials.
• This machine can bend any shape, size, and angle without the need for custom dies. It eliminates the hassle and expense of changing tools, making it a cost-effective option compared to traditional machines. The design is fully open with a small footprint, making it lightweight, easy to transport, and convenient for use in various spaces. Operating on standard 220V household power, it is not affected by bending area limitations, and ordinary users can get started in just five minutes.
• Whether you're a professional fabricator or a dedicated DIY enthusiast, the KAKA EB-4816M is your go-to solution for superior bending performance.


Easy, hands-free operation:

    Put a piece of material between the clamping bar to the depth required.

    Engage the powerful magnet in the bending bed with push button control.

    Hit the foot pedal that softly clamps the material. This foot control keeps your fingers safely out of the machine and you to reposition the material.

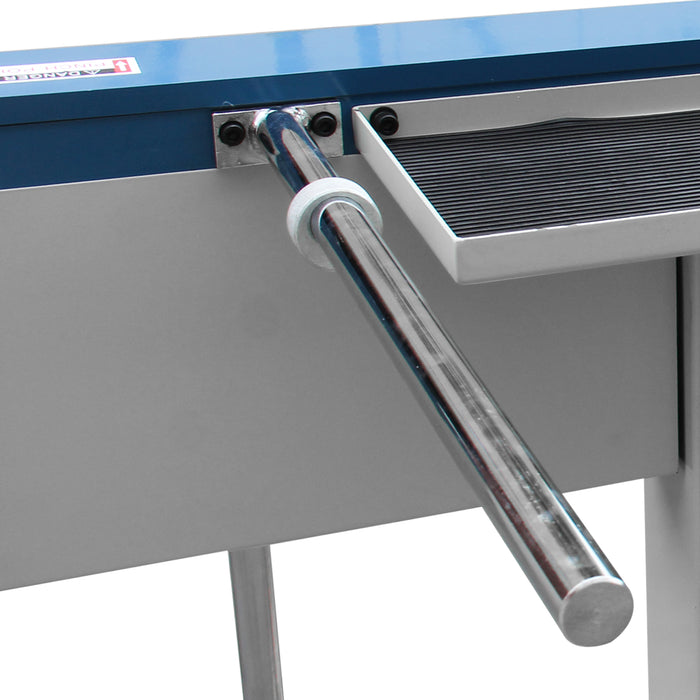

    Lift the the bottom bending leaf to complete the bend.

Recommended for:

HVAC shops, industrial art shops, and general sheet metal fabrication shops.

Making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications.

Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more.

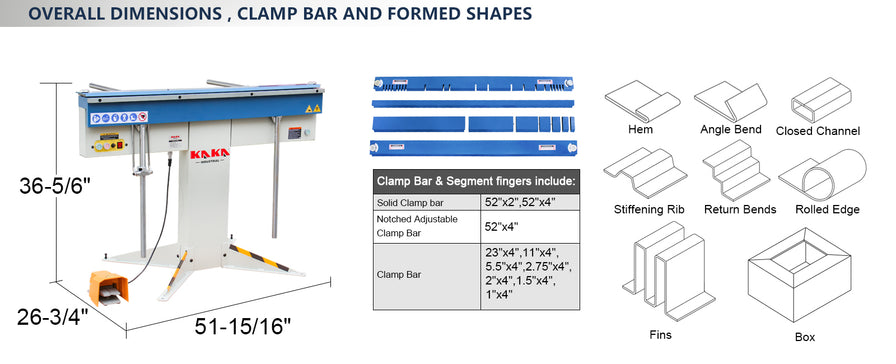

Clamp Bar & Segment fingers include:

(1) 52” x 2” Solid Clamp Bar

(1) 52” x 4” Solid Clamp Bar

(1) 52” x 4” Notched Adjustable Clamp Bar

(1) 11” x 4” Clamp Bar

(1) 5.5” x 4” Clamp Bar

(1) 2.75” x 4” Clamp Bar

(1) 2” x 4” Clamp Bar

(1) 1.5” x 4” Clamp Bar

(1) 1” x 4” Clamp Bar

 Special Notes: Capacities can change depending on set up leaf extension. Rule of thumb for mild steel, 16ga., extension OFF. 18ga. extension On or Off, 20ga. and thinner, extension On.

Things to Know Before Purchase To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC +/-5% (209VAC to 231VAC). Failure to comply will damage the machine and void the warranty.

NOMINAL CAPACITY
1250 mm x 1.6 mm (4ft x 16g)

CLAMPING FORCE (with standard full-length clampbar)

6 Tonne

ELECTRICAL
Supply: 1 phase, 220V ac
Nominal current:  8 Amp
Duty cycle:  30%
Protection: Thermal cut-out, 70°C

BENDING CAPACITIES (for standard full-length clampbar)

* With Standard bending beam extension fitted. For most non-ferrous metals (copper, brass, zinc) refer to Aluminium above.
