Kaka Industrial HV-8, 8" Horizontal Vertical Rotary Table Rotary table TSL Vertical & Horizontal MT3 Center Sleeve Rotary Table 4 slot Precision Milling Table 360 Degrees Precision Rotary Table

$375.00 ~~$419.99~~

Shipping calculated at checkout.

Description
Video
Manual
Summary of Return Policy
Warranty
Delivery and Shipping

TSL vertical and horizontal rotary tables are among the leading accessories for milling machines. They are used for index boring, milling, circle cutting, spot facing, boring holes, etc.
The rotary table can be used on complex work for circle index boring and milling with optional tail stock.

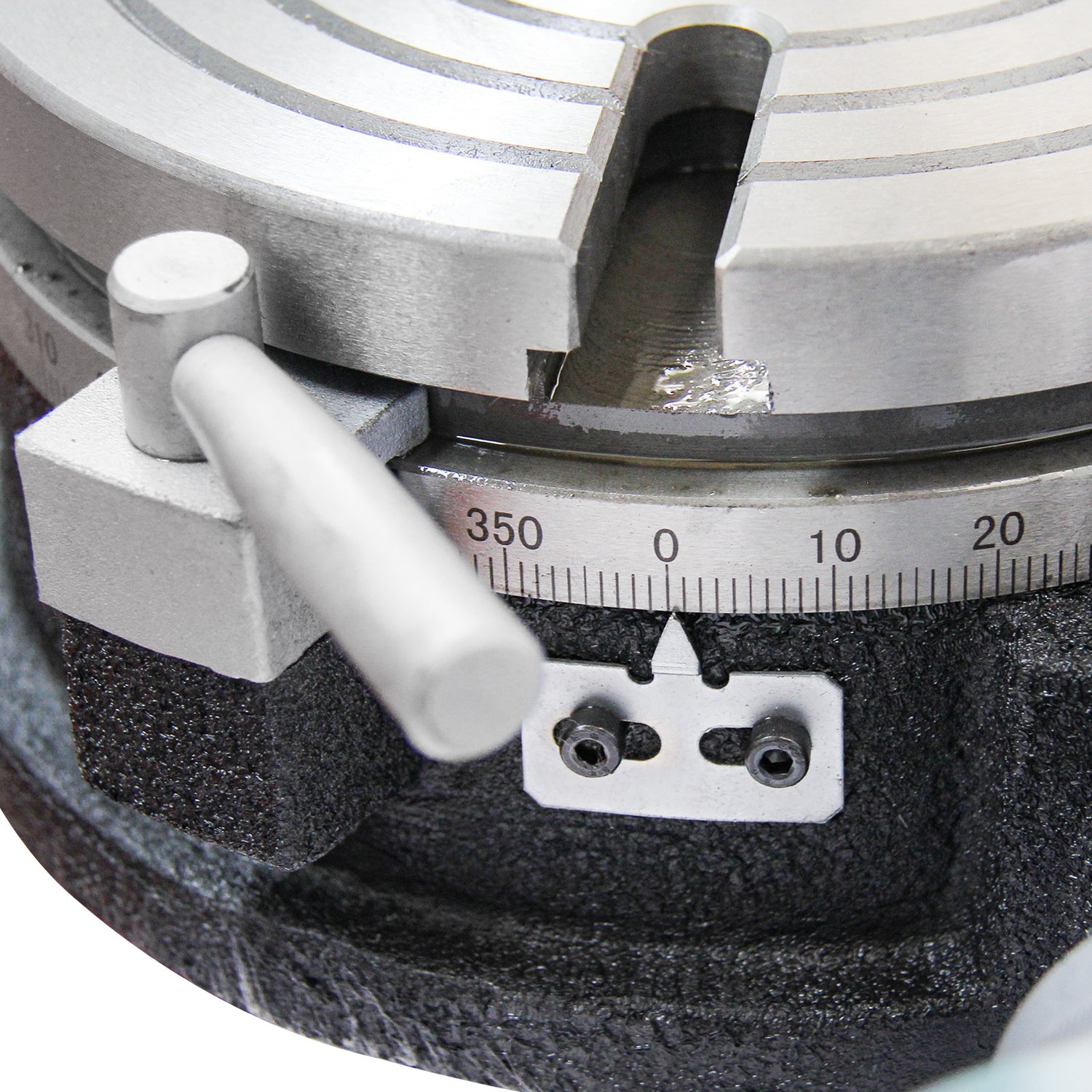

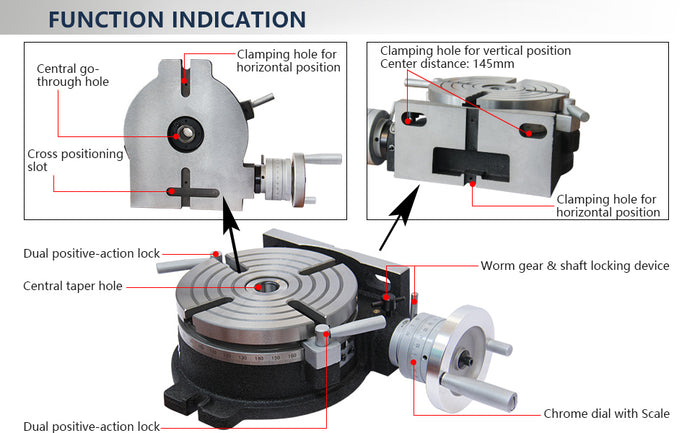

Rigid cast iron body. Dual positive-action lock

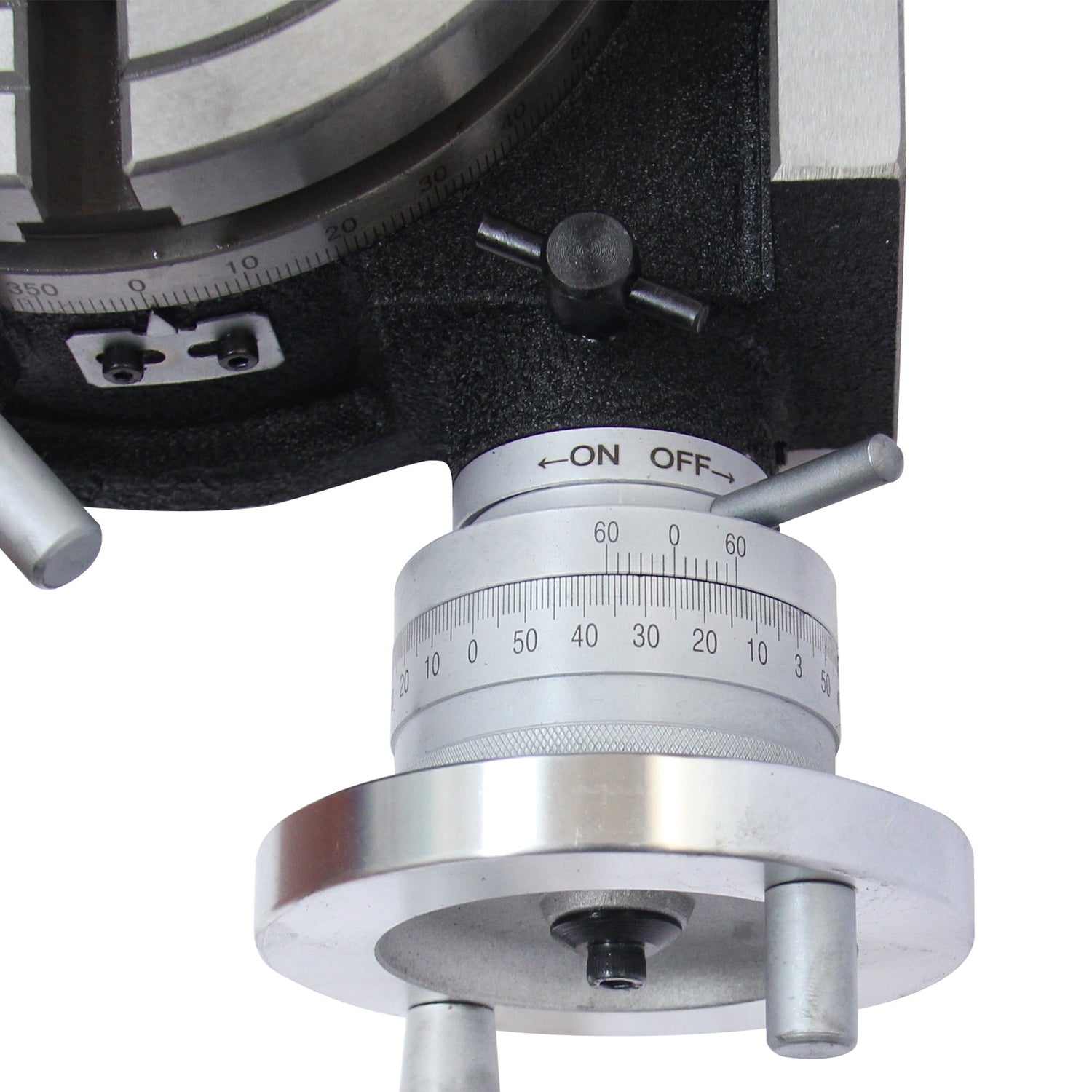

One rotation of the handle equals four on the collar.
Min.10 second vernier reading
Gear ratio HV-4 1:72 HV6, HV-8, HV-10, HV-12 1:90
Harden and precision ground. Stain chrome dial

10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
Returned materials must be received at Kaka Industrial in new condition and in original packaging.
Altered items are not eligible for return.
Buyer is responsible for all shipping charges.
A 15% re-stocking fee applies to all returns.

KAKA Industrial provides 12 months warranty for this product from the date of purchase.
Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.

The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

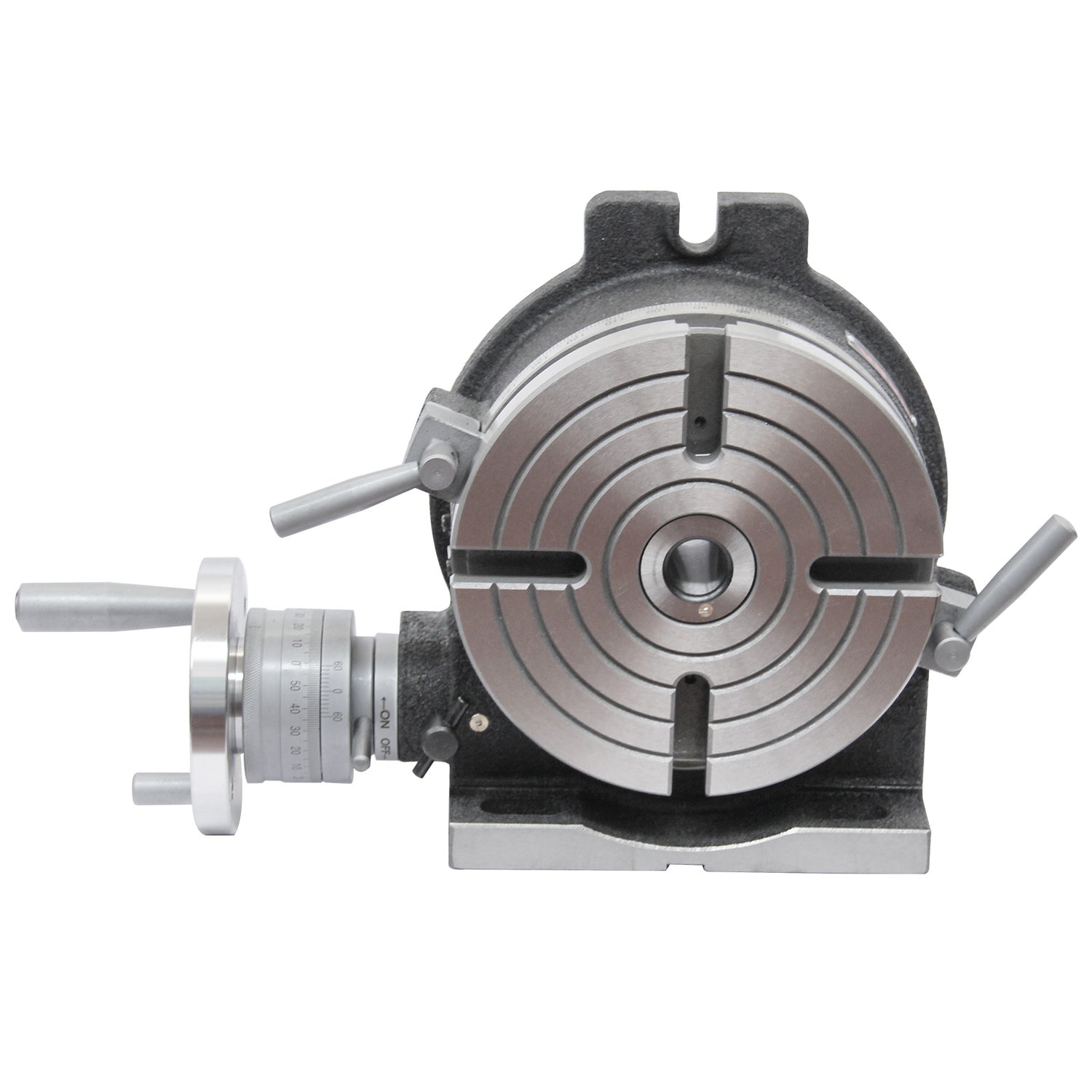

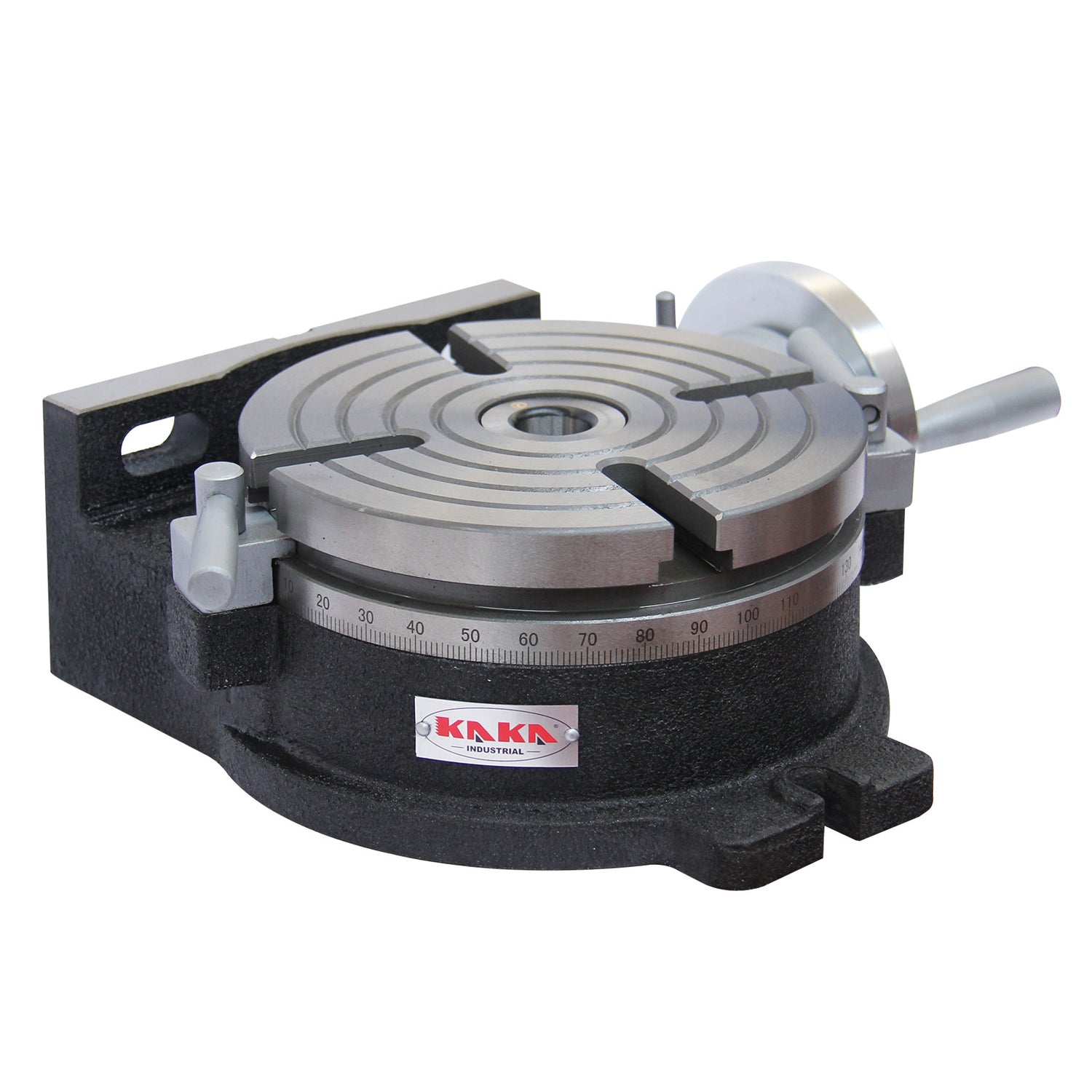

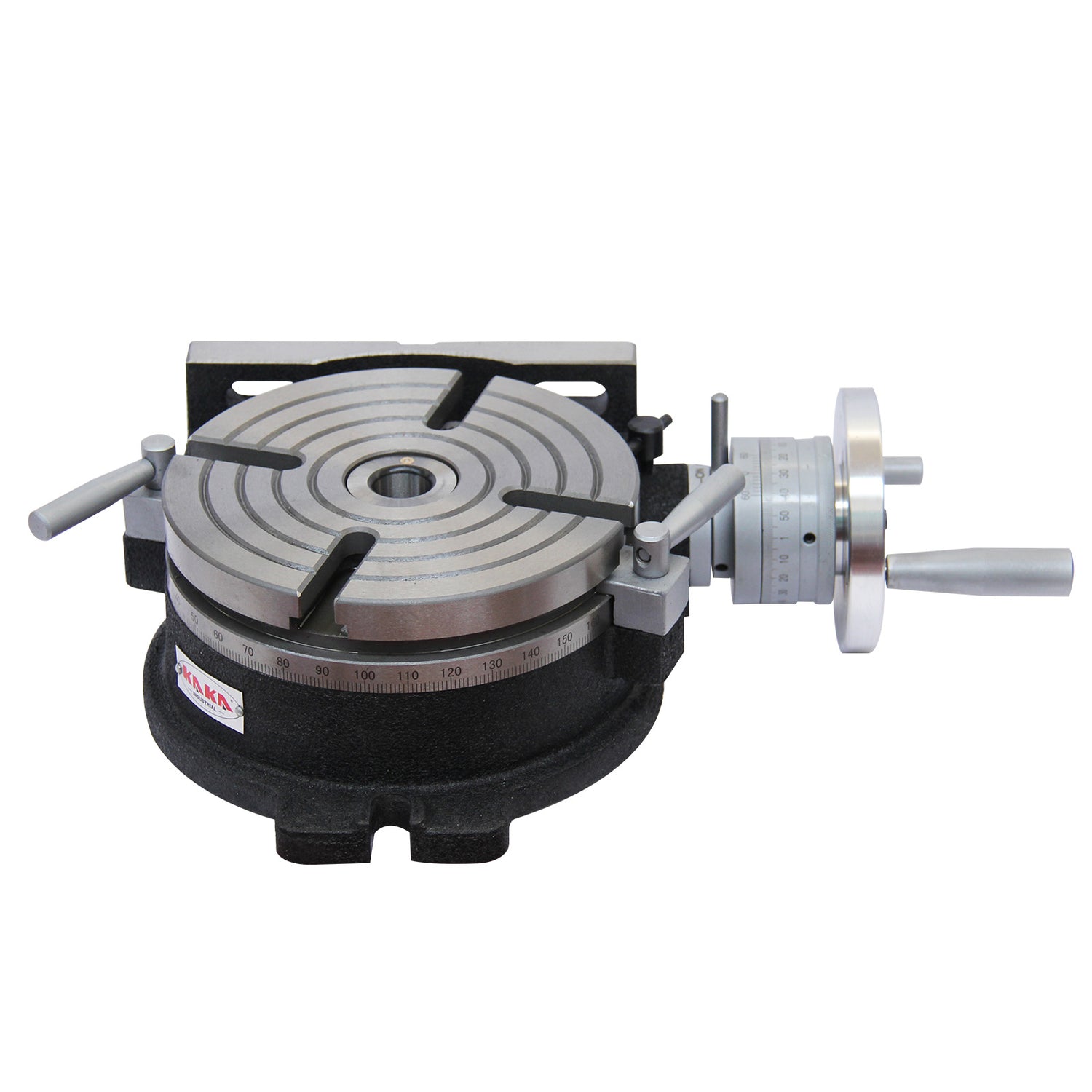

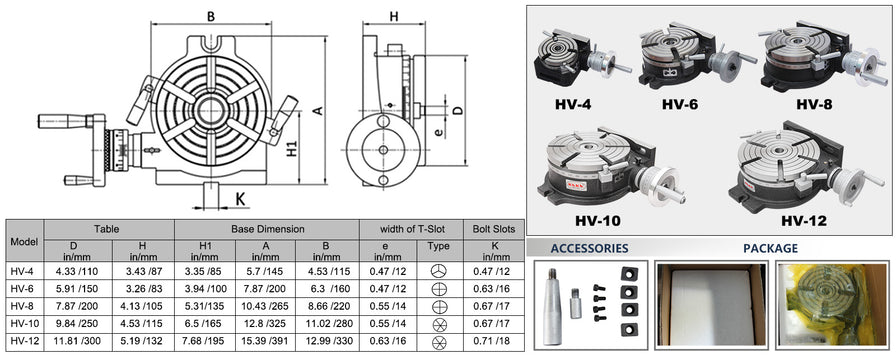

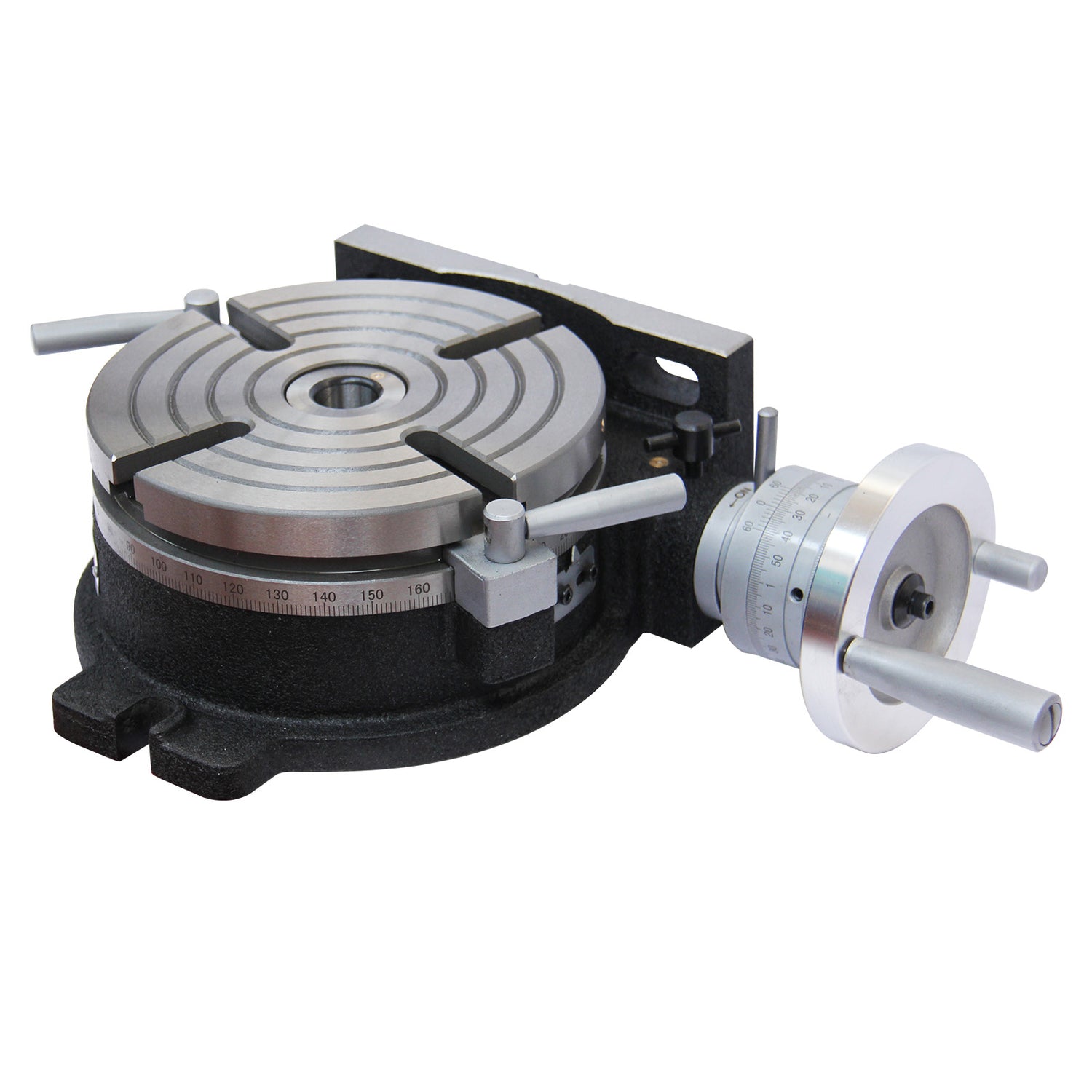

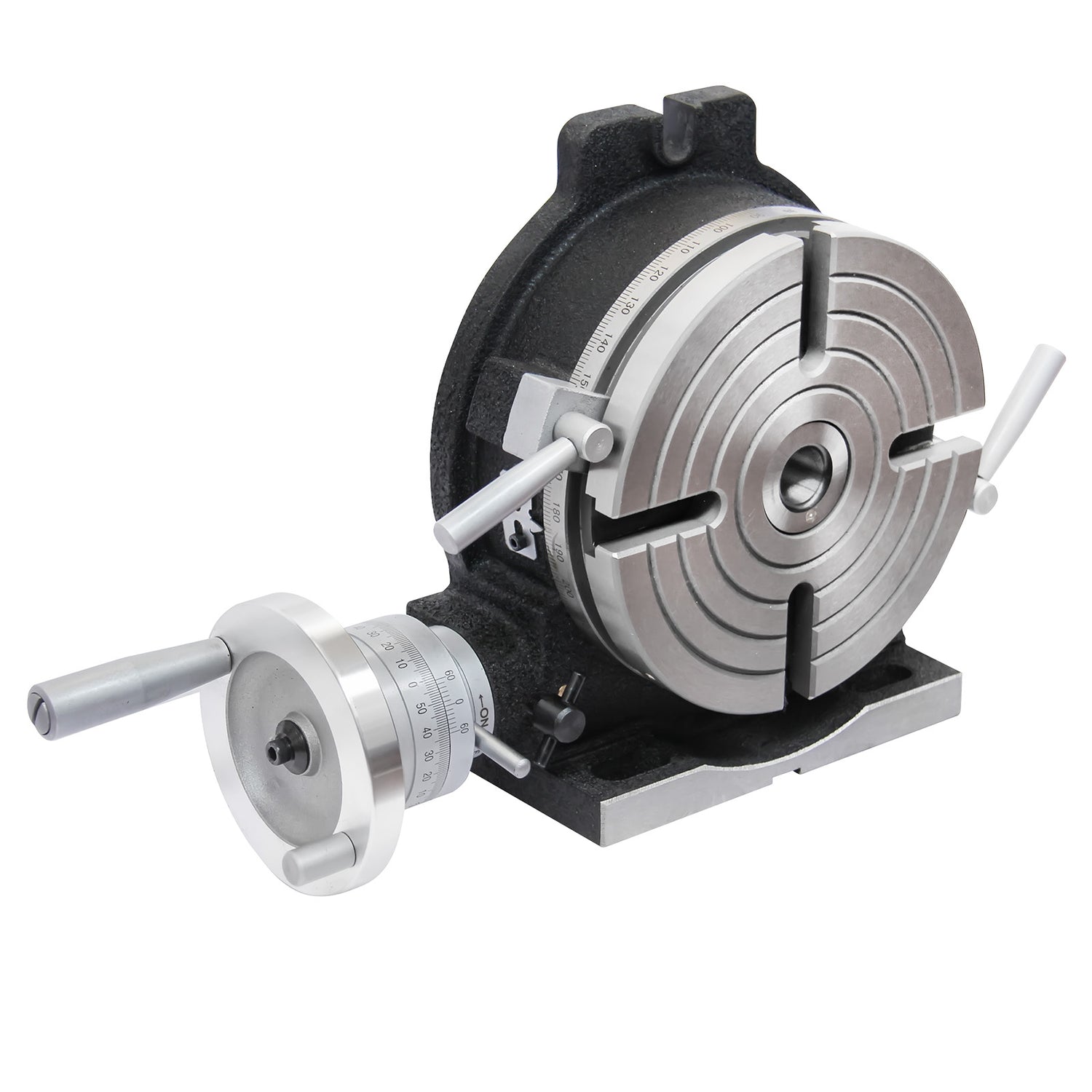

Horizontal Vertical Rotary Table

HV-4 HV-6

HV-8 HV-10

HV-12

Item No.	161108
Model	HV-8
Diameter of the table	∅7.87" /200mm
Morse taper of the center hole	MT3

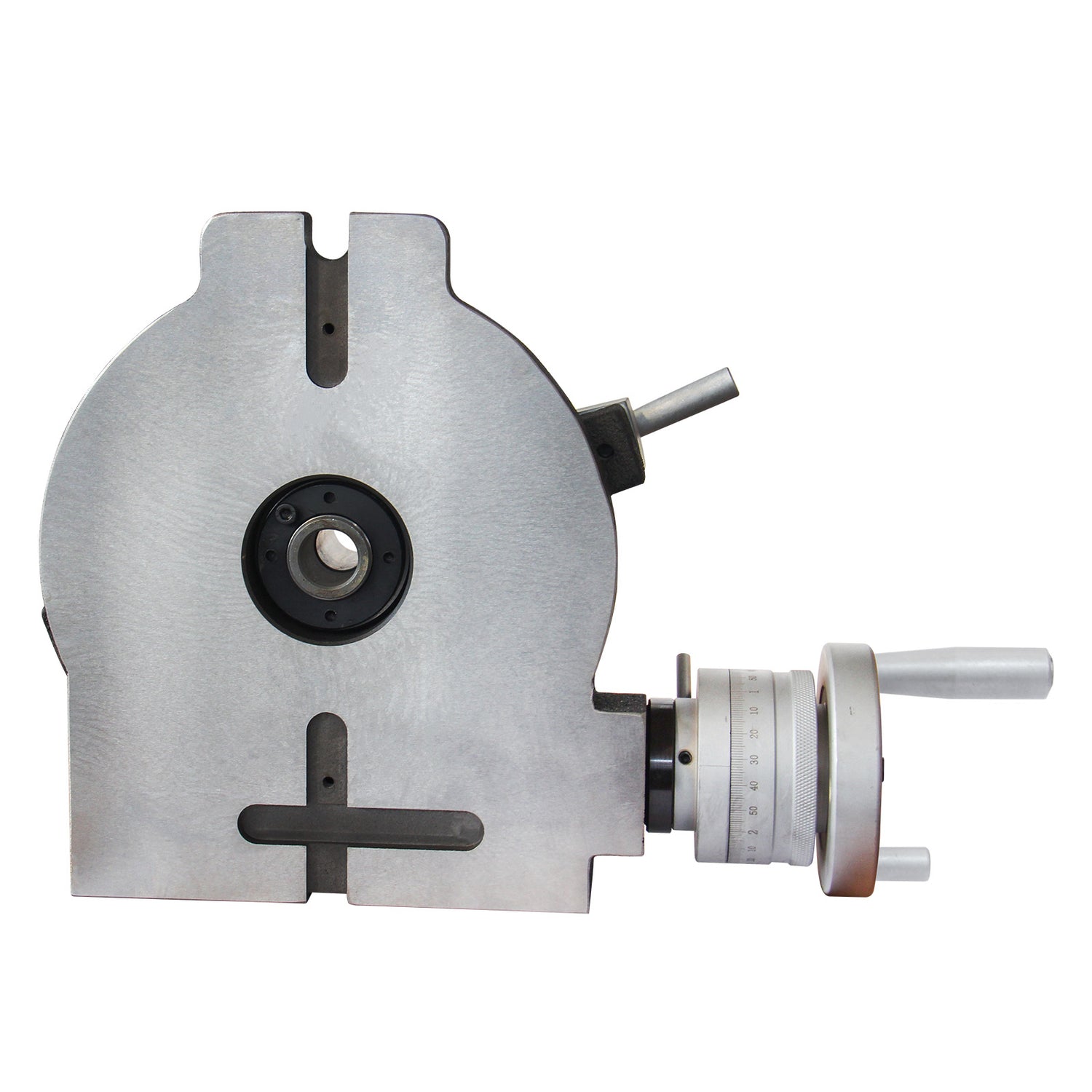

Height of center for vertical mounting	5.31" /135mm
Width of T-slot	0.55" /14mm
Adjacent angle of T-slot	90°
Width of the locting key	0.63" /16mm
Modules of worm and worm gear	1.5
The transmission ratio of the worm gear	1:90
Graduation of the table	360°
Rotating angle of table with one revolution of the worm	4″ (1' Per graduation)
Minimum value of vernier	10″
Indexing accuracy	60″
Max. bearing(With table Hor.)	330 lbs
Max. bearing(With table ver.)	165 lbs
Packing size	15"x12"x7"
N.W./G.W.	62/67 lbs

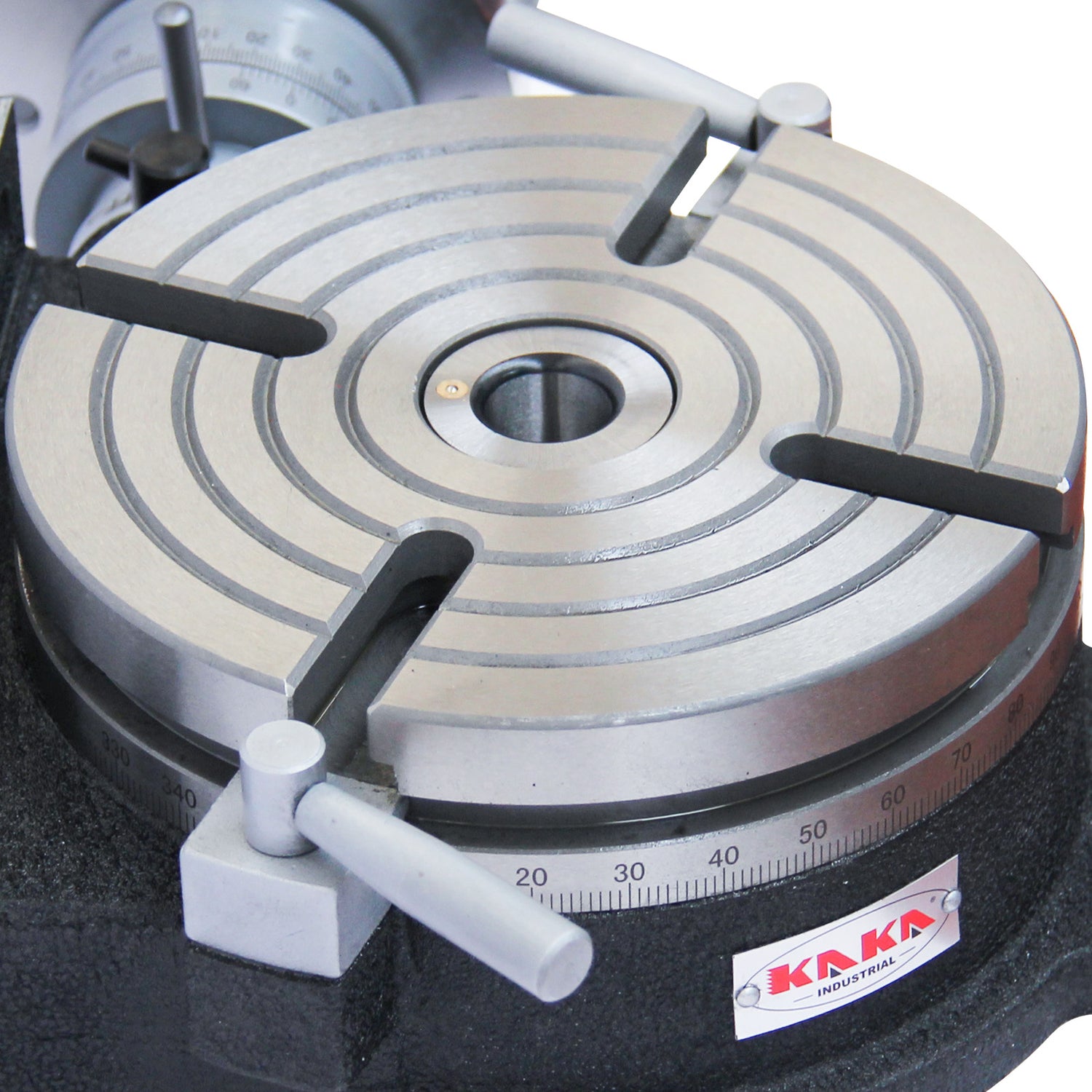

No. of T-solt: 4 slots
Chrom-plated handle and wheels
Laser-cutting scale reading

Can't beat the price for this level of quality.

This was my first order from Kaka and I was happily suprprised at the quality of what I ordered. The rotary table is really nice for the price point it serves. Surfaces were machined nicely and most edges were deburred so I didnt have to do that myself. For an import tool I am really pleased, I have ordered US made tools that arent nearly as nice as this, my only complaint is that it didnt have the brand badge on the side, it was unbranded.
