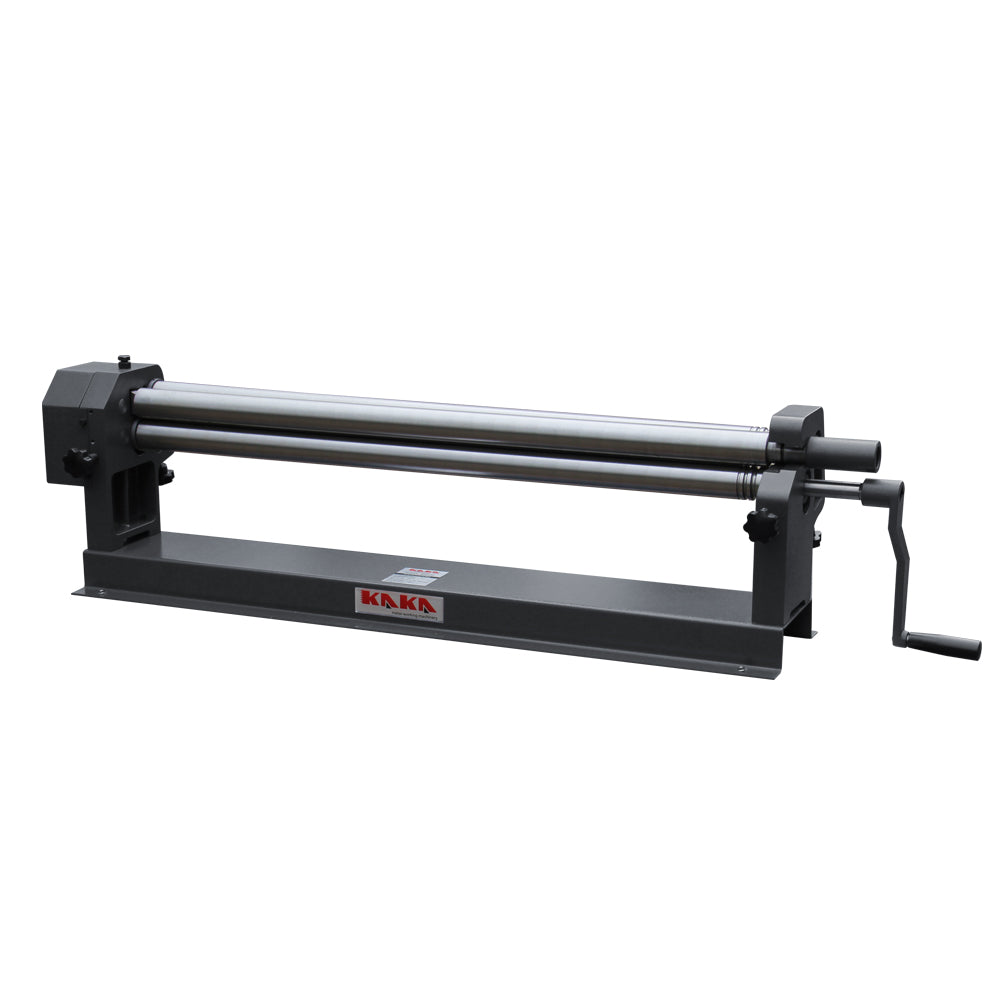

Sheet Metal Slip Roll, 39.4 in, 22 Ga 2 in rollers with wire grooves for cones and cylinders KAKA INDUSTRIAL W01-4022

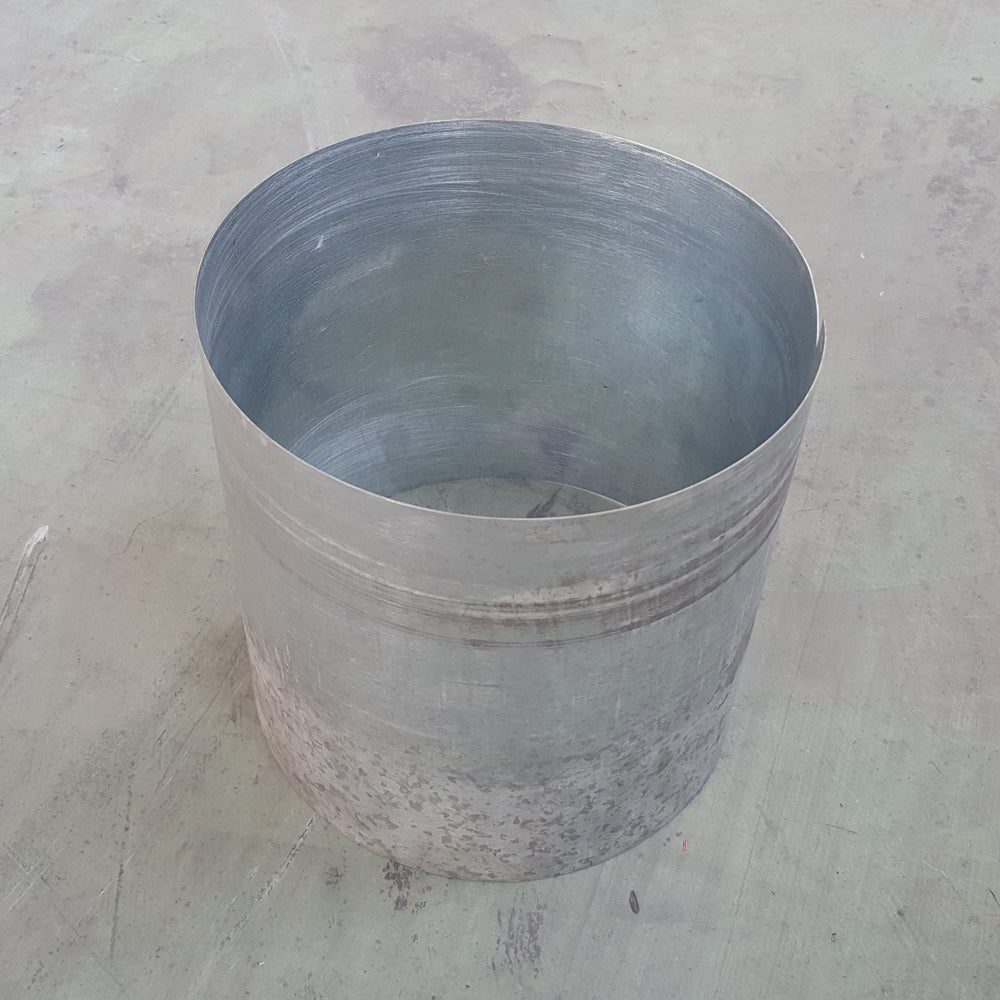

1. 39.4 in Sheet Metal Slip Roll: W01-4022 is a manual slip roll machine for forming cylinders, cones, curves, half-round shapes, and radiused sheet metal parts in HVAC, auto body, repair, and small fabrication shops.

2. 22 Gauge Mild Steel Capacity: Based on listed specifications, this sheet metal roller supports up to 39.4 in (1000 mm) working width and 0.8 mm mild steel thickness, approximately 22 gauge. Match material type and hardness before rolling.

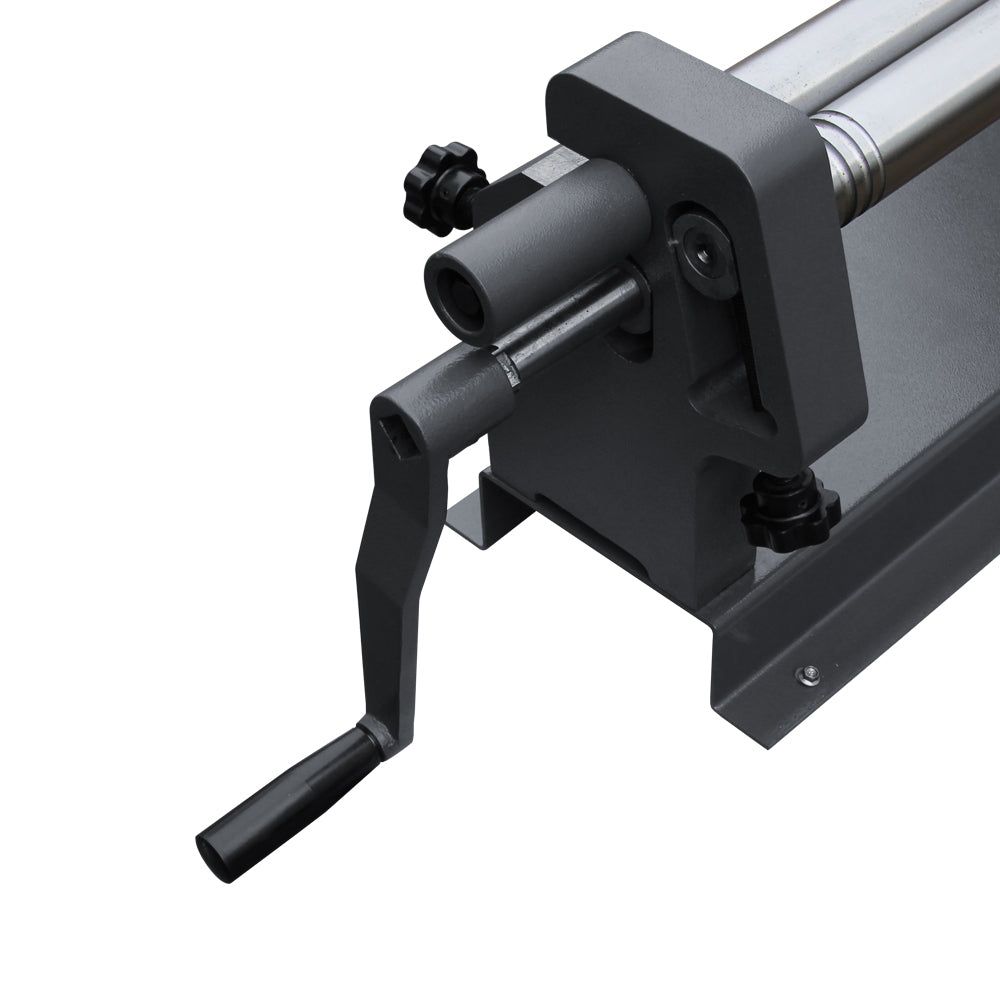

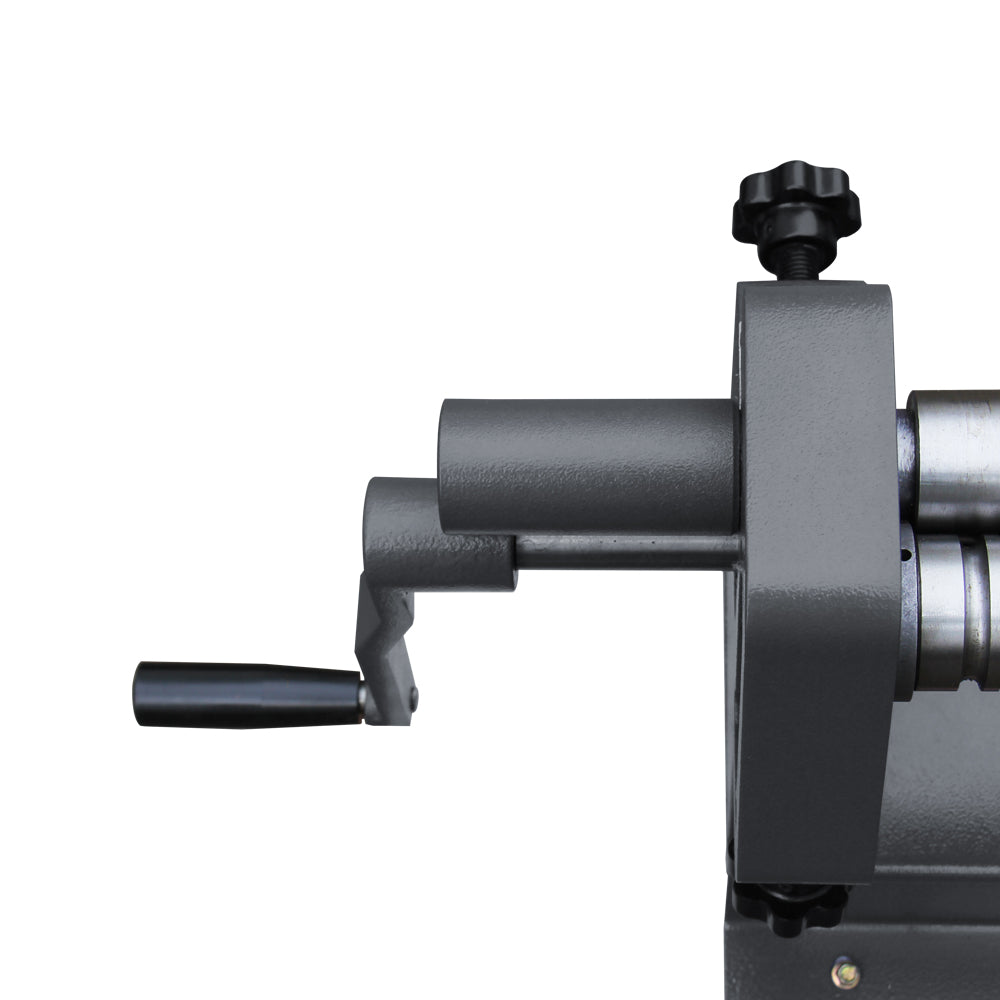

3. Manual Crank, No Power Needed: Fully manual side-crank operation makes setup simple for shops, garages, schools, and mobile repair work where an electric sheet metal roller is not required.

4. Adjustable Rolls for Cone Work: Front and rear rolls can be adjusted independently to help form tapered or conical workpieces. The upper roll tilts open to make it easier to remove finished cylinders after rolling.

5. Shop-Ready Roller Construction: Cast iron end frames, a steel sheet base, 1.97 in (50 mm) rolls, and three wire grooves support common sheet metal forming and wire rolling tasks. Packing size is 57.1 x 12.6 x 20.5 in; N.W./G.W. is 190/231

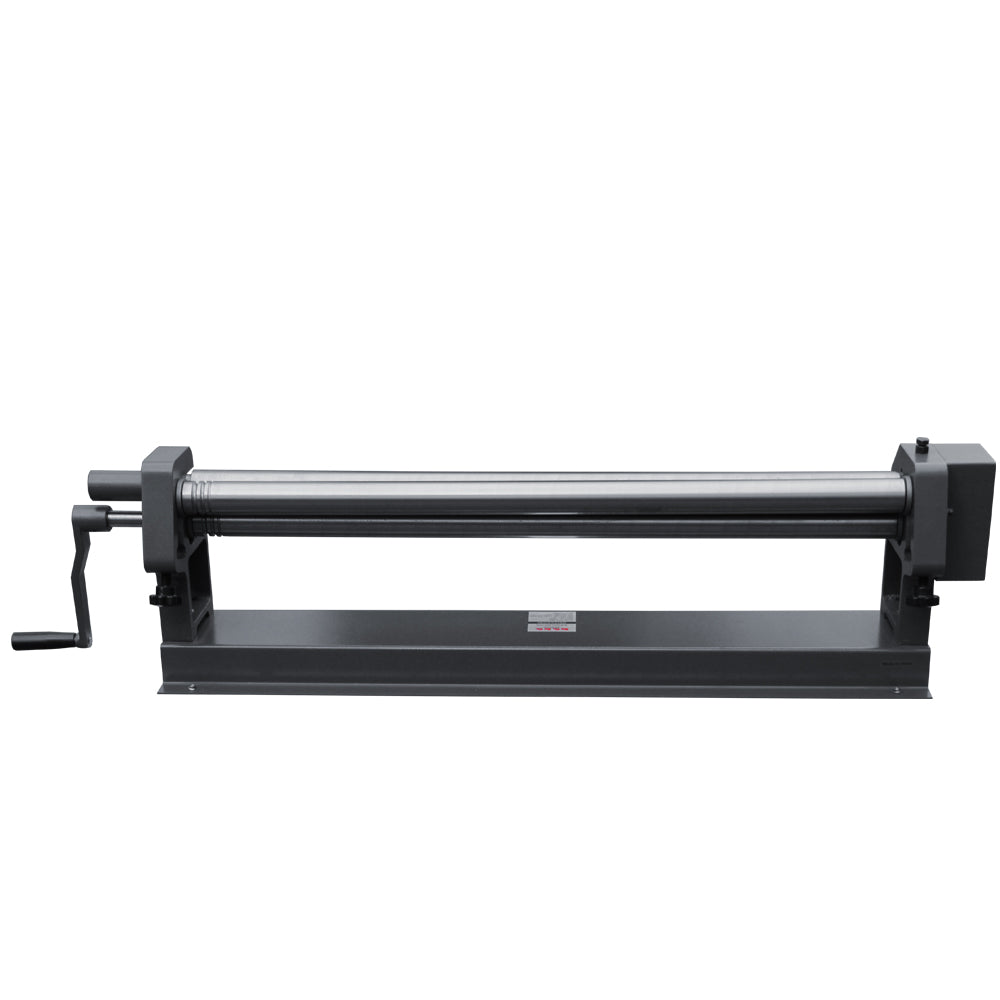

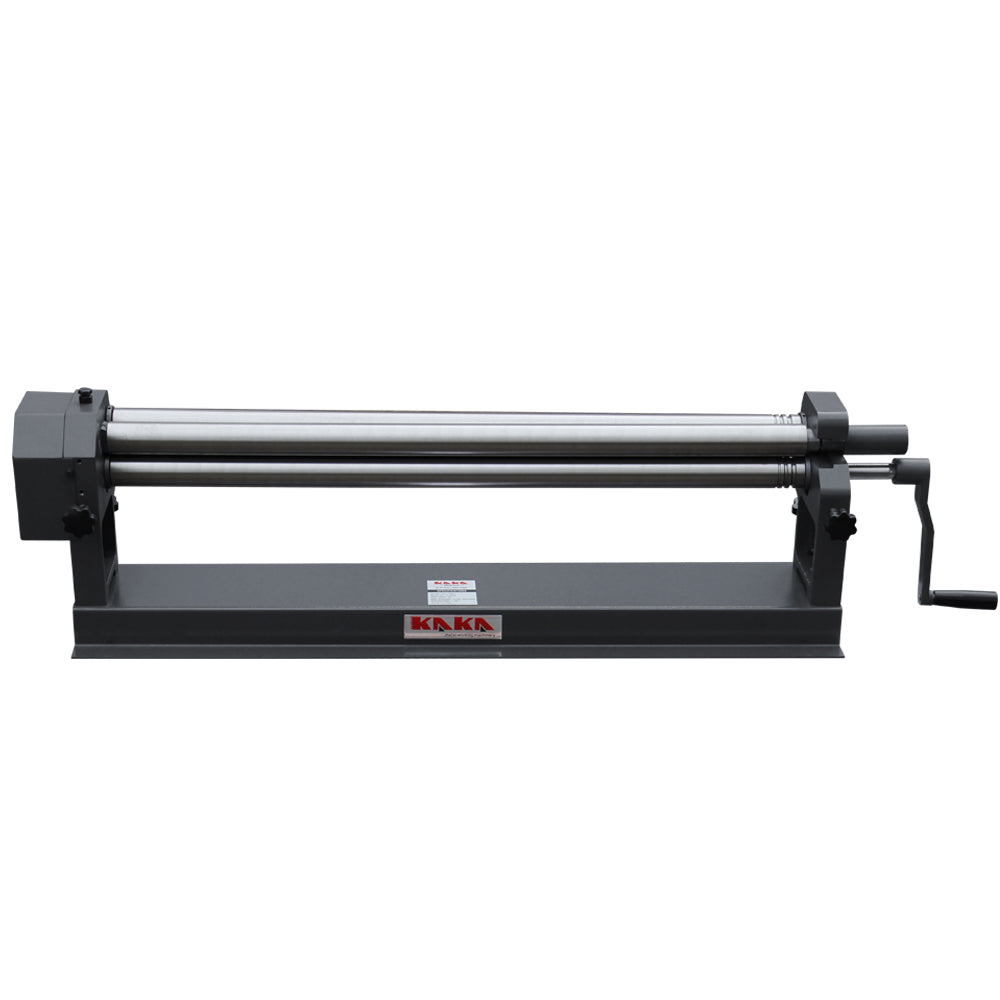

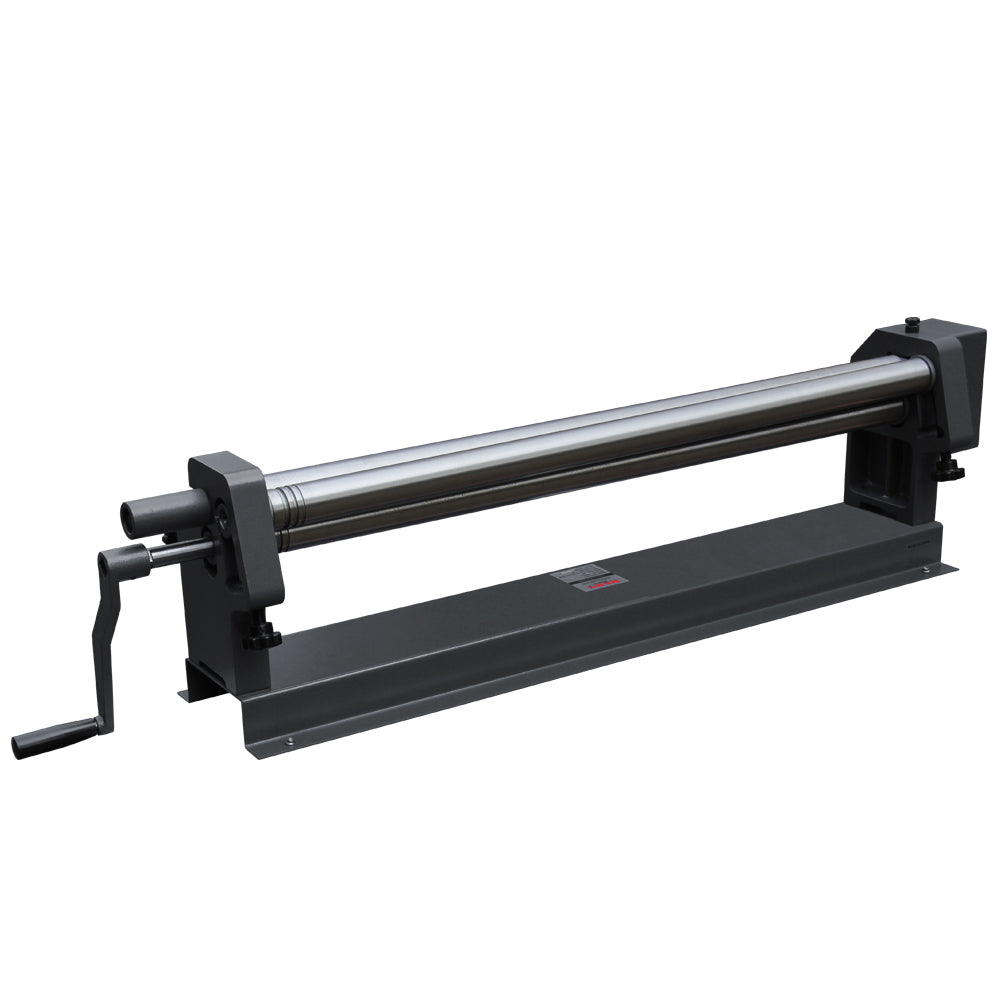

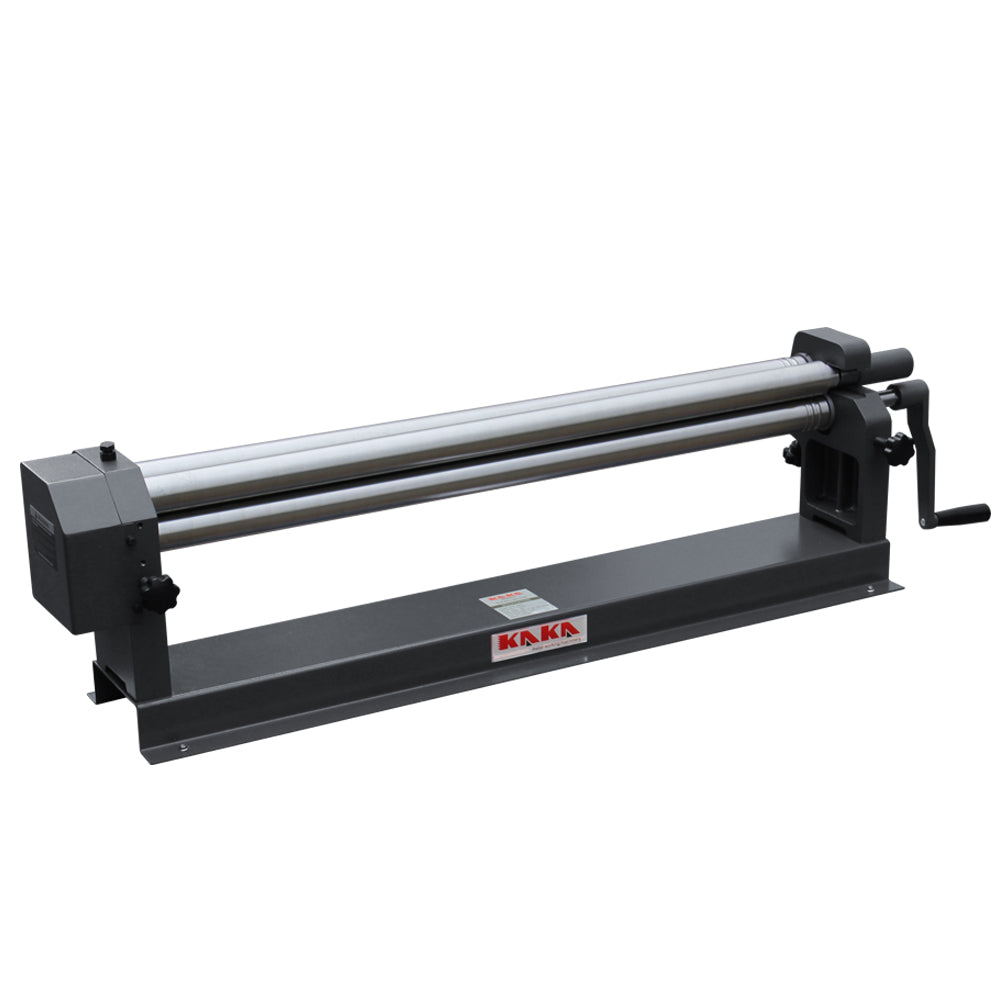

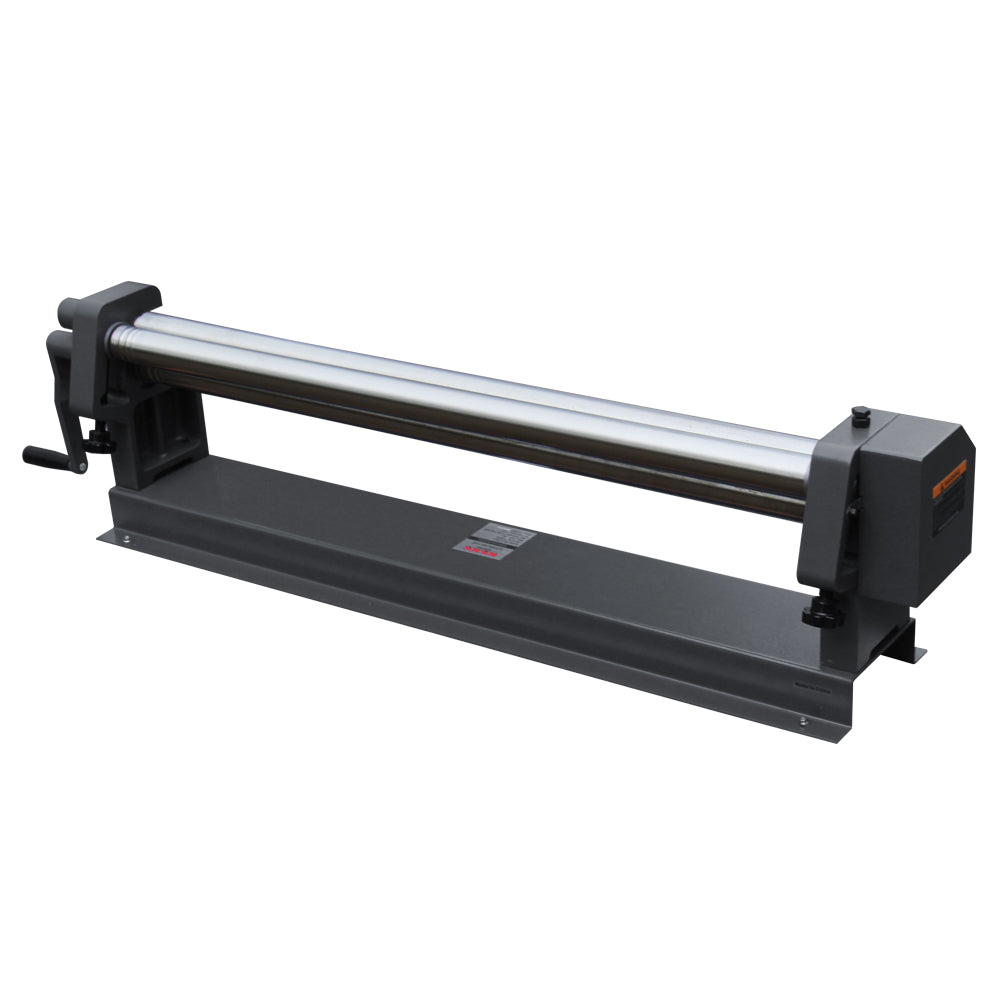

KAKA INDUSTRIAL W01-4022 is a 39.4 in manual sheet metal slip roll for rolling thin sheet metal into curves, cylinders, cones, and half-round shapes.

This manual plate curving roll uses a side crank and does not require electrical power. It is designed for compatible mild steel sheet up to 0.8 mm thick across a 1000 mm working width, making it suitable for HVAC ductwork, light fabrication, metal repair, educational shops, and garage metalworking.

The front and rear rolls can be adjusted separately for cone forming, while the upper roll can tilt open for easier removal of rolled cylindrical workpieces. The rolls include three grooves for wire rolling, adding useful flexibility for small shop forming tasks.

• Model: W01-4022
• SKU: 174004
• Product type: Manual sheet metal slip roll / plate curving roll
• Maximum width: 39.4 in (1000 mm)
• Maximum thickness: 0.8 mm mild steel, approximately 22 gauge
• Roll diameter: 1.97 in (50 mm)
• Operation: Manual side-crank operation
• Roll features: Three wire rolling grooves; tilting upper roll
• Frame/base: Cast iron end frames with steel sheet base
• Packing size: 57.1 x 12.6 x 20.5 in (145 x 32 x 52 cm)
• N.W./G.W.: 190/231 lbs (86/105 kg)

Confirm sheet material, thickness, width, and desired rolling radius before use. Do not exceed the listed material capacity.

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
