Roll Bending Machine, 3-Roll Profile Bender, 4 x 0.6 in Flat Bar, 2.2kW 230V 3PH, Electric Control, Vertical Operation, KAKA INDUSTRIAL RBM-50

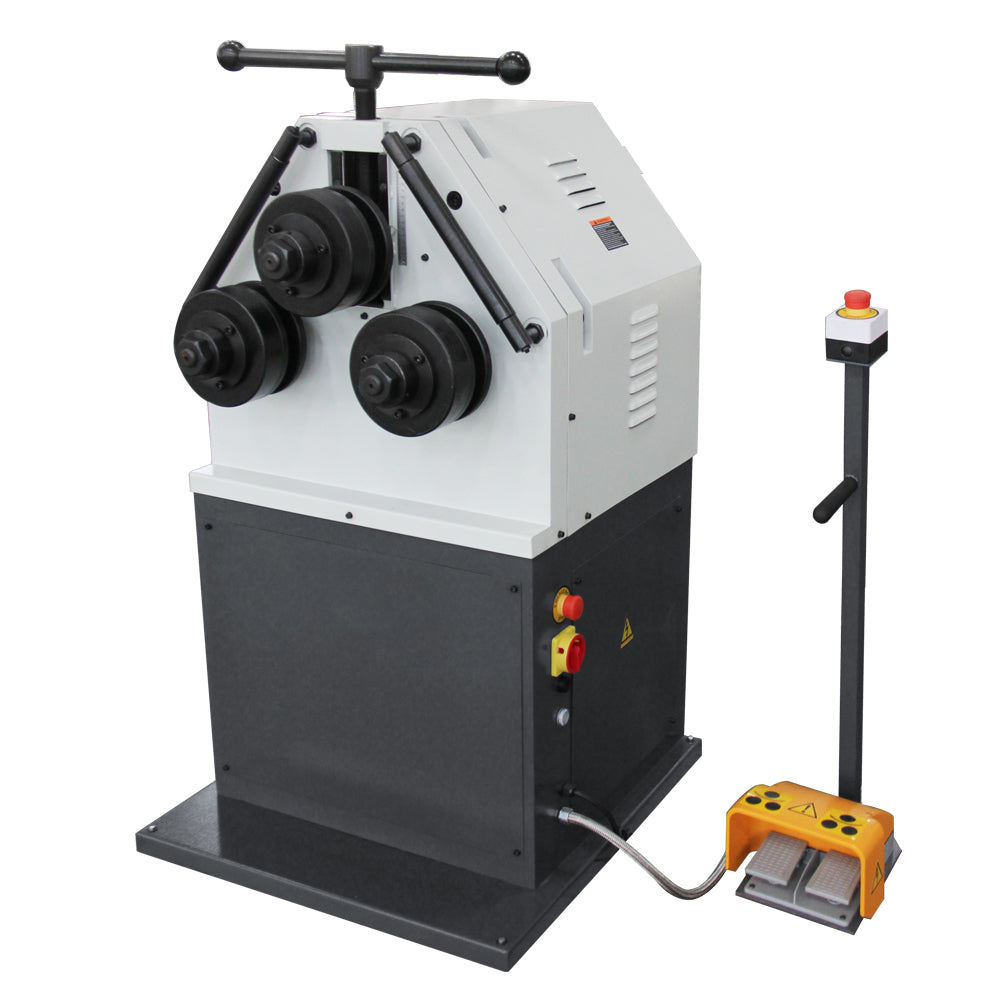

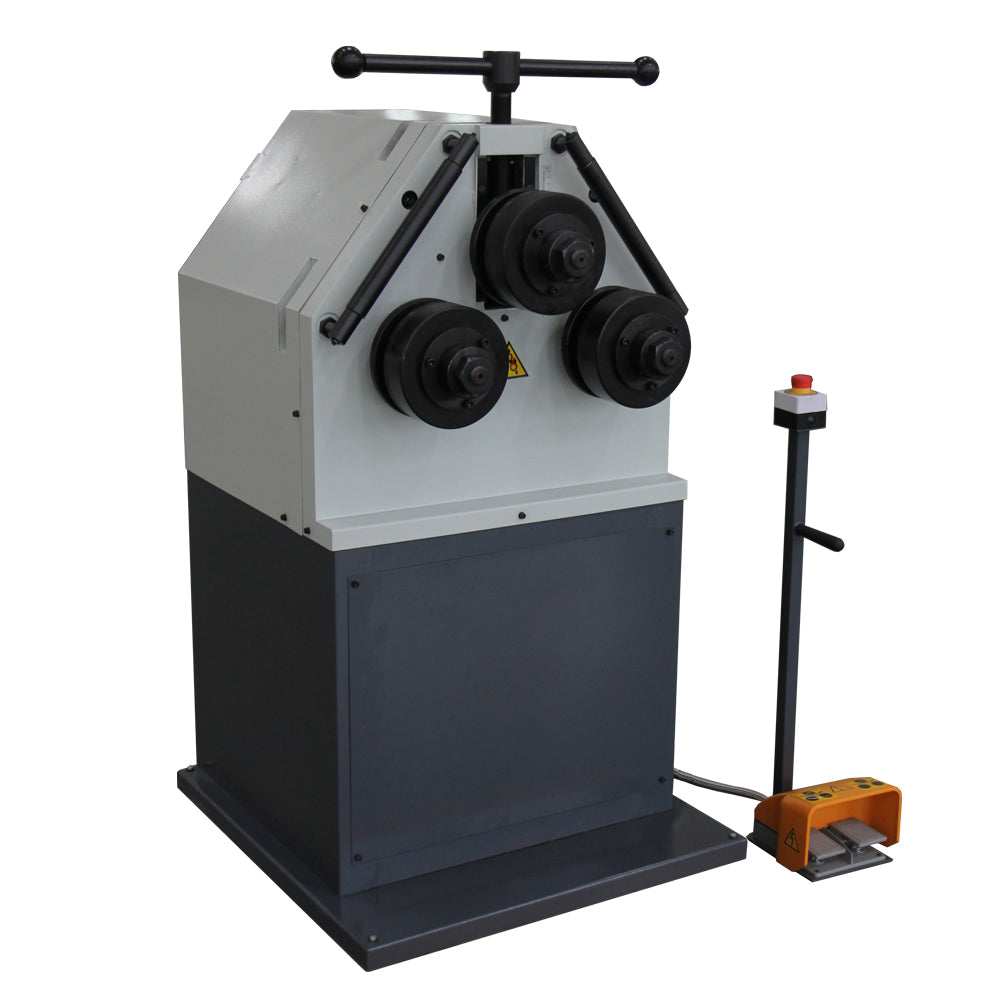

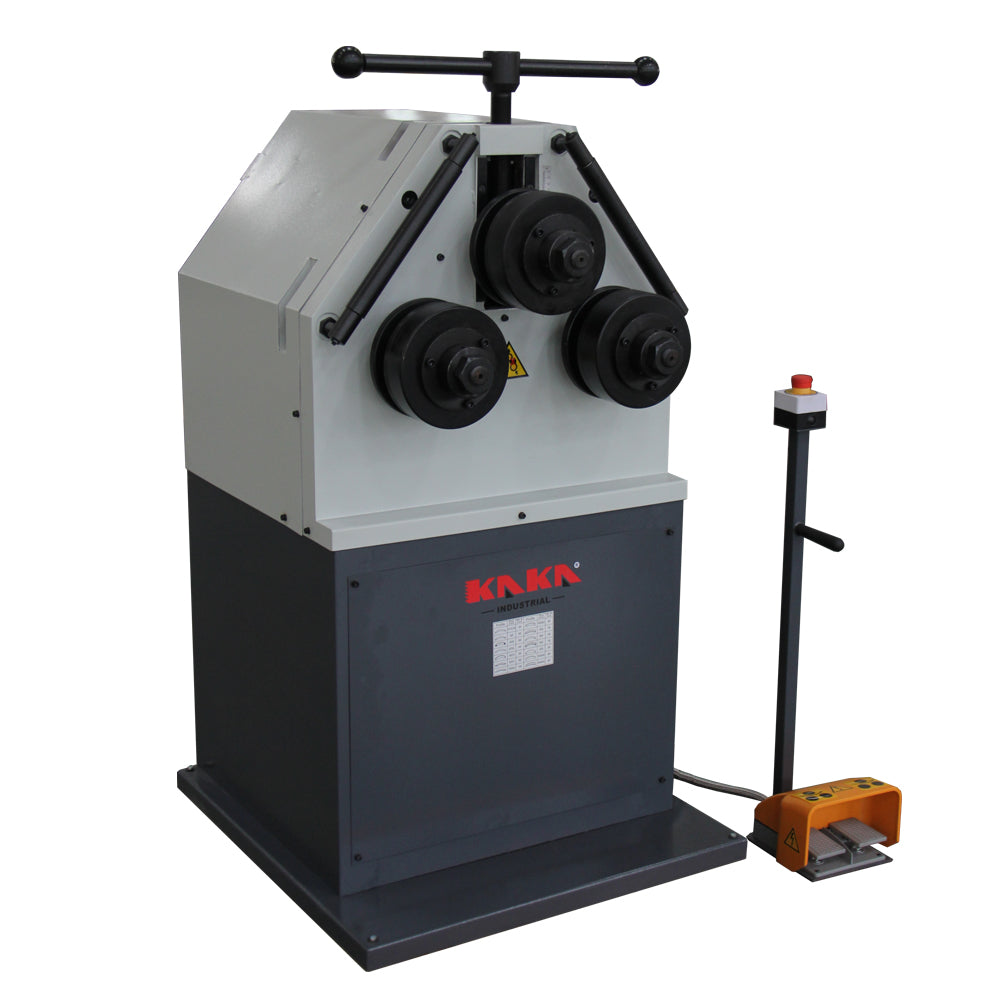

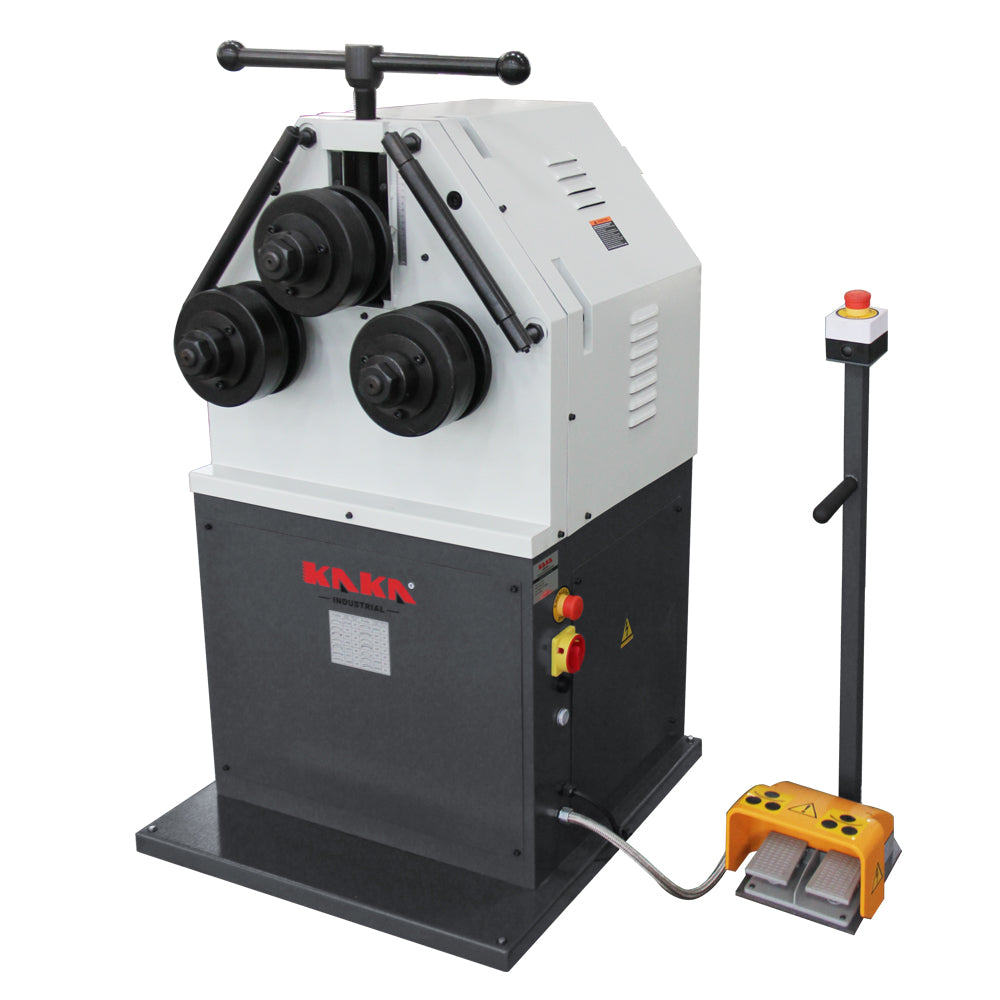

KAKA INDUSTRIAL RBM-50 is a vertical 3-roll profile bending machine built for metal fabrication shops, repair facilities, construction support work, HVAC fabrication, automotive fabrication, and industrial maintenance departments.

This roll bending machine is designed for vertical operation only. The RBM-50 focuses on upright shop-floor use, helping operators roll compatible profiles while keeping the machine footprint organized in a fixed work area.

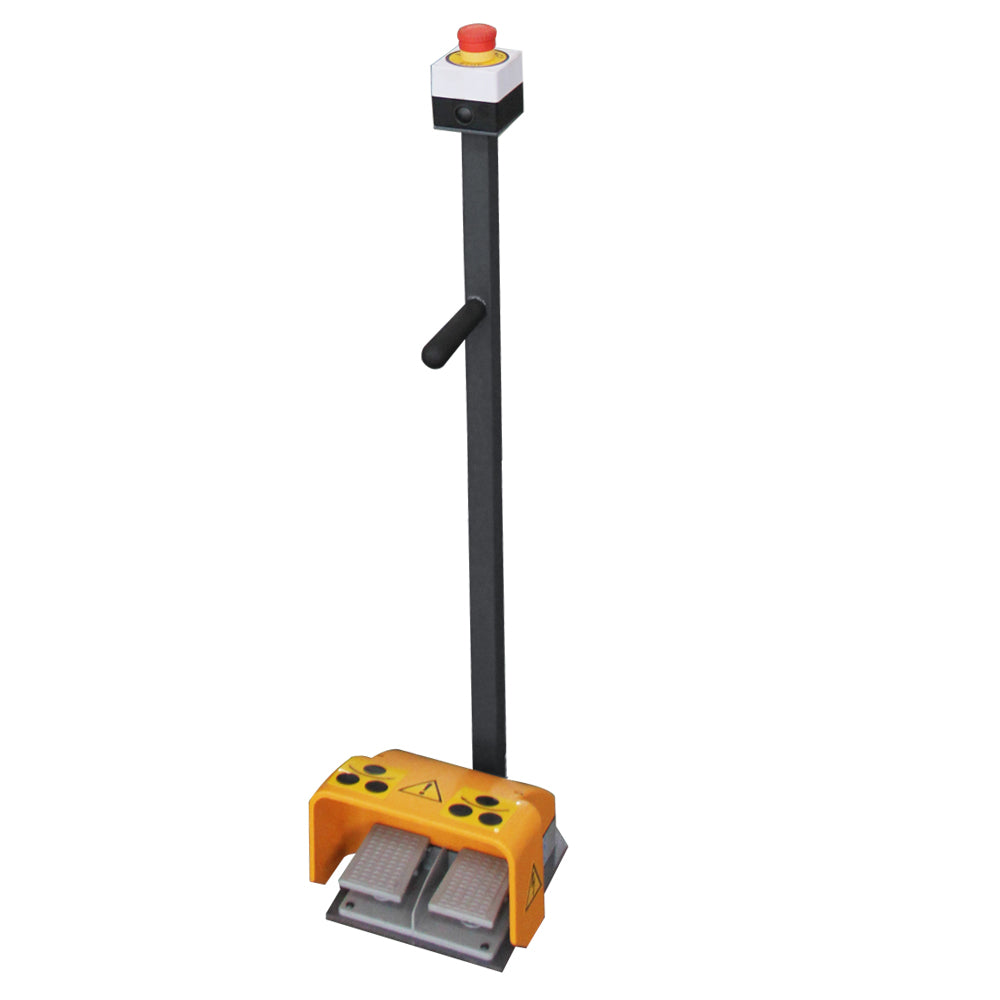

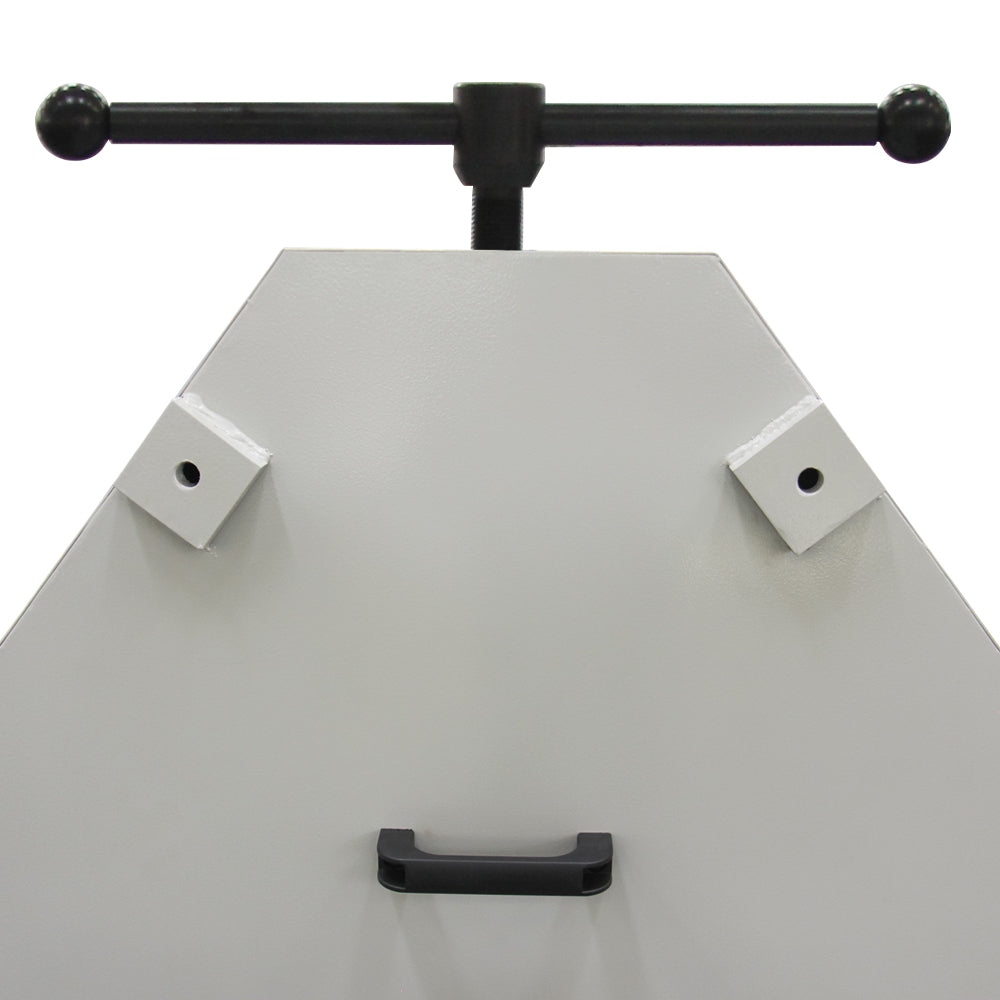

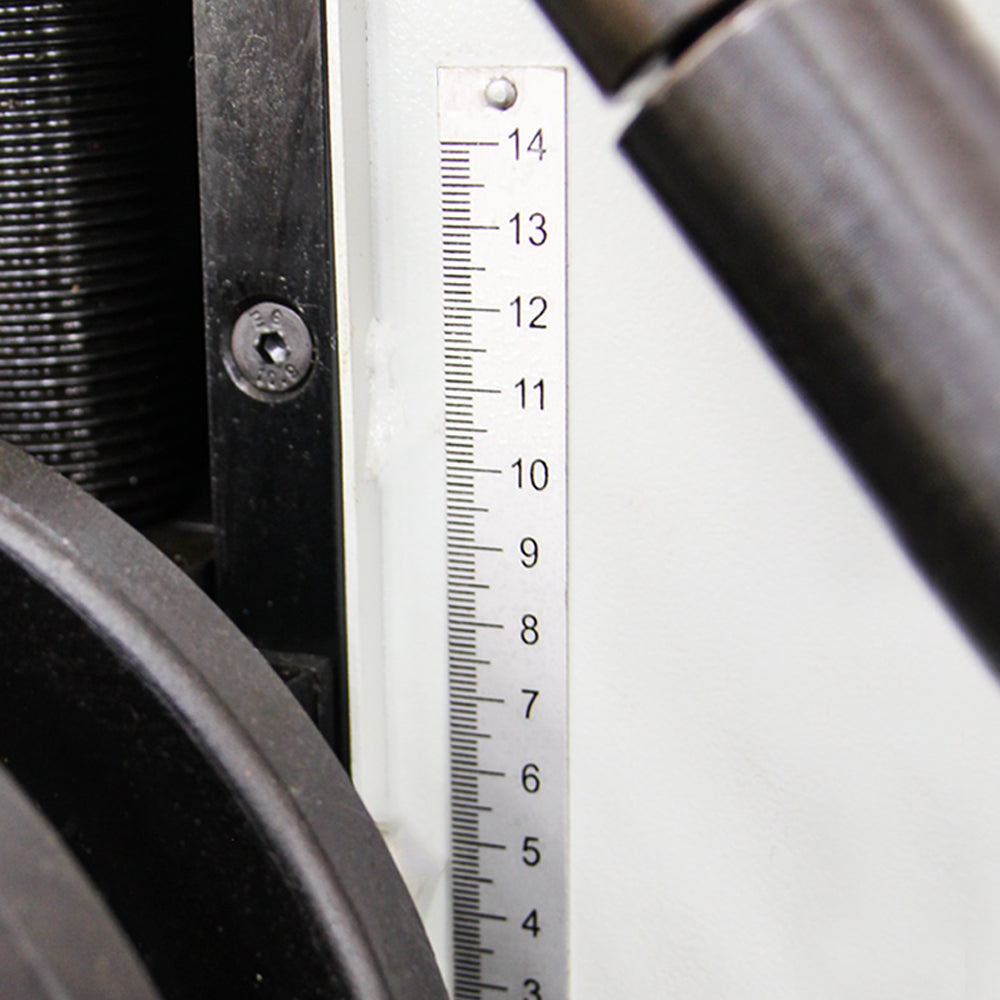

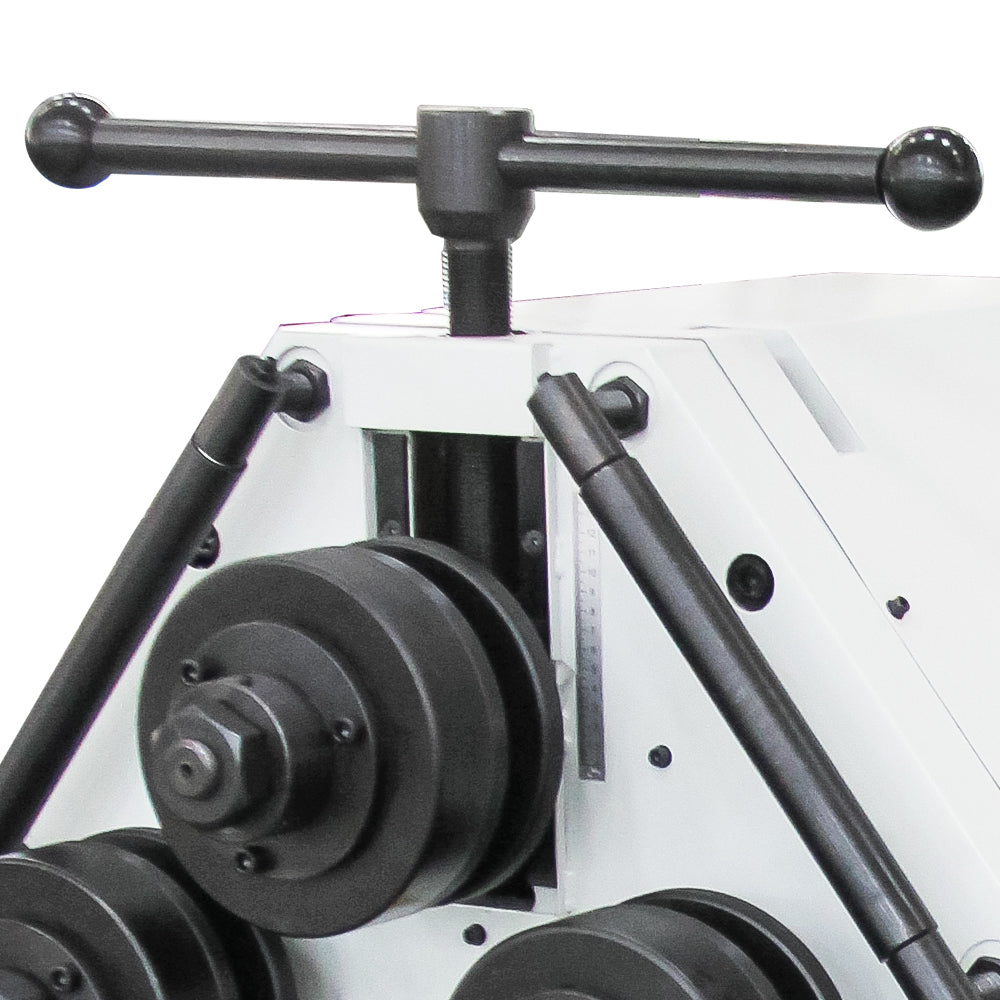

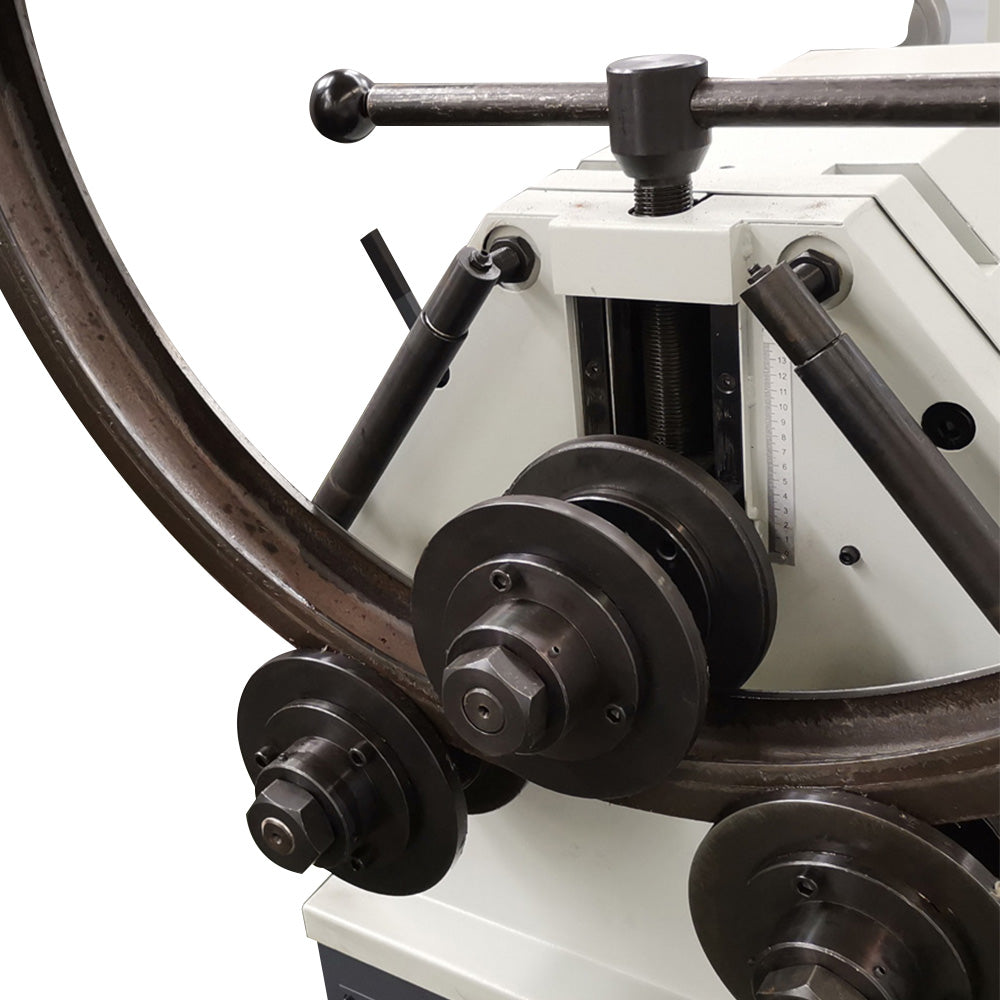

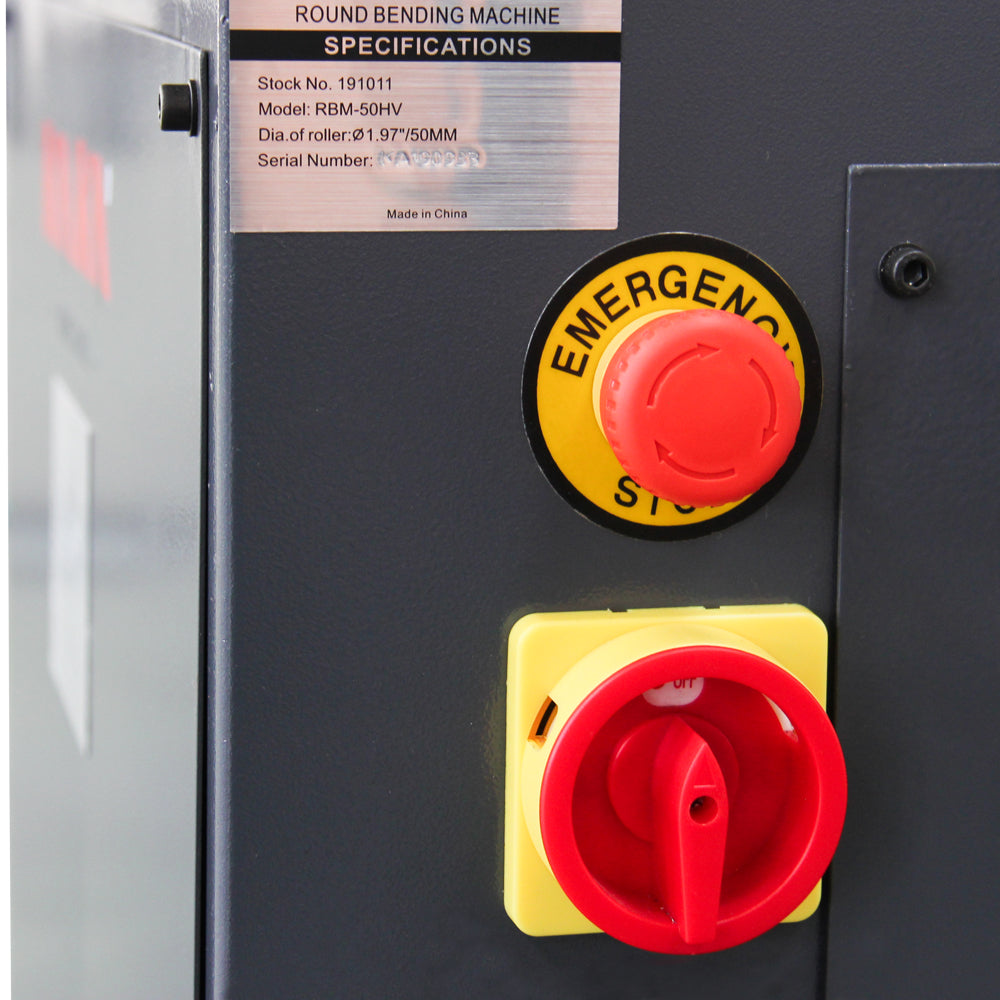

The RBM-50 uses a 2.2 kW / 3 HP motor with 230V 3-phase power and approx. 10.8 RPM spindle speed. Electric control, a control panel, and a foot pedal support controlled operation while the adjustable roll clearance helps the operator set bending pressure for different materials and profile shapes.

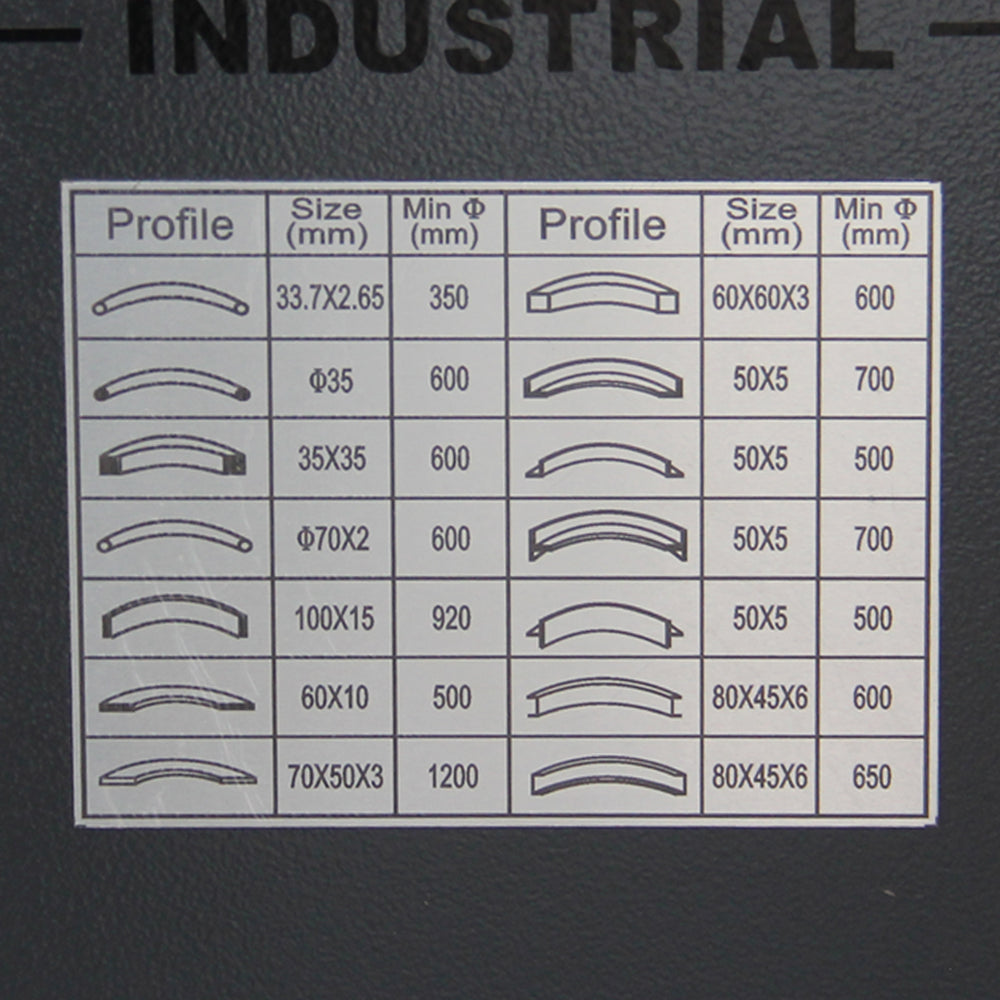

Typical capacity examples:

• Flat bar: up to 4 x 0.6 in (100 x 15 mm), minimum bending diameter about 36.22 in (920 mm)
• Solid round bar: up to 1.38 in (35 mm), minimum bending diameter about 23.62 in (600 mm)
• Square tube: compatible square tube profiles such as 1 x 1 in (25 x 25 mm), minimum bending diameter varies by wall thickness and setup
• Rectangular tube: up to 2.76 x 1.97 x 0.12 in (70 x 50 x 3 mm), minimum bending diameter about 47.24 in (1200 mm)
• Angle steel and structural profiles: supports compatible angle, T-section, and C-section work with the correct roller orientation
• Round pipe with optional rollers: about 1.18 to 2.76 in (30 to 70 mm) diameter, 0.08 in (2 mm) wall thickness, minimum bending diameter about 23.62 in (600 mm)

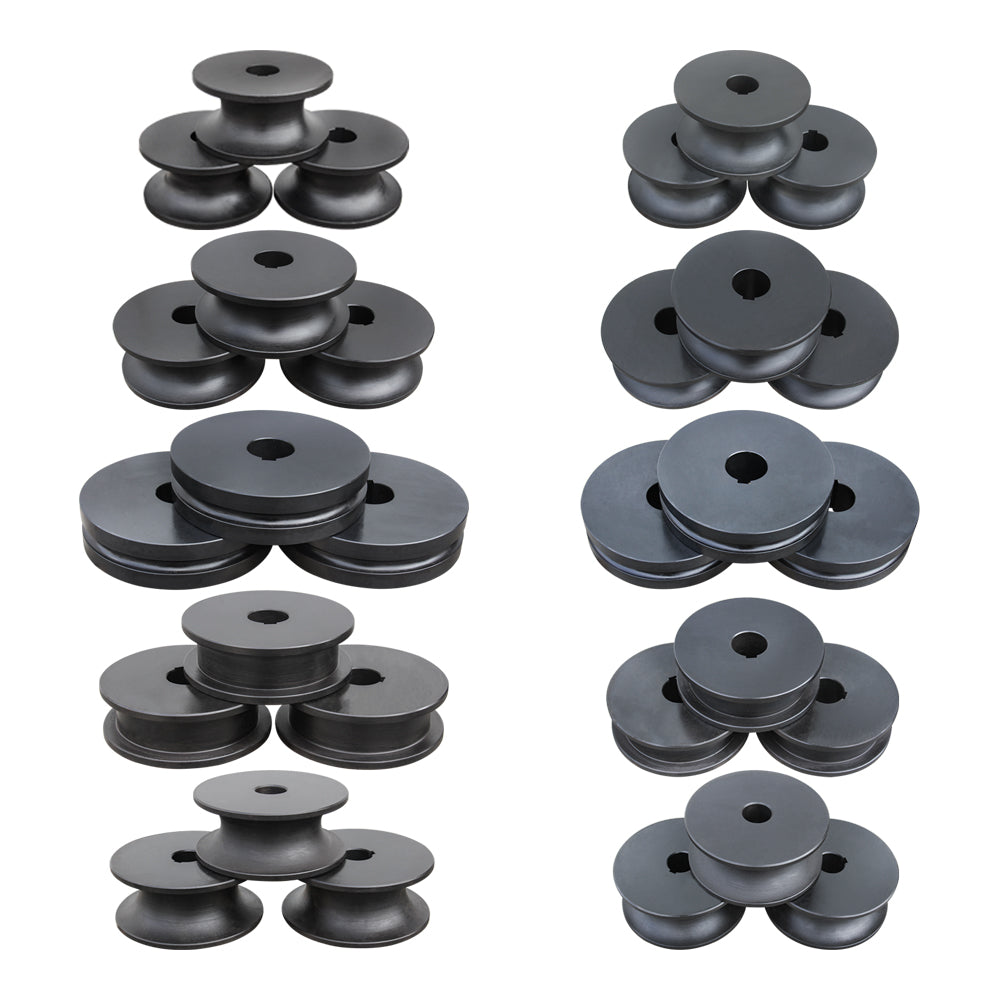

One set of standard rollers is included with the machine for common profile bending tasks. Optional special rollers are available for round pipe and specialized profile applications. Use the correct tooling for the material and profile being formed.

Why buyers choose this machine:

• Vertical 3-roll layout for profile bending in metal fabrication shops
• Electric control and foot pedal help improve workflow during repeated bending tasks

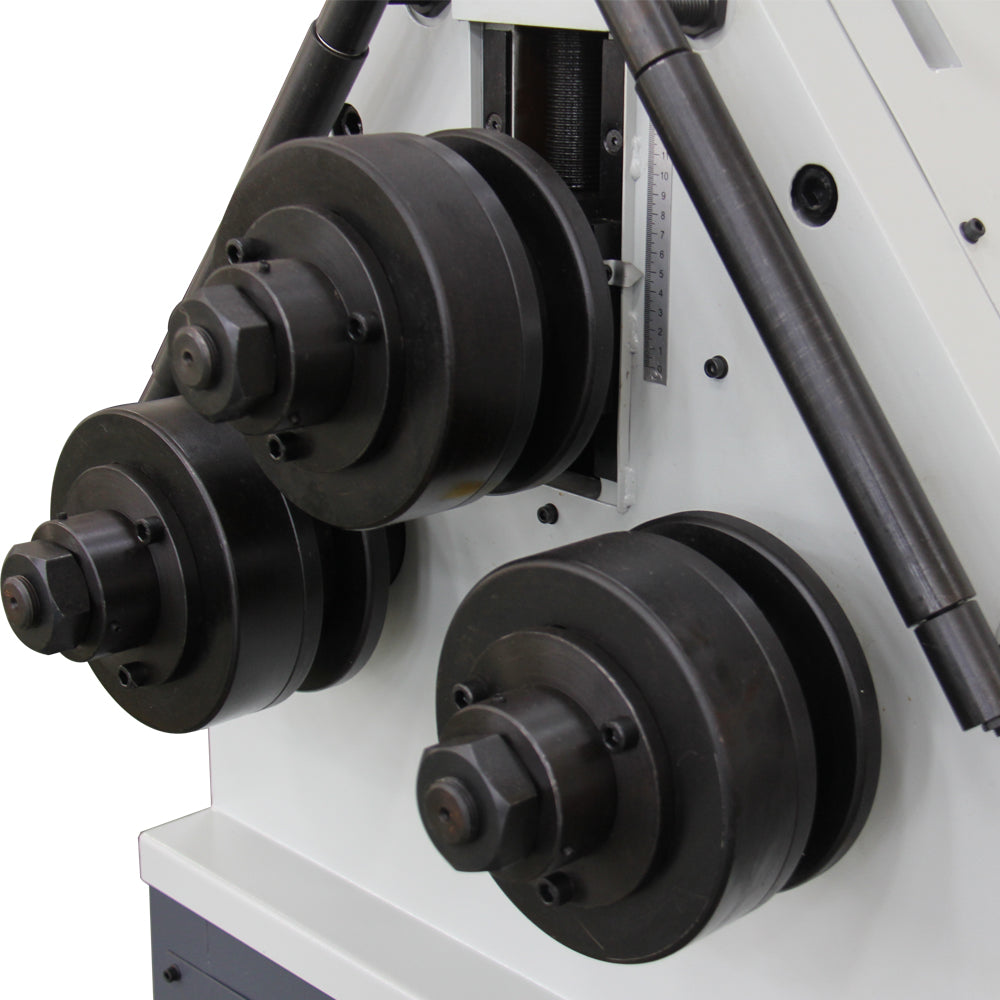

• 1.97 in (50 mm) roller diameter supports controlled forming of compatible metal profiles
• Heavy-duty approx. 1012 lb net weight helps provide stable operation during demanding shop use
• Suitable for flat bar, square tube, rectangular tube, angle steel, round bar, and optional round pipe tooling

Safety and operation notes:

• Check guards, controls, and safety devices before each use
• Keep hands, feet, loose clothing, and tools away from rollers and transmission parts during operation
• Disconnect power after operation and before inspection, adjustment, or service
• Use proper lifting equipment, electrical setup, and trained operators for installation and operation

Specifications:

• Stock No.: 191004
• Model: RBM-50
• Machine Type: Vertical roll bending machine / 3-roll profile bender
• Operation: Vertical operation only
• Roller Diameter: 1.97 in / 50 mm
• Motor Power: 2.2 kW / 3 HP
• Power Supply: 230V, 3PH
• Spindle Speed at 60Hz: Approx. 10.8 RPM
• Standard Tooling: One set of standard rollers included
• Packing Size: Approx. 39 x 32 x 61 in
• Net Weight / Gross Weight: Approx. 1012 / 1182 lbs

1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.

2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.

3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
