1. Quick release blade tension
2. Edge facing thrust bearings
3. Hinged blade guide with sight window

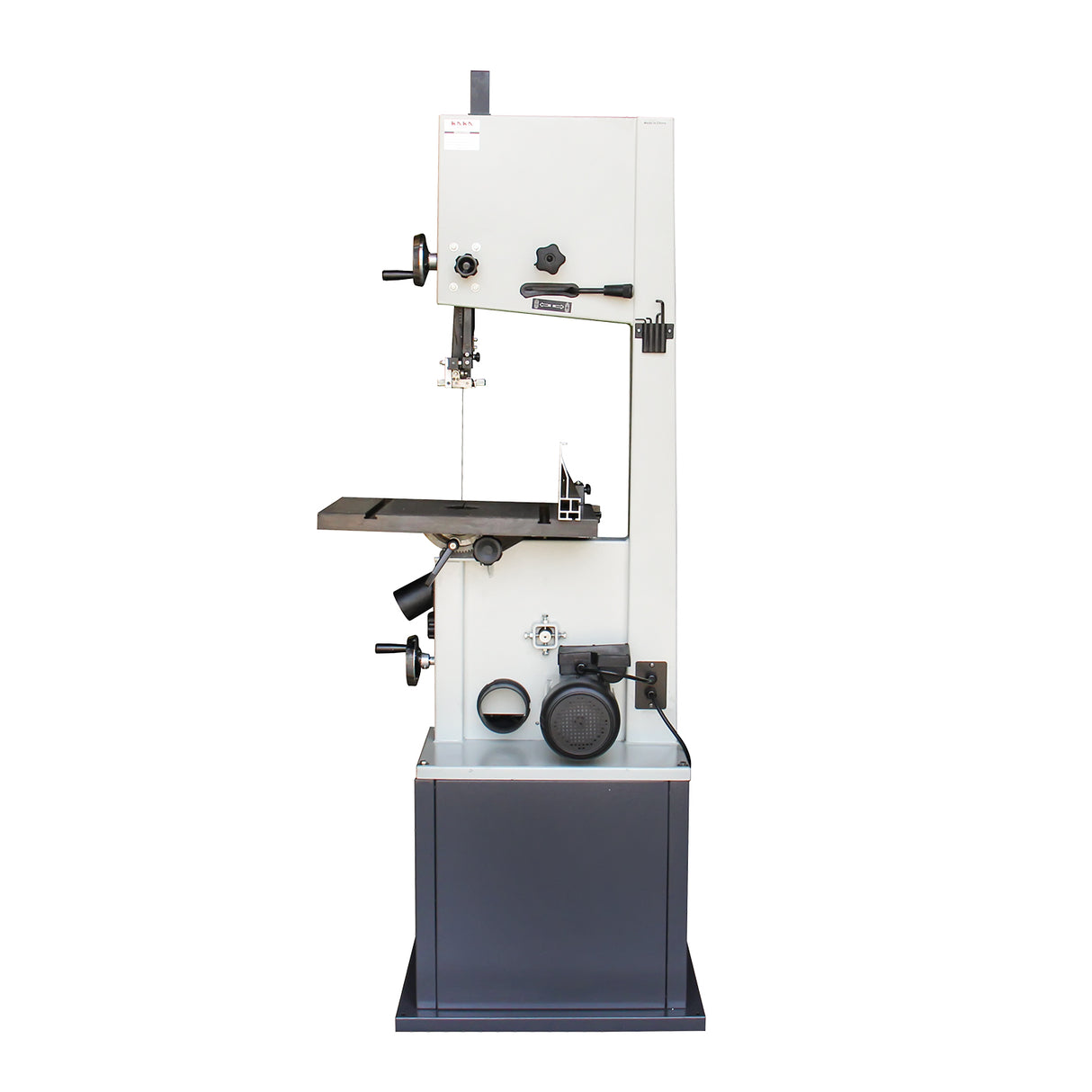

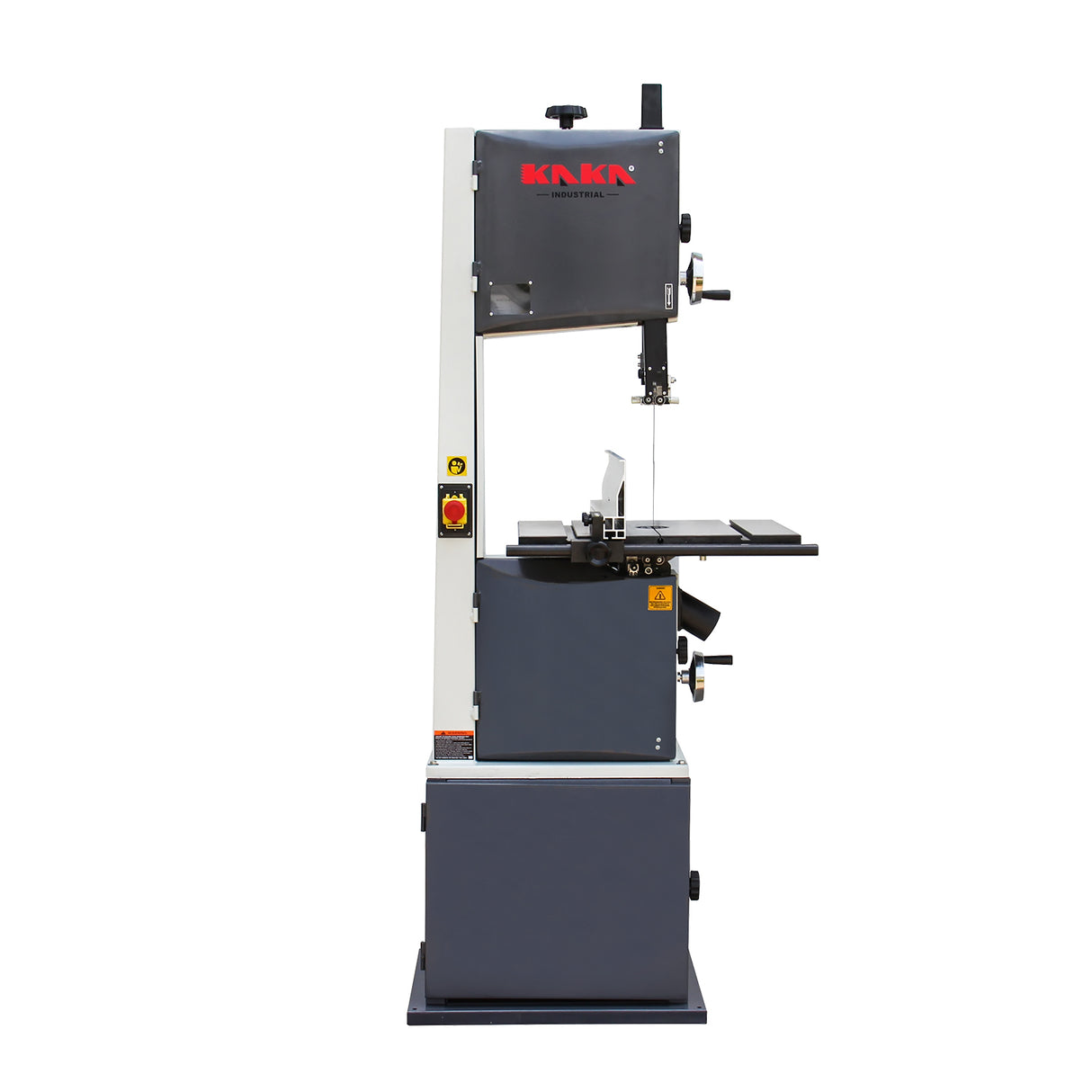

4. The precision wood cutting bandsaw is a vertical type.
5. 330mm Re-Saw capacity: Largest re-saw capacity for slicing veneers, book matched projects and lumber sizing.
6. Quick release blade tension：Quickly release the blade tension when changing blades or when machine is off, increasing blade life
7. 406x546mm work table: Large work space for your material
8. Edge facing thrust bearings: Extends blade life and improves stability
9. 2 Speeds 440/900 m/min: Allows cutting of non-ferrous materials
10. Hinged blade guide with sight window: Easy access blade changes and workpiece visibility
11. 99mm dust port: Attach your dust collection system for a cleaner work environment

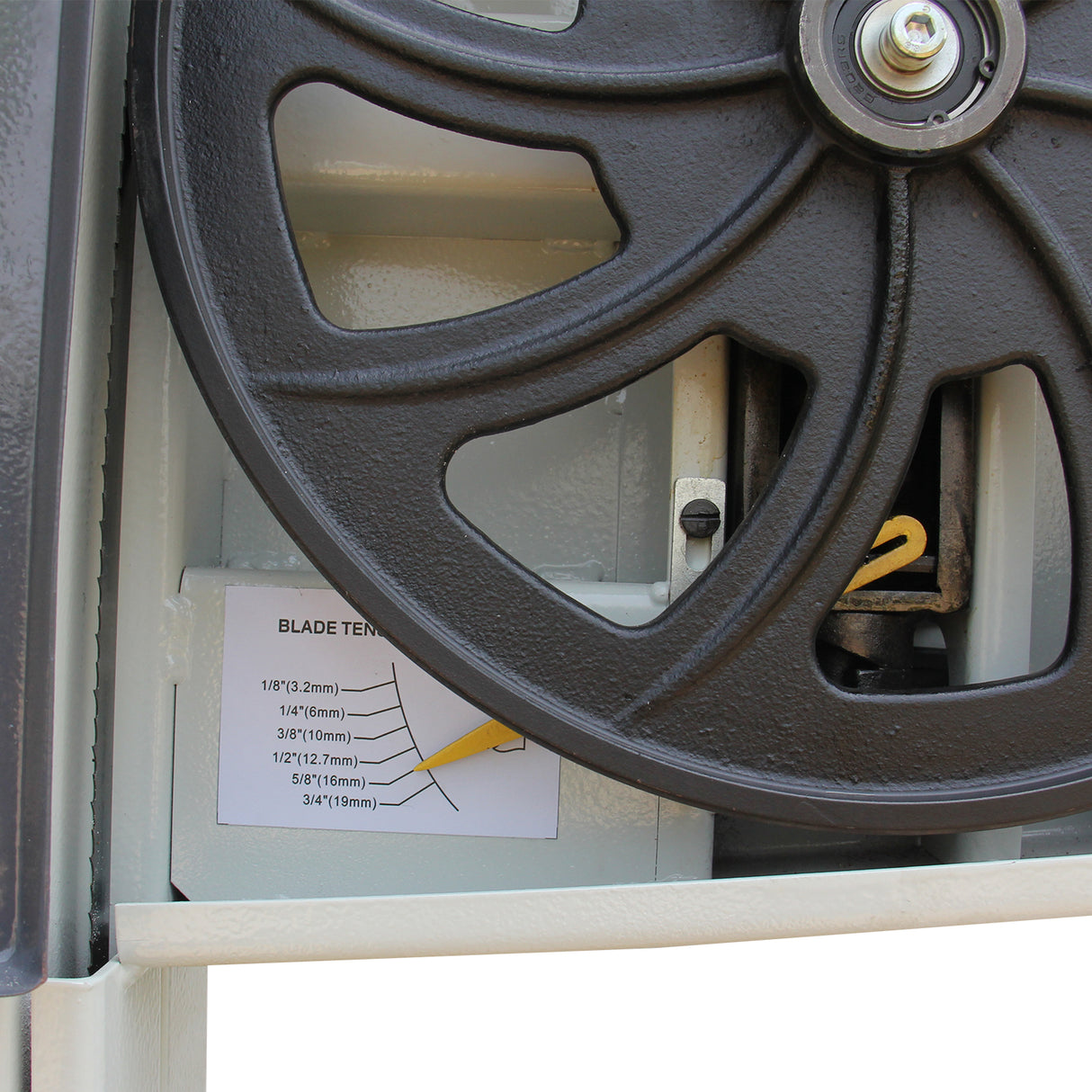

12. Blade tension window: Check your blade tension without opening the door

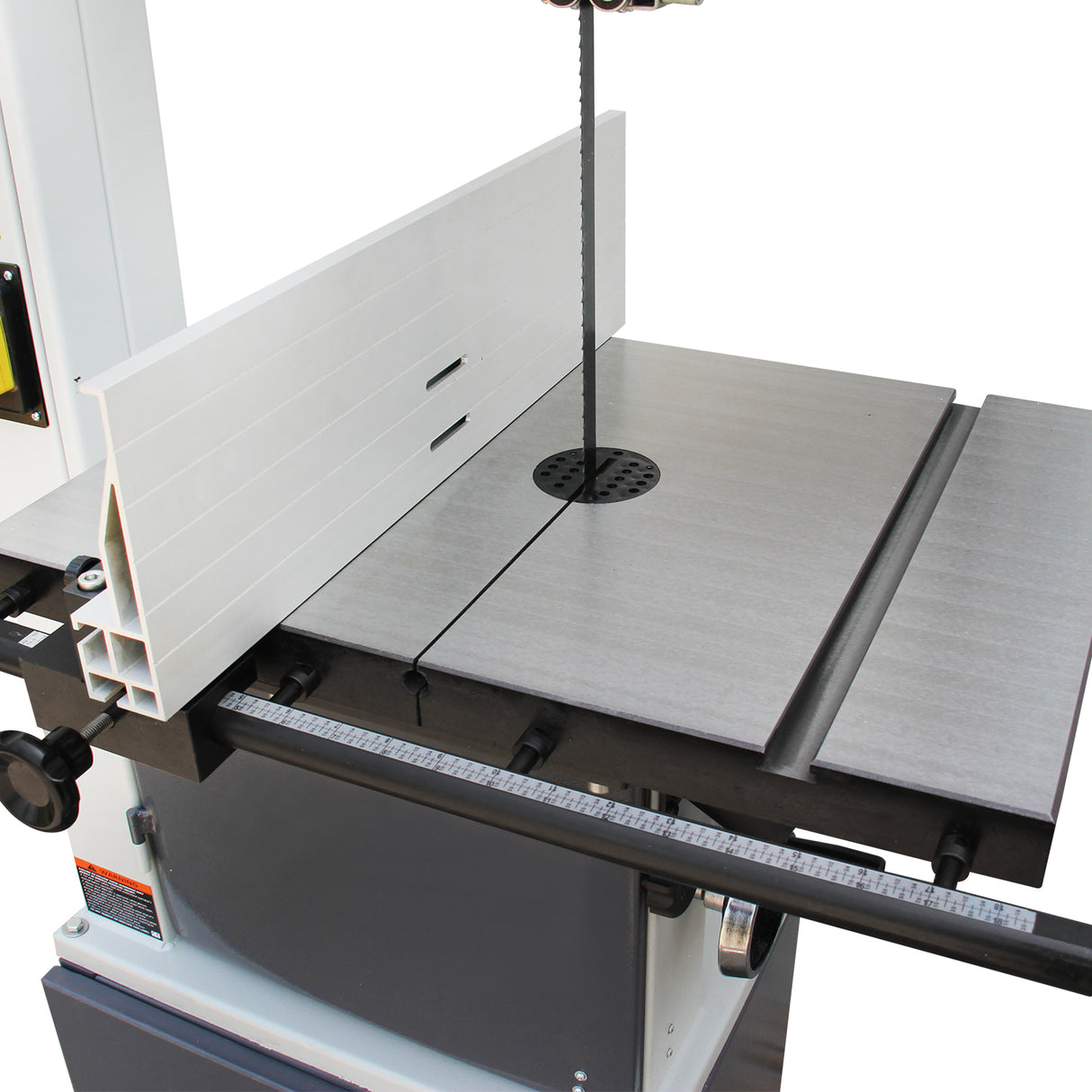

13. Heavy duty fence with drift adjustment: Blade drift in your workpiece can be easily adjusted. The fence can be mounted right or left of the blade; includes re-saw bar.

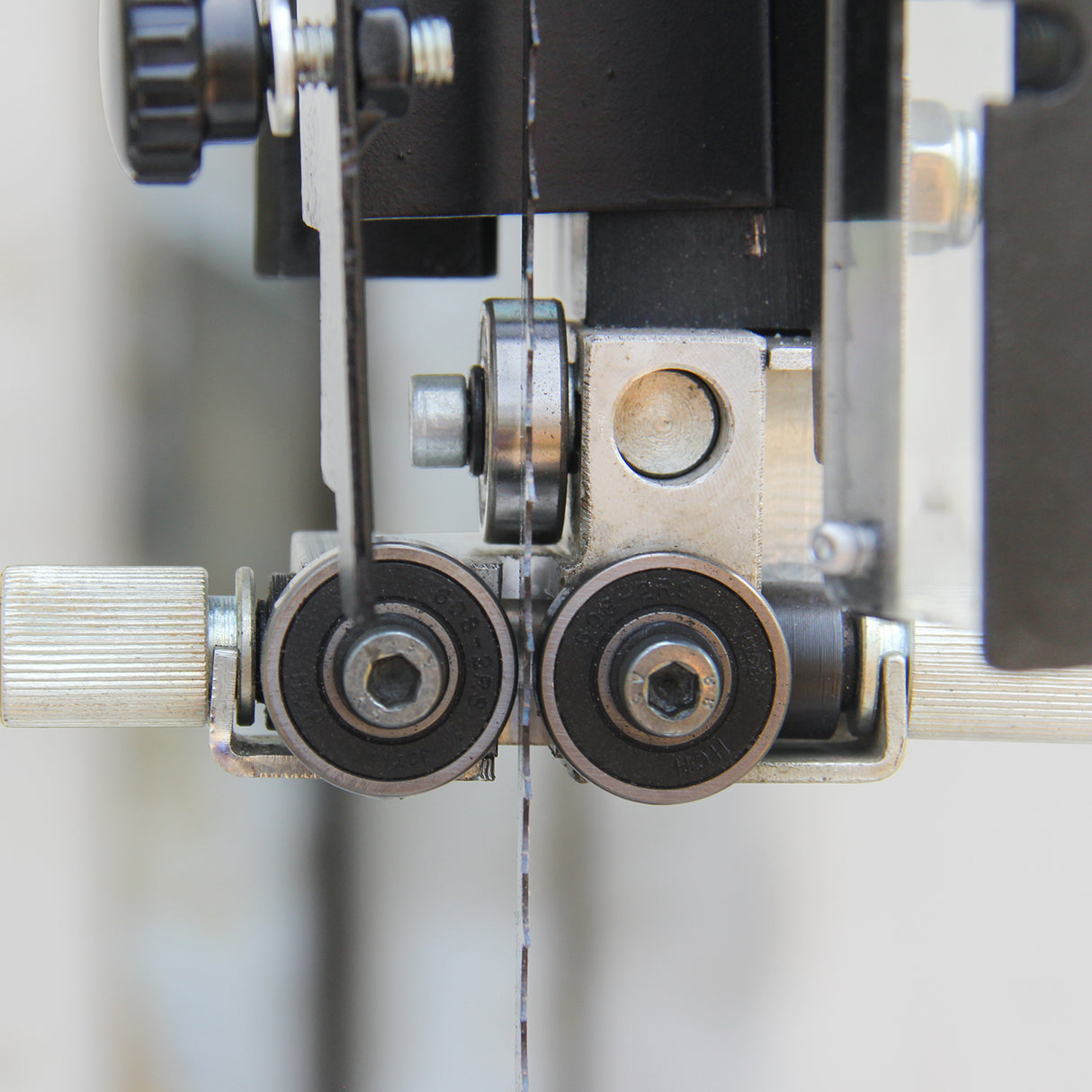

14. The saw blade of the woodcutting bandsaw has a fine-tuning guide bearing to ensure the cutting precision.
15. There is a wheel gear and toothed ring under the large working table which facilitates the rotation. The wood cutting bandsaw is equipped with a movable guide rail on the working table.
16. The wood cutting band saw can be combined with a dust collection device whose bore diameter is 99MM so it can maintain a clean environment.
17. Main technical parameter
Specification:
Item No. 471006
Model: WBS-14
Cutting capacity Height 330 mm
Width 346 mm
Blade Width 3-19mm
Length 2819 mm
Table Size 406x546 mm

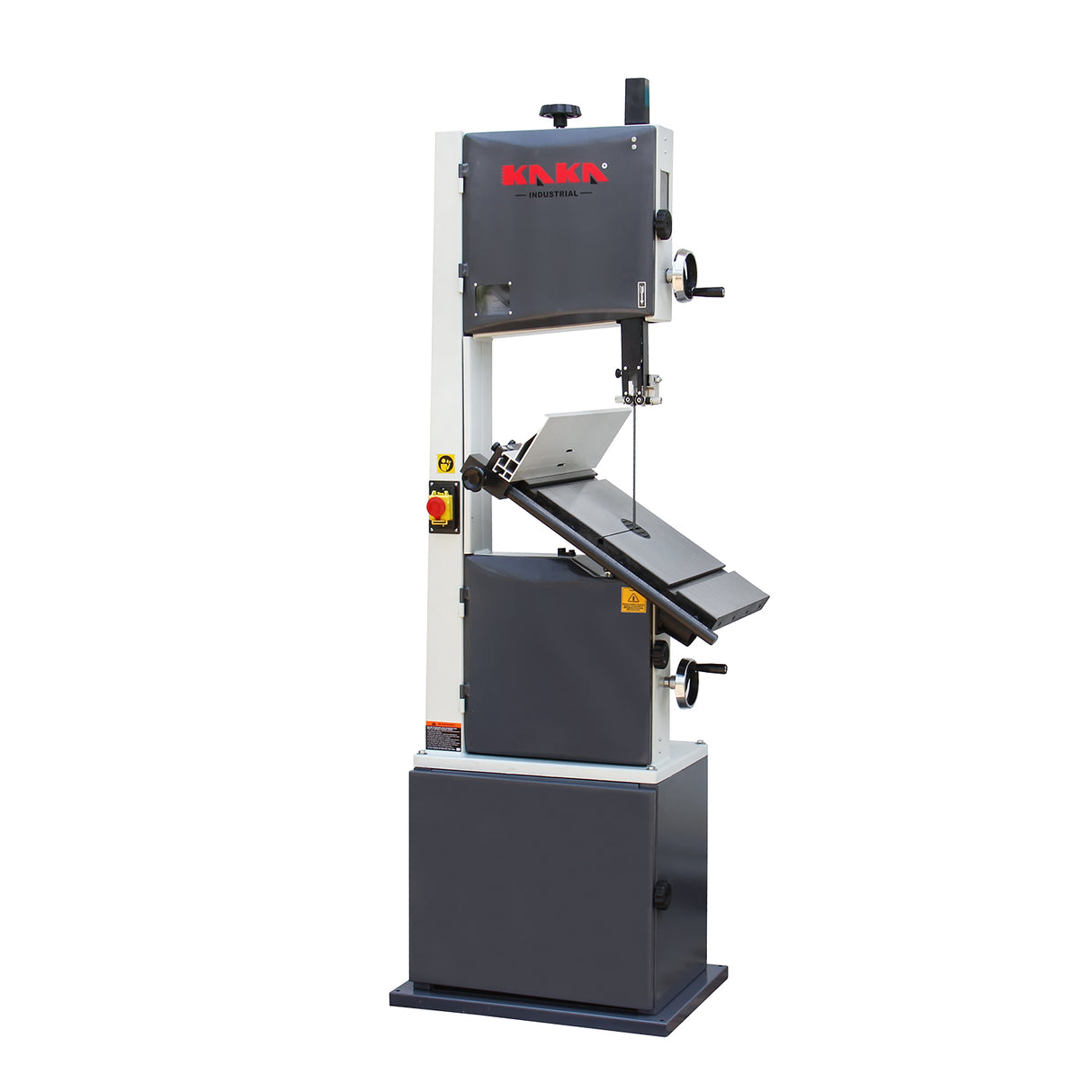

Left tilt 10°
Right tilt 45°
Groove “T” slot (2)10x19 mm
Height to floor 1005 mm
Motor Amps 14/7A
Horsepower 1.1kW/1.5HP
Volts 115/230V
Speed capacity 2
Speed range 440/900 m/min
Overall Height 1850 mm
Width 762 mm
Depth 635 mm
Net weight 114 kgs
Standard accessories:
Optional accessories:
KAKA Industrial provides 12 months warranty for this product.
1.10 Day acceptance period from date of delivery. Damage claims and order discrepancies will not be accepted after this time.
2.You must obtain a Kaka Industral issued RGA number PRIOR to returning any materials.
3.Returned materials must be received at Kaka Industrial in new condition and in original packaging.
4.Altered items are not eligible for return.
5.Buyer is responsible for all shipping charges.
6.A 15% re-stocking fee applies to all returns.
