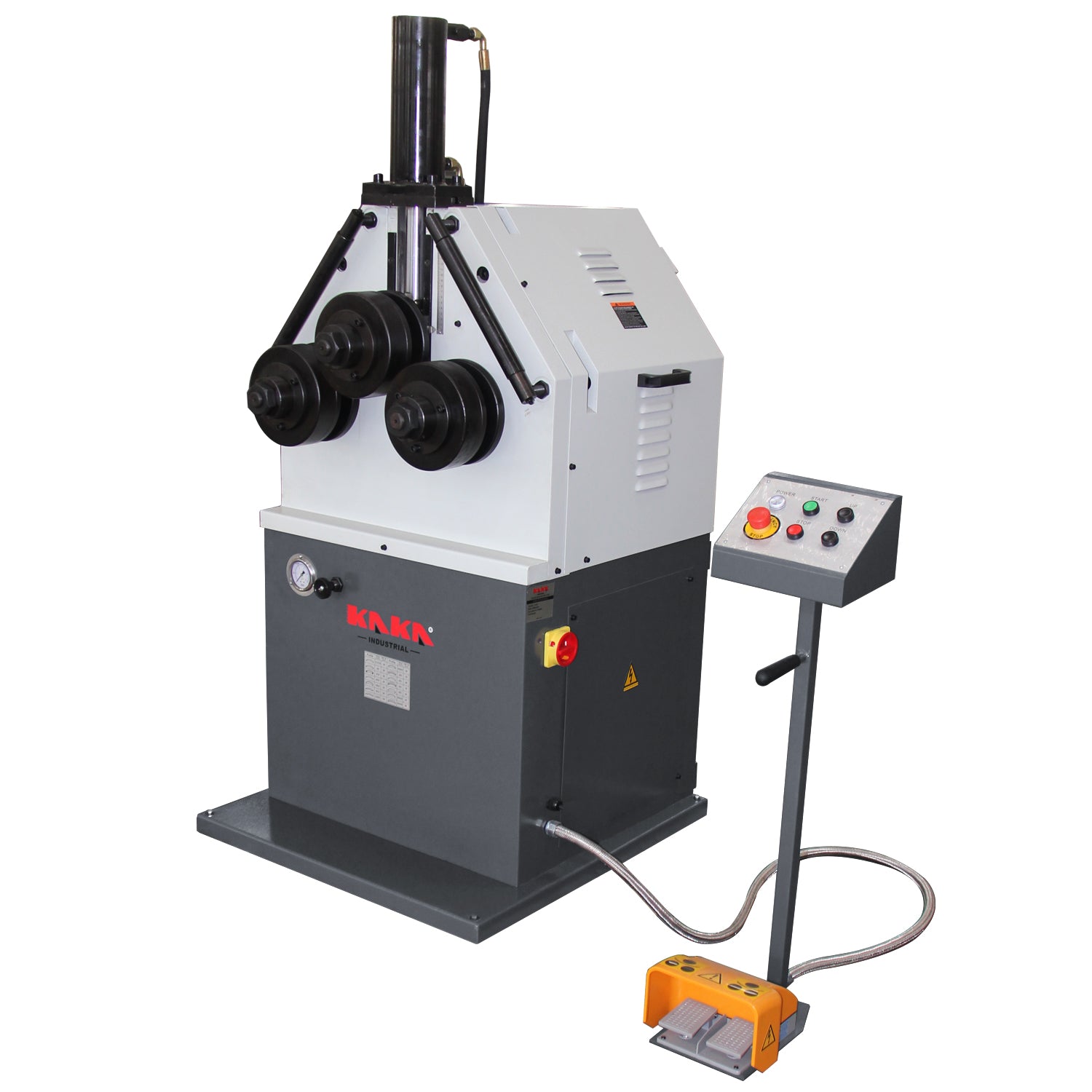

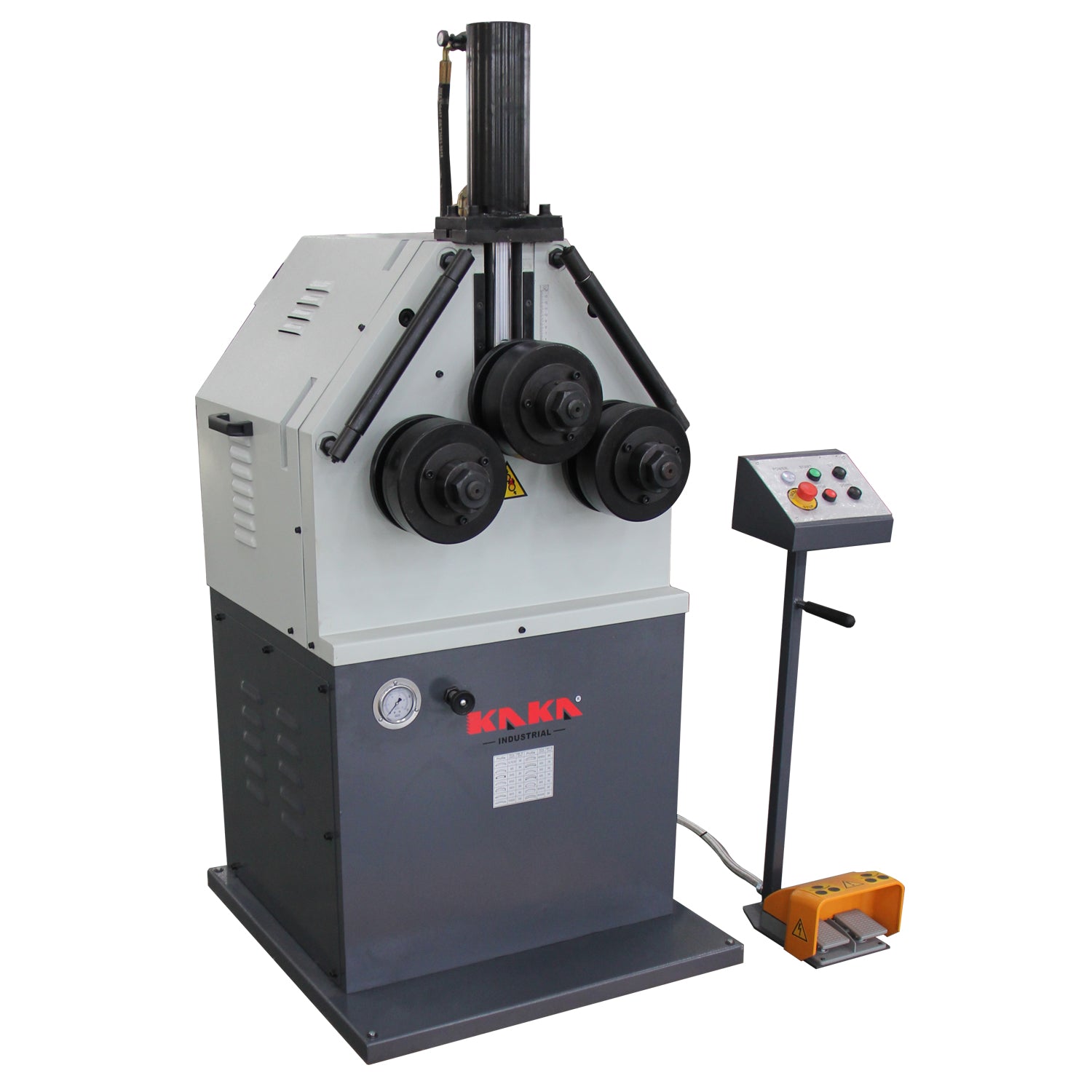

Roll Bending Machine- Heavy Duty Hydraulic Profile Bender for Steel Pipe, 3HP Heavy Duty Bender for 2.4 inch Flat Bar, 1.4 inch Round Tube & 2 inch Square Bar, 220V 3-Phase HRBM-50HV
Roll Bending Machine- Heavy Duty Hydraulic Profile Bender for Steel Pipe, 3HP Heavy Duty Bender for 2.4 inch Flat Bar, 1.4 inch Round Tube & 2 inch Square Bar, 220V 3-Phase HRBM-50HV is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
HEAVY-DUTY HYDRAULIC BENDING CAPACITY - Powered by a 3HP (2.2kW) hydraulic motor with ø2" (ø50mm) hardened steel rollers. Bends profiles including 2.4"x0.4" (60x10mm) flat bars, ø1.4" (ø35mm) round bars, and 2"x2"x0.12" (50x50x3mm) square tubes with minimum bending diameters as tight as 500mm.

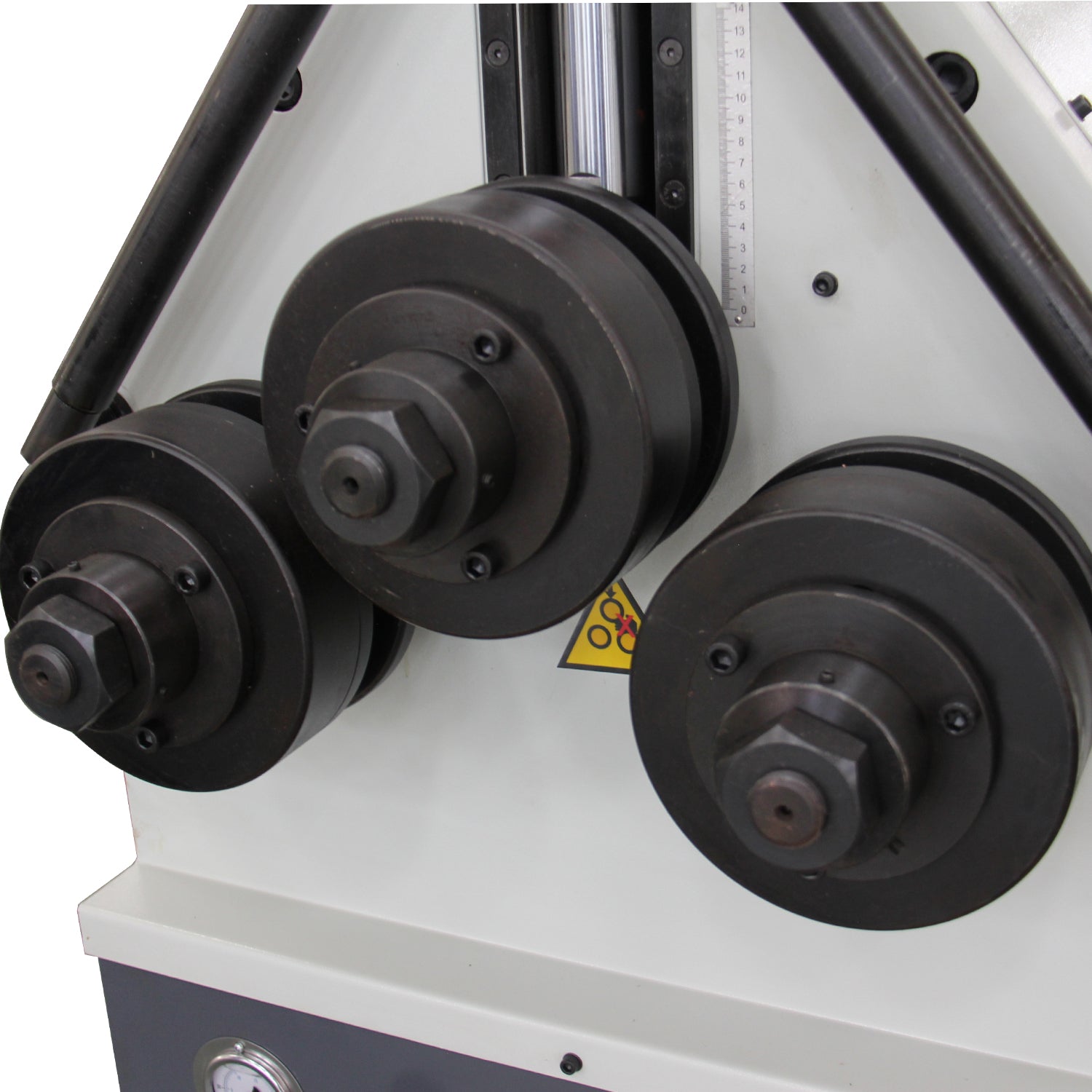

PRECISION ROLLER SYSTEM & DUAL OPERATION - Features three powered rollers with hydraulic control system. Supports both horizontal and vertical operation for bending long beams, wide plates, pipes, and complex profiles. Standard spindle speed of 9 r/min @50Hz.
EXTENSIVE PROCESSING CAPACITY - Handles diverse profiles per technical specs: Flat bars: 2.4"x0.4" (60x10mm) - Min dia. 500mm Angle steel: 2.4"x0.4" (60x10mm) - Min dia. 1150mm Square tubes: 2"x2"x0.12" (50x50x3mm) - Min dia. 800mm
INDUSTRIAL CONSTRUCTION & DESIGN - Built with heavy-duty steel frame supporting 1135lbs (515kg) net weight. Compact packaging 48"x32"x71" (122x82x180cm) fits workshop spaces. Gross weight 1433lbs (650kg).
SPECIAL ROLLER CUSTOMIZATION - Optional rollers available for specific profiles from 13"x0.08" to 2.8"x0.08" (330x2mm to 70x2mm). Ideal for metal workshops, construction, and automotive fabrication.
VERSATILE INDUSTRIAL APPLICATIONS - Ideal for metal workshops, construction sites, and automotive fabrication Suitable for HVAC ductwork, structural steel bending, and custom metalworking Processes various materials including steel, aluminum, and stainless steel
Specification:
| SKU | 191023 | |
| Model | HRBM50HV | |
| Dia. of rollers | ø1.97" | |
| Power | 2.2 kW 3HP | |
| Spindle speed | @60Hz 10.8r/min | |
| Packing size | 48x32x71 in | |
| N.W./G.W. | 1135/1426 lbs | |
| Capacity | Size | Min Dia. |
| Solid Rectangular |
60x10 40x10 |
500 650 |
| Rectangular tube |
70x50x3 50x40x3 |
1200 800 |
| Solid Square |
35x35 20x20 |
600 780 |
| Square Tube |
60x60x3 40x40x3 |
600 500 |
| T-steel |
60x7 50x5 |
750 700 |
| C channel |
80x45x6 65x40x5 |
650 550 |
| Angle Iron |
60x5 50x5 |
700 700 |
| Flat Bar |
100x15 60x10 |
920 1150 |
| Solid Round Bar |
ø35 ø30 |
600 650 |
