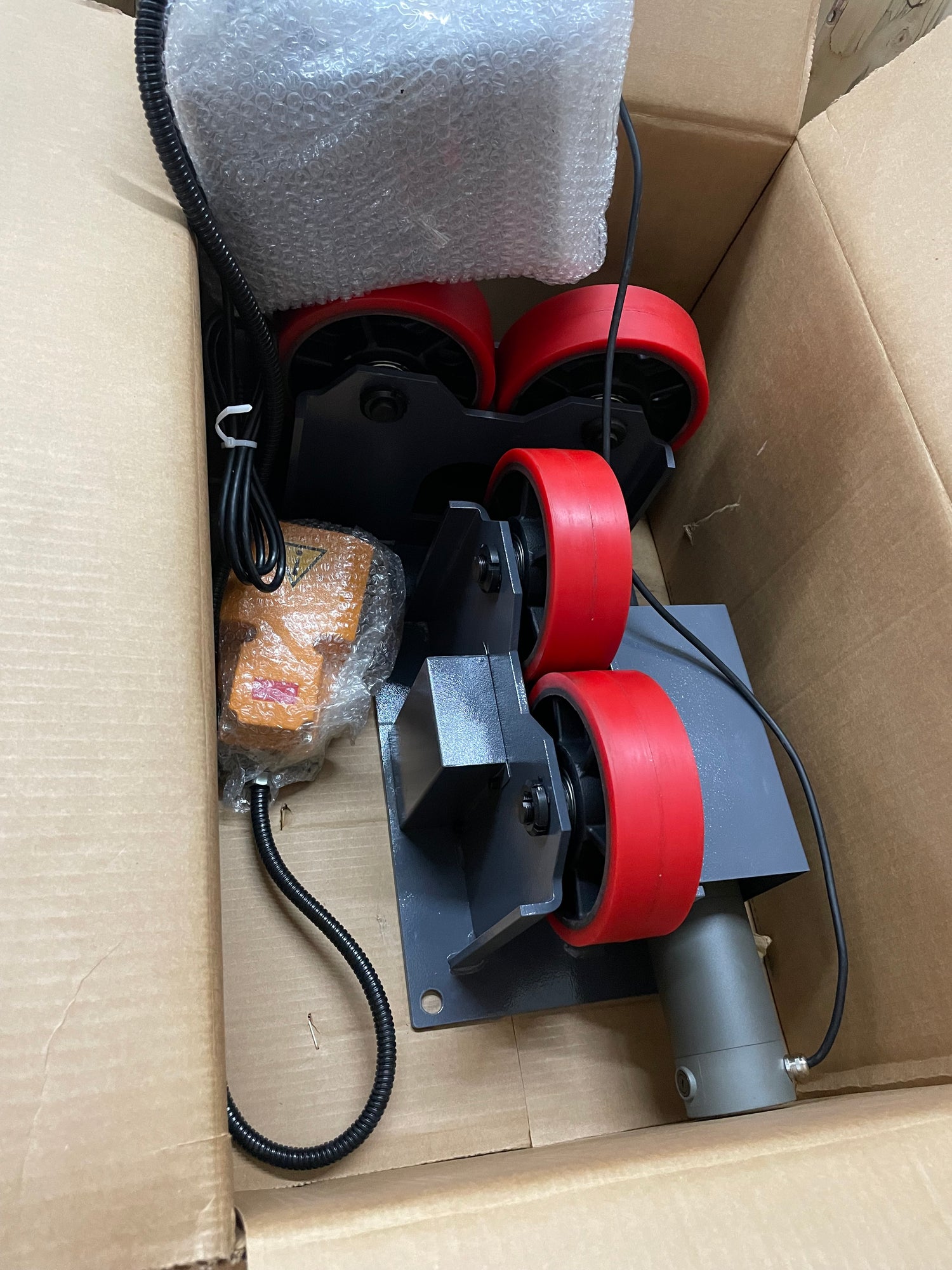

(Not Brand New) KAKA INDUSTRIAL Welding Turning Rolls, 2650lb Capacity Electric Pipe Roller, 0.78-31 Inch Adjustable Diameter Motorized Positioner for Tank and Pipeline Fabrication, 220V TRS-1200
(Not Brand New) KAKA INDUSTRIAL Welding Turning Rolls, 2650lb Capacity Electric Pipe Roller, 0.78-31 Inch Adjustable Diameter Motorized Positioner for Tank and Pipeline Fabrication, 220V TRS-1200 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
(Not Brand New) Kaka TRS-1200: Heavy-Duty Welding Fixture for Industrial Pipe & Tank Fabrication
Engineered to meet JB/T 9187 standards, this powered rotator delivers ±2mm axial runout control – essential for wind turbine tower assembly and chemical tank cladding. Its dual-synchronization drive maintains stability at 2650lb load capacity (1202 kg), 30% above industry benchmarks.
Core Innovations
-
Anti-Deflection Roller SystemPolyurethane-coated steel wheels with 15° beveled edges resist deformation under 10,000+ cycles (tested per ISO 9001).
-
Zero-Interference Conductive PathIntegrated copper-graphite brushes handle currents up to 2000A, eliminating arcing damage on polished surfaces.
-
Instant Torque Response Technology250W frequency-conversion motor sustains 0-4635 ft/min speeds (±5% fluctuation) during eccentric load welding.
Complete Specifications
- Max Load: 2650 lb (1202 kg) | Workpiece Diameter: 0.78-31 Inch (20-787 mm)mm
- Rotation Speed: 0-4.635 ft/min (0-1413 mm/min) | Motor: 250W (220V)
- Wheel Dimensions: 8x2.5 Inch (203x63.5 mm) | Net/Gross Weight: 190 lb (86 kg)/231 lb (105 kg)
- Packing: 25x26x19 Inch (635x660x483 mm)
Industrial Applications
- Oil/gas pipeline girth welding
- Pressure vessel internal cladding
- Renewable energy tower section assembly
Specifications
| Model | TRS-1200 |
|---|---|
| SKU | 178332 |
| Max. loading capacity | 2645 lbs |
| Rotation speed | 0-4.6 ft/min |
| Applicable workpiece dia. | 7.87"-31.49" |
| Wheel size(∅ x w) | ∅8"x2.56" |
| Motor power | 250W 0.33HP |
| Packing size | 24x26x19 in |
| N.W./G.W. | 189/231 lbs |
