KAKA INDUSTRIAL LLC | SKU:
GA-160700V110B
(Not Brand New) KAKA INDUSTRIAL Turn Lathe & Mill Drill CM-2575, Variable Speed Multi-Function Lathe
$3,699.00
Unit price /
Unavailable
Shipping calculated at checkout.
(Not Brand New) KAKA INDUSTRIAL Turn Lathe & Mill Drill CM-2575, Variable Speed Multi-Function Lathe is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

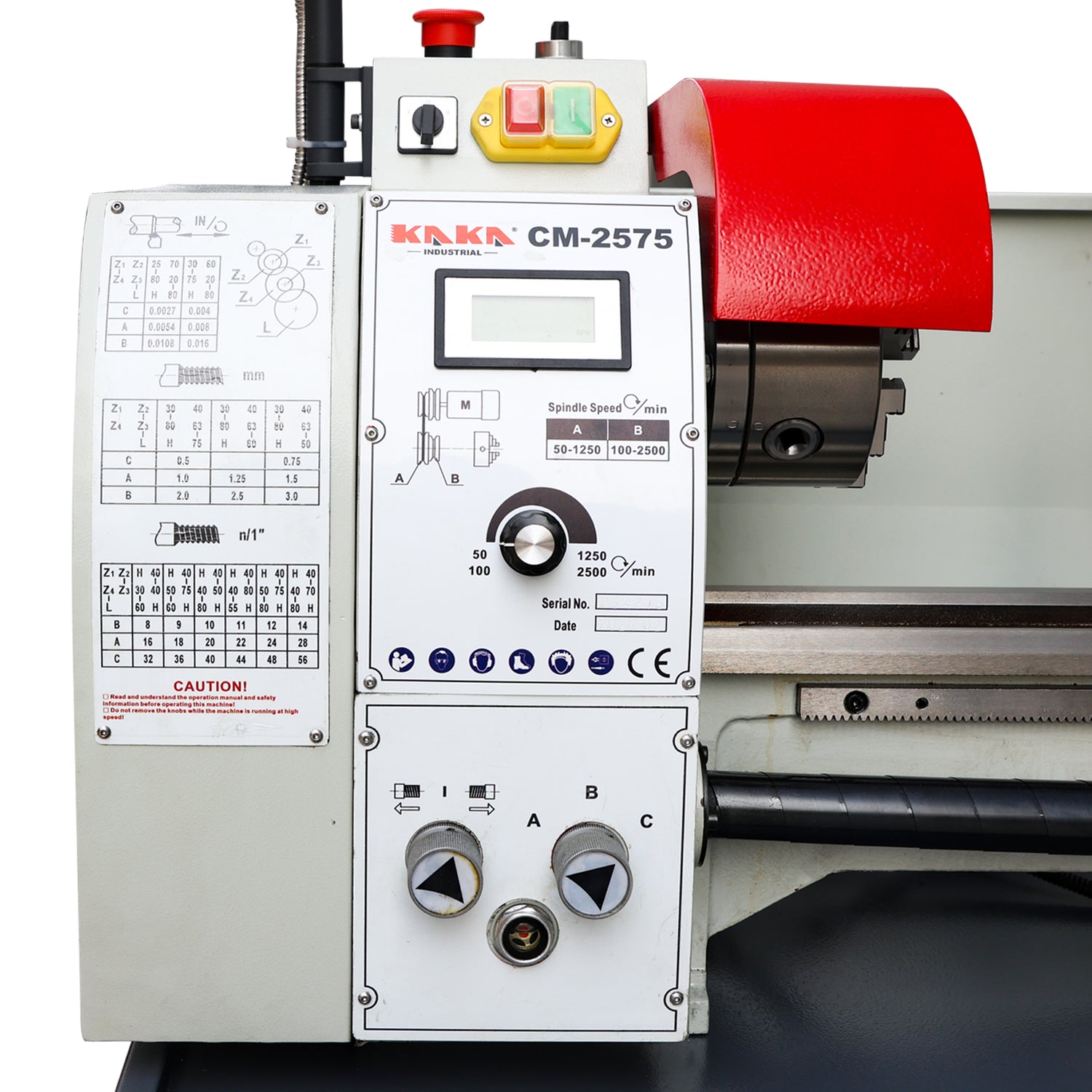

(Not Brand New) KAKA INDUSTRIAL Turn Lathe & Mill Drill CM-2575, Variable Speed Multi-Function Lathe

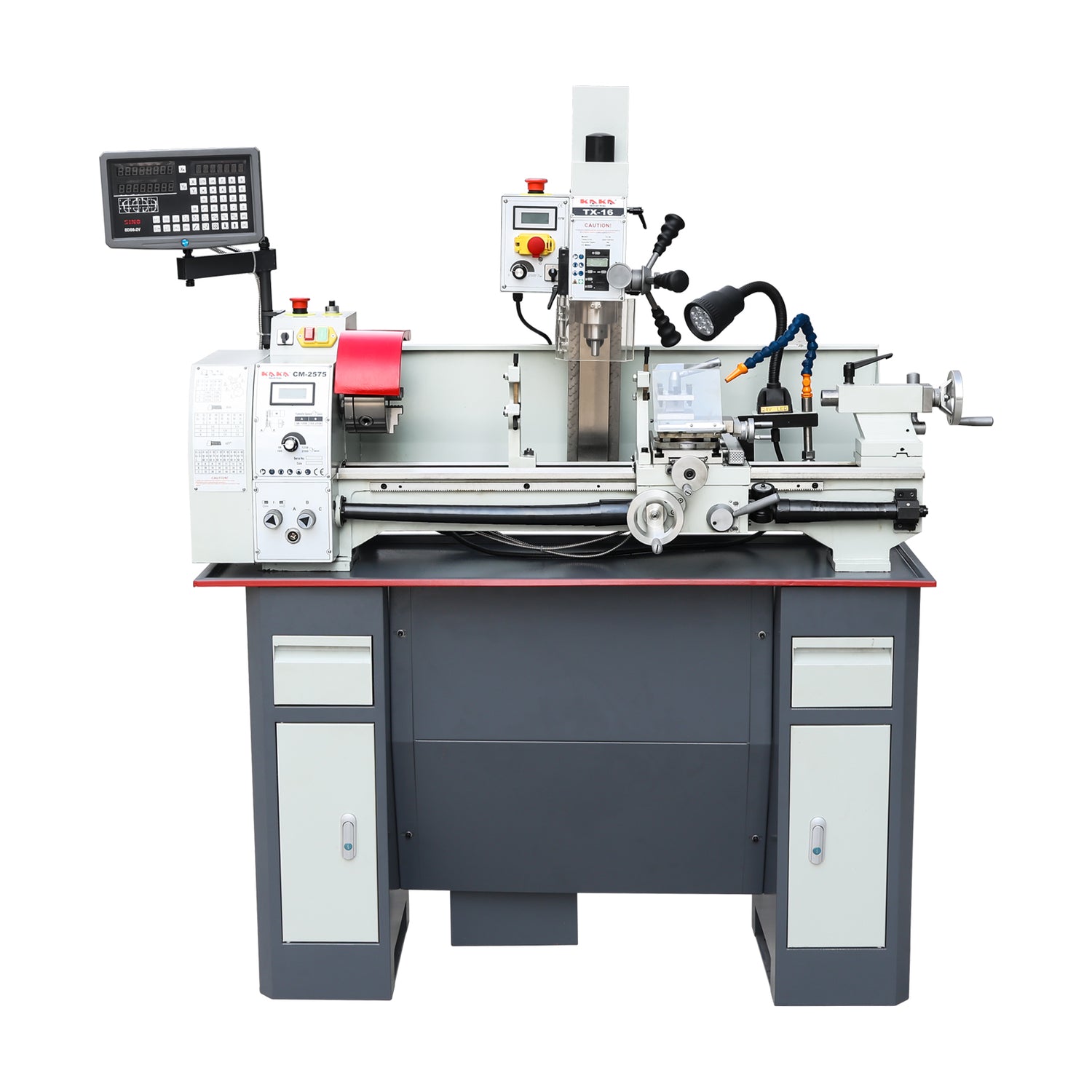

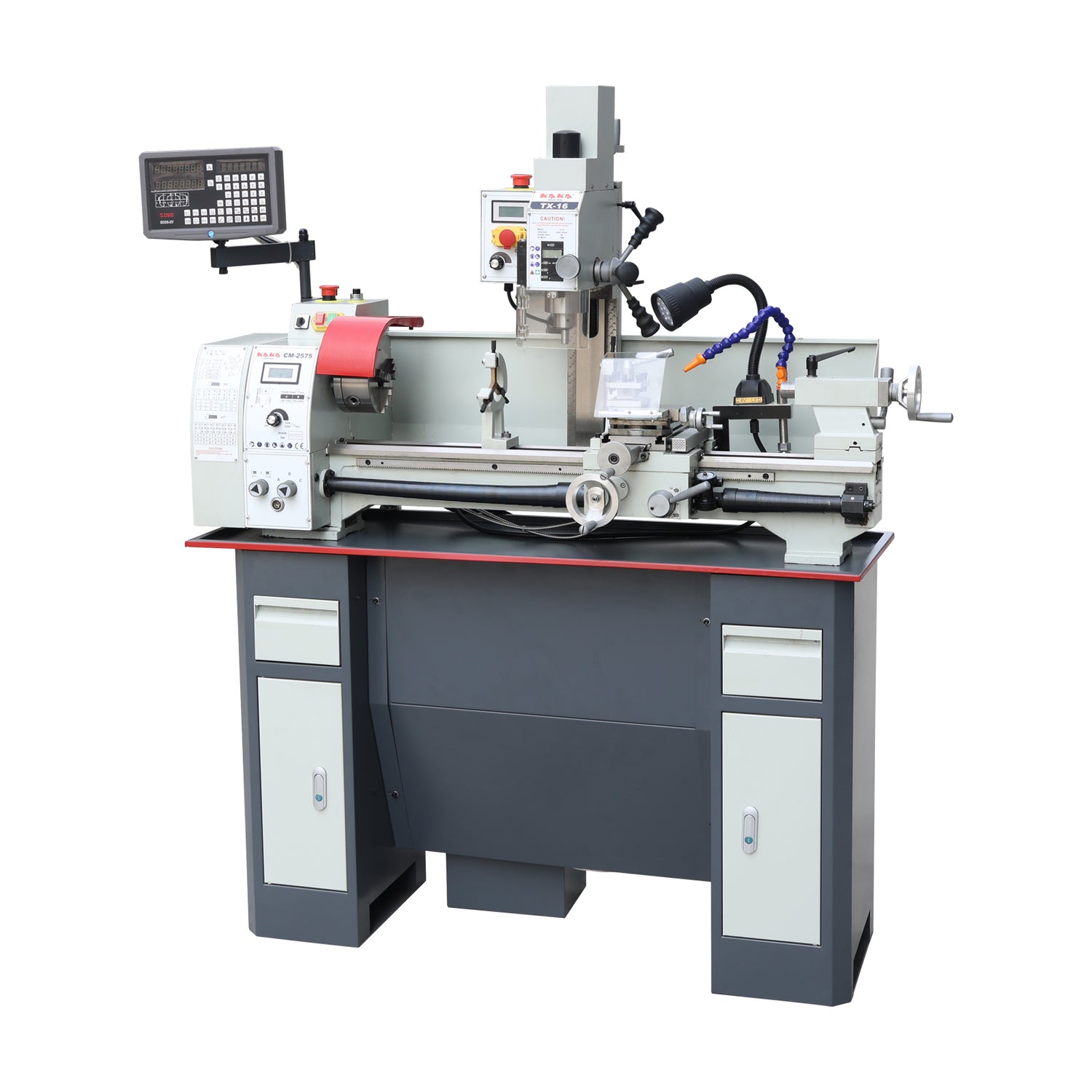

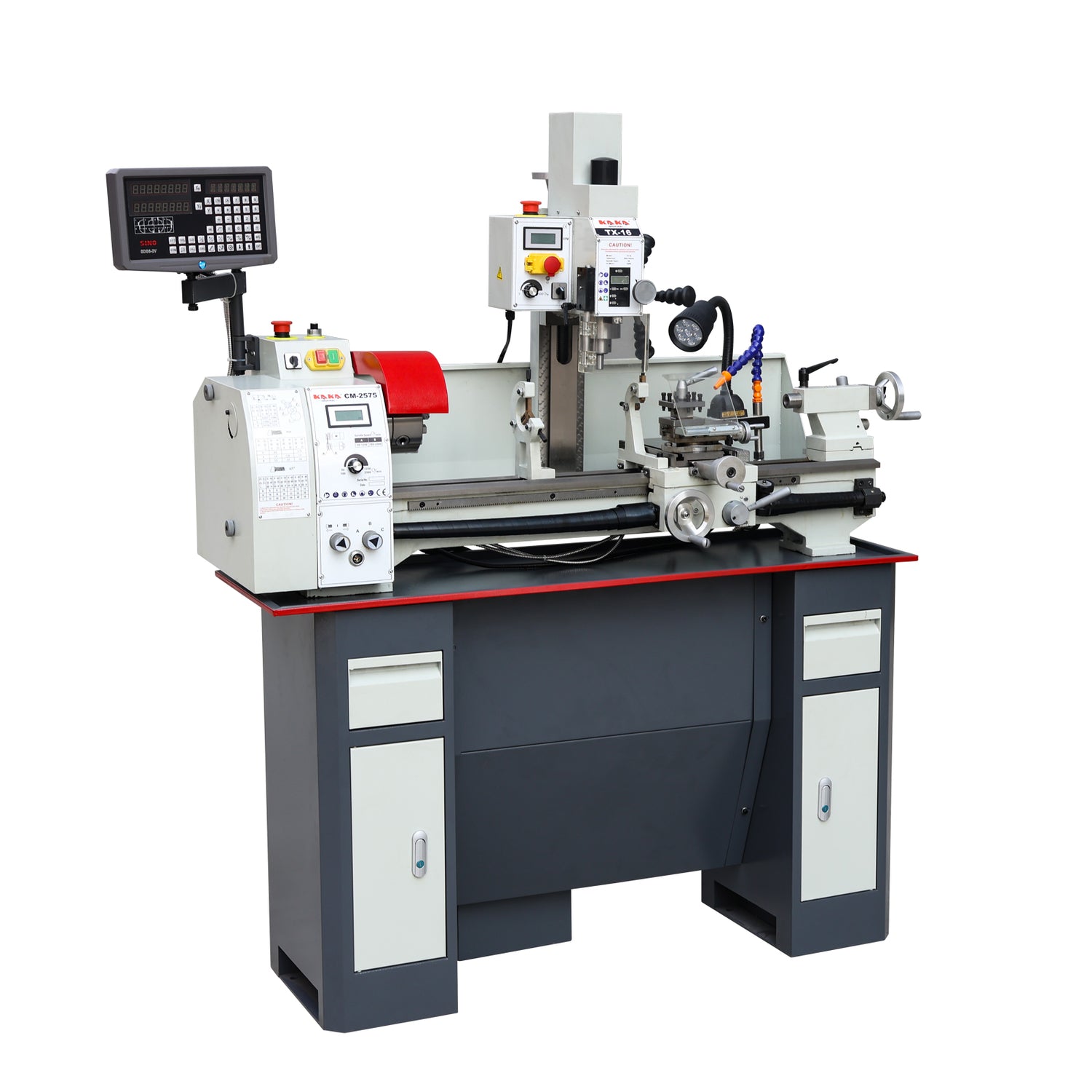

- The KAKA INDUSTRIAL CM-2575 is a compact, professional-grade 3-in-1 Mill, Drill & Lathe Combo Machine designed for serious hobbyists, home workshops, and small fabrication businesses. It combines a precision lathe, vertical mill, and drill press into a single sturdy unit, perfect for turning, milling, drilling, and threading metal, plastics, or composites in one space-saving footprint
- Massive Space & Cost Saver Comb. Machine. Three machines in one, ideal for typical garages, sheds, or small sheds where floor space is limited. No need to buy (and store) a separate lathe + mill + drill press.
- Precision Lahte Mill/Drill Machine. Digital Readout (DRO) + variable speed + hardened ways give professional results on every job. Perfect for model engineering, repairs, custom parts, or small production runs.
- Built to Last. Two separate motors mean less strain and longer life. Steady & follow rests eliminate chatter. Robust MT5/MT2 tapers handle real work, not just hobby toys.
- Features

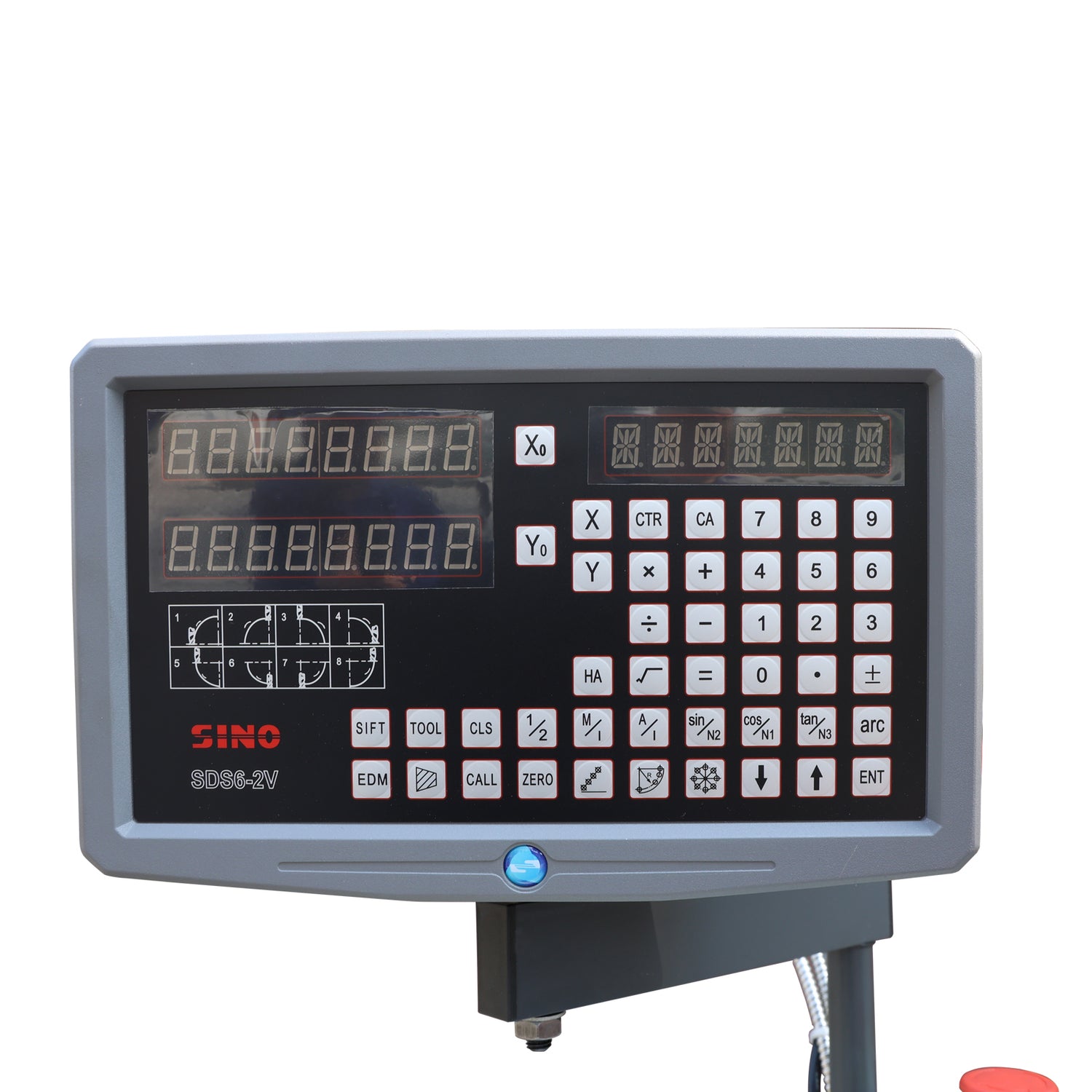

Runs on 110V single-phase power - Two-axis DRO for lathe machine, and spindle speed readout for both lathe & mill/drill machines

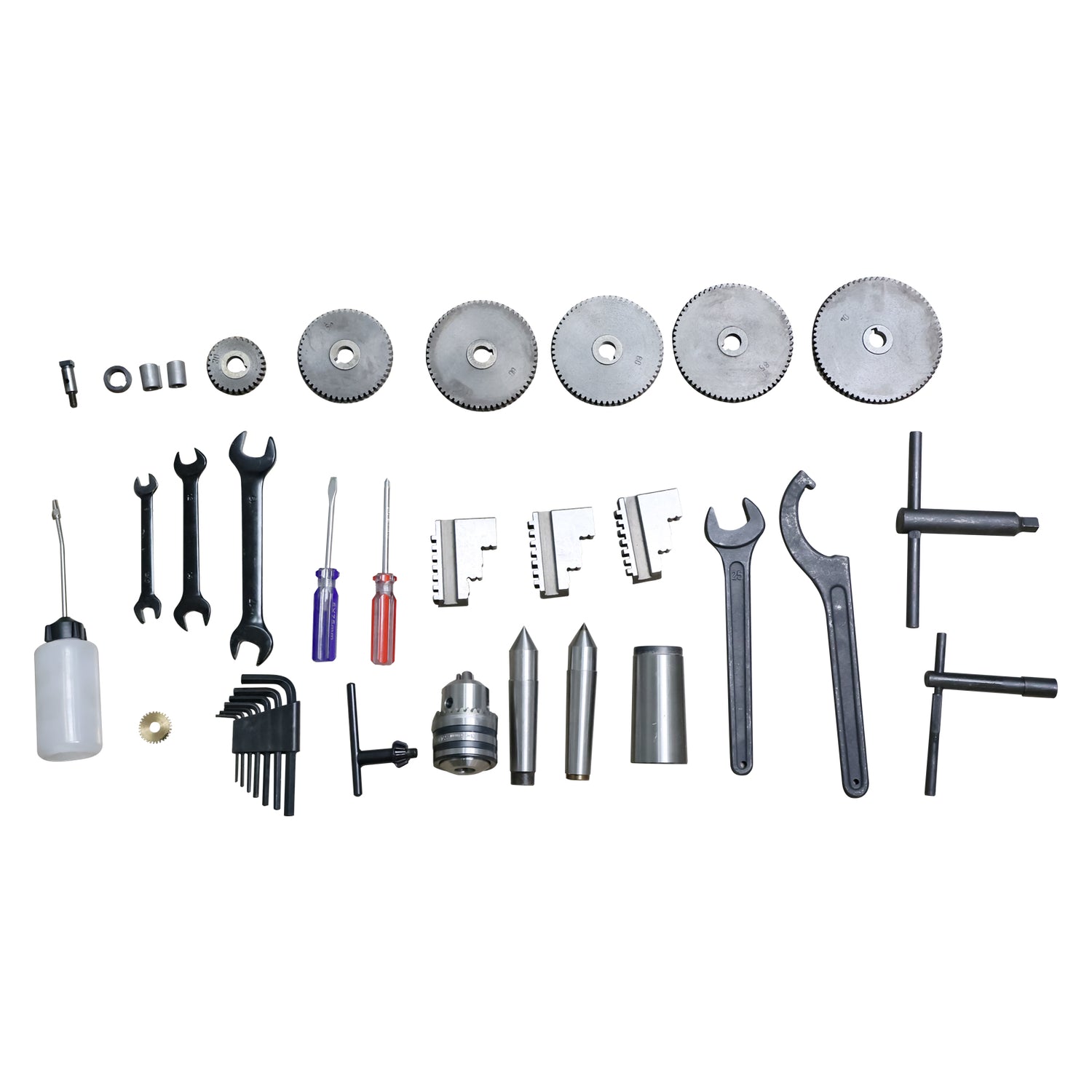

Standard Accessories
- Speed display

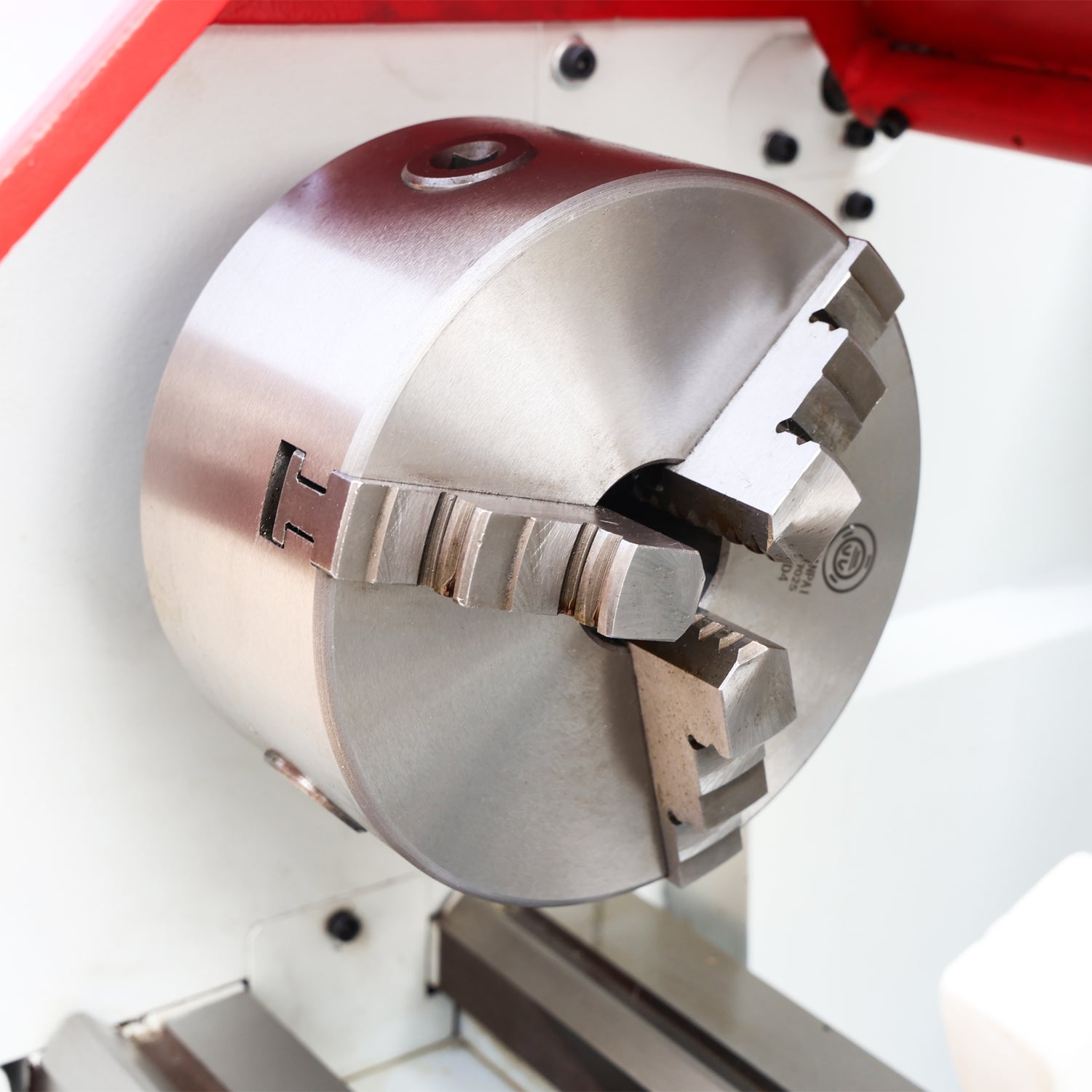

- 3-jaw chuck
- Splash guard
- Chip tray
- Cover for chuck protection
- Tool holder protection
- Center MT4/MT2
- Change gears
- Drawbar M10
- Morse taper MT2/B16
Optional Accessories (Sold Separately)

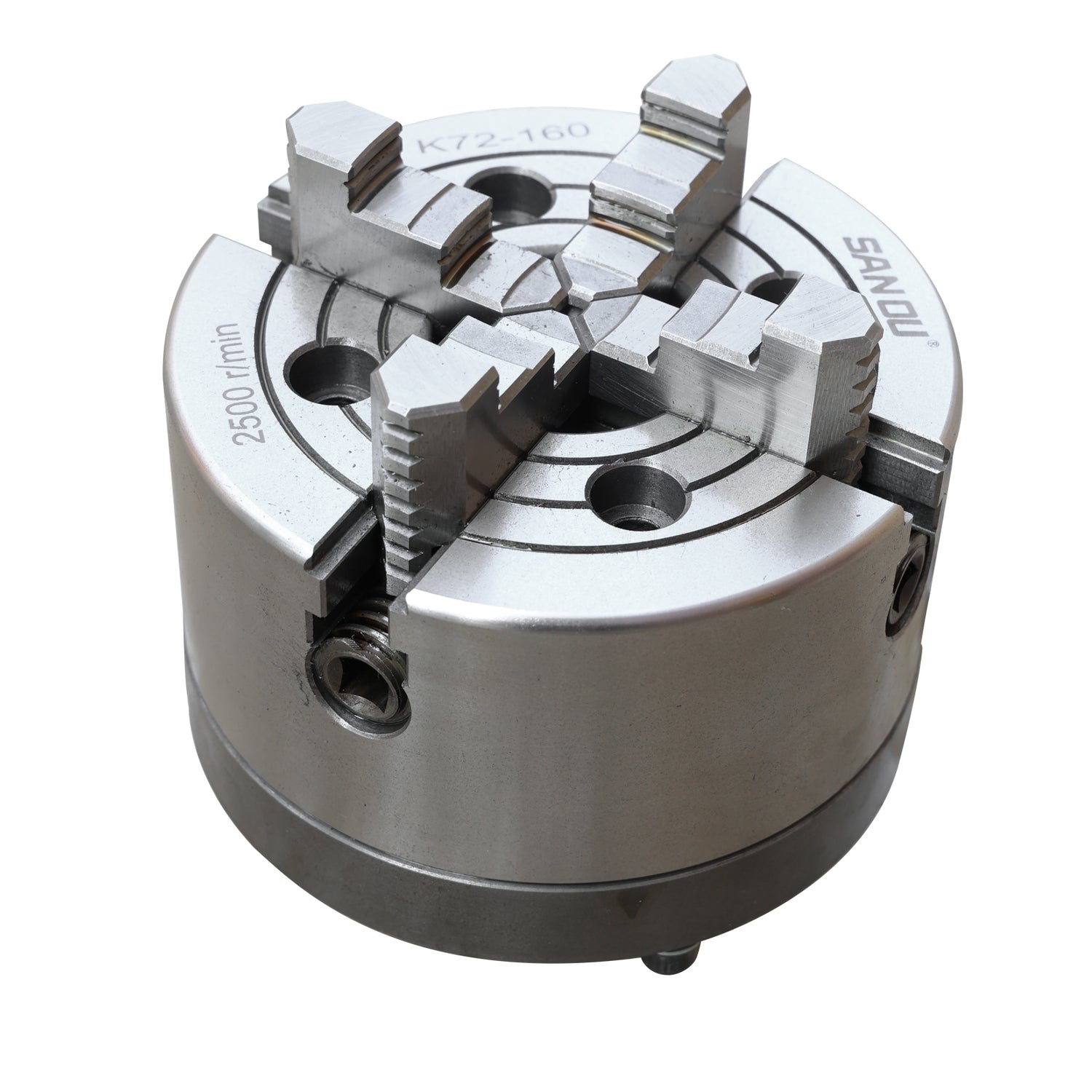

- Four-jaw chuck
- Follow rest
- Steady rest

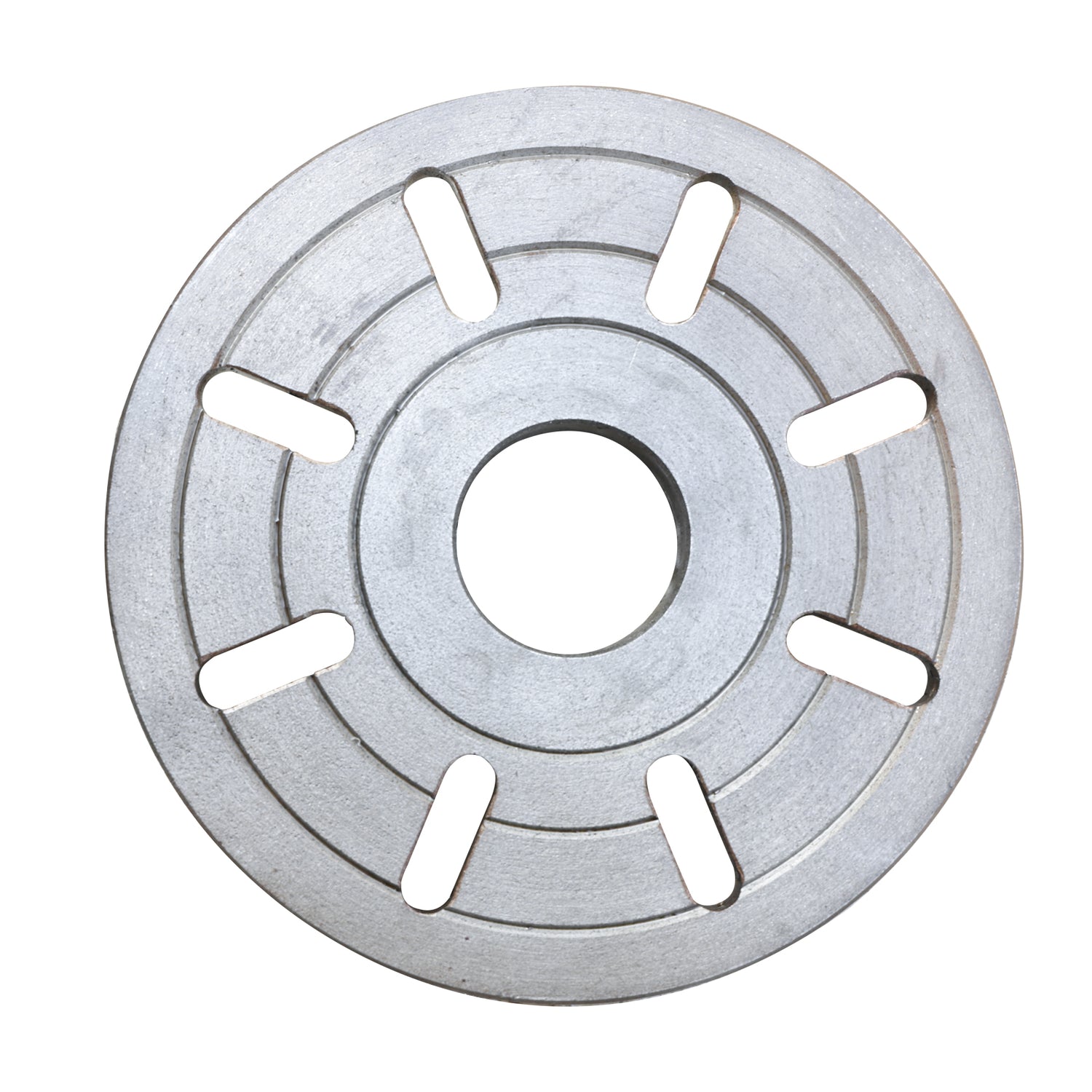

- Face plate
- Live center MT4/MT2
- Keyless chuck
- Milling cutter
- Collect chuck
- Halogen working lamp
- Stand
Specifications
| Model | CM-2575 |
| Max.swing over bed | 9.84 in |
| Distance between centers | 29.53 in |
| Swing over cross slide | 5.31 in |
| Width of bed | 5.31 in |
| Spindle bore | 1.02 in |
| Taper of spindle bore | MT4 |
| Range of spindle speeds | 50-2500 rpm |
| Taper of tailstock quill | MT2 |
| Metric threads can be cut | 0.008–0.138 in |
| Inch threads can be cut | 8–56 T.P.I |
| Motor power (Lathe) | 750 W |

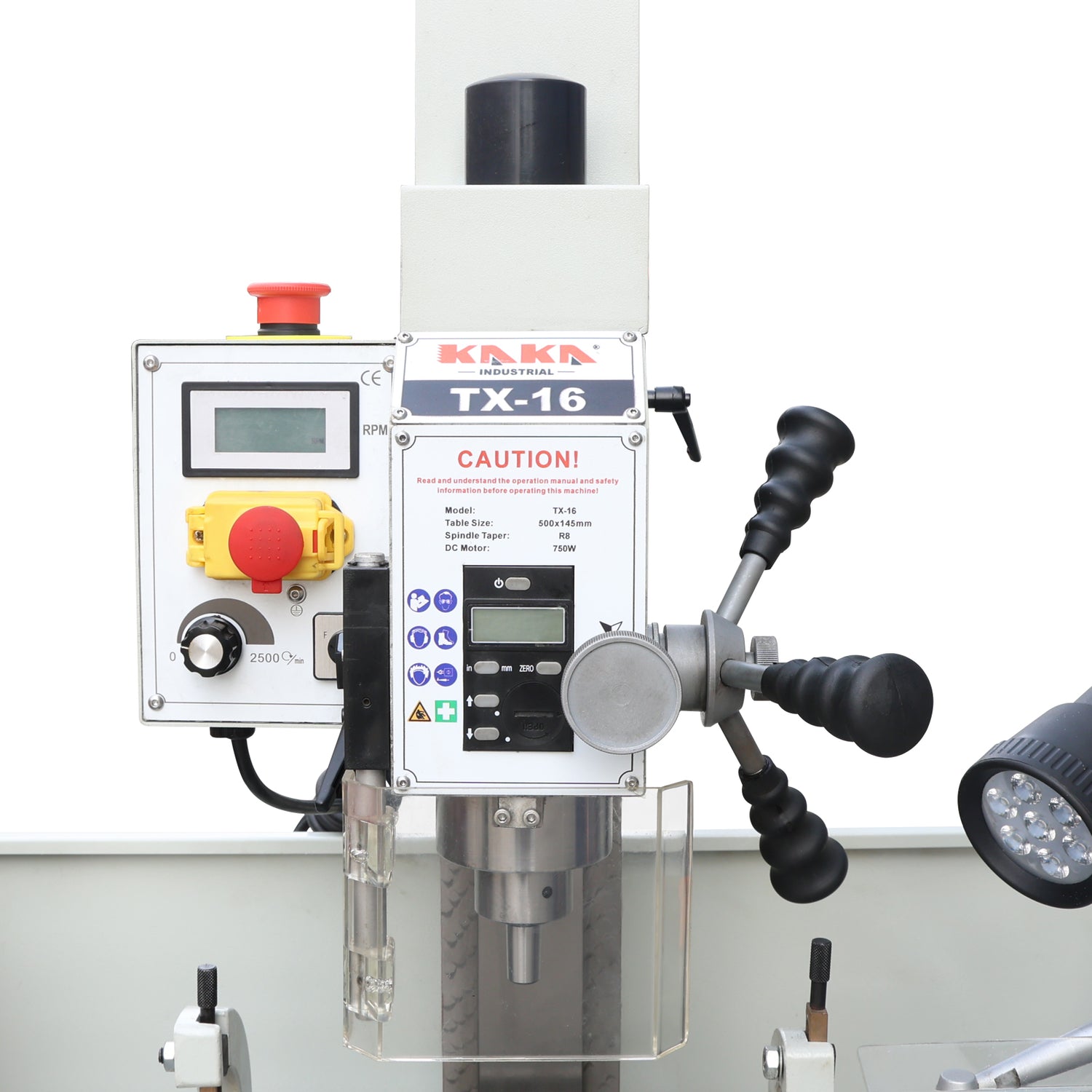

| Drilling & Milling Head | BF16 |
| Max.drilling capacity | 0.63 in |
| Milling cap. of cutting head | 2.05 in |
| Milling cap. of end mill cutter | 0.63 in |
| Taper of milling spindle bore | MT2/R8 |
| Sleeve travel | 2.05 in |
| T-slot size | 0.39 in |
| Range of milling spindle speeds | 50-2250 rpm |
| Max.distance spindle to table | 11.02 in |
| Working range | 6.89 in |
| Motor power (Mill/Drill) | 600 W |
| Package size (L×W×H) | 55.12 × 22.83 × 41.73 in |
| Net weight | 418.88 lbs |
