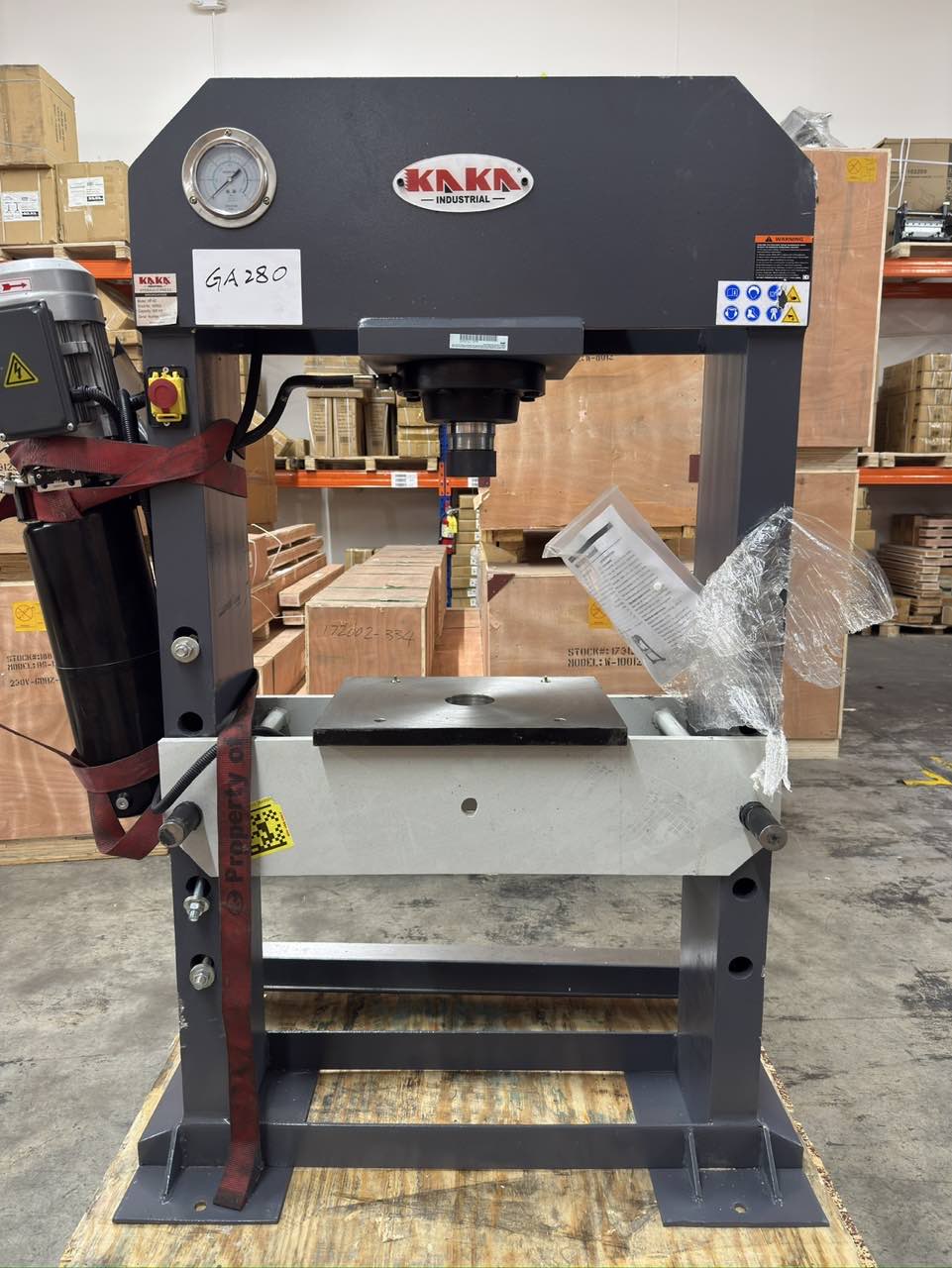

(Not Brand New) KAKA INDUSTRIAL H-Frame Shop Press, 50 Ton, 8.6 in Stroke, HP-50

Features

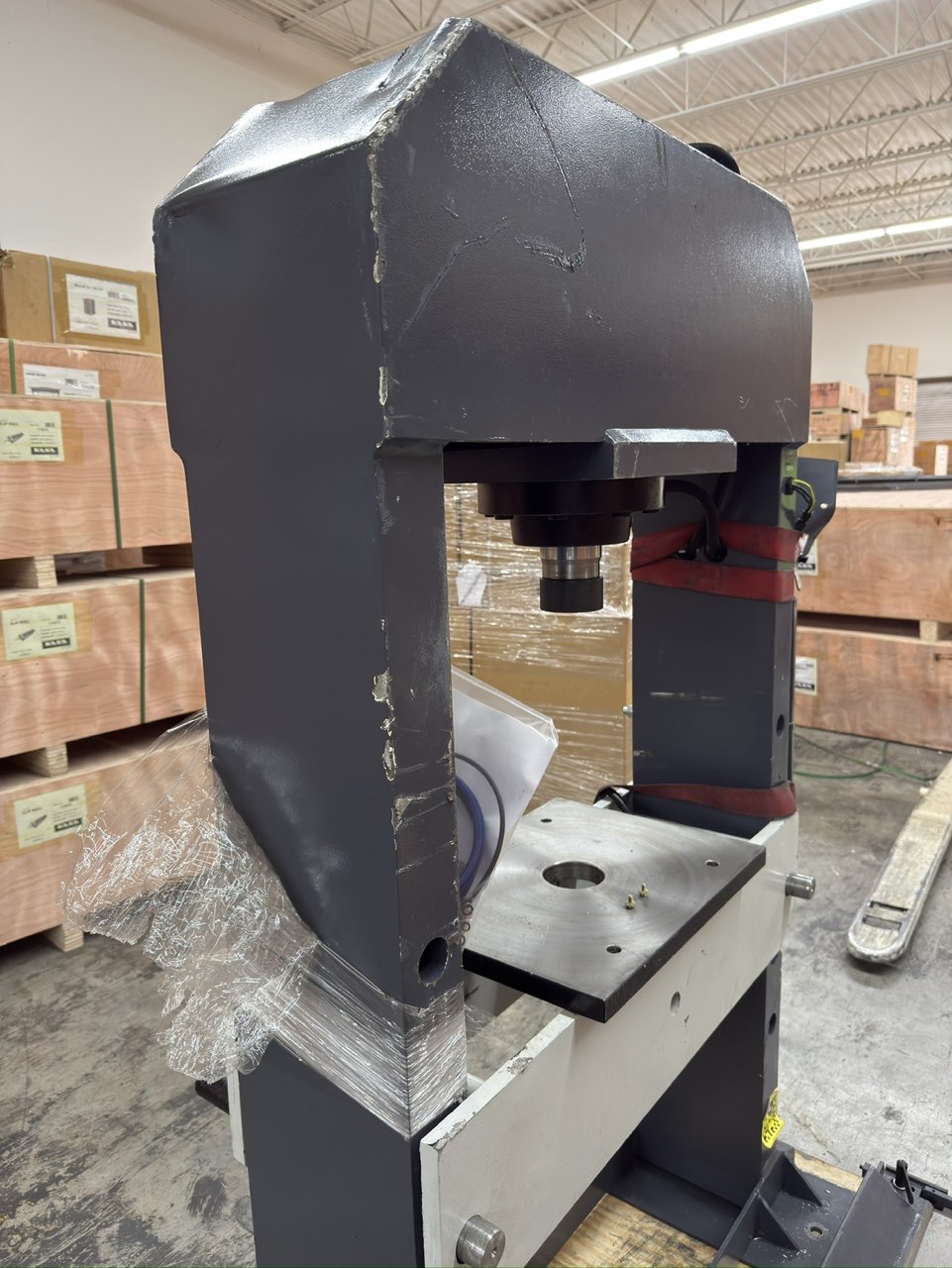

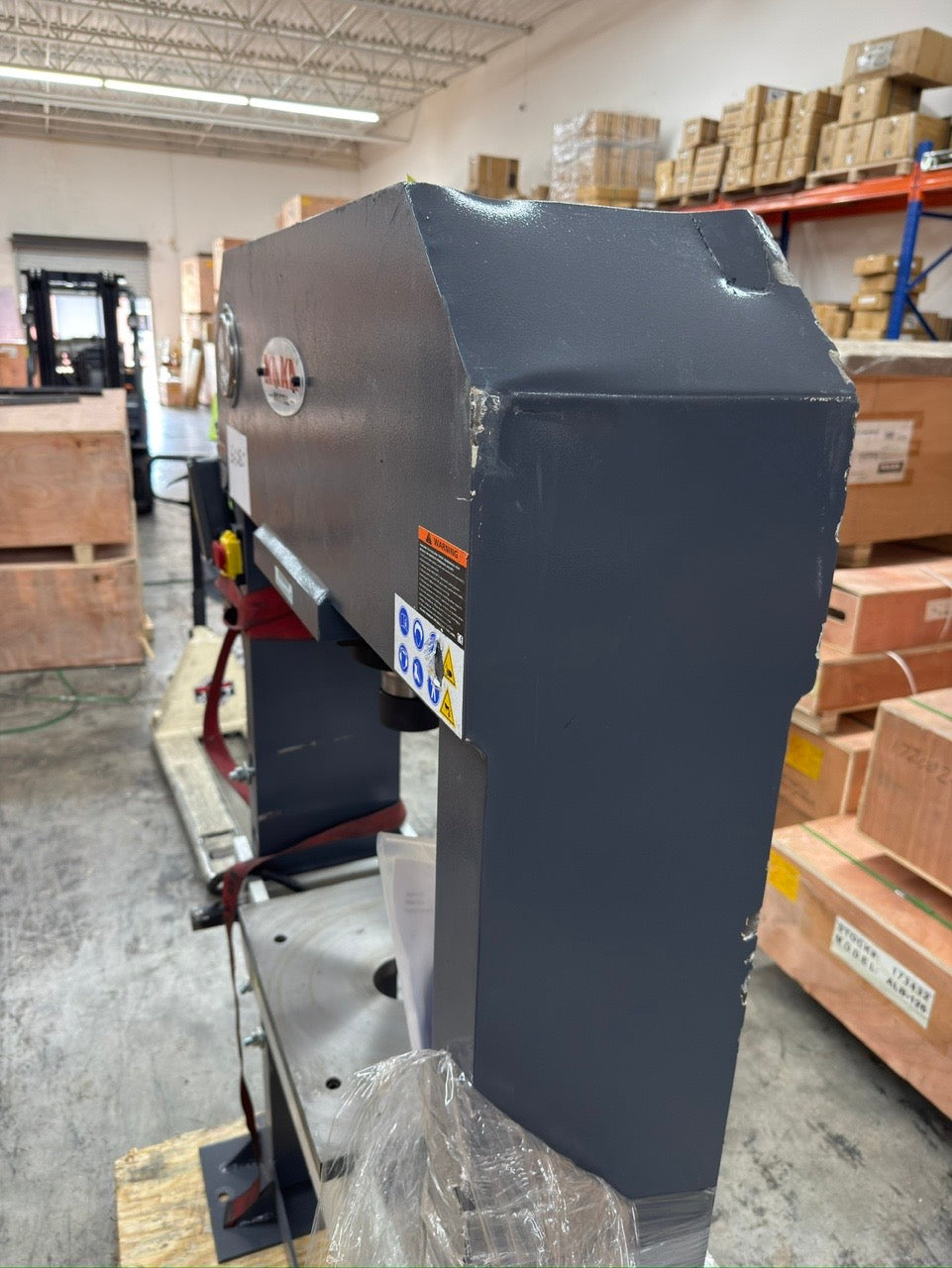

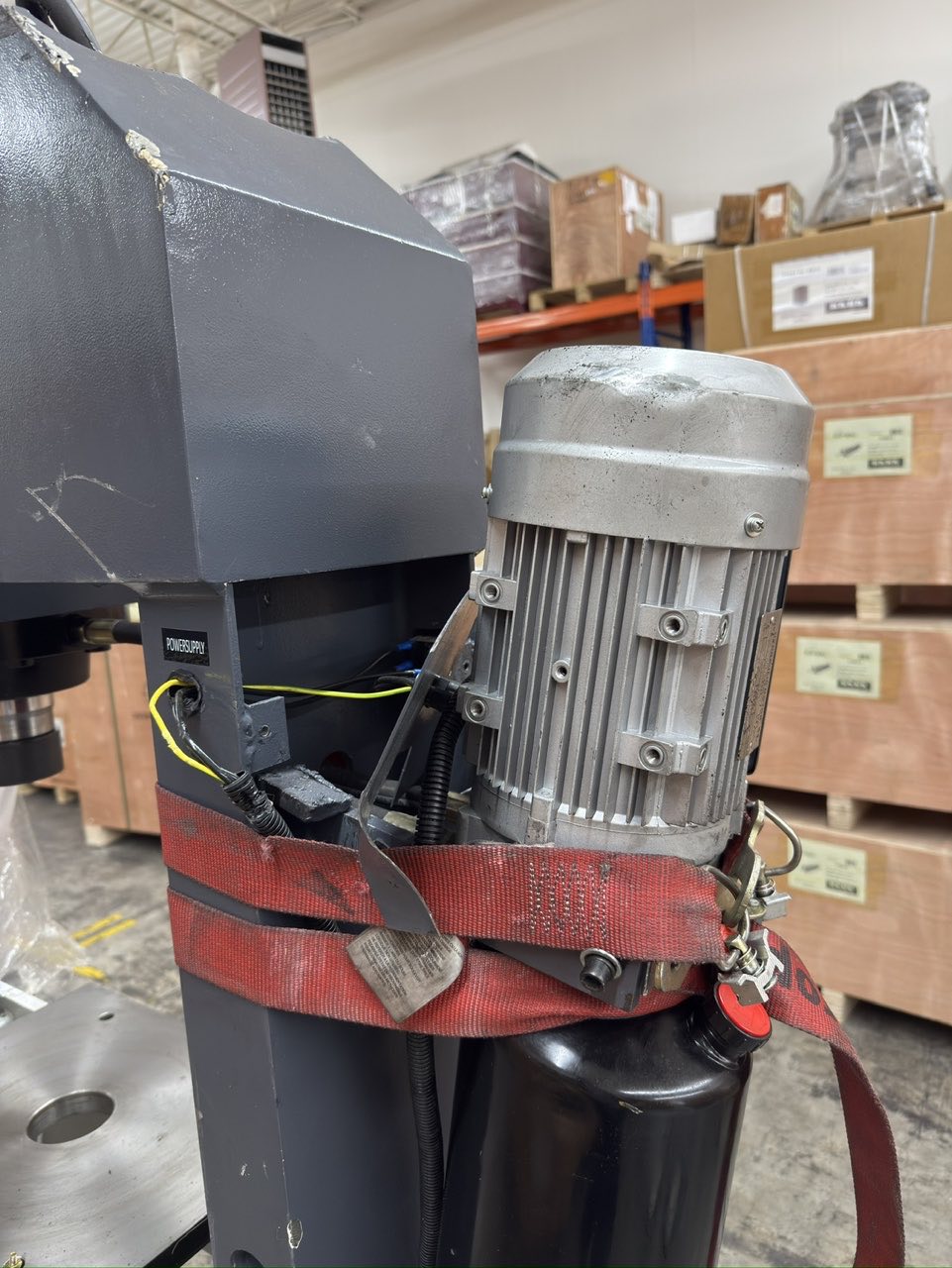

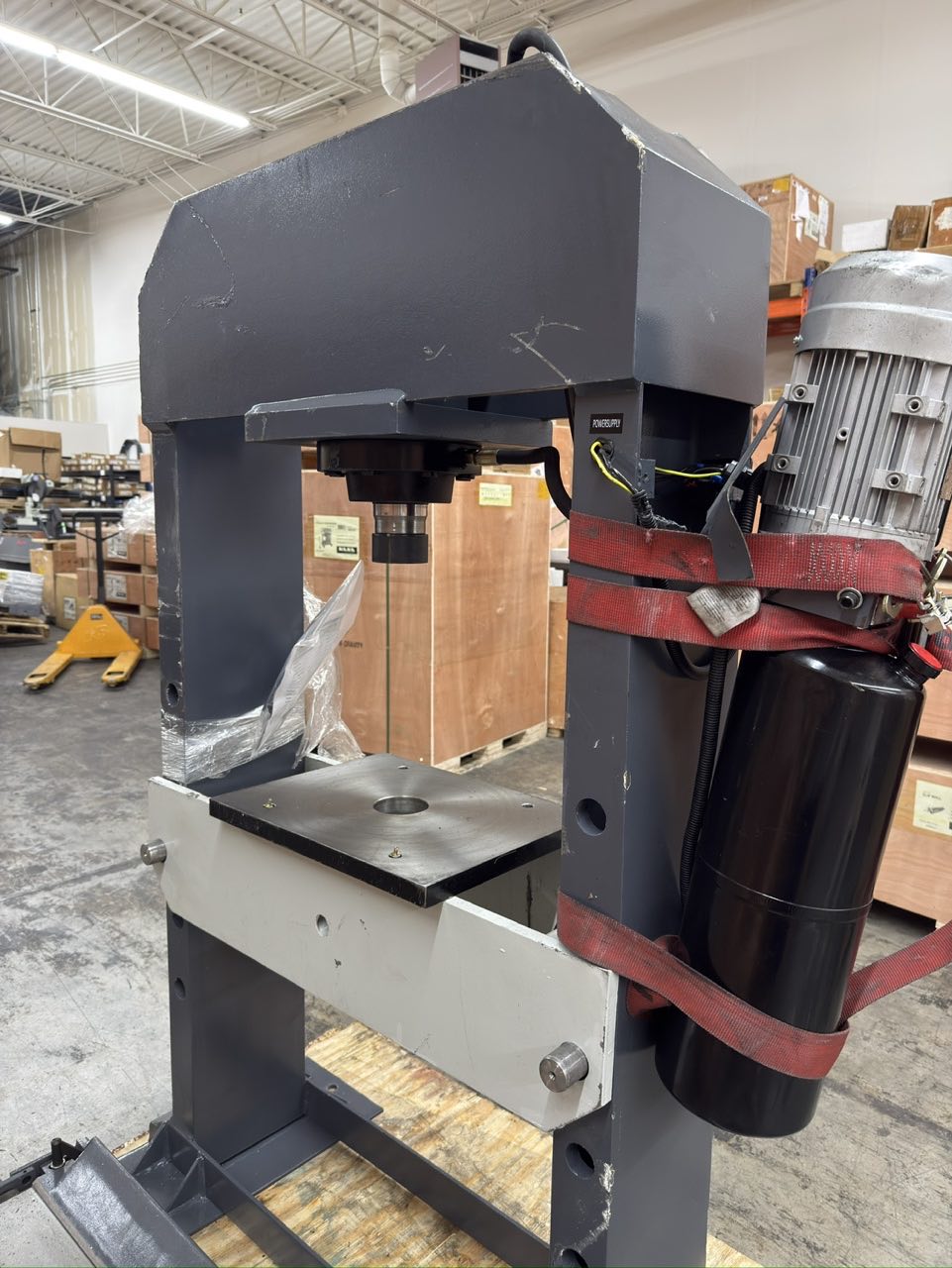

• Used machine in overall condition as shown in the photos. This unit was damaged during transit by the carrier, causing the motor to come loose and fall off. The motor and related components will require repair before operation. The machine has visible dents, scratches, and surface damage from shipping. The machine has been tested and is currently able to run properly. Please review all photos carefully and contact us with any questions before purchase.

• 50 Ton H-Frame Shop Press - Built for pressing, bending, forming, punching, staking, clamping, and straightening tasks in automotive shops, repair rooms, fabrication spaces, and maintenance departments.
• Electric Hydraulic Operation - Gear pump CBN2.0 and 12 L reservoir help power the hydraulic system for smoother pressing workflow compared with fully manual shop press operation.
• 8.6 in Ram Stroke - Ram stroke of 8.6 in / 8-5/8 in and 6.25 in ram diameter support demanding work such as bearing installation, bushing removal, metal forming, and straightening parts.

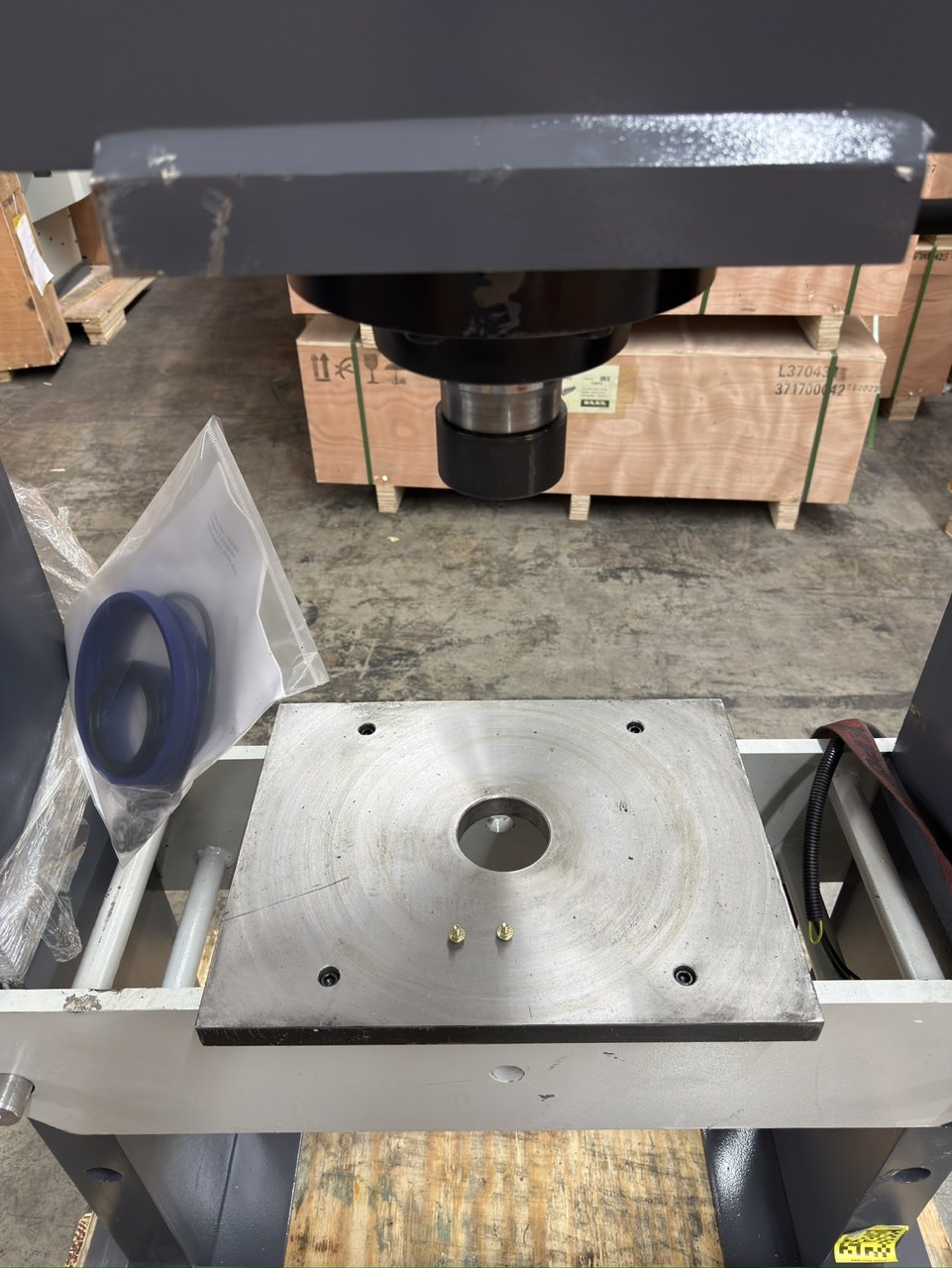

• Adjustable Worktable - Five bed adjustment holes on each side let users set the table height for different projects, with up to 27.5 in maximum distance to the table for larger workpieces.

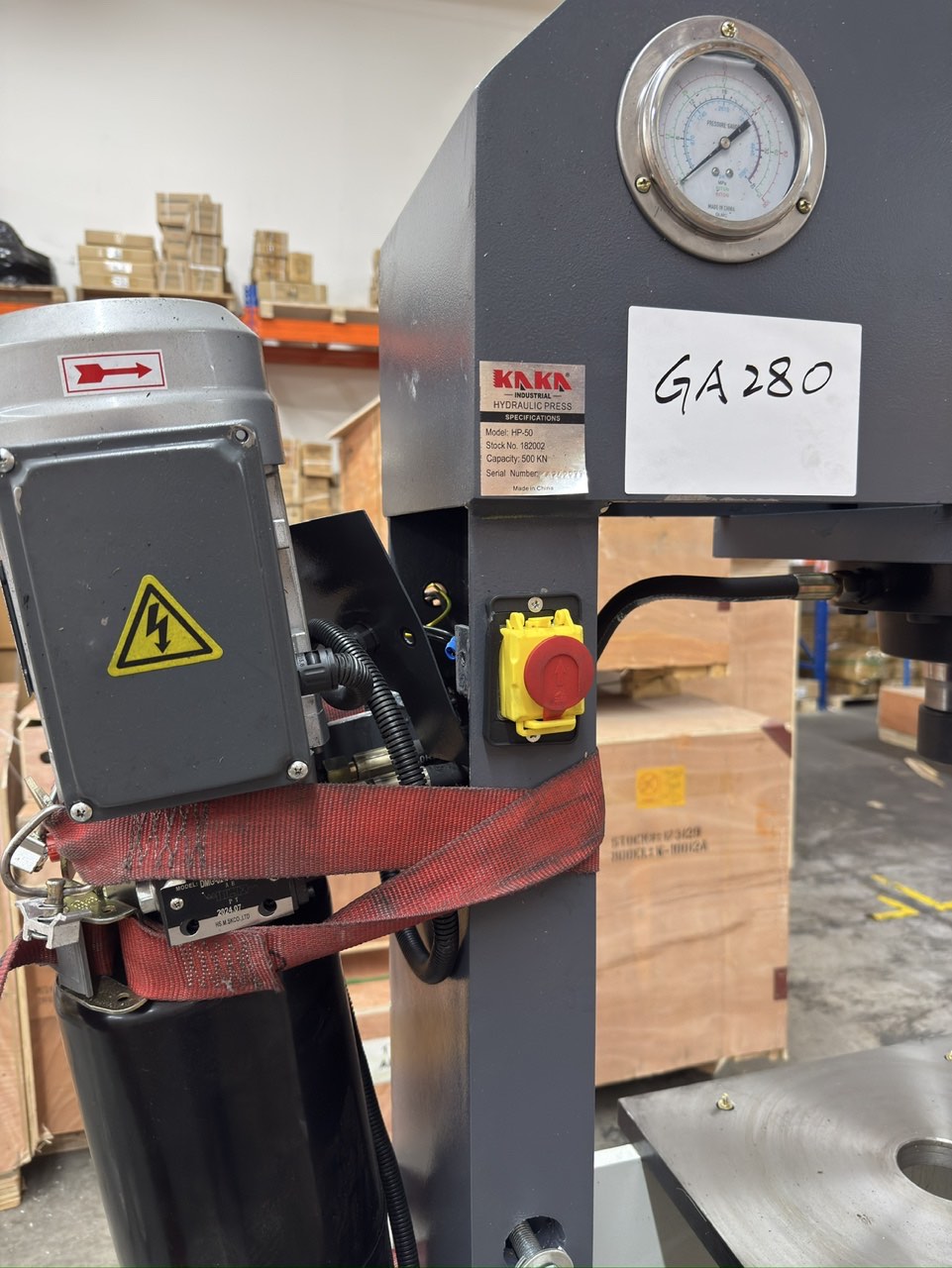

• Pressure Gauge and V-Blocks Included - Fluid-filled dual-scale pressure gauge helps monitor pressing force, while included V-shaped blocks support round stock, shafts, and irregular workpieces during setup.



Specifications

Model	HP-50
Pressure	50 ton
Ram Maximum Stroke	8.66 in
Ram Diameter	6.3 in
Maximum Distance to Table	25.98 in
Base Size	18-8/7 × 14-1/6 in
Bed Support Pin Diameter	1.516 in
Number of Bed Adjustment Holes	5
Bed Adjustment Hole Spacing	5.31 in
Pump Type	Gear Pump CBN2.0
Reservoir Capacity	12 L
Packing Size	58 × 25 × 87 in
N.W. / G.W.	1322 / 1477 lbs
