- High Precision Drilling & Milling Capacity - Designed for robust performance, this machine handles drilling up to 1.26 inches (32mm), face milling up to 2.95 inches (75mm), and vertical milling up to 0.98 inches (25mm). It also supports tapping in steel and cast iron (M16/M18), providing a complete machining solution .

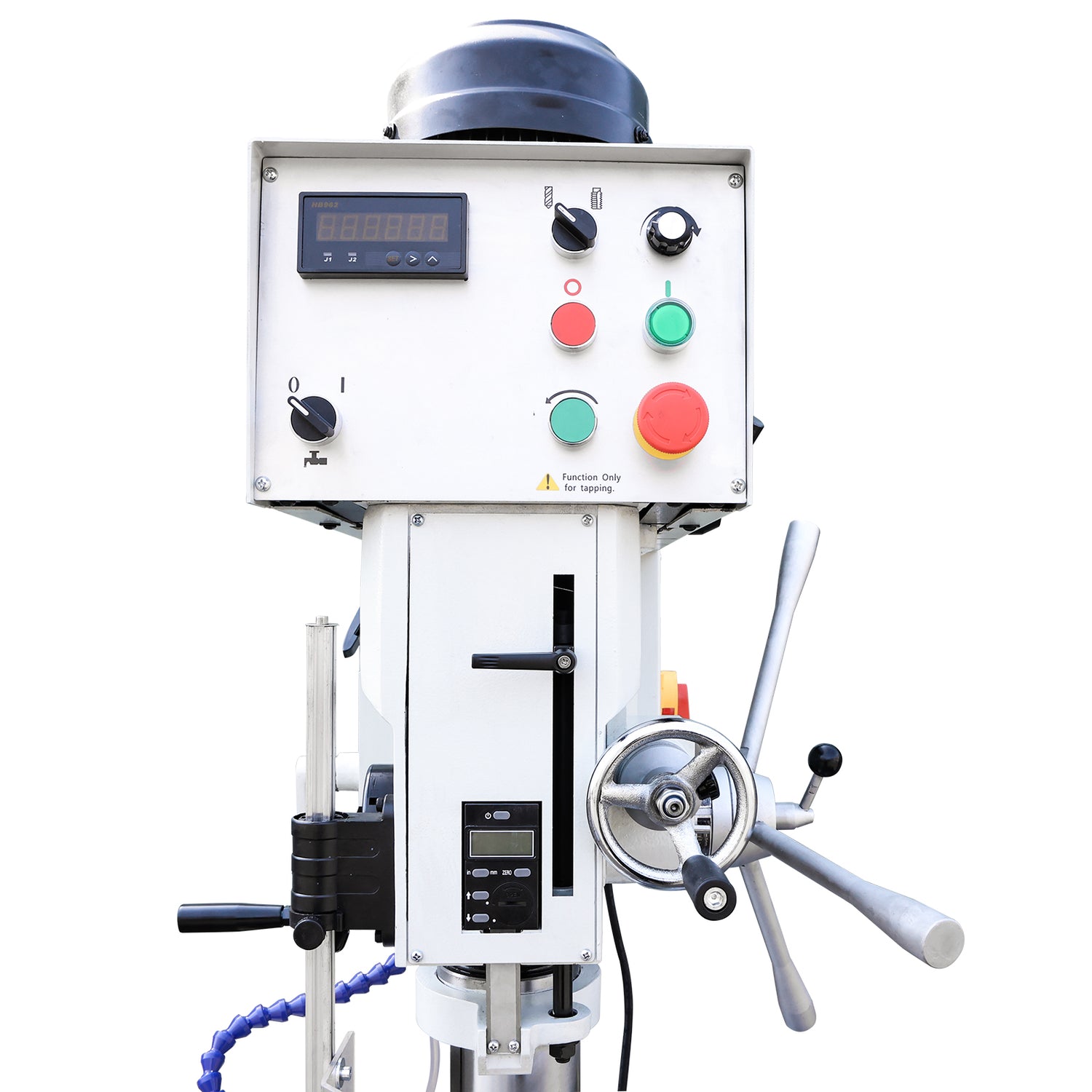

- Powerful Gear Head & Spindle- Equipped with a high-torque gear head and an MT3 spindle taper, the machine ensures stable power transmission. The spindle speed is electronically monitored with a digital display, offering a range from 0-540 RPM (Low) to 0-2000 RPM (High) for versatile material handling .

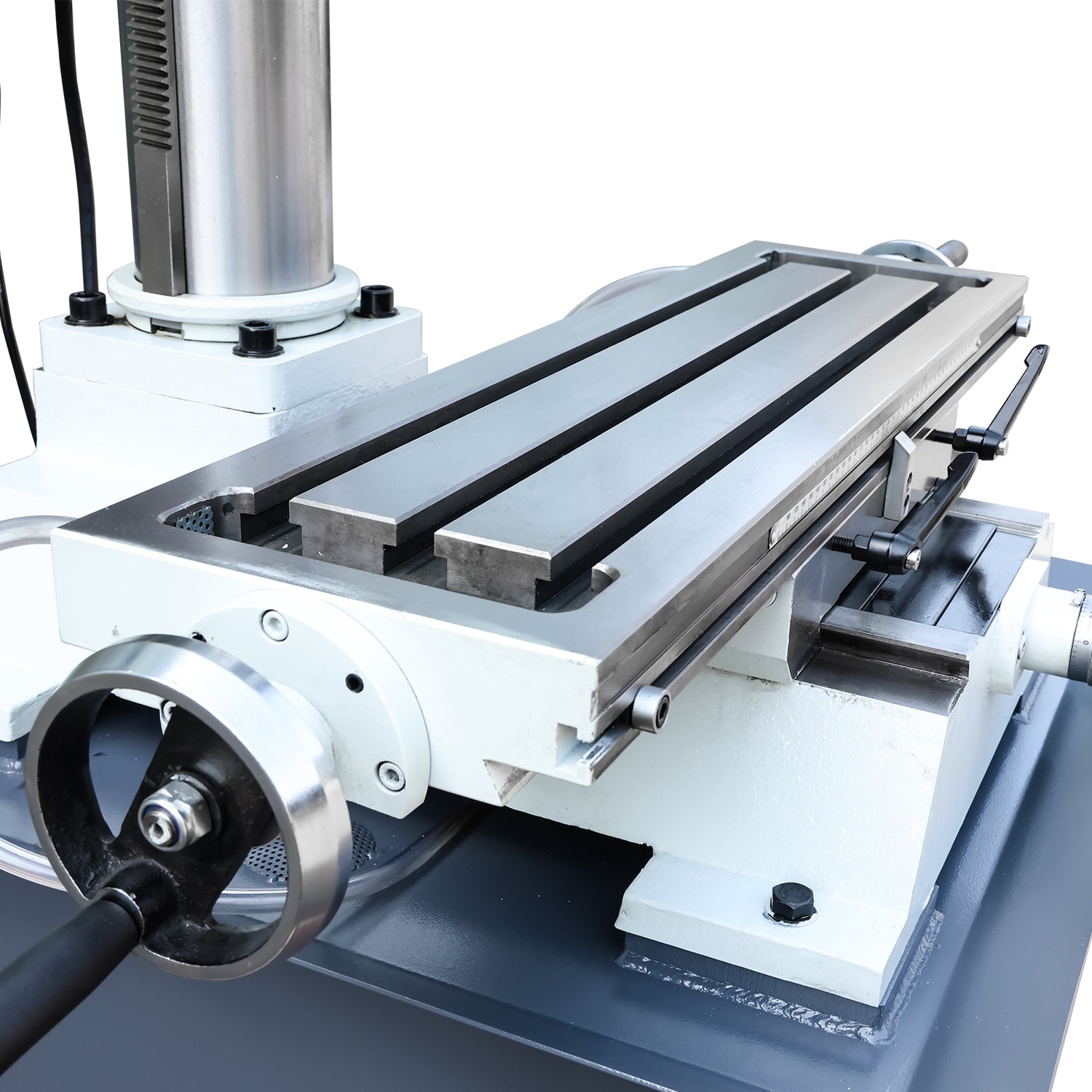

- Spacious & Precision Worktable - Features a large, precision-cast worktable measuring 28.74" x 8.27" (730x210mm) with 0.63-inch (16mm) T-slots. It provides generous travels of X=14.57" (370mm), Y=6.69" (170mm), Z=17.72" (450mm) to accommodate sizable workpieces securely .

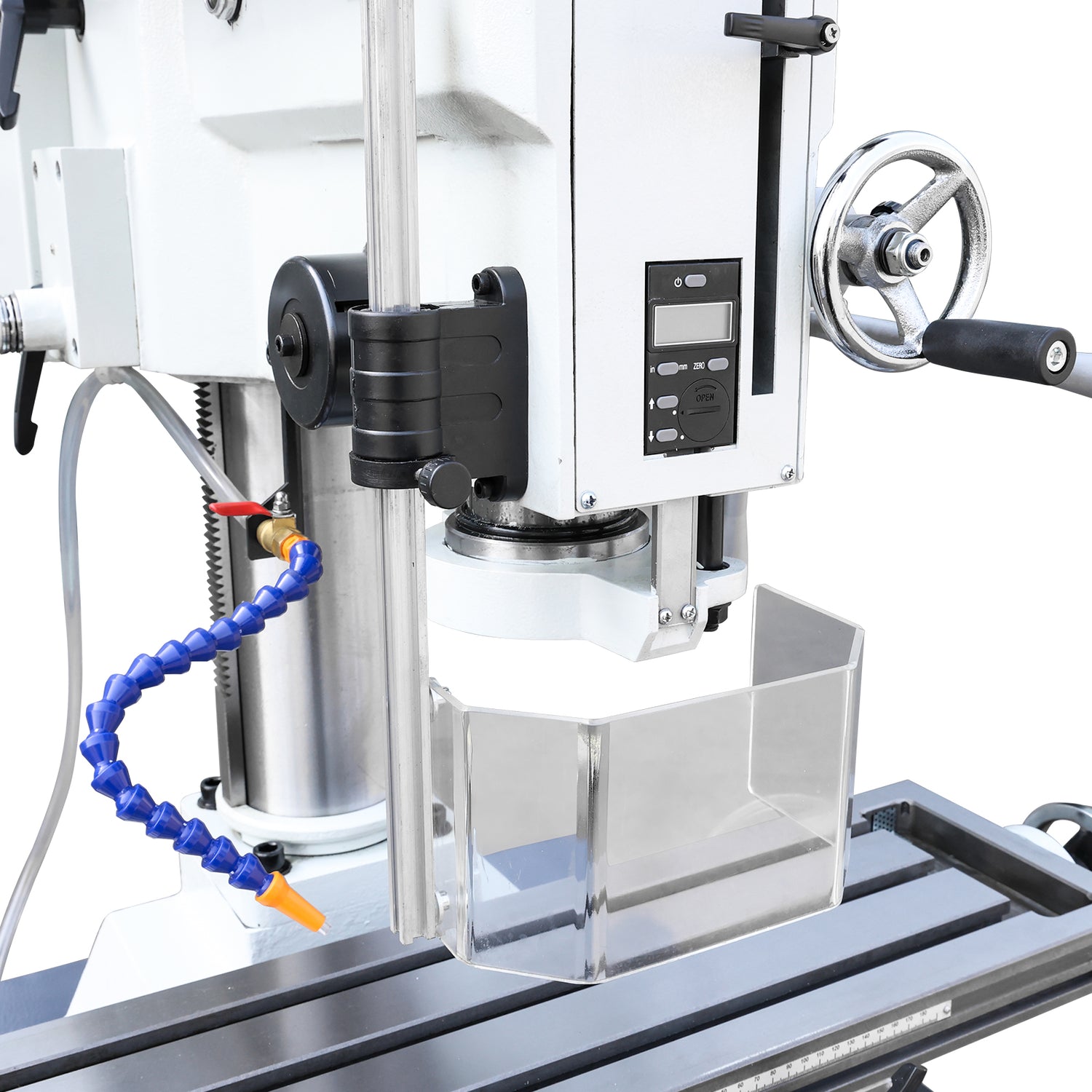

- Single-Phase Power & Safety Features- Operates on standard 240V single-phase power, making it suitable for both home workshops and industrial settings. Includes essential safety components such as safety guards with a microswitch and a standard cooling system for operator protection and extended tool life .

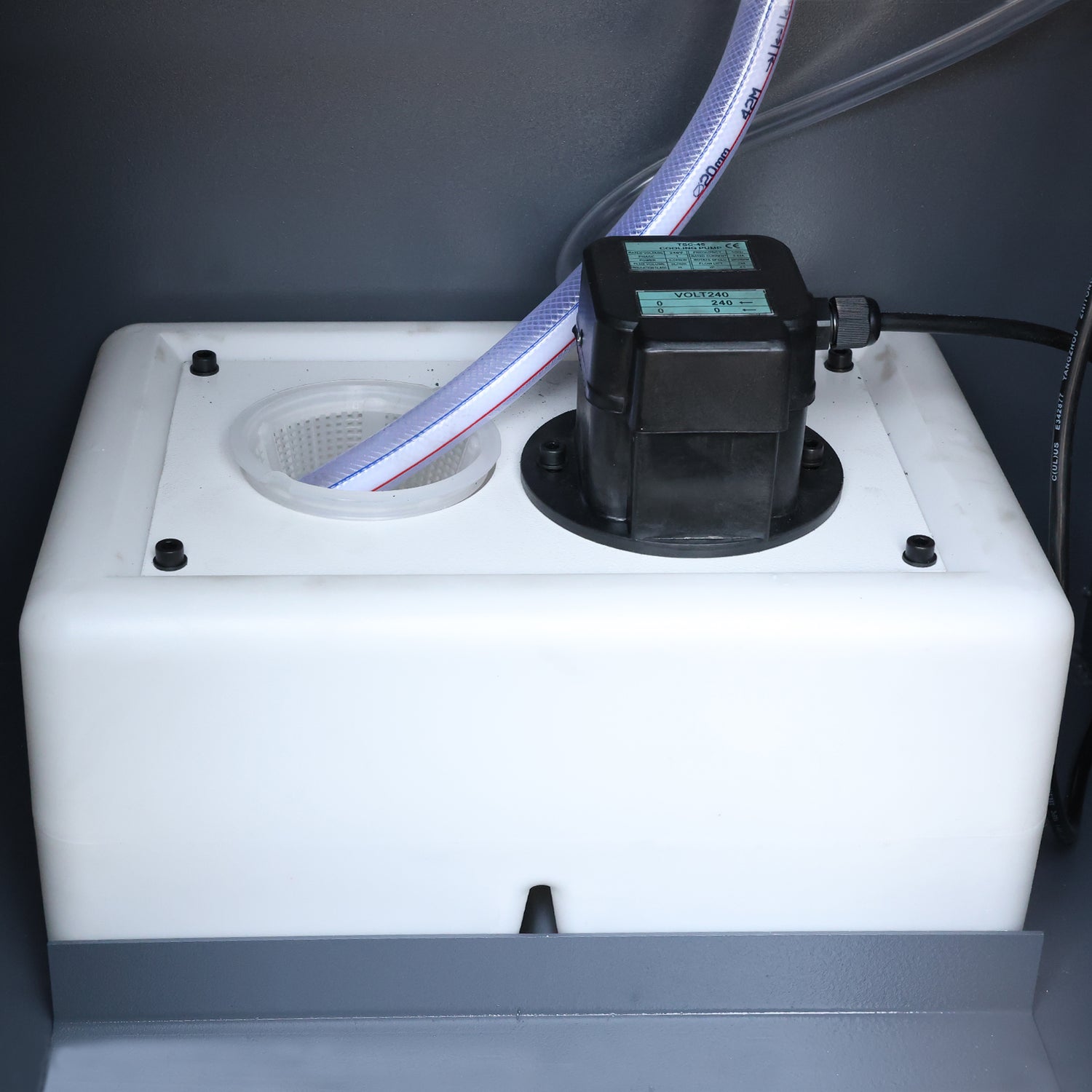

- Substantial Build & Integrated Cooling - Constructed with a durable gear head, the machine has a net weight of 807 lbs (366 kg) and a gross weight of 1023 lbs (464 kg). It comes complete with a cooling system and is shipped in a package measuring 37.8"x37.8"x77.95" (96x96x198 cm), ready for serious machining tasks .
1
of
8
Loading...
KAKA INDUSTRIAL LLC | SKU:
183038V220
Mill Drill Machine, 1.26" Max Drilling & 2.95" Face Milling, Bench Lathe with Tapping, MT3 Spindle, Single-Phase 240V, for Home Workshop and Industrial Use DM-32A
$5,999.00
$9,400.00
Unit price /
Unavailable
Shipping calculated at checkout.
Mill Drill Machine, 1.26" Max Drilling & 2.95" Face Milling, Bench Lathe with Tapping, MT3 Spindle, Single-Phase 240V, for Home Workshop and Industrial Use DM-32A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

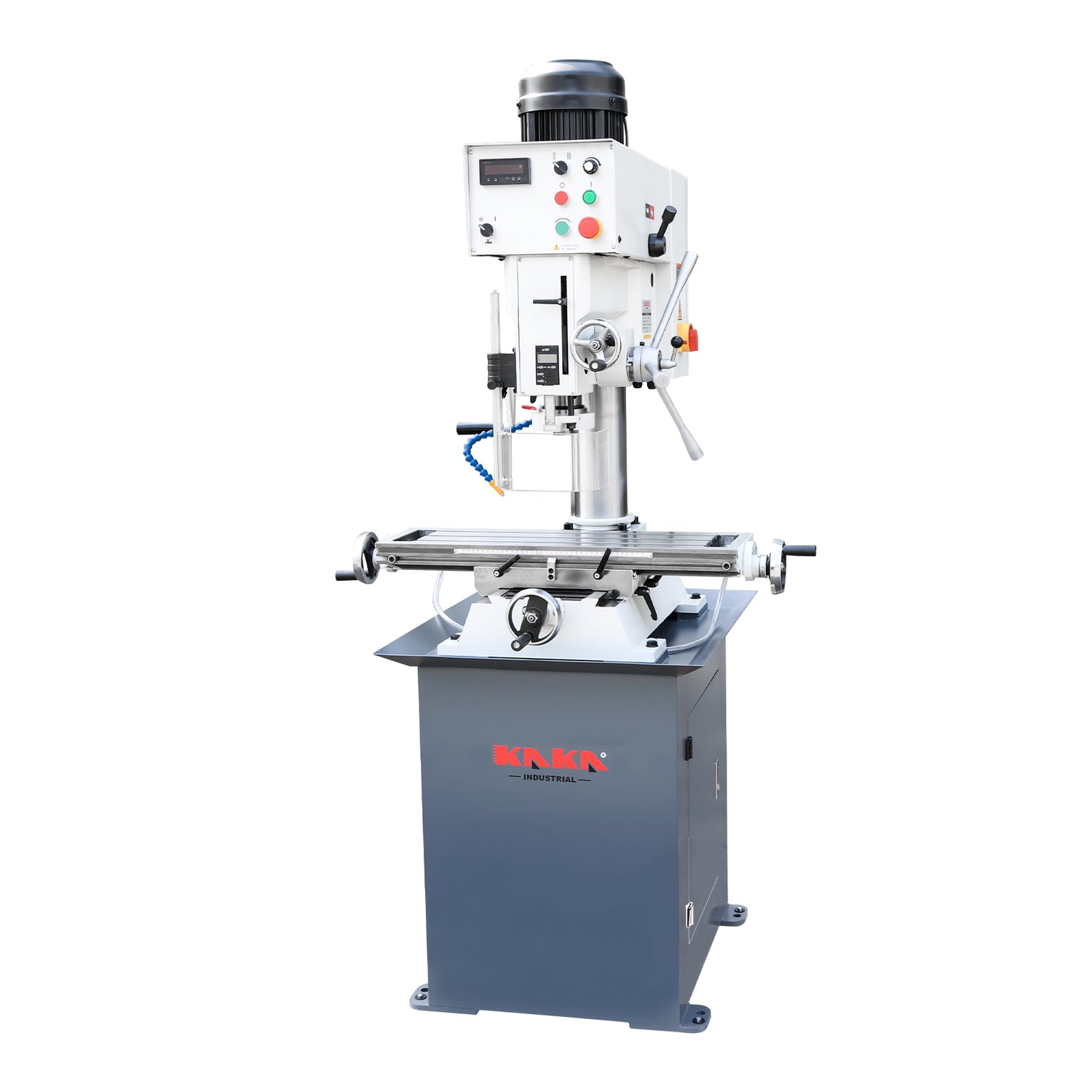

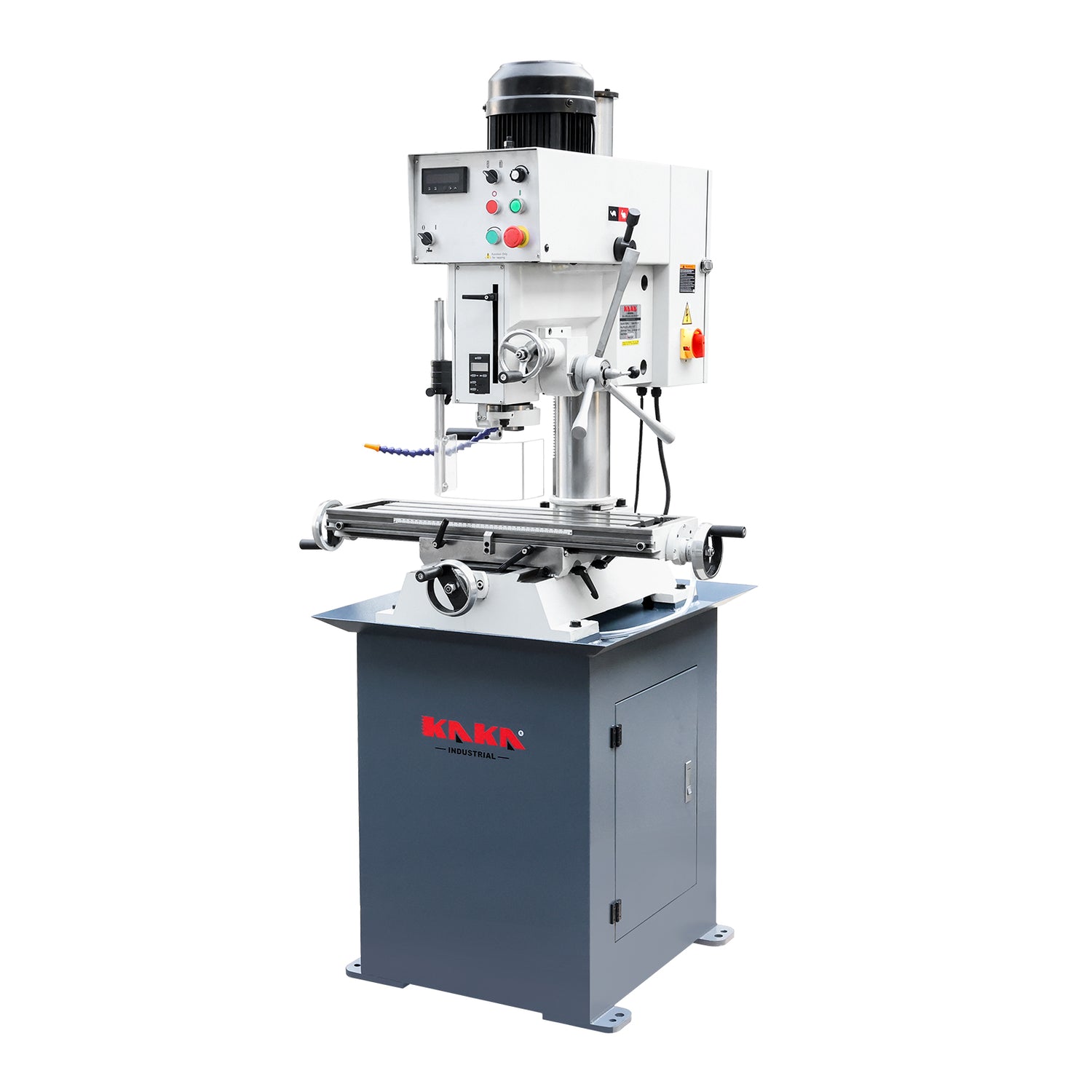

The KAKA INDUSTRIAL DM-32A Gear Head Drilling Milling Machine is a robust, multi-functional center designed for precision metalworking in both home garages and professional workshops. It combines power, accuracy, and user safety in one compact unit, capable of drilling, milling, and tapping operations.
Key Features & Benefits
- Multi-Functional Machining: Execute drilling up to 1.26 inches (32mm), face milling up to 2.95 inches (75mm), and tapping up to M16/M18.
- Gear Head Drive & Speed Control: The gear head provides high torque, while the digital display allows you to monitor spindle speed from 0-2000 RPM.
- Spacious Worktable & Travels: The worktable measures 28.74" x 8.27" (730x210mm) with generous axis movements (X=14.57" / 370mm, Y=6.69" / 170mm, Z=17.72" / 450mm) for handling large components.
- Single-Phase Power & Safety: Runs on common 240V single-phase power. Includes safety guards with a microswitch and an integrated cooling system.
- Heavy-Duty Construction: Built for stability with a net weight of 807 lbs (366 kg), ensuring minimal vibration during operation.
Technical Specifications (Dual Units)
- Max. Drilling Capacity: 1.26 inches (32 mm)
- Max. Face Milling Capacity: 2.95 inches (75 mm)
- Table Size: 28.74" x 8.27" (730 x 210 mm)
- Spindle Taper: MT3
- Spindle Speed: High: 0-2000 RPM; Low: 0-540 RPM
- Main Motor Power: 2.2 kW
- Net Weight / Gross Weight: 807 lbs (366 kg) / 1023 lbs (464 kg)
- Packing Dimensions: 38" x 38" x 78" (96 x 96 x 198 cm)
Ideal for machinists, hobbyists, and small workshops, the DM-32A delivers industrial-grade capabilities with the convenience of standard single-phase power.
