Manual Tube Bender, 180 Degree, KAKA INDUSTRIAL TB-180 3/4 in OD die with 2.5 in centerline radius included, degree wheel and interchangeable tooling

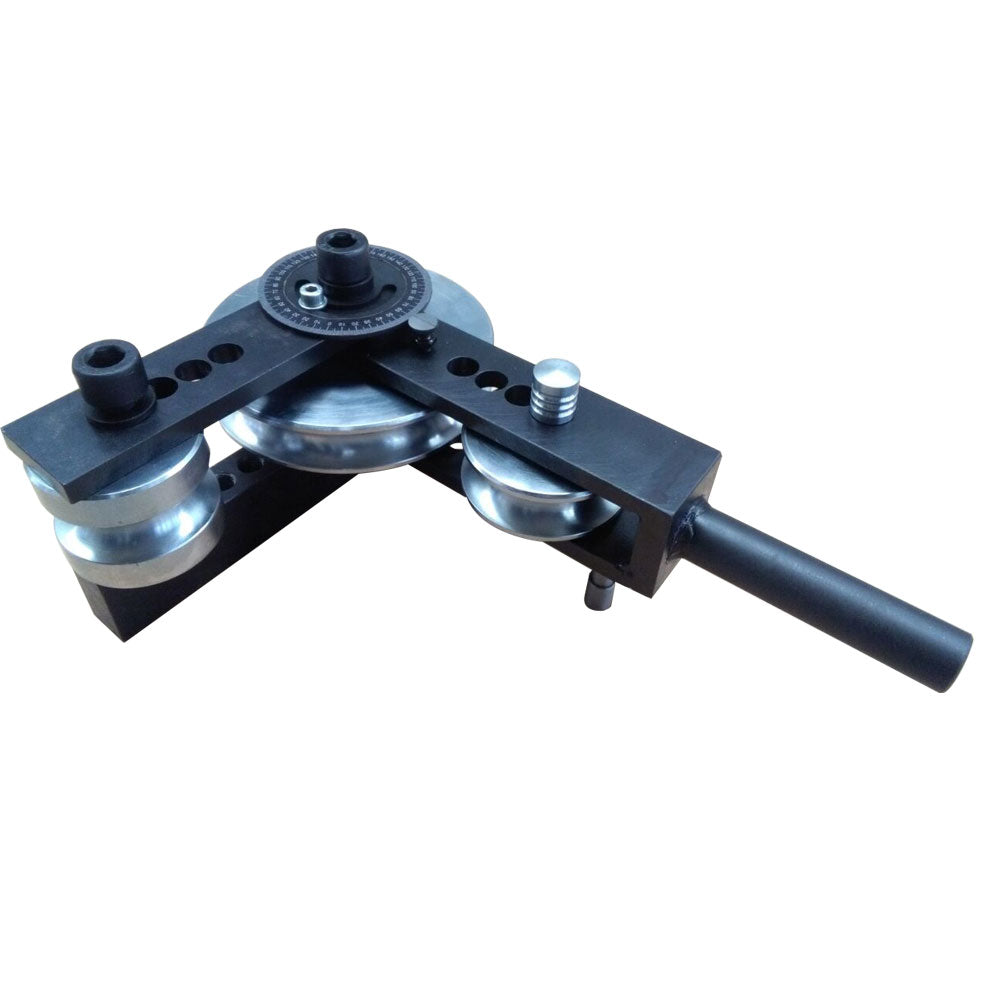

KAKA INDUSTRIAL TB-180 Manual Tube Bender

The TB-180 forms round tubing into bends up to 180 degrees for custom brackets, tube frames, and workshop fabrication. Manual operation requires no electricity or hydraulic power. Clamp the bender in a vise or securely fasten it to a suitable bench or table before bending.

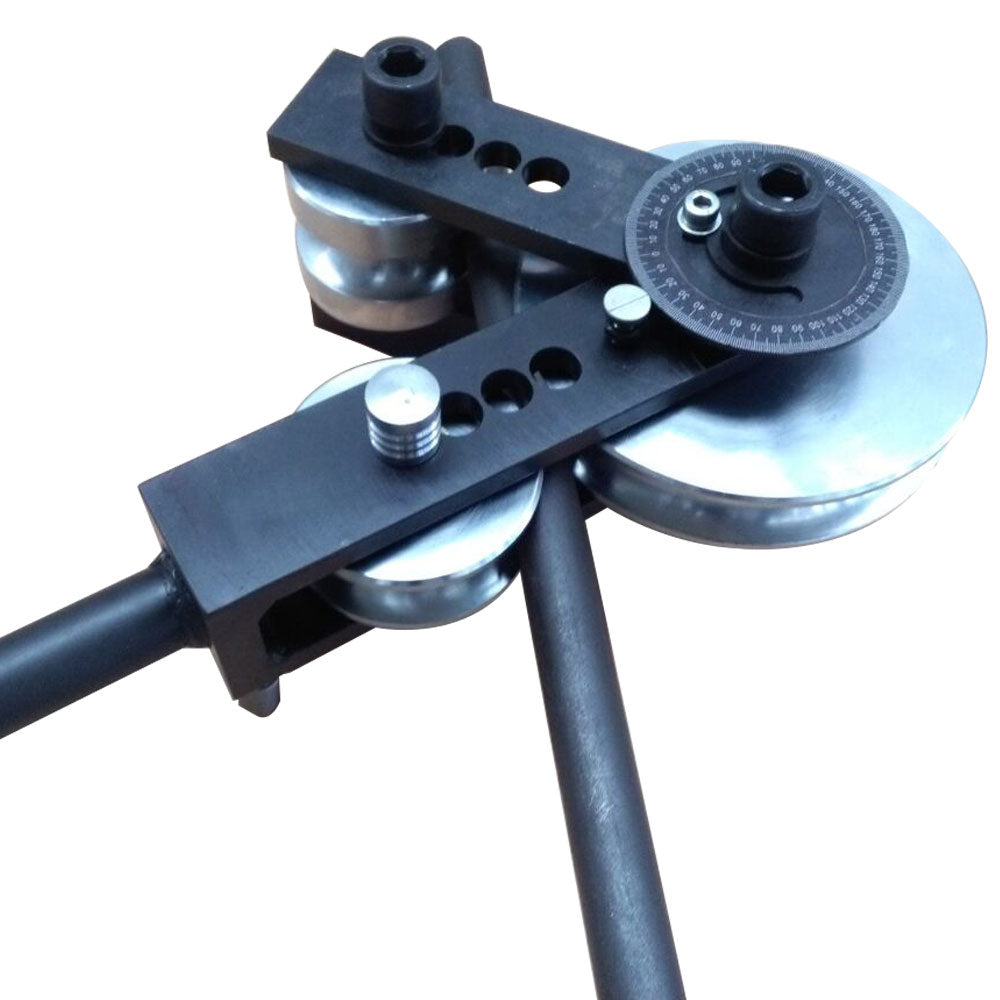

The included die fits 3/4 in outside-diameter tubing and forms a 2.5 in centerline radius. An eccentric clamp roll secures the tube against the main shoe, while a follower roller supports the tube during the bend. Set the degree wheel to zero and use the pointer as an angle reference, allowing for springback when checking the finished part.

Specifications

• Model: TB-180
• Operation: manual; vise or bench mounted
• Tube OD range: 3/8-1 in with matching tooling
• Tube wall thickness range: 0.049-0.095 in (approximately 1.24-2.41 mm)
• Maximum bending angle: 180 degrees
• Included tooling: 3/4 in tube OD x 2.5 in CLR
• Angle reference: degree wheel and pointer
• Mounting: vise or securely fastened bench/table setup
• Net weight: approximately 32.4 lb (14.7 kg)
• Package dimensions: approximately 15.75 x 7.09 x 6.30 in (40 x 18 x 16 cm)

Optional Dies - Sold Separately

• 3/8 in OD x 2 in CLR
• 1/2 in OD x 2 in CLR
• 5/8 in OD x 2.5 in CLR
• 7/8 in OD x 3.5 in CLR
• 1 in OD x 3.5 in CLR

OD means tube outside diameter; CLR means bend centerline radius. Choose tooling to match the tube diameter and required radius. Material and wall thickness also determine suitability.
