Manual Slip Roll Machine, 36Inch Width 16 Ga.(0.06Inch) Thick Steel Capacity, Sheet Metal Curving Rolls for Workshop, HVAC and Fabrication Shops W01-3616
Manual Slip Roll Machine, 36Inch Width 16 Ga.(0.06Inch) Thick Steel Capacity, Sheet Metal Curving Rolls for Workshop, HVAC and Fabrication Shops W01-3616 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

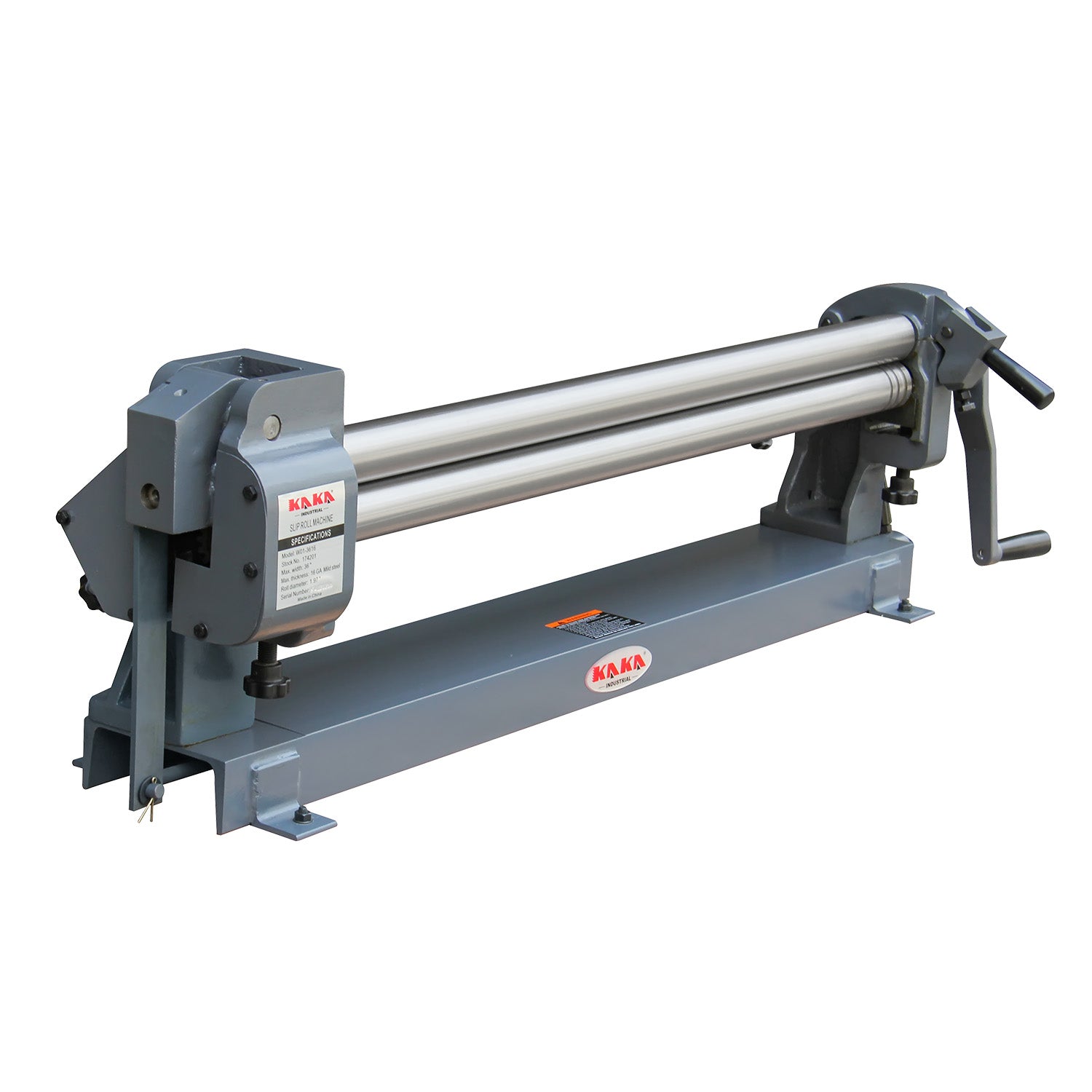

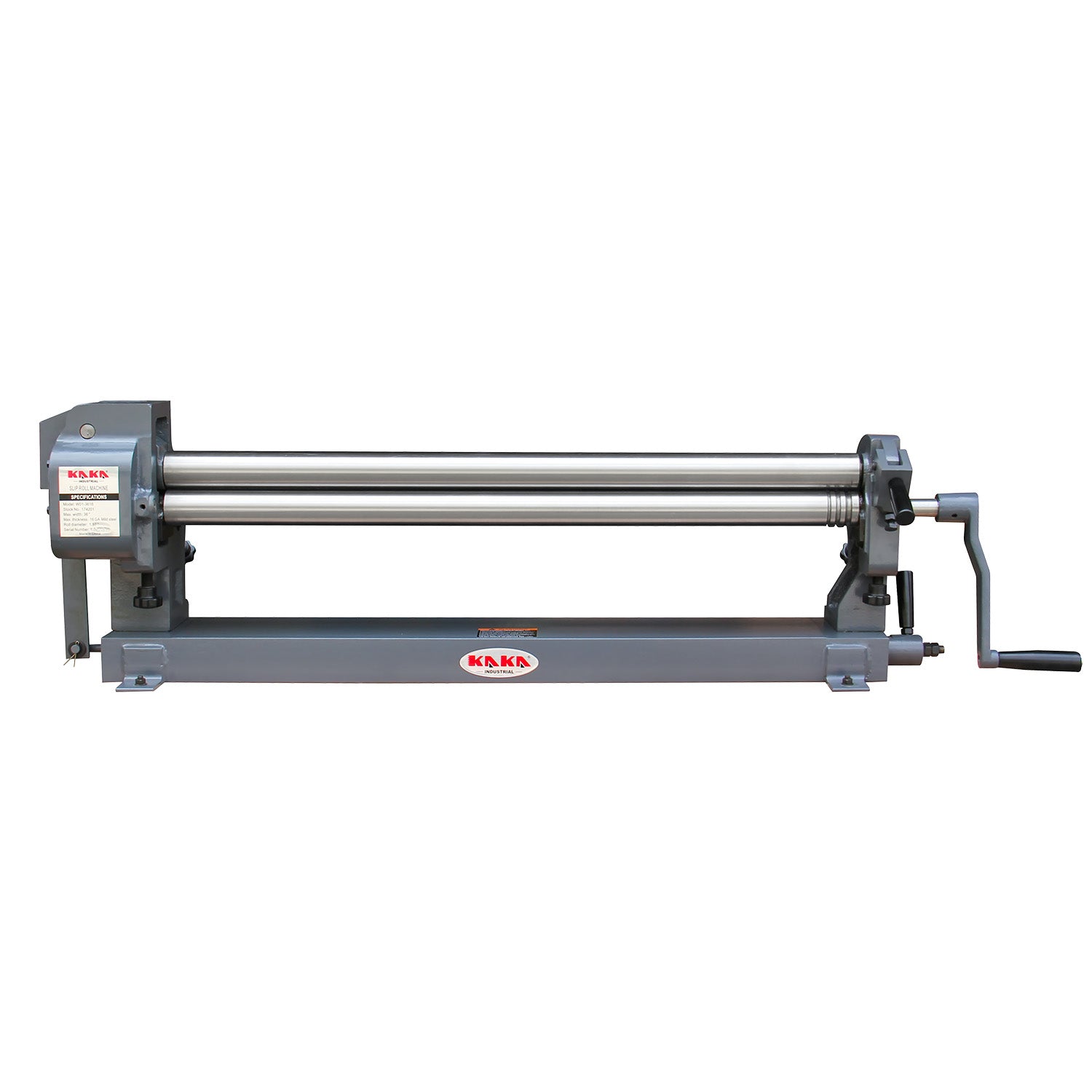

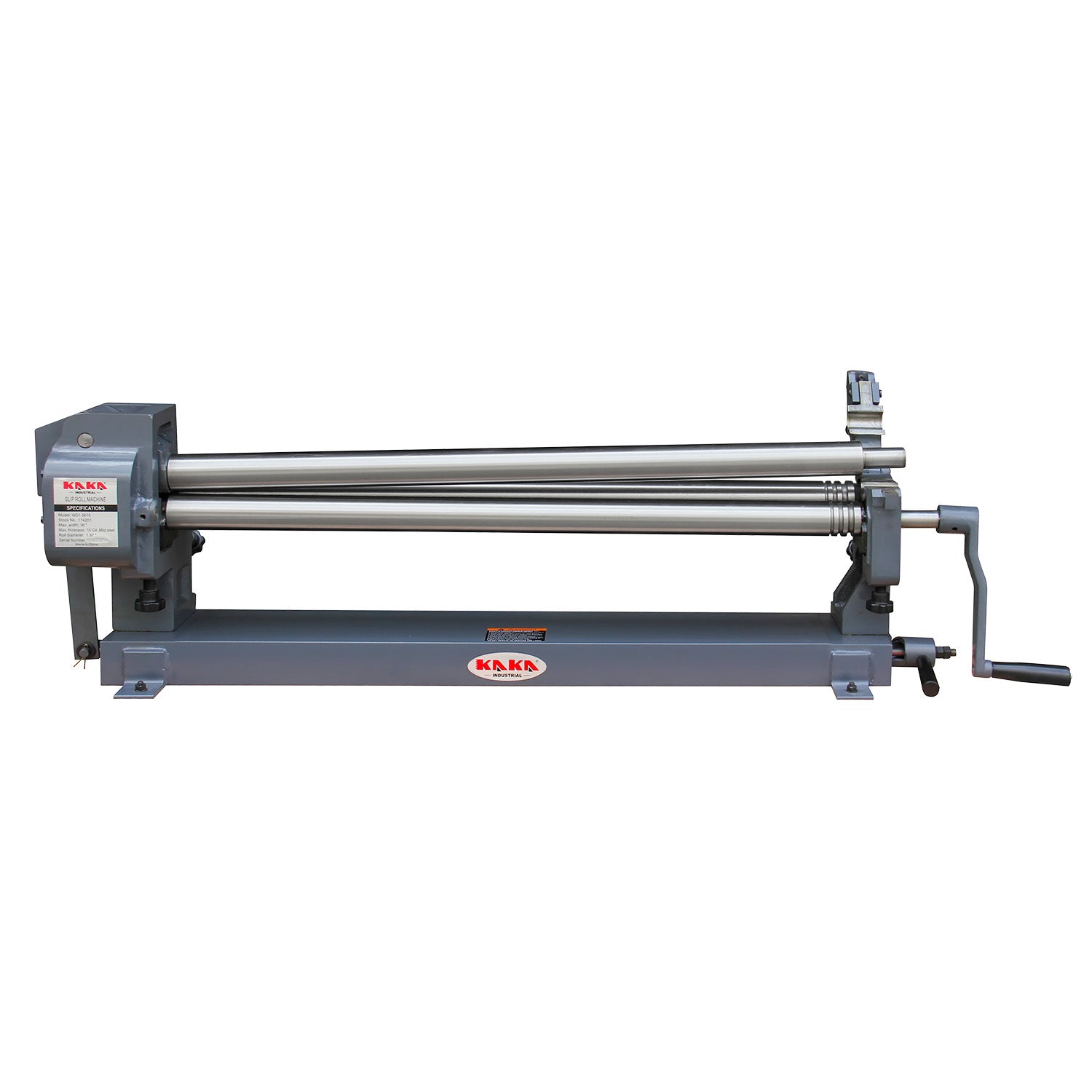

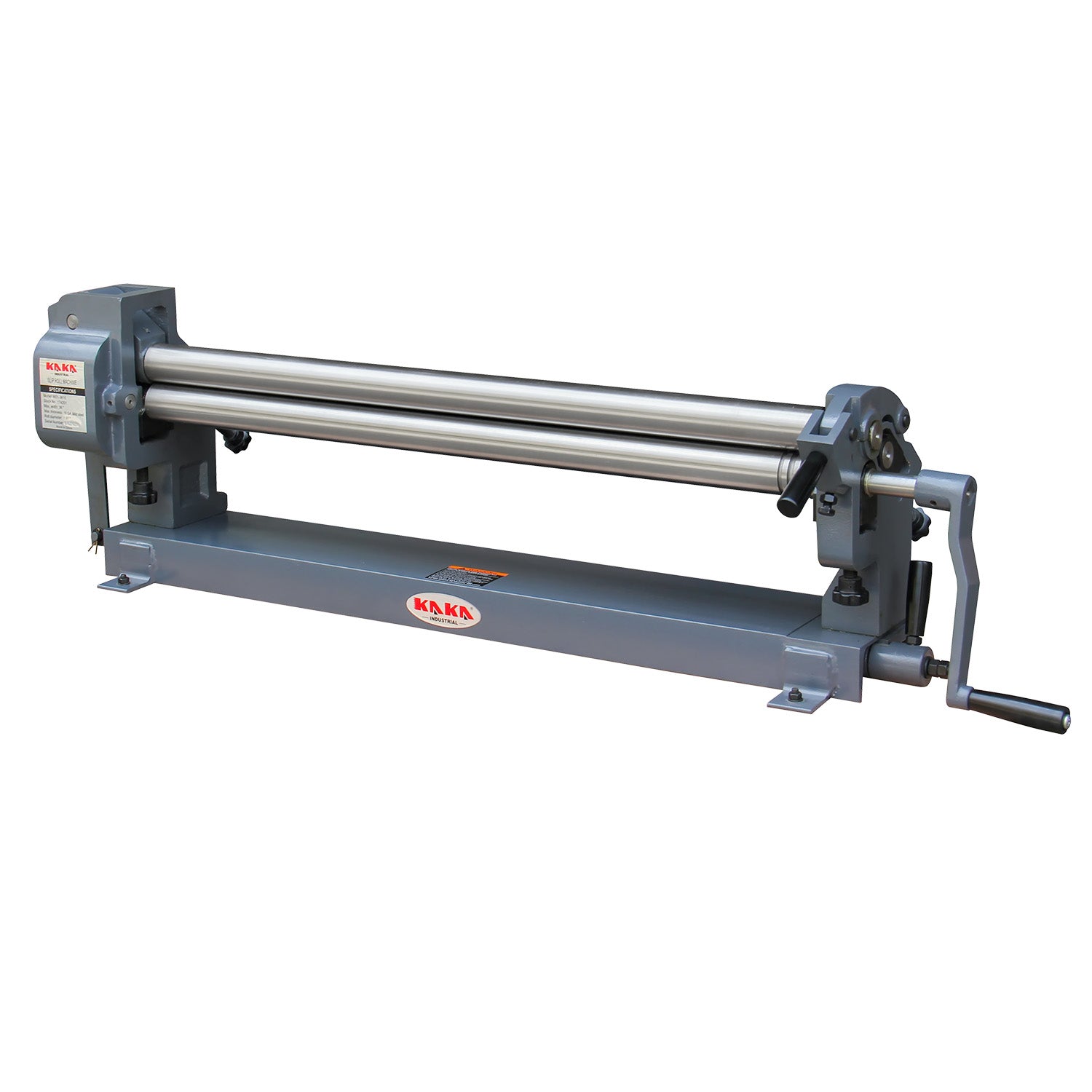

The KAKA INDUSTRIAL W01-3616 Manual Slip Roll Machine is an essential tool for workshops and fabrication shops requiring precise and efficient curving of sheet metal. Designed with a robust cast iron frame, this machine effortlessly curves mild steel up to 36 inches (915 mm) wide and 0.06 inches (1.5 mm) thick. Its manual operation makes it a reliable and cost-effective choice for creating cylinders, arcs, and other curved forms for ductwork, guards, and decorative projects without the need for electrical power .
Key Features & Benefits
- High Manual Capacity: Capably curves mild steel sheets up to 36 inches (915 mm) in width and 0.06 inches (1.5 mm) in thickness, offering versatility for a wide range of metal forming tasks in HVAC, automotive, and general fabrication .
- Durable Construction: The heavy-duty cast iron construction ensures maximum stability and durability during operation, reducing vibration and ensuring long-term precision for consistent results year after year.

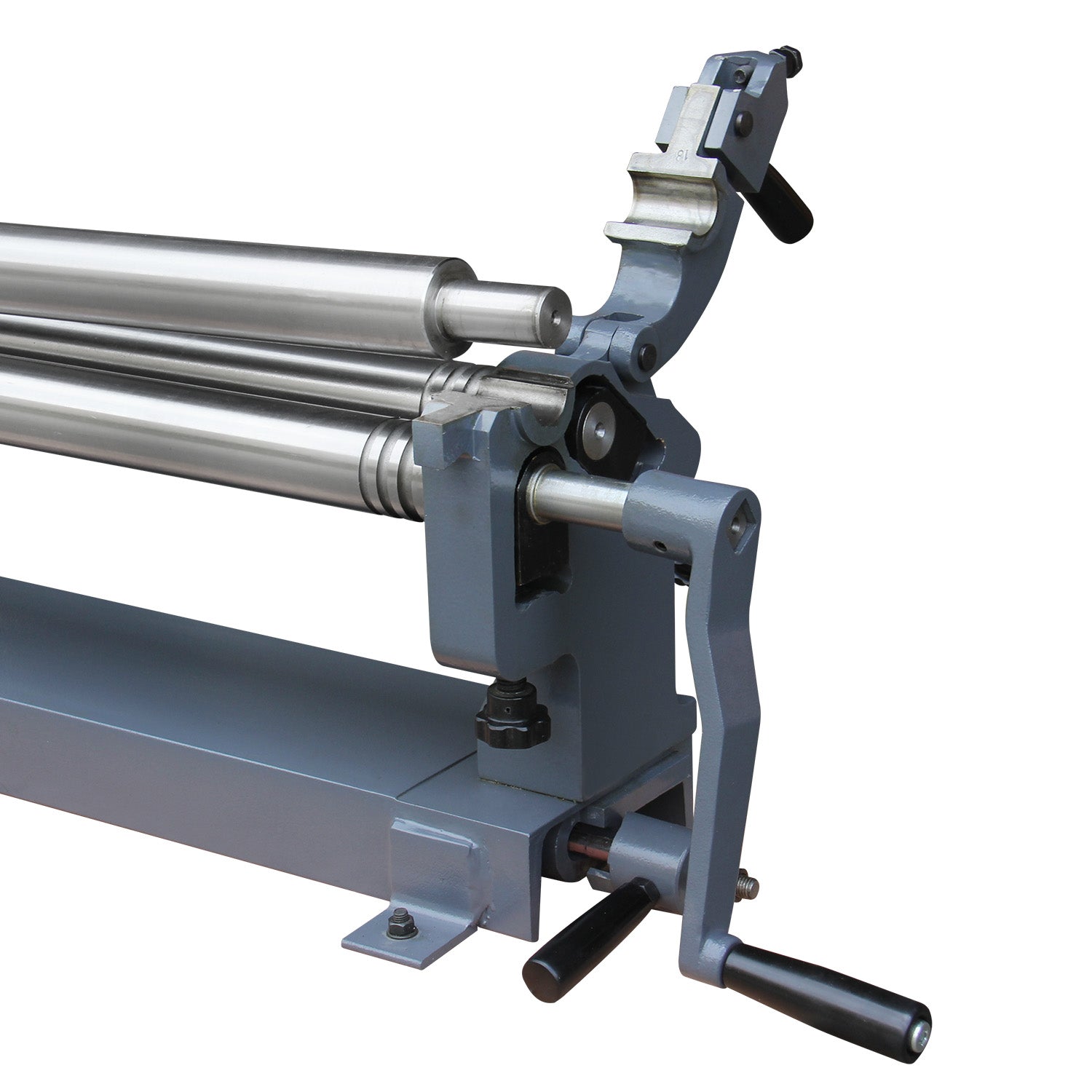

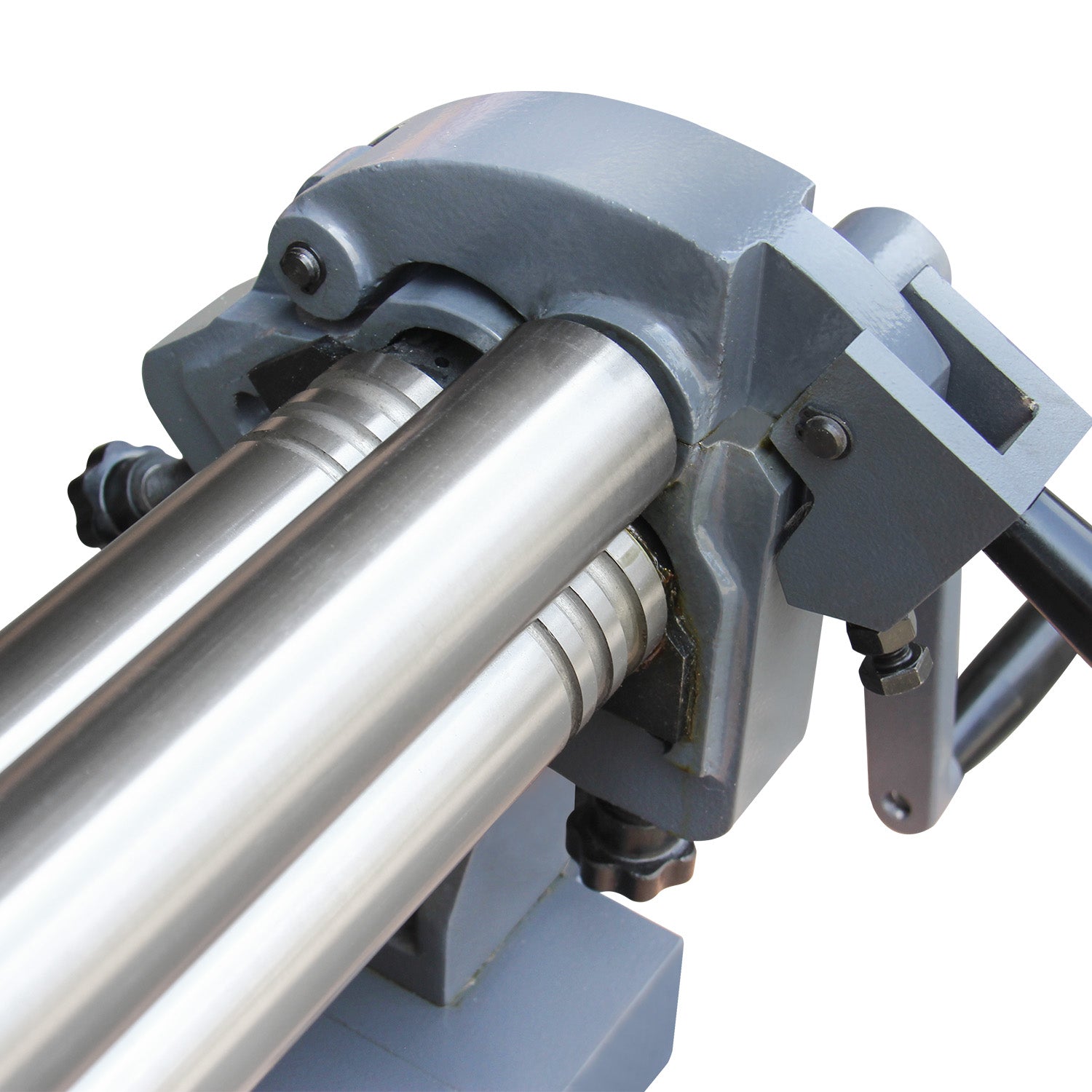

- Practical Design Features: The 2-inch (50 mm) diameter solid rollers provide strength for bending, and the upper roll swings out for easy workpiece removal. Three wire grooves allow for handling small round stock, adding to the machine's versatility .
- Workshop Ready: With a manageable net weight of 220 lbs (100 kg) and compact dimensions, this slip roll machine is designed for easy integration into most professional workshops, fabrication shops, and vocational training environments.
Technical Specifications (Dual Units)
- Model: W01-3616
- Max. Sheet Width: 36 inches (915 mm)
- Max. Sheet Thickness (Mild Steel): 0.06 inches (1.5 mm)
- Roller Diameter: 2 inches (50 mm)
- Net Weight: 220 lbs (100 kg)
- Gross Weight: 265 lbs (120 kg)
- Packing Dimensions: 53 x 14 x 20 inches (134 x 35 x 50 cm)
