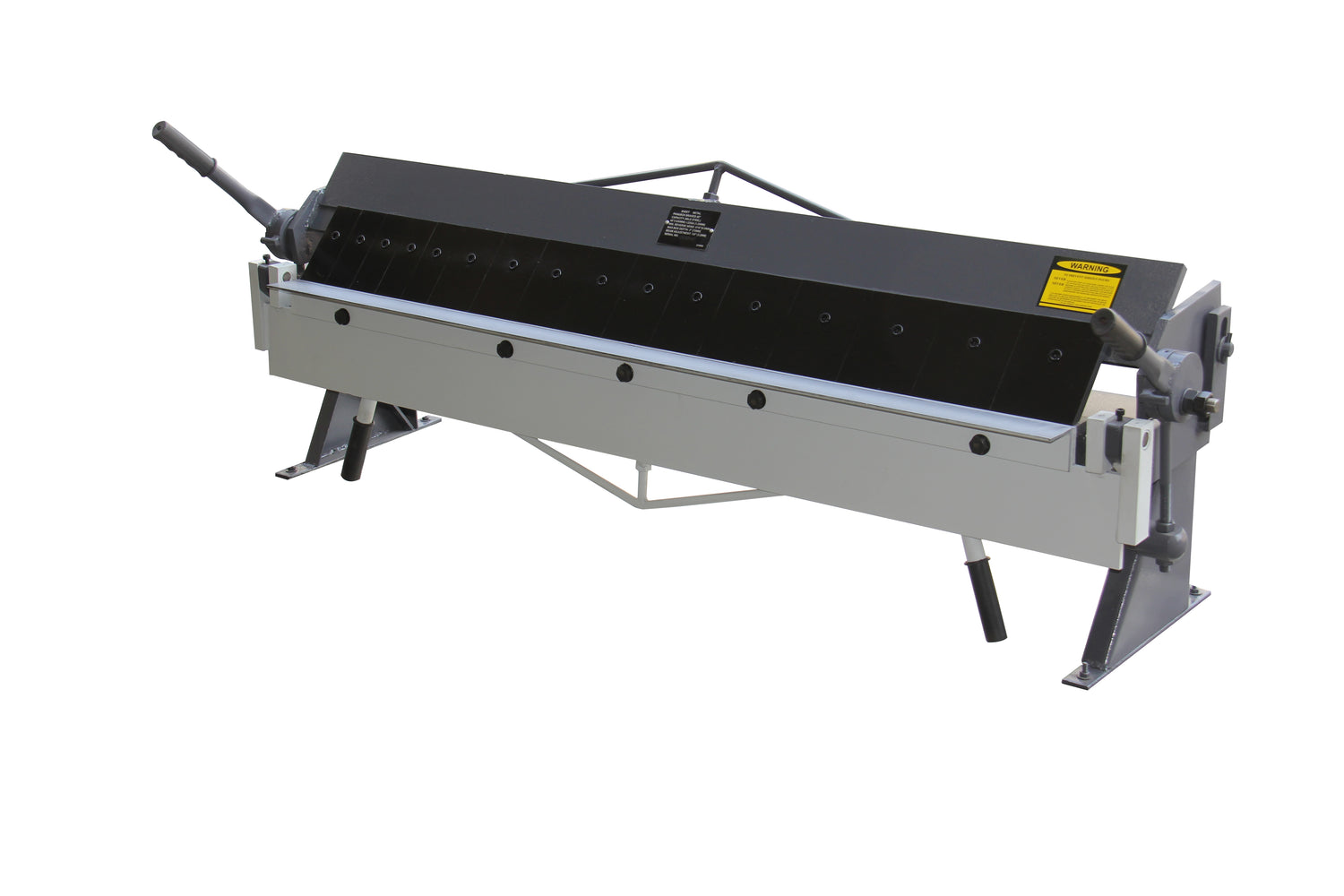

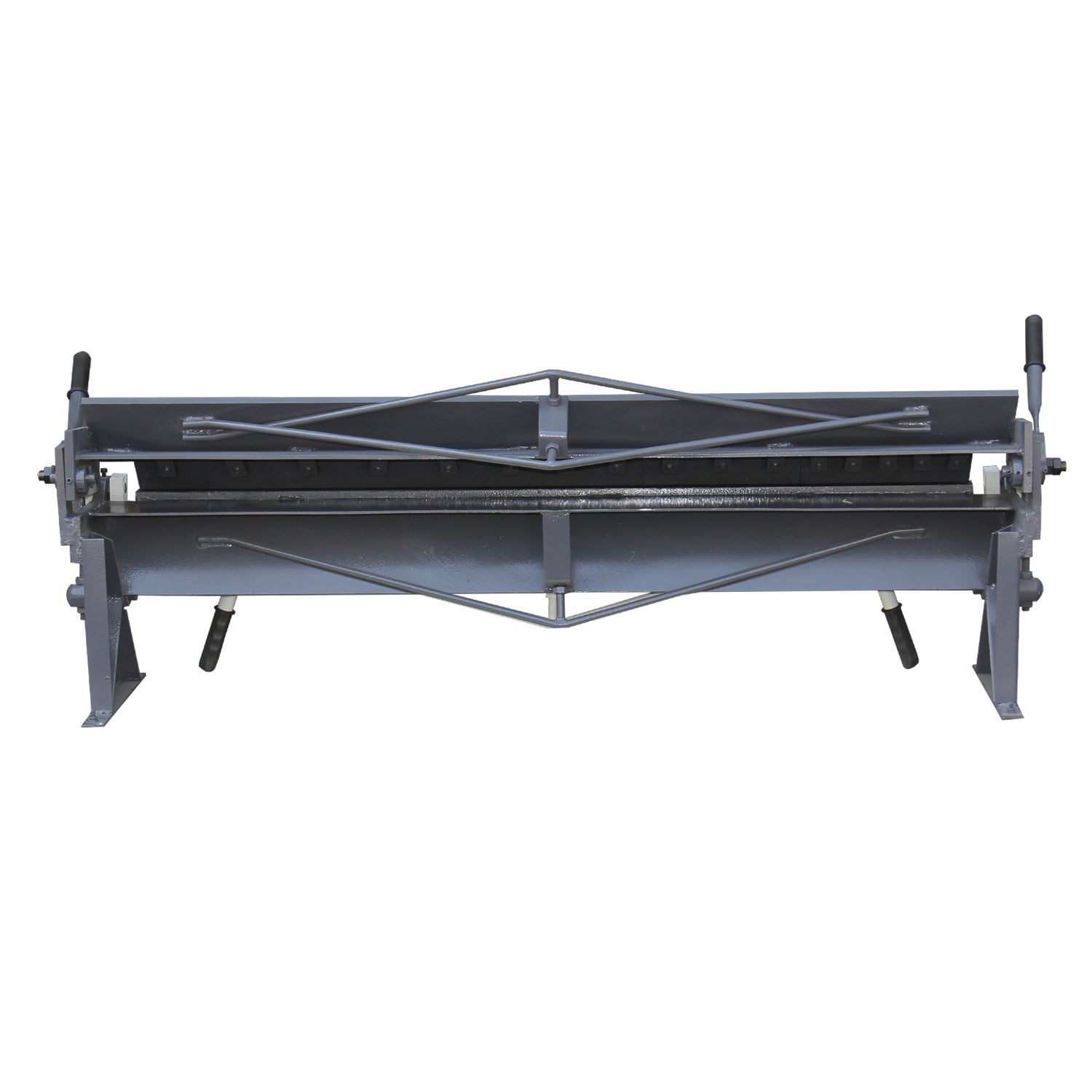

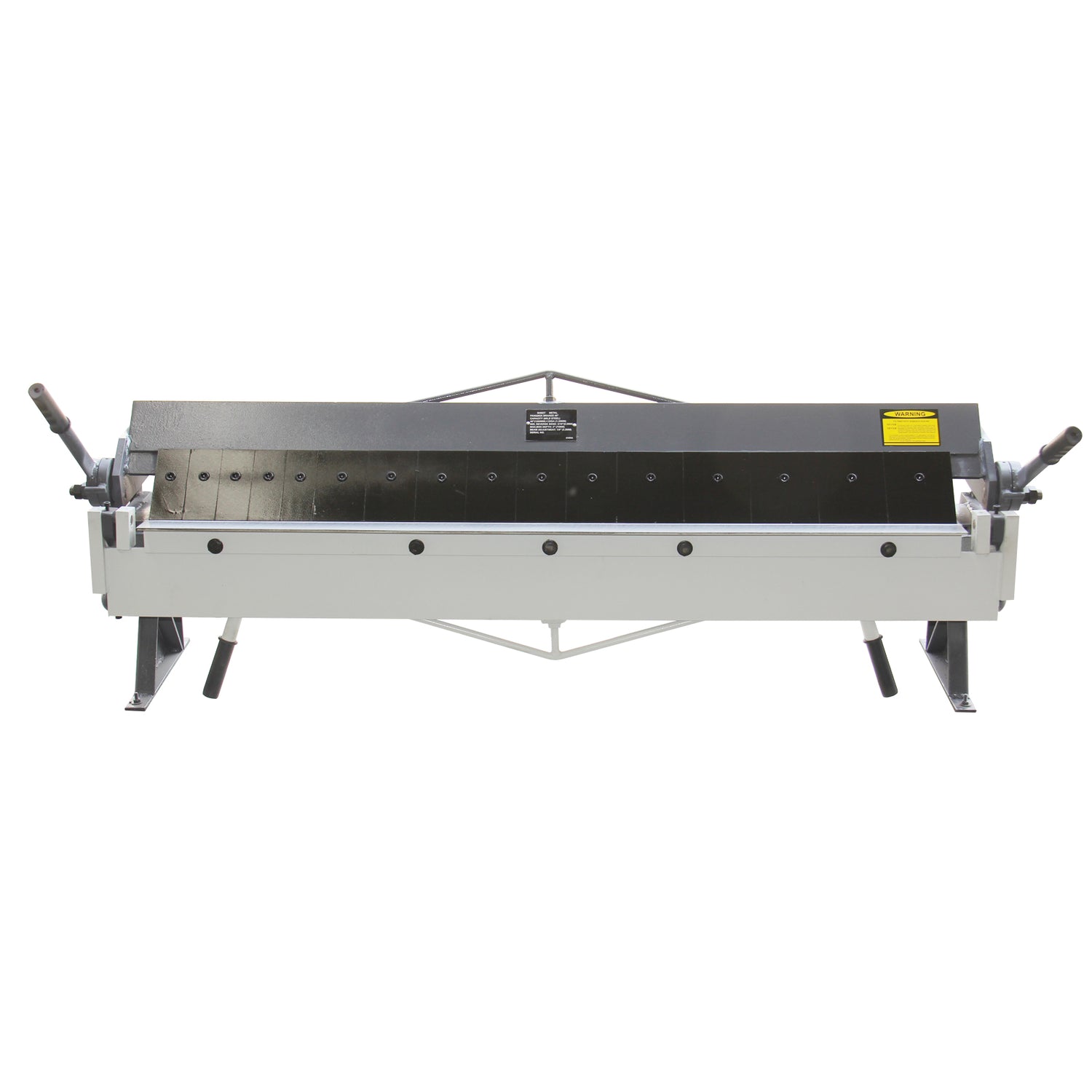

LW-4822,Pan and Box Brake 48"x22", includes total of 16 fingers in 2", 3", and 4" sizes Max Thickness 22 Gauge Mild Steel Capacity, Angle 1-135 Degree, Pan and Box Brake Machine
LW-4822,Pan and Box Brake 48"x22", includes total of 16 fingers in 2", 3", and 4" sizes Max Thickness 22 Gauge Mild Steel Capacity, Angle 1-135 Degree, Pan and Box Brake Machine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Care information
Care information
Delivery and Shipping
Delivery and Shipping
- The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
- The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description
- Hardened steel box fingers

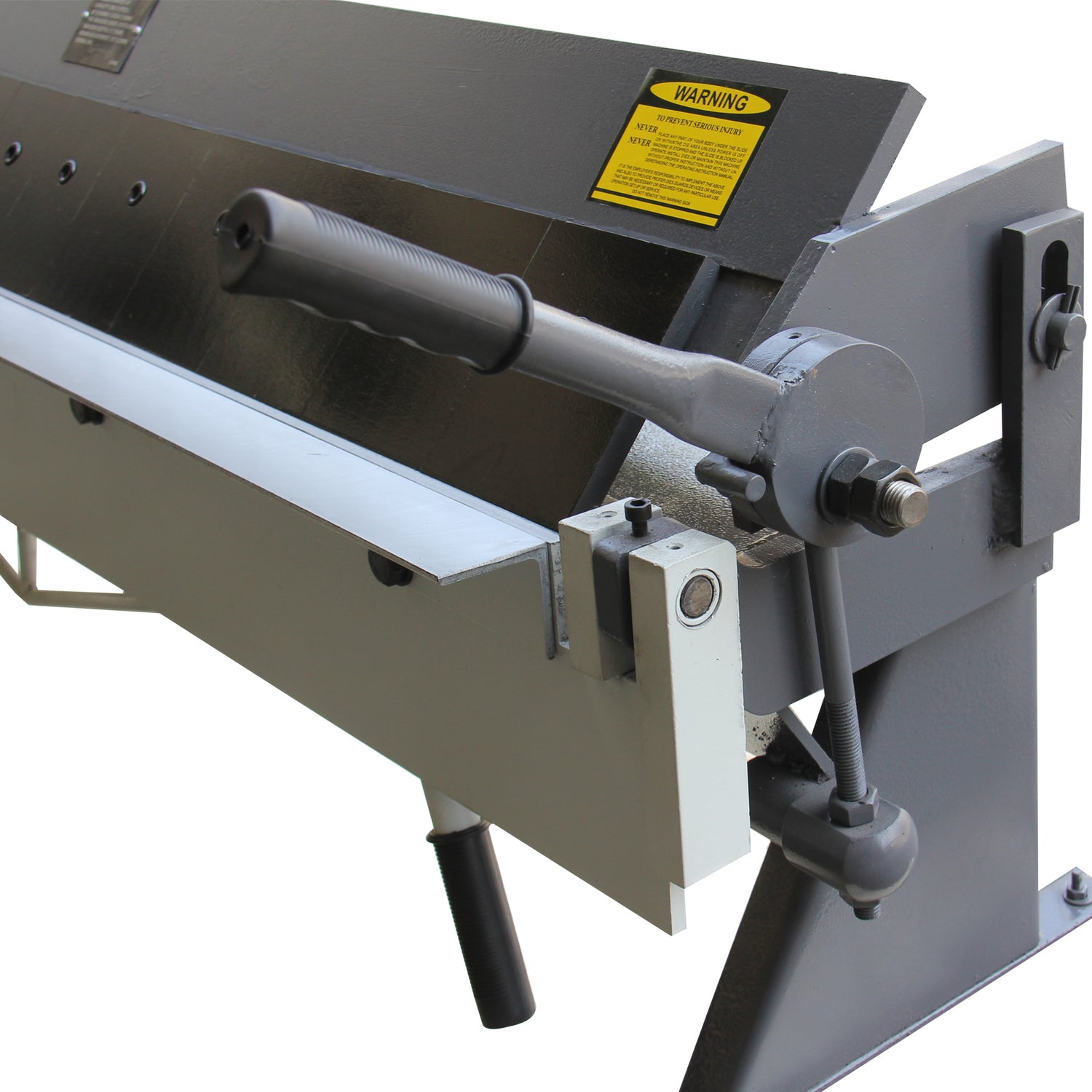

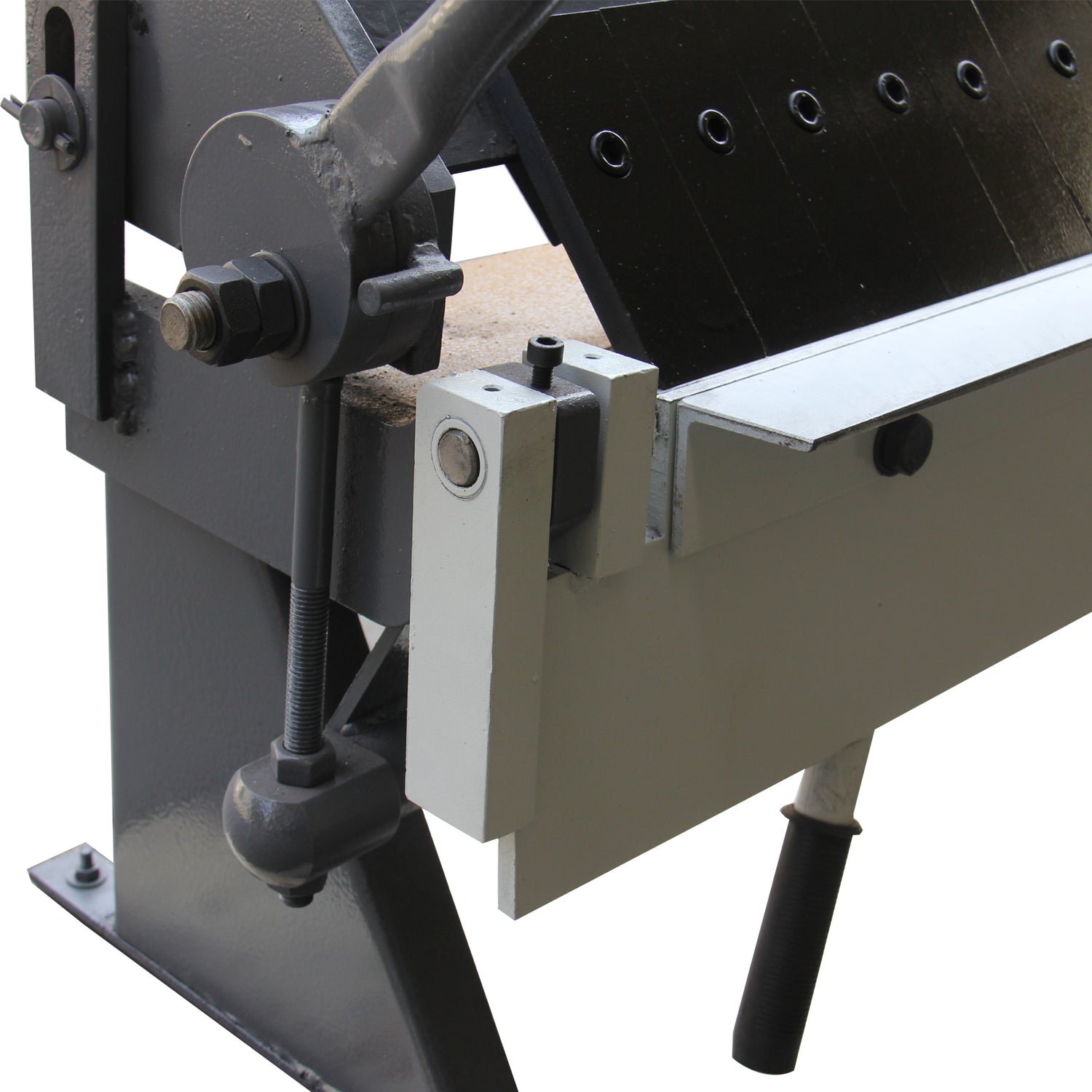

- Left & right beam control levers
- Brakes from 0° - 135°
- Finger segments size: 2" x 5pcs,3" x 6pcs,4" x 5pcs
- Fully trussed for strength & precision
Item No.:162433
Model: LW-4822
Capacity(in.): Length: 48”(1200mm)x Thickness: 22Ga(0.76mm)
MINIMUM REVERSE BEND: 5/16"(8.0mm)
Max. box depth: 3 "(75mm)
Beam Adjustment: 1/8"(3.2mm)
Packing size(in.):62x16x26
N.W./G.W.(lbs): 220/217
