KAKA INDUSTRIAL LLC  |  SKU: 178381V110

Kaka industrial WP-220 Welding Positioner 485 lbs Tilt angle 0-135º Rotation motor 125W Rotation speed 0-5 RPM Stepless Speed Control Welder Positioning Machine 110V-60HZ-1PH

$1,499.00
Shipping calculated at checkout.

Care information

Delivery and Shipping

  1. The item weights less than 100 lbs will be delivery by FedEx Ground or USPS. You will receive tracking number once the carrier pickup.
  2. The item weight over 100lbs normally will be delivery by LTL Freight. Please note you may need the optional services if you order these items. For exemple, if you don’t have a forklift or similar equipment to offloading the package, you may need to book the lift gate delivery service when checkout.

Payment & Security

Payment methods

  • American Express
  • Diners Club
  • Discover
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

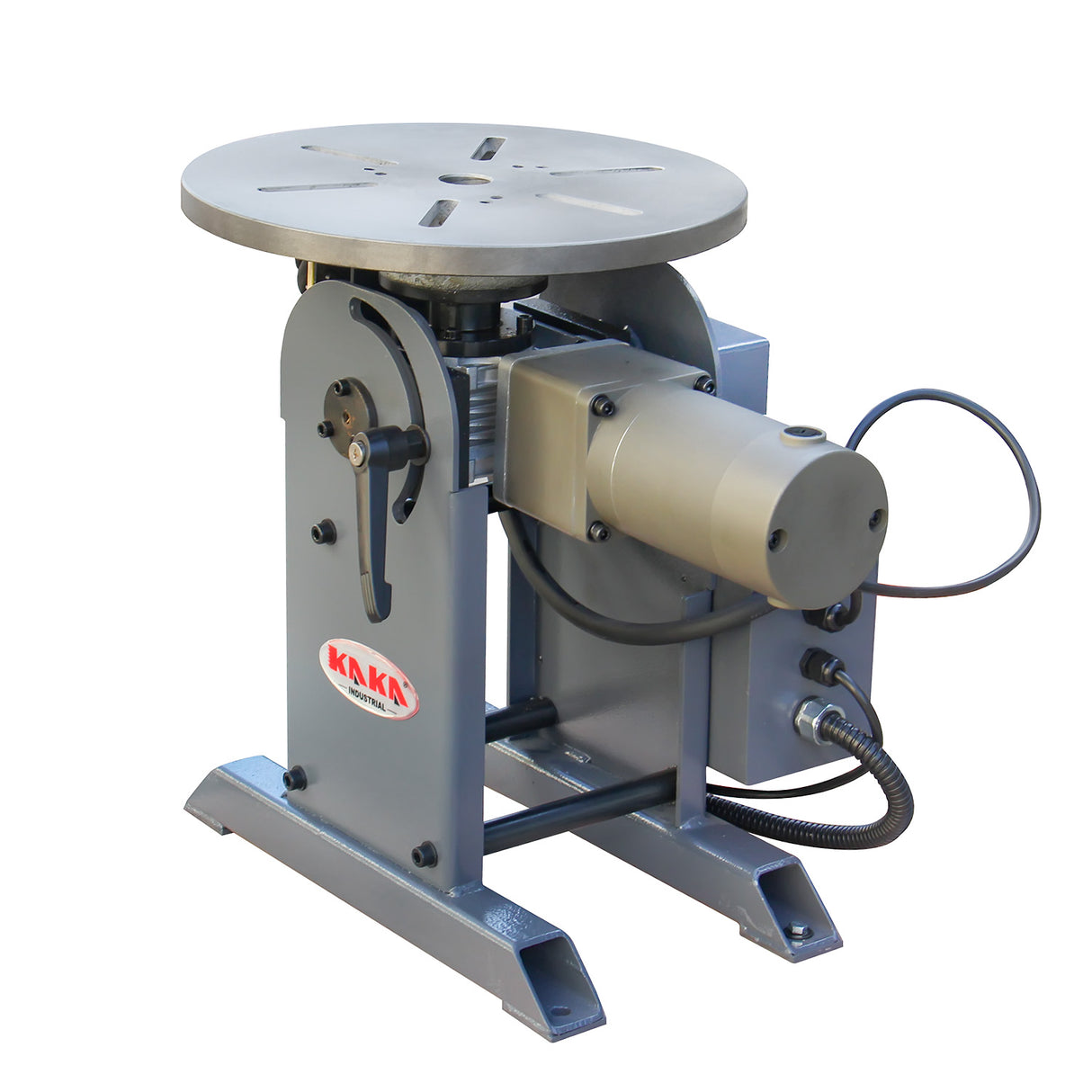

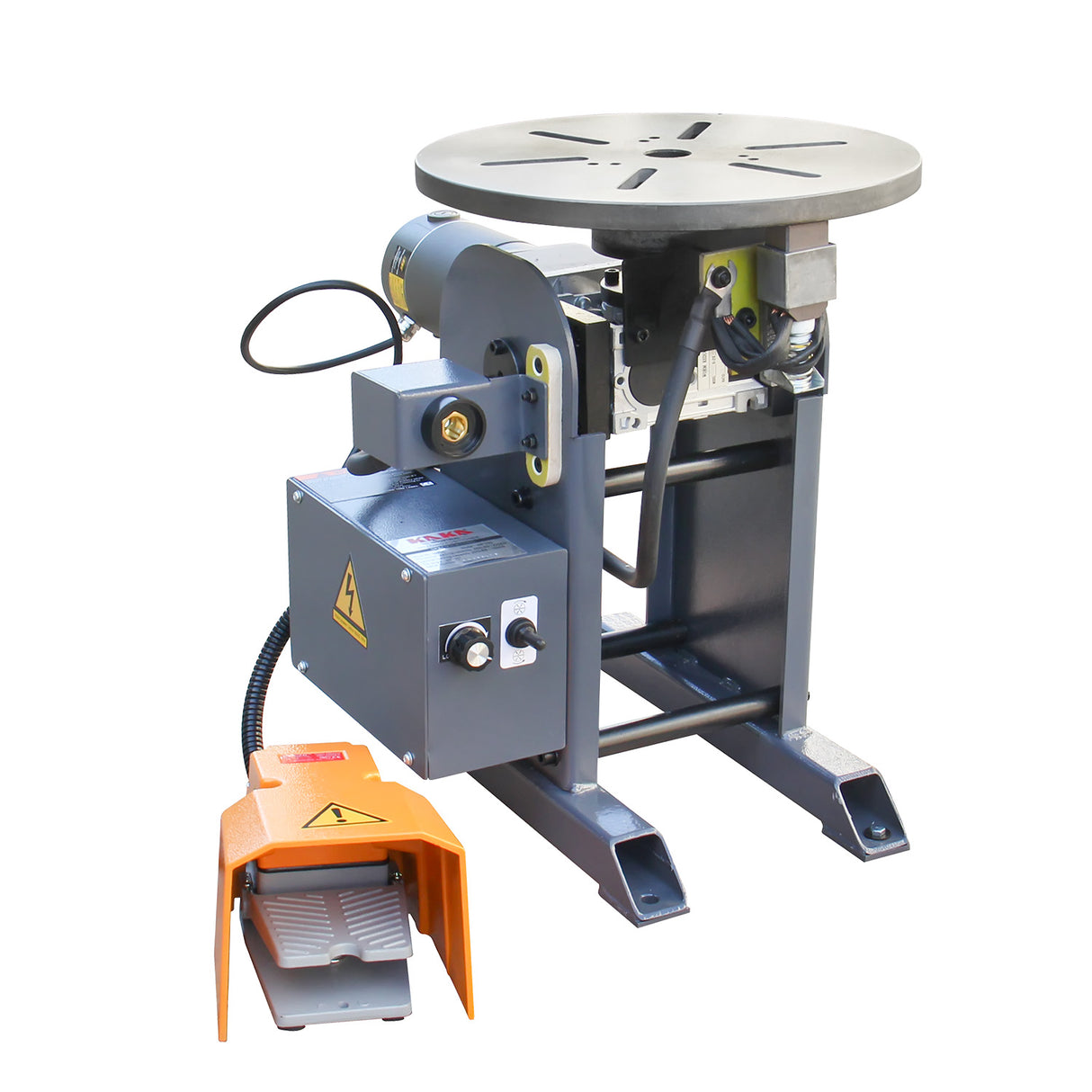

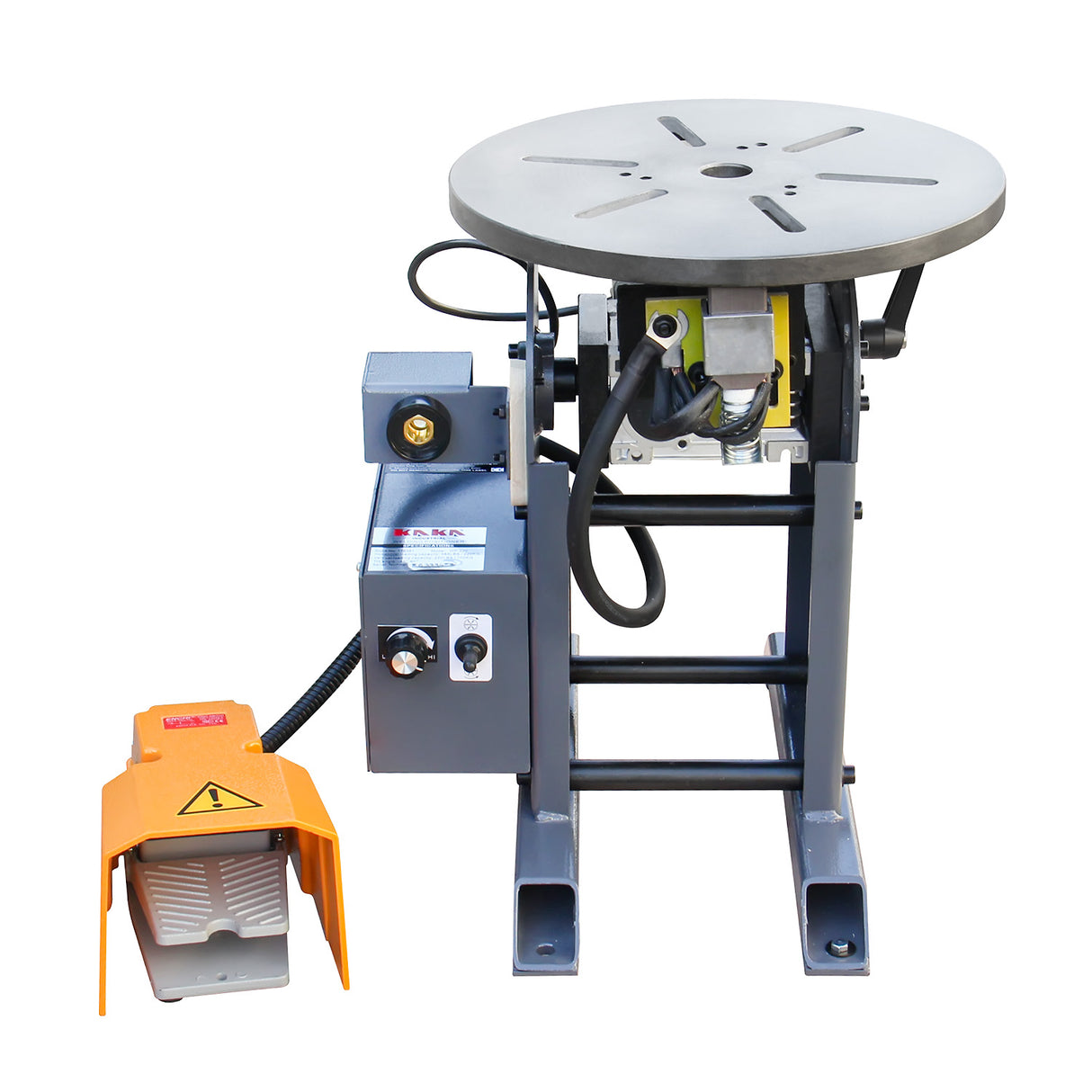

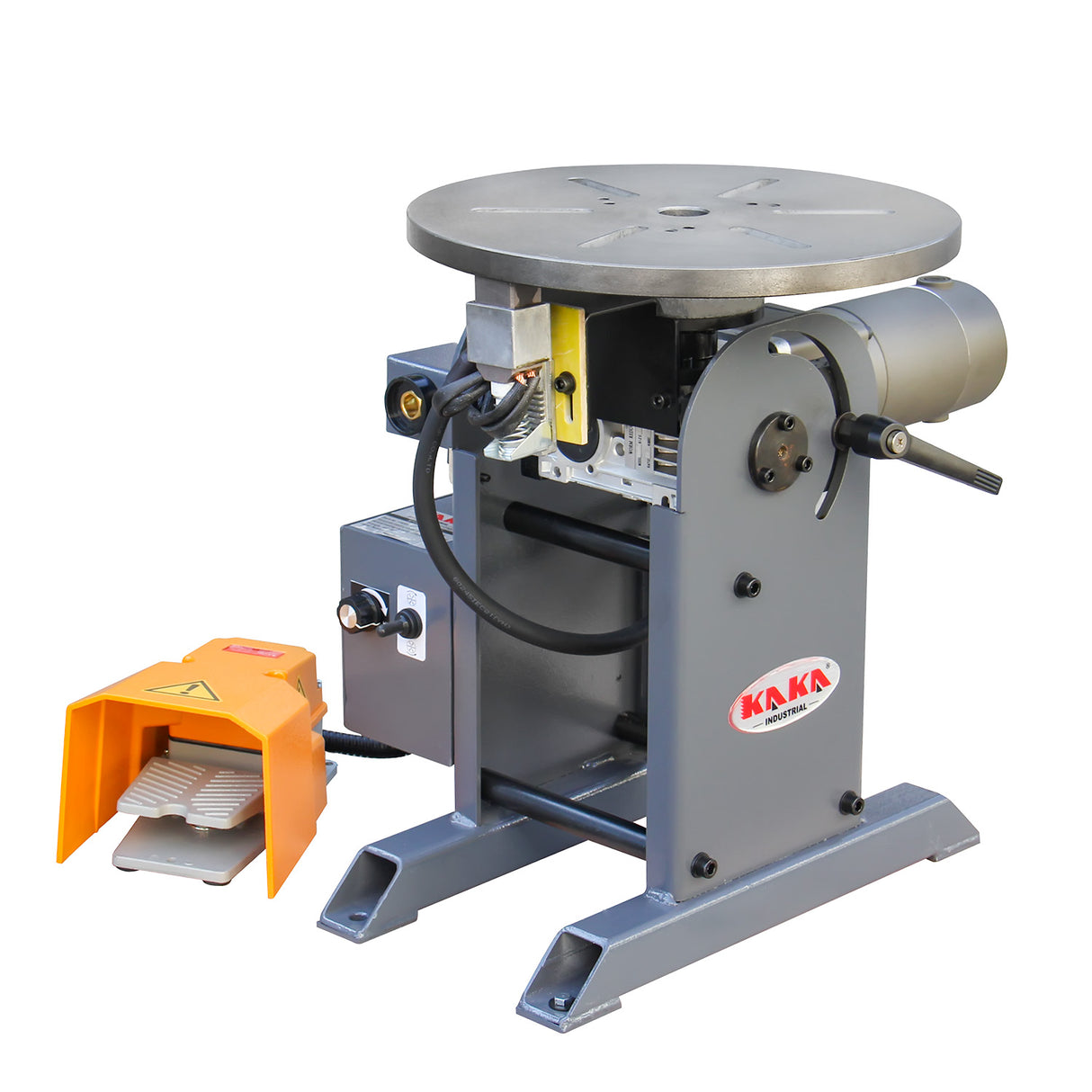

Kaka Industrial WP-220 Welding Positioner Rotating table for welding

1. Loading capacity up to 485 lbs

2. Rotating 360°

3. Variable rotating speed

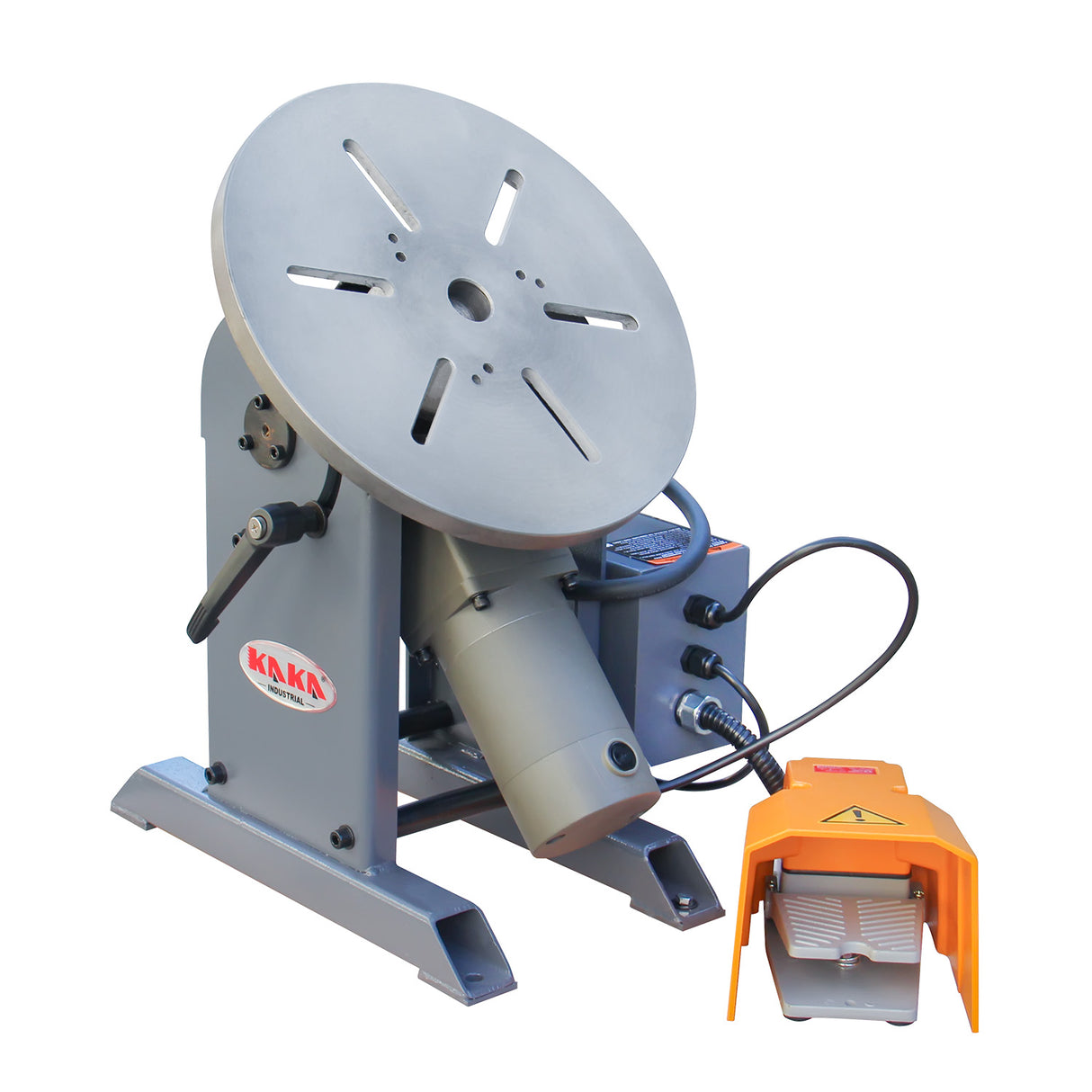

4. Foot pedal control

5. Table tilt up to 135° (manual)

6. Slow rotating speed to ensure perfect welding

7. Different sizes available, the model WP-350 & WP-500

8. Single-phase motor

High Performance

  • It runs on 110V power, 125W rotation motor, and a Rotation speed of 0-5 rpm. It is a single-phase motor, and the safety earth current from the welder is 120A (contact the carbon brush).

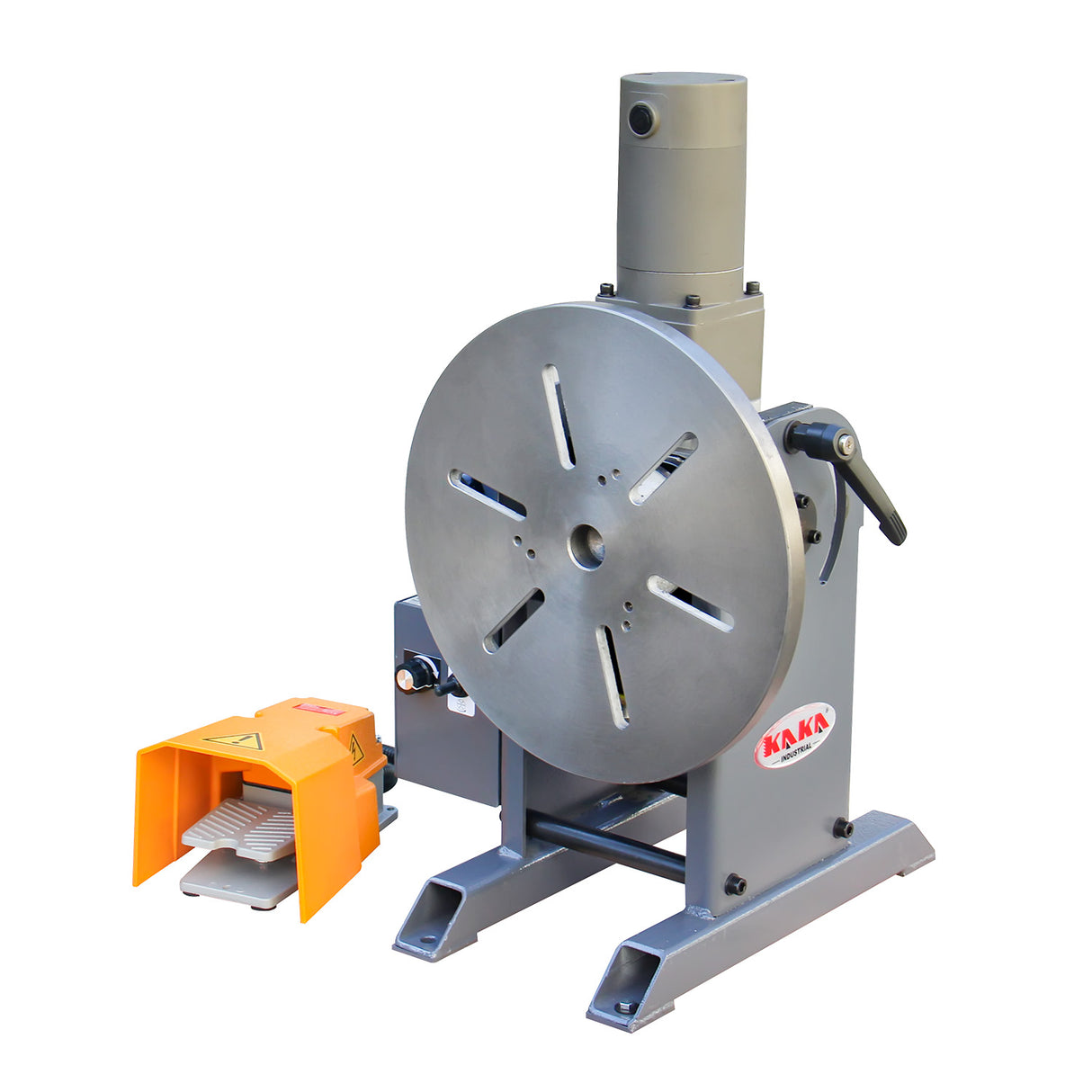

  • The worm and gear's turning structure has the function of self-locking, and the worktable can be turned between 0-90°. It can also be fixed at any angle you want. The table tilts up to 135° (manual).

Variable Speed Control

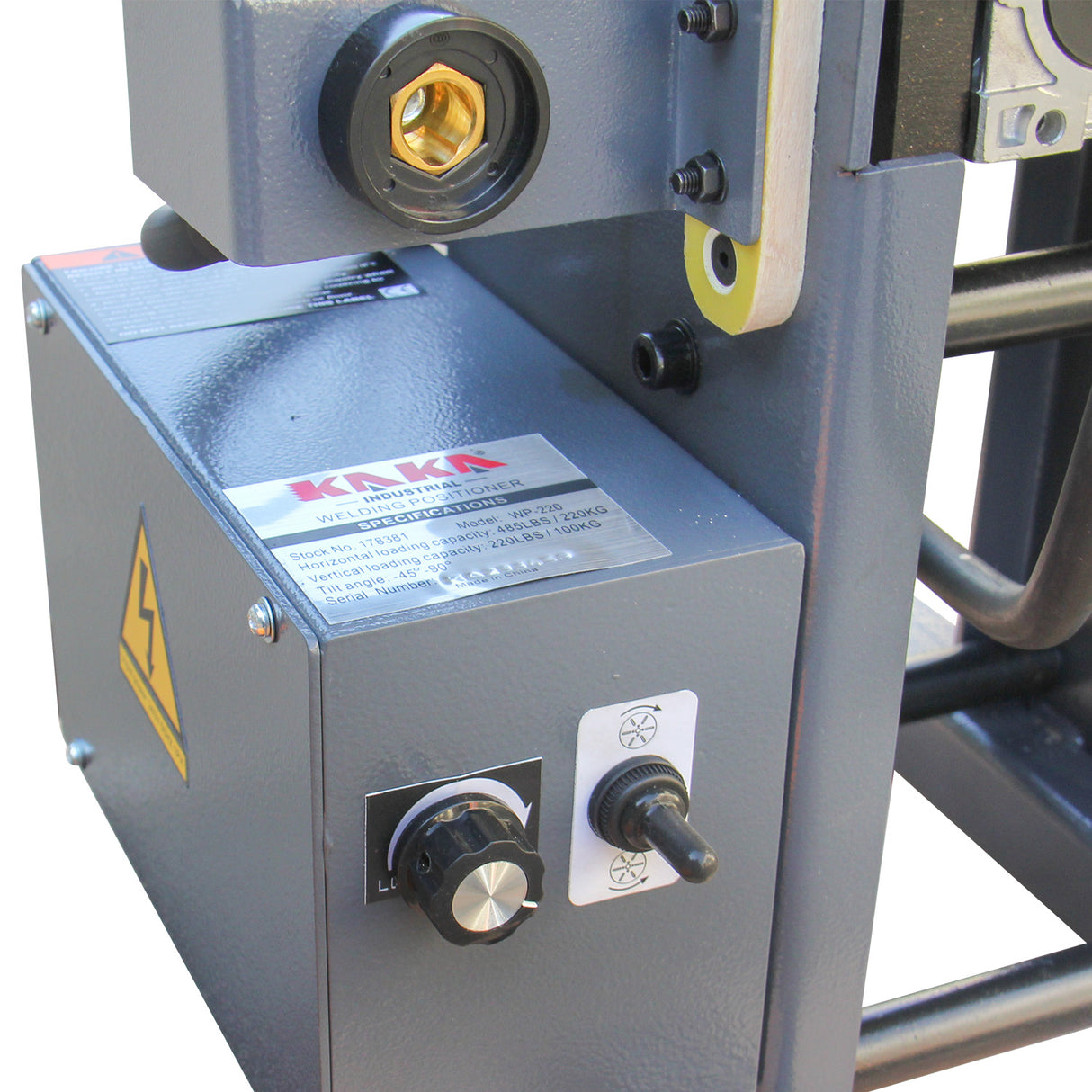

  • It uses a foot switch to control table rotation; the speed is regulated by the knob on the machine(0.5-5r/min step-less speed regulation). The table speed is regulated by a knob on the machine (0.5-5r/min step-less speed regulation)—slow rotating speed to ensure perfect welding.
  • A time controller can be furnished to control the working conditions and working time, achieving the linkage of the positioner and welder.

Wide Applications

  • The welding positioner is a versatile tool that can be used in various industries and tasks, including pipe welding, heavy fabrication, circular welds, multi-axis welding, high-volume production, welding of assemblies, tilt and rotate welding, and others.

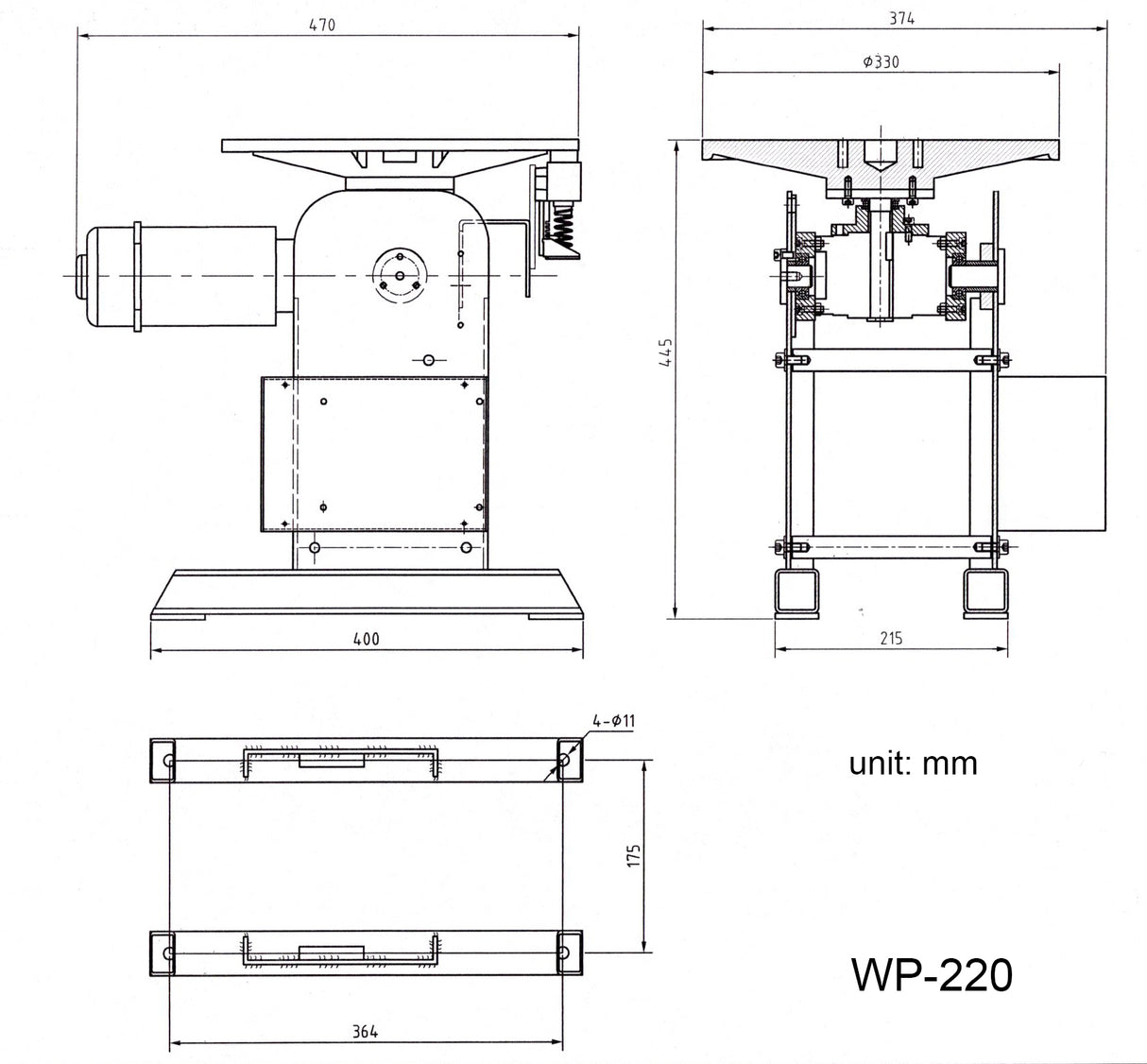

Specifications:

SKU 178381
Model WP-220
Horizontal loading capacity 485 lbs
Vertical loading capacity 220lbs

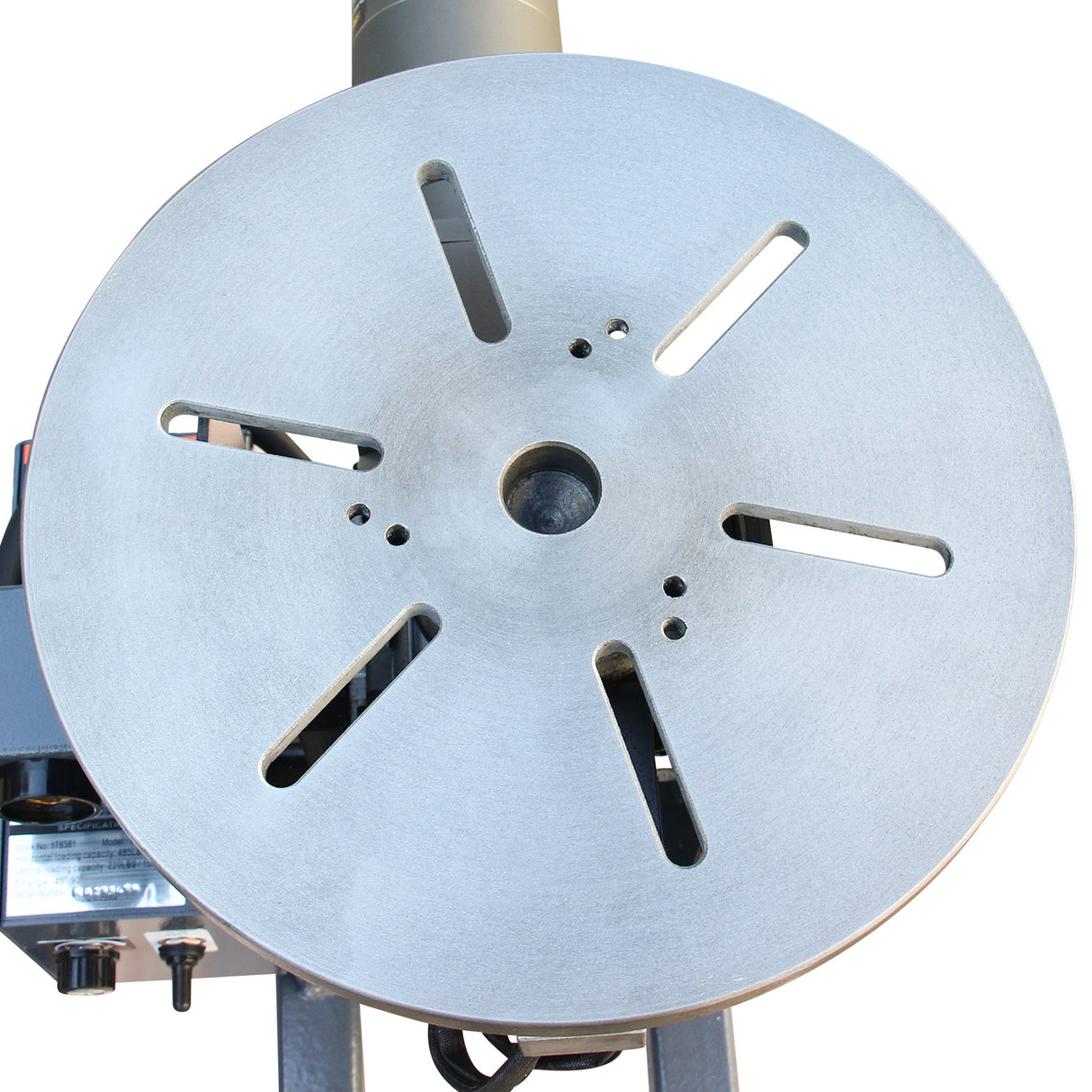

Table dia. 13"
Table height 17.7"
Rotation speed 0-5 rpm
Tilt angle 0°-135°
Tilt by Manual
Rotation motor 125W
Packing size 25"x20"x25"
N.W./G.W. 75/106 lbs
