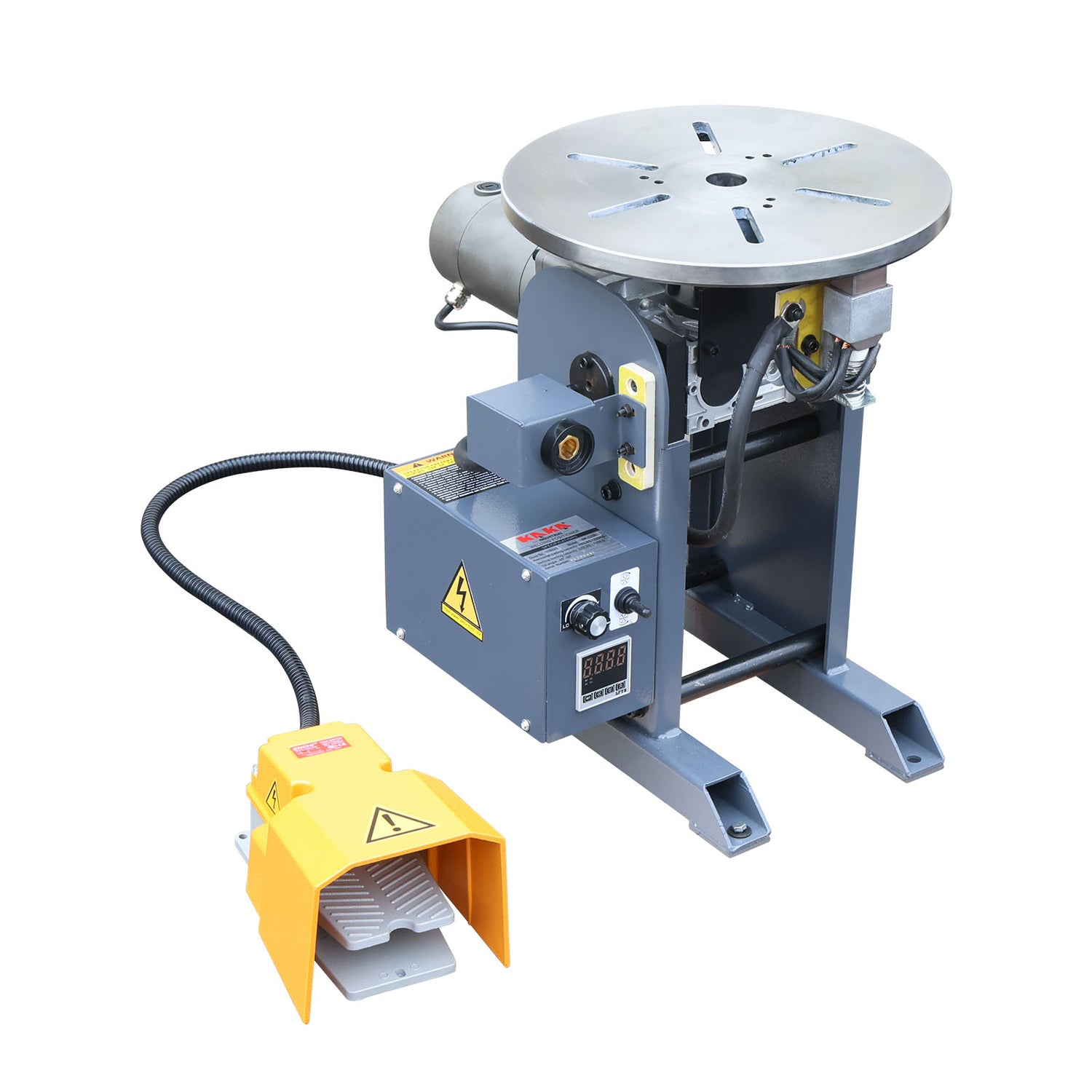

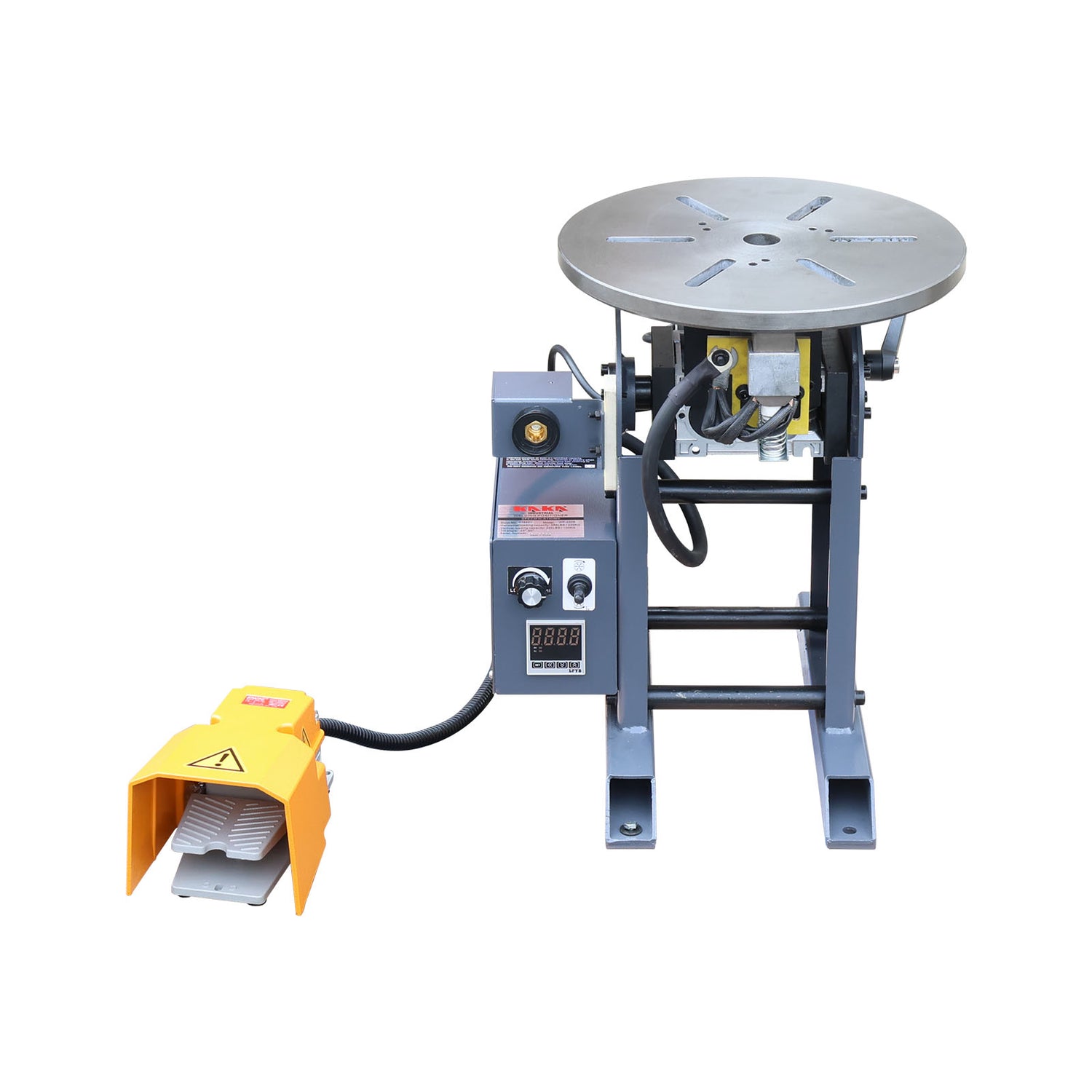

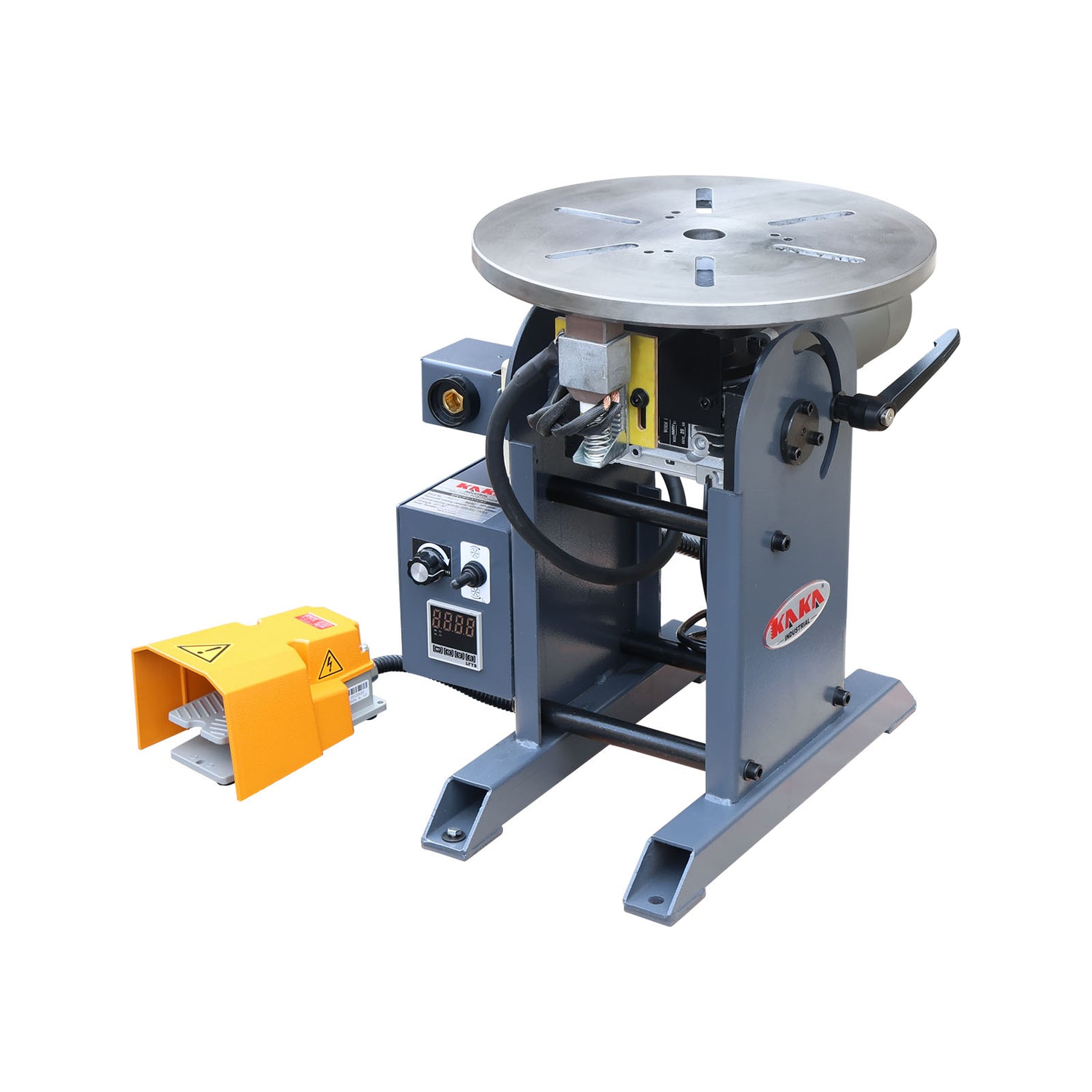

KAKA INDUSTRIAL WP-220B Welding Positioner 485 lbs (220KG) Tilt angle 0-135º Rotation motor 125W Rotation speed 0-6 RPM Stepless Speed Control Welder Positioning Machine 110V-60HZ-1PH
- Horizontal loading capacity:481lbs(220KG)
- Vertical loading capacity:220lbs (100KG)
- Working table diameter/ heigh: 13"/17.7"

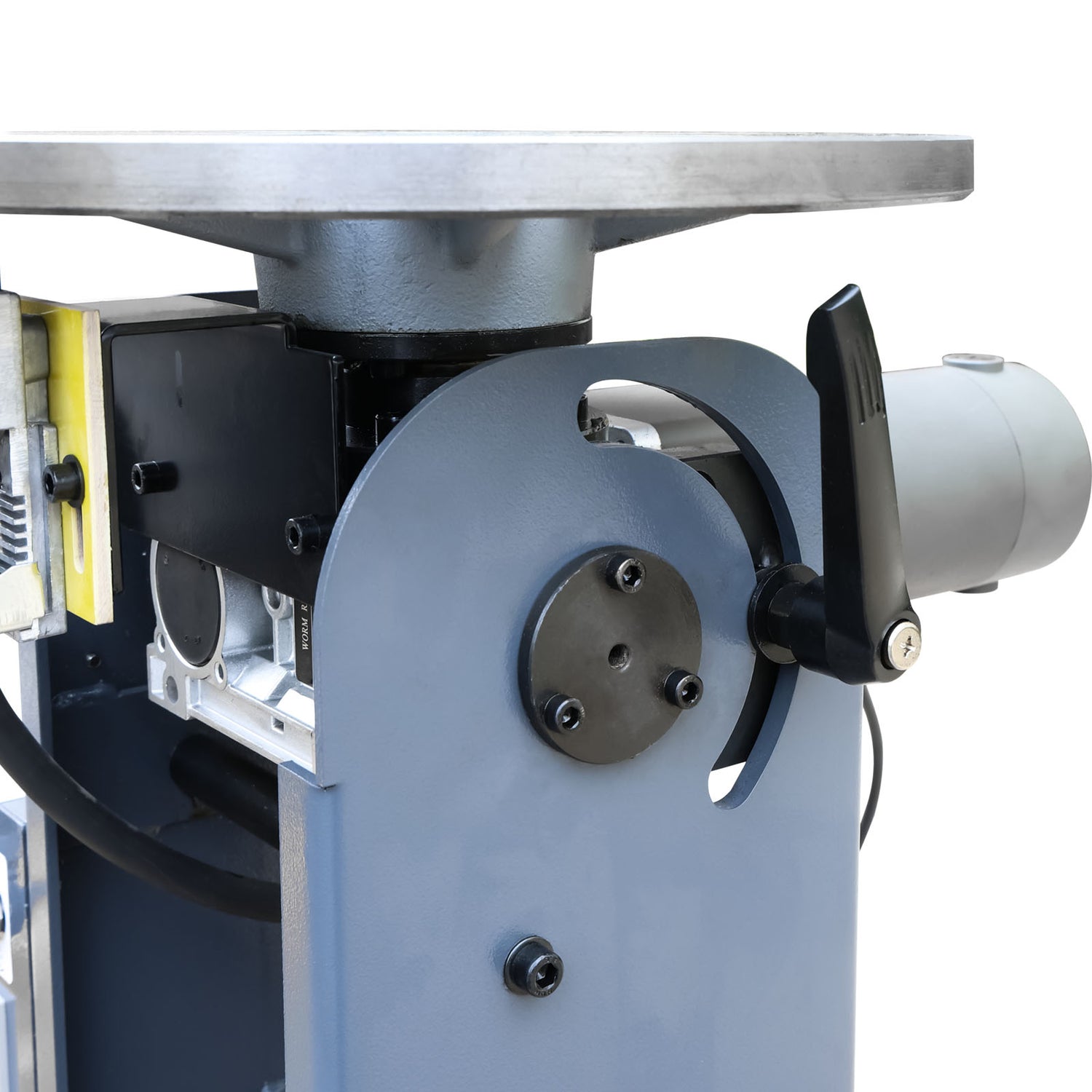

- The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90°. It also can be fixed at any angle you want. Table tilts up to 135° (manual)

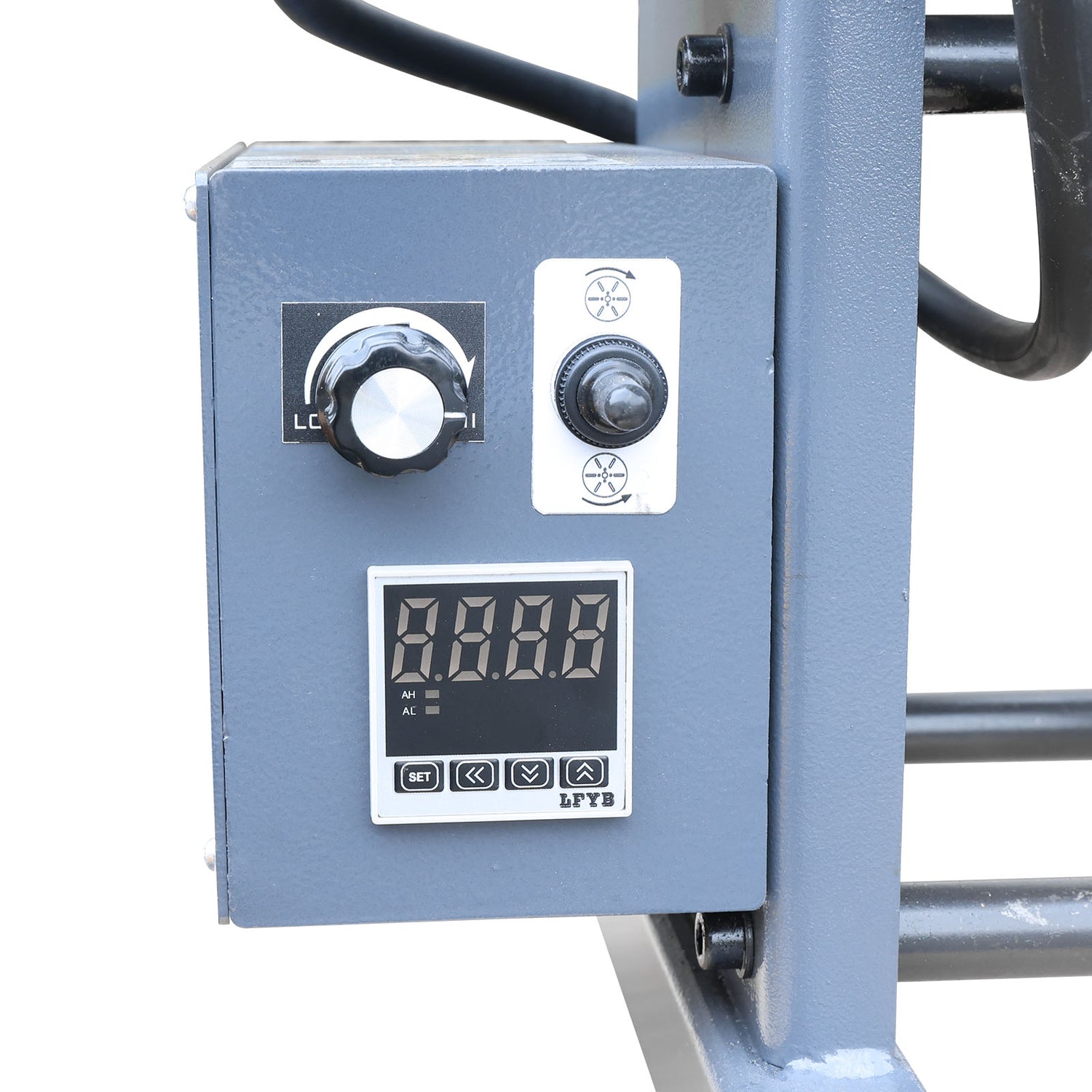

- Using foot switch to control table rotation, the speed is regulated by the knob on the machine(0.5-5r/min stepless speed regulation).
- Slow rotating speed to ensure perfect welding. Time-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.

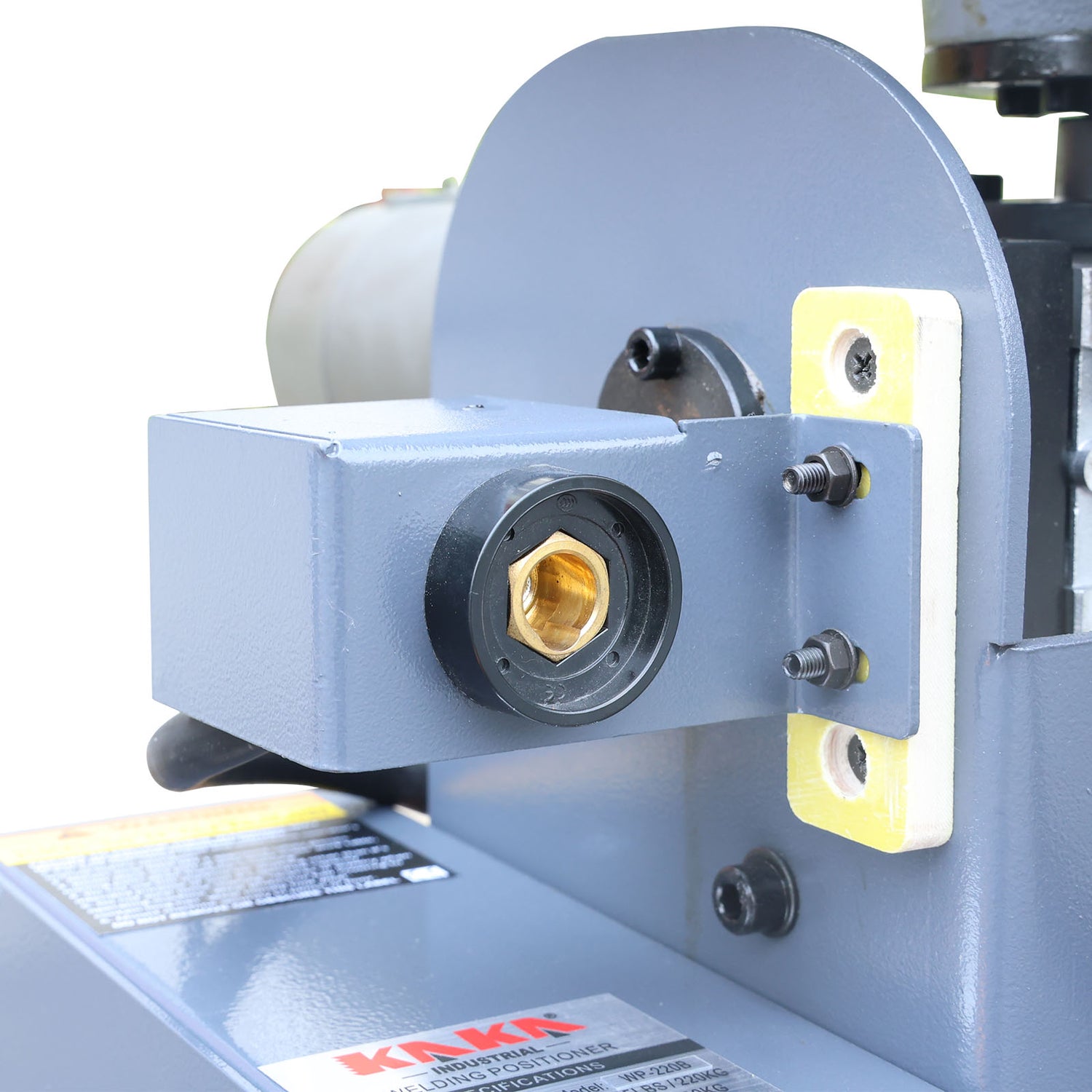

- Single-phase motor, safety earth current from welder is 120A (contact the carbon brush)
Specifications
- Model WP-220B
- Horizontal loading capacity 485 lbs
- Vertical loading capacity 220lbs

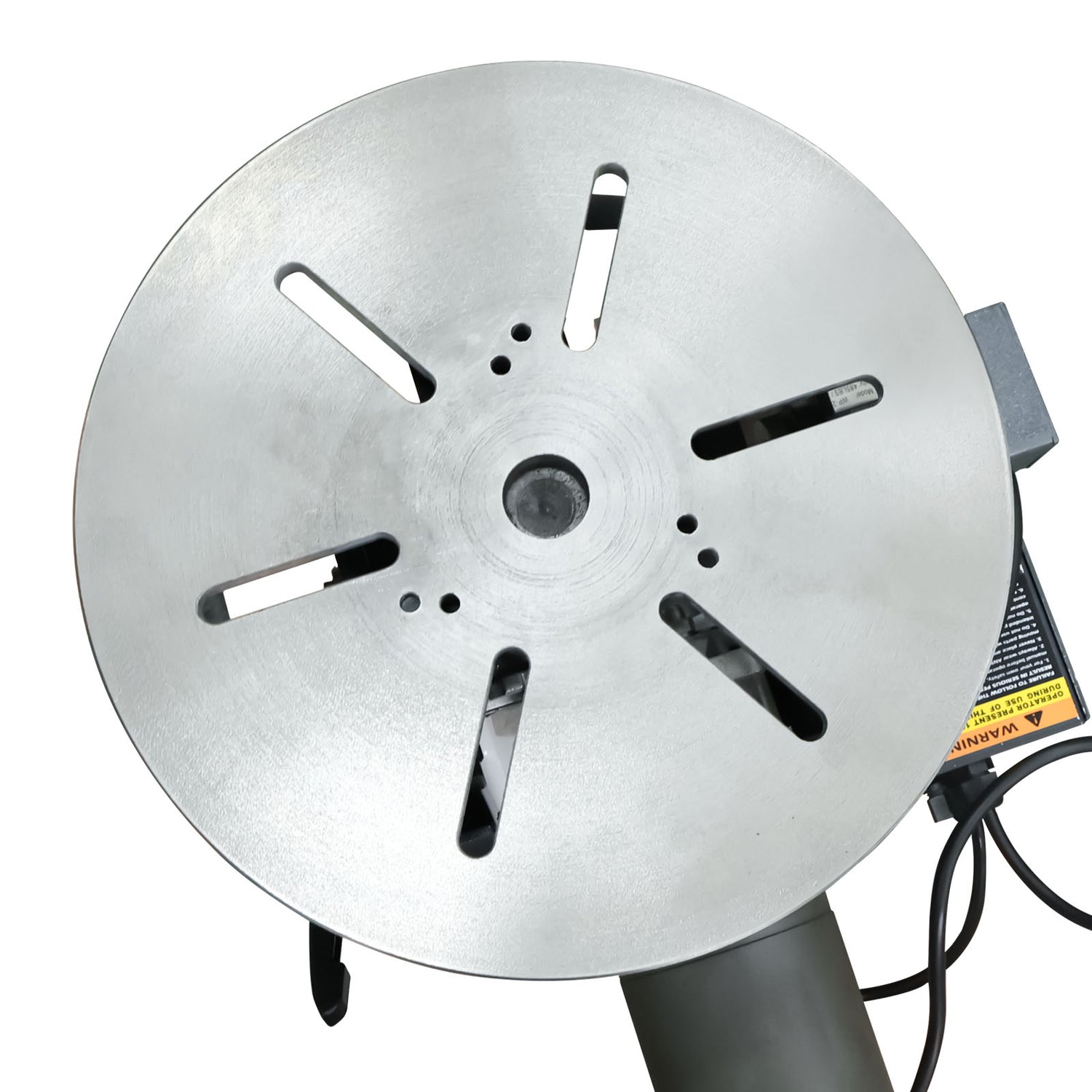

- Table dia. 13"
- Table height 17.7"
- Rotation speed 0-6 rpm
- Tilt angle 0°-135°
- Tilt by Manual

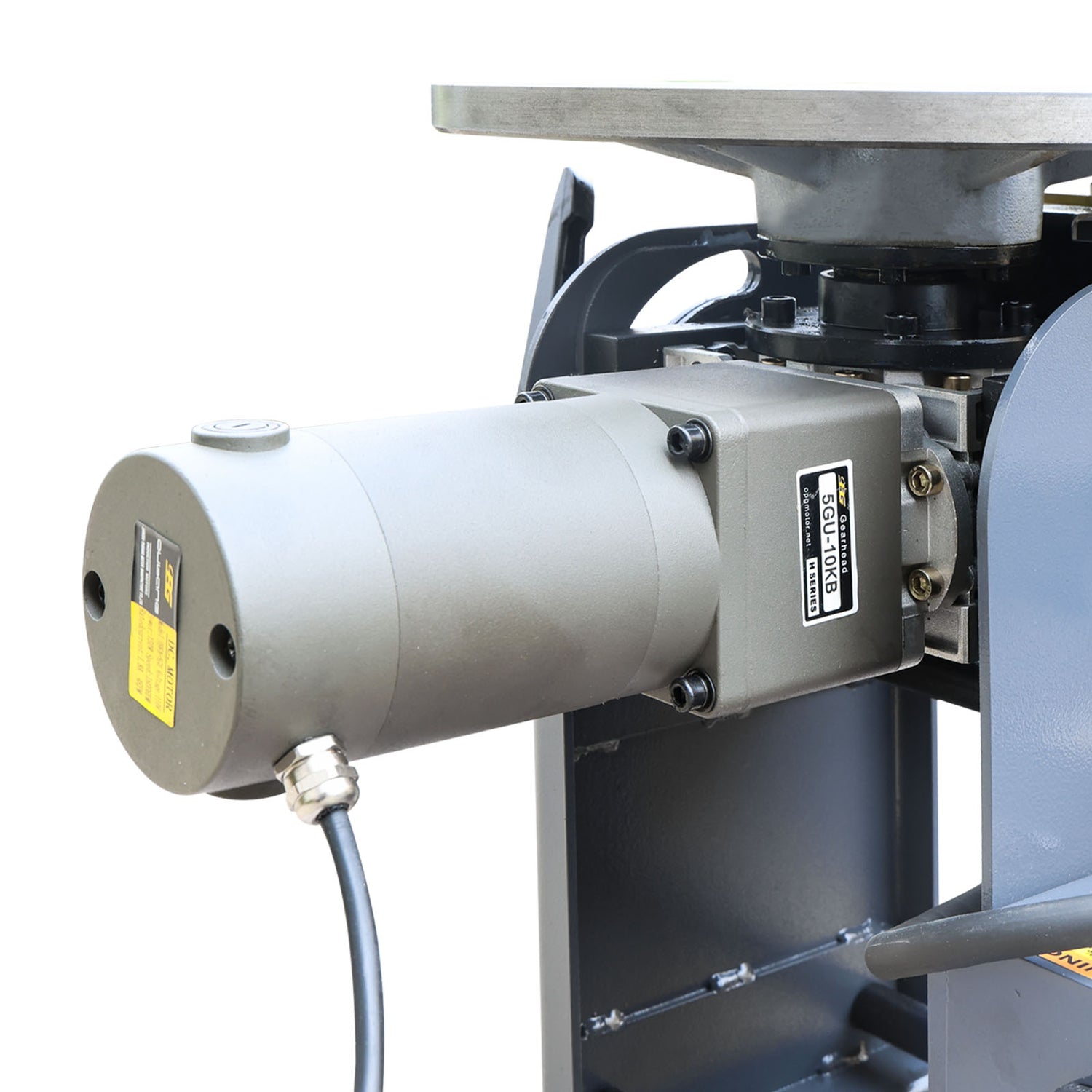

- Rotation motor 125W
- Packing size 25"x20"x25"
- N.W./G.W. 75/106 lbs
