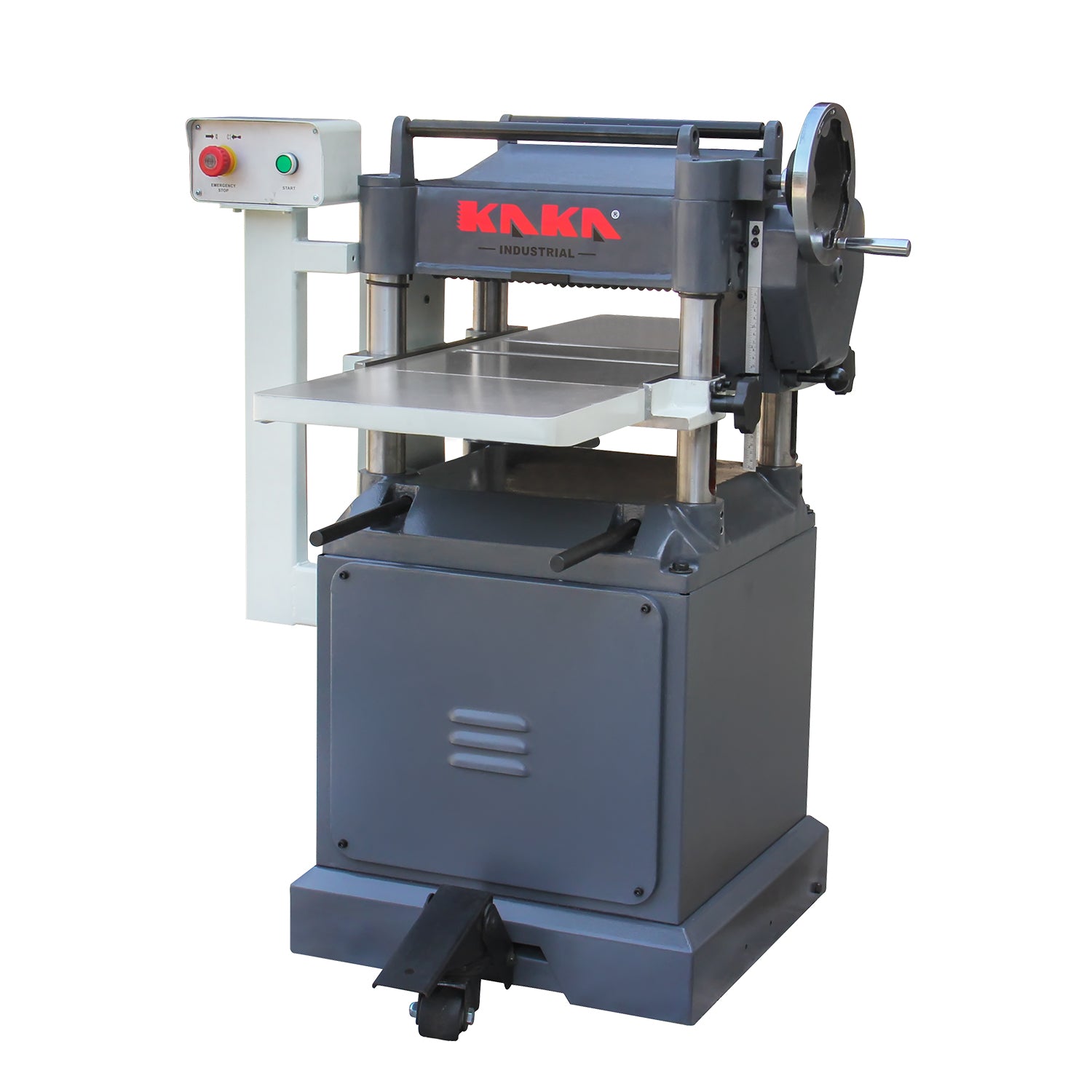

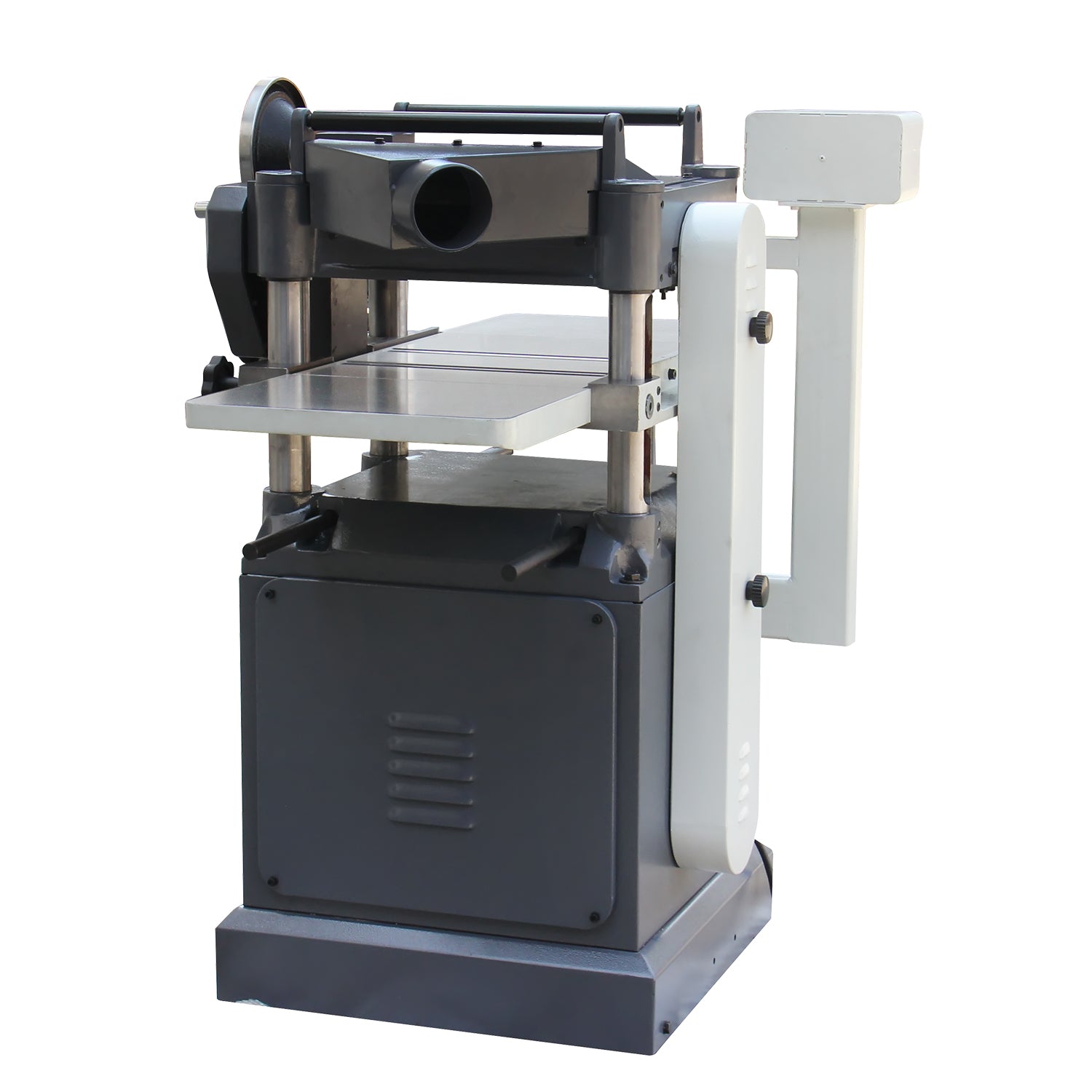

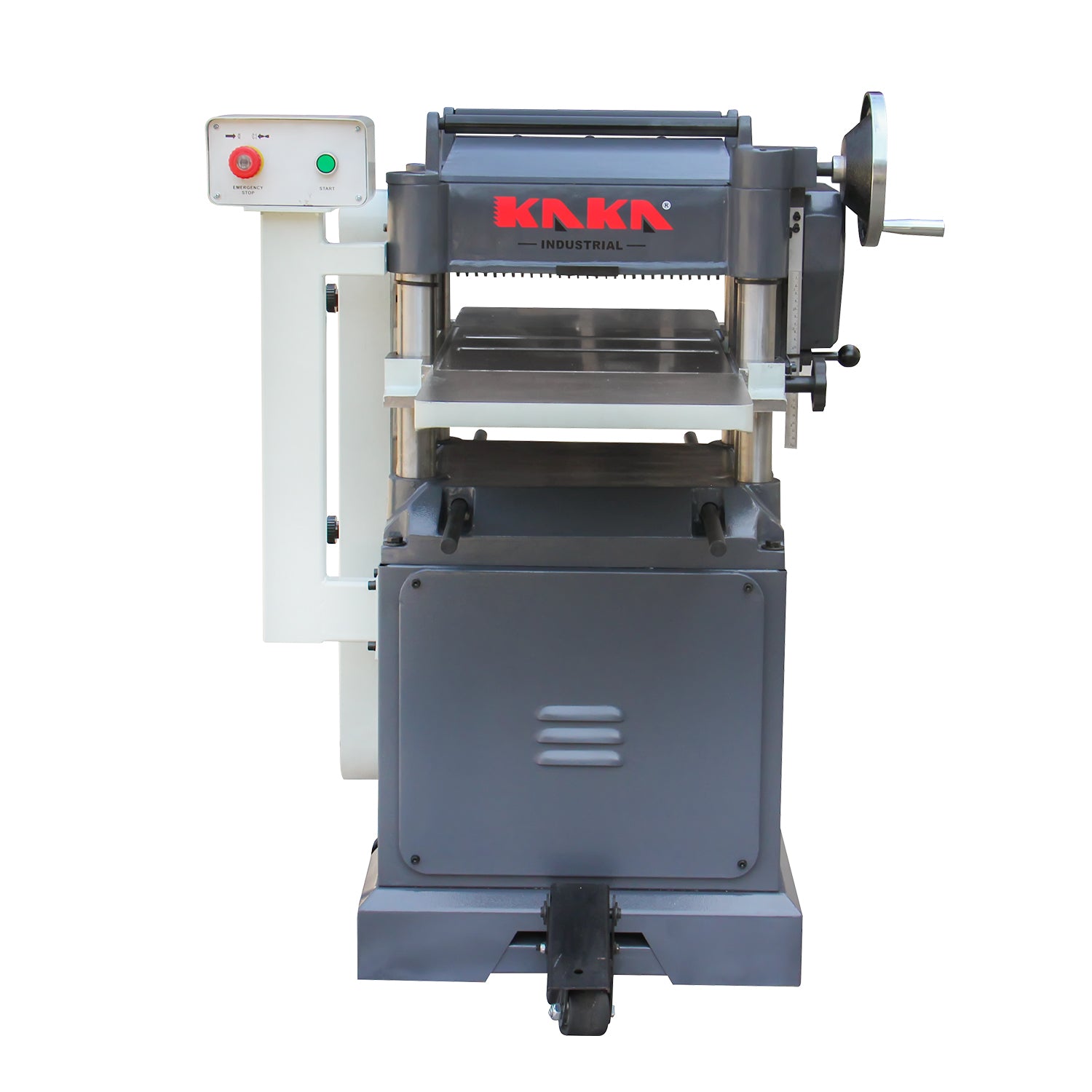

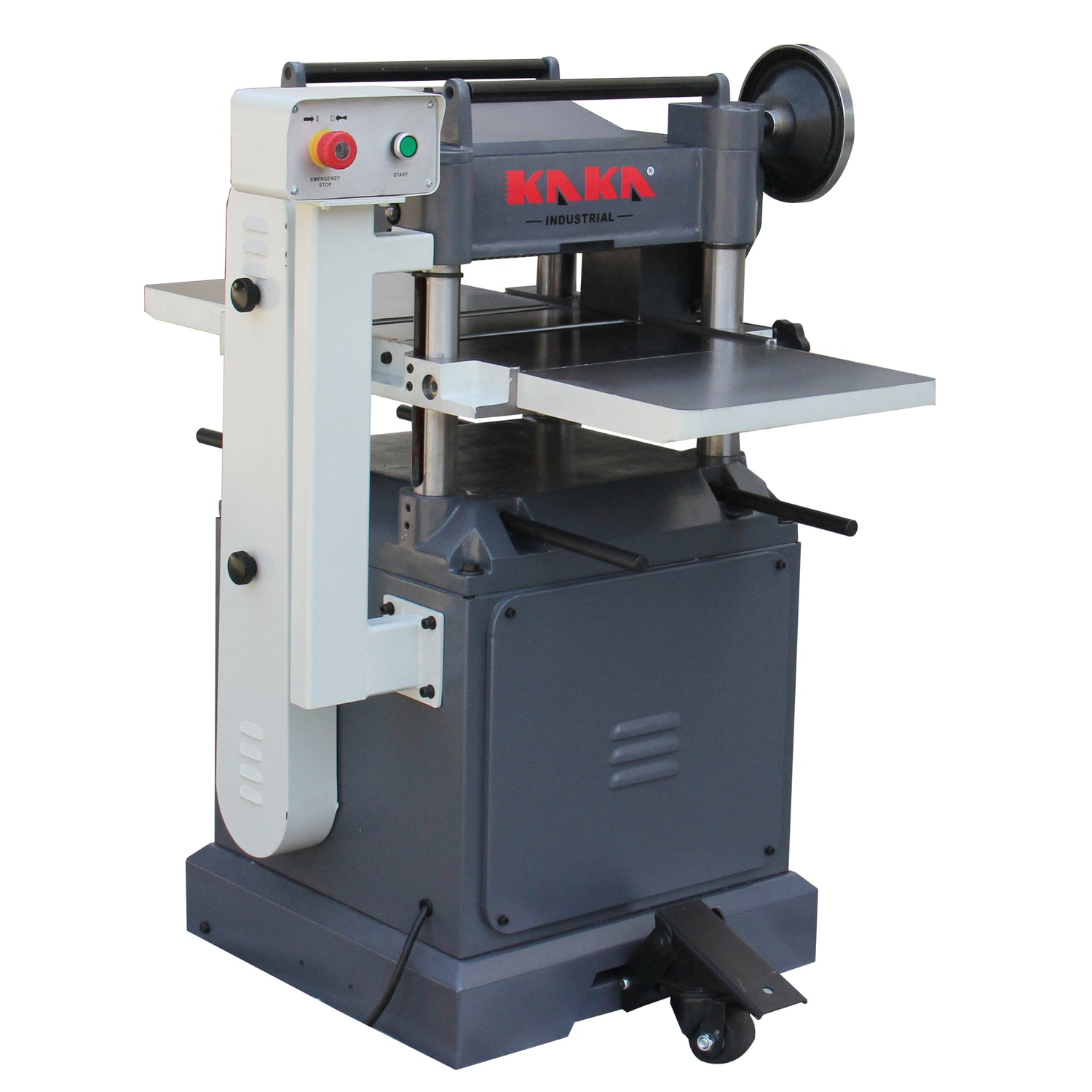

WDP-4215 15" Planer with Spiral Cutterhead

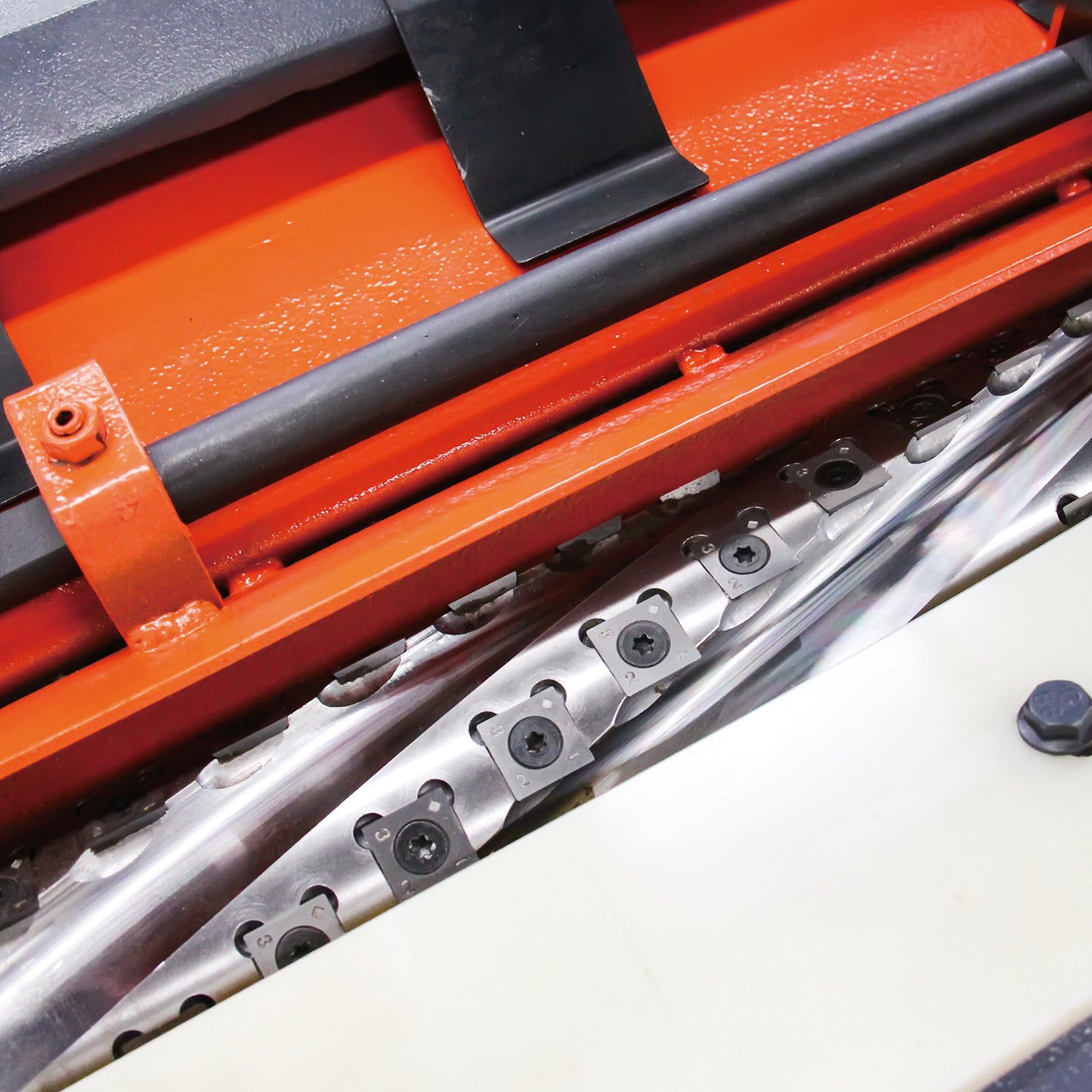

- The 4-row spiral cutterhead with 74 carbide inserts cut some of the finest surface finishes money can buy.
- Each insert can be rotated up to three times to expose a new sharp edge for superior finish.
- Reducing the cut to the size of a single insert makes for a cleaner cut and reduces noise compared to the traditional straight knife cut.
- The 1 HP motor spins the cutterhead at 4800 RPM to plane your stock up to 15" wide by 8" thick, cutting as deep as 1/8" per pass.
- Additionally, features a built-in mobile base, adjustable bed rollers, two-speed automatic board feed, and solid cast-iron extension wings.
SPECIFICATIONS:
MODEL:WDP-4215
Maximum stock width: 15"
Motor: 1 HP, 220V, single-phase, 15A
Minimum stock thickness: 3/16"
Maximum stock thickness: 8"
Minimum stock length: 8"
Maximum cutting depth: 1/8"
Cutterhead diameter: 3"
Cutterhead type: 4-row spiral, 74 inserts
Cutterhead speed: 4750 RPM
Feed rate: 31 & 54 FPM
Table size with extensions: 42"X15"

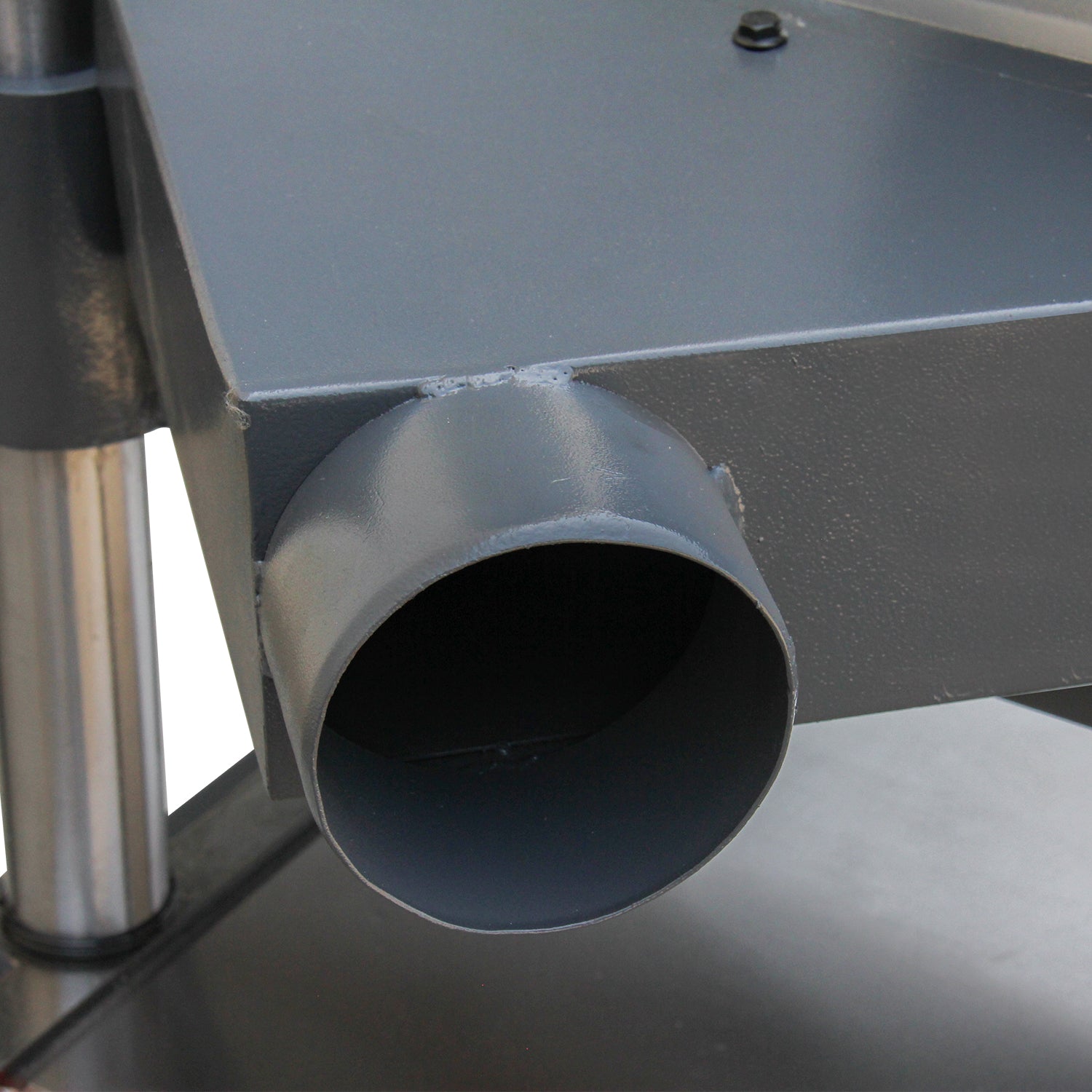

Dust port size: 4"
Footprint: 22" x 22-1/2"
Overall dimensions: 37" W x 29" D x 41" H
Approx. shipping weight: 685 lbs.
KAKA Industrial provides 12 months warranty for this product.
