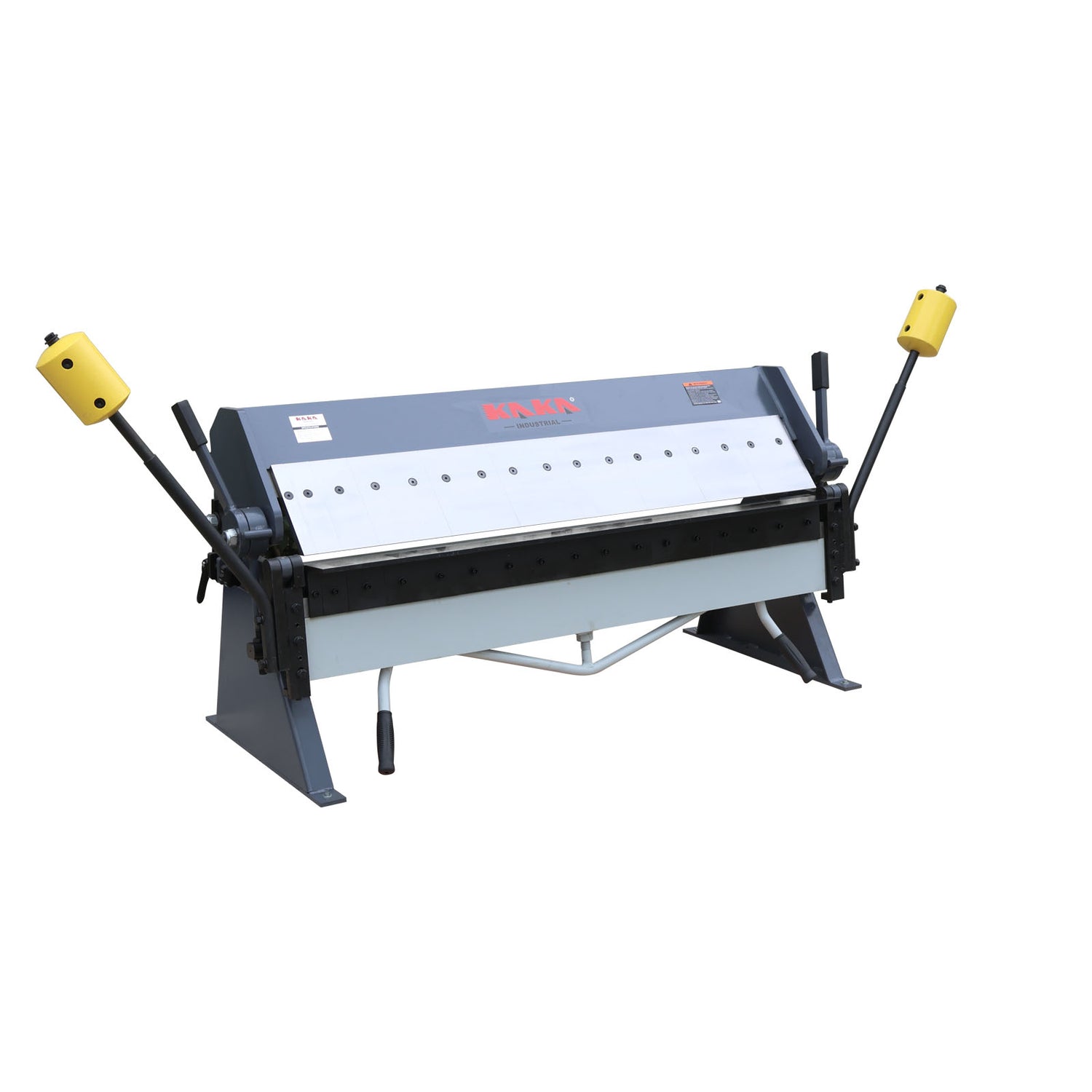

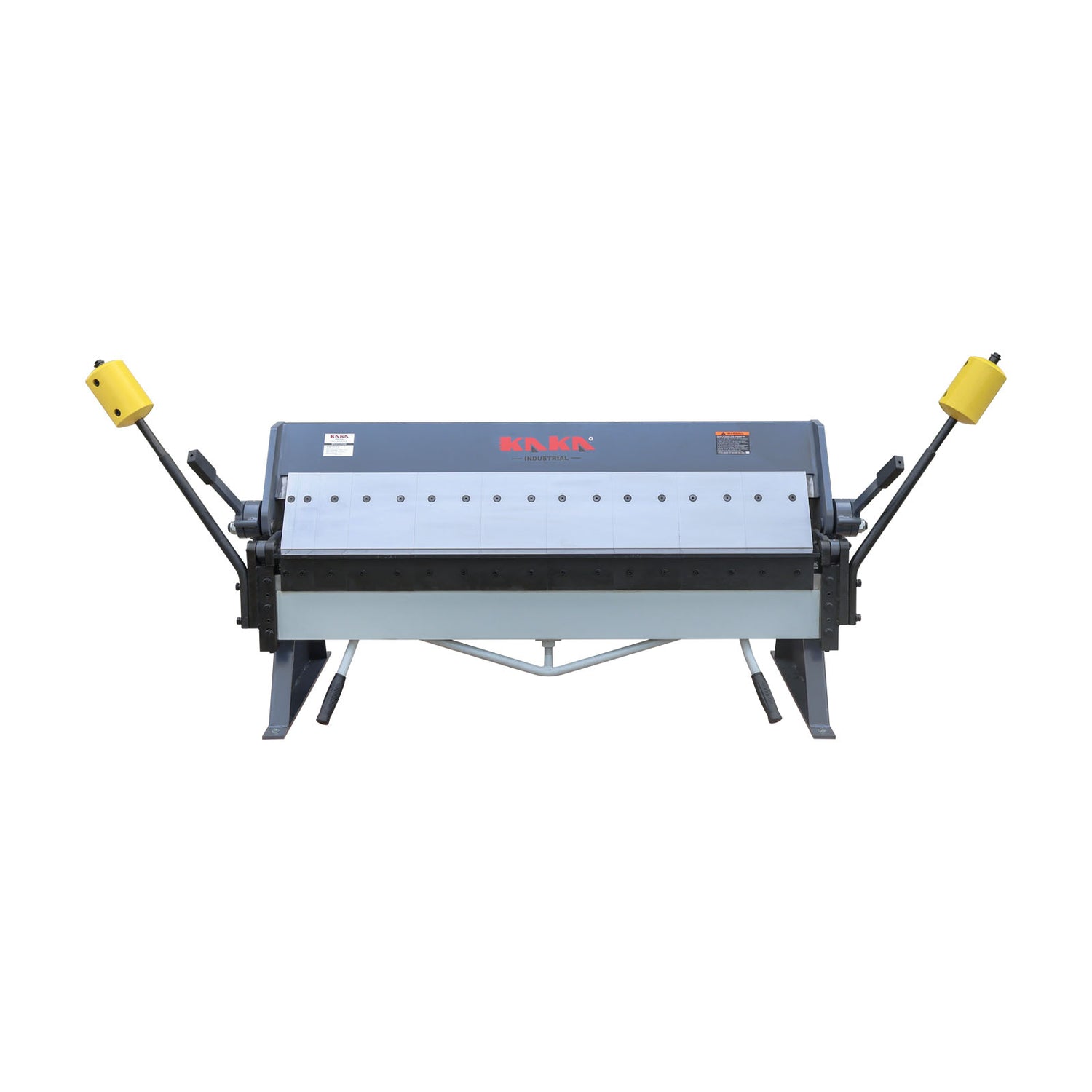

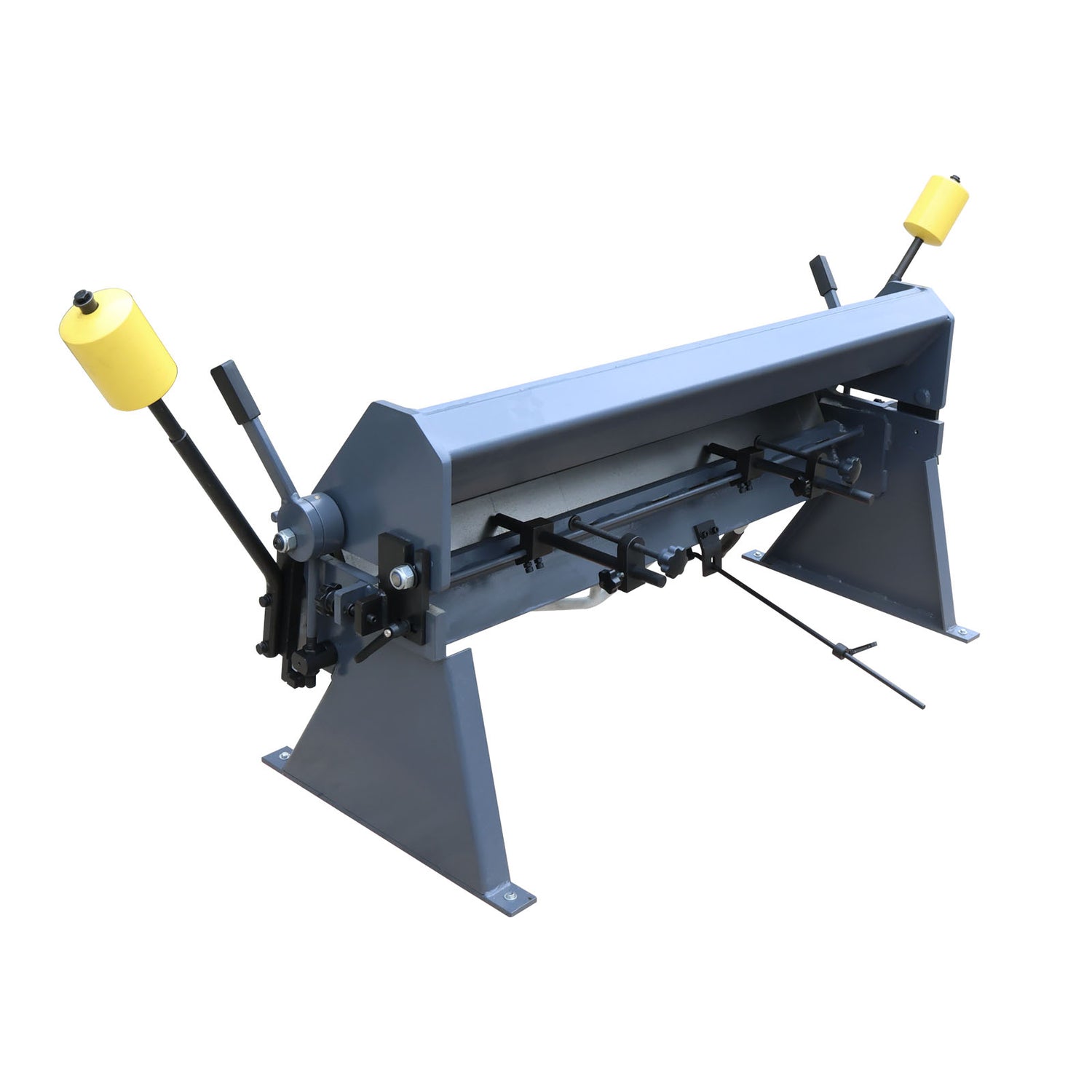

KAKA INDUSTRIAL Ultra 48 inch Box and Pan Brake, 16 Gauge (1.5mm) Mild Steel Capacity, 3-Segment Finger Design with Precision Knob Adjustment & Rear Stops,3.35" (85mm) Max Box Depth XW-4816
Features

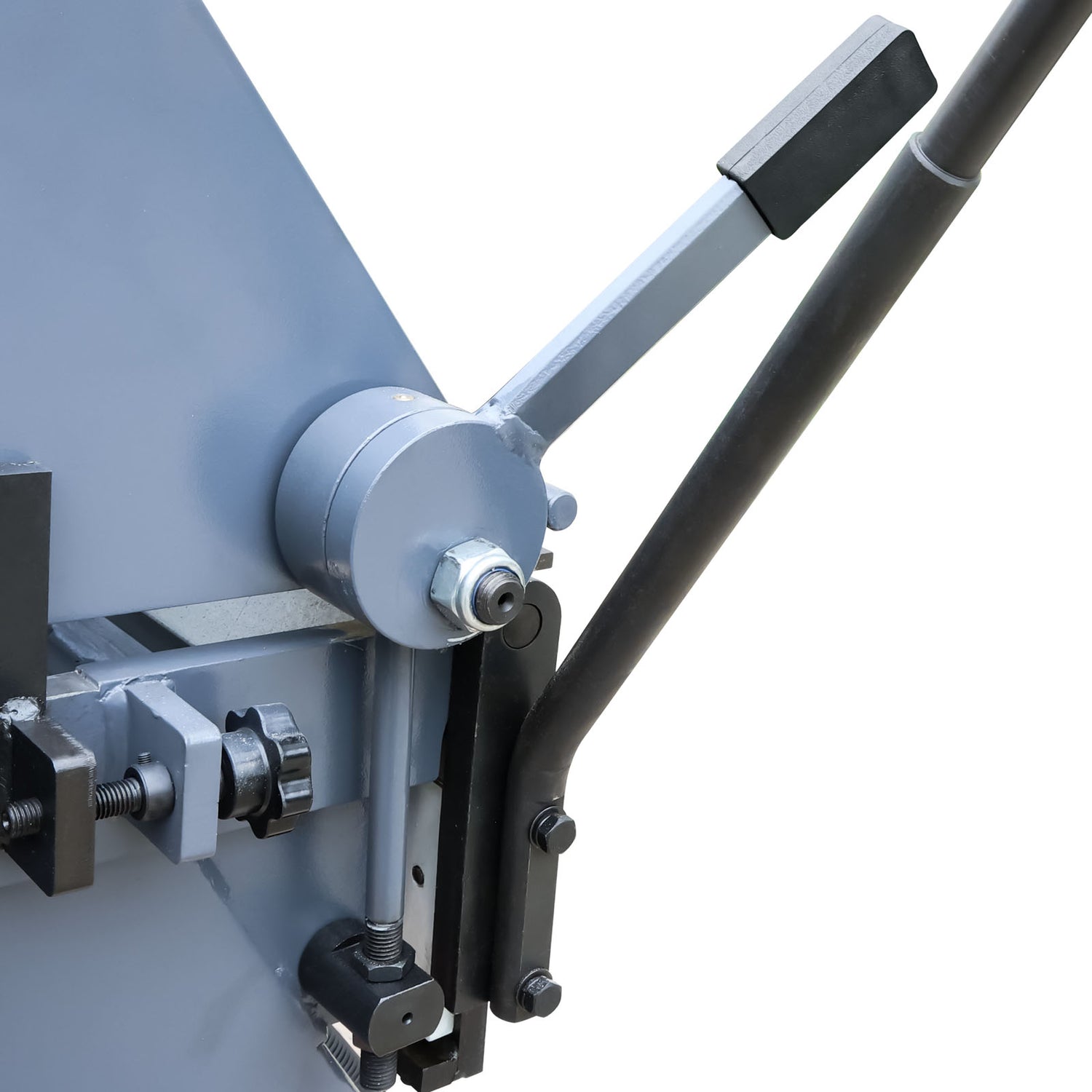

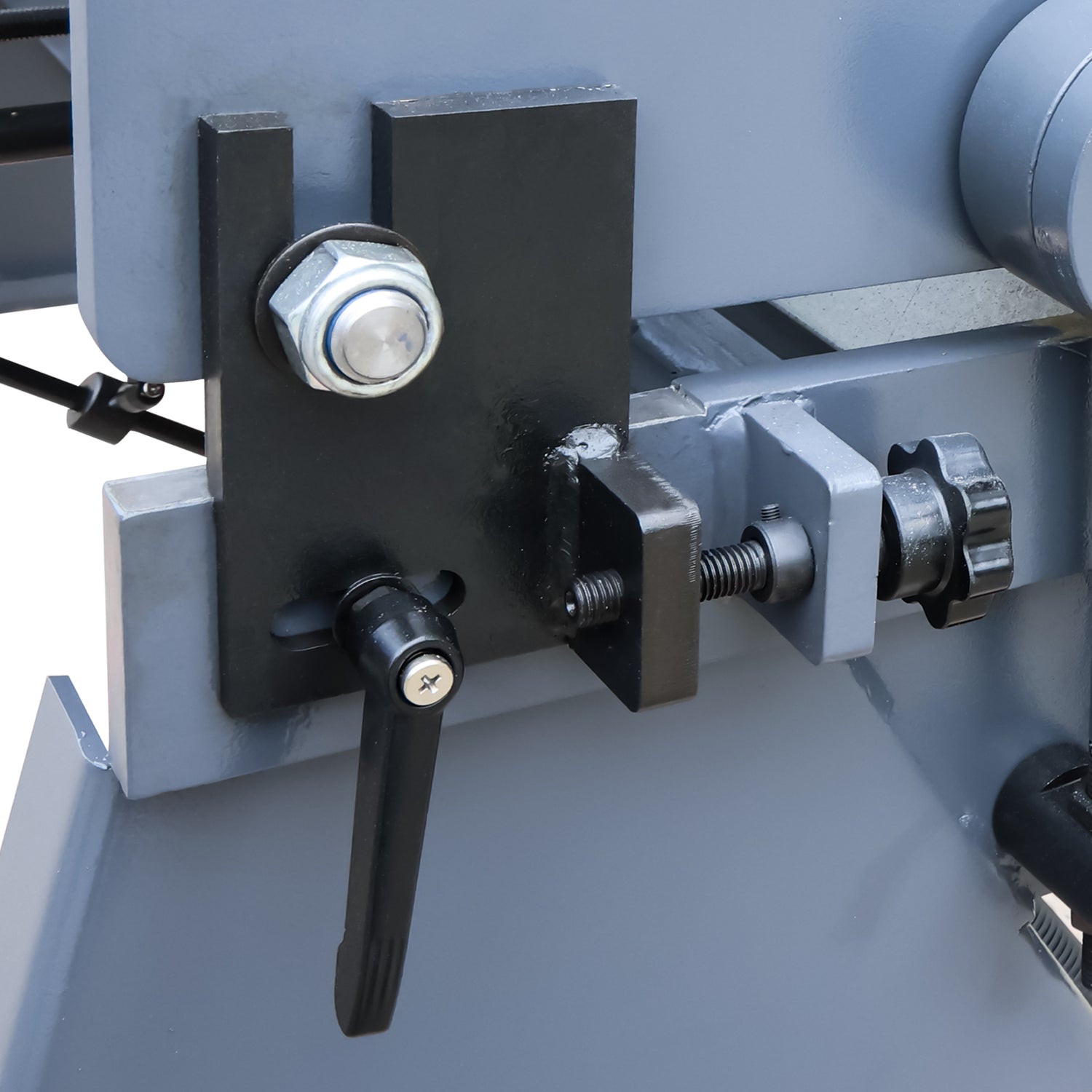

Precision Control & Heavy-Duty Construction - Achieve millimeter-level accuracy with the intuitive knob-type blade gap adjustment system. The reinforced, thickened steel body ensures exceptional stability and durability, easily bending 16 Gauge (1.5mm) mild steel across the full 48" (1220mm) working length.

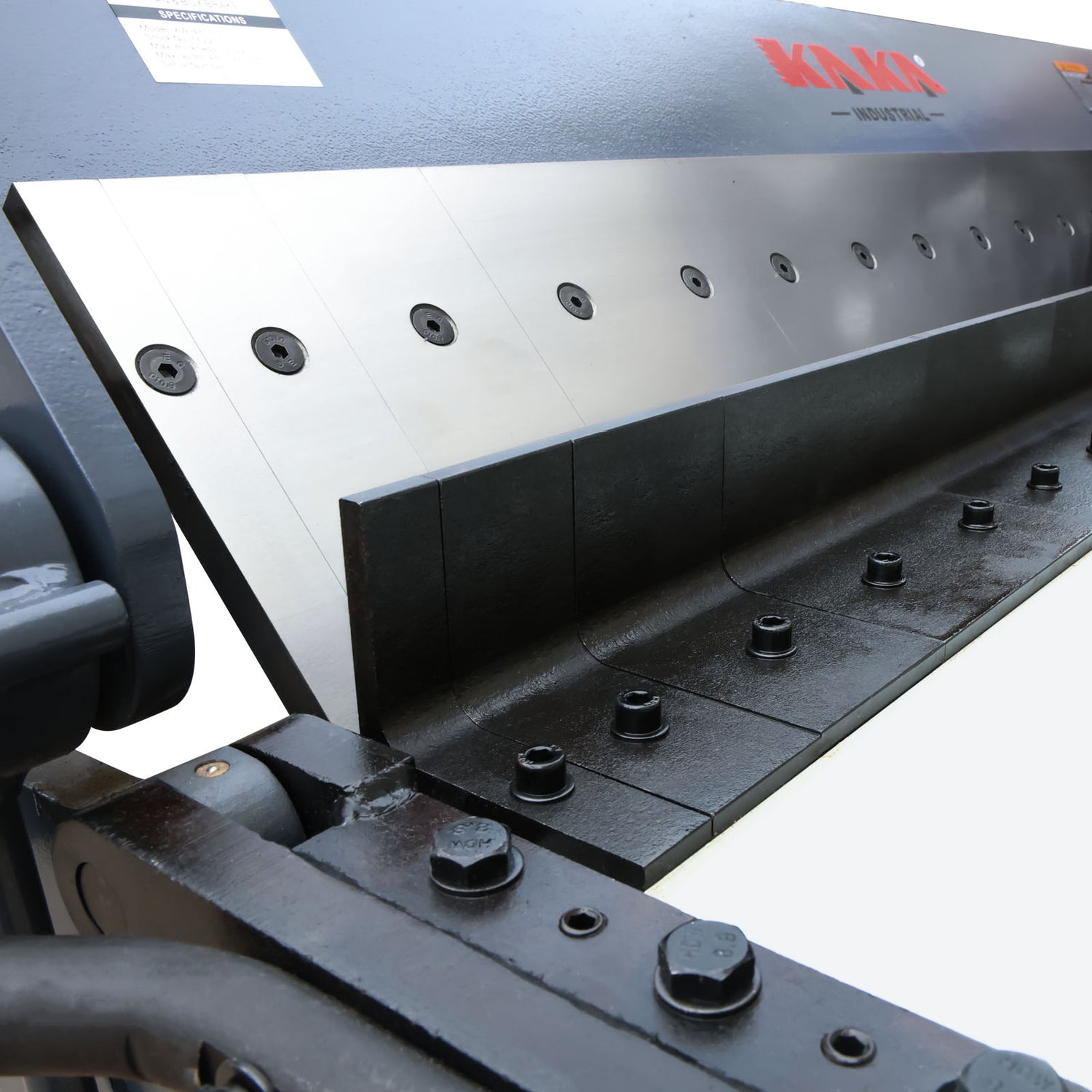

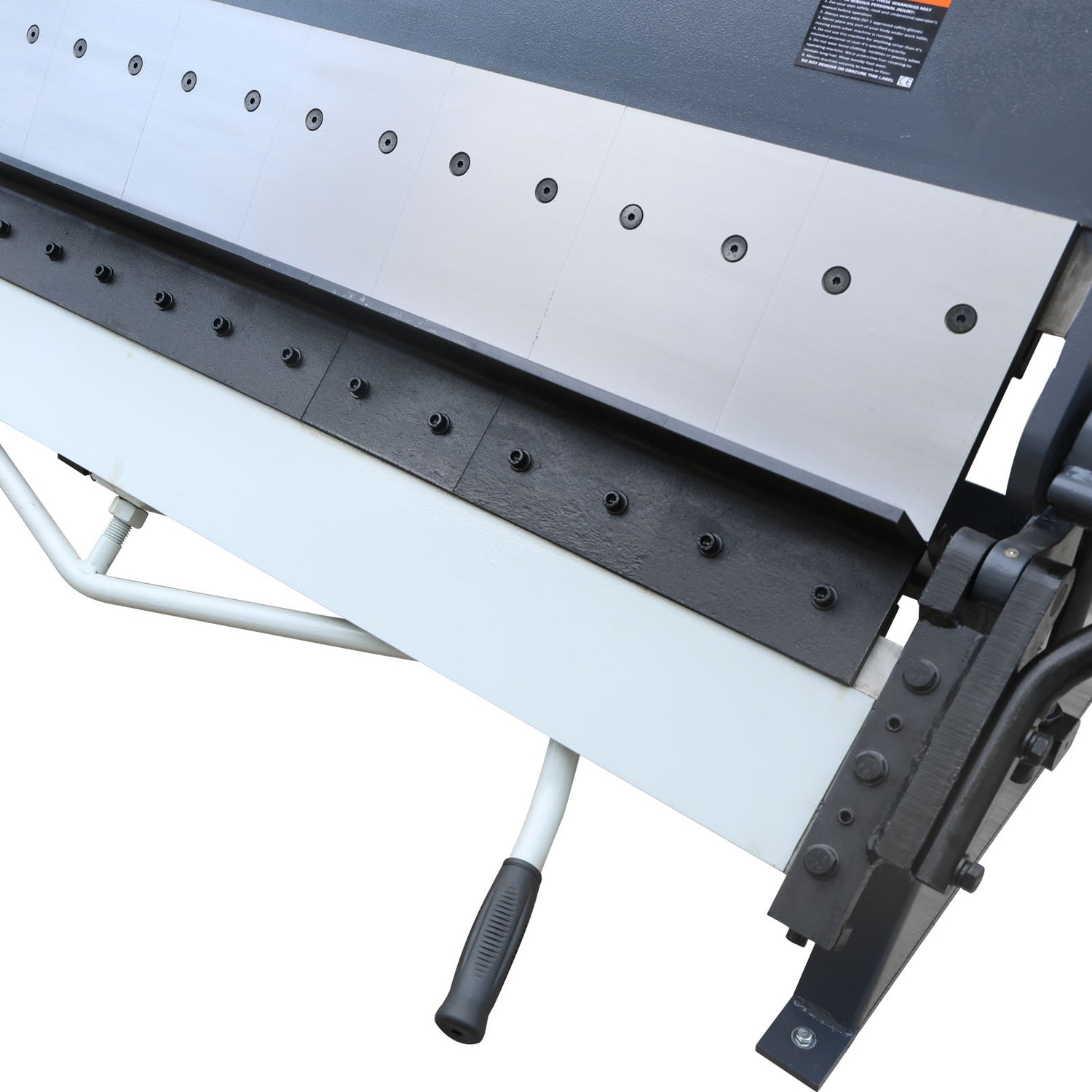

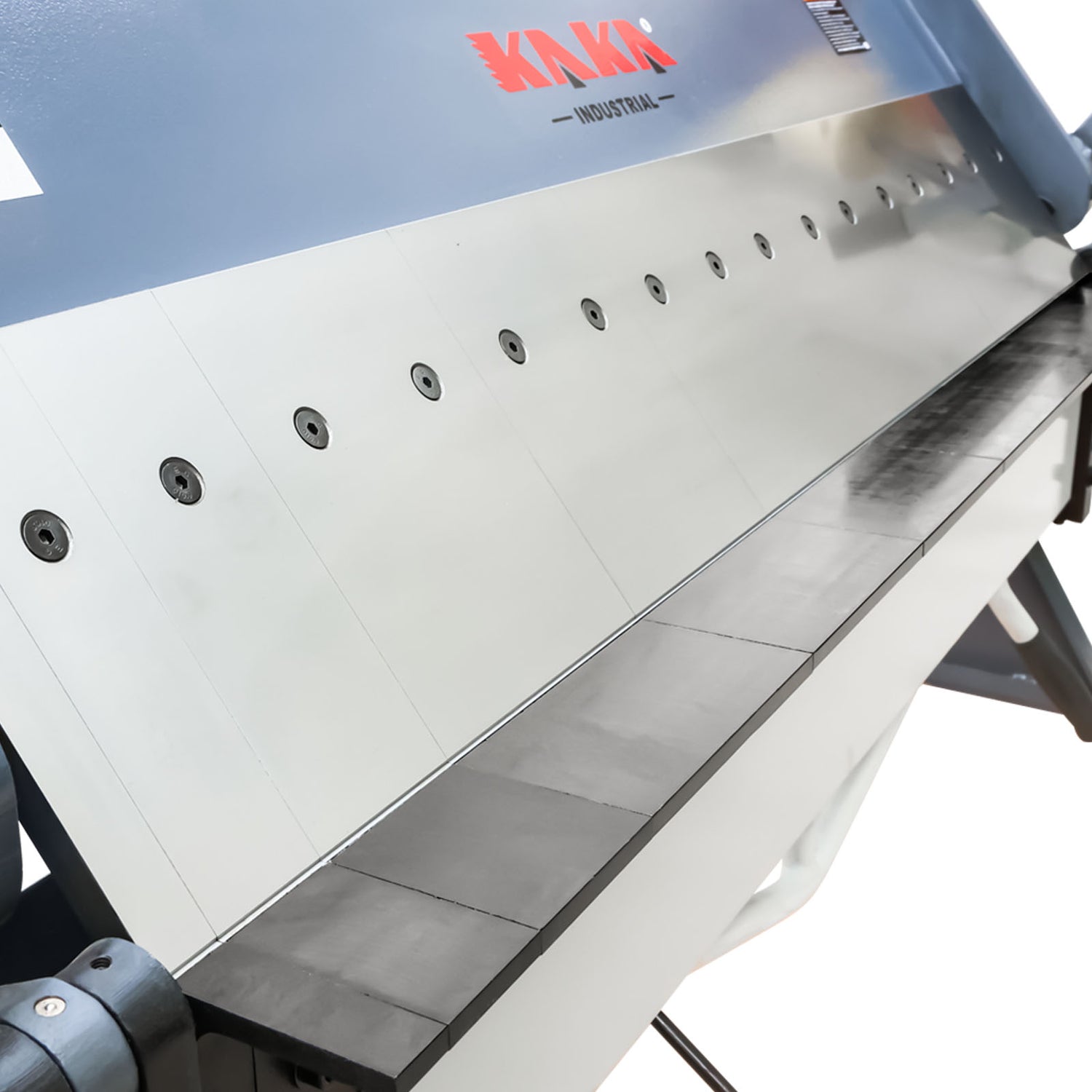

Complete Finger Set & Deep Box Capacity - Ready for diverse projects right out of the crate, with a full set of interchangeable upper fingers: 7x 5", 1x 3", 1x 2", and 1x 1". Form deep boxes and pans effortlessly, with a maximum box depth of 3.35" (85mm) to meet various fabrication needs.

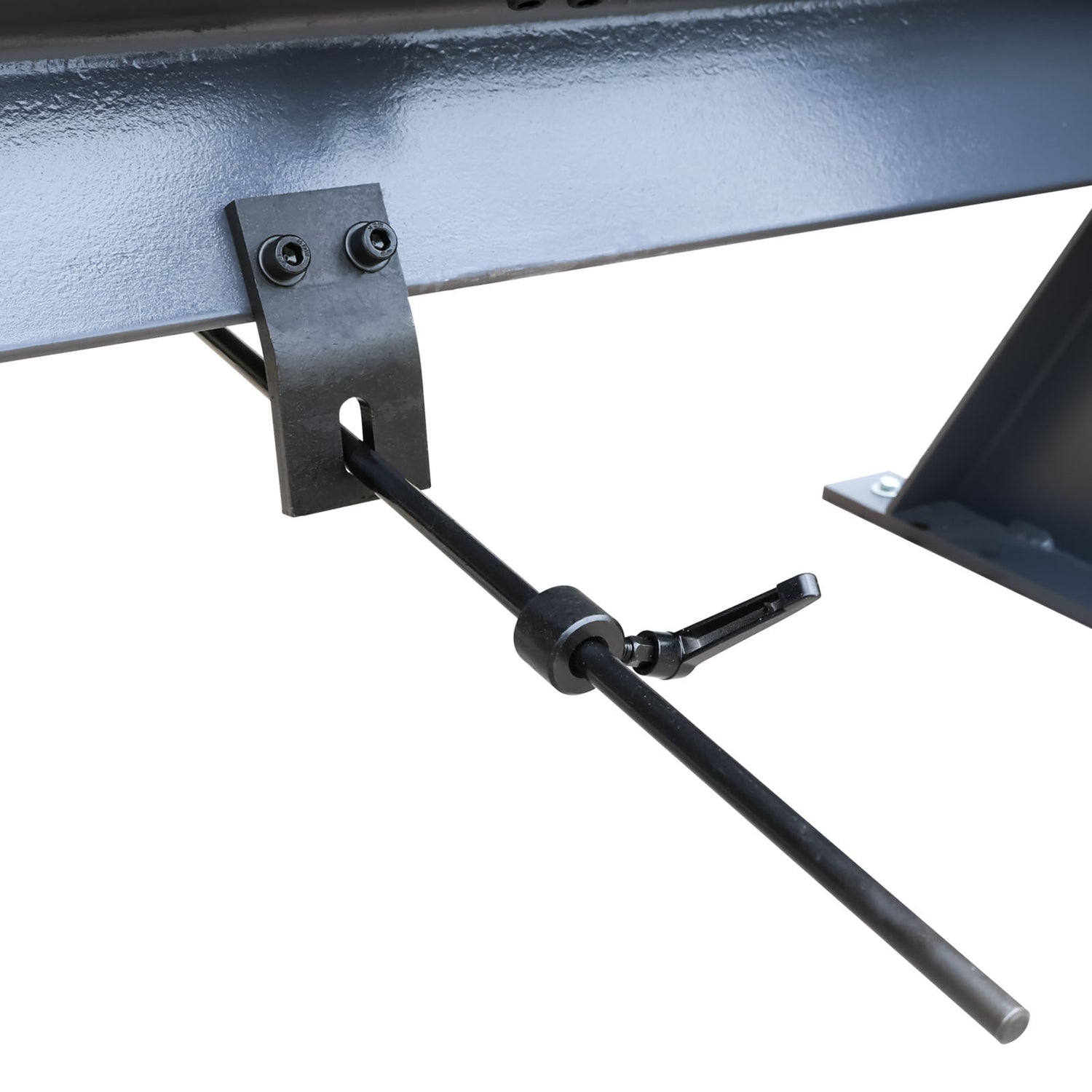

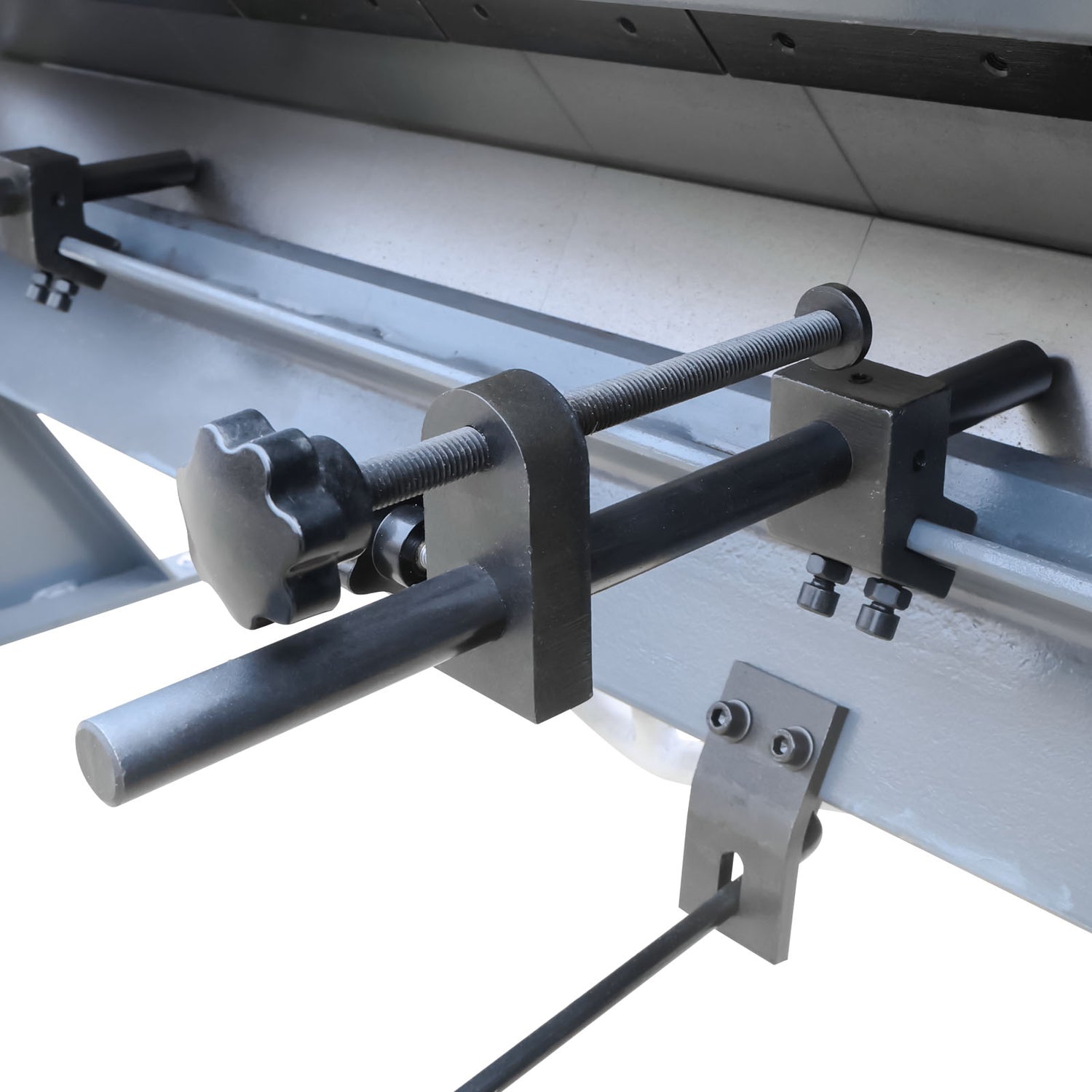

Enhanced Bending Accuracy & Repeatability - Ensure consistent, high-quality results with the built-in bending angle limiter and adjustable rear stop (max 17.5"/445mm). Supports a bending angle range of 0° to 125°, suitable for both simple and complex bends requiring reliable repeatability.
Ready for Your Workshop
This machine is built to last and arrives safely packed in a robust wooden crate. It is the ideal solution for precision metalworking, from custom prototypes to small-batch production runs, helping you elevate your fabrication efficiency and quality.
Specifications
| Max. Bending Thickness | 16 Gauge (1.5 mm) – Mild Steel |
| Bending Length | 48" (1220 mm) |
| Max. Box Depth | 3.35" (85 mm) |
| Bending Angle Range | 0° to 125° |
| Max. Rear Stop Distance | 17.5" (445 mm) |
| Upper Fingers Included | 5" (7 pieces), 3" (1 piece), 2" (1 piece), 1" (1 piece) |
| Machine Dimensions (L × W × H) | 81.7" × 24.8" × 32.1" (2075 × 630 × 815 mm) |
| Packaging (Wooden Crate) | 62.2" × 24.4" × 32.3" (1580 × 620 × 820 mm) |
| Weight | Net 551 lbs (250 kg) / Gross 573 lbs (260 kg) |
