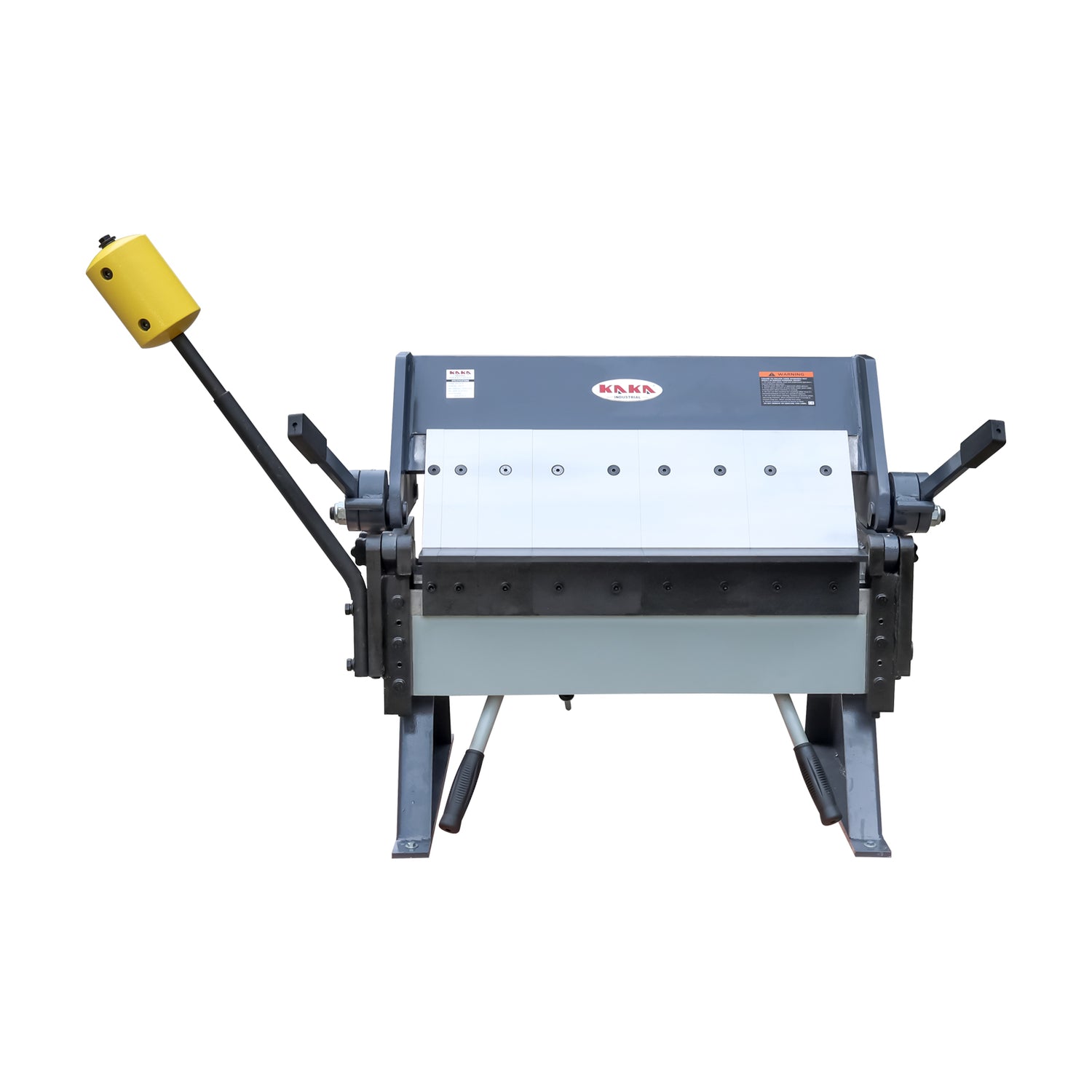

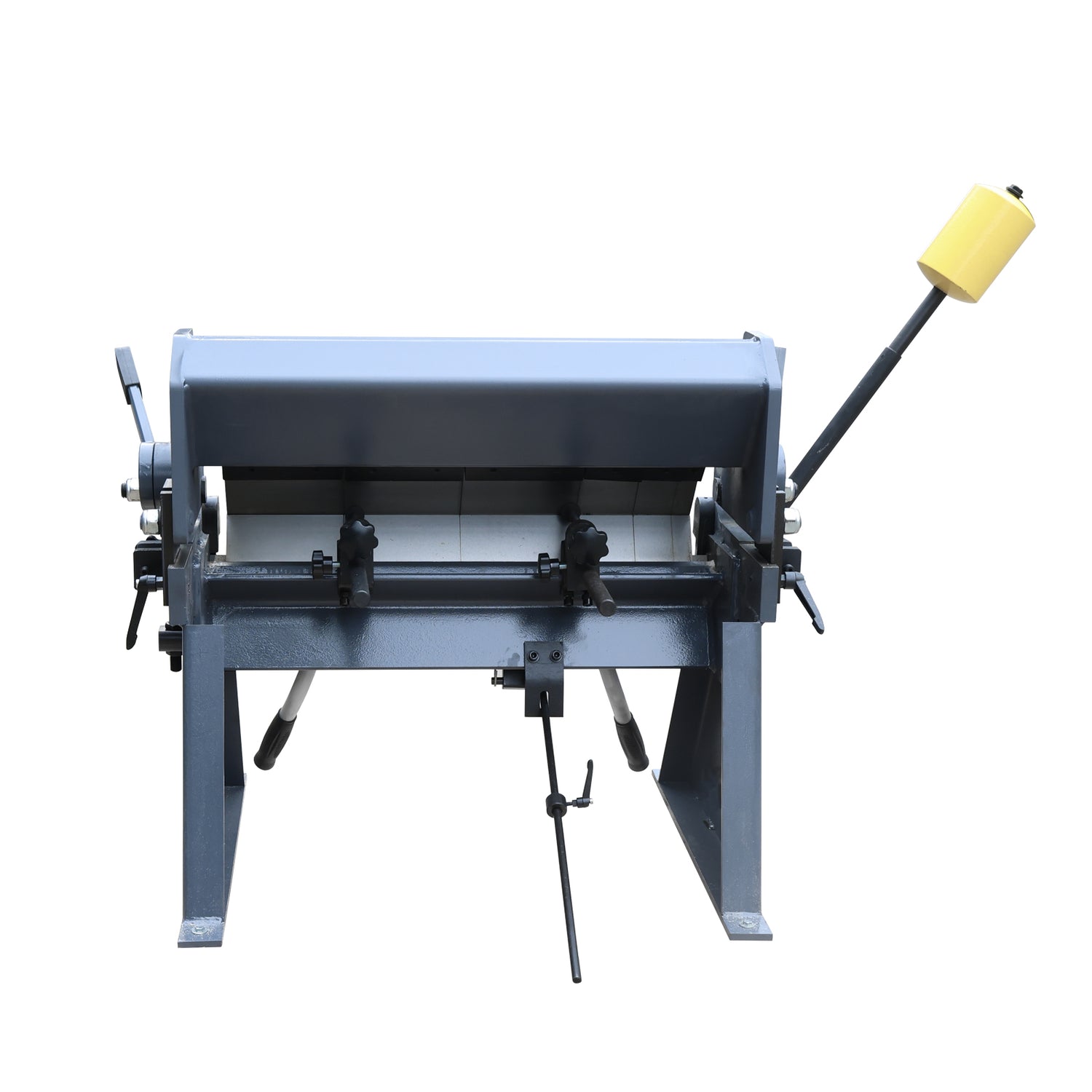

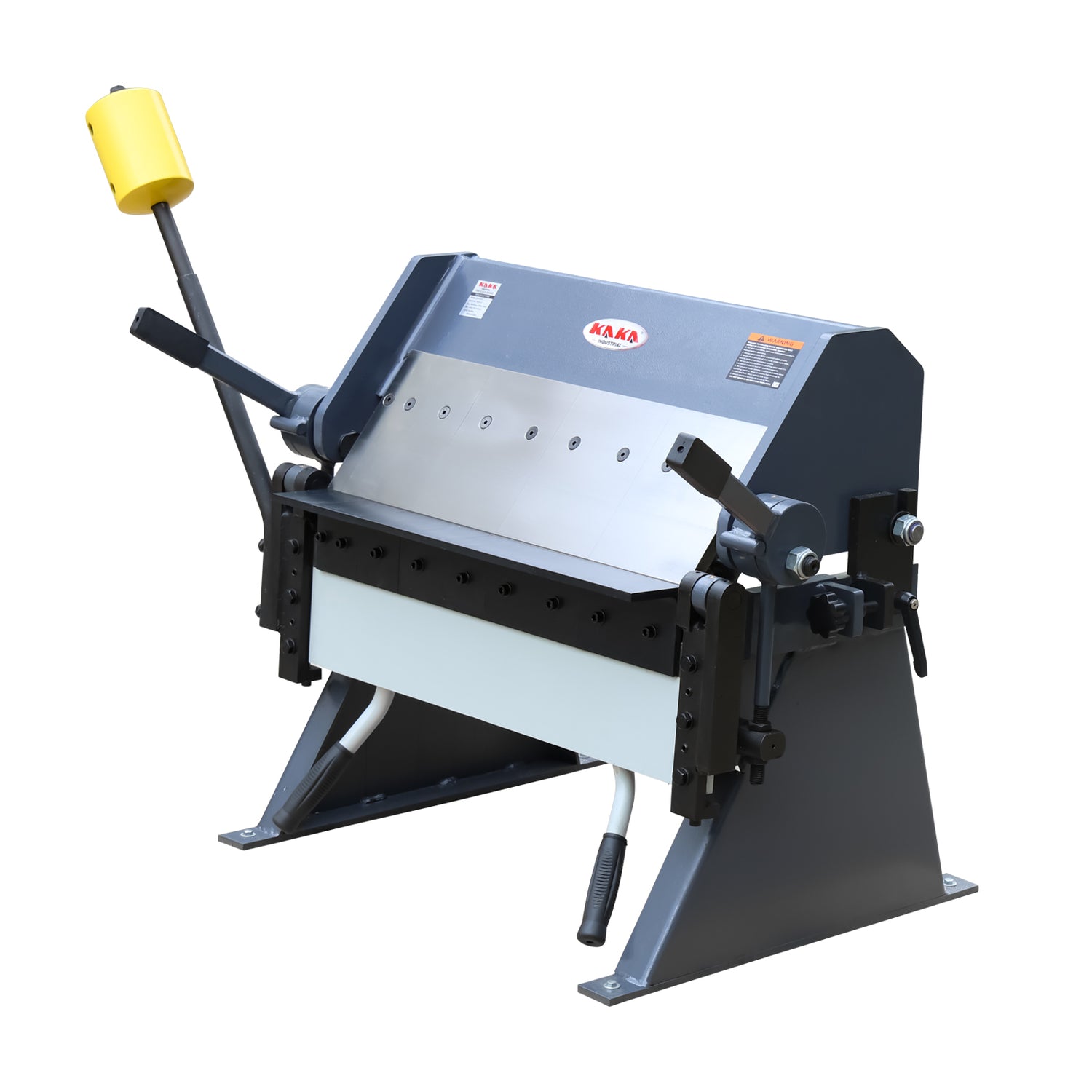

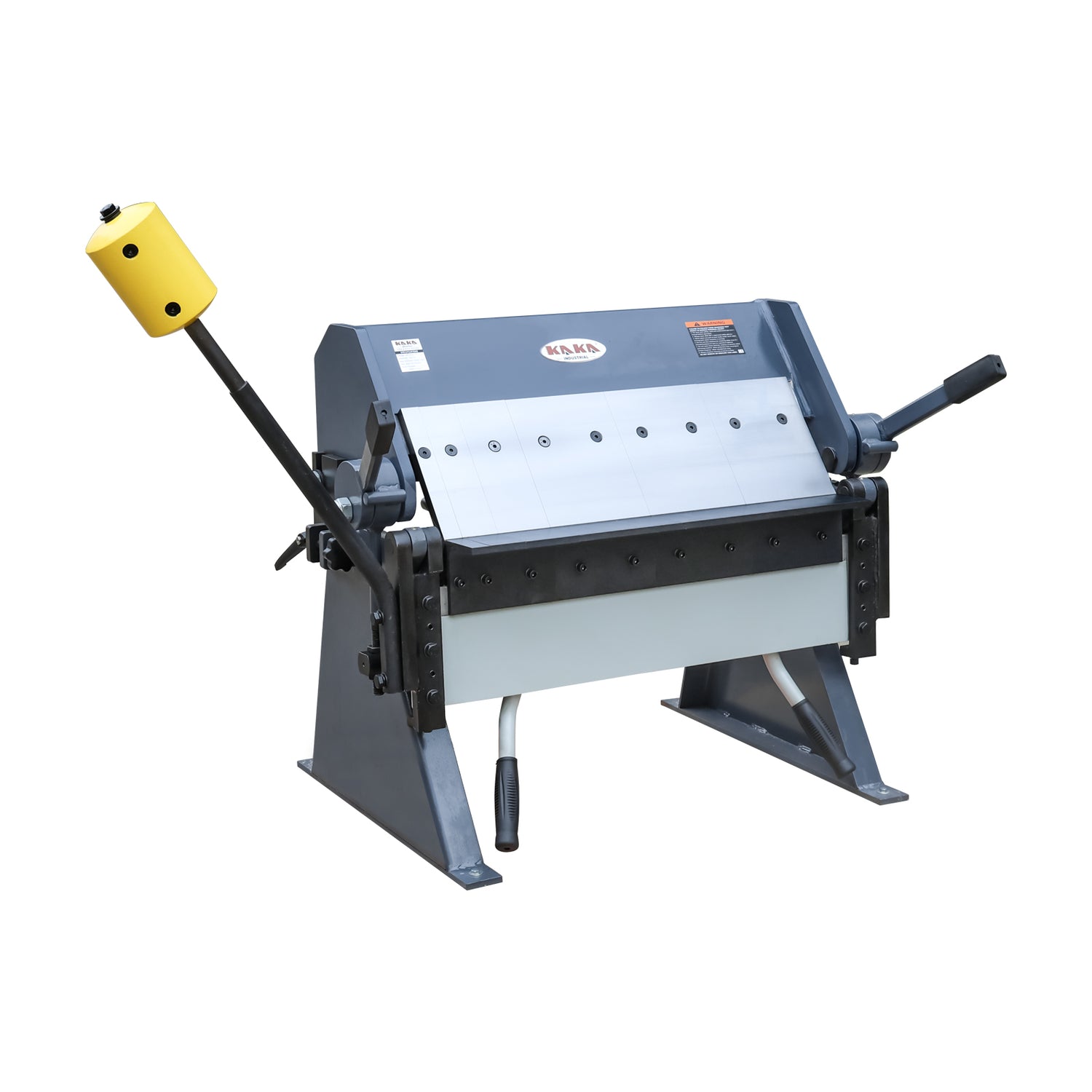

KAKA INDUSTRIAL Ultra 24 inch Box and Pan Brake, 3-Segment Fingers Sheet Metal Brake with Precision Gap Control & Rear Stops, Bends 16 Gauge (1.5mm) Mild Steel,3.35" (85mm) Max Box Depth XW-2416
Features

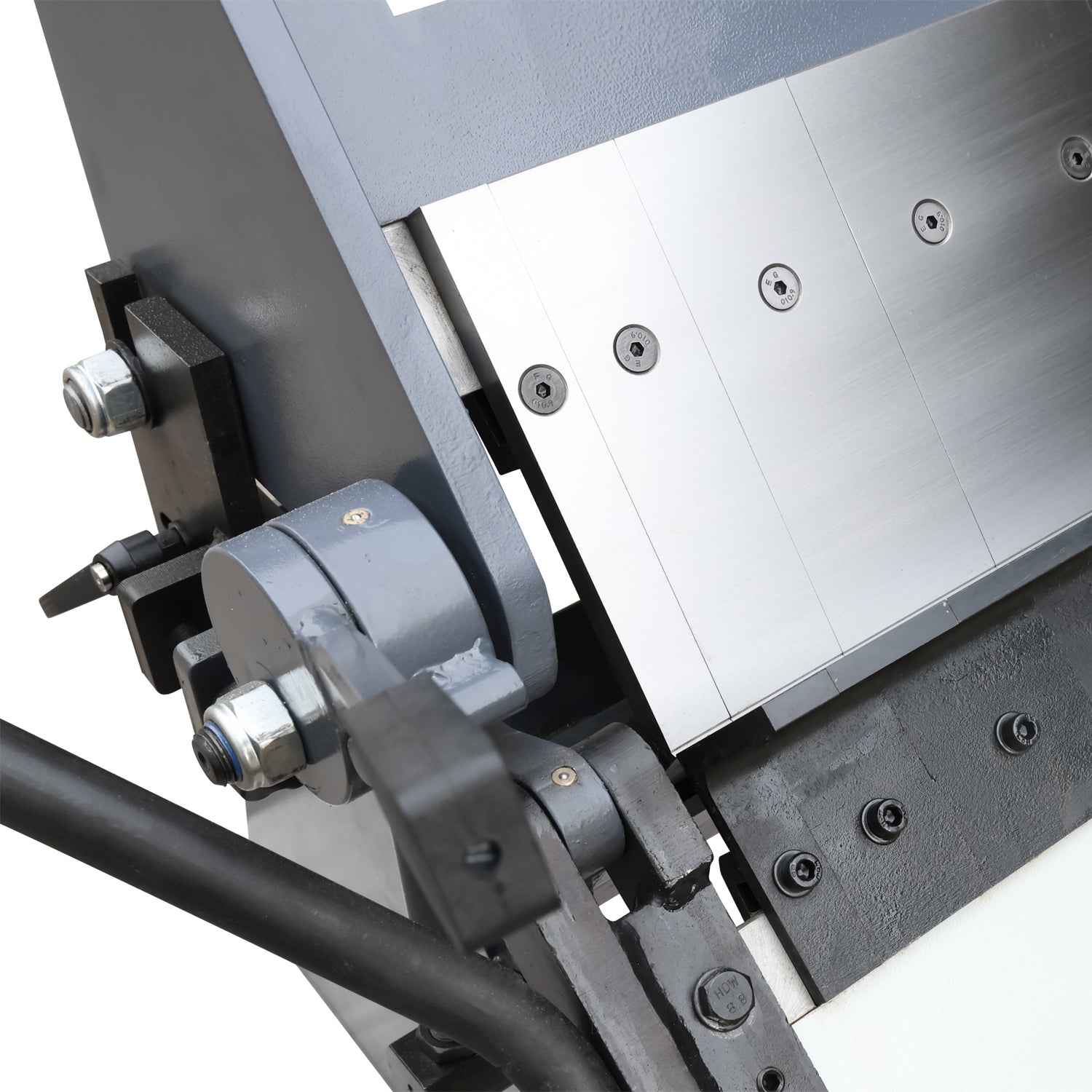

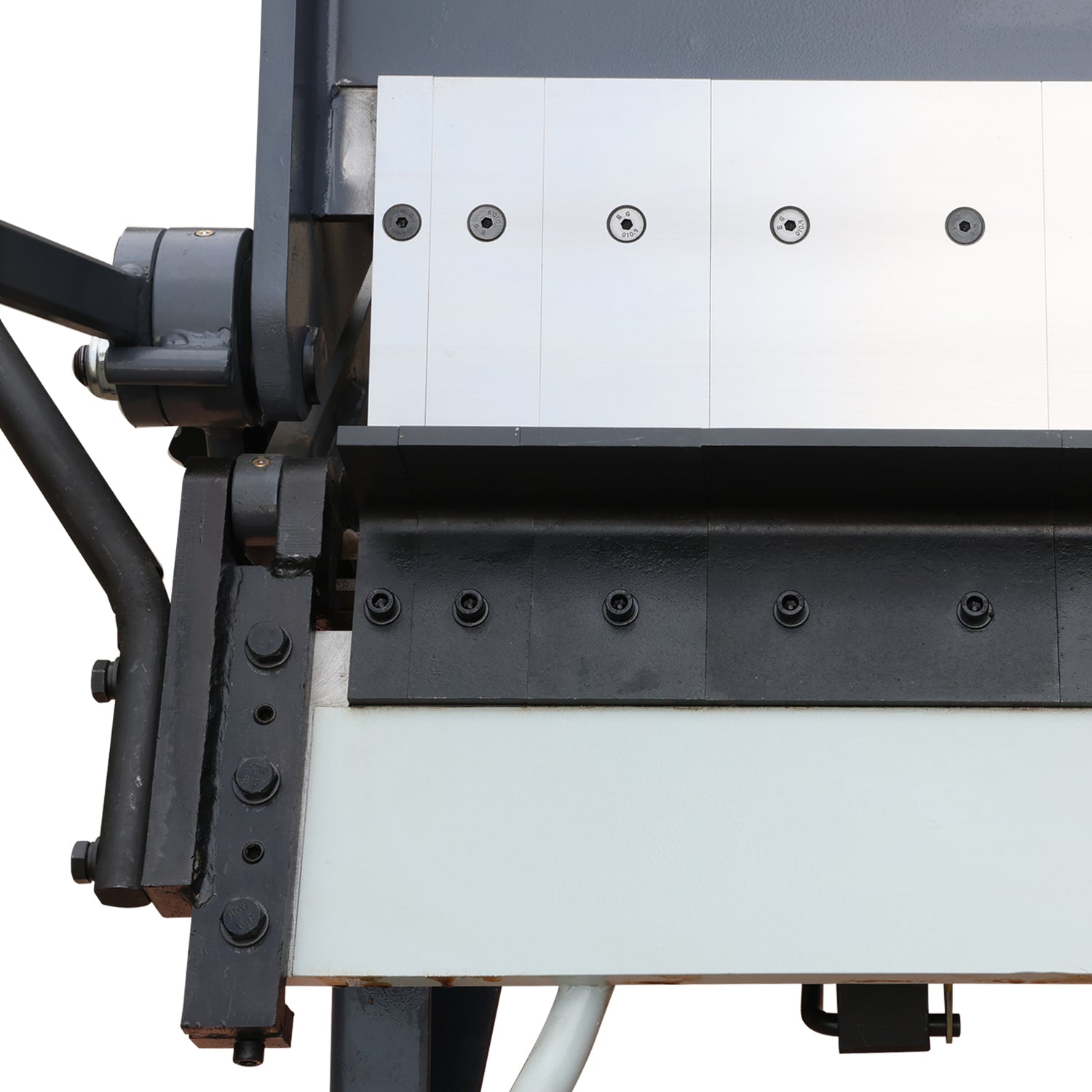

3-Segment Movable Finger Design for Ultimate Flexibility - Unique movable fingers on upper clamp, bed AND apron (not just upper jaw) – enables complex box, pan and channel bends that standard brakes can’t achieve. No retooling needed for multi-shape fabrication, perfect for custom sheet metal projects.

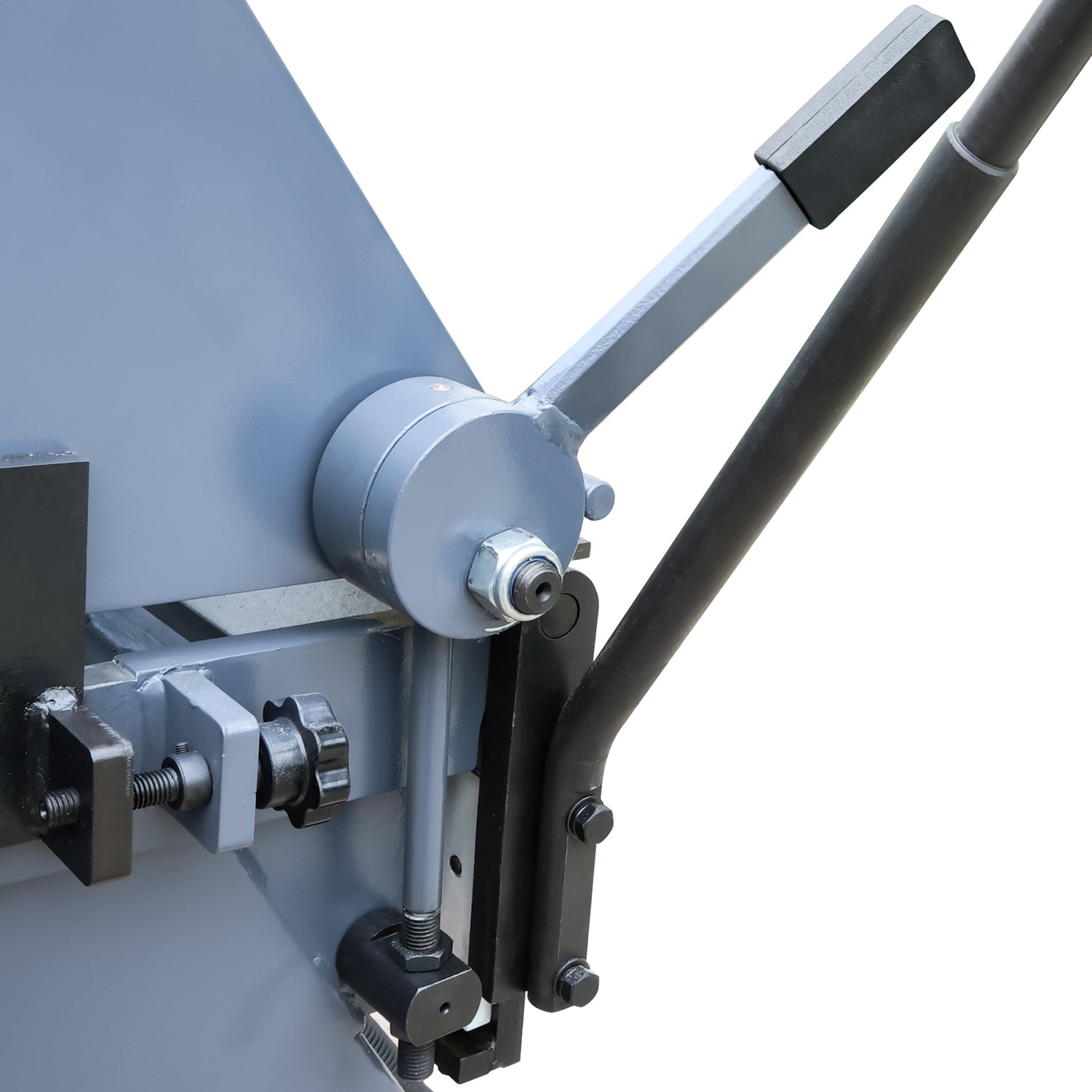

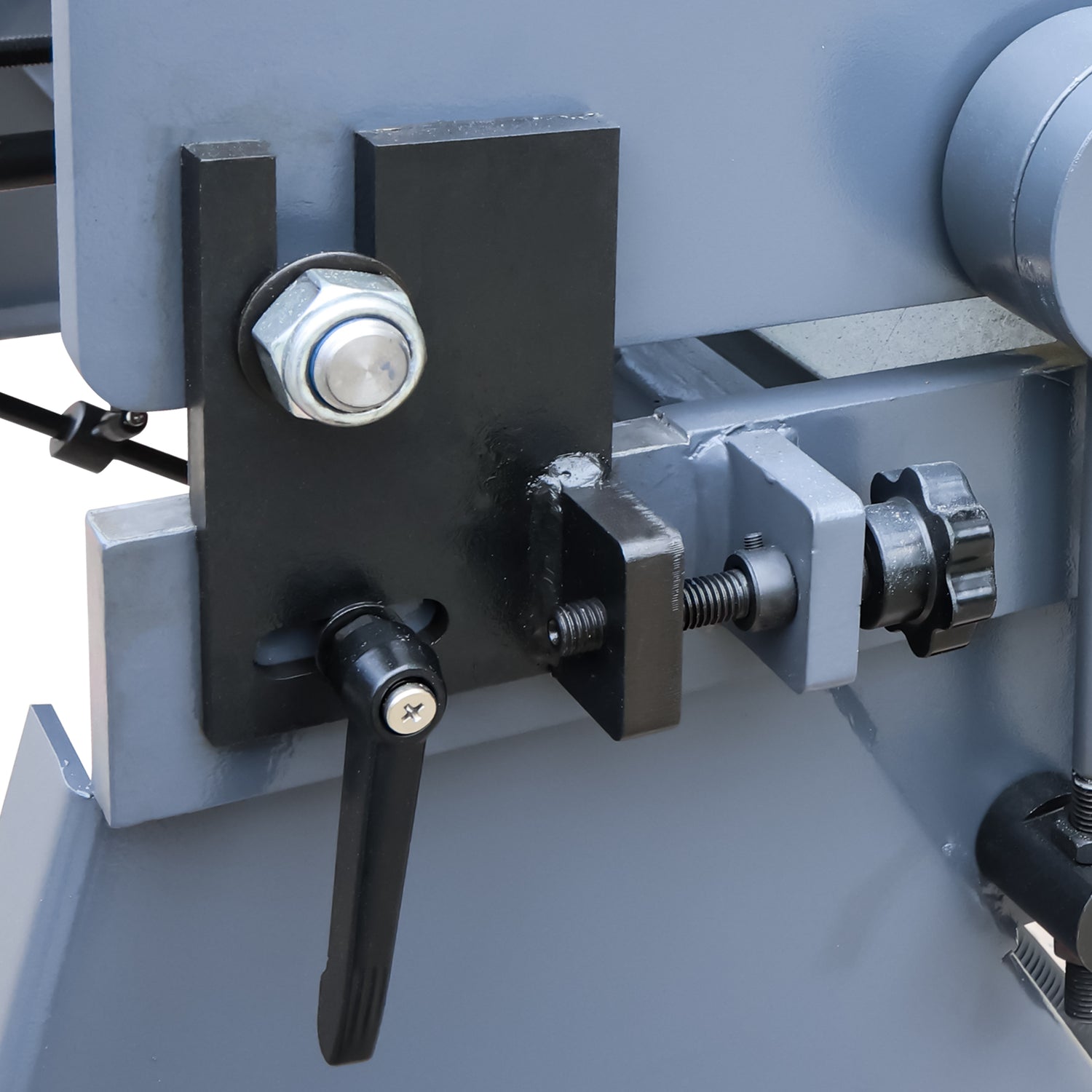

Millimeter-Level Precision Gap Control & Sturdy Build - Knob-type blade gap adjustment for wrinkle-free, consistent bends on mild steel, aluminum and stainless steel. Thickened reinforced body ensures stability under load, supports 16 gauge (1.5mm) mild steel across the full 24" (610mm) bending length.

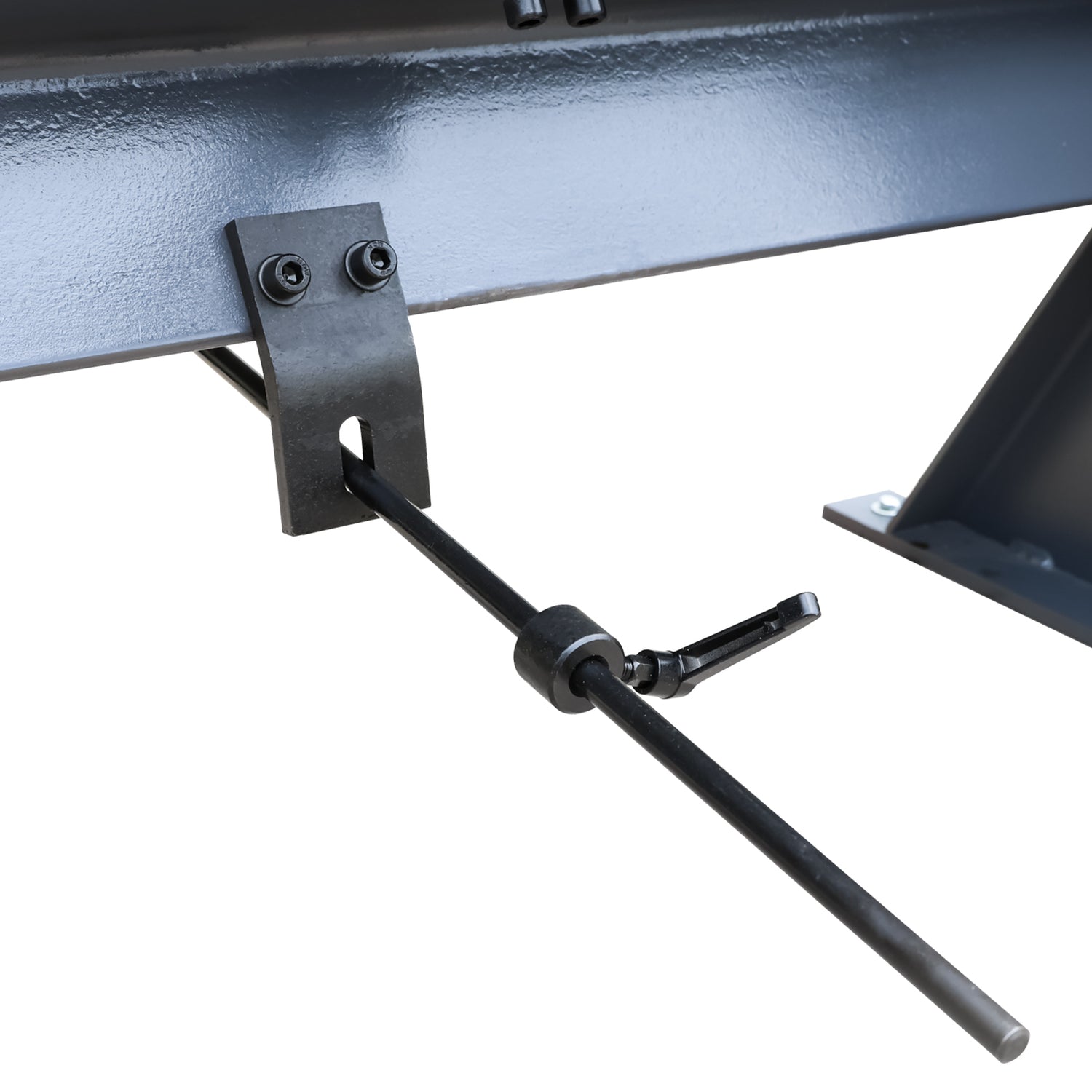

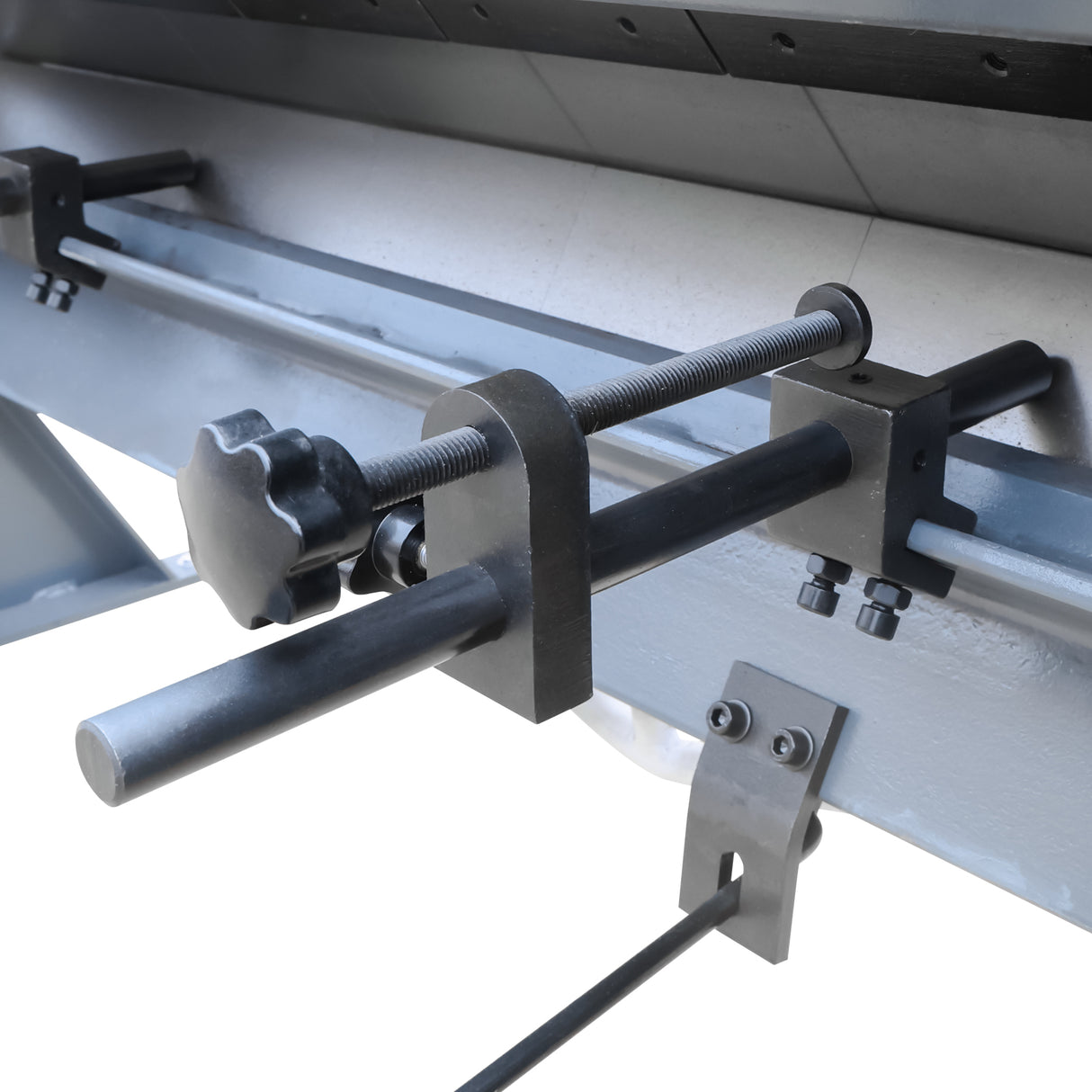

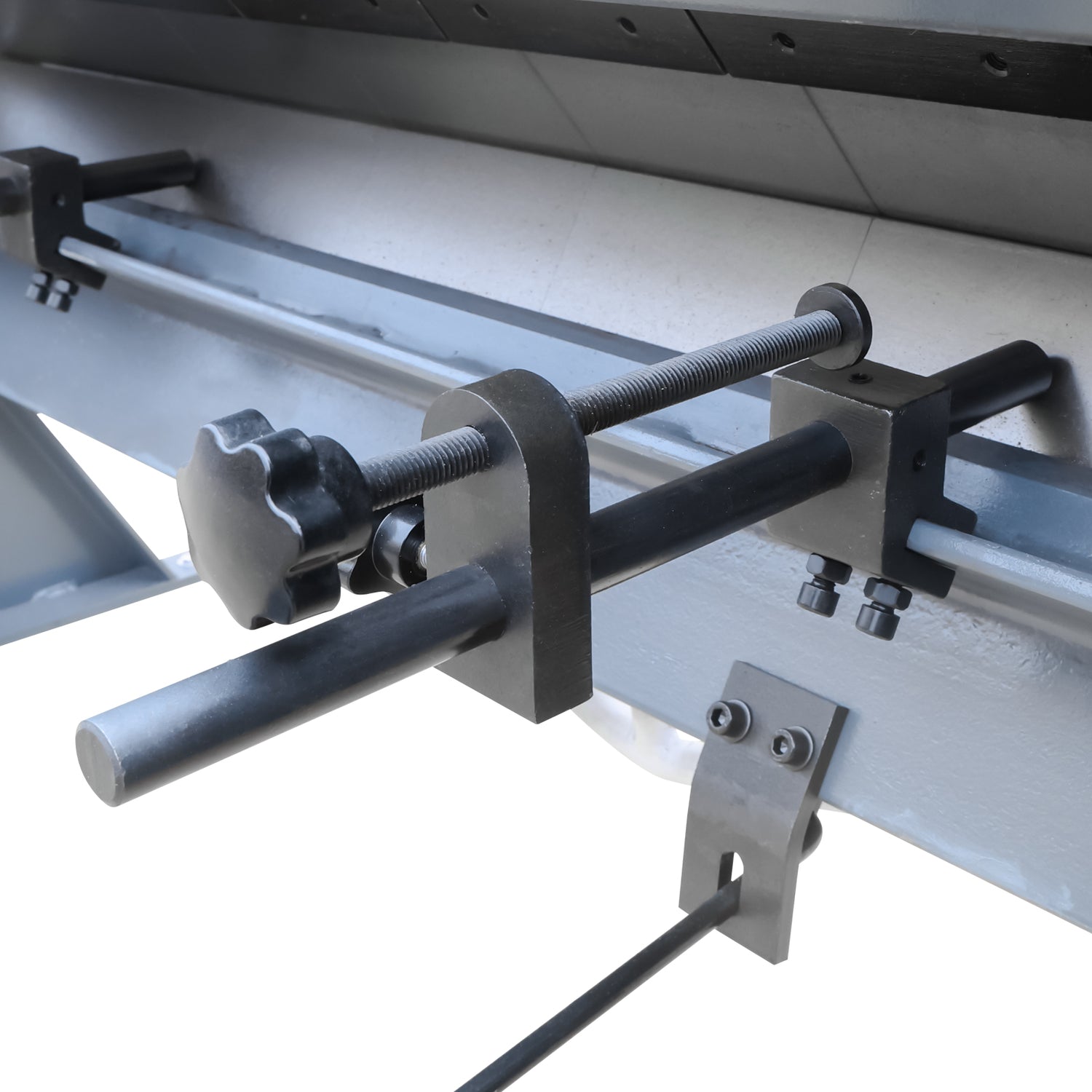

Repeatable Accuracy with Angle Limiter & Rear - Stops 0° to 125° bending angle limiter for uniform results in production runs; rear stop adjusts up to 17.5" (445mm) for precise material positioning – eliminates manual measurement errors and boosts workflow efficiency.
3.35" (85mm) Deep Box Capacity + Complete Interchangeable Fingers - Extra deep box depth for forming larger, deeper pans/boxes; comes with 4 interchangeable upper fingers (5", 3", 2", 1") – fits all project sizes and intricate bending needs for professional sheet metal work.
Heavy-Duty Construction & Secure Shipping - 353 lbs (160kg) net weight solid steel build for long-term durability; shipped in a robust wooden crate (364 lbs/165kg gross) with compact packaging (38.2"x24.4"x32.3"). Machine dimensions: 46.5"x24.8"x32.1" (1180x630x815mm) – arrives damage-free and ready to use.
Specifications
| Bending Length | 24" (610 mm) |
| Max Bending Thickness | 16 Gauge (1.5 mm) Mild Steel |
| Max Box Depth | 3.35" (85 mm) |
| Bending Angle Range | 0° – 125° |
| Max Rear Stop Adjustment | 17.5" (445 mm) |
| Interchangeable Upper Fingers | 5", 3", 2", 1" (1 piece each) |
| Machine Dimensions (L × W × H) | 46.5" × 24.8" × 32.1" (1180 × 630 × 815 mm) |
| Net / Gross Weight | 353 lbs (160 kg) / 364 lbs (165 kg) |
| Packaging Dimensions (Wooden Crate) | 38.2" × 24.4" × 32.3" (970 × 620 × 820 mm) |
