KAKA Industrial TR-40 Square Tube Roll Bender, Solid Construction Square and Rectangular Tubing Bender, Portable Tubing Rolling Bender

  • $289.99


About KAKA Industrial: A Company Delivers High Quality Products with Fast Shipment and Lowest Price Possible. We Always Fulfill What We Have Promised

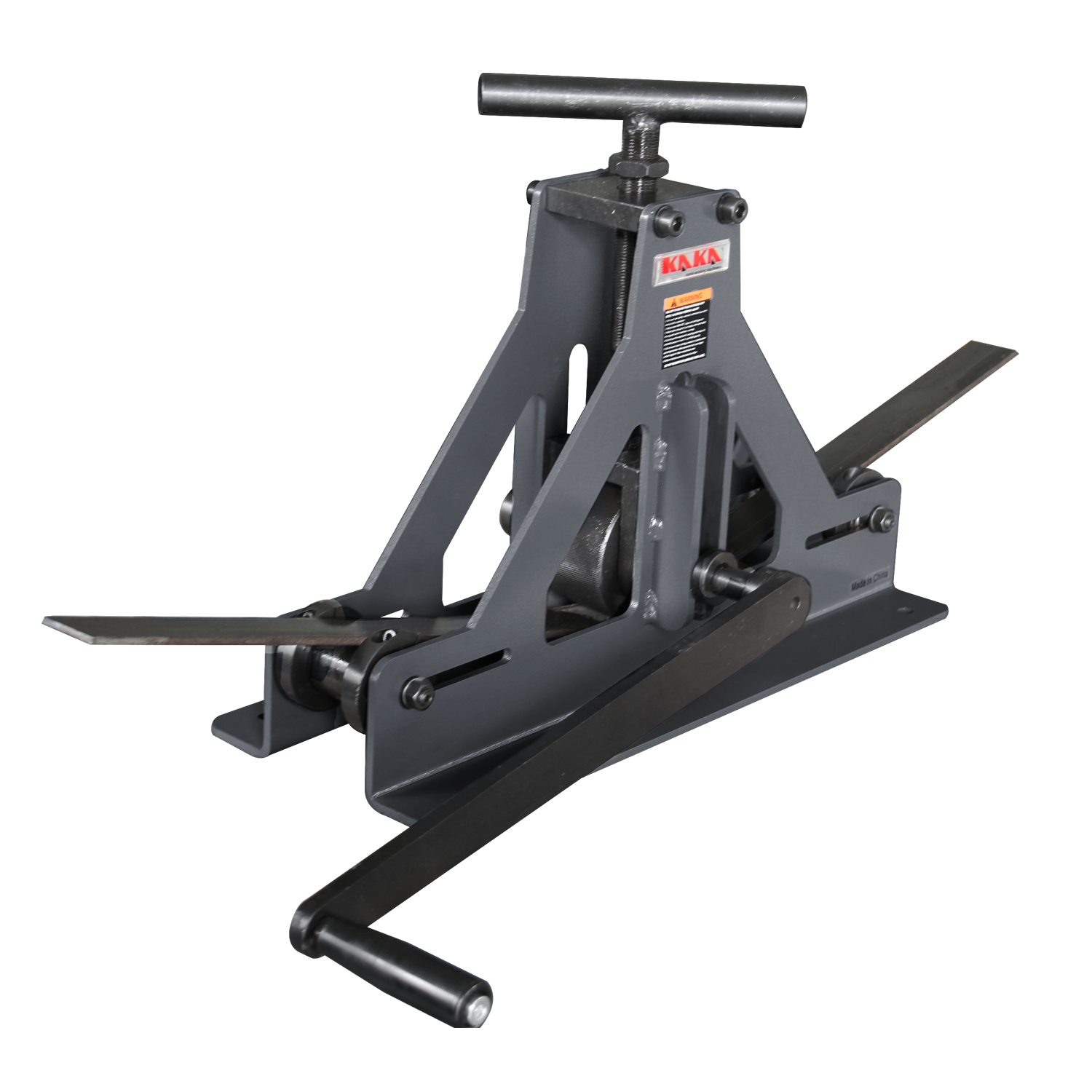

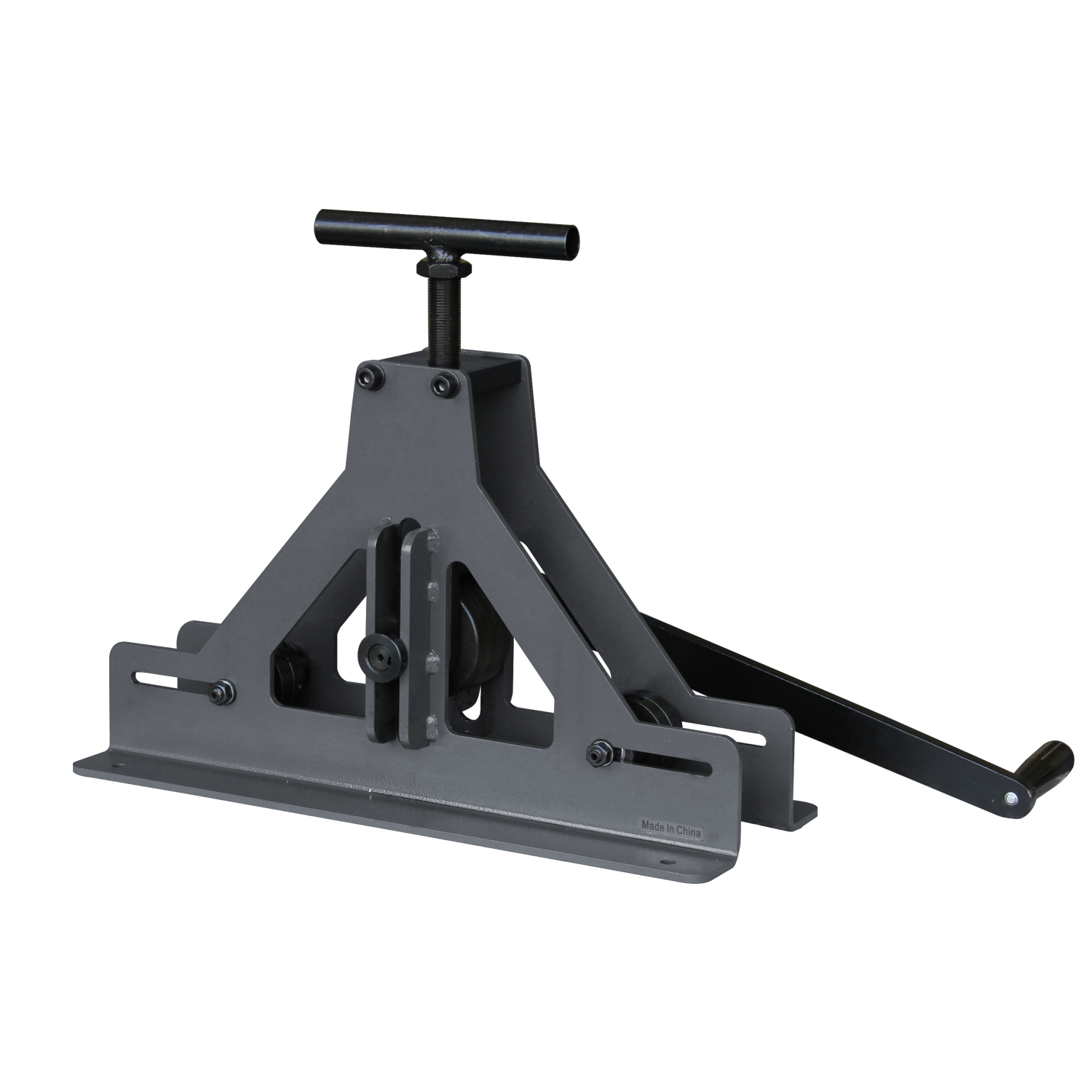

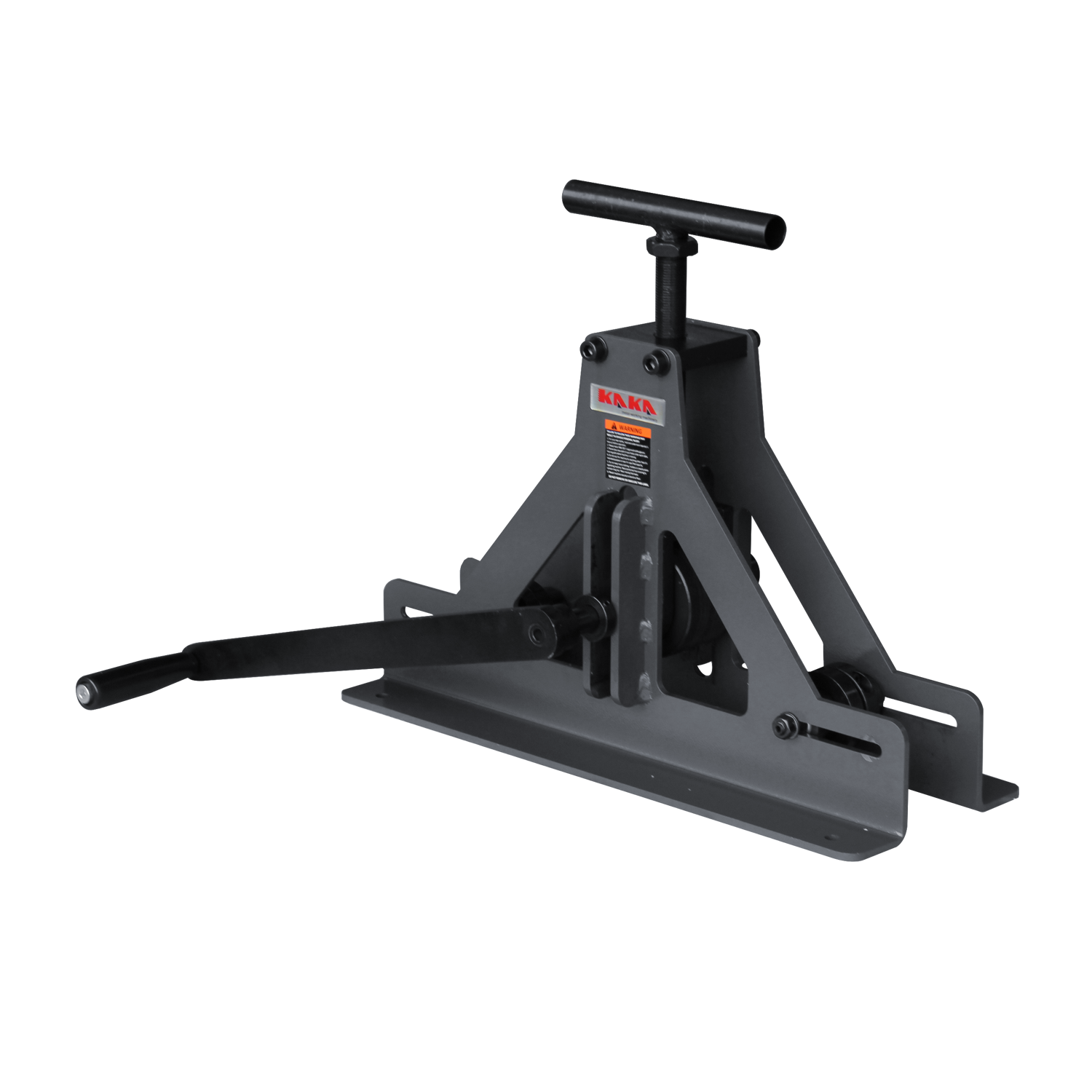

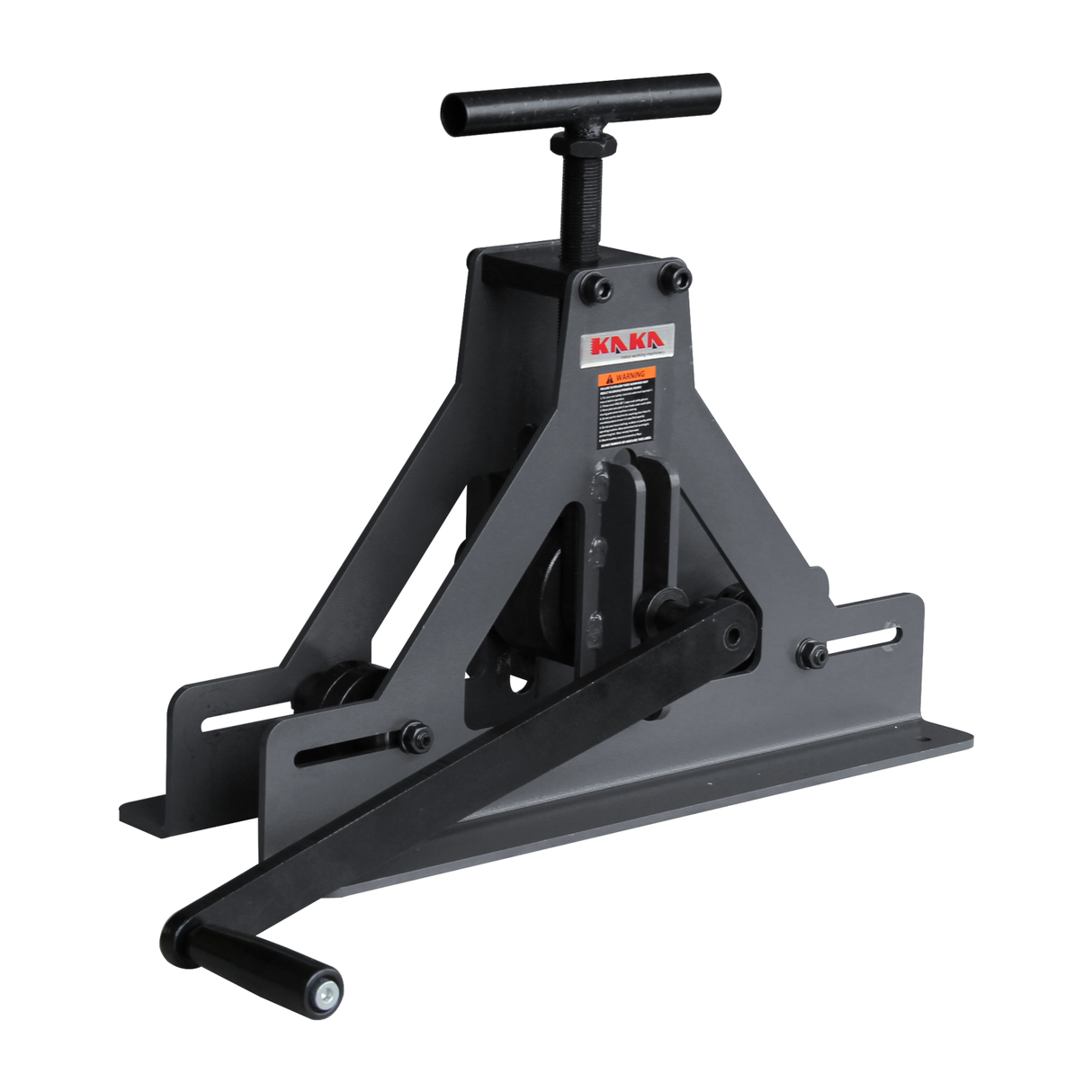

Kaka Industrial TR-40 Manual Square Rectangular Tube Rolling Bender Overview

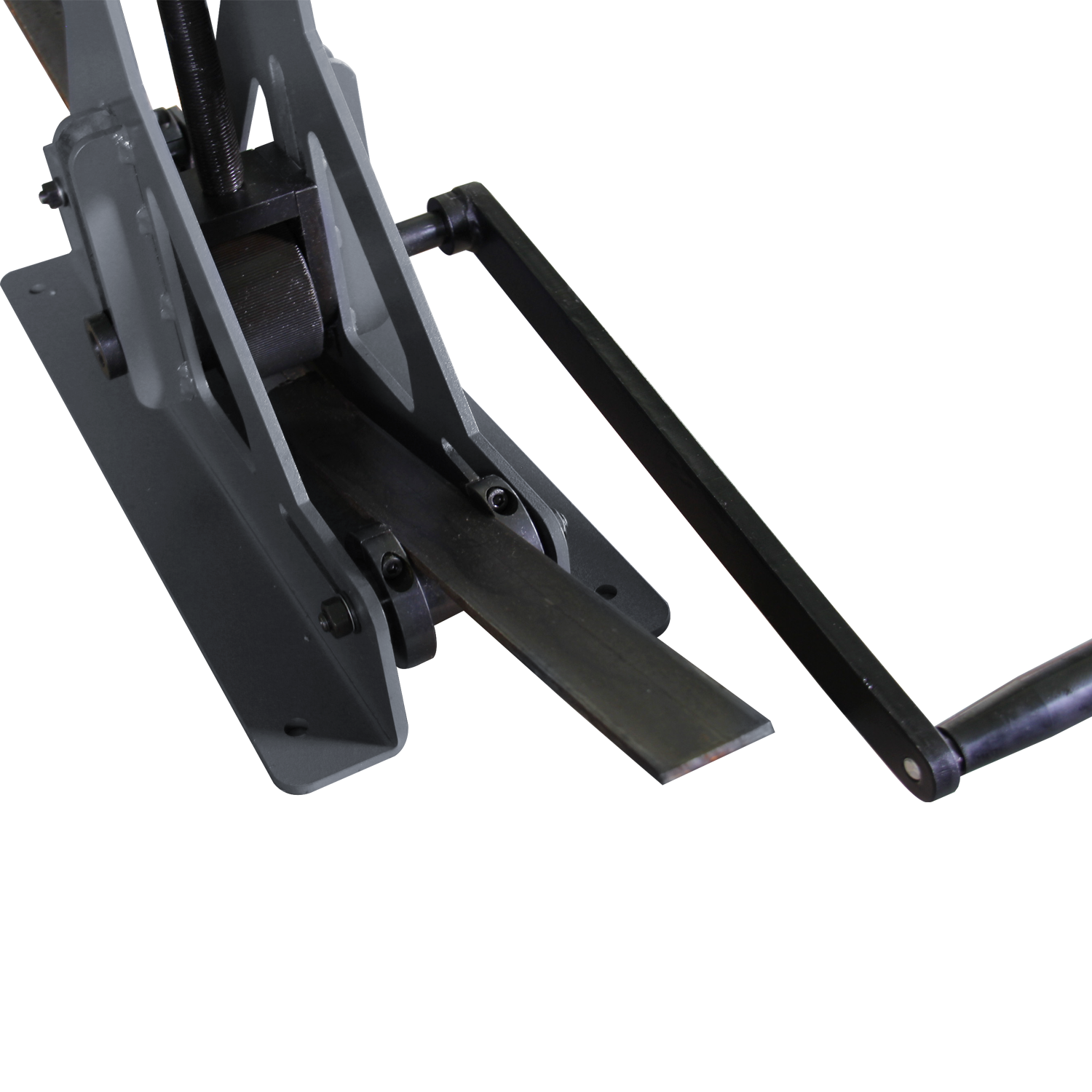

Kaka Industrial TR-40 tubing bender is specifically designed to deal with square and rectangular tube bending process. It is also built for rolling box section and flat bar into curves or completing circles. The tubing bender can process materials such as steel, cuprum and aluminum. Powered by hand and bench mounted operation, the tube bender can handle flat bar (mild steel) up to 2"x1/4" or 1-1/2" square tubes with a thickness 0f 1/16".The flat bar can be curved gently for decorative applications.

Specification

  • Model: TR-40
  • Item No: 191006
  • Roller Adjustment: Manual
  • Weight: 42lb
  • Warranty: 1-Year


Capacities

  • Diameter of Upper Roller: 3.5" (90mm)
  • Diameter Of Lower Roller: 1.5" (40mm)
  • Thickness Of Upper Roller: 2" (50mm)
  • Thickness Of Lower Roller: 3" (78mm)
  • Vertical Travel Of Upper Roller: 6" (150mm)
  • Maximum Center Distance Of Lower Roller: 18 7/8" (480mm)
  • Minimum Center Distance of Lower Roller: 12.5" (320mm)


Max.capacity (in)

Mild steel

0.78x.078x0.047

0.98x0.98x0.047

1.18x1.18x0.06

1.57x1.57x0.06




Copper

0.78x0.78x0.06

0.98x0.98x0.06

1.18x1.18x0.068

1.57x1.57x0.068




Aluminum

0.78x0.78x0.068

0.98x0.98x0.068

1.18x1.18x0.078

1.57x1.57x0.078




Min R(in)

7"

6-3/4"

8"

8-3/8"




MinΦ(in)

17-3/4"

20"

22"

24"
