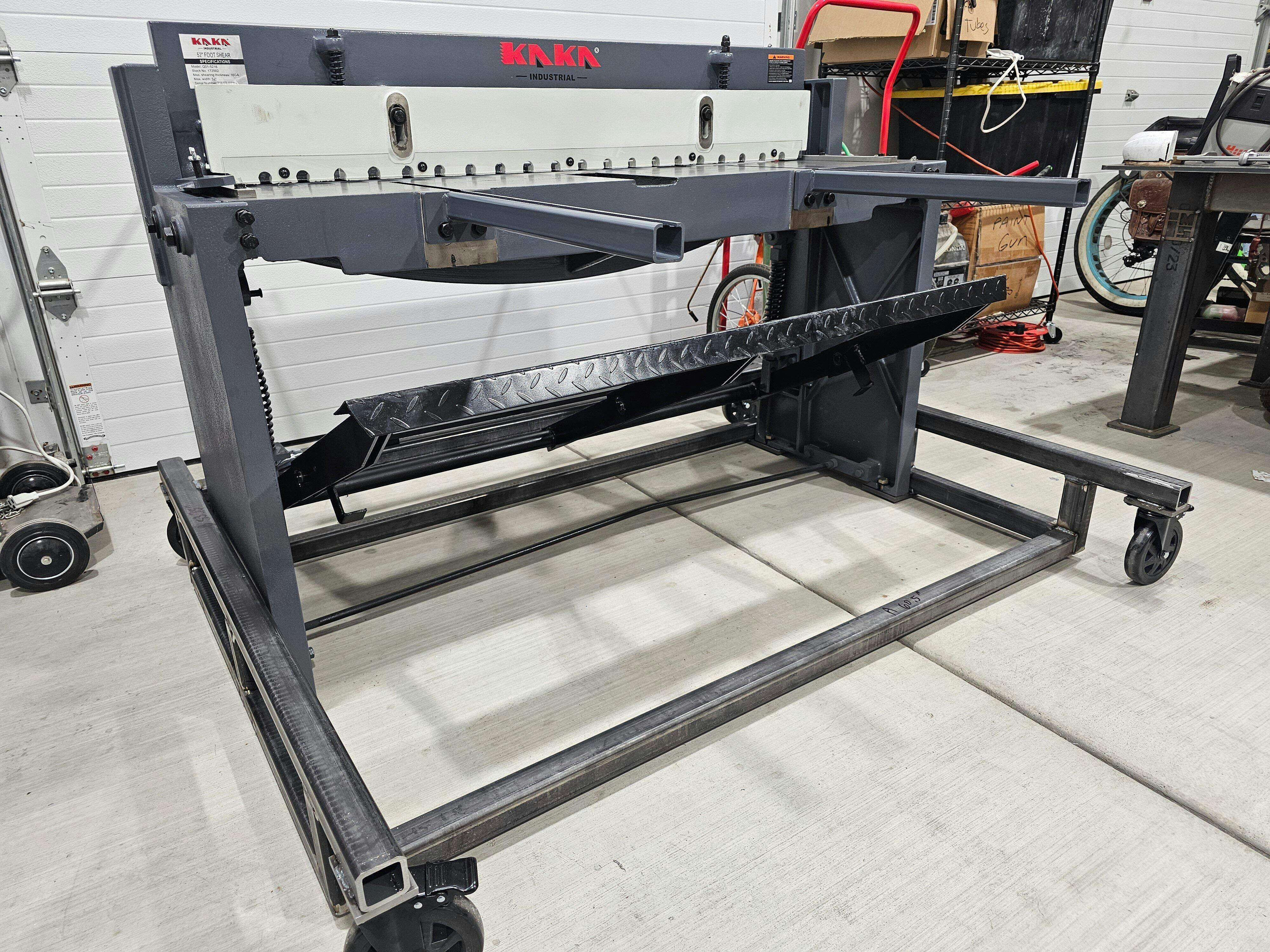

KAKA Industrial 52-Inch Sheet Metal Foot Shear Overview
The 52-inch foot shear is designed for small or medium shops or educational institutions that are running a tight budget. Precision, High Quality, Cast-Iron Frame, Long-Term service life are the essential values this shear possesses. With a cast-iron frame, it stabilize the working process while secures a better shear results. Quality Chromium blades will ensures the long term serivce. It is designed with a high industry standard.
High Precision, Easy Operation, Solid Construction, Great Shearing Capacity Sheet Metal Foot Shear
One benefit of this foot shear is the precise shearing ability. The precise bed and beam alignment ensures shearing accuracy while the adjustable hold down clamp guarantees materials securing during operation so as to prevent errors. Another benefits of this metal foot stomp shear is the easy operation. The easy working application can be achieved via compound leverage which allows the user to perform work within the machine's rated capacity. Purchase one today to try this great metal foot shear!
- Hi-quality cast-iron grade frame to eliminate deflection across the blade-span and blade frame work
- Adjustable clamping bar keeps material secured during operation
- Precise bed and beam alignment assures working accuracy
- Upper blade is a four-way; bottom blade is two-way
- Rear depth gauges with micro adjustment for precise measurements
- 16 gauge maximum capacity for mild-steel
- 14 gauge maximum capacity for aluminum and copper alloys
- 20 gauge maximum capacity for stainless steel
EQUIVALENCY CHART
Mild steel………………………….0.060”
Stainless steel……………………0.036”
SAE 1050 cold rolled steel…0.036”
Aluminum…………………………0.100”
Soft brass………………………….0.072”
1/2 Hard brass………...............0.064”
Annealed phosphor bronze……0.064”
Soft copper…………………………….0.072”
Hard copper……………………………0.064”
ABS plastic………………………..……0.200”
Specification:
- Item No. 172002
- Model Q01-5216
- Bed width (Inch) 52-Inch
- Max. shearing thickness (mild Steel)16ga
- Back gauge range (mm) 0-700
- Packing size (inch) 66x30x45
- N.W. / G.W. (lb) 1082/1202
Standard accessories:
- Back gauge
- Front gauge
- Foot pedal
1.KAKA Industrial provides 12 months warranty for this product from the date of purchase.
2. Please note that this warranty does not apply to defects due directly or indirectly to misuse, abuse, alterations, lack of maintenance or consumable parts.
3. The original end-user must give written notice to Seller of any suspected defect in the Goods prior to the expiration of the warranty period.
Customer Reviews
Another very good product from KAKA. This tool complements my KAKA finger brake. Heavy duty products that perform as expected. Both tools are being used to build aviation parts which tend to be thinner and smaller. End result is we are not exploring the outer edges of this tool’s capabilities. The sheer is probably more than we need but I like good tools and want to but able to occasionally cut a 4x8 sheet of aluminum or smaller piece of 4130. A significant upgrade from tools we used previously.
I’m still waiting to receive the shear!
Very happy with this piece of equipment. Also everything went good from the initial purchase to delivery. I have zero complaints and would recommend this company to anyone in the market for metal working equipment.
Received five days after the order was placed. KAKA is great to work with. They shipped it quickly and arranged for it to be delivered to the nearest truck terminal where I picked it up. Easy to assemble. Works great. Very nice machine. Cuts straight and clean.
It states it’s rated for 16 gauge mild steel. It will cut 16 gauge in less that 48” lengths, but you will jump hard. Also no documentation is included for assembly. Looking at a picture of the finished product helps
